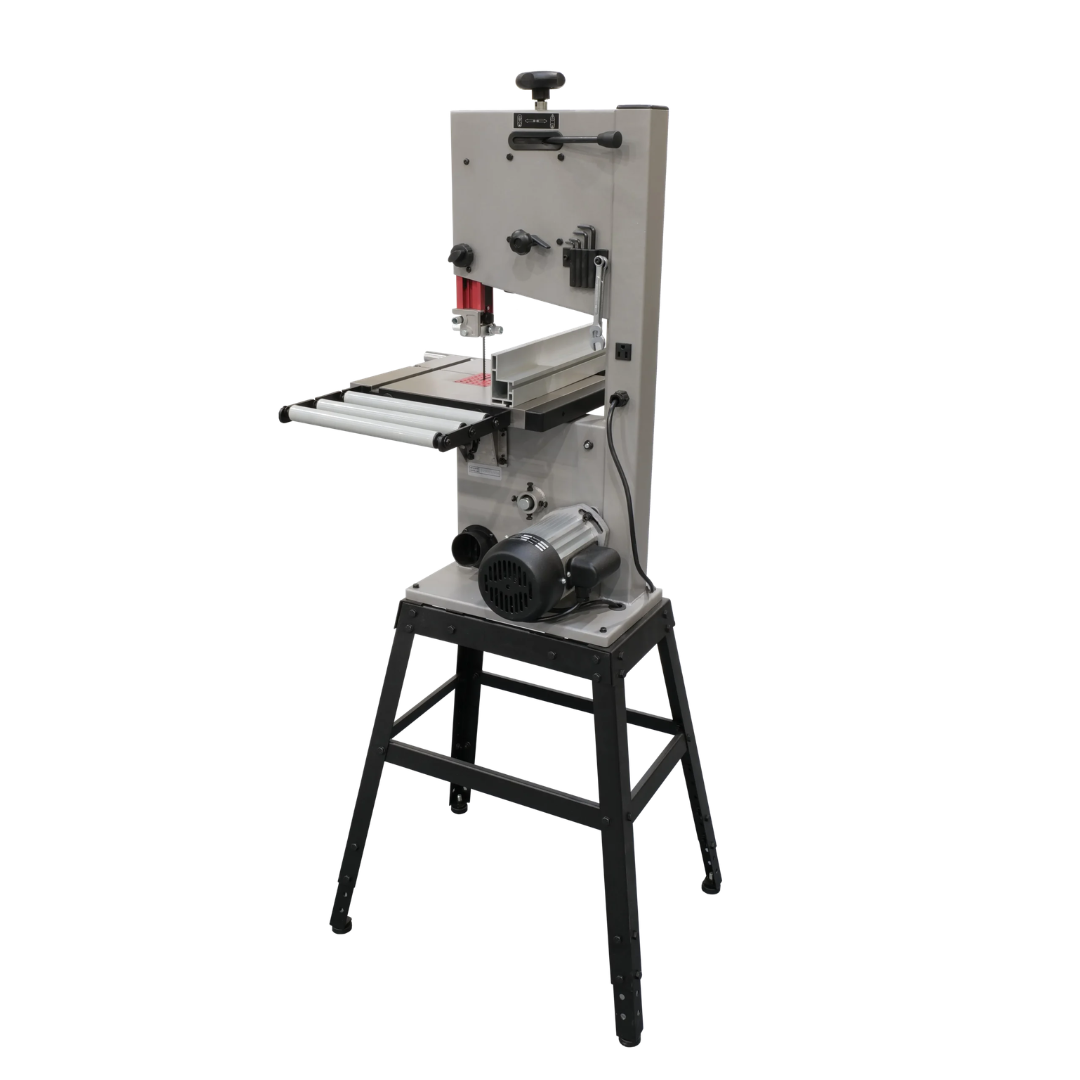

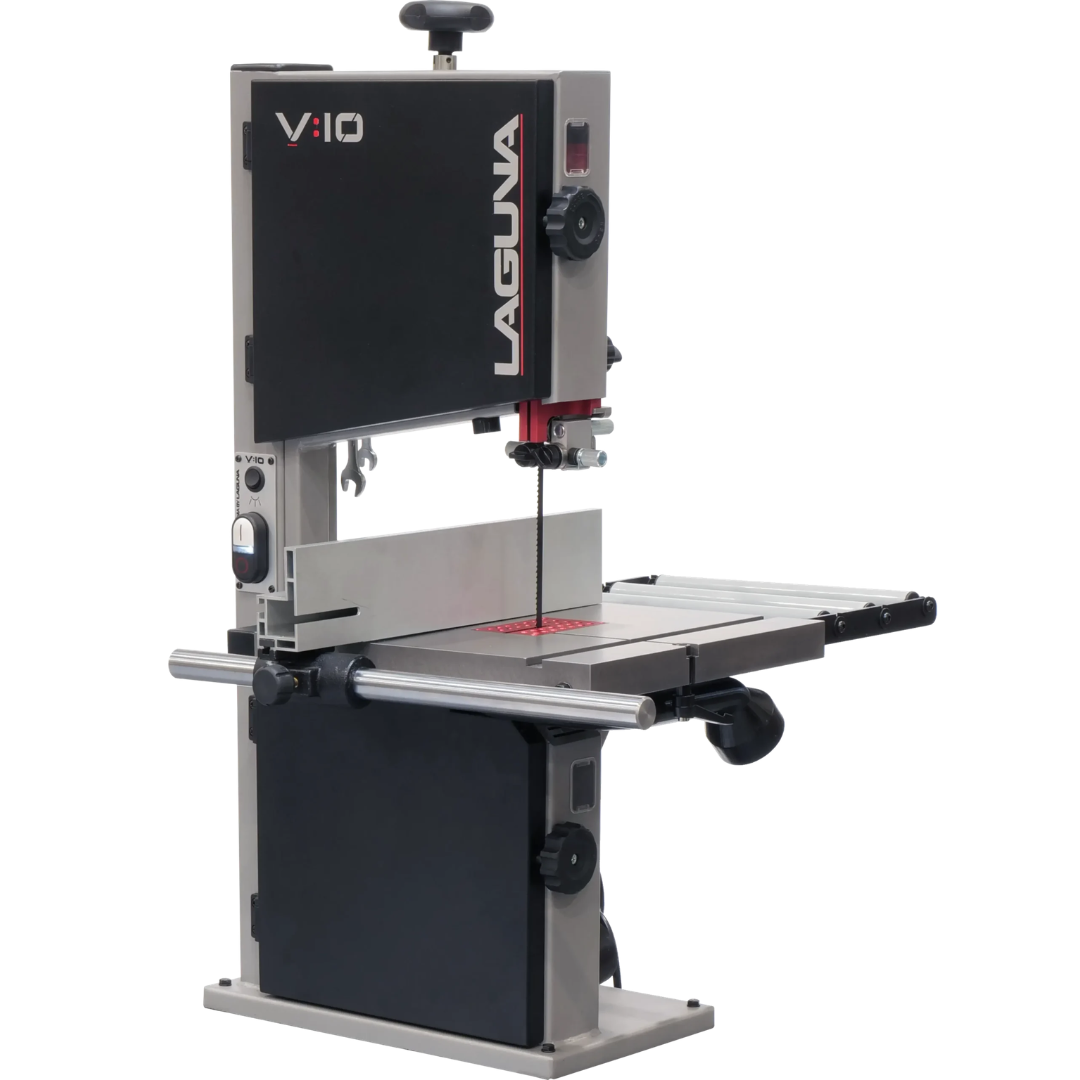

Laguna V:10 Bandsaw MBAND10V10 Applications
- Precision woodworking including cabinetry, furniture making, and custom fabrication
- Resawing small to medium stock up to 5.75” capacity
- Curved and intricate cutting for detailed design work
- General-purpose shop use for hobbyists and professional workshops
- Educational and training environments requiring reliable compact machinery
Ideal for woodworkers seeking professional performance in a compact footprint with versatile cutting capabilities.
Laguna V:10 Bandsaw MBAND10V10 Specifications
| Model | V:10 Bandsaw MBAND10V10 |
|---|---|
| Motor | 1 HP Induction Motor |
| Power | 120V AC / 60Hz / 6 Amps |

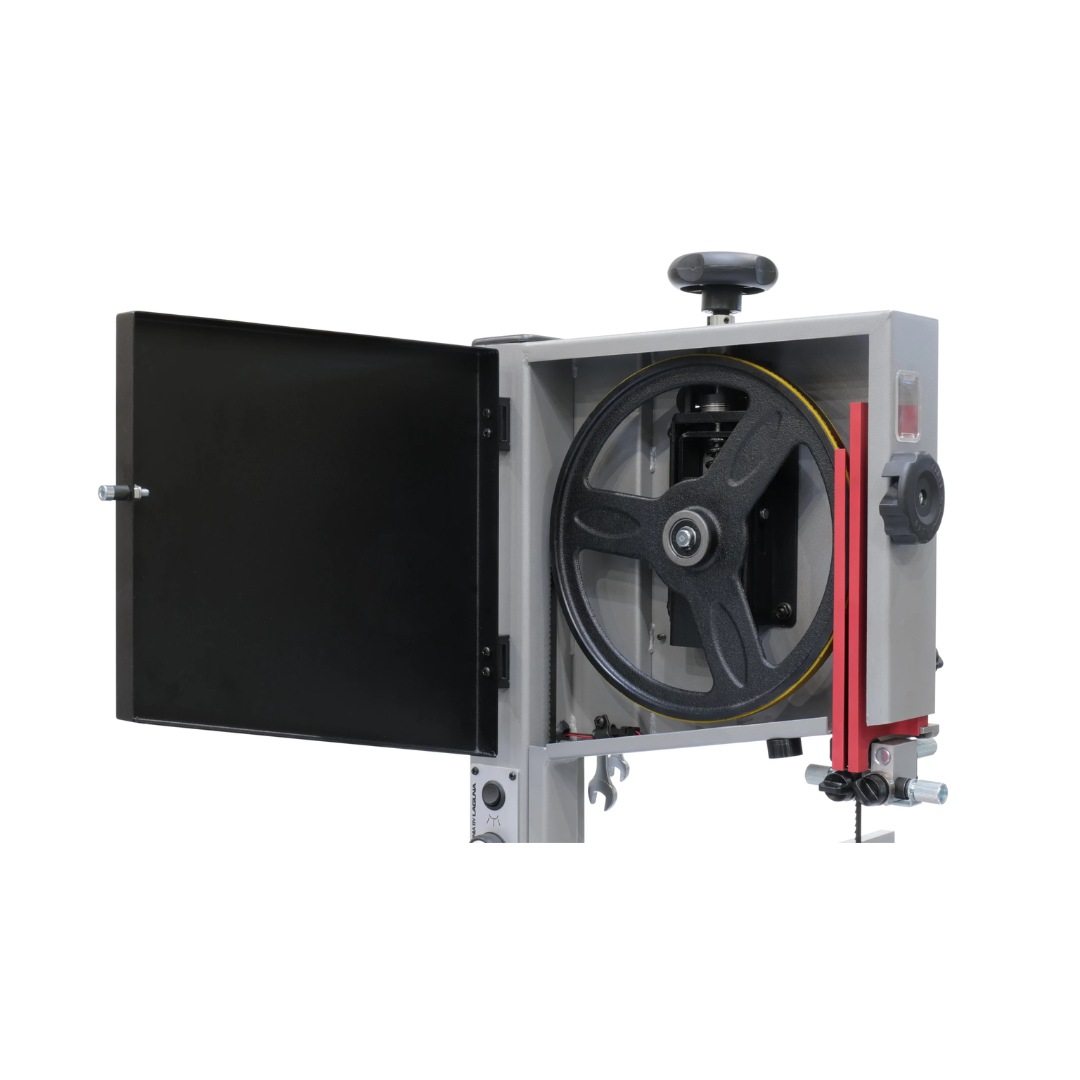

| Flywheel | 10” Cast Iron |
| Blade Length | 70-1/2” (1790 mm) |
| Blade Width Range | 1/8” – 1/2” (3 mm – 13 mm) |
| Blade Speed | 1515 / 3280 ft/min (Dual Speed) |
| Resaw Capacity | 5.75” (147 mm) |
| Throat Capacity | 9-5/8” (245 mm) |
| Table Size | 13.8” x 12.5” (350 mm x 318 mm) |

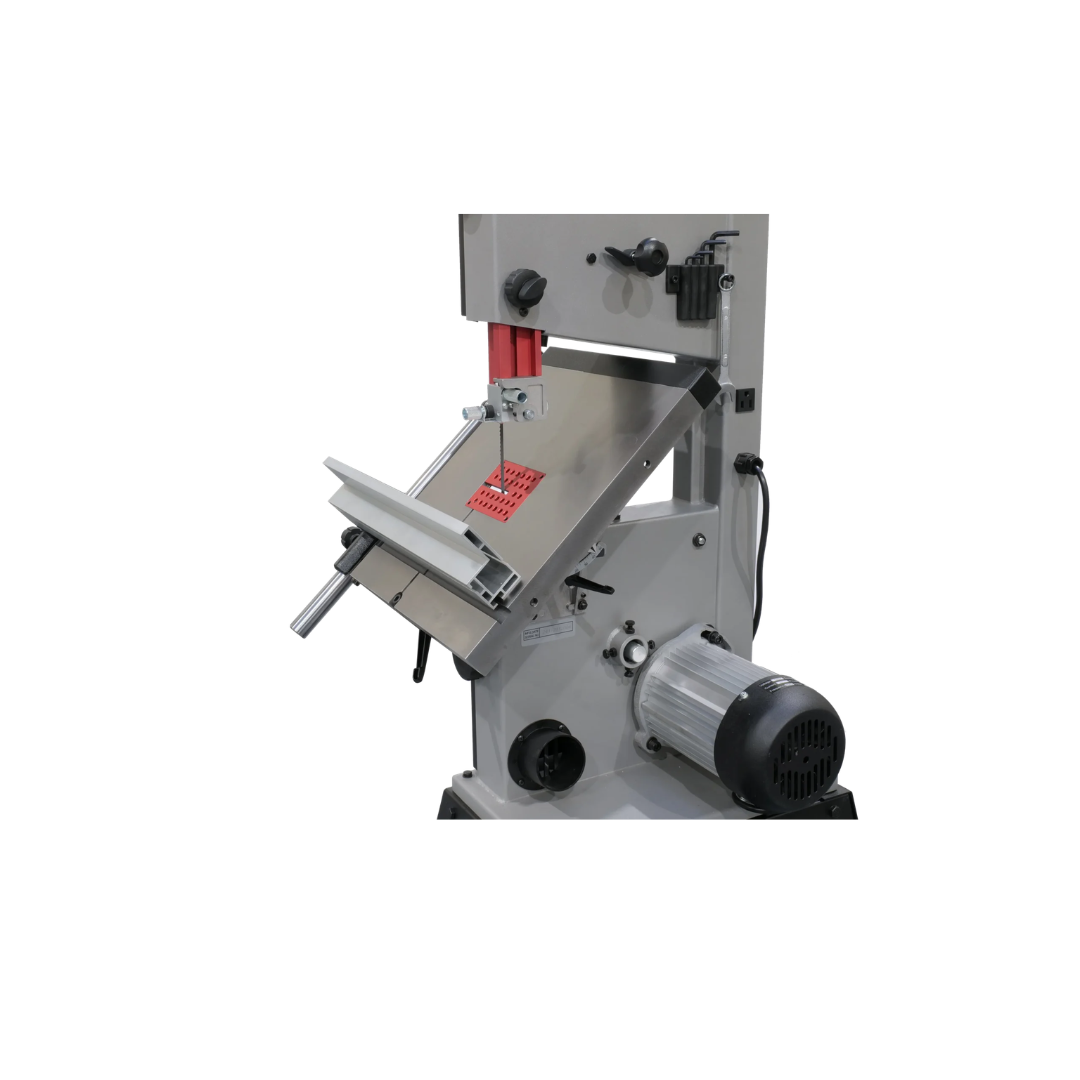

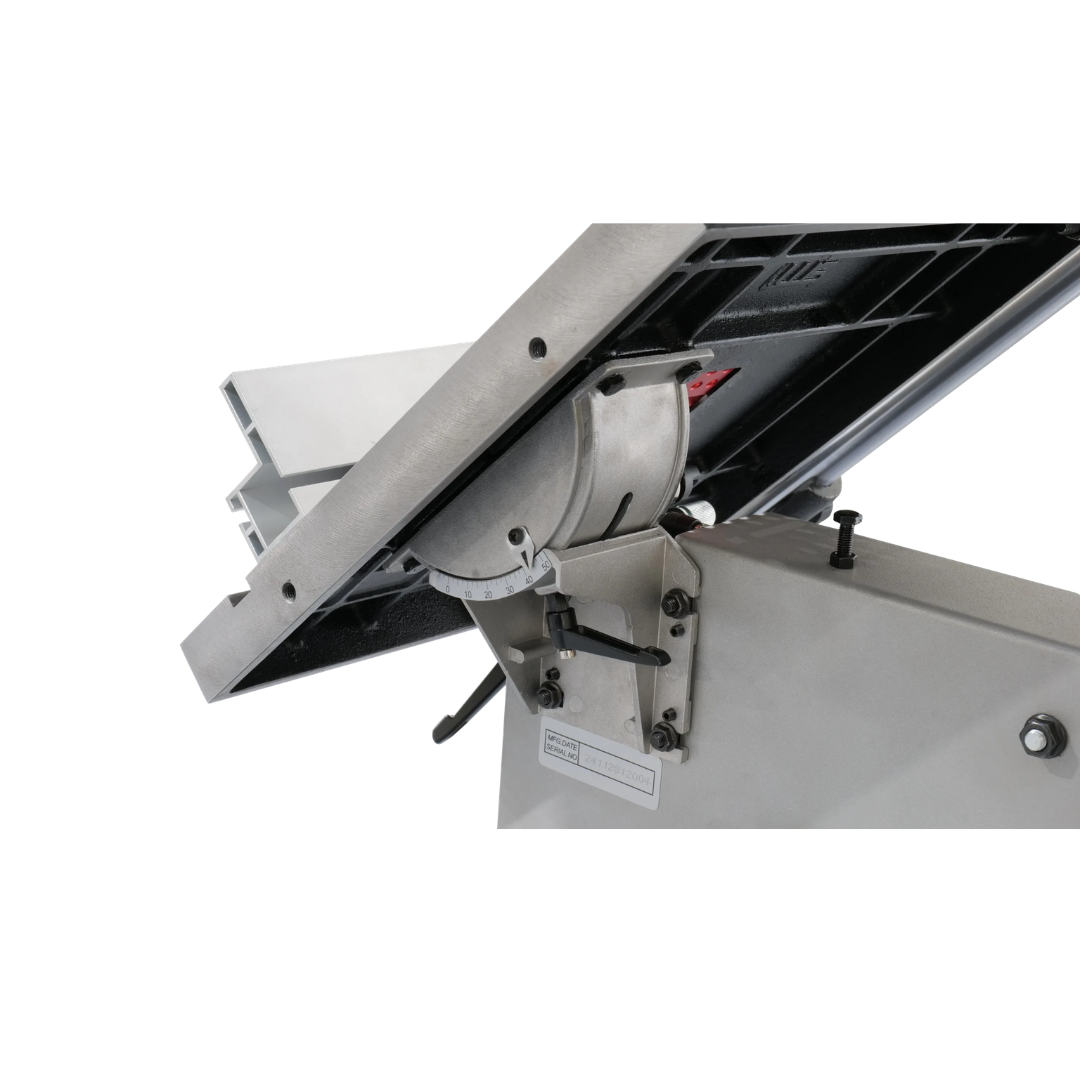

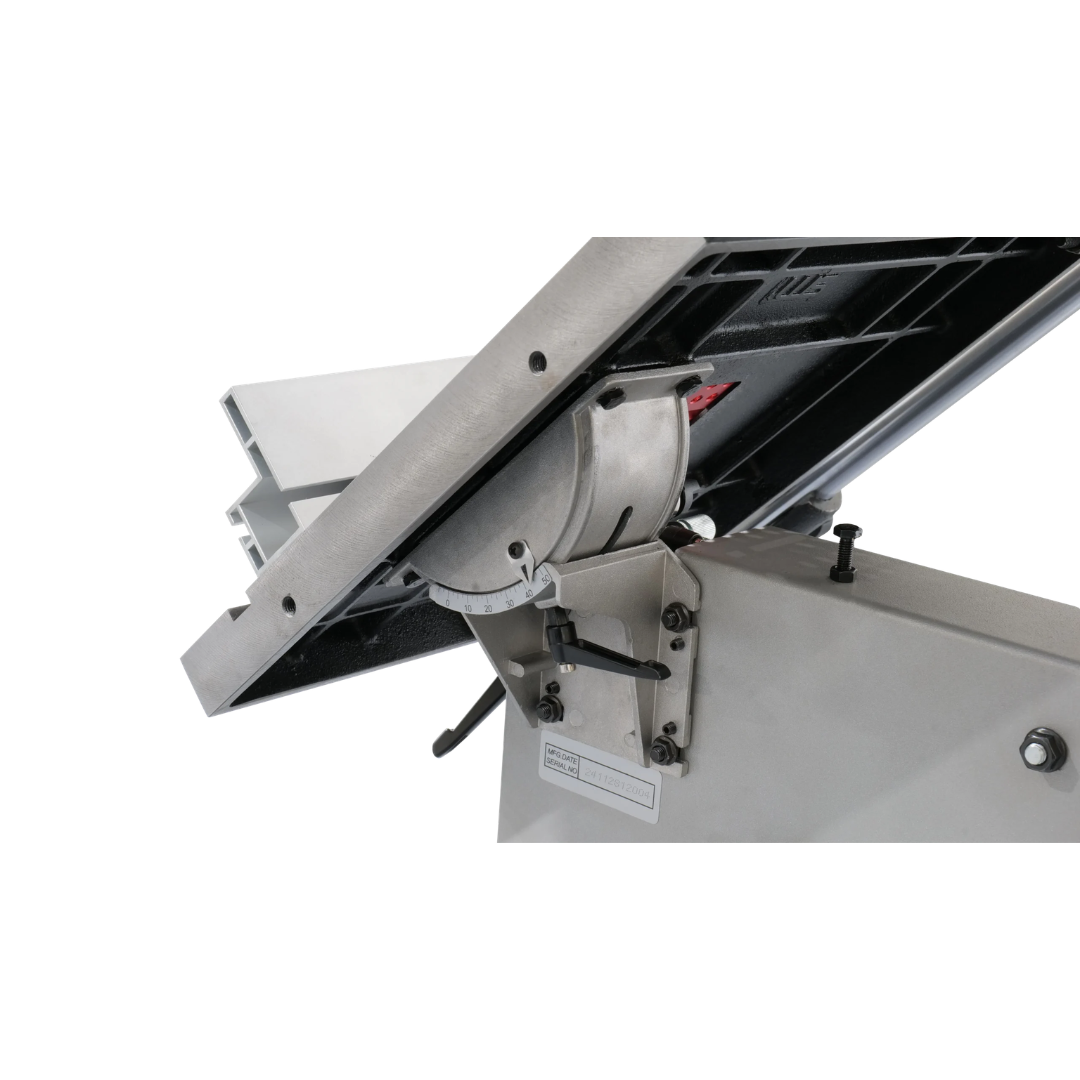

| Table Tilt | -5° to 45° |
| Table Height | 14.5” (368 mm) |
| Dust Ports | Dual 2-1/2” Ports |
| Machine Dimensions | 22.8” x 22” x 32.3” |
| Weight (Net / Gross) | 95 lbs / 99.2 lbs |
| Package Size | 35.5” x 15.75” x 17.75” |
Laguna V:10 Bandsaw MBAND10V10 Performance & Construction
- 1 HP induction motor delivers smooth, consistent cutting power with reduced vibration.

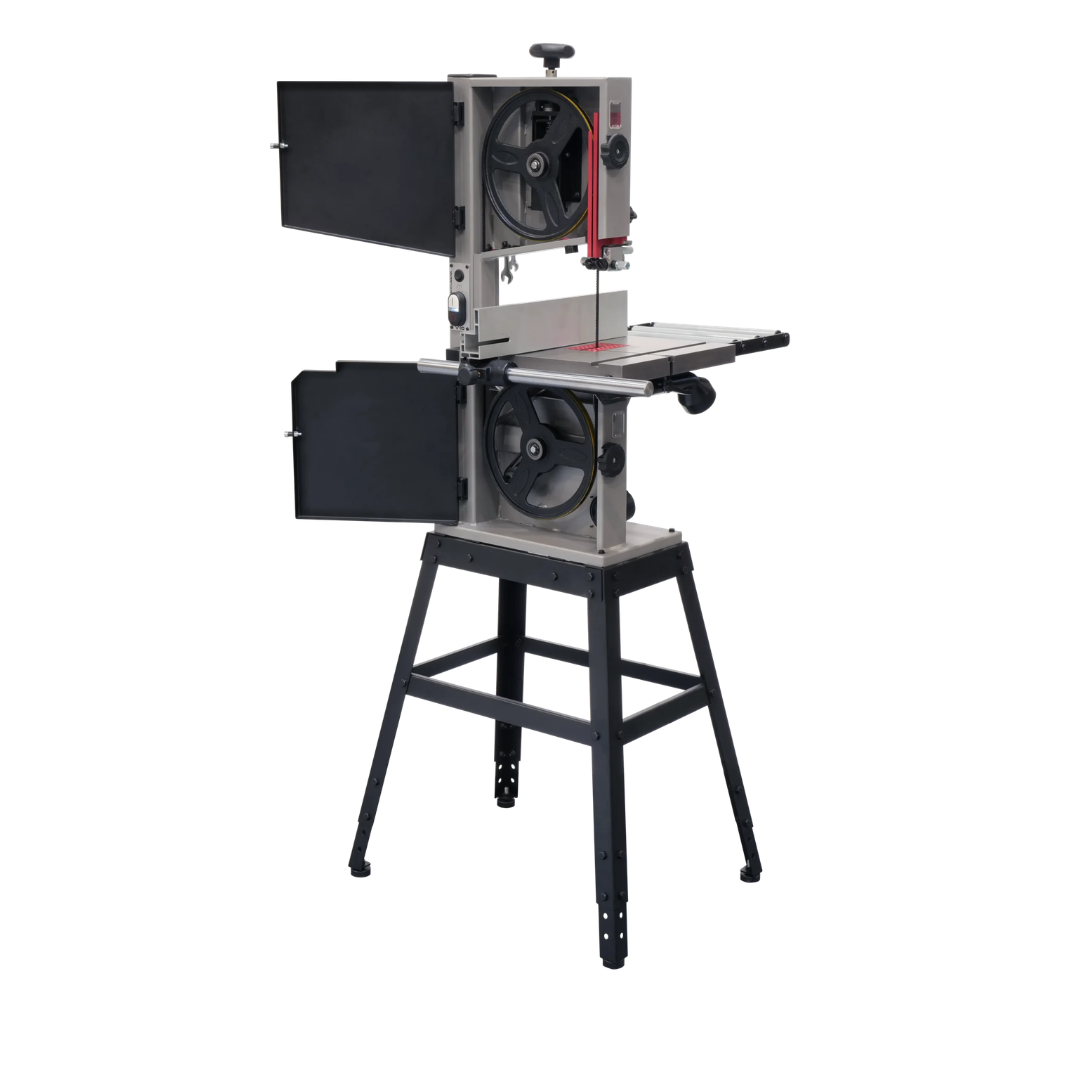

- Cast iron flywheels enhance blade stability and cutting accuracy.
- Dual blade speeds (1515 / 3280 ft/min) provide flexibility for different materials and cutting styles.
- Micro-adjustable roller bearing guides ensure precise blade tracking and superior cut quality.
- Quick-release blade tension lever simplifies blade changes and maintenance.

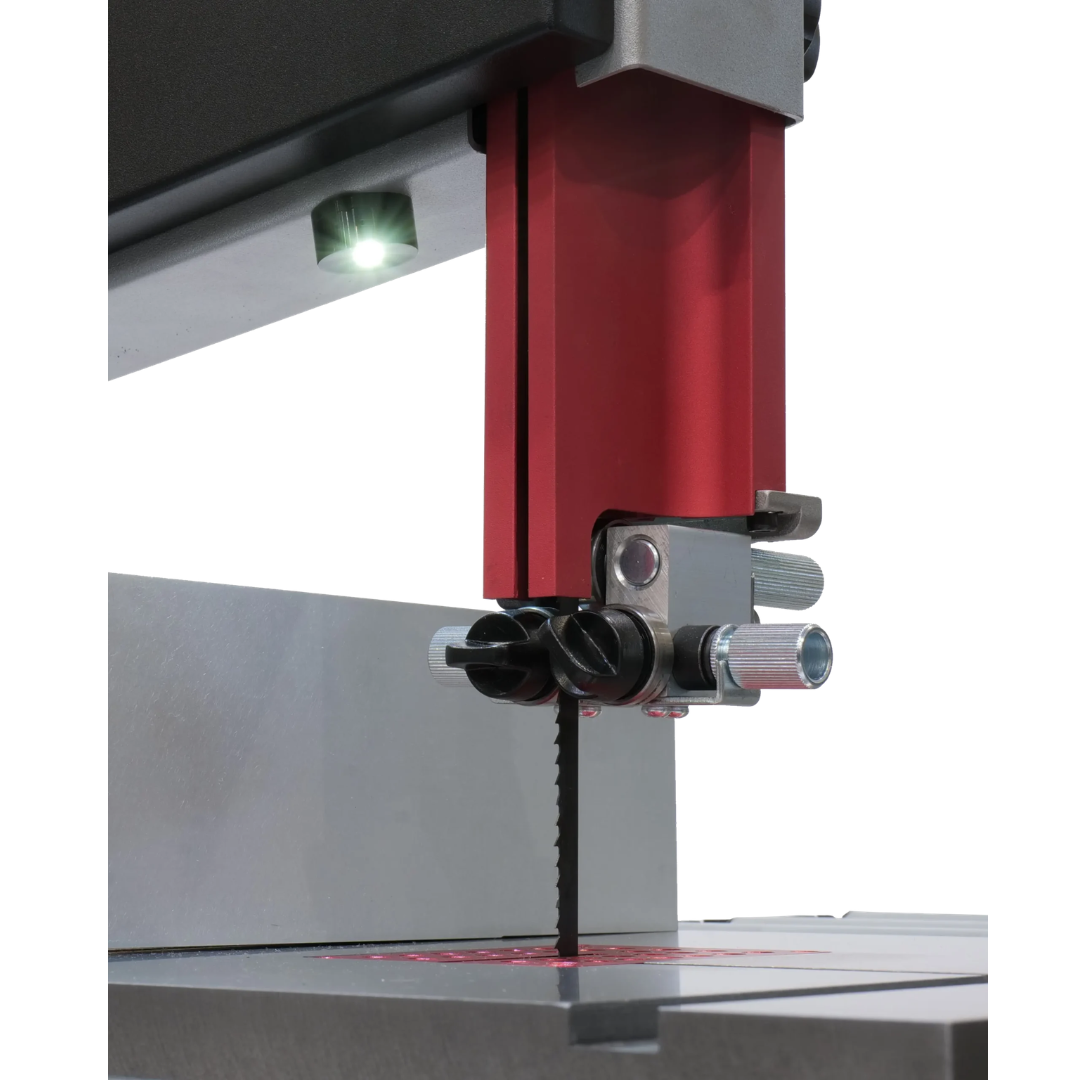

- Rack and pinion upper guide system allows fast, accurate height adjustments.

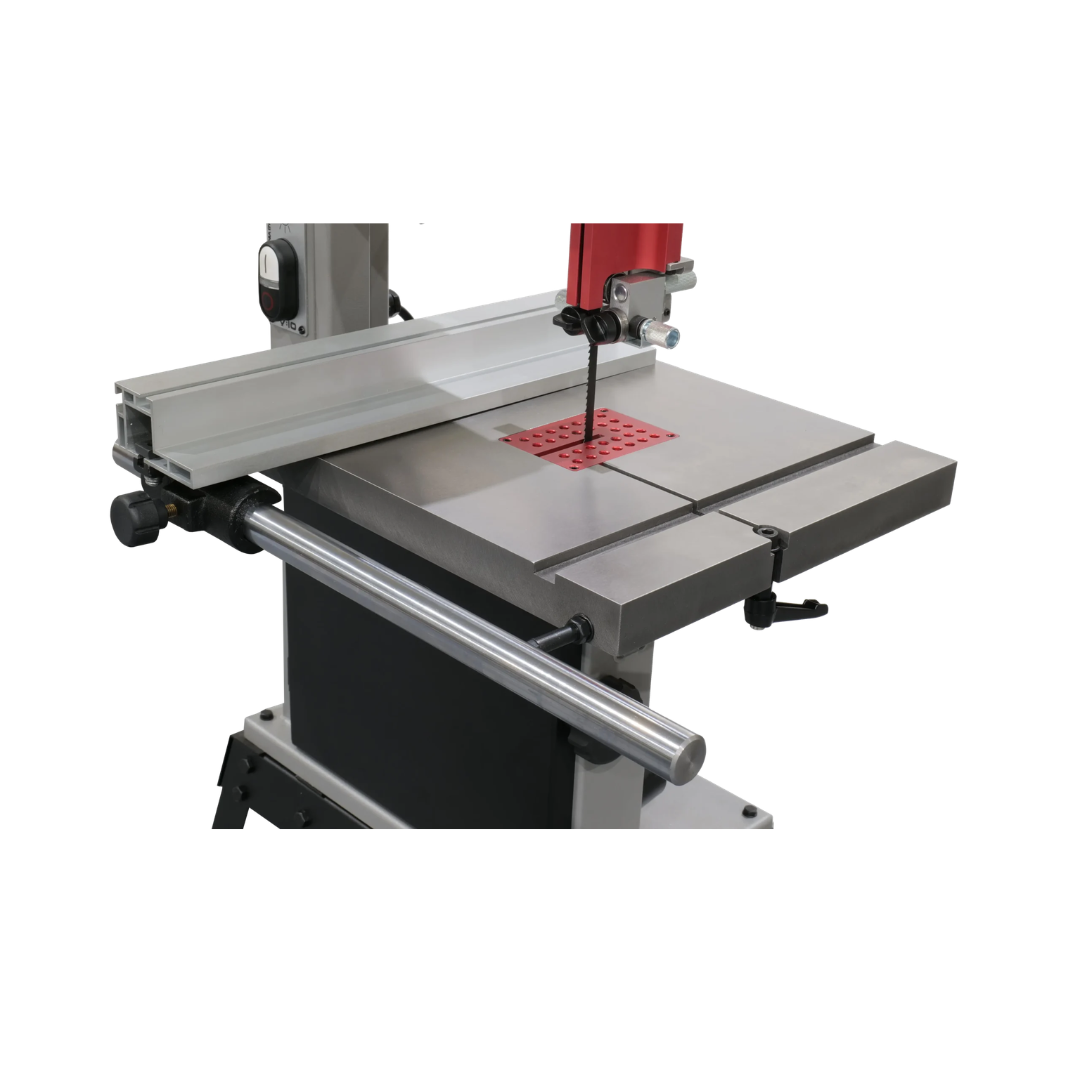

- Hi/Low fence with solid steel rail improves material control for both resawing and detail work.

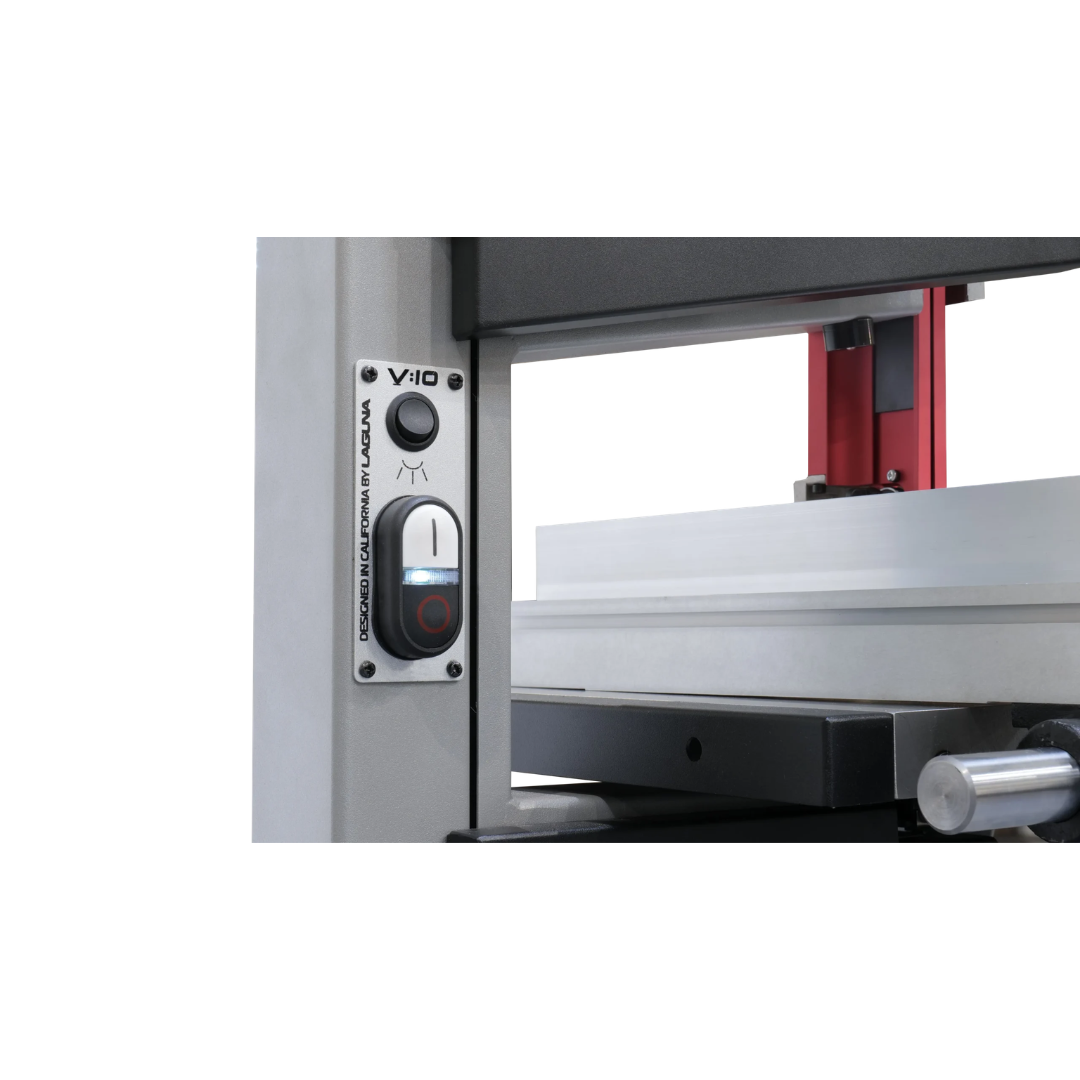

- Built-in LED work light enhances visibility directly at the cutting area.
- Dual blade tracking windows provide clear monitoring for optimal setup.

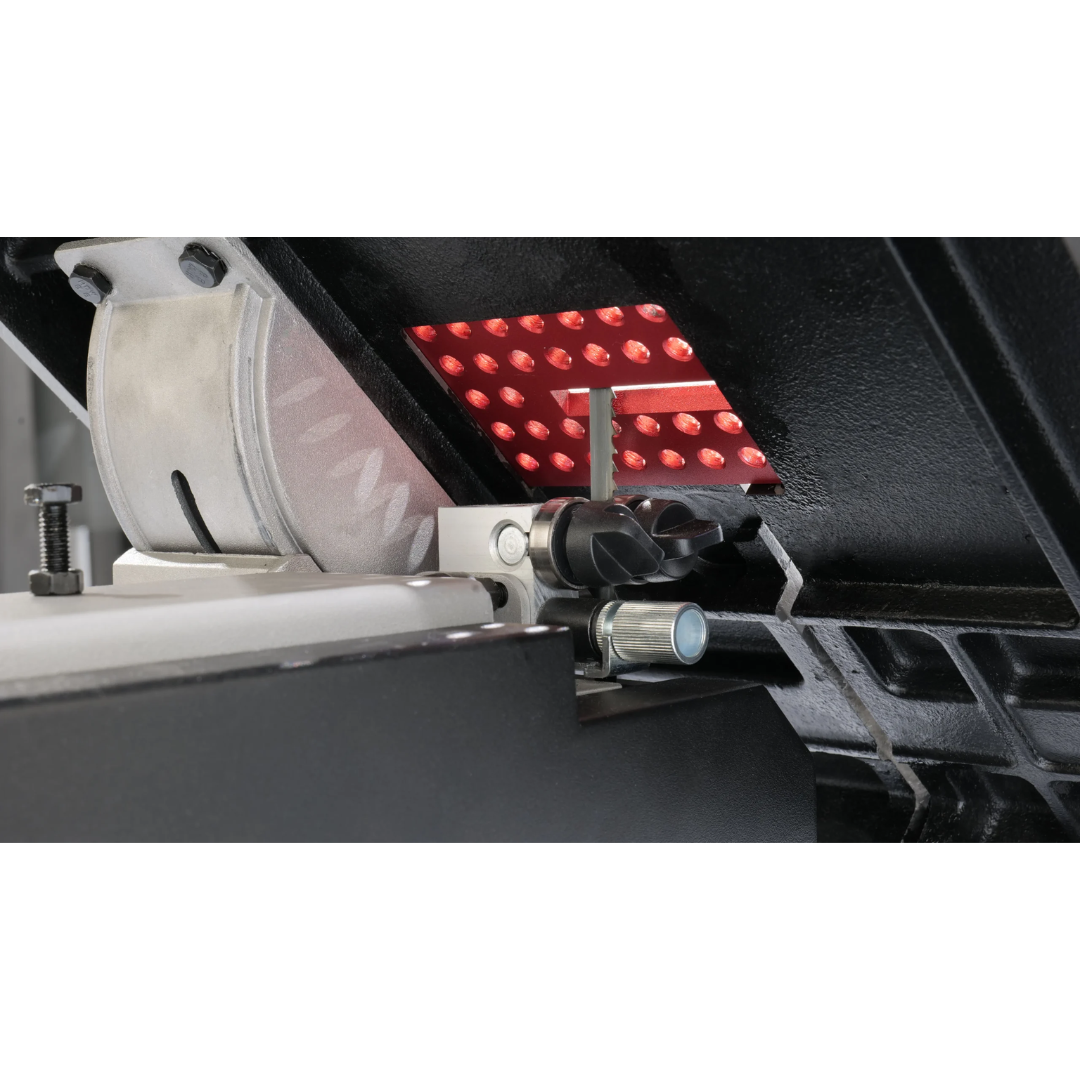

- Oversized perforated throat plate with leveling screws for improved support and accuracy.

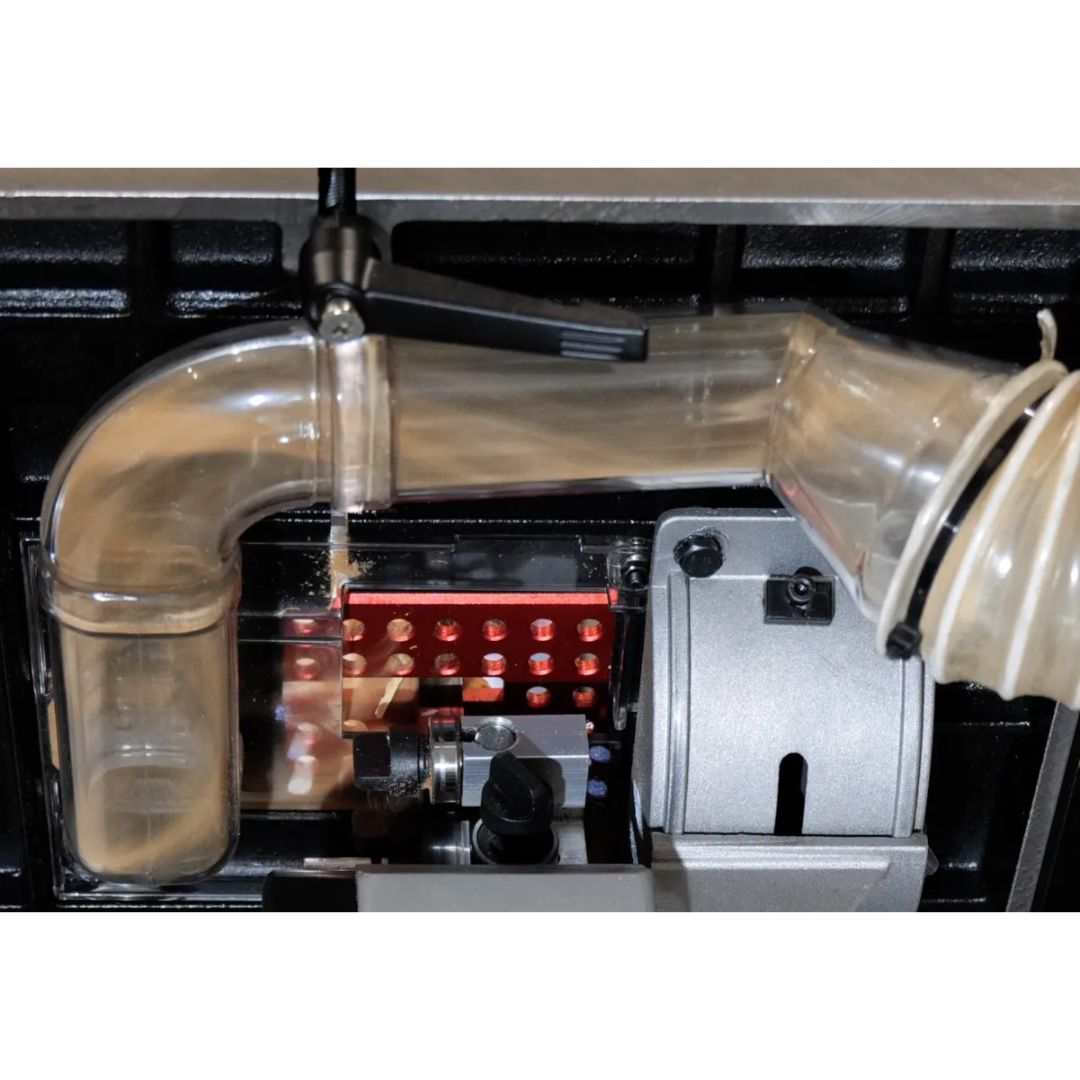

- Quick-release magnetic dust chamber and dual dust ports for efficient debris management.
Why Choose the Laguna V:10 Bandsaw MBAND10V10
- Compact 10” bandsaw with professional-grade features typically found in larger machines.
- Excellent balance of power, precision, and space efficiency.
- Versatile cutting capabilities including resawing and intricate curve work.
- Enhanced dust collection and visibility for cleaner, safer operation.
- Strong construction and premium components ensure long-term durability.
The Laguna V:10 Bandsaw MBAND10V10 delivers high-end performance in a compact design, making it an exceptional choice for workshops that demand precision, efficiency, and reliability without sacrificing space.
