Laguna SuperMax SuperBrush Single Brush Sander Applications
- Raw wood sanding and white wood preparation
- Breaking sharp edges and blending minor surface defects
- Sealer sanding, primer sanding, and scuff sanding operations
- Profile sanding for contoured and molded parts
- Cleaning and restoring reclaimed wood surfaces

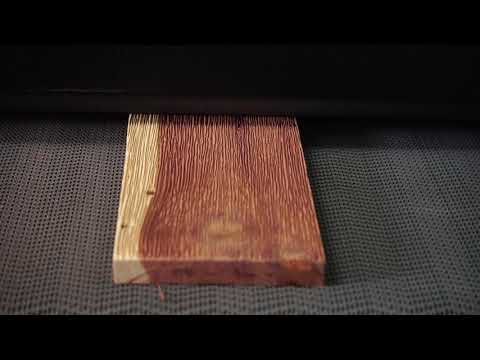

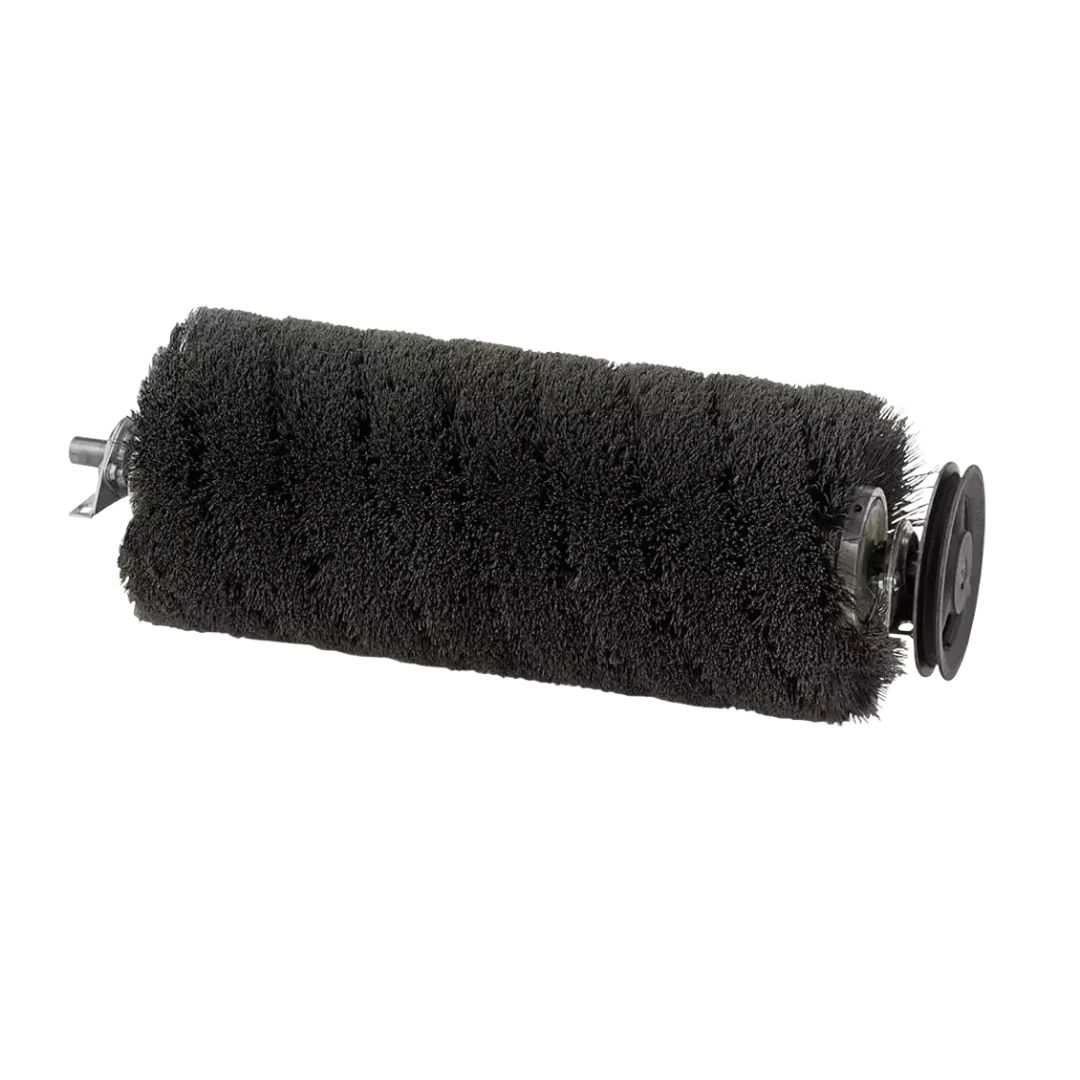

- Wire brushing to enhance grain and create textured finishes
- Furniture, cabinetry, millwork, and custom woodworking production
Ideal for shops seeking consistent finishes, reduced labor, and expanded finishing capabilities across multiple materials and surface types.
Laguna SuperMax SuperBrush Single Brush Sander Specifications
| Sanding Width Capacity | 24", 36", or 49" |
|---|---|
| Minimum Length | 10" |
| Thickness Capacity | 1/32" minimum to 11" maximum (varies by brush) |
| Brush Diameter | 9" – 11" |
| Bristle Length | 1-1/2" – 3" |
| Brush Speed | Infinitely variable, 400 – 1200 RPM |
| Conveyor Speed | 0 – 15 FPM (variable DC motor) |
| Drive Motor | 5 HP (24" & 36"), 7.5 HP (49") |
| Power Requirements | 220V, 1 Phase (24"/36") or 3 Phase (49"), 40 Amp Service |

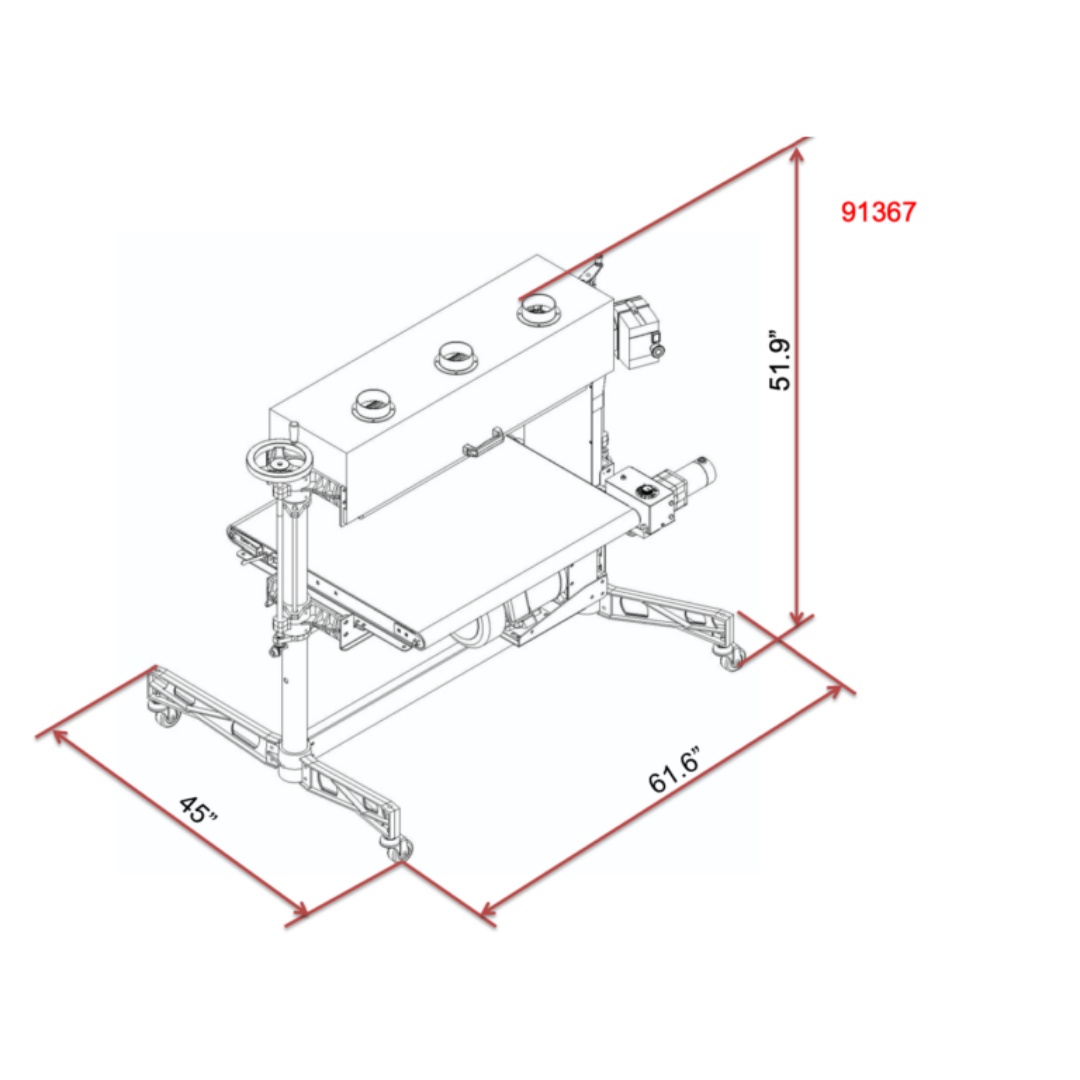

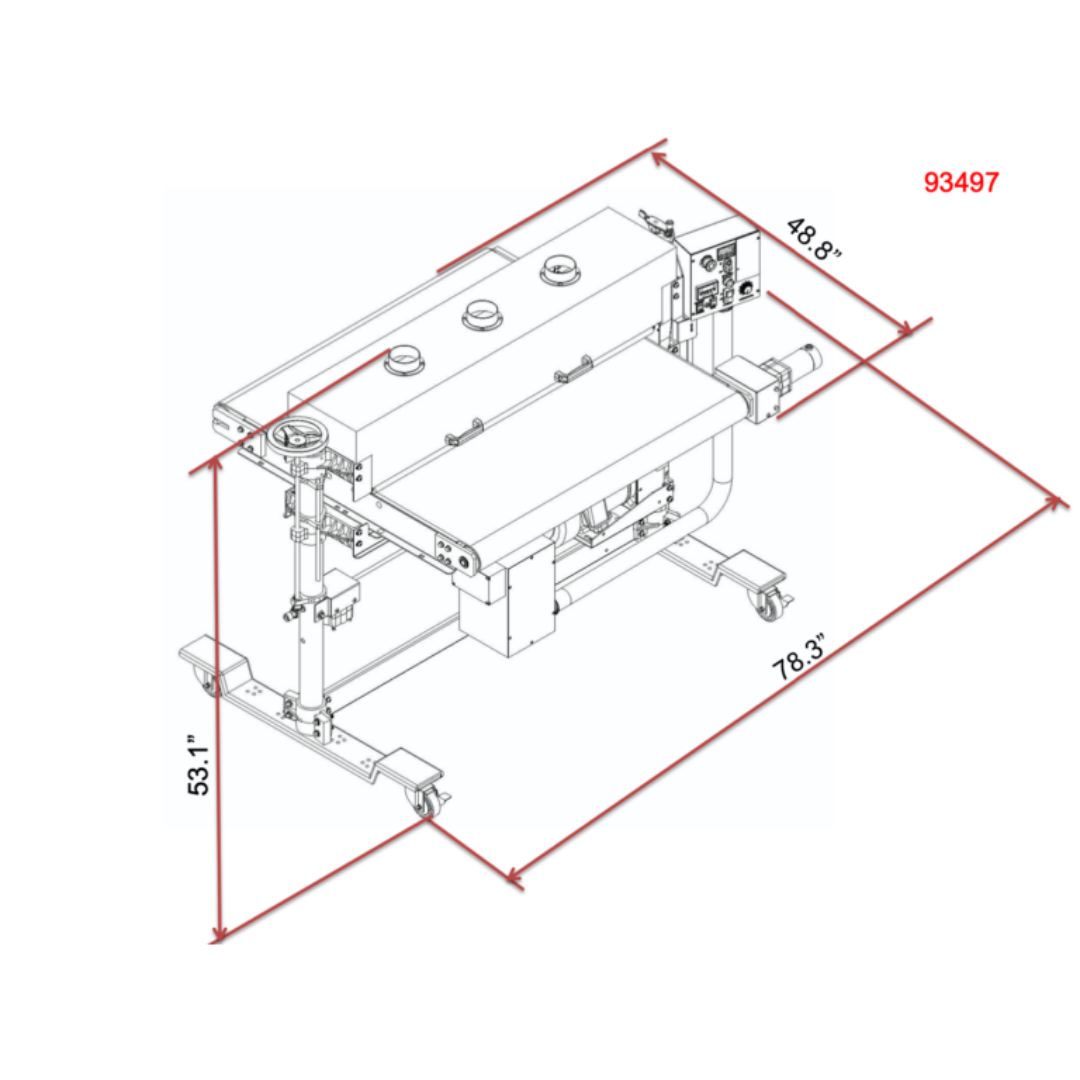

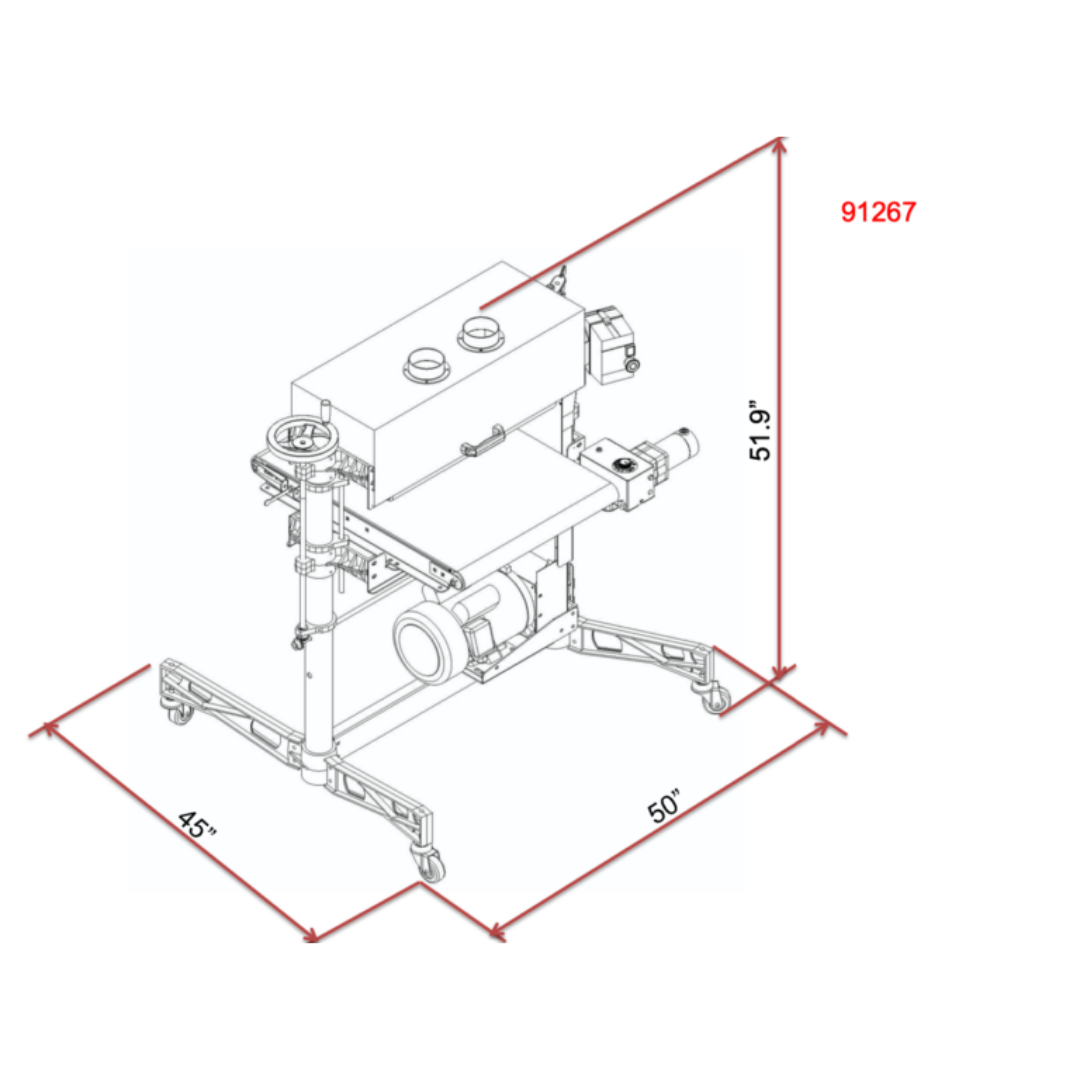

| Dimensions (H × W × D) | 24": 52" × 46" × 35" | 36": 52" × 58" × 35" | 49": 50" × 71" × 31" |
| Shipping Weight | 525 lbs (24") | 605 lbs (36") | 775 lbs (49") |

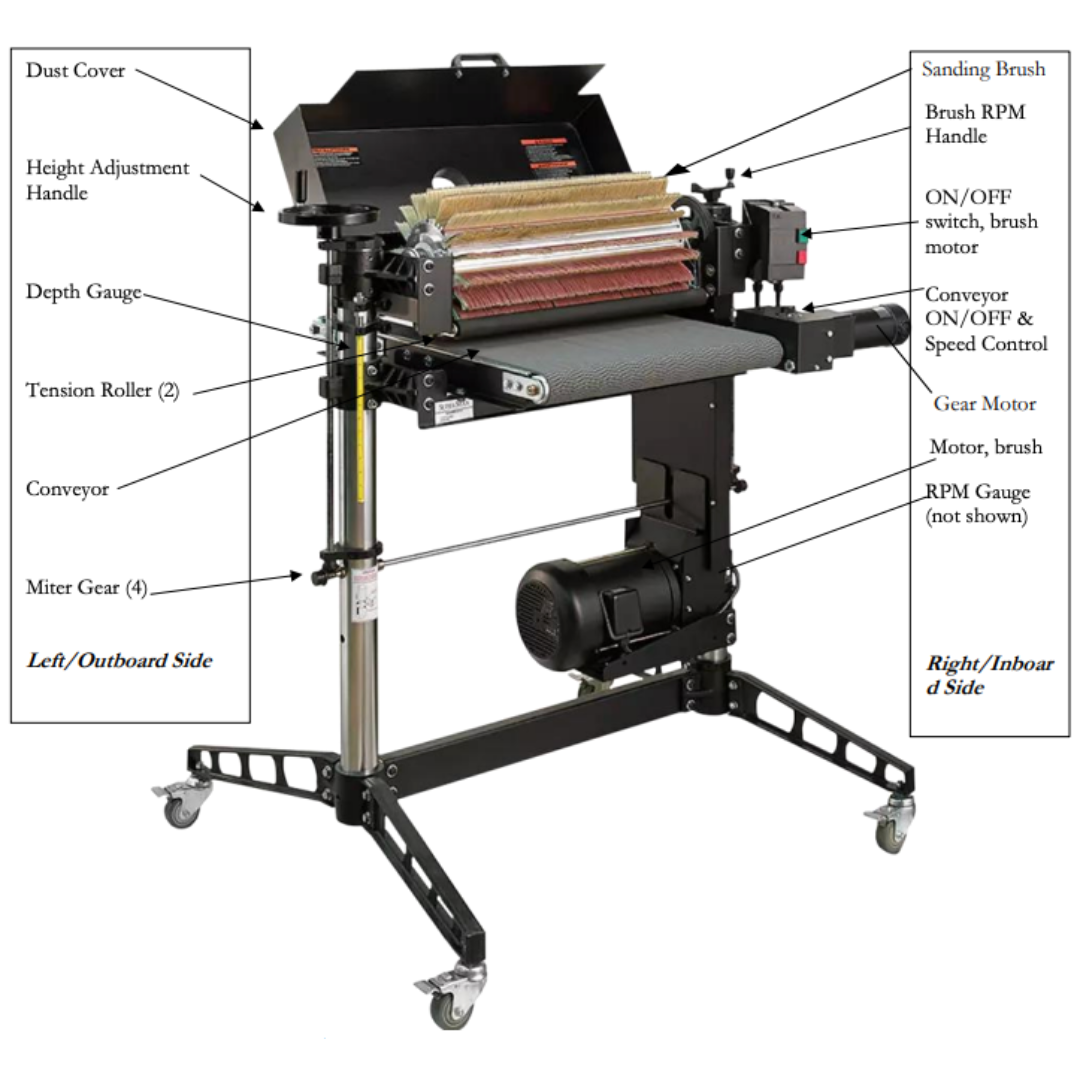

Laguna SuperMax SuperBrush Single Brush Sander Performance & Construction
- Infinitely variable brush and conveyor speeds allow precise control over finish quality and material removal rates.

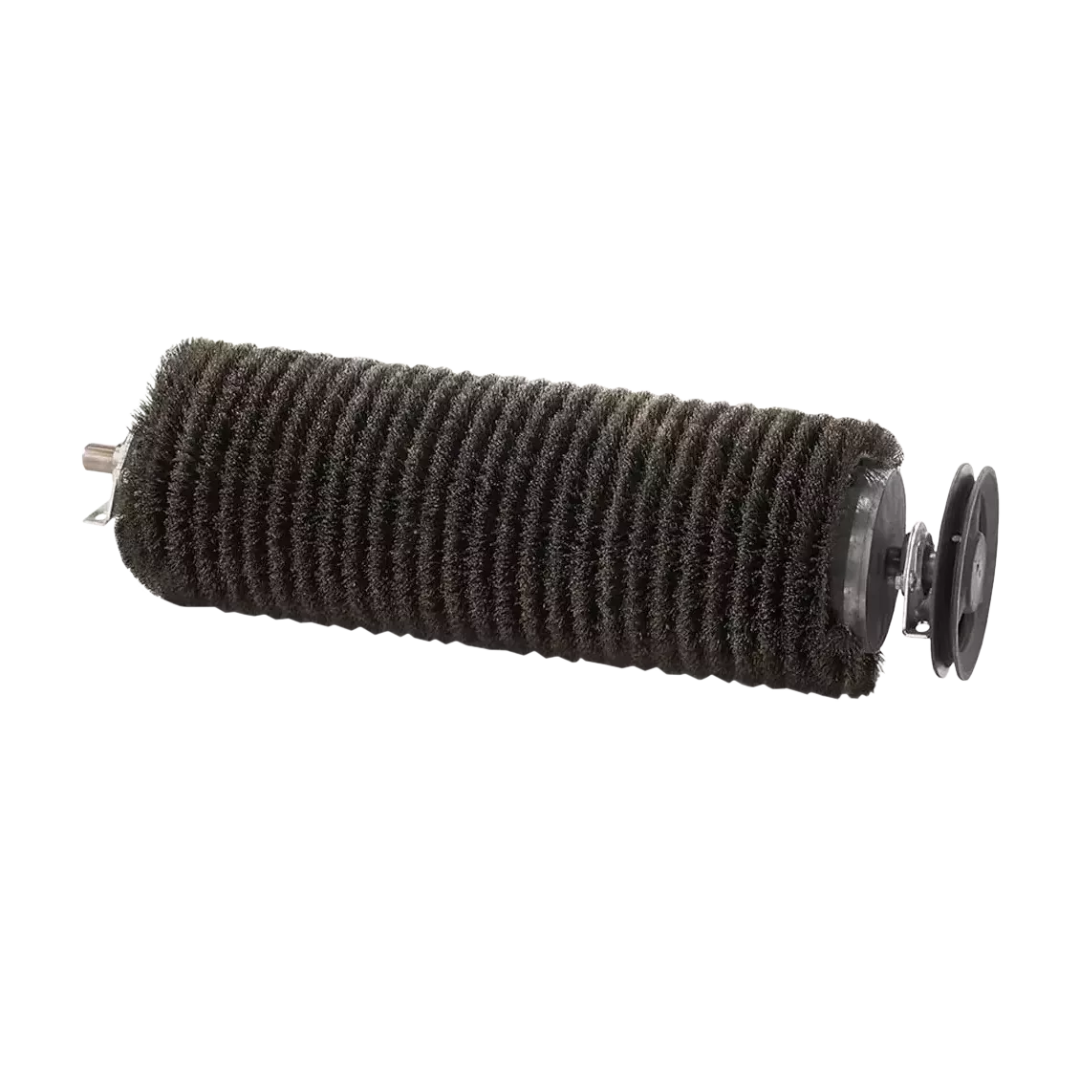

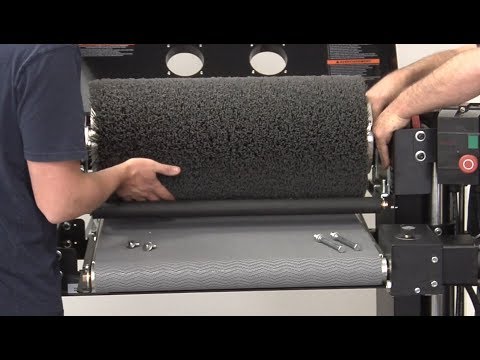

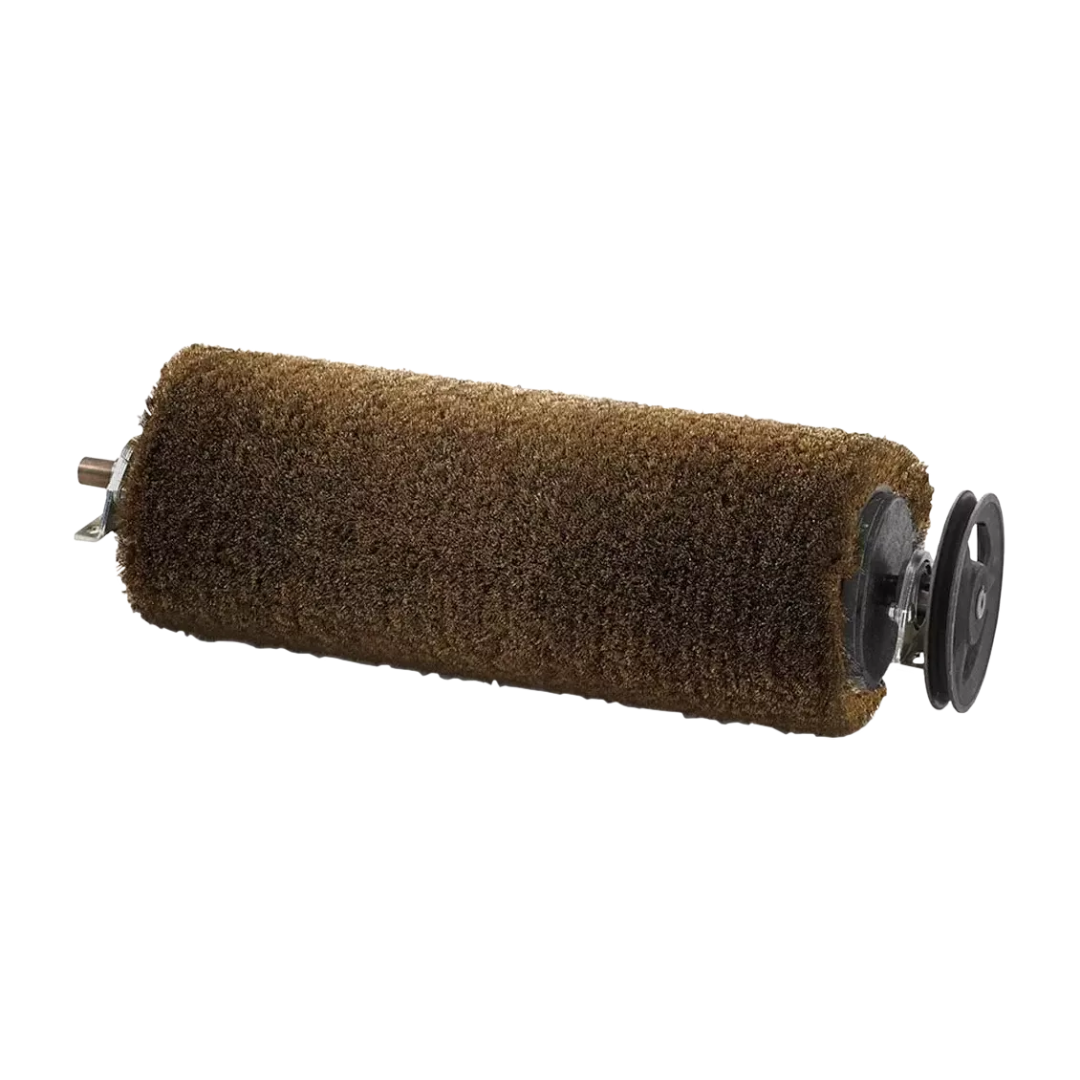

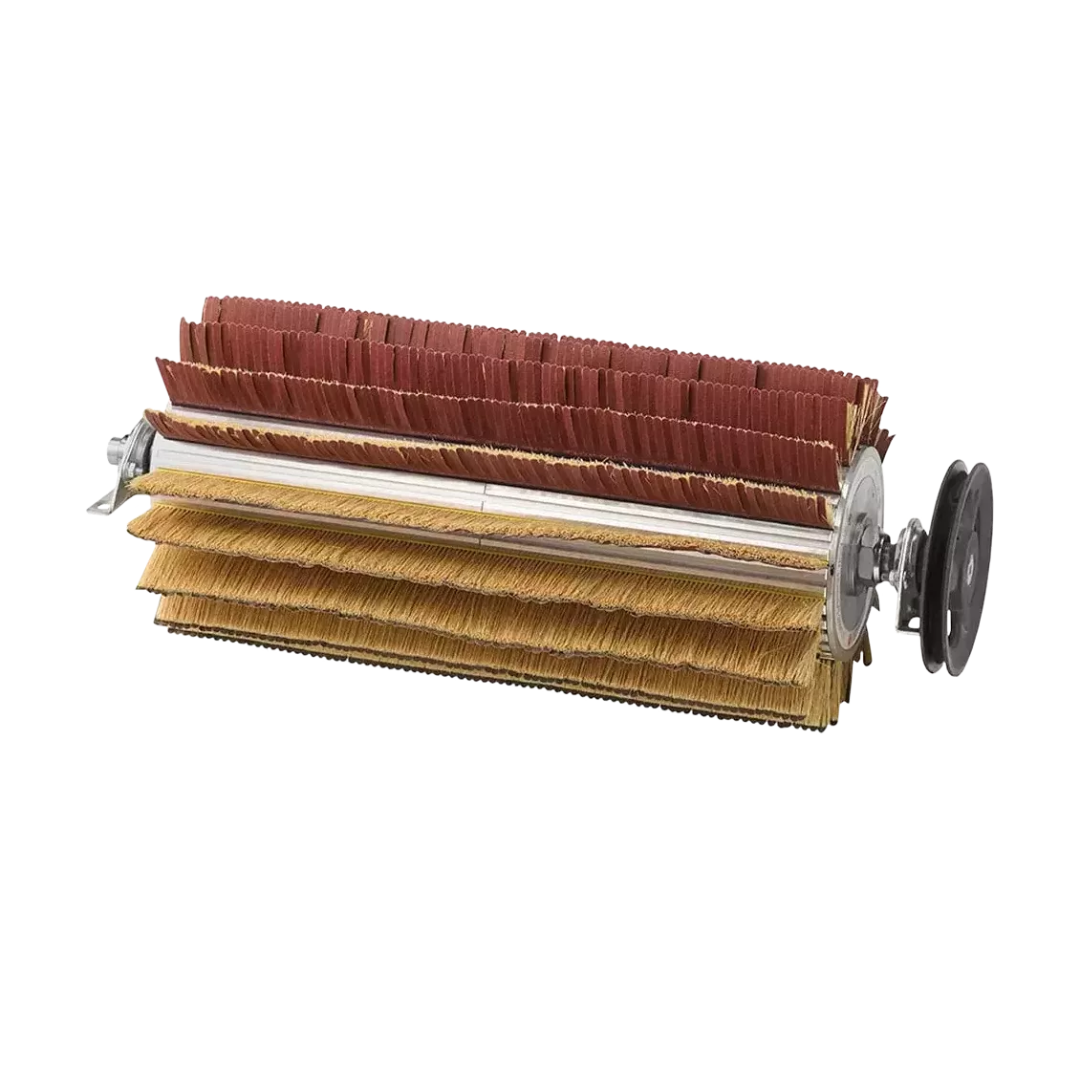

- Quick-change brush system enables fast transitions between sanding, texturing, and finishing applications.
- Adjustable tension rollers prevent stock slippage and ensure consistent feeding through the machine.
- Reinforced steel conveyor bed with durable poly conveyor belt for long-term reliability.
- Precision height adjustment ensures accurate and repeatable sanding results.
- Bristle contact gauge included for consistent brush engagement and optimal finish control.
- Heavy-duty TEFC motor delivers reliable power for continuous production environments.
- Integrated dust hood system with multiple vacuum ports for efficient dust extraction and cleaner operation.
Laguna SuperMax SuperBrush Single Brush Sander Productivity Benefits
- Faster Output: Processes material significantly faster than hand sanding, increasing shop throughput.
- Reduced Rework: Consistent sanding results minimize defects and eliminate repetitive finishing corrections.
- Superior Consistency: Achieves uniform finishes regardless of operator or time of day.
- Low Learning Curve: Easy-to-use controls allow operators to become productive quickly.
- Maximum Versatility: Easily adapt to different finishes by changing brush heads, speeds, and pressure settings.
The Laguna SuperMax SuperBrush Single Brush Sander delivers a powerful combination of speed, control, and versatility—making it an essential finishing solution for modern woodworking shops.
