Laguna SuperMax SuperBrush Double Brush Sander Applications
- Raw wood sanding and white wood preparation
- Breaking sharp edges and blending surface imperfections
- Sealer sanding, primer sanding, and scuff sanding between coats
- Profile sanding for mouldings, raised panels, and detailed components
- Cleaning and restoring reclaimed wood surfaces
- Wire brushing to create distressed, textured, or weathered finishes
- Cabinet doors, furniture components, millwork, and production parts
Ideal for production shops that want to complete multiple finishing steps in one pass while maintaining consistent, high-quality results.
Laguna SuperMax SuperBrush Double Brush Sander Specifications
| Sanding Width Capacity | 24", 36", or 49" |
|---|---|
| Minimum Length | 11" |
| Thickness Capacity | 1/32" minimum to 9" maximum (varies by brush) |
| Brush Diameter | 9" – 12" |
| Bristle Length | 1-1/2" – 3" |
| Brush Speed | Variable, 400 – 1200 RPM |
| Conveyor Speed | 0 – 30 FPM (variable DC motor) |
| Drive Motor | (2) 7.5 HP (24" & 36") | (2) 10 HP (49") |
| Power Requirements | 208–230V, 60Hz, 3 Phase, 20–30 Amp Service (model dependent) |

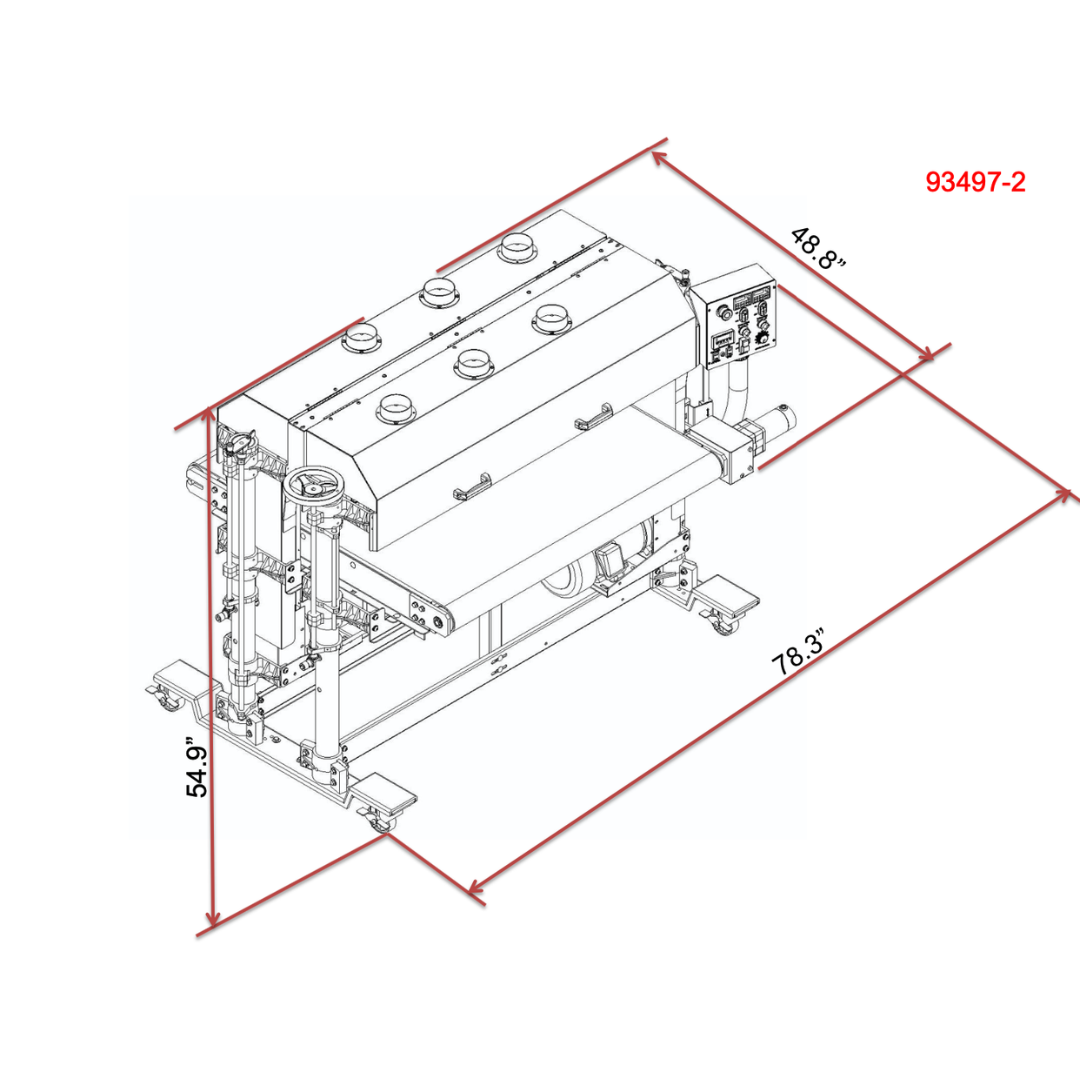

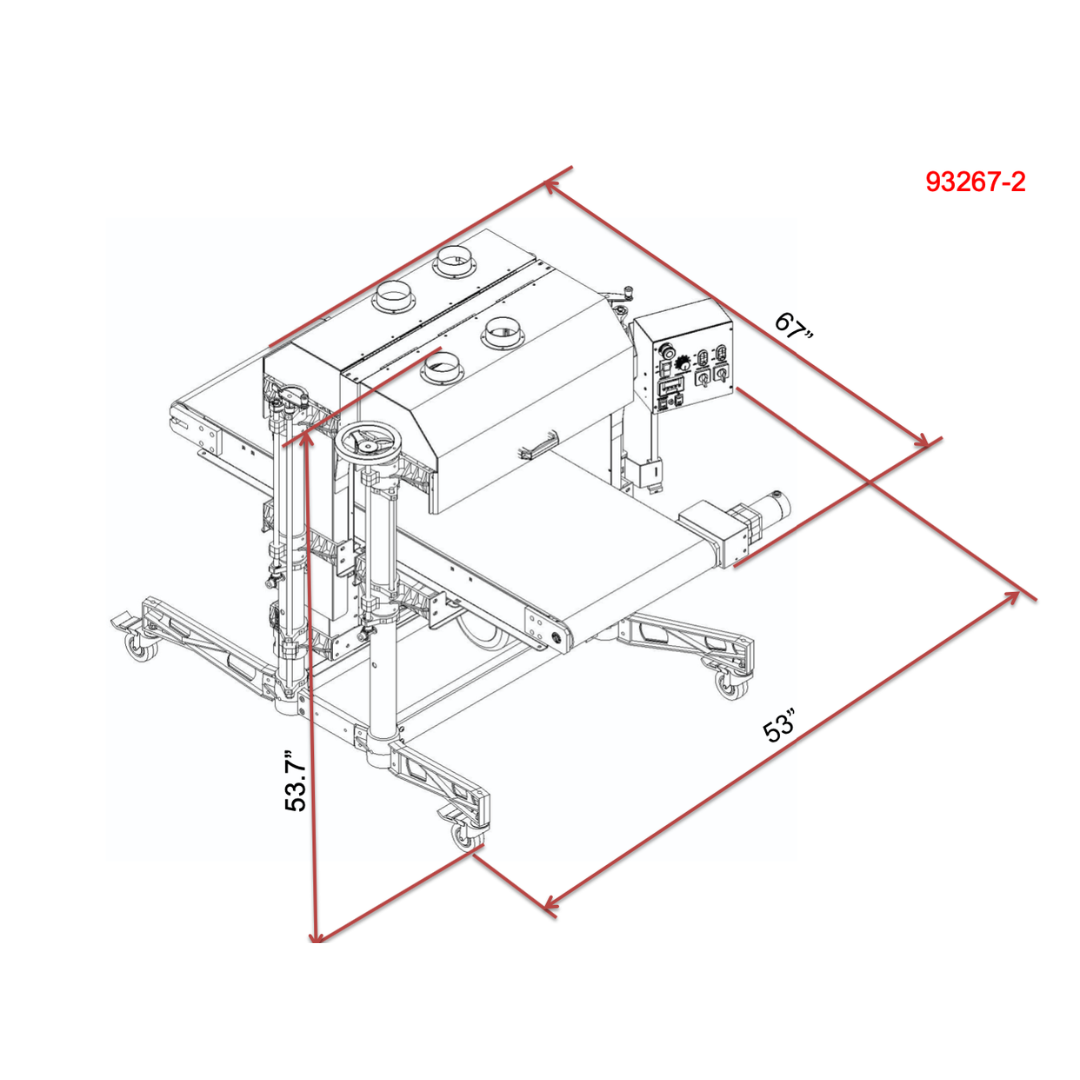

| Dimensions (H × W × D) | 24": 67" × 46" × 54" | 36": 67" × 58" × 54" | 49": 50" × 71" × 31" |
| Shipping Weight | 1100 lbs (24") | 1340 lbs (36") | 1550 lbs (49") |

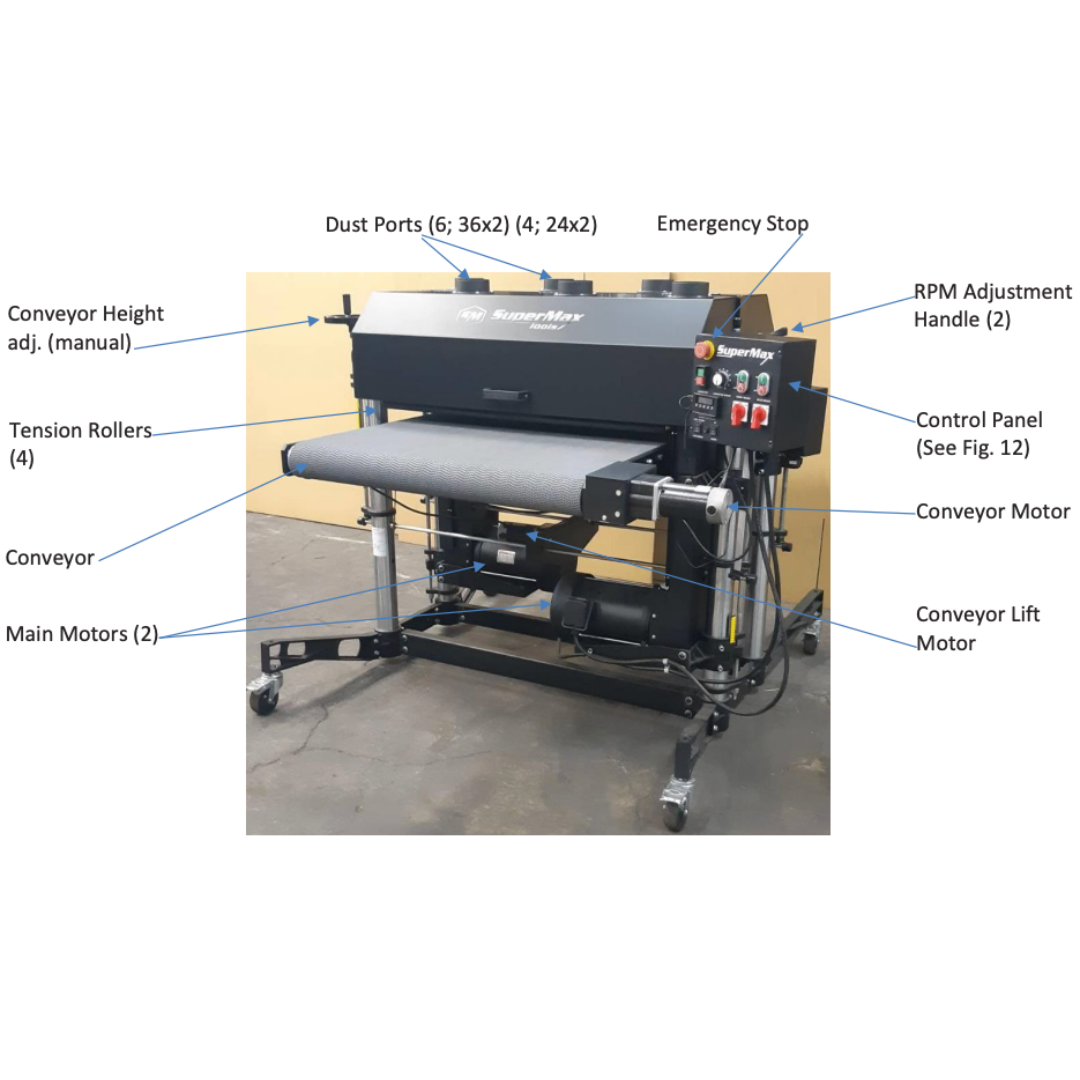

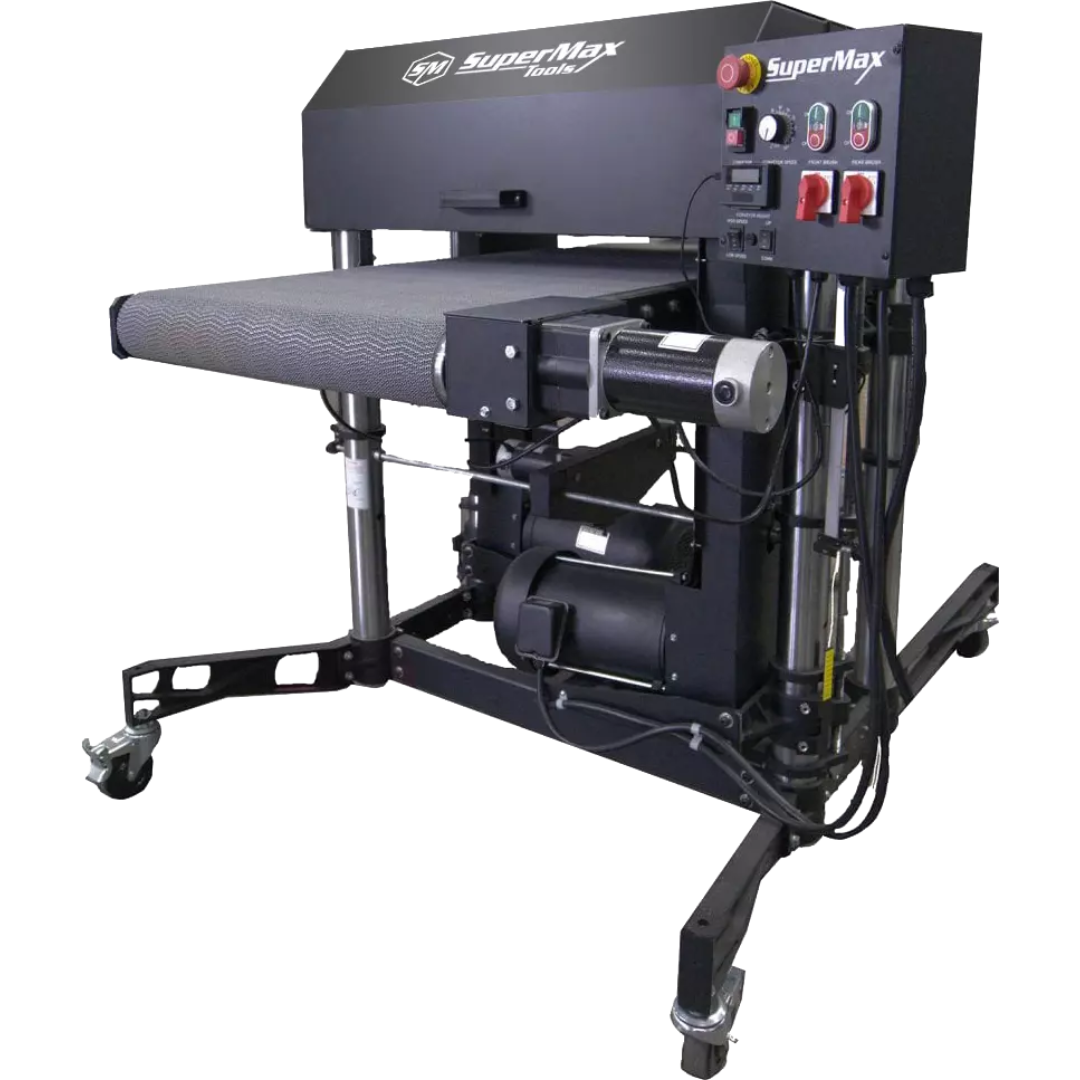

Laguna SuperMax SuperBrush Double Brush Sander Performance & Construction
- Dual brush head configuration allows multiple operations in a single pass for maximum efficiency.
- Reversible second brush rotation enhances finishing flexibility and material interaction.
- Infinitely variable speed control for both brush heads and conveyor feed rate.

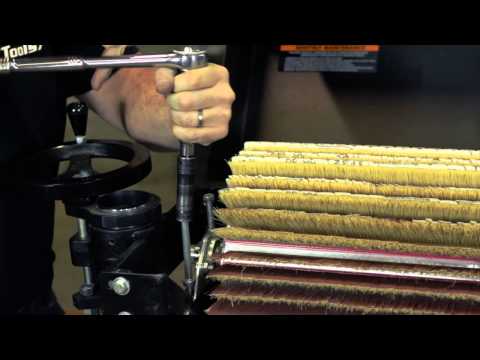

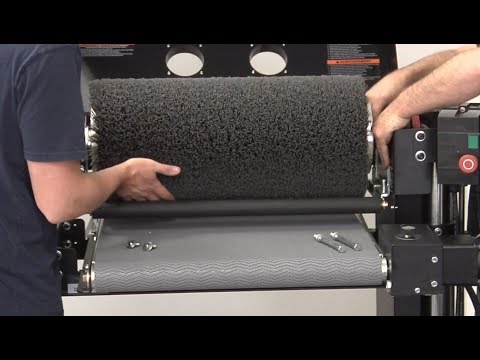

- Quick-change brush system enables fast switching between abrasive, nylon, and wire brushes.
- Digital readout system displays material removal, final thickness, and zero reference for precision control.
- Power and manual height adjustment with fine-tuned control for accurate sanding depth.
- Heavy-duty steel construction with reinforced conveyor bed and durable poly belt.
- High-capacity dust hood system with multiple vacuum ports for efficient dust collection.

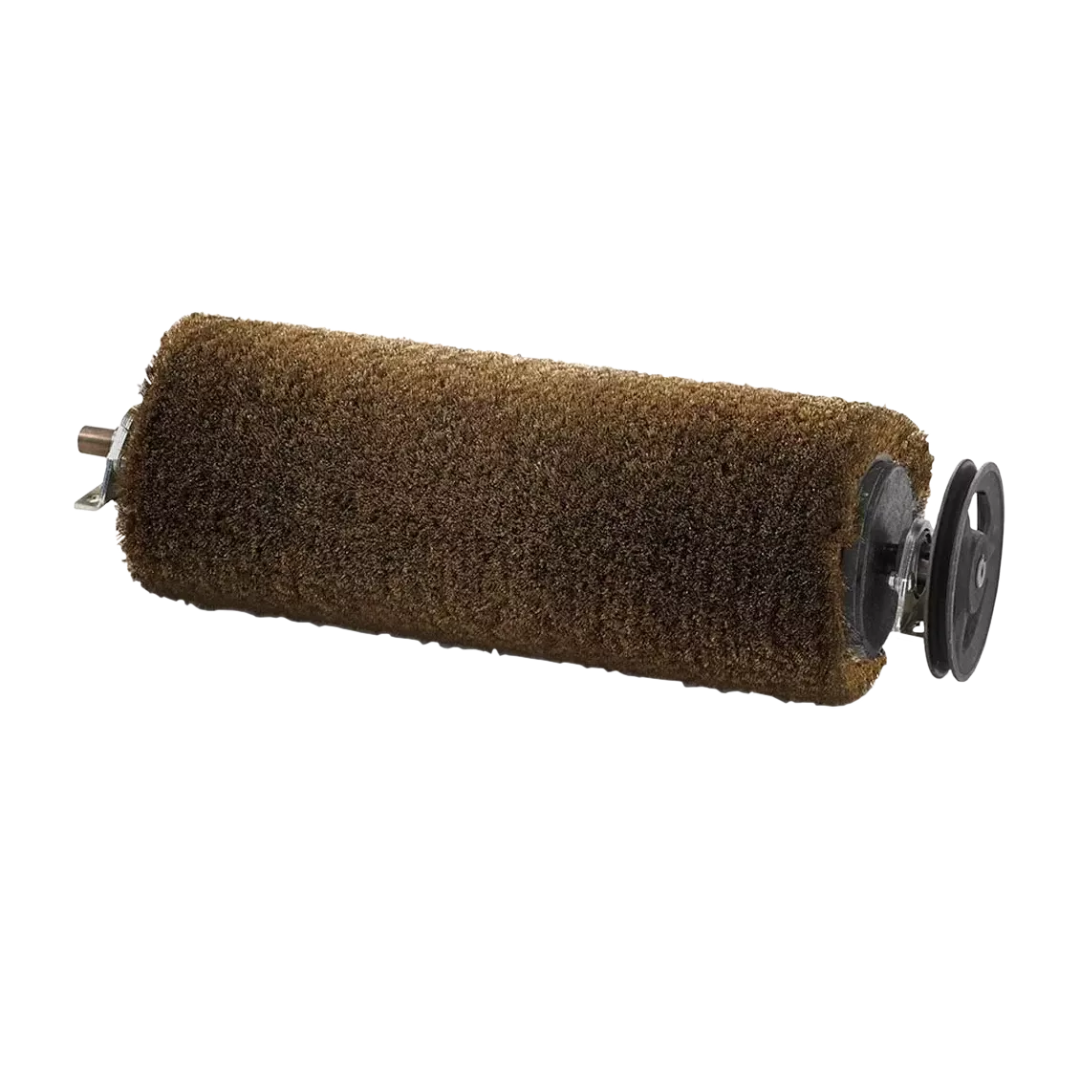

Laguna SuperMax SuperBrush Double Brush Sander Brush Options & Capabilities

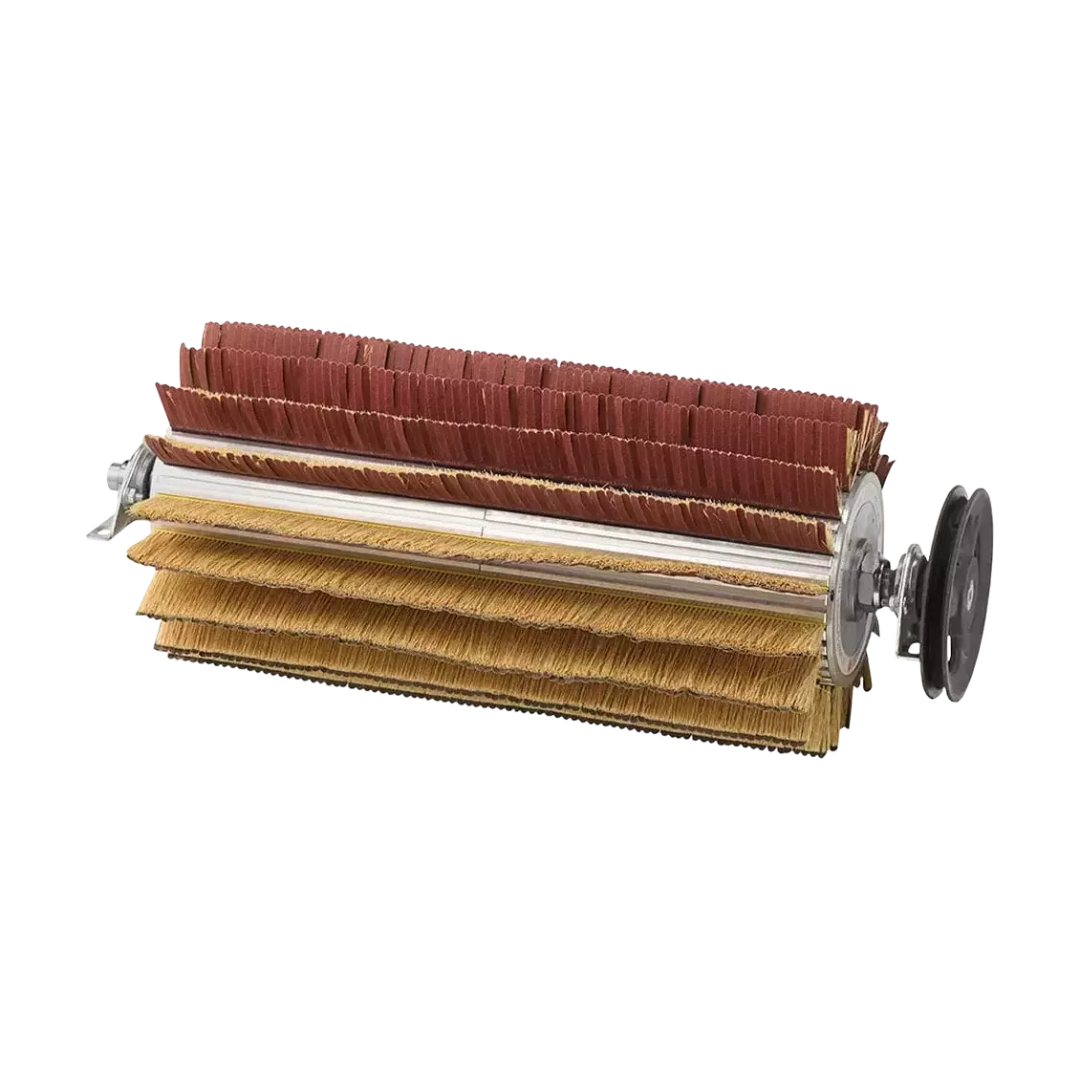

- Flapper (Flatter) Brushes: Ideal for raw wood sanding, sealer sanding, and finishing cabinet doors or profiles.

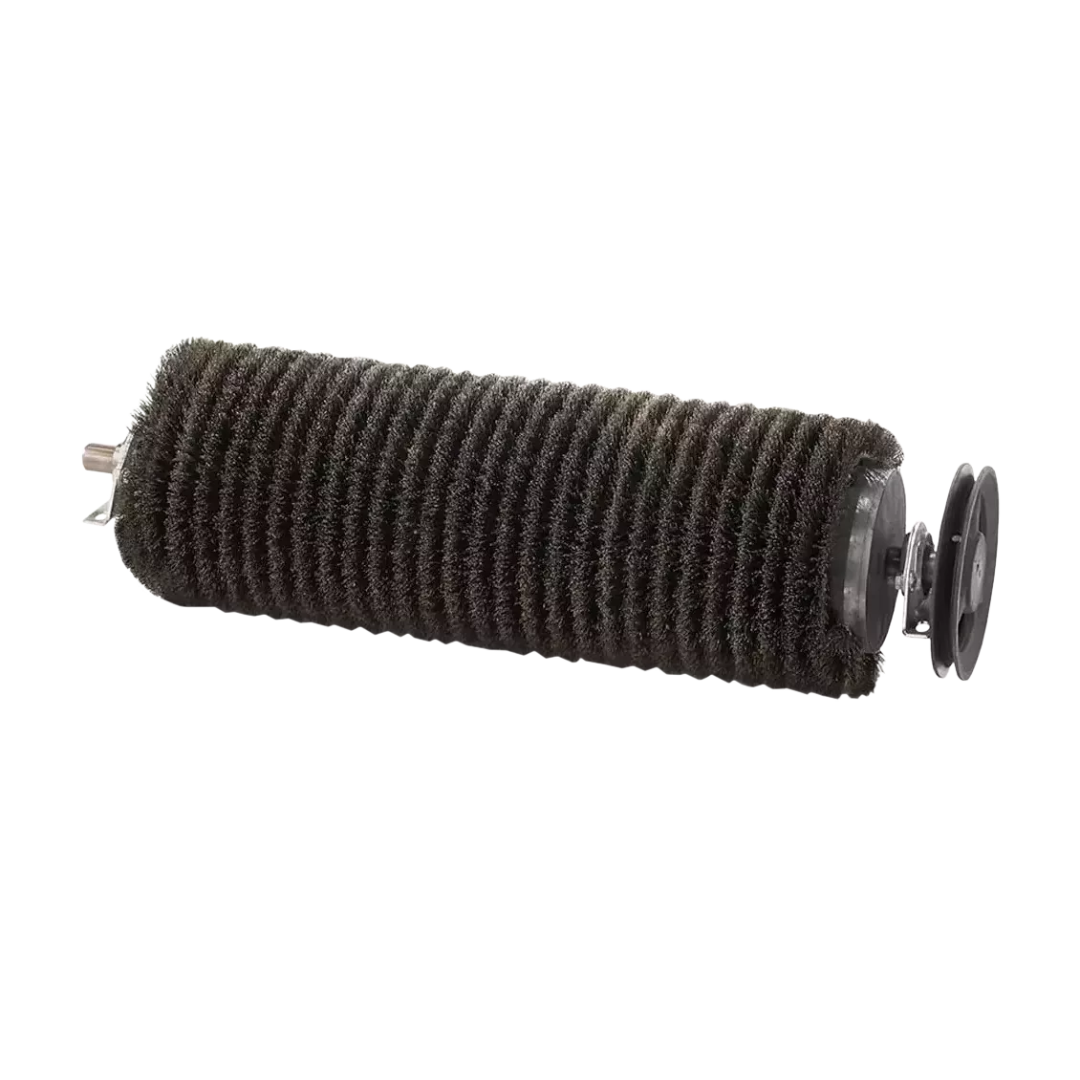

- Wire Brushes: Designed for distressing wood and creating reclaimed or textured grain effects.

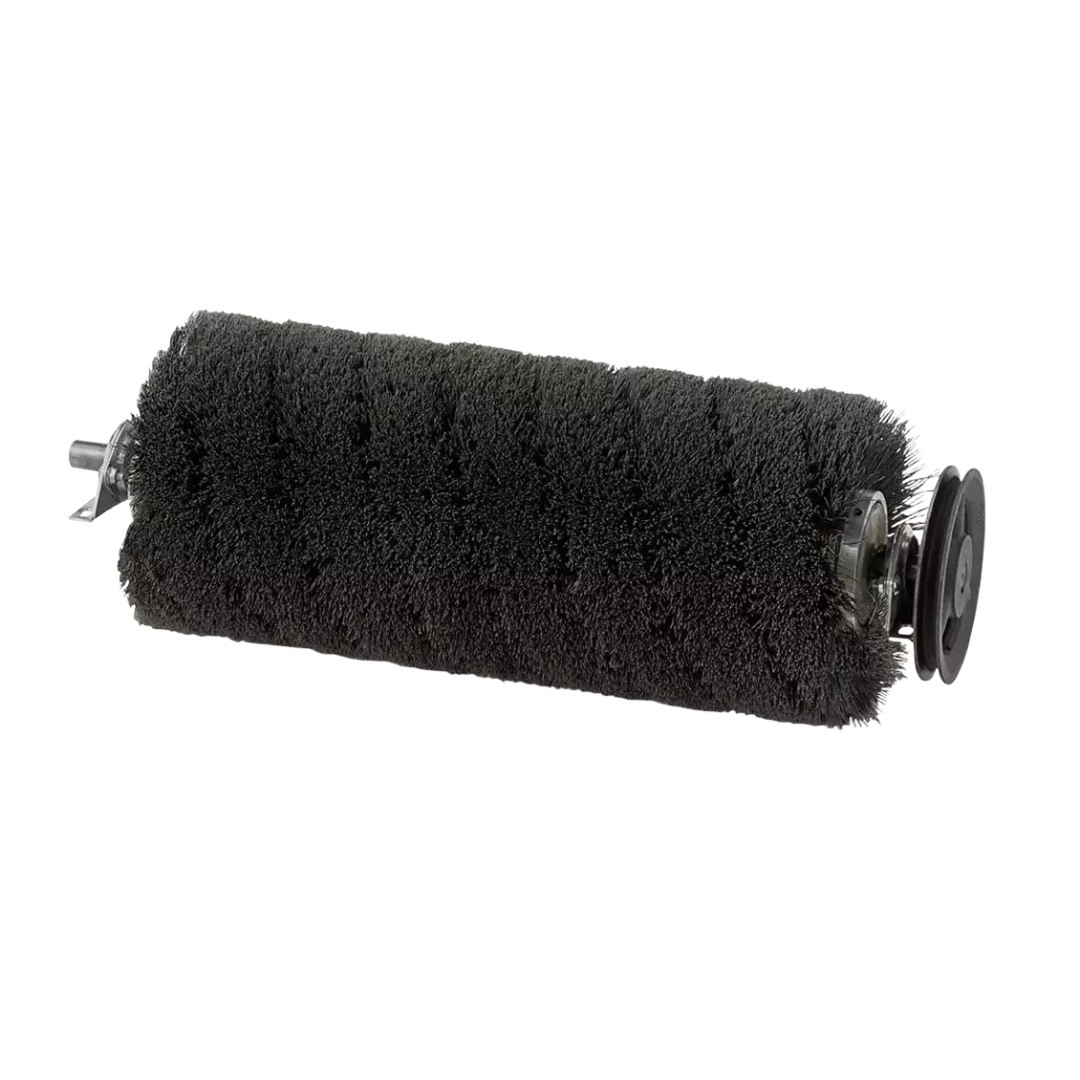

- Nylon Abrasive Brushes: Versatile option for scuff sanding, cleaning reclaimed wood, and light distressing.
- Interchangeable Configurations: Dozens of brush combinations allow fine-tuned finishing results for different materials and applications.
The dual brush system enables combining different brush types in one pass—dramatically increasing efficiency and finish quality.
Laguna SuperMax SuperBrush Double Brush Sander Productivity Benefits
- Increased Output: Processes material up to 30 feet per minute for significantly faster production.
- Reduced Rework: Consistent machine-controlled finishing minimizes defects and touch-ups.
- Superior Consistency: Eliminates variation between operators and ensures repeatable results.
- Low Learning Curve: Easy operation allows quick training and rapid integration into workflow.
- Maximum Versatility: Adjust brush types, speeds, and pressure to achieve a wide range of finishes.
The Laguna SuperMax SuperBrush Double Brush Sander is a production-grade finishing solution that combines power, precision, and unmatched versatility for modern woodworking operations.
