Laguna SuperMax 37×2 Double Drum Sander SUPMX-937003 Applications
- Two-stage sanding (coarse and finish grit) in a single pass
- Wide panel sanding for cabinetry, furniture, and millwork
- Thickness sanding and dimensioning of large components
- Production woodworking environments requiring high throughput
- Surface preparation for finishing and coating processes
Ideal for production shops that need maximum capacity, efficiency, and consistent sanding results.
Laguna SuperMax 37×2 Double Drum Sander SUPMX-937003 Specifications
| Model | 37×2 Double Drum Sander |
|---|---|
| Part Number | SUPMX-937003 |
| Motor | 5 HP (TEFC) |
| Power Requirements | 208–230V, 60Hz, 1 Phase, 30 Amp |
| Sanding Width | 37" |
| Maximum Thickness | 12" |
| Minimum Thickness | 1/32" |
| Minimum Sanding Length | 3-1/2" |
| Drum Size | 5" × 37" extruded aluminum (dual drums) |
| Drum Speed | 1740 RPM |
| Conveyor Speed | 0 – 15 FPM variable |
| Conveyor Motor | 254 in-lb torque, direct drive DC motor |
| Dust Collection | (3) 4" ports, 1200 CFM minimum recommended |

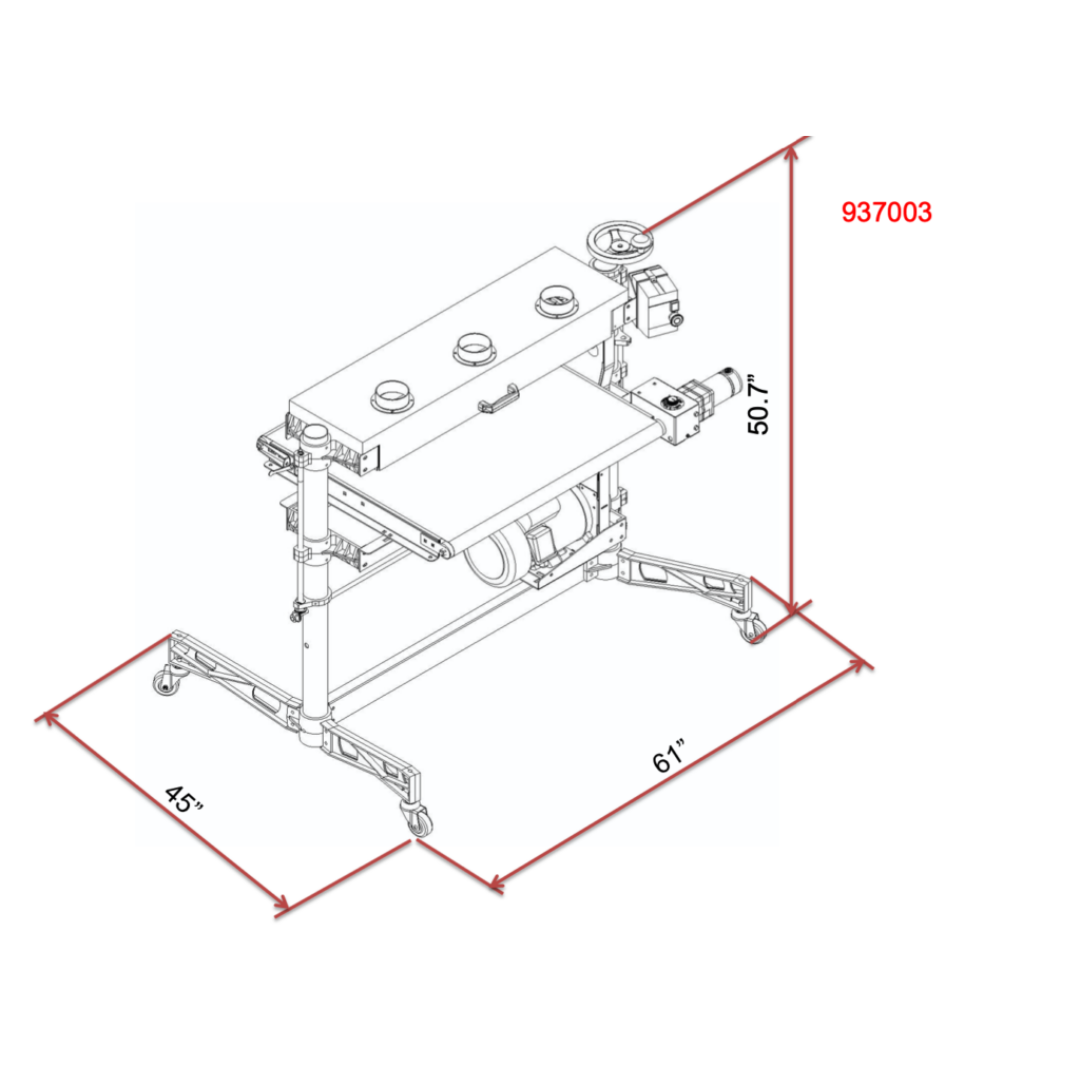

| Machine Dimensions | 43" × 58" × 31" |
| Shipping Dimensions | 62" × 52" × 45" |
| Included | Casters included, no cord or plug |

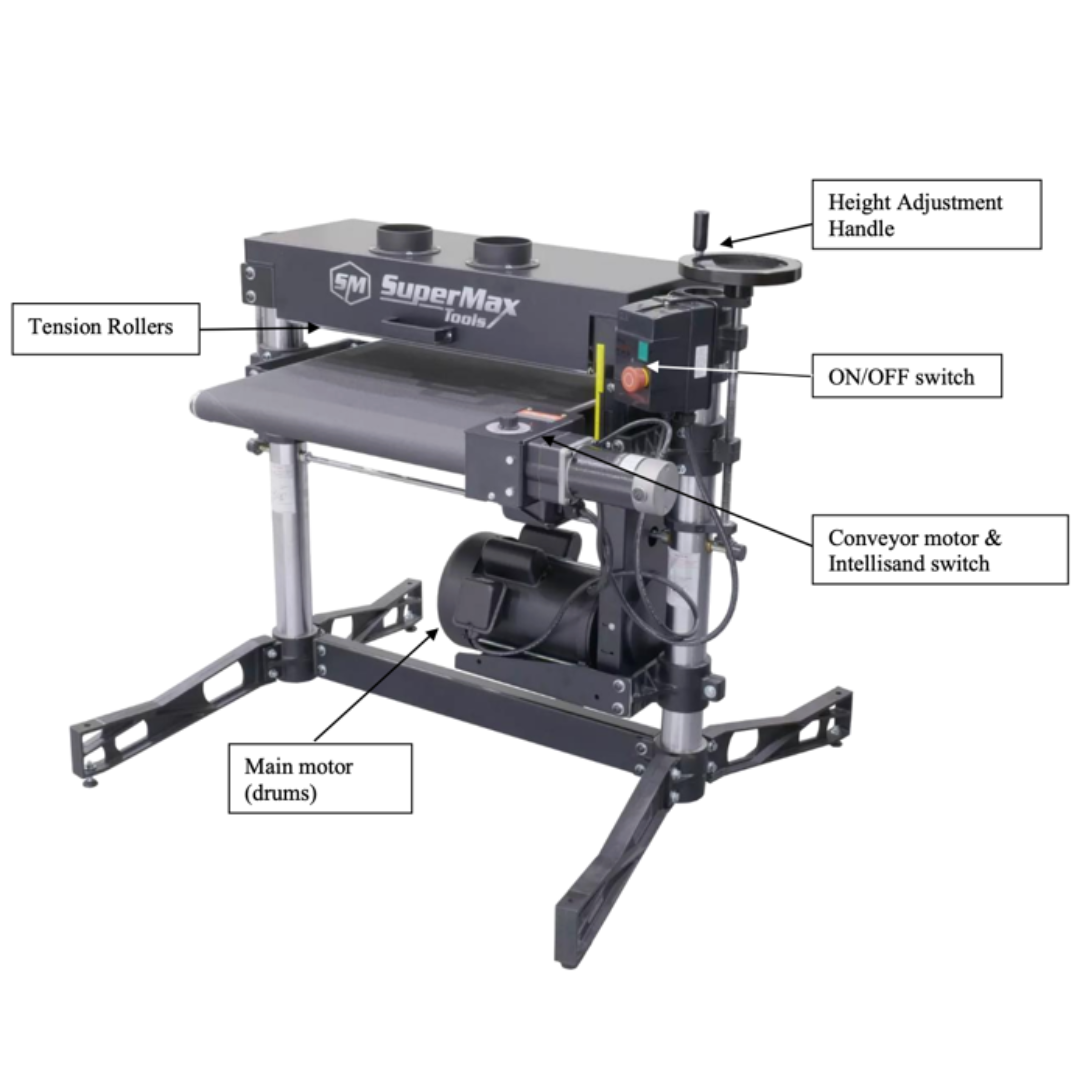

Laguna SuperMax 37×2 Double Drum Sander SUPMX-937003 Performance & Construction

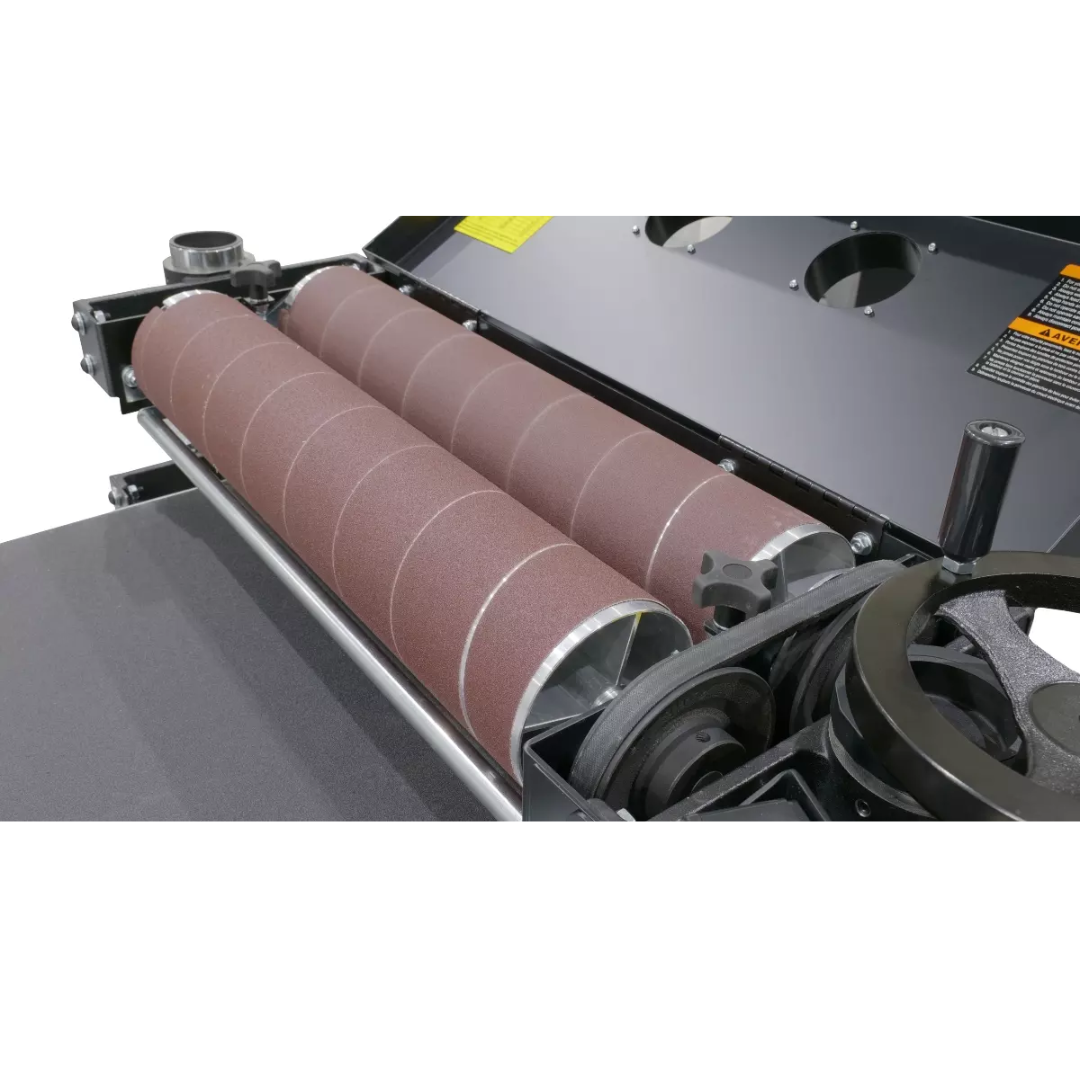

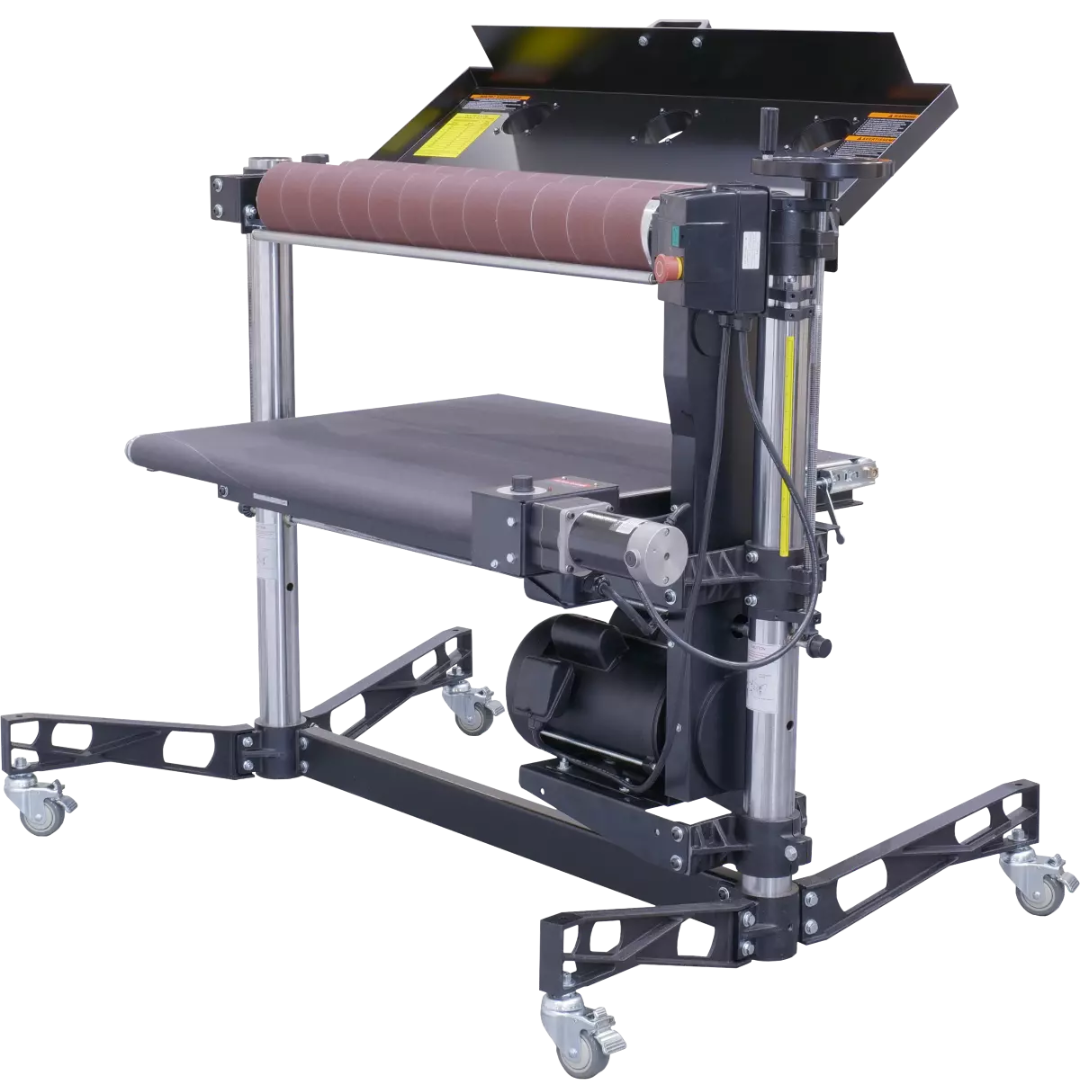

- Dual drum configuration allows two sanding grits in a single pass for maximum productivity.

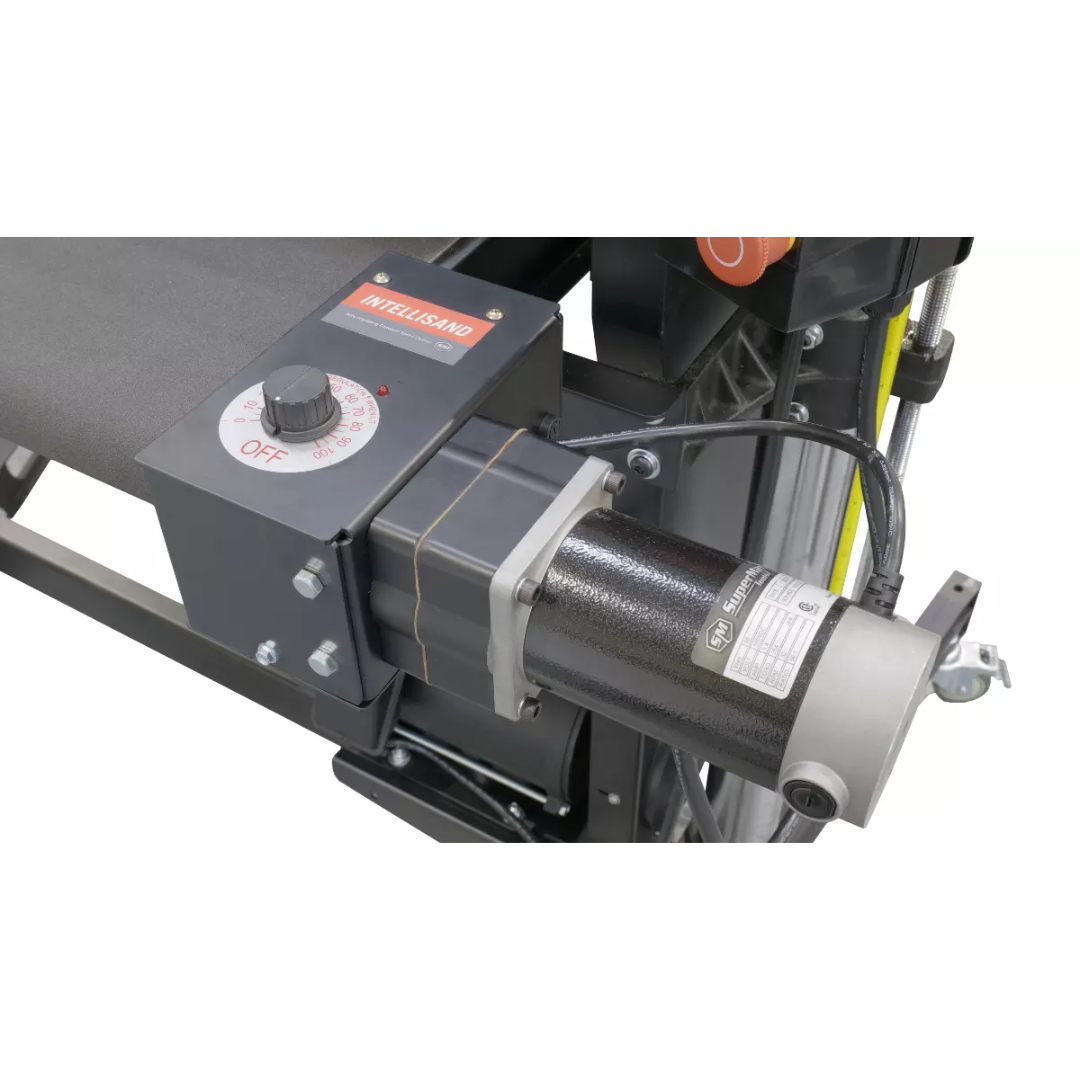

- INTELLISAND® Technology automatically adjusts conveyor speed to prevent burning, gouging, and overload.
- Precision-flattened steel conveyor bed reinforced to maintain flatness within .010" across the width.

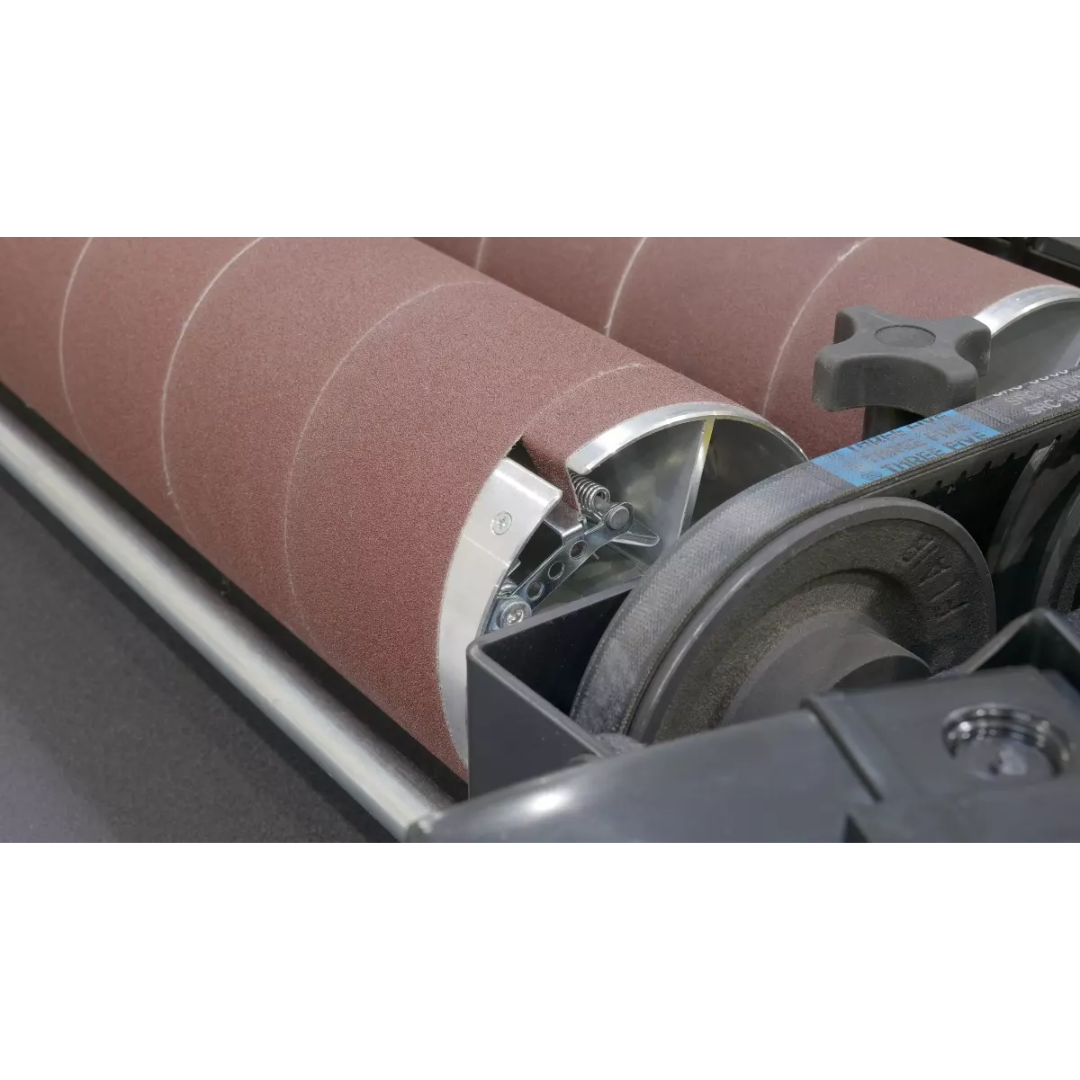

- Patented abrasive attachment system maintains consistent tension and enables fast, tool-free abrasive changes.
- Self-cooling aluminum drums reduce heat buildup and extend abrasive life.
- Heavy-duty construction minimizes vibration and ensures long-term durability.
- High-torque conveyor system supports heavy stock and consistent feed rates.
- Optimized dust hood design with three ports improves airflow and dust extraction efficiency.
Laguna SuperMax 37×2 Double Drum Sander SUPMX-937003 Productivity Benefits
- Two Grits in One Pass: Reduces sanding time and increases throughput significantly.
- Large Capacity: Handles wide panels and thicker stock up to 12".
- Consistent Finish Quality: Maintains uniform results across varying materials and densities.
- Reduced Labor: Minimizes manual sanding and secondary finishing steps.
- Production-Ready Performance: Built for high-demand woodworking environments.

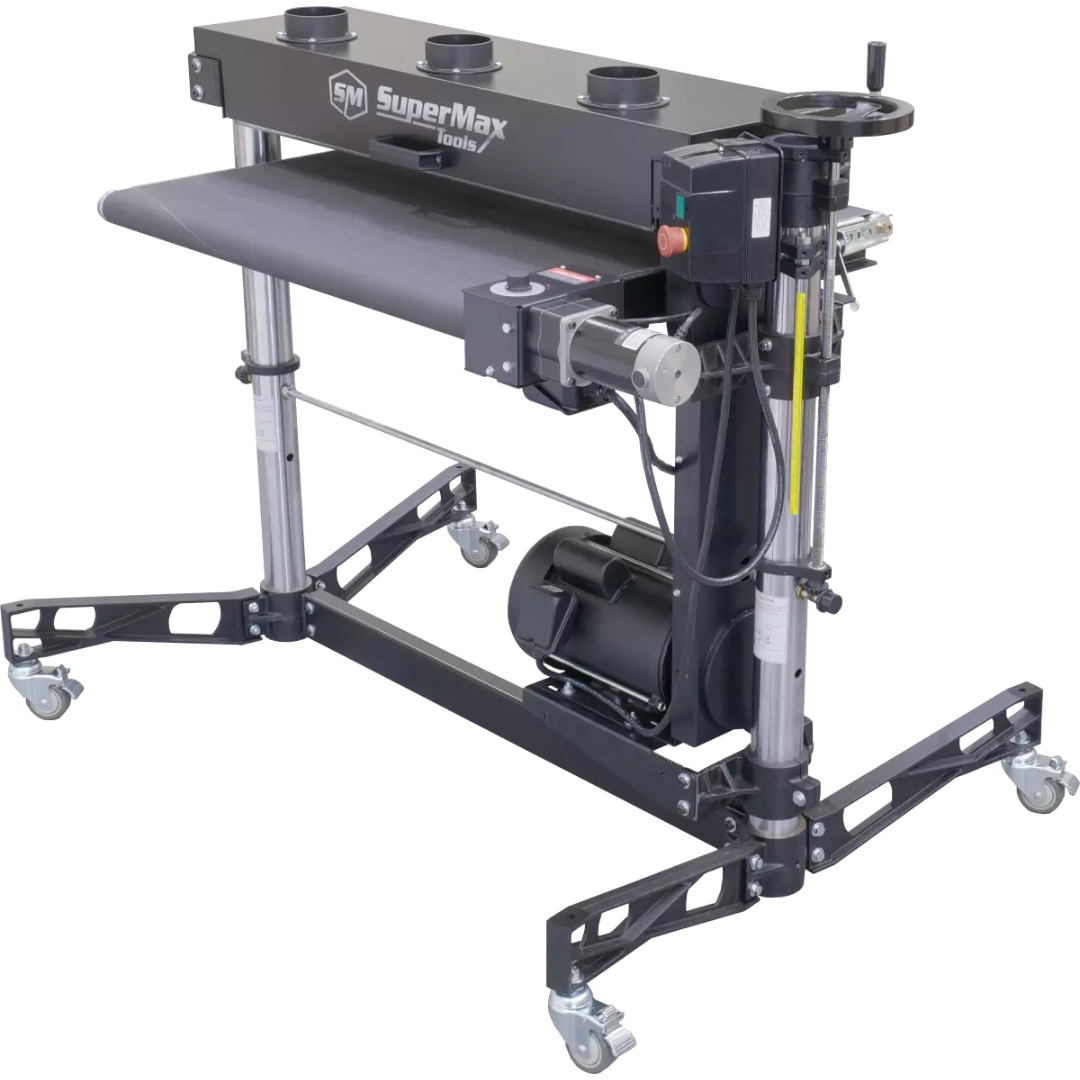

The Laguna SuperMax 37×2 Double Drum Sander SUPMX-937003 is a powerful, high-capacity sanding solution engineered to deliver speed, precision, and consistent results for demanding production workflows.
