Laguna SuperMax 25×2 Double Drum Sander SUPMX-913002 Applications
- Two-stage sanding (coarse and fine grit) in a single pass
- Panel sanding for cabinetry, furniture, and millwork
- Thickness sanding and dimensioning operations
- Production woodworking requiring high throughput
- Surface preparation for finishing and coating applications
Ideal for production shops looking to reduce sanding time while improving finish quality and consistency.
Laguna SuperMax 25×2 Double Drum Sander SUPMX-913002 Specifications
| Model | 25×2 Double Drum Sander |
|---|---|
| Part Number | SUPMX-913002 |
| Motor | 5 HP (TEFC) |
| Sanding Width | 25" |
| Maximum Thickness | 6" |
| Minimum Thickness | 1/32" |
| Minimum Sanding Length | 3-1/2" |
| Drum Size | 5" × 25" extruded aluminum (dual drums) |
| Drum Speed | 1740 RPM |
| Conveyor Speed | 0 – 15 FPM variable |
| Conveyor Motor | 100 in-lb torque, direct drive DC motor |
| Dust Collection | (2) 4" ports, 1000 CFM recommended |
| Machine Dimensions | 43" × 46" × 31" |
| Power Requirements | 208–230V, 1 Phase (30 Amp) or 3 Phase (20 Amp) |
| Shipping Weight | 475 lbs |
| Shipping Dimensions | 50" × 44-1/2" × 44-1/2" |
| Included | No cord, plug, or casters included |
Laguna SuperMax 25×2 Double Drum Sander SUPMX-913002 Performance & Construction

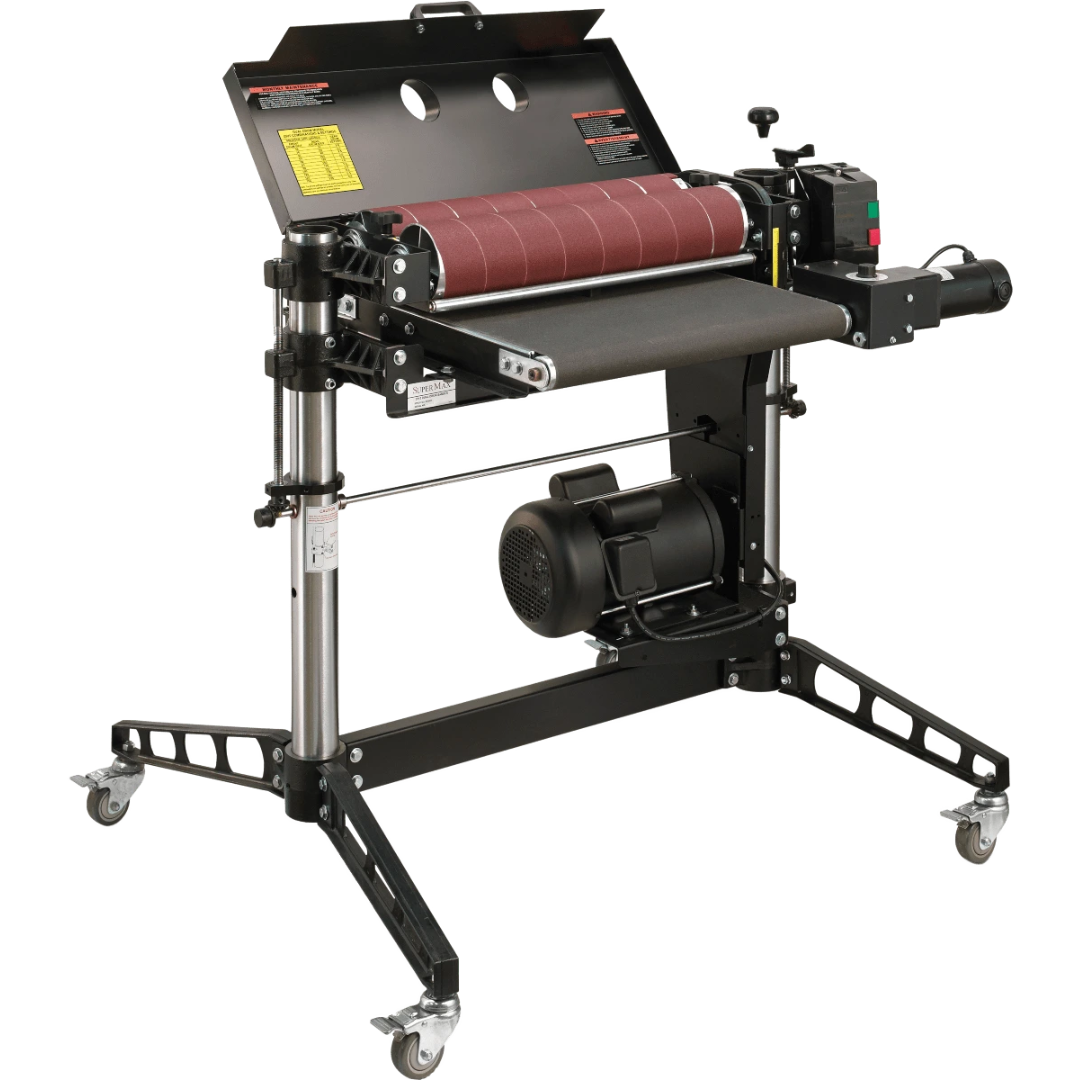

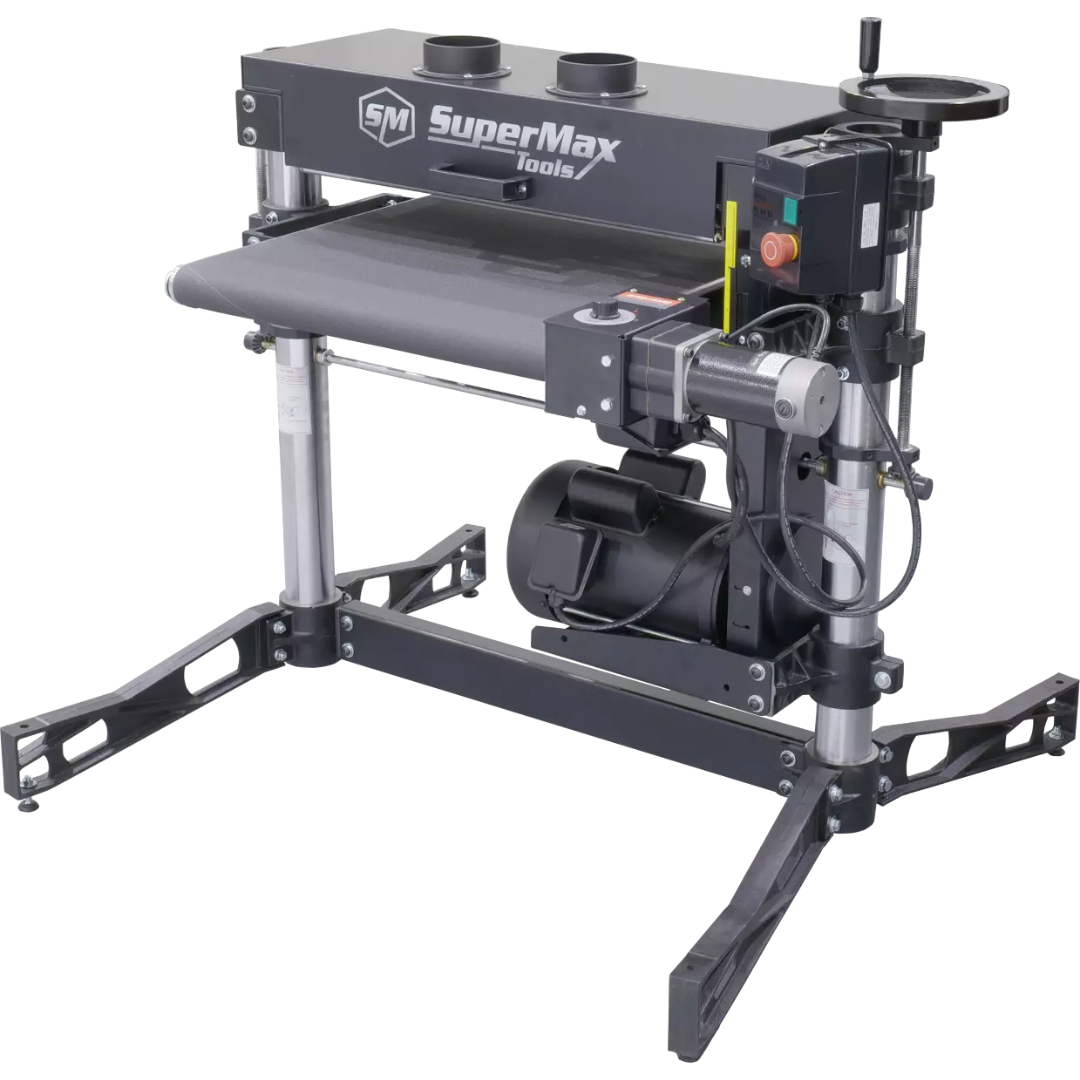

- Dual drum configuration allows sanding with two different grits in one pass for maximum efficiency.

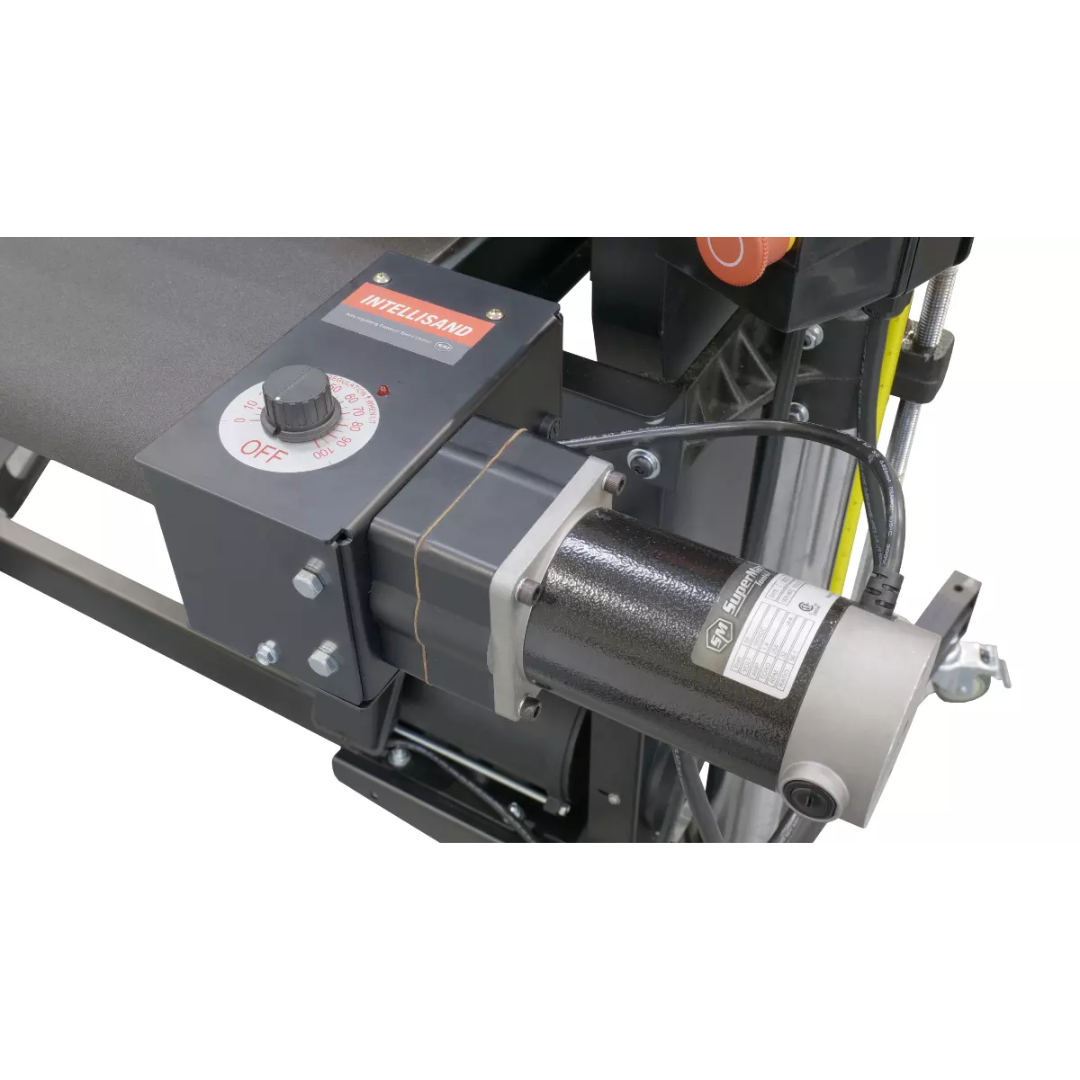

- INTELLISAND® Technology automatically adjusts conveyor speed to prevent burning, gouging, and overload.
- Precision-flattened steel conveyor bed reinforced for less than .010" flatness across the width.

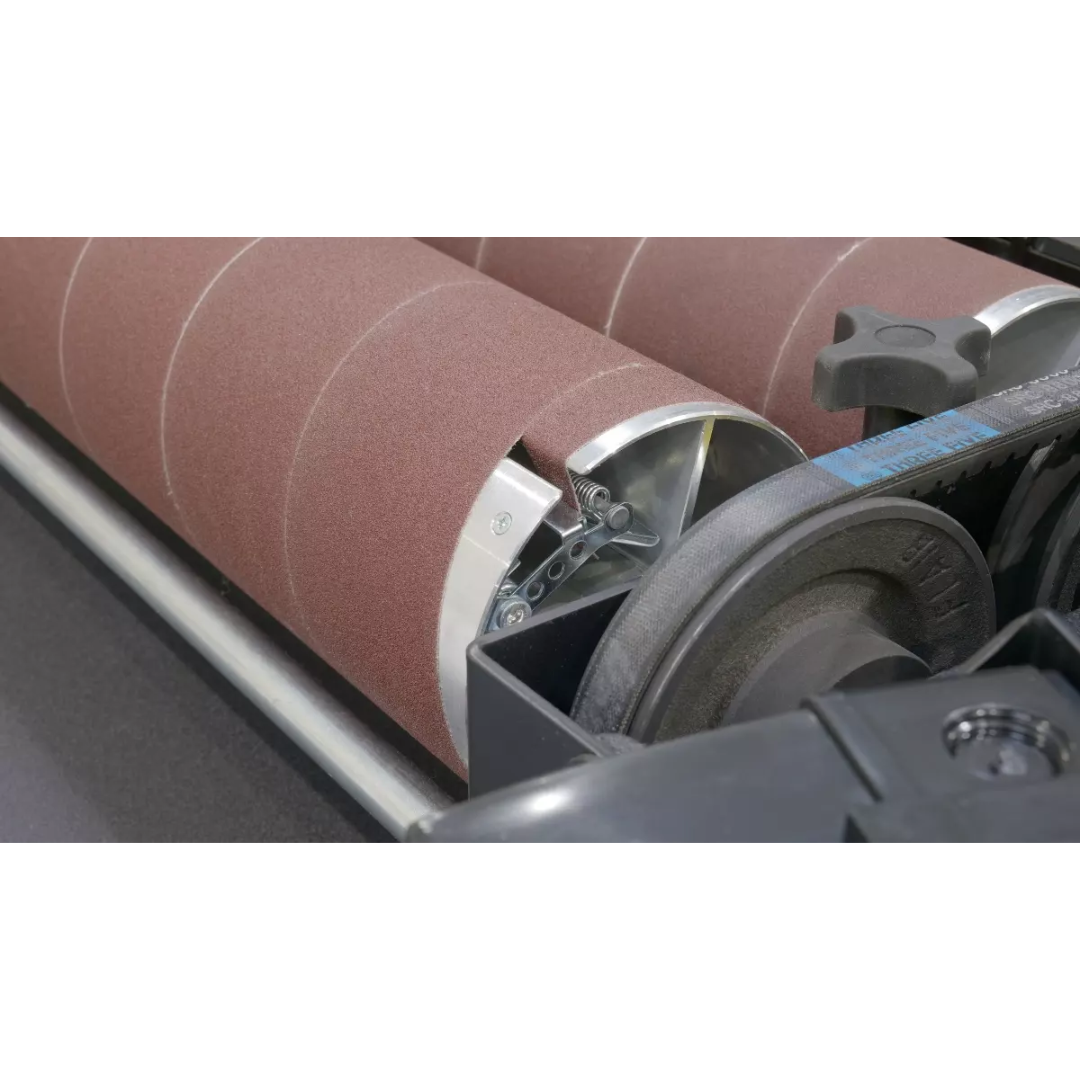

- Patented abrasive attachment system ensures consistent tension and fast, tool-free abrasive changes.
- Self-cooling drums reduce heat buildup and extend abrasive life.
- Heavy-duty cast iron construction minimizes vibration and enhances durability.
- Adjustable tension rollers prevent snipe and maintain smooth material feed.
- Optimized dust hood design with dual ports improves dust extraction efficiency.
Laguna SuperMax 25×2 Double Drum Sander SUPMX-913002 Productivity Benefits
- Two Grits, One Pass: Dramatically reduces sanding time and increases throughput.
- Consistent Finish Quality: Maintains uniform results across varying wood densities.
- Reduced Labor: Minimizes manual sanding and rework requirements.
- High Power Performance: 5 HP motor supports demanding production workloads.
- Versatile Operation: Suitable for both dimensioning and fine finishing applications.
The Laguna SuperMax 25×2 Double Drum Sander SUPMX-913002 is a production-grade solution built to maximize efficiency, precision, and output—making it an essential machine for high-performance woodworking operations.
