Laguna SuperMax 19-38 Combination Brush/Drum Sander 219383 Applications
- Flat panel sanding and thickness sanding
- Profile sanding for mouldings and raised panels
- Surface preparation and finish sanding
- Distressing wood and enhancing grain texture
- Cleaning reclaimed wood and composite materials
Ideal for shops needing both precision drum sanding and flexible brush sanding in one compact, efficient machine.
Laguna SuperMax 19-38 Combination Brush/Drum Sander 219383 Specifications
| Model | 19-38 Combination Brush/Drum Sander |
|---|---|
| Part Number | 219383 |
| Motor | 1.75 HP, 110V |
| Sanding Width | 19" single pass / 38" double pass |
| Maximum Thickness | 4" |
| Minimum Thickness | 1/32" |
| Minimum Sanding Length | 5-1/2" |
| Sanding Head | Interchangeable drum and brush system |
| Drum Speed | 1740 RPM |
| Conveyor Speed | 0 – 10 FPM variable (INTELLISAND™) |
| Dust Collection | 4" overhead port (600 CFM minimum) |
| Stand | Open stand (optional closed stand) |
| Dimensions | 24" × 40" × 24" |
| Footprint | 21" × 36" |
| Net Weight | 264 lbs |
| Shipping Weight | 371 lbs |
| Electrical | 110V, 15 Amp (Ships without cord or plug) |
Laguna SuperMax 19-38 Combination Brush/Drum Sander 219383 Performance & Construction
- Combination sanding system allows both drum sanding and brush sanding in a single machine.
- Interchangeable heads support flapper, nylon, wire brushes, and drum sanding applications.
- INTELLISAND™ Technology automatically adjusts feed rate to prevent burning, gouging, and overload.
- Simple alignment system enables fast and accurate conveyor-to-head alignment.
- Indexed alignment feature ensures precision sanding for narrow and wide stock.
- Extra-wide conveyor provides enhanced support for wider materials.
- Precision height adjustment eliminates backlash for accurate, repeatable settings.
- Heavy-duty cast iron frame reduces vibration and improves durability.
- Self-cooling drum prevents overheating and extends abrasive life.
- Adjustable tension rollers eliminate snipe and ensure smooth feeding.
Laguna SuperMax 19-38 Combination Brush/Drum Sander 219383 Brush & Drum Capabilities

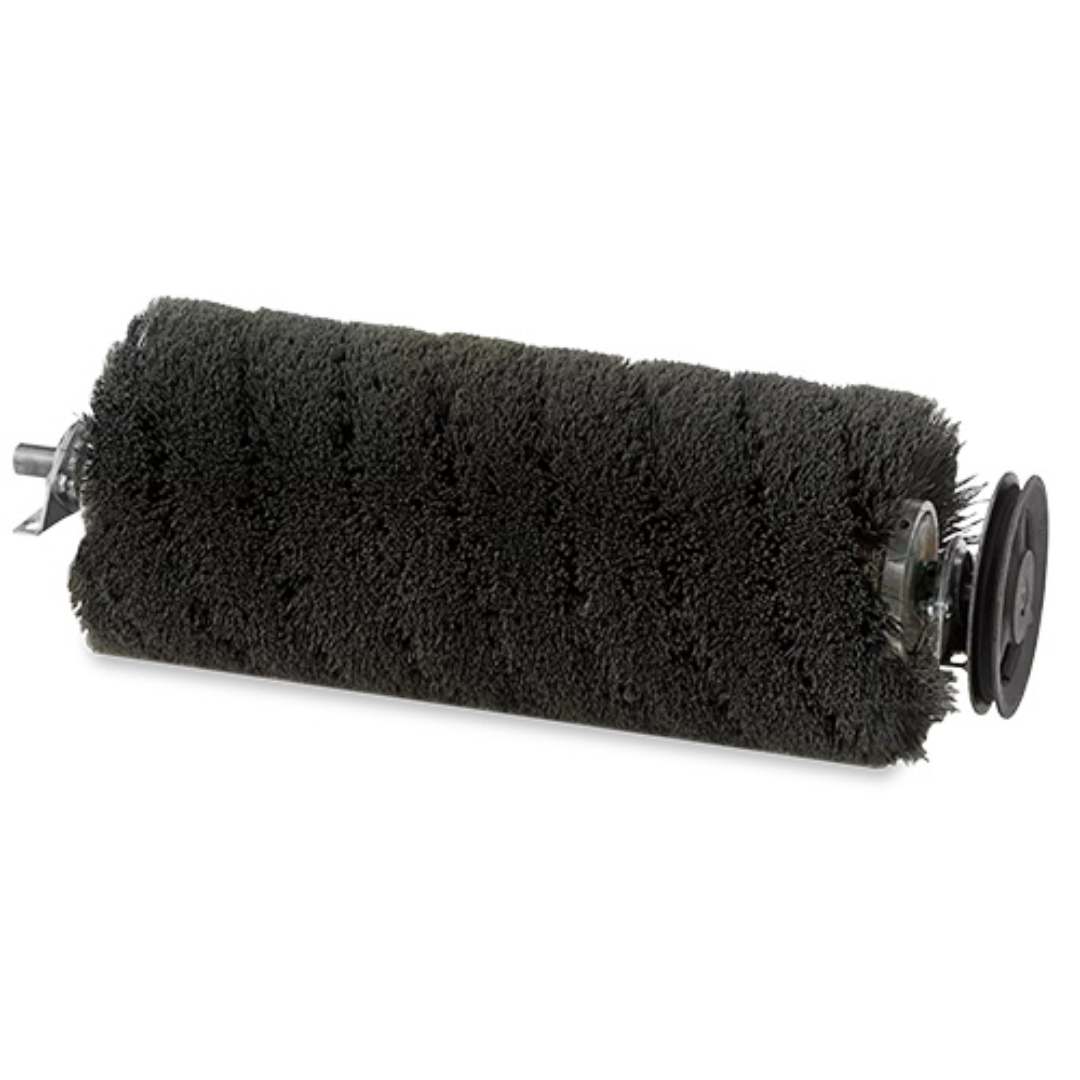

- Flatter Brush: Produces near-finish results and reduces the need for hand sanding.
- Nylon Brush: Ideal for scuff sanding, cleaning, and light surface preparation.

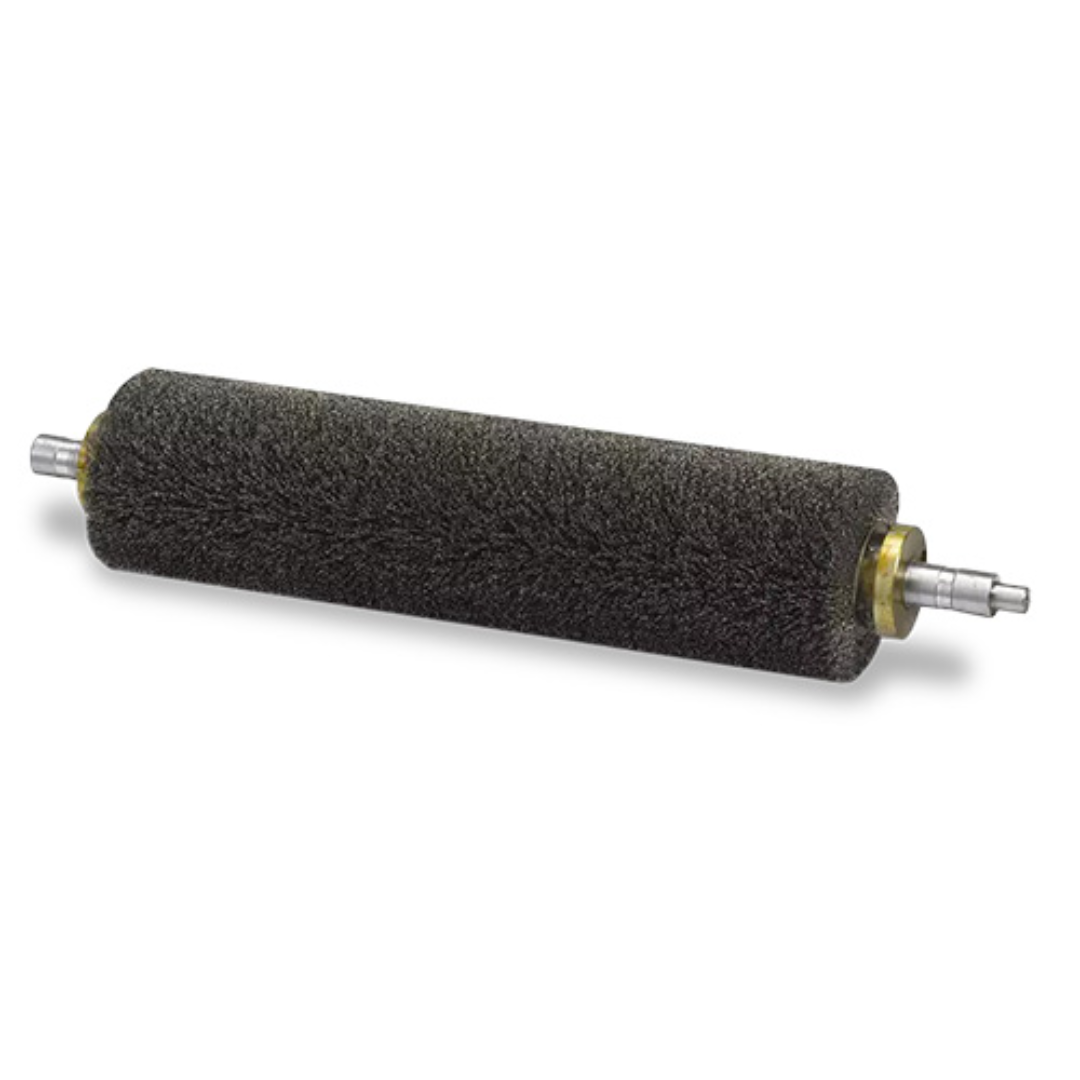

- Wire Brush: Creates distressed finishes and enhances wood grain texture.
- Drum Sanding: Perfect for dimensioning and finishing flat stock.
- Variable head speed compatibility ensures optimal performance across all brush types.
Switch between sanding methods quickly to handle a wide range of finishing tasks with one machine.
Laguna SuperMax 19-38 Combination Brush/Drum Sander 219383 Productivity Benefits
- All-in-One Solution: Combines multiple sanding processes into a single machine.
- Increased Efficiency: Reduces setup time and eliminates the need for multiple machines.
- Consistent Results: Machine-controlled sanding ensures uniform finishes.
- Versatile Performance: Handles flat sanding, profile sanding, and texturing applications.
- User-Friendly Operation: Easy adjustments and intuitive controls reduce training time.
The Laguna SuperMax 19-38 Combination Brush/Drum Sander 219383 delivers unmatched versatility and precision, making it an essential finishing solution for shops looking to maximize capability and efficiency.
