Laguna SuperMax 16-32 Drum Sander SUPMX-71632 Applications
- Precision sanding for furniture, cabinetry, and woodworking components
- Fine finishing for luthiers, turners, and custom woodworkers
- Thickness sanding for panels, doors, and small parts
- Sign making, scroll work, and detailed sanding applications
- Abrasive planing and finish sanding with interchangeable grits
Perfect for shops that need accurate, repeatable sanding performance in a compact footprint without sacrificing capacity.
Laguna SuperMax 16-32 Drum Sander SUPMX-71632 Specifications
| Model | 16-32 Drum Sander |
|---|---|
| Part Number | SUPMX-71632 |
| Motor | 1.5 HP, 110V |
| Sanding Width | 16" single pass / 32" double pass |
| Maximum Material Thickness | 3" |
| Minimum Material Thickness | 1/32" |
| Minimum Sanding Length | 2-1/4" |
| Sanding Head | Drum |
| Conveyor Speed | 0 – 10 FPM variable (INTELLISAND®) |
| Dust Collection Port | 4" Turbo Vented Port |
| Stand Type | Open Stand |
| Frame & Table | Cast Iron Frame with Steel Conveyor Table |
| Height Adjustment | Quick Adjust Lever with Digital Readout (DRO) |

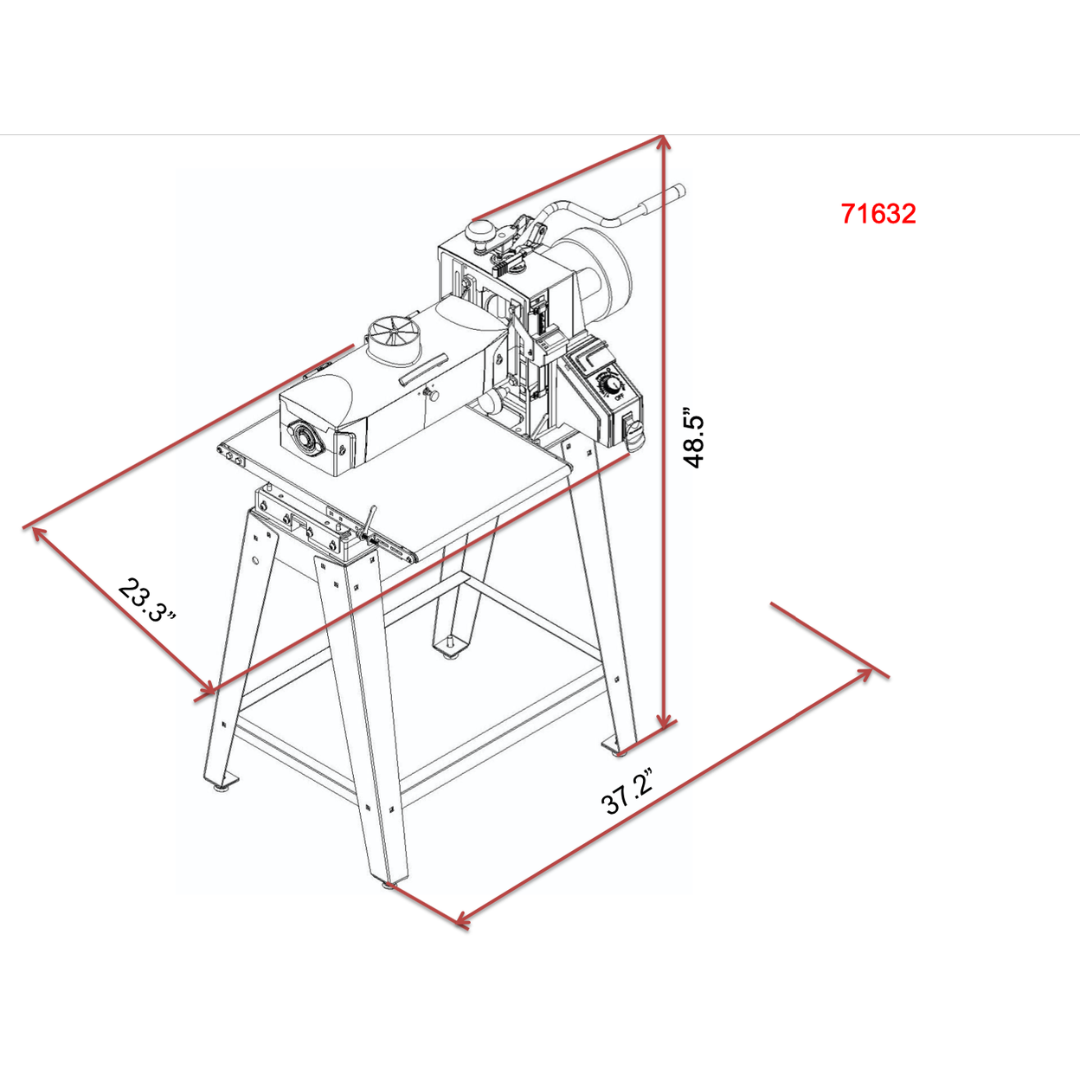

| Footprint | 20" × 27" |
| Shipping Weight | 158 lbs |
| Shipping Dimensions | 36" × 26" × 22" |
| Electrical | NEMA 5-15P Plug |
Laguna SuperMax 16-32 Drum Sander SUPMX-71632 Performance & Construction
- INTELLISAND® Technology automatically adjusts conveyor speed to prevent gouging, burning, and machine overload.
- Quick adjustment lever (patented) allows rapid height changes without extensive manual turning.
- Digital Readout (DRO) ensures precise thickness control and repeatable accuracy.
- Turbo vented dust port improves airflow efficiency by up to 15% for better dust extraction.
- Self-cooling drum prevents overheating and extends abrasive life.
- Automatic abrasive tensioning simplifies abrasive changes and maintains optimal performance.
- Indexed alignment system ensures fast and accurate alignment for narrow and wide stock.
- Adjustable tension rollers reduce snipe and ensure smooth material feeding.
Laguna SuperMax 16-32 Drum Sander SUPMX-71632 Productivity Benefits
- Compact with Large Capacity: Handles up to 32" wide material in two passes while maintaining a small footprint.
- Precision Control: Achieve exact thickness with digital readout and smooth height adjustments.
- Versatile Sanding: Suitable for everything from aggressive stock removal to fine finishing.
- User-Friendly Operation: Low learning curve with intuitive controls and efficient setup.
- Consistent Results: Machine-controlled sanding eliminates inconsistencies found in manual sanding.
The Laguna SuperMax 16-32 Drum Sander SUPMX-71632 delivers professional-grade sanding precision in a compact, efficient, and easy-to-use machine—ideal for workshops demanding accuracy and reliability.
