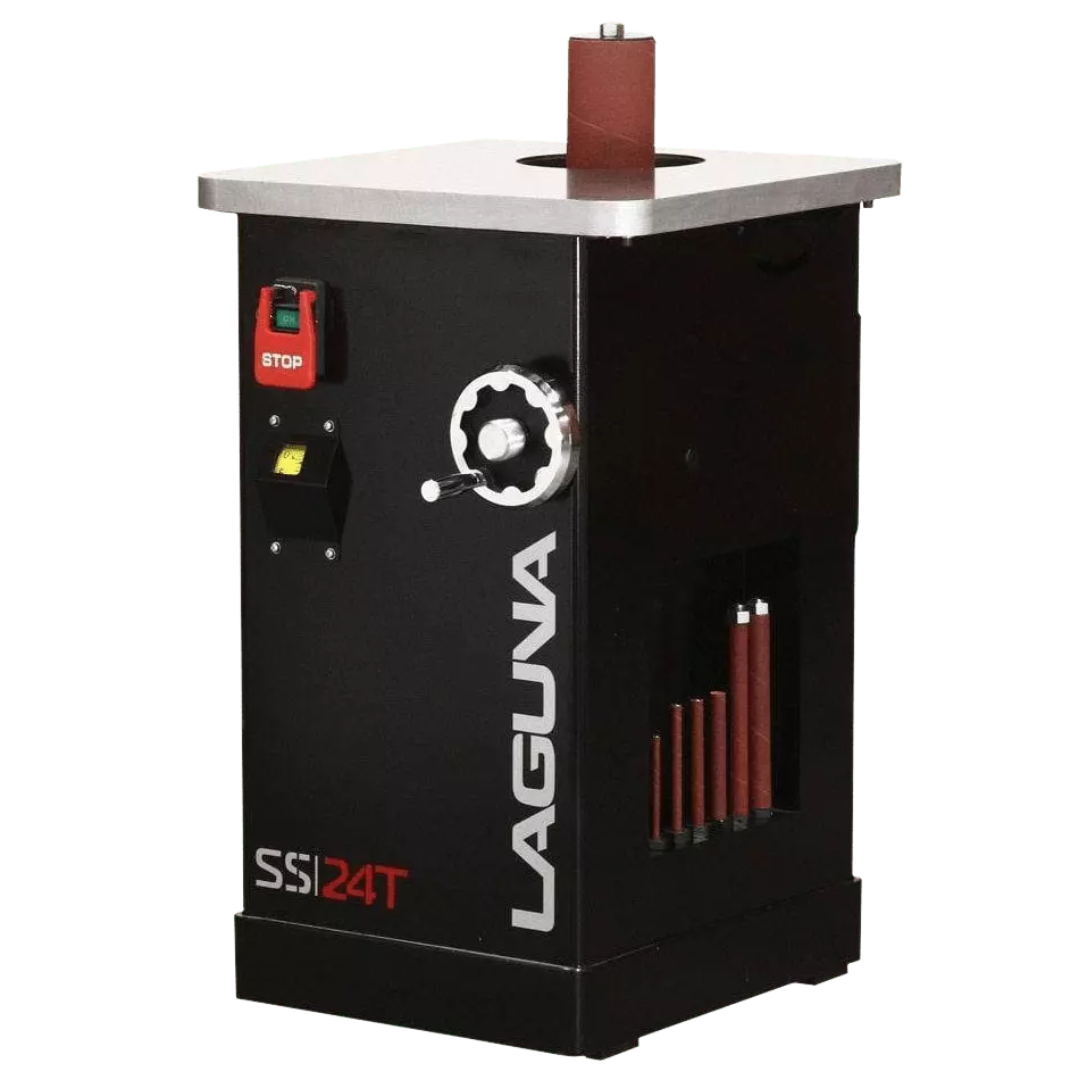

Laguna SS|24 Spindle Sander MSANOS24X24-110V-1-0320 Applications
- Precision sanding of curved edges, profiles, and contours
- Cabinetmaking, furniture production, and custom woodworking
- Template sanding and shaping of complex components
- High-accuracy finishing tasks requiring consistent results
Ideal for professional shops requiring precision spindle sanding with enhanced control and flexibility.
Laguna SS|24 Spindle Sander MSANOS24X24-110V-1-0320 Specifications
| Motor | 1 HP, 110V, 10 Amp |
|---|---|
| Motor Speed | 1,725 RPM |
| Oscillations Per Minute | 71 |
| Oscillation Stroke | 1-1/2" |
| Table Size | 24" x 24" |
| Spindle Tilt | 0° – 45° (Forward Tilting) |
| Spindle Sizes Included | 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2", 3", 4" |
| Sanding Sleeve Length | 6" – 9" |
| Dust Port | 4" |
| Table Height | 38.25" |
| Net / Shipping Weight | 326 lbs / 365 lbs |
| Shipping Dimensions | 48" x 20" x 42" |
| Plug Type | NEMA 5-15P |
Laguna SS|24 Spindle Sander MSANOS24X24-110V-1-0320 Performance & Construction

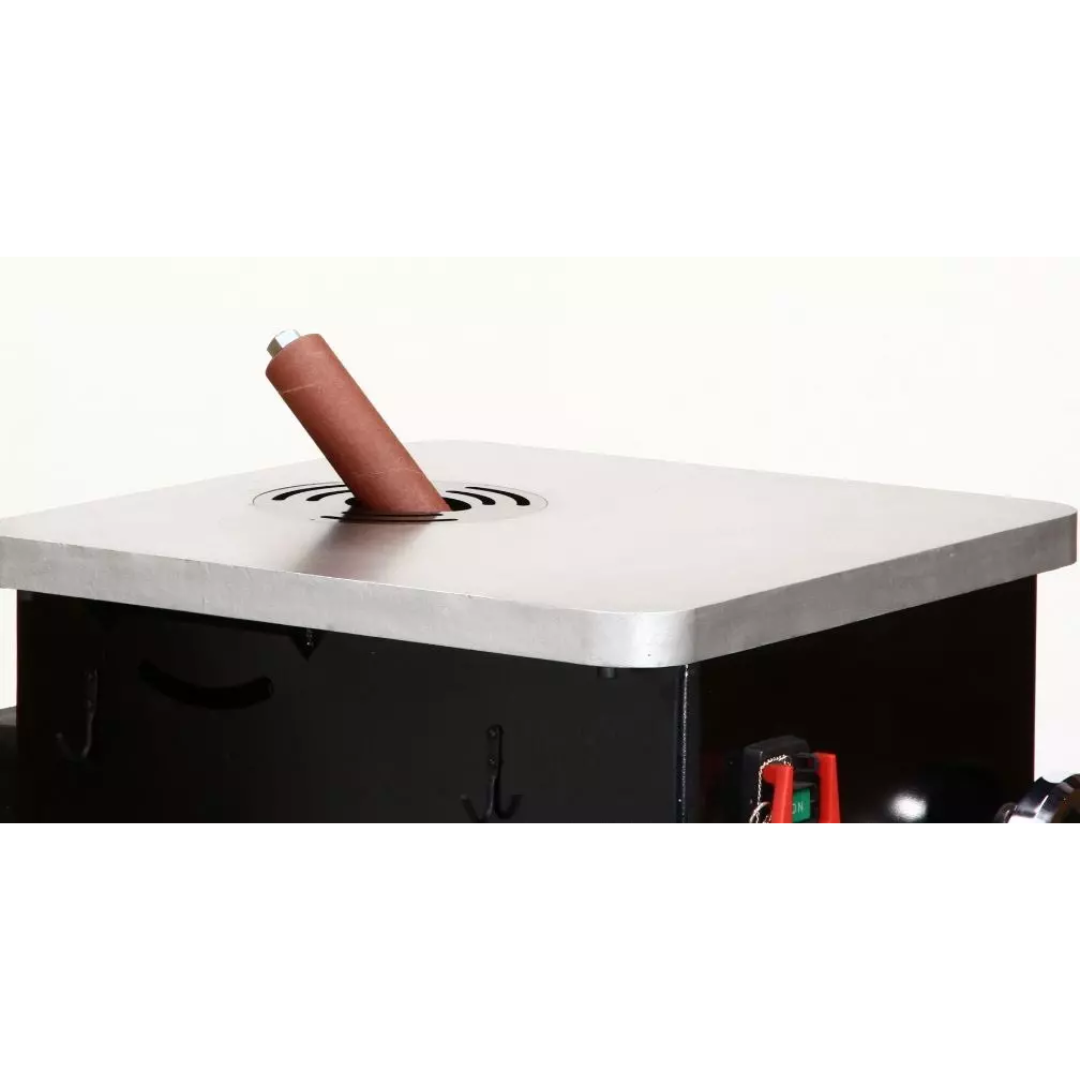

- Forward-tilting spindle (0°–45°) allows angled sanding without moving the table, improving accuracy and control.

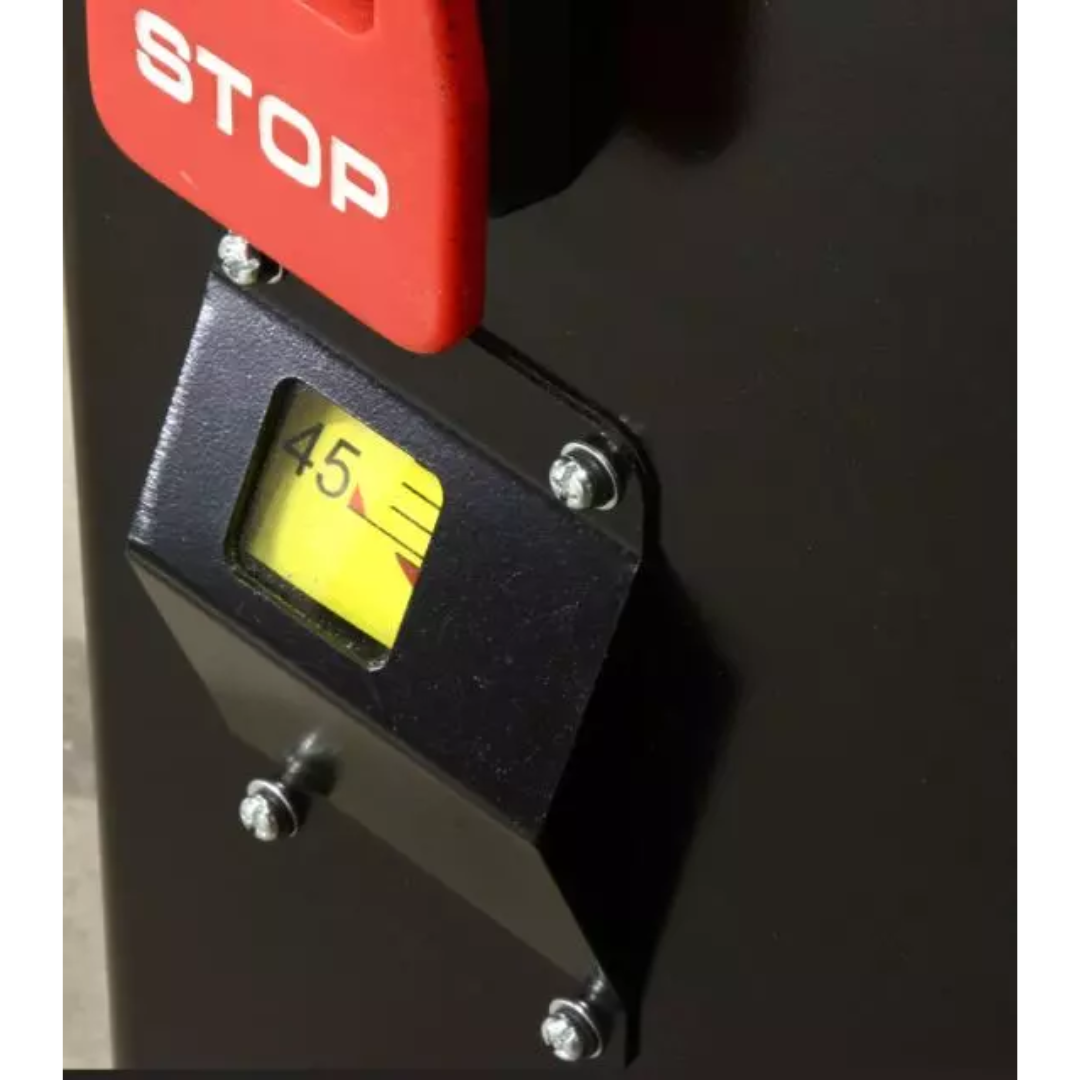

- Digital readout for spindle tilt ensures precise angle adjustments for repeatable results.
- Heavy-duty oscillation system powered by a worm gear mechanism for smooth and consistent movement.
- Oil bath gearbox enhances durability, reduces wear, and improves long-term accuracy.
- High oscillation rate (71 OPM) increases sanding efficiency and extends abrasive life.
- Large 24" x 24" table provides stable support for larger workpieces.

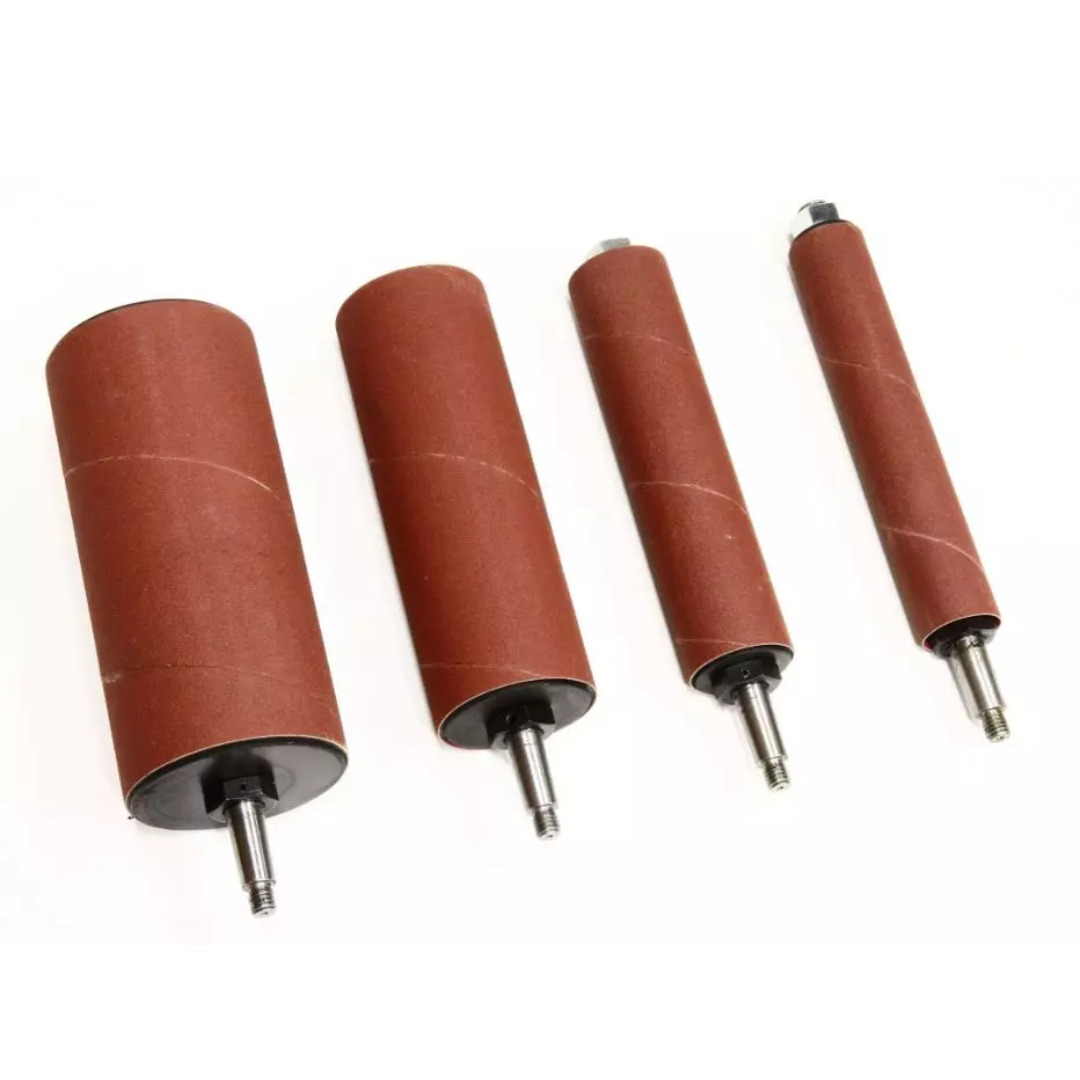

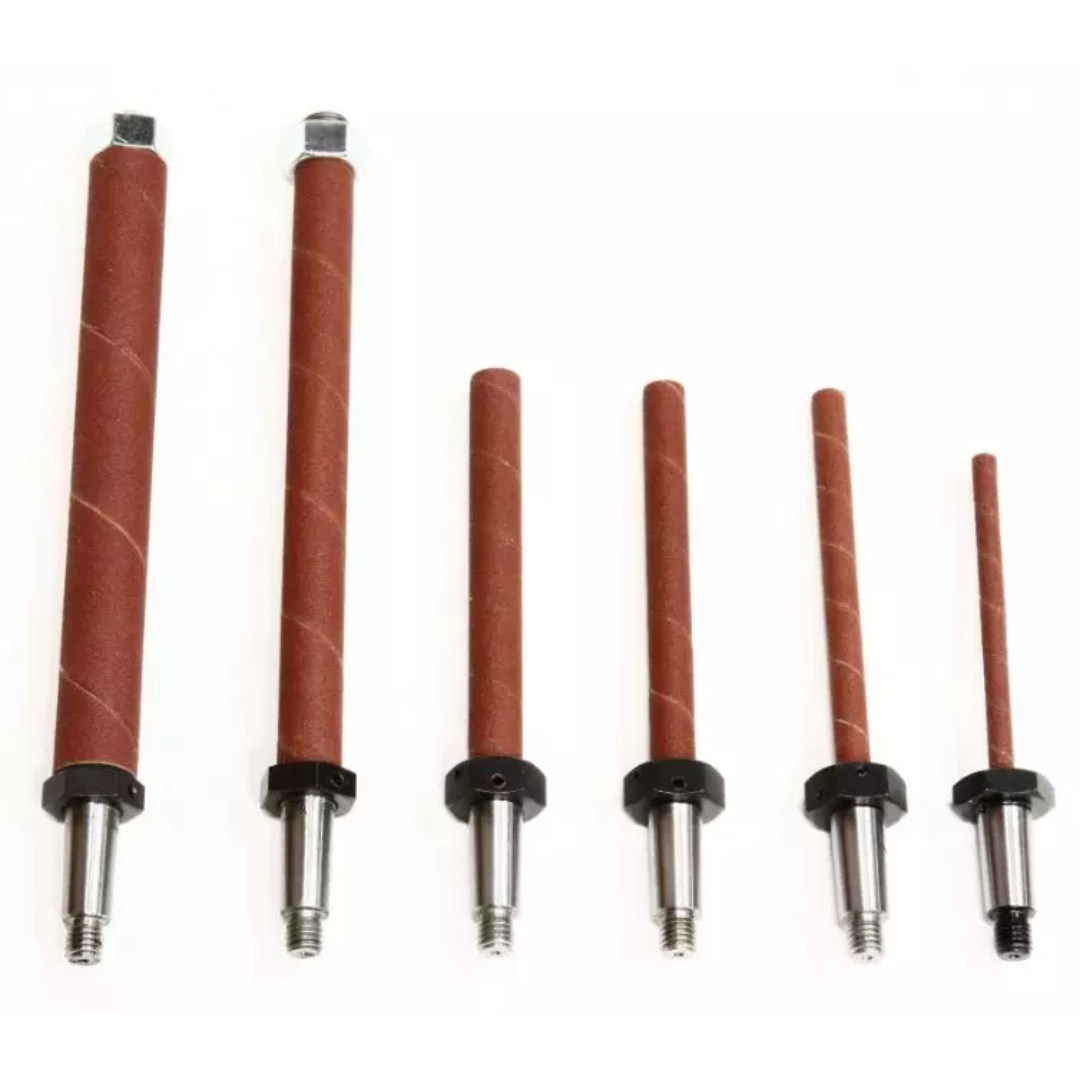

- Includes 10 spindle sizes for maximum versatility across various sanding applications.

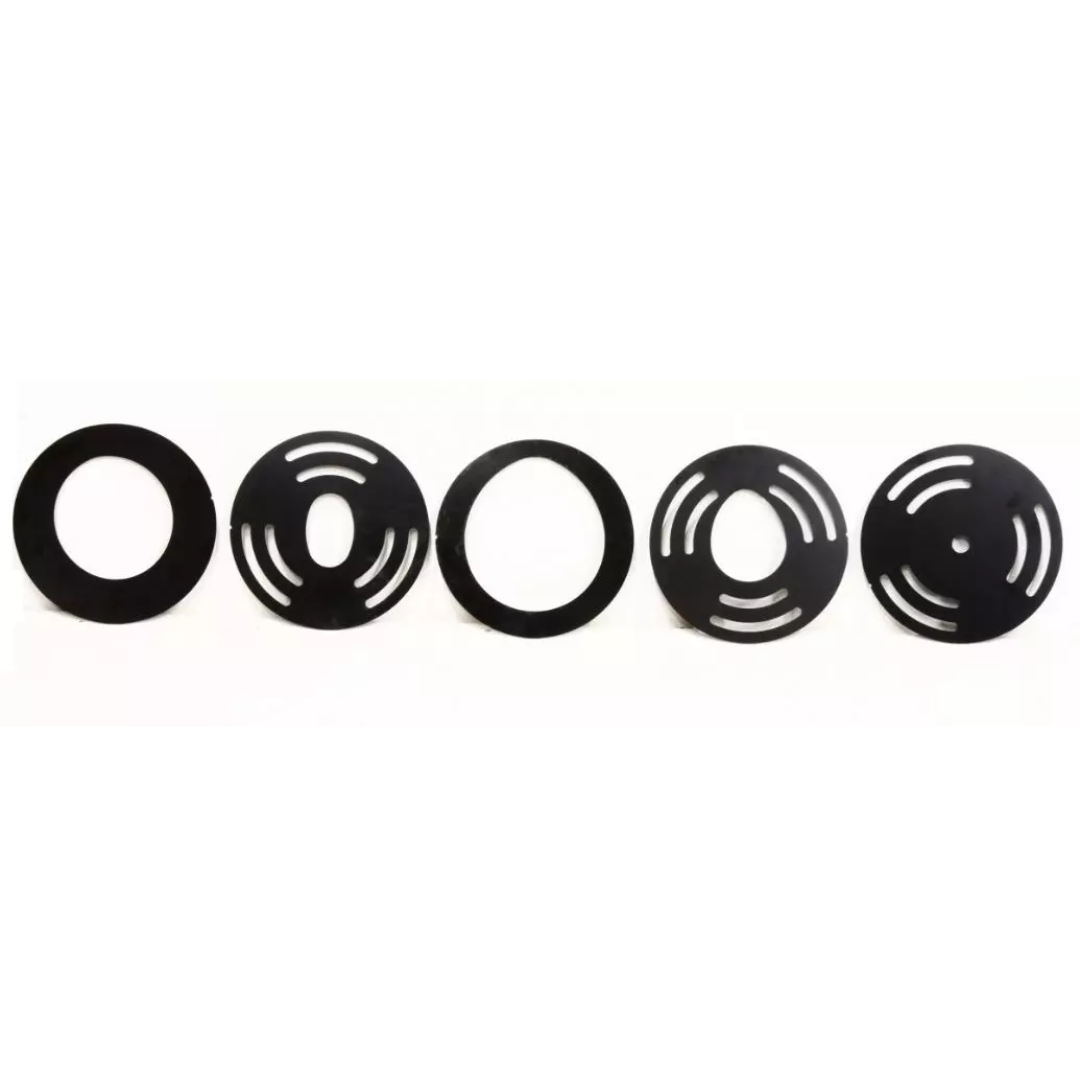

- 6 table inserts included ensure proper fit and support for different spindle diameters.

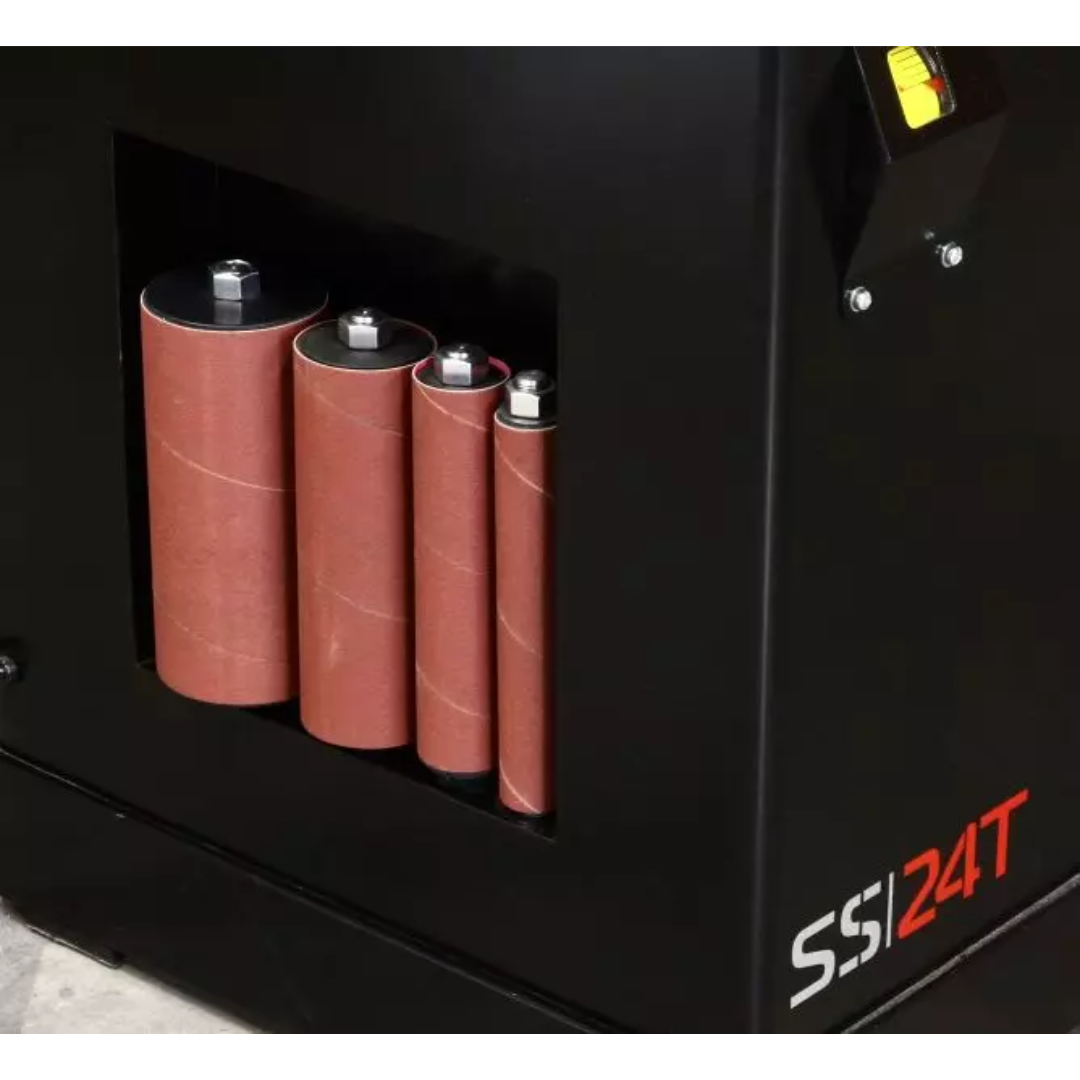

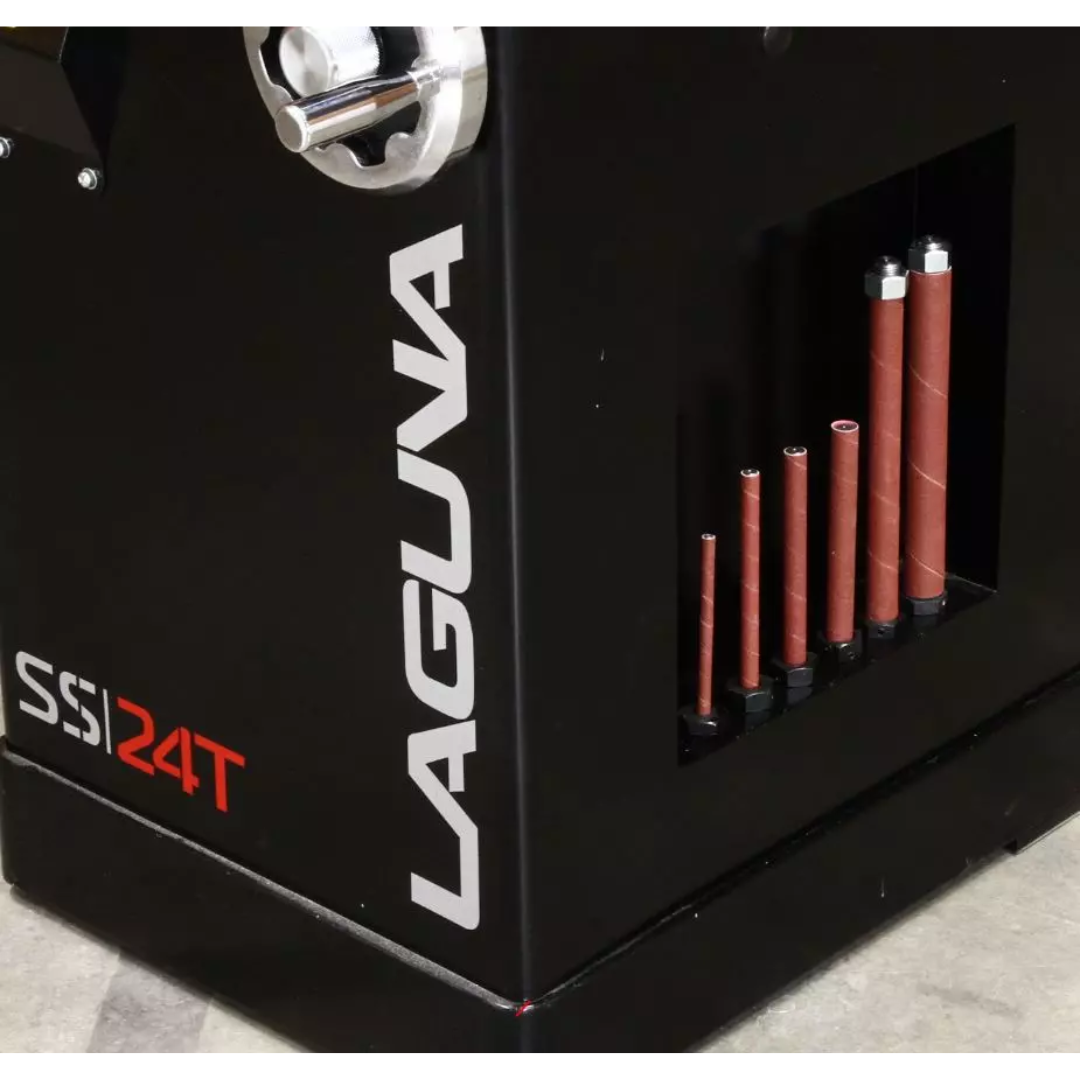

- Onboard storage system keeps spindles, inserts, and tools organized and accessible.
- Positive stop angles (45° & 90°) allow quick and accurate setup.
- Integrated dust port supports efficient dust collection for a cleaner workspace.
Why Choose the Laguna SS|24 Spindle Sander MSANOS24X24-110V-1-0320
- Advanced tilting spindle design for superior sanding precision.
- Heavy-duty construction built for professional and production environments.
- Comprehensive accessory package with spindles and inserts included.
- High-performance oscillation system for smoother finishes and longer abrasive life.
Note: The Laguna SS|24 Spindle Sander MSANOS24X24-110V-1-0320 is sold exclusively through Laguna’s authorized dealer network.
