Laguna Revo 24|36 Lathe 220V MLAREVO 2436-220 Applications
- Large bowl turning and oversized workpieces up to 38" outboard capacity
- Professional furniture production and custom woodworking
- Heavy-duty spindle turning and precision detailing
- Industrial and high-output woodworking environments
Ideal for professionals who require maximum torque, expanded capacity, and advanced control flexibility in a heavy-duty lathe system.
Laguna Revo 24|36 Lathe 220V MLAREVO 2436-220 Specifications
| Model | MLAREVO 2436-220 |
|---|---|
| Swing Over Bed | 24" |
| Distance Between Centers | 36" |
| Motor | 3 HP, 220V, 60 Hz, Induction (TEFC) |
| VFD | Delta Variable Frequency Drive (1 Phase Input / 3 Phase Output) |
| RPM Range (Low) | 50 – 1300 RPM |
| RPM Range (High) | 135 – 3500 RPM |
| Spindle Size | 1-1/4" x 8 TPI RH |
| Spindle Taper | MT#2 (Hardened) |
| Tailstock Taper | MT#2 |
| Spindle Index | 14 / 36 / 48 Positions with Lock |
| Tool Rest Post | 1" |
| Headstock Through Bore | 3/8" |
| Tailstock Through Bore | 3/8" |
| Swing Over Banjo | 19-3/4" |
| Maximum Outboard Swing | 38" (with optional extension) |
| Bed Material | ASTM A36 Steel |
| Machine Dimensions (W x D x H) | 60" x 26" x 52-1/4" |
| Machine Weight | 532 lbs |
| Shipping Weight | 610 lbs |
| Electrical | 220V, 15 Amp Recommended Breaker, Plug 6-15P |
Laguna Revo 24|36 Lathe 220V MLAREVO 2436-220 Performance & Construction
- Powerful 3 HP motor with VFD control delivers unmatched torque for large diameter and heavy turning applications.

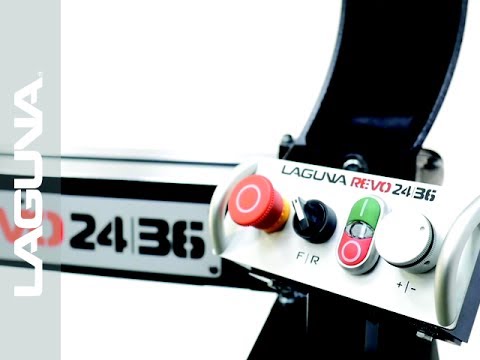

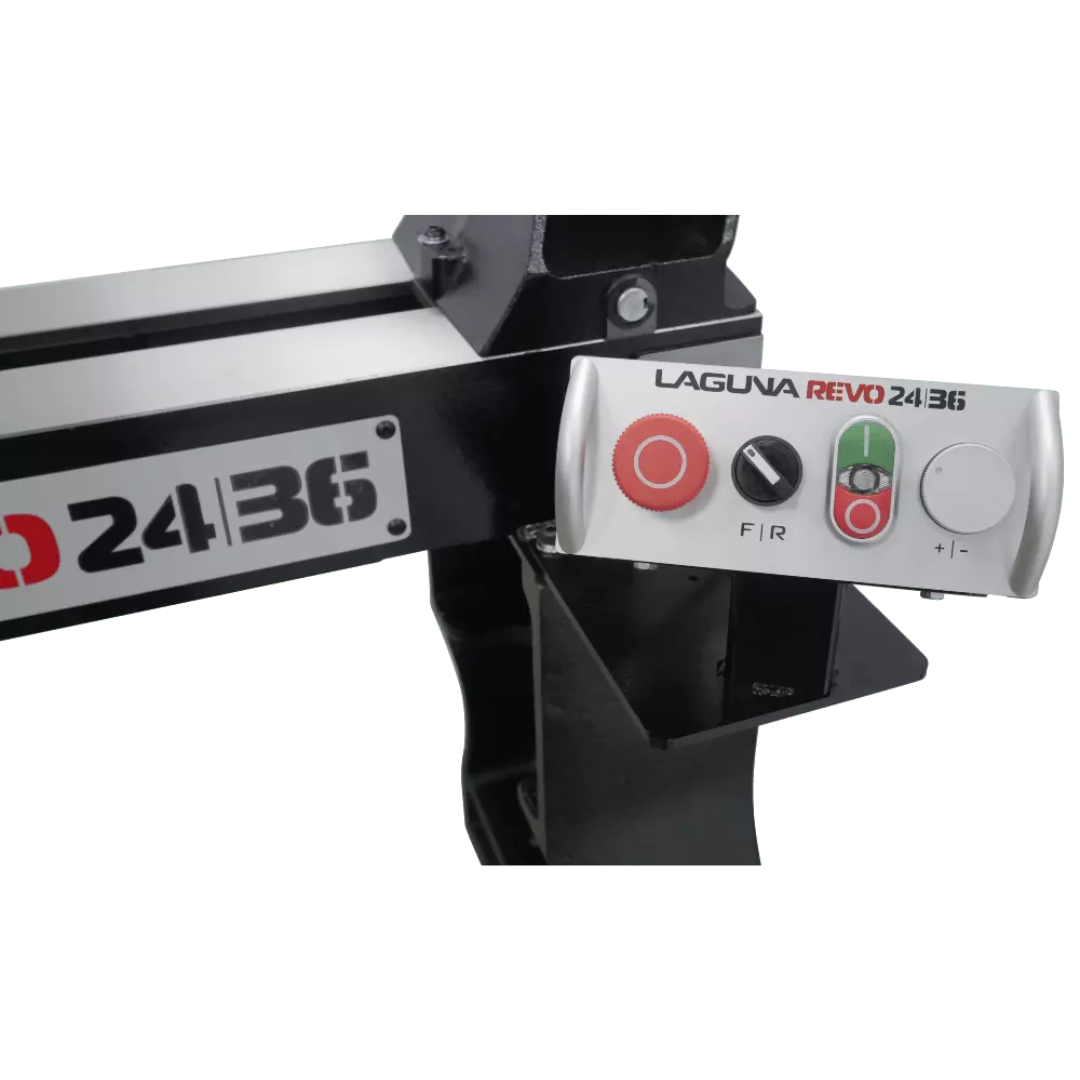

- Dual control panel system allows operation from headstock or remote panel with full speed adjustment and emergency stop functionality.
- Ergonomic dual-position control box mounts in high or low positions for optimal operator comfort.

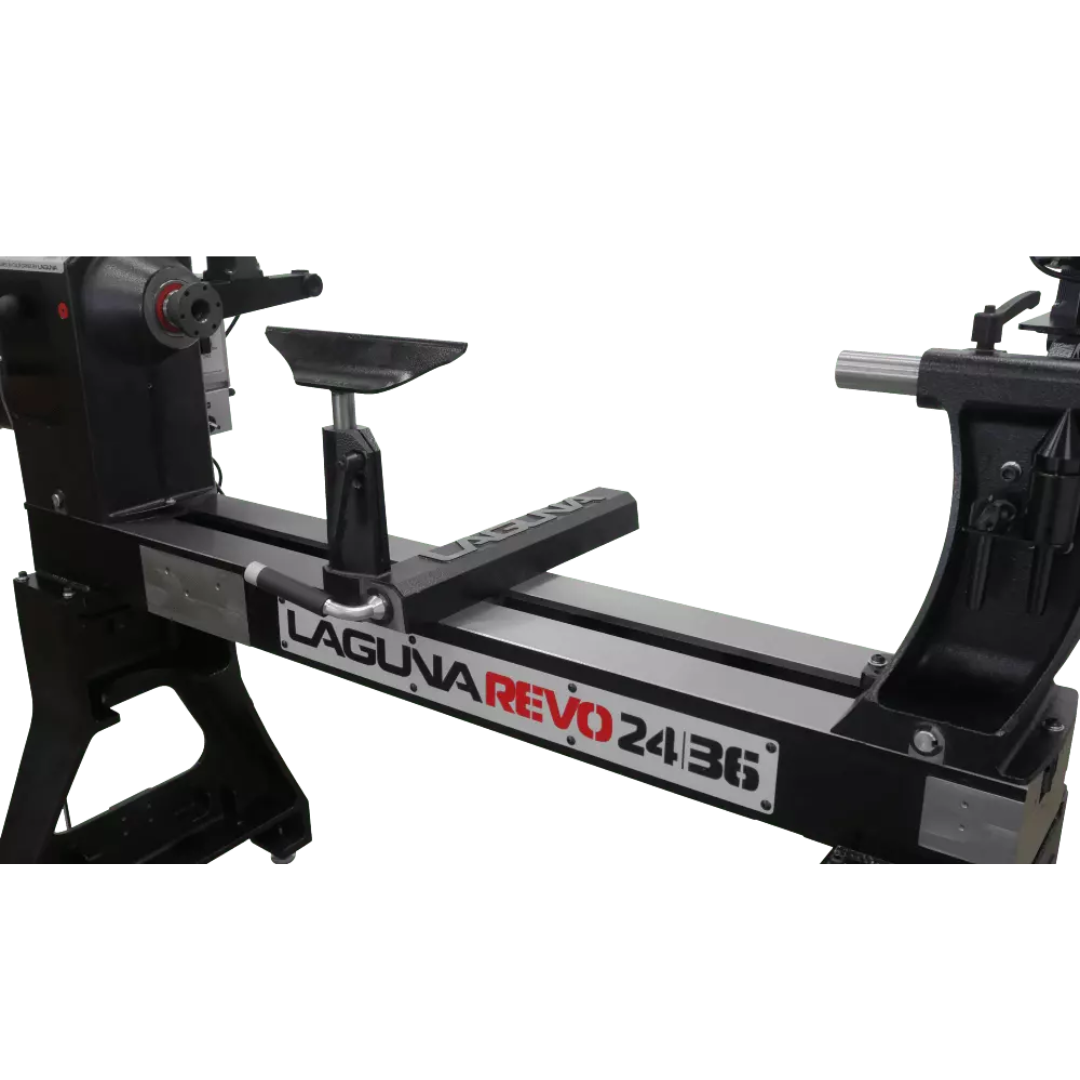

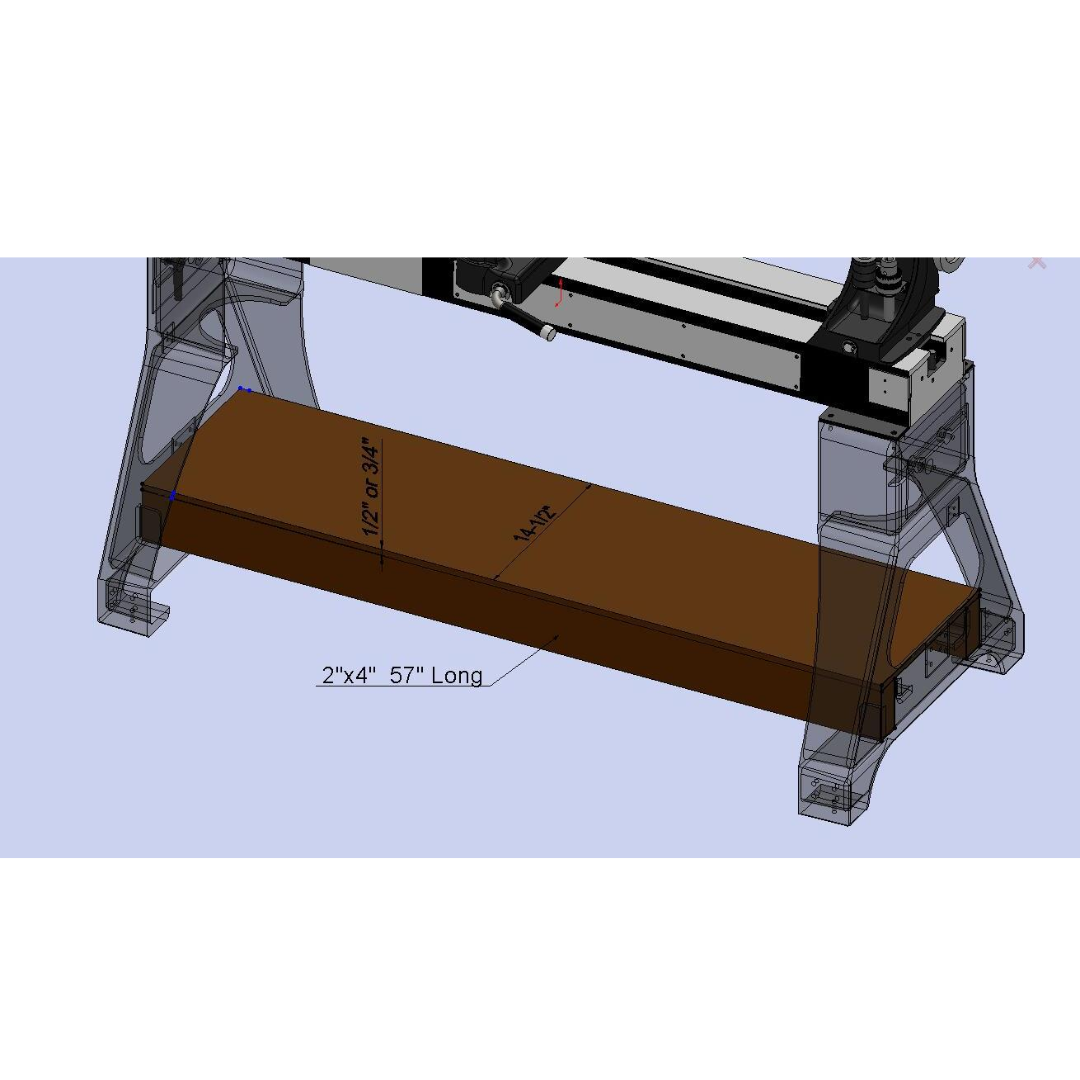

- 80% heavier cast iron legs provide superior vibration damping and stability compared to smaller models.
- Redesigned compact banjo with 45° cutout and wider base for enhanced rigidity and maneuverability.

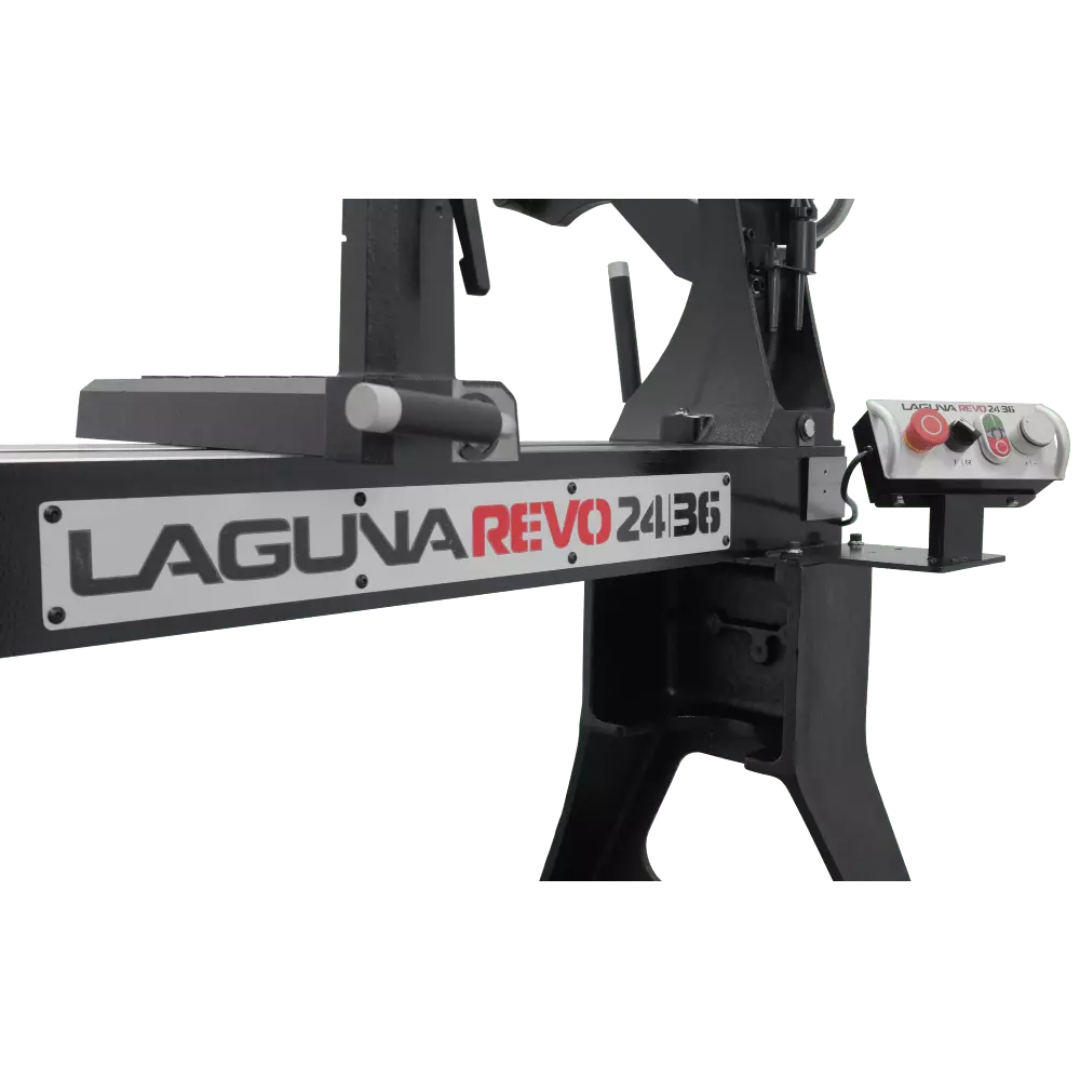

- Steel bed construction ensures long-term durability and smooth headstock travel.
- Poly-groove belt system with quick access enables efficient speed range changes.
- Spring-loaded spindle lock allows fast and secure accessory changes.
- Precision bearing system (TPI Taiwan bearings) ensures smooth spindle performance.
- Comprehensive accessory support including vacuum chuck compatibility, tool caddy, and dual work light outlets.
Why Choose the Laguna Revo 24|36 Lathe 220V MLAREVO 2436-220
- High-performance 3 HP motor for demanding turning applications.
- Dual control panels for unmatched operational flexibility and safety.
- Heavy-duty construction with reinforced legs for maximum stability.
- Expanded capacity for large-scale and outboard turning projects.
The Laguna Revo 24|36 Lathe 220V MLAREVO 2436-220 sets a new standard in professional woodturning, combining power, innovation, and precision engineering for the most demanding woodworking environments.
