Laguna Revo 18|36 Lathe 220V MLAREVO 1836-220 Applications

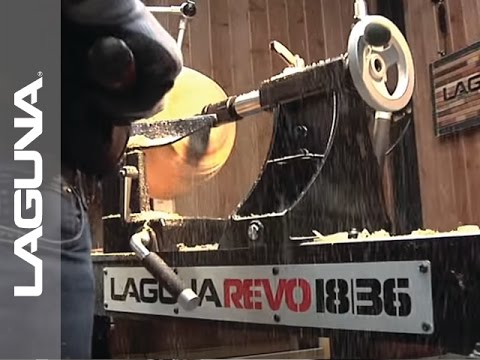

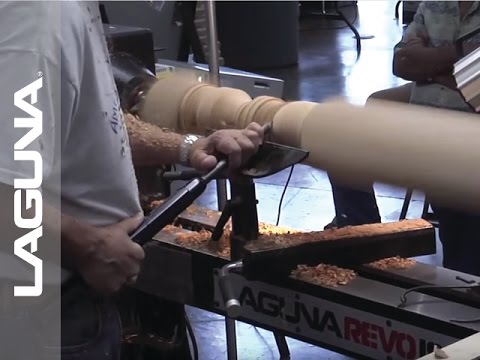

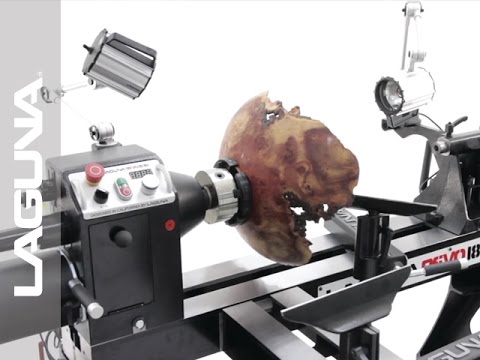

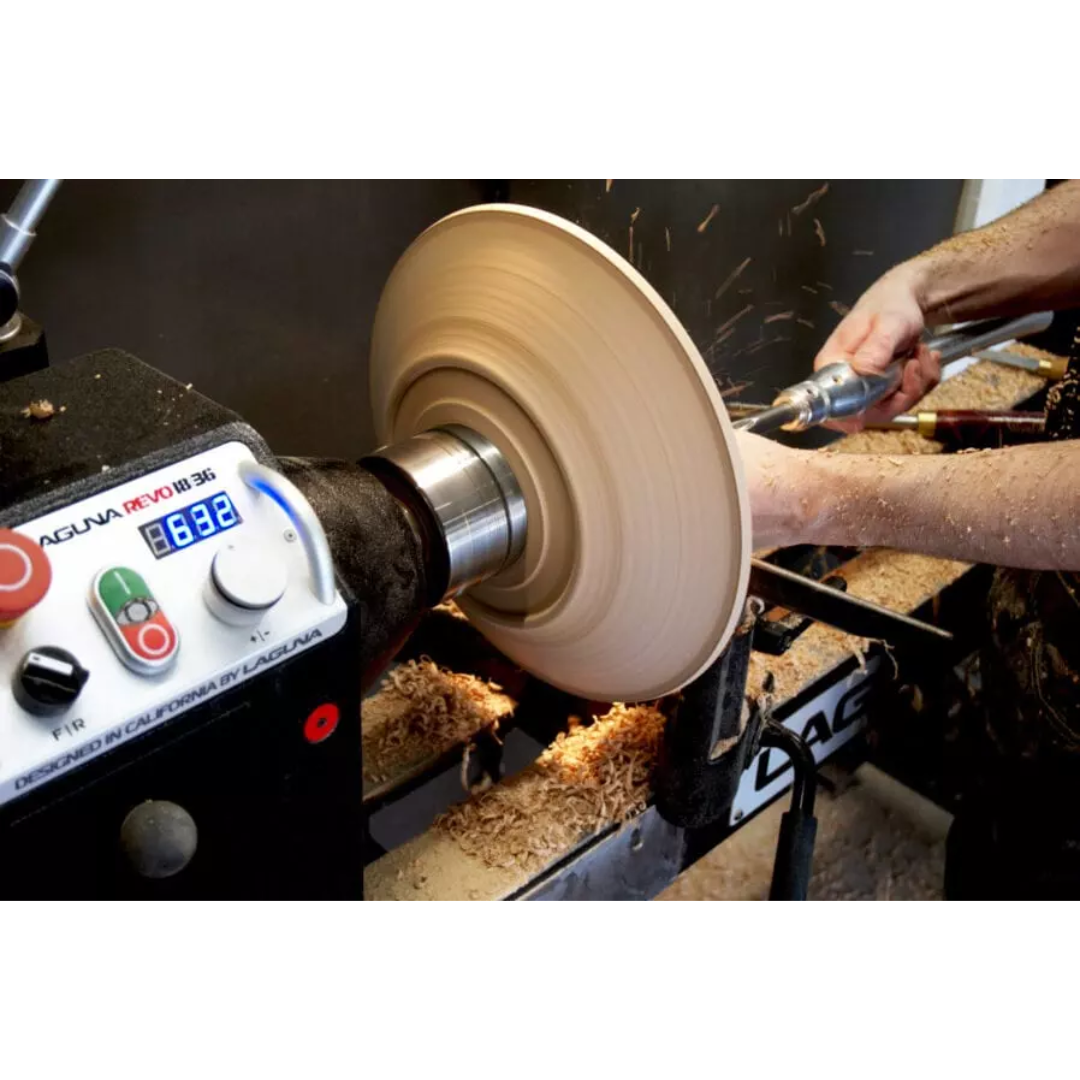

- Professional woodturning including bowls, spindles, and large diameter workpieces
- Furniture manufacturing and custom woodworking production

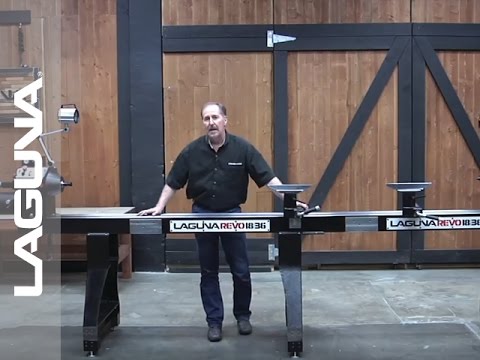

- Outboard turning applications up to 32" with optional extensions
- Workshops requiring precision, repeatability, and high torque performance
Designed for professionals and advanced users who need powerful torque, smooth control, and ergonomic operation for demanding turning tasks.
Laguna Revo 18|36 Lathe 220V MLAREVO 1836-220 Specifications
| Model | MLAREVO 1836-220 |
|---|---|
| Swing Over Bed | 18" |
| Distance Between Centers | 36" |
| Motor | 2 HP, 220V, 60 Hz, Induction (TEFC) |
| VFD | Delta S1 Variable Frequency Drive (1 Phase Input / 3 Phase Output) |
| RPM Range (Low) | 50 – 1300 RPM |
| RPM Range (High) | 135 – 3500 RPM |
| Spindle Size | 1-1/4" x 8 TPI Right Hand Thread |
| Spindle Taper | MT#2 |
| Tailstock Taper | MT#2 |
| Spindle Index | 14 / 36 / 48 Positions with Lock |
| Tool Rest Post | 1" |
| Headstock Through Bore | 3/8" |
| Tailstock Through Bore | 3/8" |
| Swing Over Banjo | 13-1/2" |
| Maximum Outboard Swing | 32" (with optional extension) |
| Bed Material | ASTM A36 Steel |
| Machine Dimensions (W x D x H) | 60" x 26" x 47" |
| Machine Weight | 427 lbs |
| Shipping Weight | 570 lbs |
| Electrical | 220V, 15 Amp Recommended Breaker, Plug 6-15P |
Laguna Revo 18|36 Lathe 220V MLAREVO 1836-220 Performance & Construction

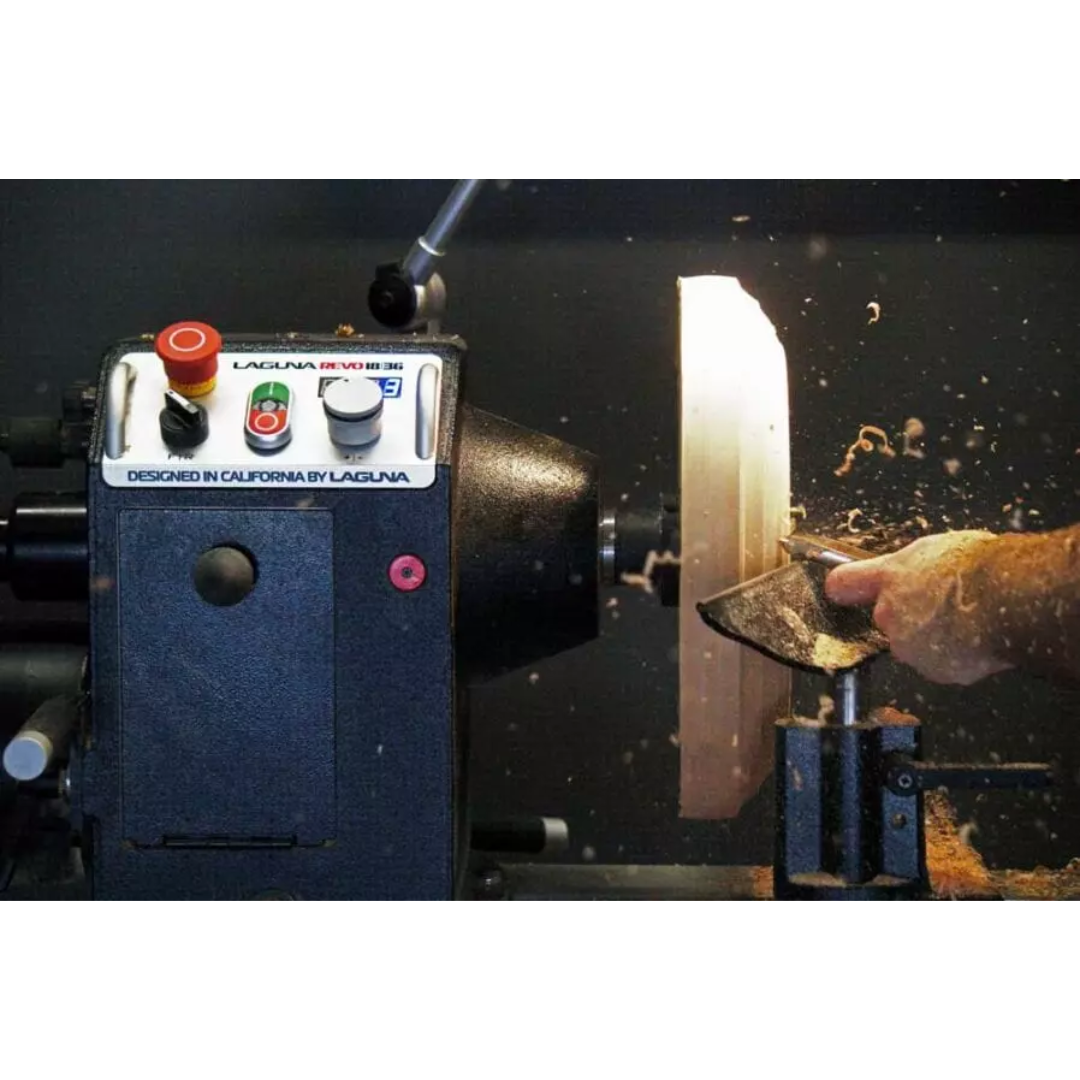

- 2 HP high-efficiency motor with VFD control delivers exceptional torque at all speeds, including low RPM turning.
- Electronic variable speed with DRO provides precise RPM monitoring and fine-tuned control.

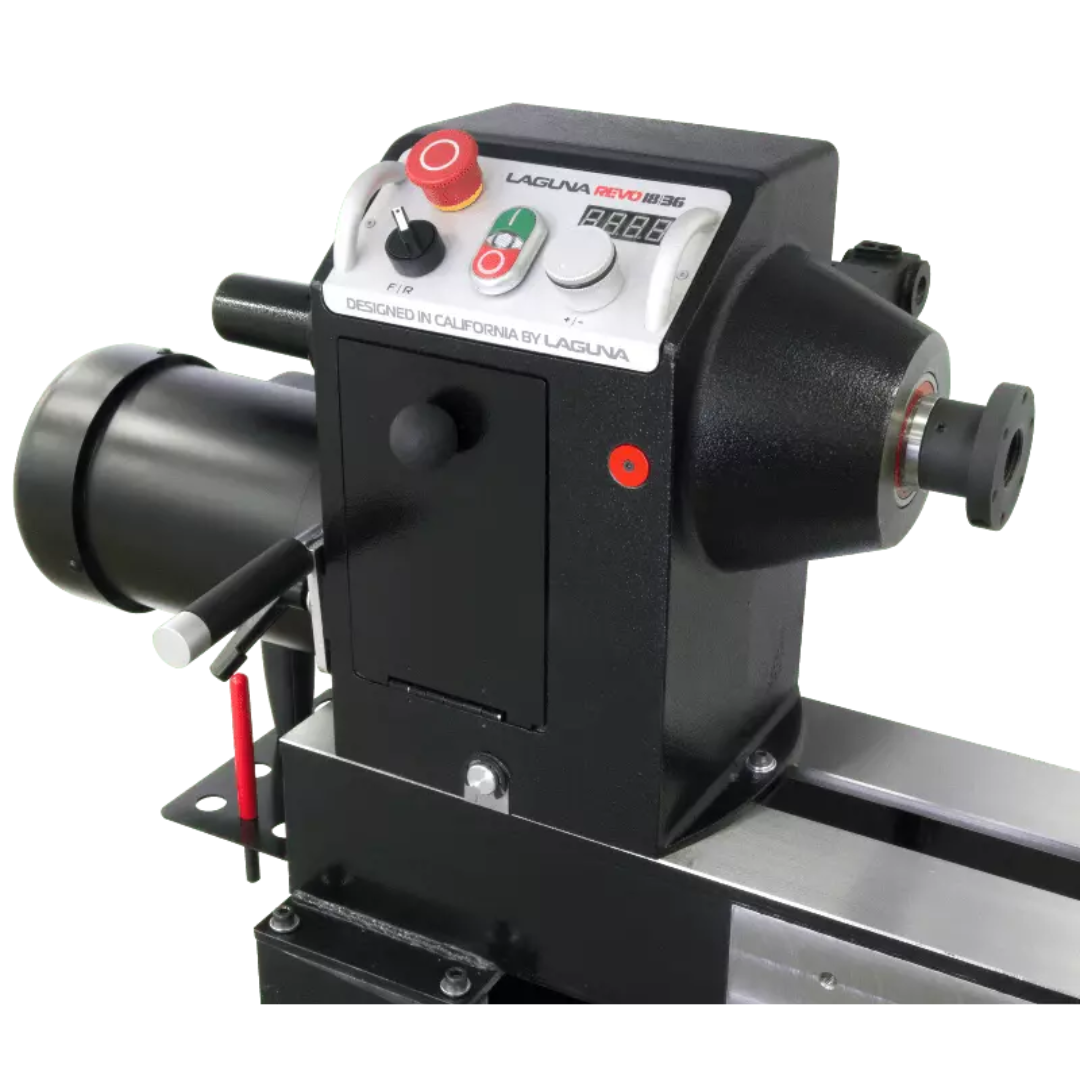

- Ergonomic anodized aluminum control panel with rubberized knurled knob for smooth adjustments.

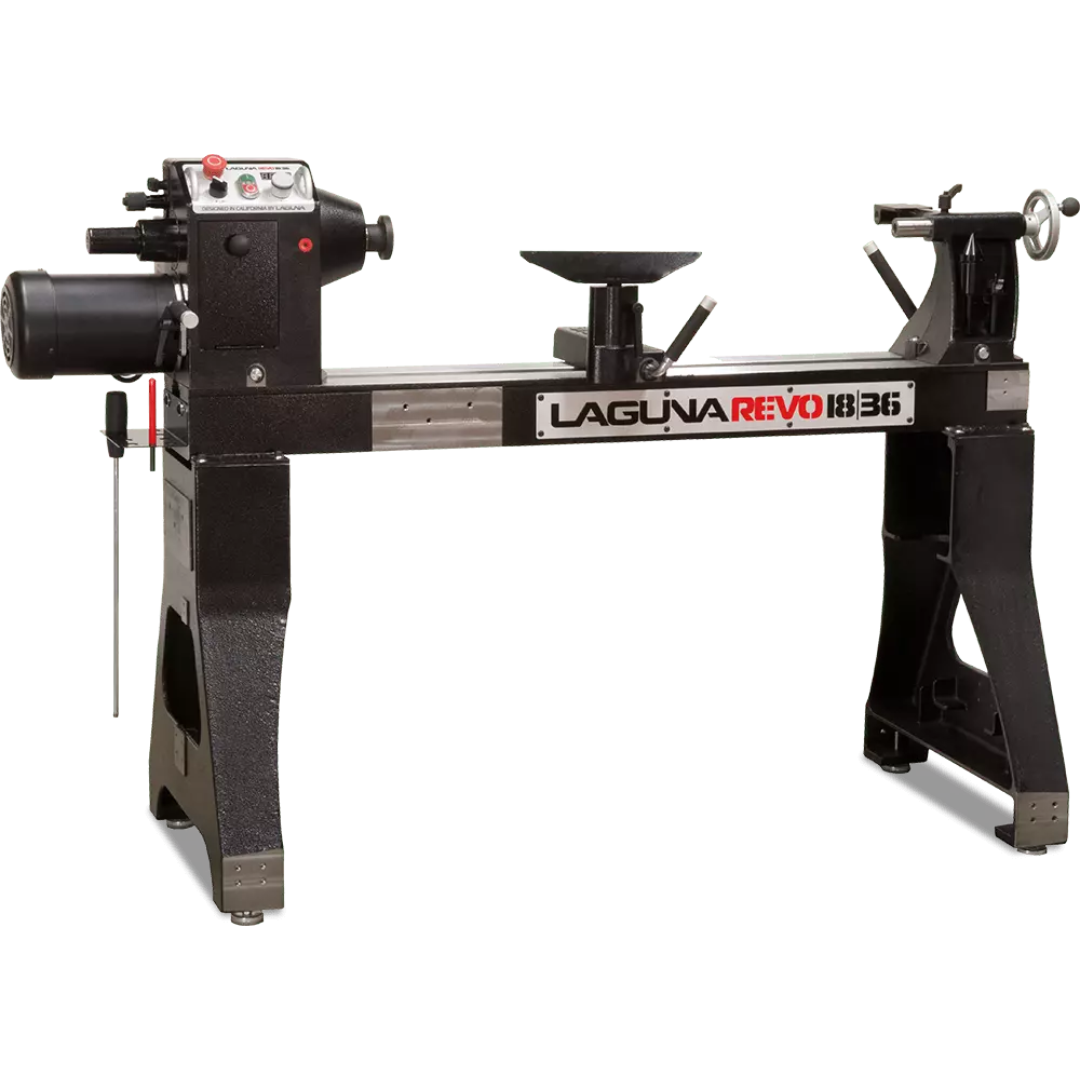

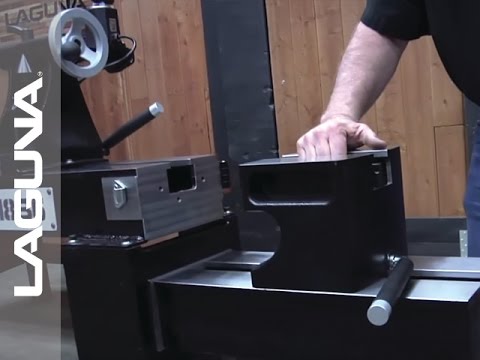

- Heavy-duty steel bed construction ensures maximum rigidity, durability, and long-term accuracy.
- Sliding headstock design allows full-length travel for improved ergonomics and versatility.
- Poly-groove belt system with quick access enables fast speed range changes using a quick-release handle.
- Cam lock handles provide secure locking with zero deflection for consistent results.
- Spring-loaded spindle lock allows fast and safe accessory changes.
- Premium bearing system (TPI Taiwan bearings) ensures smooth and reliable spindle rotation.

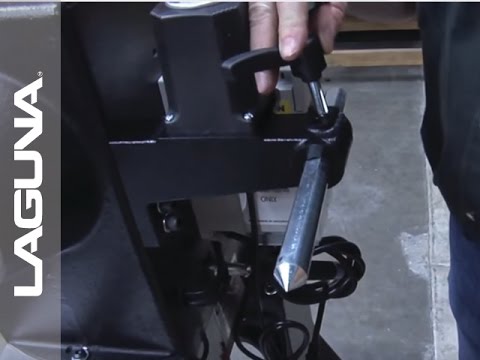

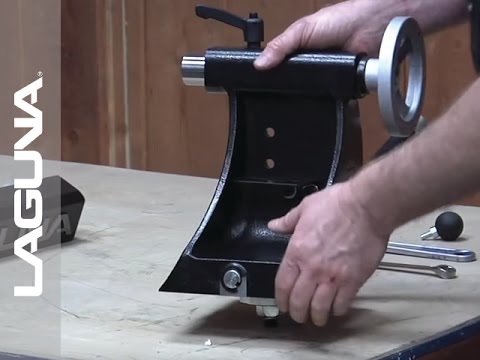

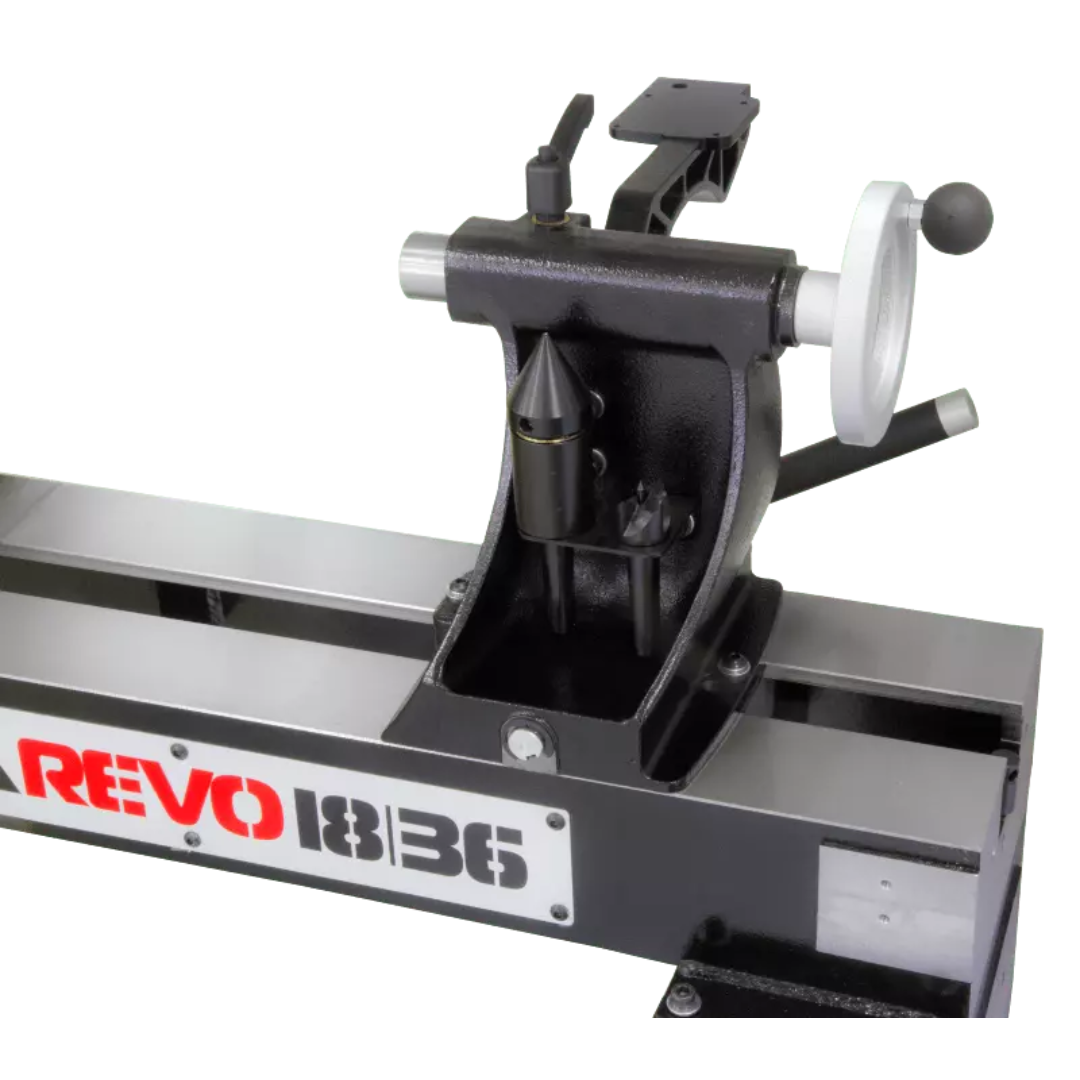

- Integrated tailstock storage keeps centers organized and easily accessible.
Why Choose the Laguna Revo 18|36 Lathe 220V MLAREVO 1836-220
- Powerful 2 HP motor with consistent torque across all speed ranges.
- Electronic variable speed control with precise DRO feedback.
- Heavy-duty steel and cast iron construction for superior stability.
- Designed for both detailed work and large-scale turning applications.
The Laguna Revo 18|36 Lathe 220V MLAREVO 1836-220 delivers professional-grade performance, combining power, precision, and durability to meet the demands of serious woodworkers and production environments.
