Laguna PX|22 Applications
- Industrial woodworking and high-production cabinet shops
- Furniture manufacturing with wide panel processing
- Planing large hardwood slabs, glued panels, and dimensional stock
- Architectural millwork and commercial woodworking facilities
- Production environments requiring variable feed control and precision
Ideal for large-scale operations that demand wide capacity, variable feed speeds, and superior surface finish quality.
Laguna PX|22 Specifications
| Model | PX|22 |
|---|---|
| Motor Options | 7.5 HP (Single Phase) or 10 HP (Three Phase) |
| Certification | CSA Certified |
| Bed Size | 22" × 28" |
| Max. Stock Width | 22" |
| Max. Stock Thickness | 8" |
| Min. Stock Thickness | 1/4" |
| Min. Stock Length | 9" |
| Max. Depth of Cut | 1/16" (up to 1/8" for softwoods or edge planing) |
| Feed Speed | 10 – 30 FPM (Variable Speed) |
| Cutterhead RPM | 5000 RPM |
| Cutterhead Diameter | 3-1/2" |
| Cutterhead Inserts | 150 × 4-Sided Carbide, 6 Row |
| Dust Port | 5" (Left or Right Configurable) |
| Thickness Readout | Wixey Digital Readout (DRO) |
| Noise Level | 83 dB (at 1m) |
| Extensions | 6" Pull-Out Extension |
| Dimensions (Setup) | Approx. 40" × 46" |
| Dimensions (Shipping) | 44" × 38" × 48-1/2" |
| Weight (Net / Shipping) | 867 / 955 lbs |
| Plug | No Cord or Plug Supplied |
Laguna PX|22 Performance & Construction

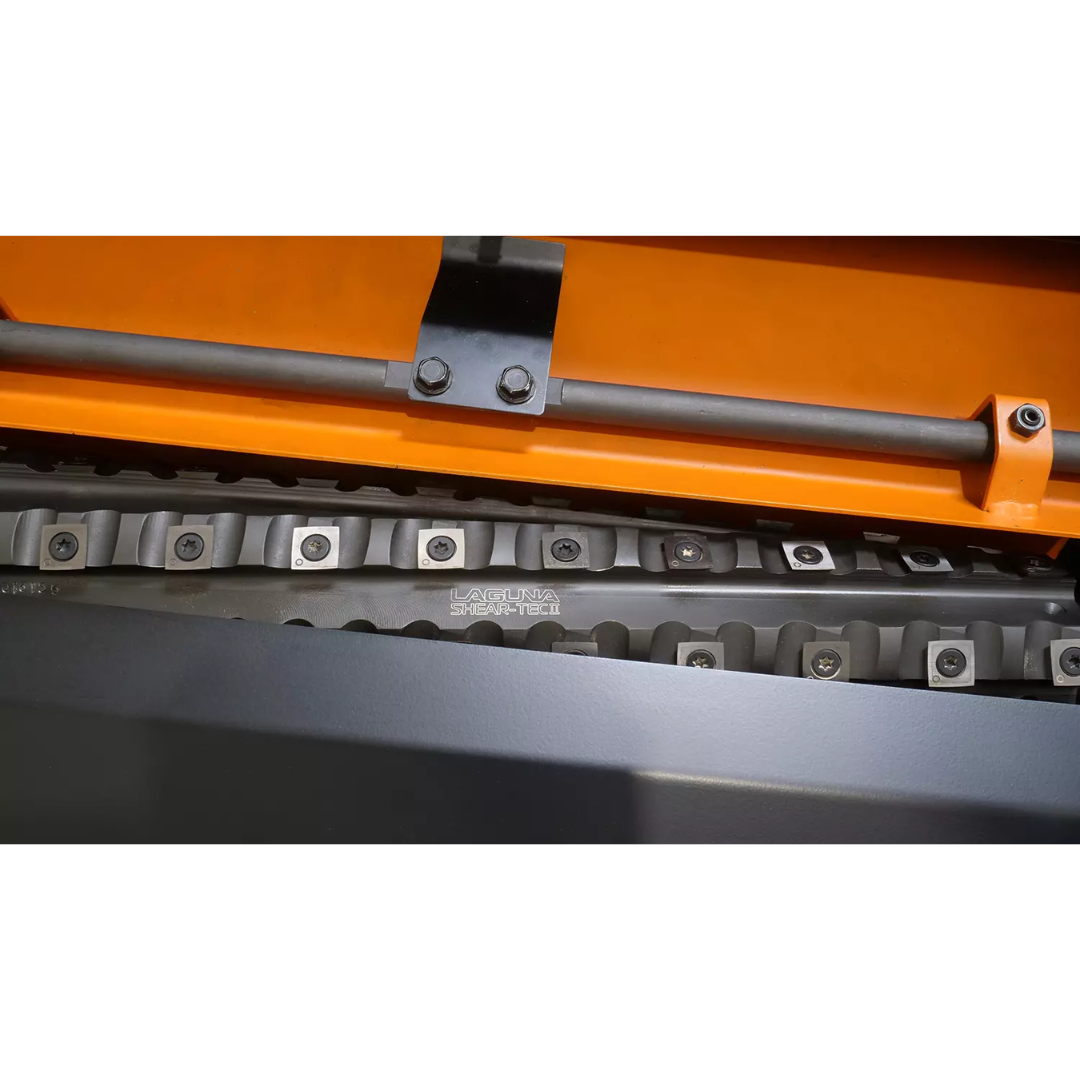

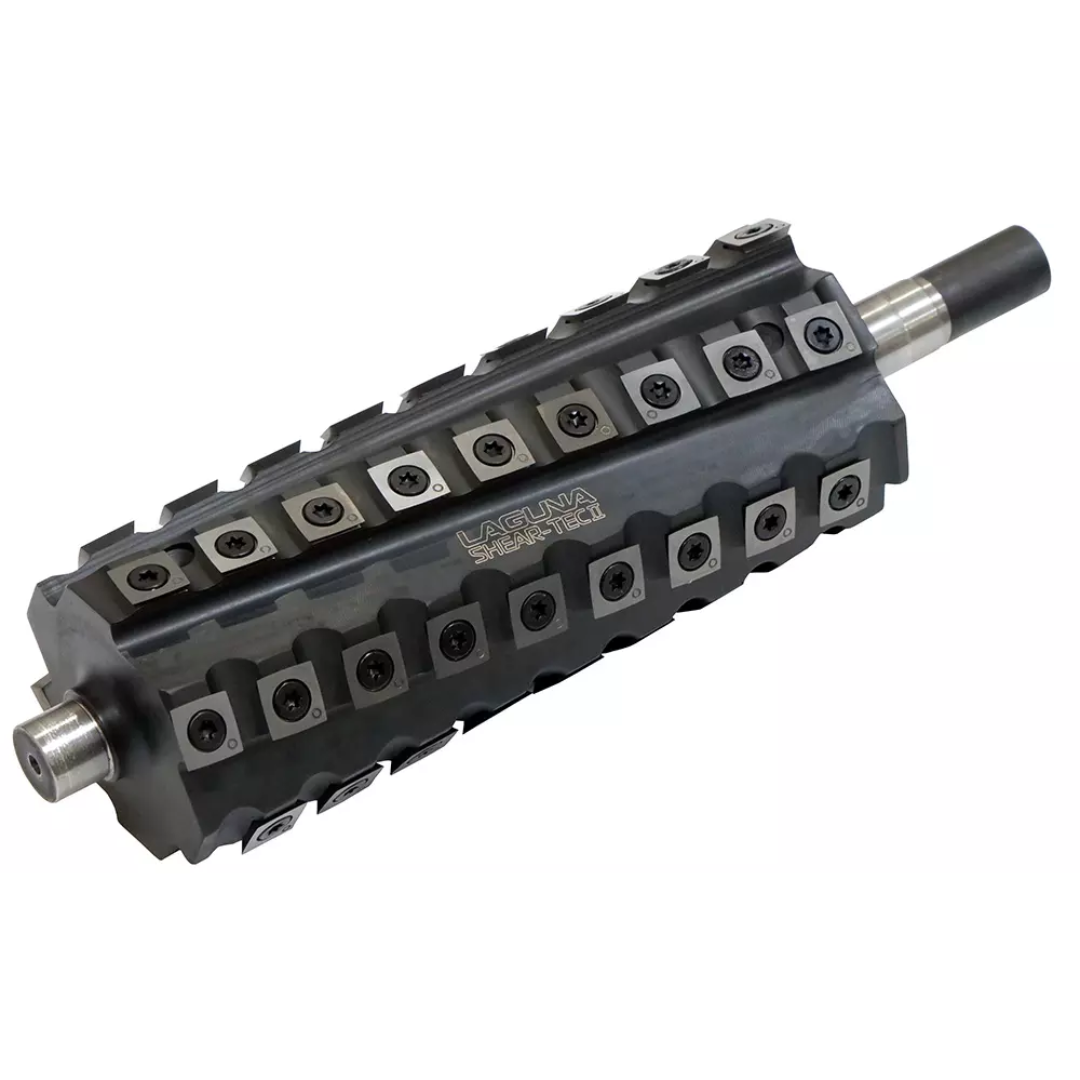

- ShearTec II Cutterhead with 6-row carbide inserts delivers ultra-smooth finishes with minimal tear-out on all wood species.
- 150 Four-Sided Carbide Inserts provide extended lifespan and easy rotation for continuous performance without downtime.
- T-Shoulder Insert Design increases clamping strength, reducing vibration, chatter, and insert failure.
- Electronic Variable Feed Speed (10–30 FPM) allows optimization for either fast material removal or high-quality finishing passes.
- Segmented Infeed Roller enables smooth feeding of multiple boards with varying thickness without stalling.
- 4-Post Bed Support System ensures precise cutterhead alignment for consistent thickness across wide stock.
- Serrated Infeed Roller & Pressure Bar positioned close to the cutterhead virtually eliminate snipe.

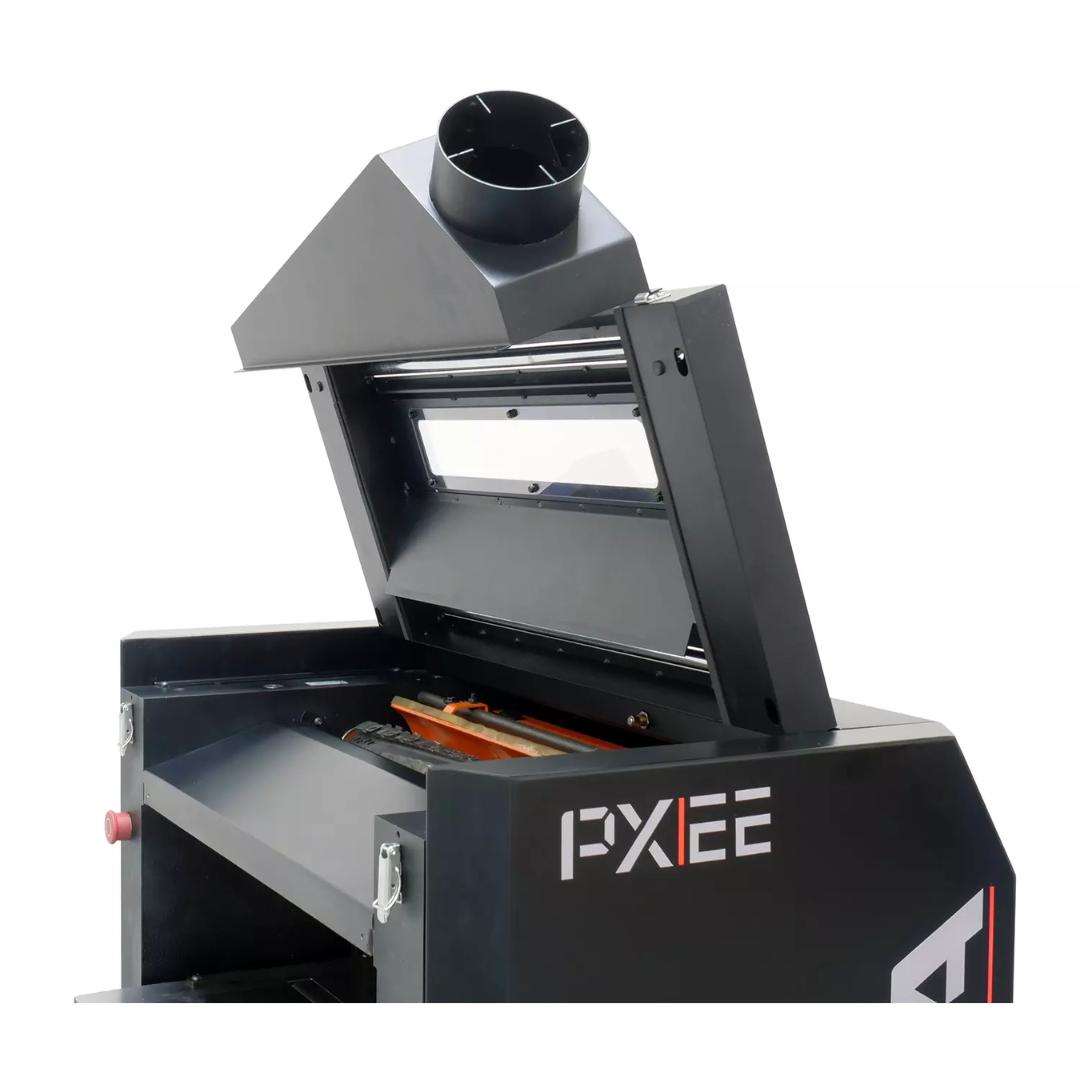

- Ergonomic Control Panel with integrated DRO improves visibility, control, and operator comfort.
- Infeed and Outfeed Rollers assist in handling large and heavy material efficiently.

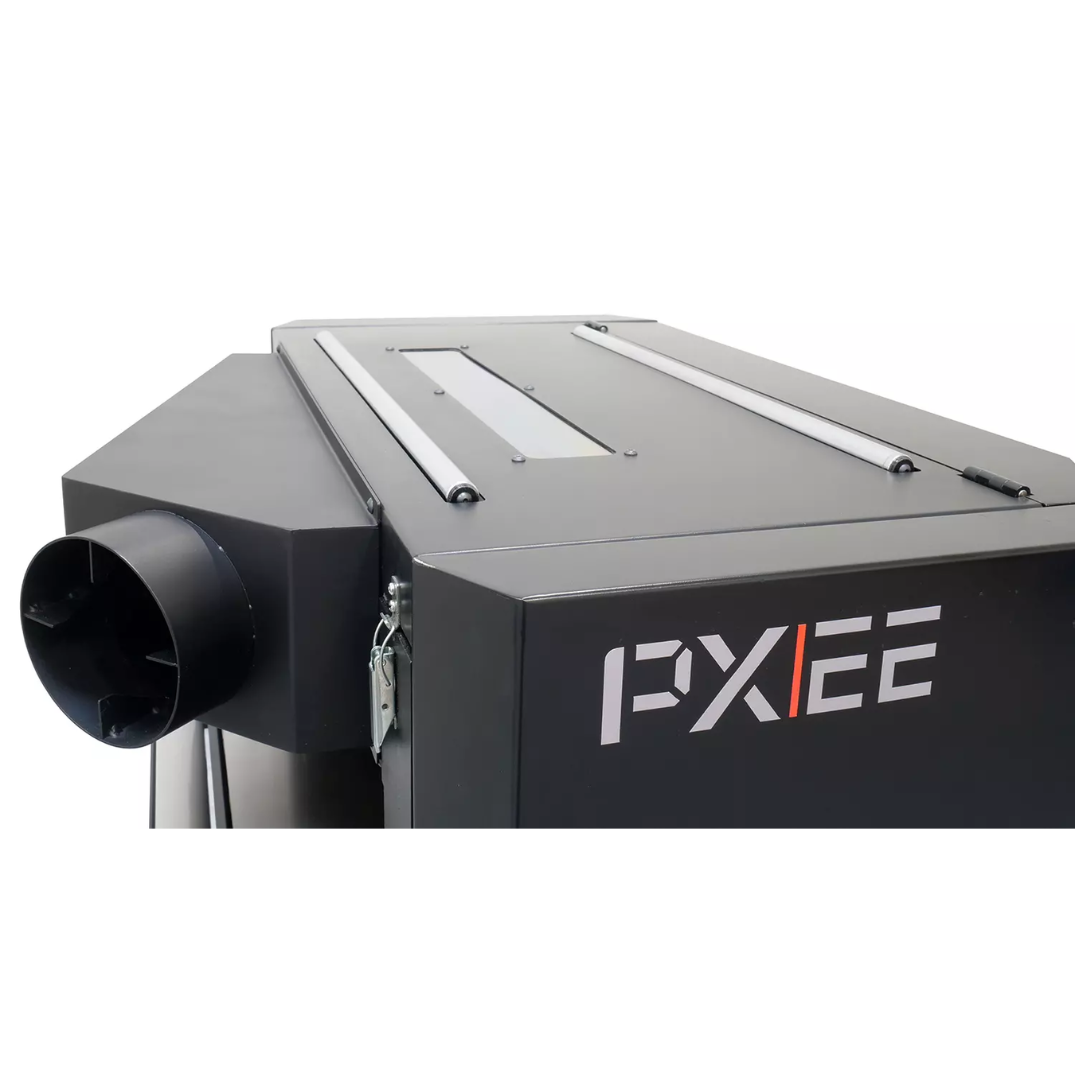

- Adjustable 5" Dust Port can be configured left or right for optimal dust collection system integration.
- Quiet Operation Design with deep-groove cutterhead improves chip ejection and reduces noise.
Why Choose the Laguna PX|22
- 22" wide capacity for large panels and production workflows.
- Available motor configurations for flexible shop integration.
- Advanced ShearTec II cutterhead for superior finish and durability.
- Variable feed speed for both efficiency and precision.
- Industrial-grade construction built for long-term performance.
The Laguna PX|22 is a top-tier industrial planer built for professionals who require maximum capacity, precision control, and exceptional finish quality in demanding woodworking environments.
