Laguna PX|20 MPLANPX20-0130 Applications
- High-production woodworking and cabinet manufacturing facilities
- Furniture production requiring wide stock processing
- Planing large hardwood panels and glued assemblies
- Precision thicknessing for architectural millwork and custom builds
- Industrial shops requiring consistent, repeatable results
Best suited for professional environments that demand wide capacity, superior finish quality, and long-term reliability.
Laguna PX|20 MPLANPX20-0130 Specifications
| Model | PX|20 MPLANPX20-0130 |
|---|---|
| Motor | 220V, 5 HP, 1 Phase, 60Hz, 23 Amp |
| Certification | CSA Certified |
| Bed Size | 20" × 21-1/2" |
| Max. Stock Width | 20" |
| Max. Stock Thickness | 8" |
| Min. Stock Thickness | 1/4" |
| Min. Stock Length | 8" |
| Max. Depth of Cut | 1/16" (up to 1/8" for softwoods or edge planing) |
| Feed Speed | 16 & 28 FPM |
| Cutterhead RPM | 5000 RPM |
| Cutterhead Diameter | 3" |
| Cutterhead Inserts | 138 × 4-Sided Carbide, 6 Row |
| Dust Port | 4" (Left or Right Configurable) |
| Thickness Readout | Wixey Digital Readout (DRO) |
| Noise Level | 83 dB (at 1m) |
| Extensions | 4" Pull-Out Extension |
| Dimensions (W × D × H) | 33.5" × 17" × 39" (36" without feet) |
| Dimensions (Shipping) | 42" × 30" × 46" |
| Weight (Net / Shipping) | 535 / 638 lbs |
| Plug | No Cord or Plug Supplied |
Laguna PX|20 MPLANPX20-0130 Performance & Construction

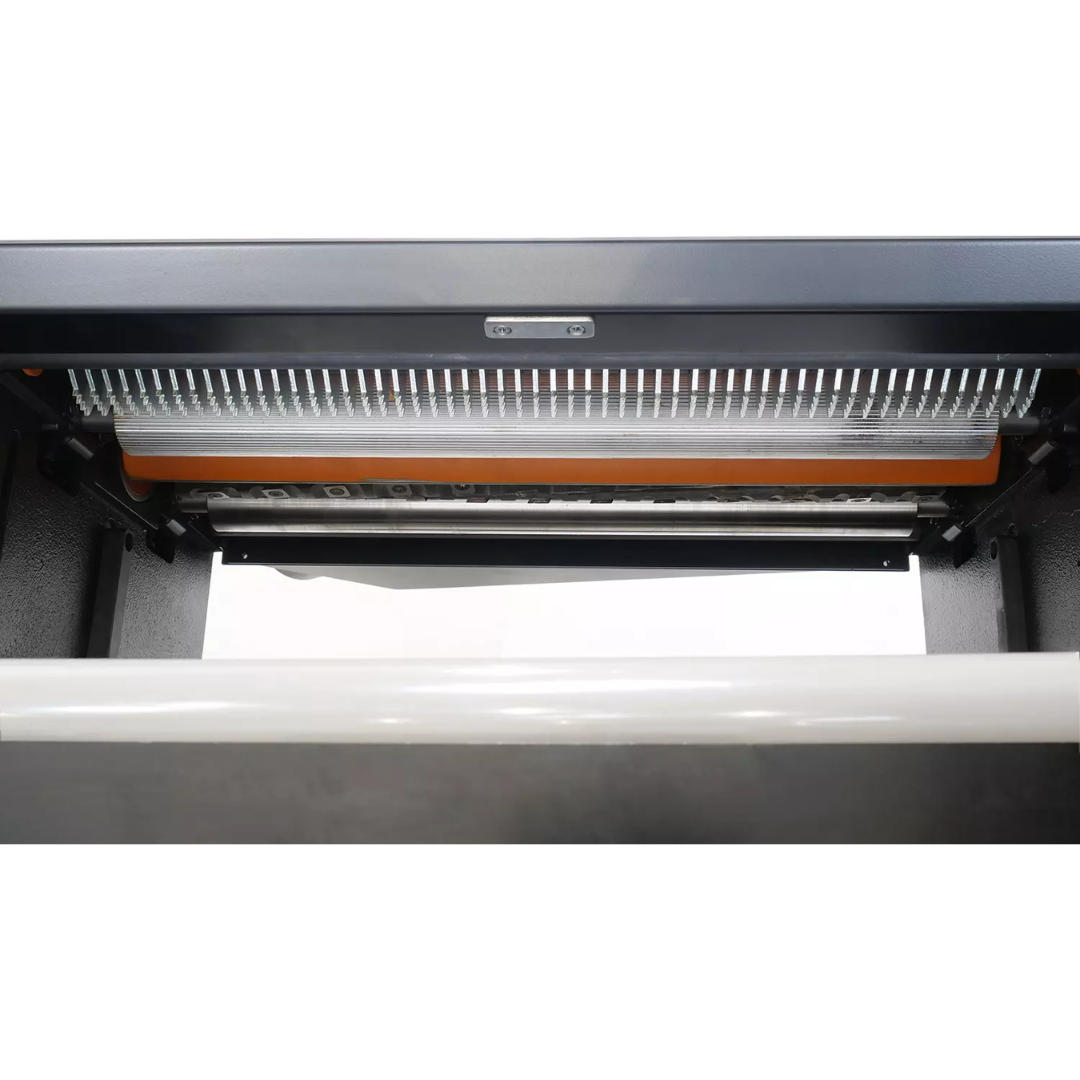

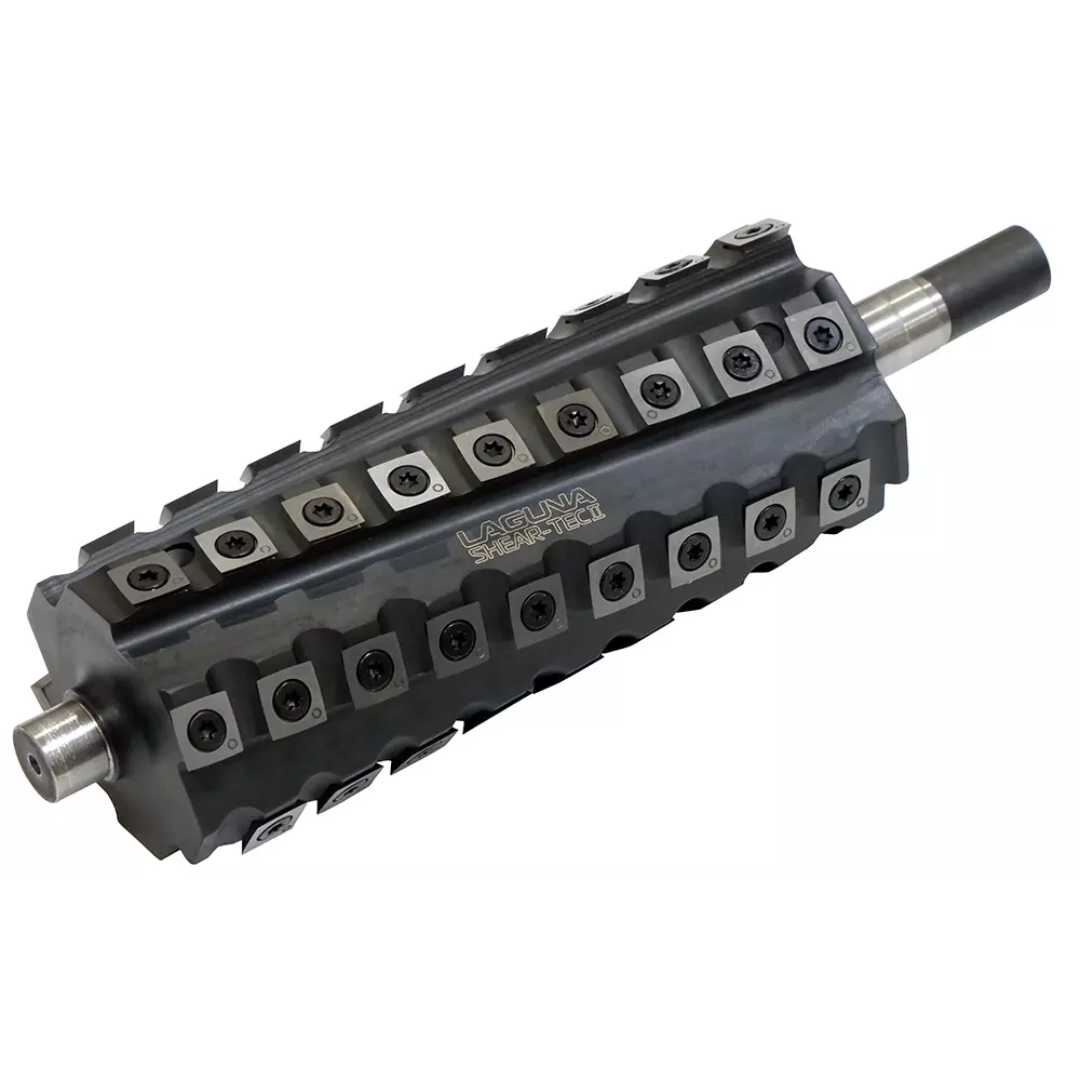

- ShearTec II Cutterhead with 6-row carbide inserts delivers superior surface finishes with minimal tear-out on all wood types, including dense hardwoods.
- 138 Four-Sided Carbide Inserts provide extended tool life and quick rotation for fresh cutting edges without the need for knife setting jigs.
- T-Shoulder Insert Design maximizes clamping force, reducing vibration, chatter, and insert failure.
- Helical Shear Cutting Action ensures cleaner cuts, quieter operation, and improved chip ejection.
- 4-Post Bed Support System maintains precise alignment for consistent thickness across wide material.
- Serrated Infeed Roller positioned close to the cutterhead virtually eliminates snipe and improves feeding control.
- Dual Feed Speeds (16 & 28 FPM) allow optimization between finish quality and production efficiency.

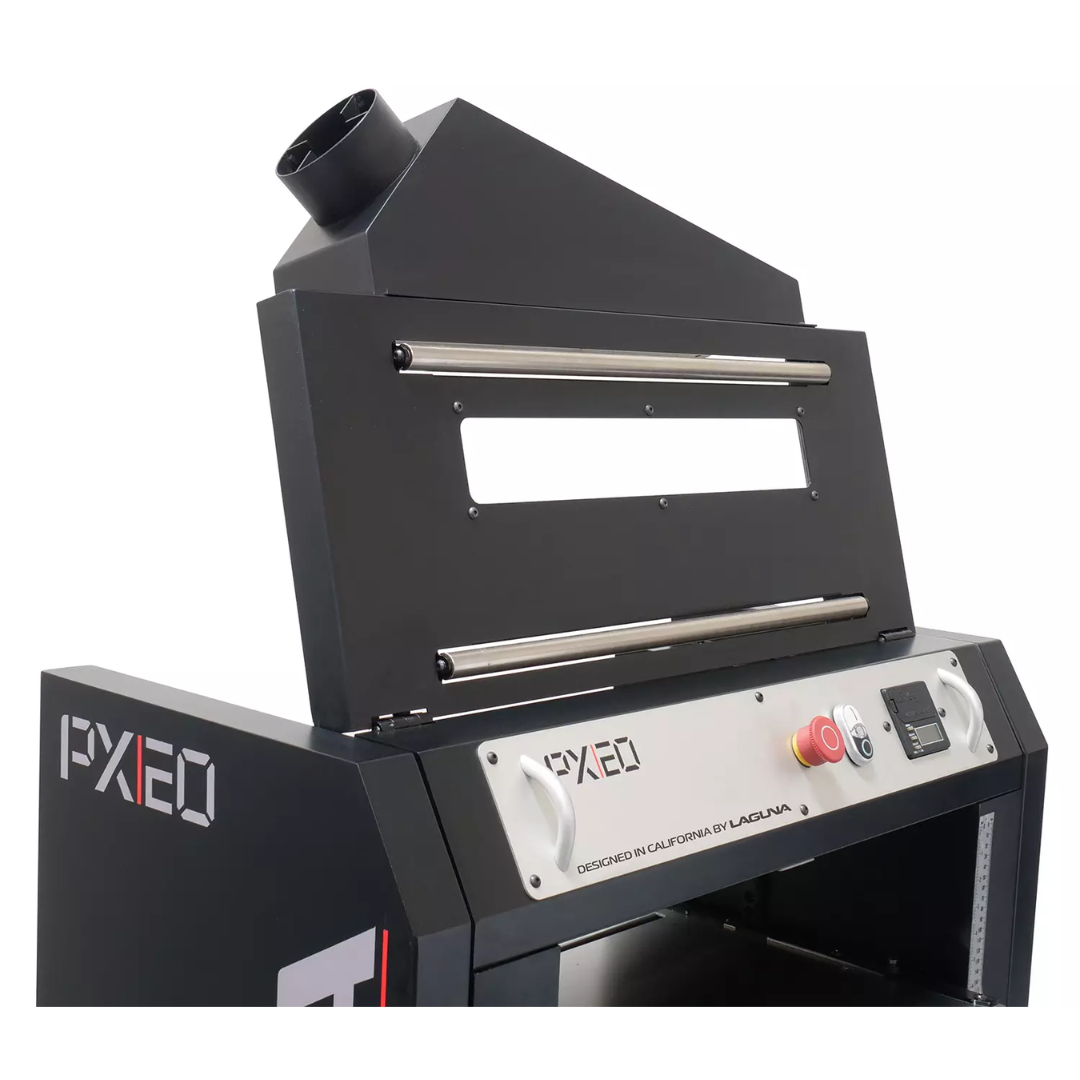

- Ergonomic Control Panel with angled layout enhances operator visibility and ease of use.
- Digital Thickness Readout (Wixey DRO) enables accurate and repeatable adjustments.

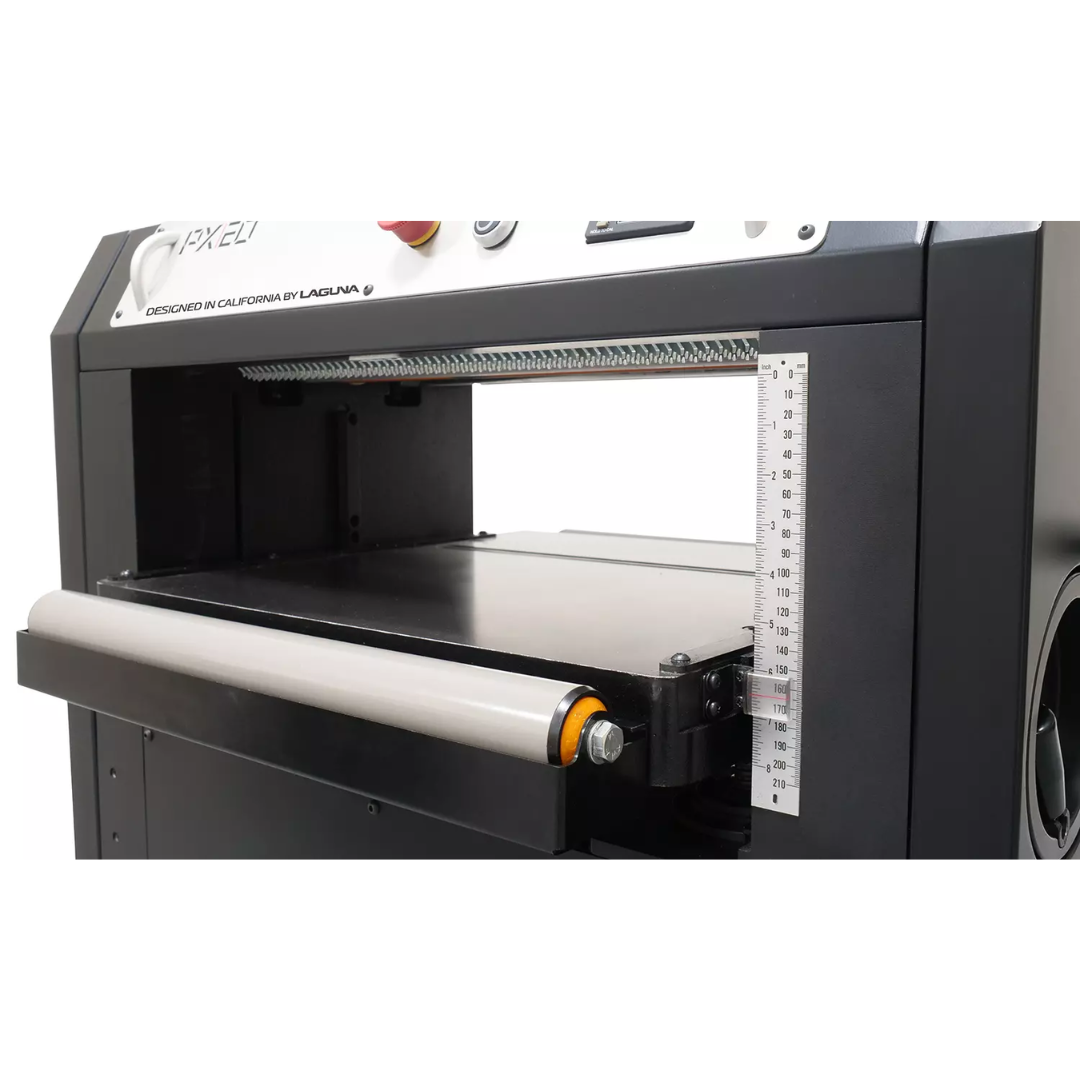

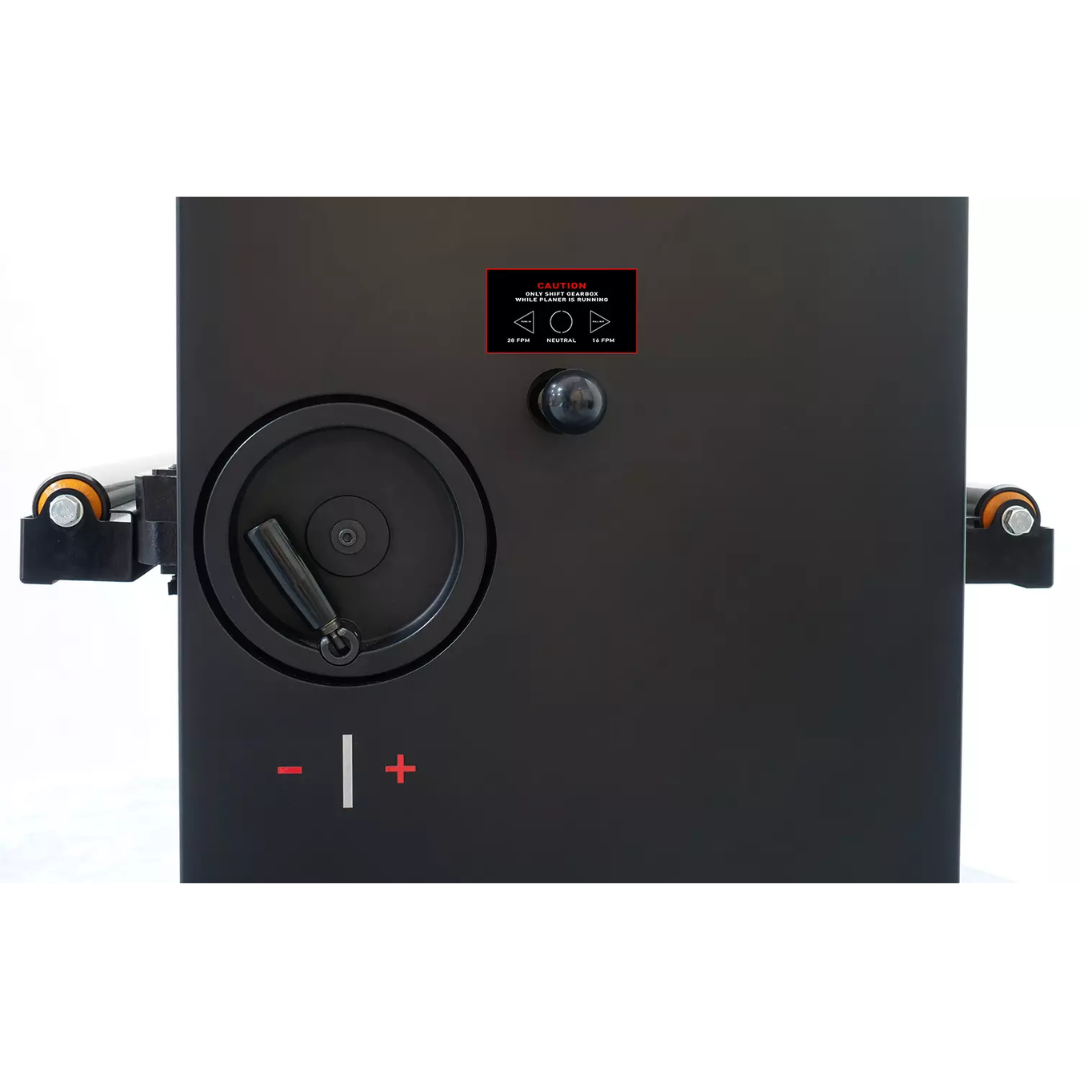

- Infeed and Outfeed Rollers assist with handling larger stock while maintaining a compact footprint.
- Adjustable Dust Collection Port can be configured left or right for seamless shop integration.
Why Choose the Laguna PX|20 MPLANPX20-0130
- Wide 20" capacity for handling large panels and stock.
- Industrial 5 HP motor delivers reliable, high-performance operation.
- ShearTec II cutterhead ensures exceptional finish quality and durability.
- Advanced ergonomics improve safety, control, and workflow efficiency.
- Heavy-duty construction built for demanding production environments.
The Laguna PX|20 MPLANPX20-0130 is a powerful, precision-engineered planer designed for professionals who require maximum capacity, superior finish quality, and reliable performance in a modern woodworking machine.
