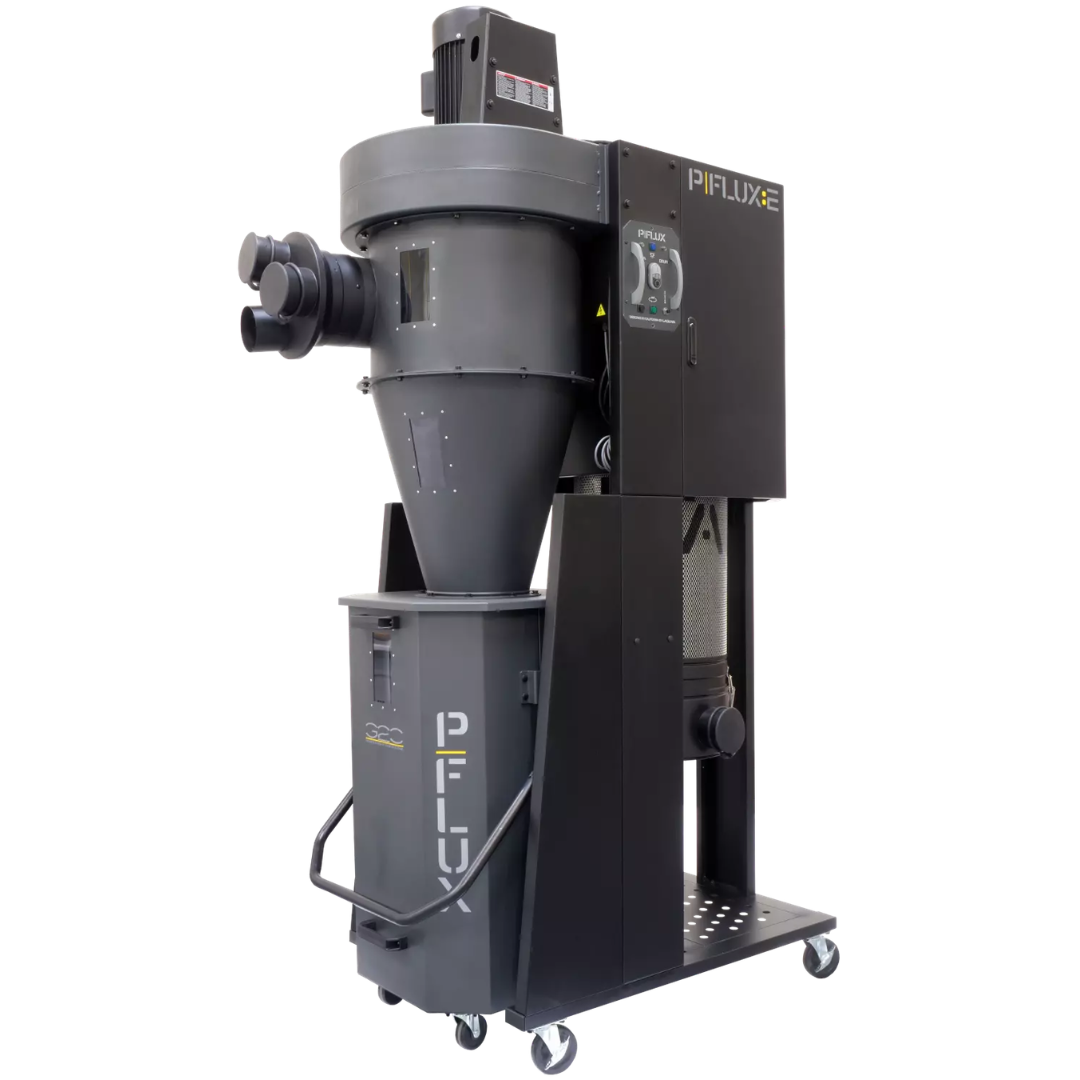

Laguna P|Flux: 3 MDCPF32201 Cyclone Dust Collector Applications
- Production woodworking shops and industrial environments
- Multi-machine setups including planers, jointers, and CNC routers
- Wide belt sanders and heavy material removal applications
- Centralized dust collection systems requiring high airflow
- Facilities demanding HEPA-level air quality control
Built for high-volume dust extraction where maximum airflow, automation, and air cleanliness are critical.
Laguna P|Flux: 3 MDCPF32201 Cyclone Dust Collector Specifications
| Model | MDCPF32201 |
|---|---|
| Motor | 3 HP, 1 Phase |
| Voltage | 220V, 60Hz |
| RPM | 3450 |
| Amperage | 22A |
| Recommended Breaker | 30 Amps |
| Maximum Airflow | 2718–2817 CFM |
| Shop Airflow | 1624 CFM |
| Max Static Pressure | 11.2" |
| Impeller | 15.5" Steel Radial Fin |
| Inlet | 8" main with splitter (3 × 4" ports) |
| Collection Capacity | 46 Gallon Octagon Drum |
| Noise Level | 76–82 dB @ 9.8 ft |
| Cord | Approx. 8 ft (no plug) |
| Dimensions | 48" × 28" × 88" |
| Machine Weight | 372–373 lbs |
| Shipping Weight | 441 lbs |
Laguna P|Flux: 3 MDCPF32201 Cyclone Dust Collector Features & Performance

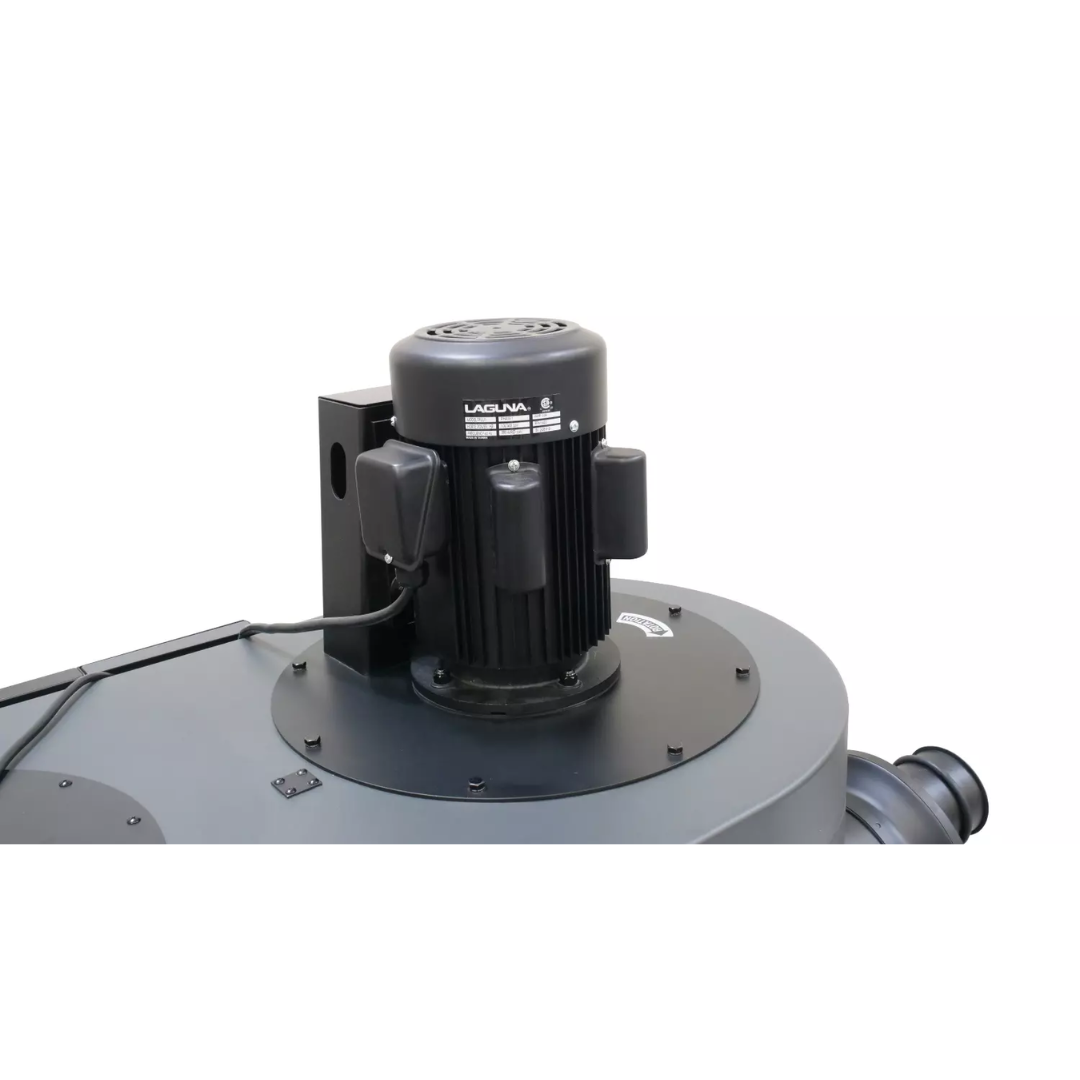

- High-output 3 HP motor delivers maximum suction for demanding applications.
- Up to 2817 CFM airflow supports multi-machine and central dust collection systems.
- Automatic filter cleaning system activates every 10 minutes or via remote control.
- HEPA filtration system captures fine airborne particles for superior air quality.

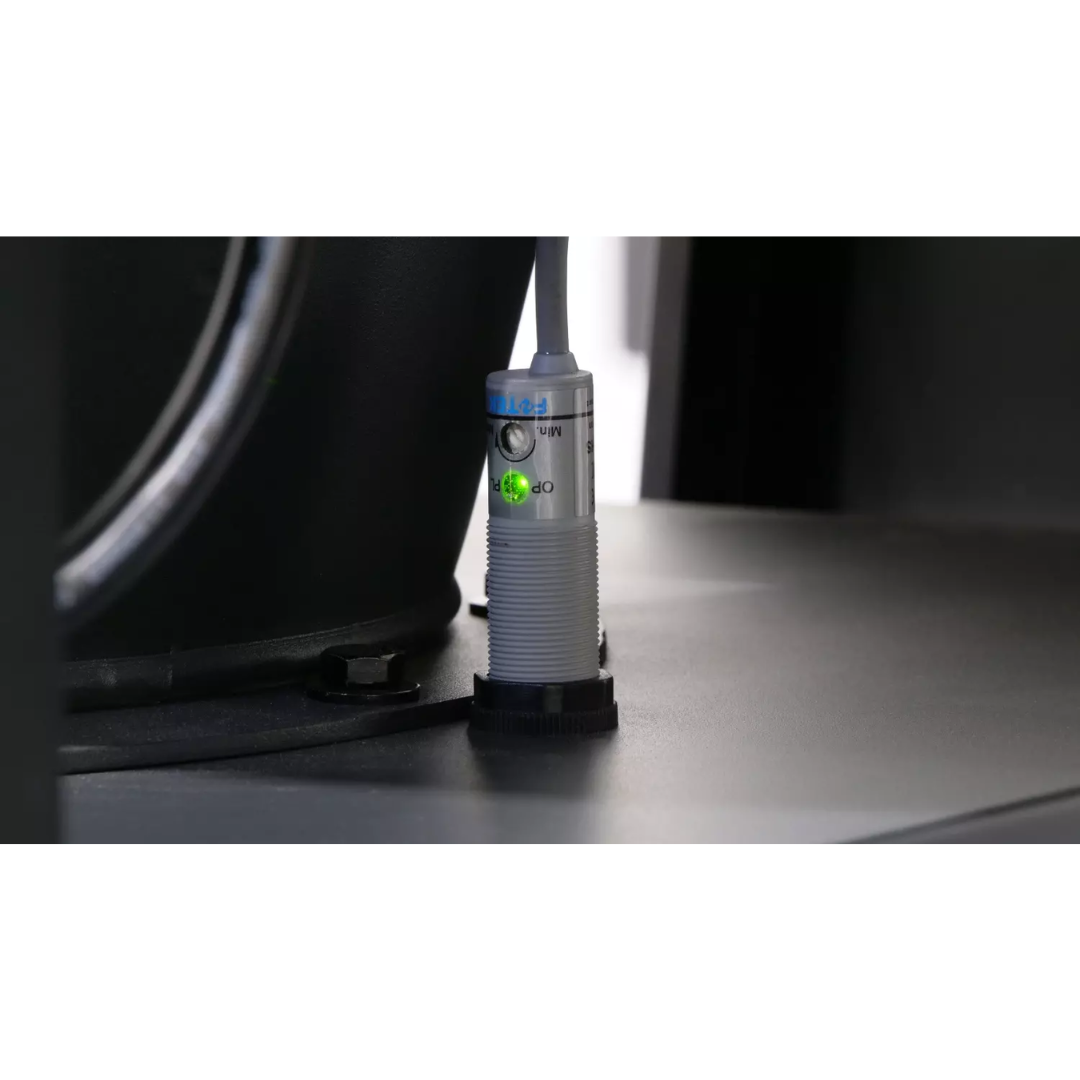

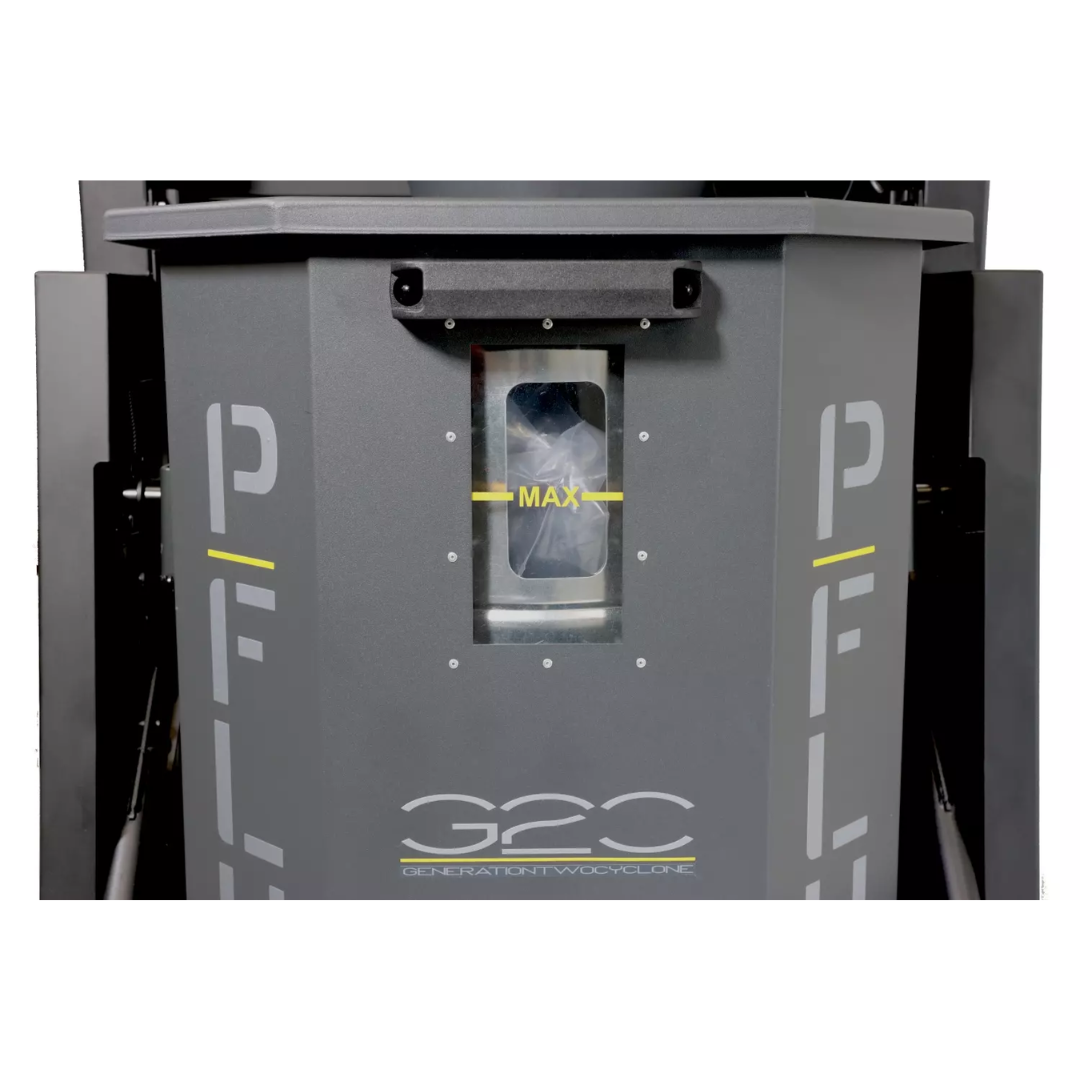

- Large 46-gallon smart drum with LED illumination and full-level warning alerts.
- High-frequency remote control operates without line-of-sight limitations.

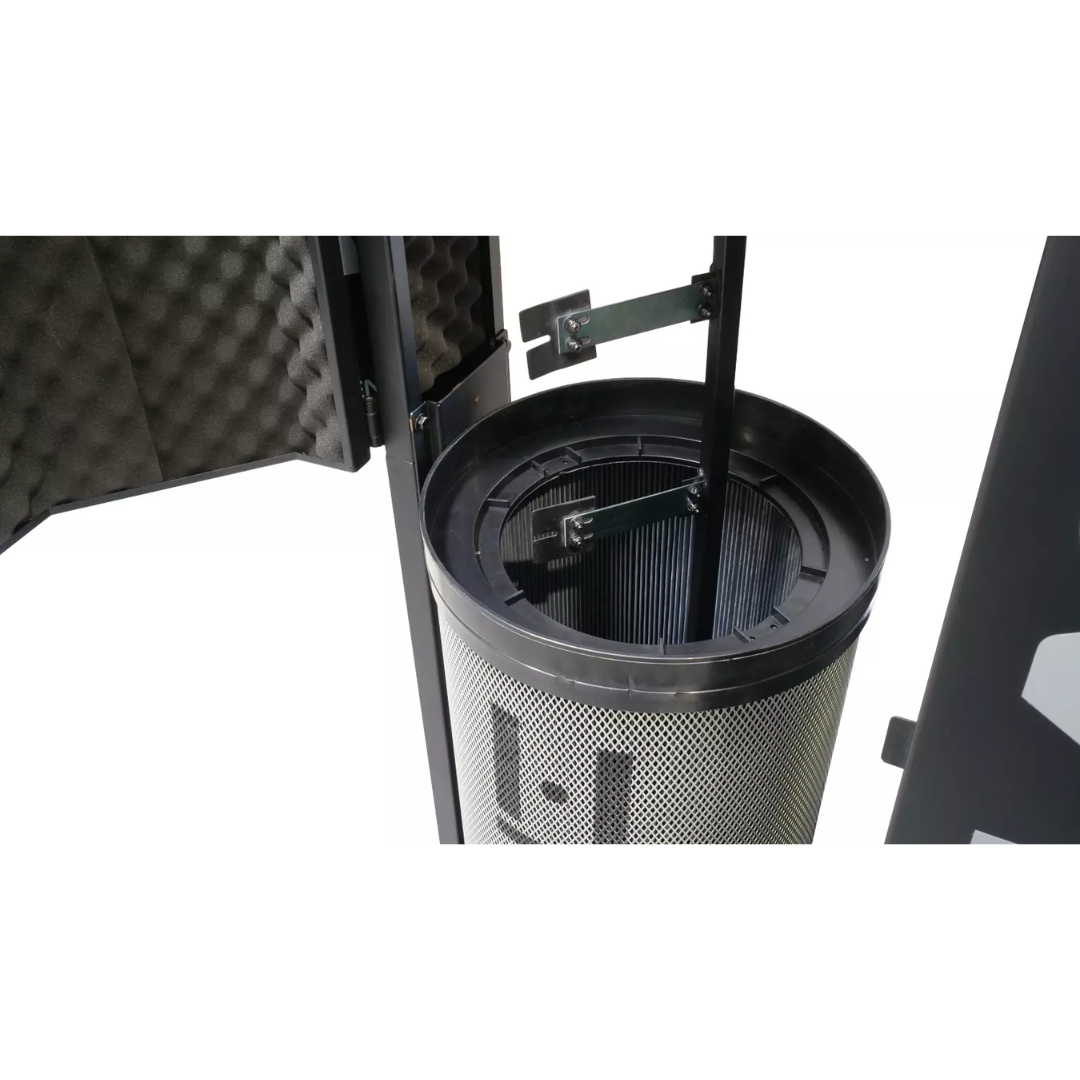

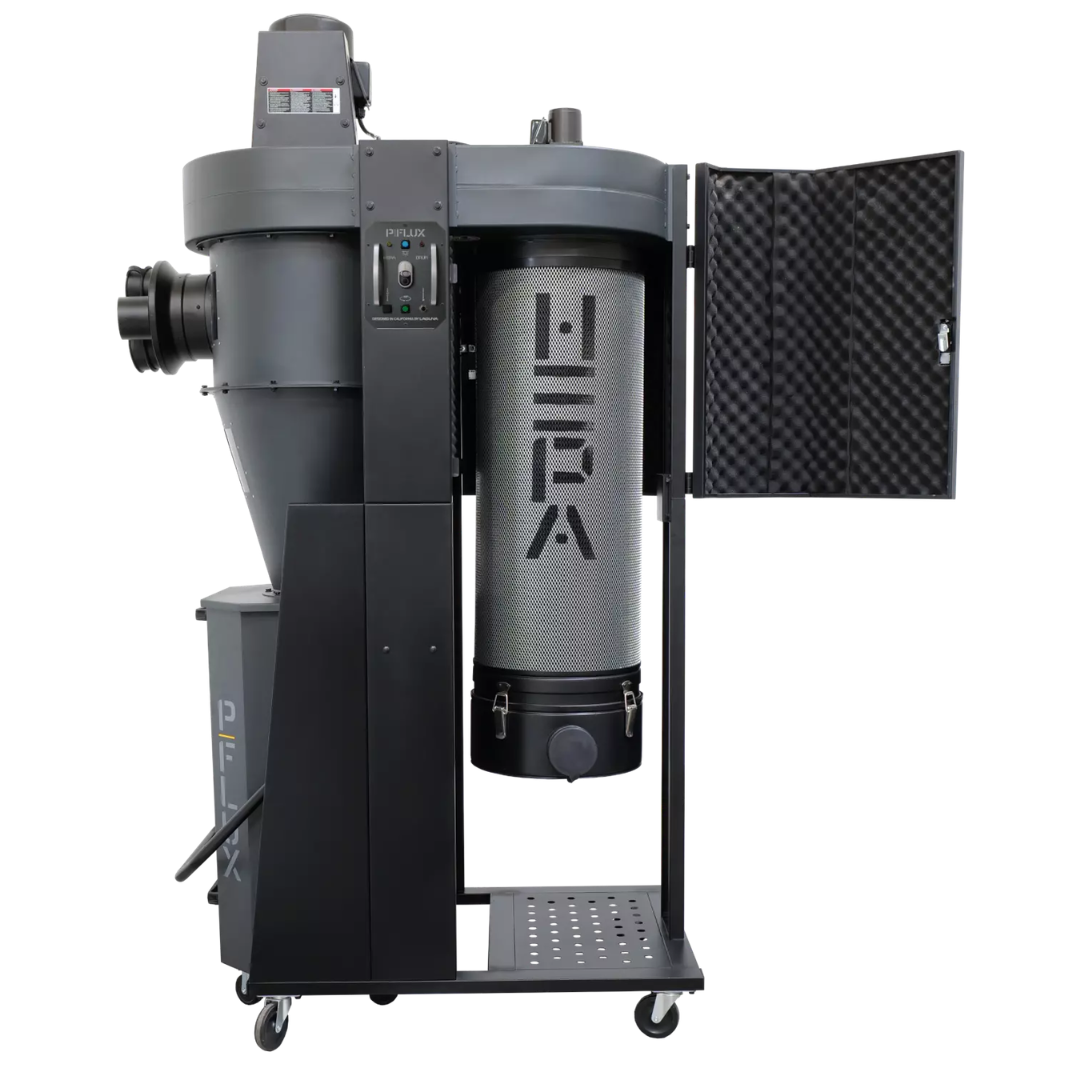

- Acoustic-lined cabinet doors reduce operational noise while maintaining performance.
- Cyclone separation technology minimizes filter clogging and improves efficiency.

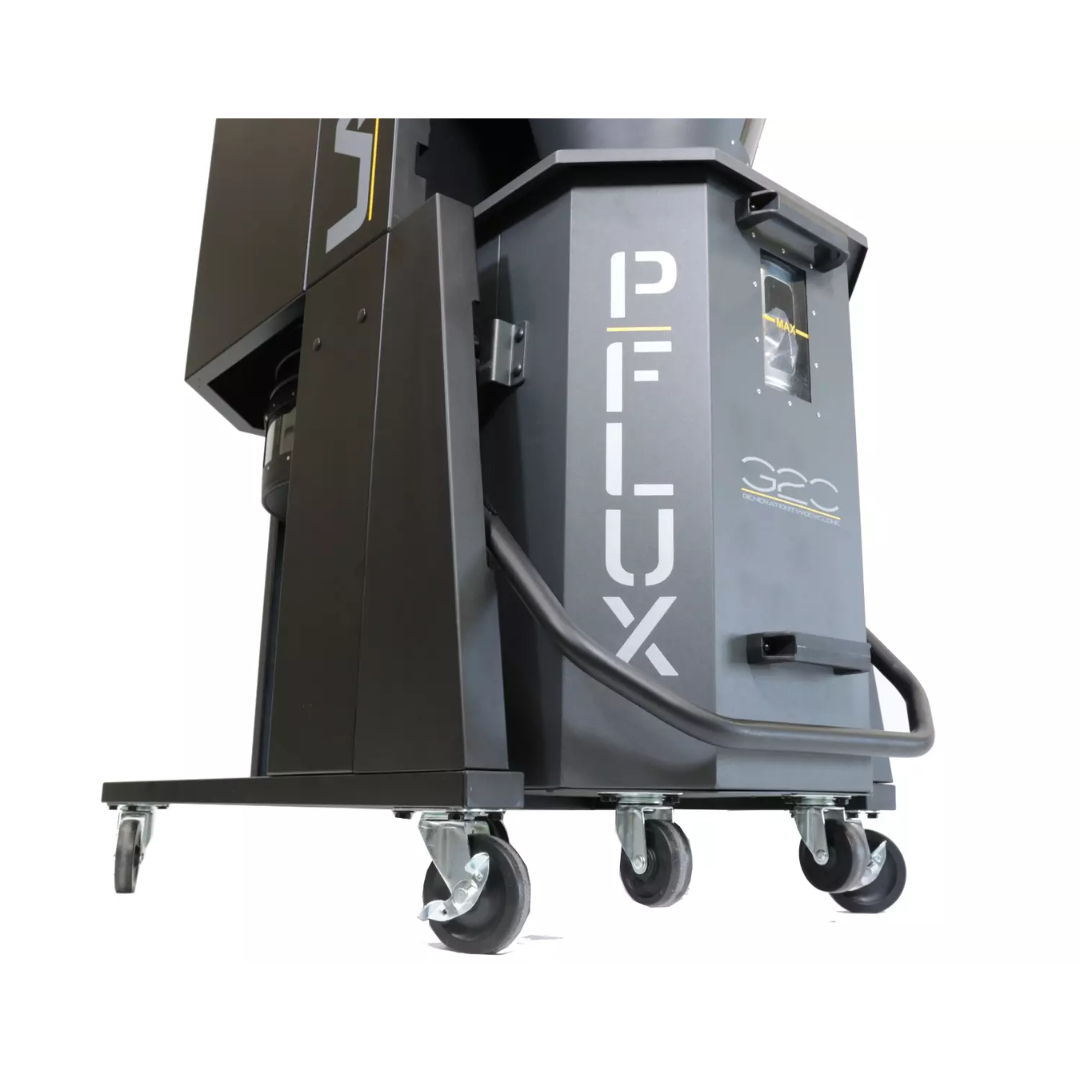

- Durable mobile design with locking casters for stability and positioning.

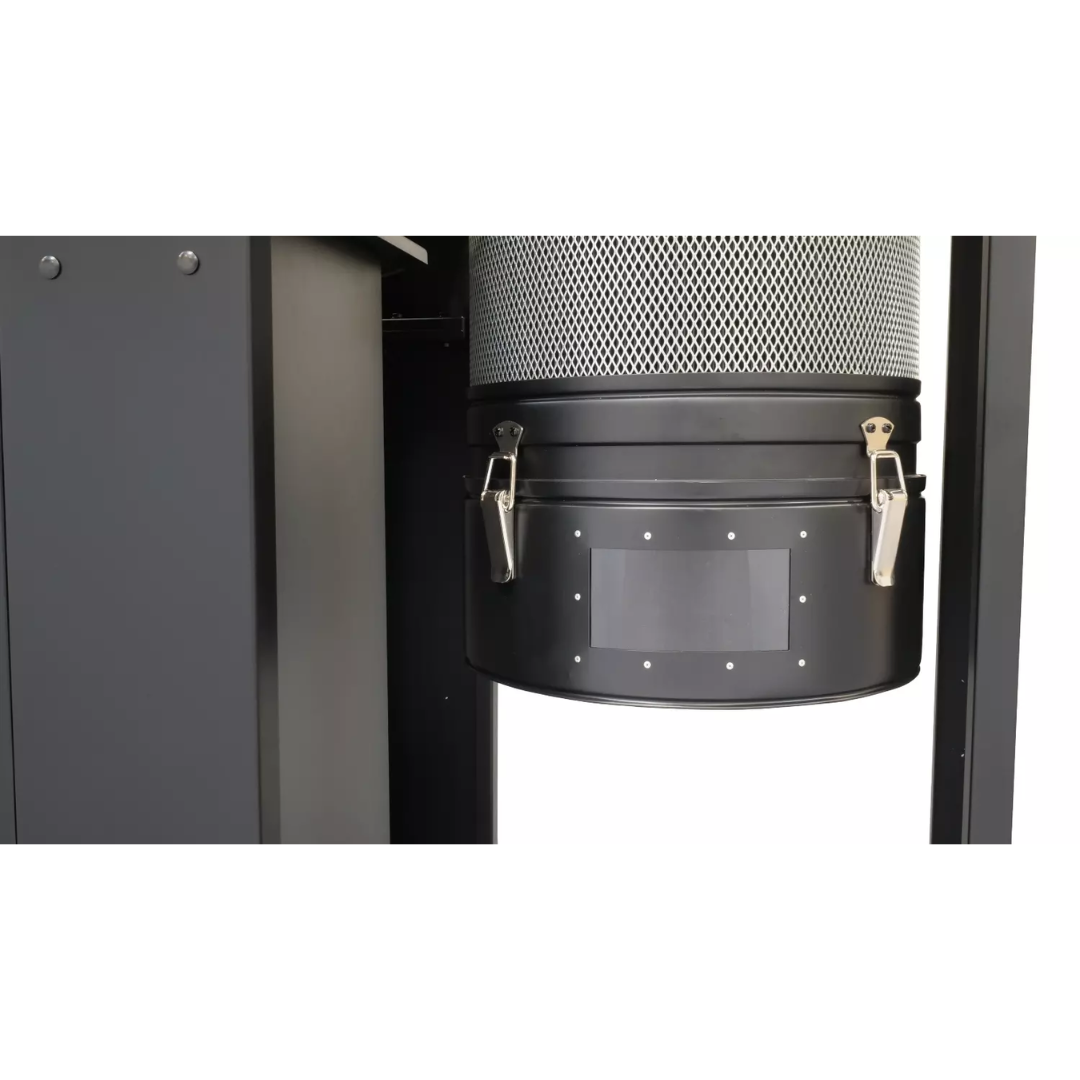

Laguna P|Flux: 3 MDCPF32201 Cyclone Dust Collector Filtration System
- Filter Type: HEPA cartridge filter
- Filtration Efficiency: 99.7% of particles ≥0.3 microns
- MERV Rating: 16+
- Filter Area: 102 sq/ft
- Filter Size: 15.74" × 35.43"
- Automatic cleaning cycle maintains consistent airflow and reduces maintenance
Advanced HEPA filtration ensures maximum air cleanliness, making it ideal for professional environments requiring strict dust control.

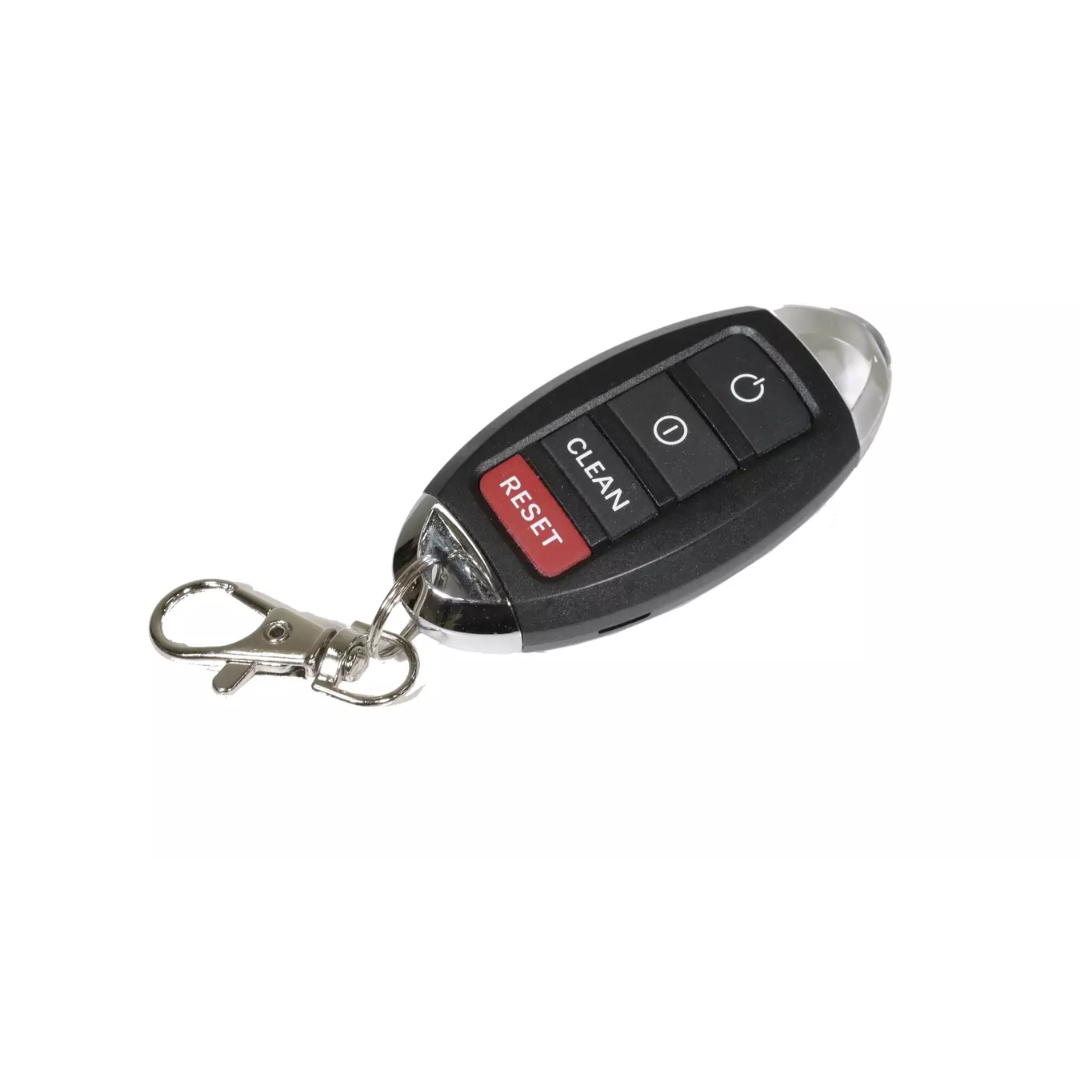

Laguna P|Flux: 3 MDCPF32201 Cyclone Dust Collector Remote Control System
- High-frequency remote operates without direct line-of-sight
- Reliable signal unaffected by lighting or shop interference
- Controls power and auto-clean functions remotely
- Enhances workflow efficiency and operator convenience
Why Choose the Laguna P|Flux: 3 MDCPF32201 Cyclone Dust Collector
- Maximum airflow performance for large-scale operations
- Advanced HEPA filtration with automatic cleaning technology
- Smart drum system with LED alerts and illumination
- Quiet enclosed design with sound reduction features
- Built for durability, efficiency, and continuous professional use
The Laguna P|Flux: 3 MDCPF32201 Cyclone Dust Collector is the ultimate solution for professionals who demand maximum power, intelligent automation, and superior air quality in a high-performance dust collection system.
