Laguna P|Flux: 2 MDCPF22201 Cyclone Dust Collector Applications
- Professional woodworking and cabinet shops
- Planers, jointers, table saws, and shapers
- CNC routers and automated machining systems
- High-dust sanding and finishing applications
- Workspaces requiring HEPA-level air quality control
Ideal for shops that require higher airflow capacity, large debris collection, and advanced filtration with automated maintenance.
Laguna P|Flux: 2 MDCPF22201 Cyclone Dust Collector Specifications
| Model | MDCPF22201 |
|---|---|

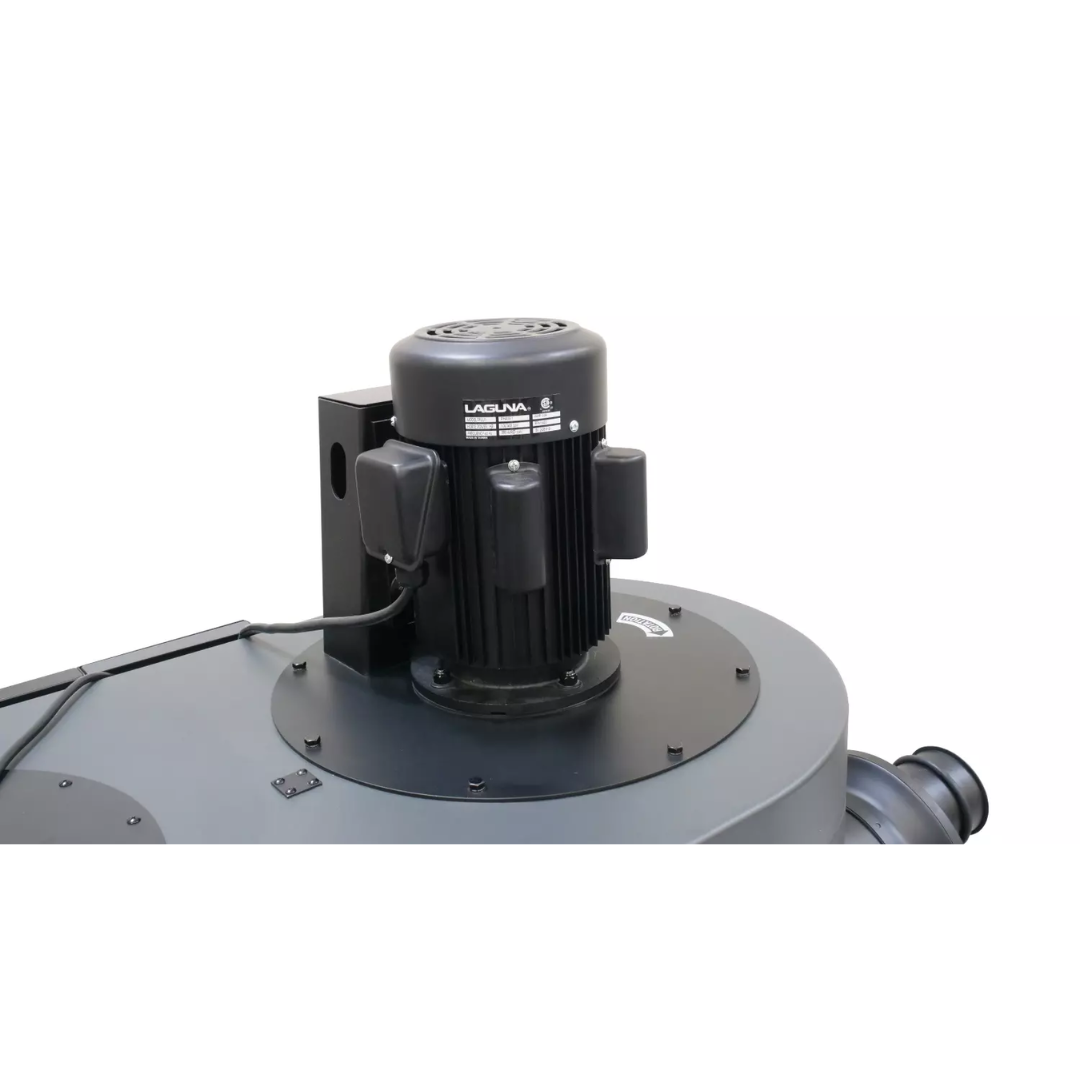

| Motor | 2 HP, 1 Phase |
| Voltage | 220V, 60Hz |
| RPM | 3450 |
| Amperage | 14A |
| Recommended Breaker | 20 Amps |
| Maximum Airflow | 1740 CFM |
| Shop Airflow | 1166 CFM |
| Max Static Pressure | 9.3" |
| Impeller | 14.5" Steel Radial Fin |
| Inlet | 8" main with splitter (2 × 4" ports) |
| Collection Capacity | 46 Gallon Octagon Drum |
| Noise Level | 76 dB @ 9.8 ft |
| Cord | Approx. 8 ft (no plug) |
| Dimensions | 48" × 28" × 87"–88" |
| Machine Weight | 362 lbs |
| Shipping Weight | 430 lbs |
Laguna P|Flux: 2 MDCPF22201 Cyclone Dust Collector Features & Performance
- 2 HP motor delivers strong airflow for demanding shop environments.
- 1740 CFM airflow capacity supports multiple machines and higher dust loads.
- Automatic filter cleaning system cycles every 10 minutes or via remote.
- HEPA filtration system captures fine airborne particles for superior air quality.

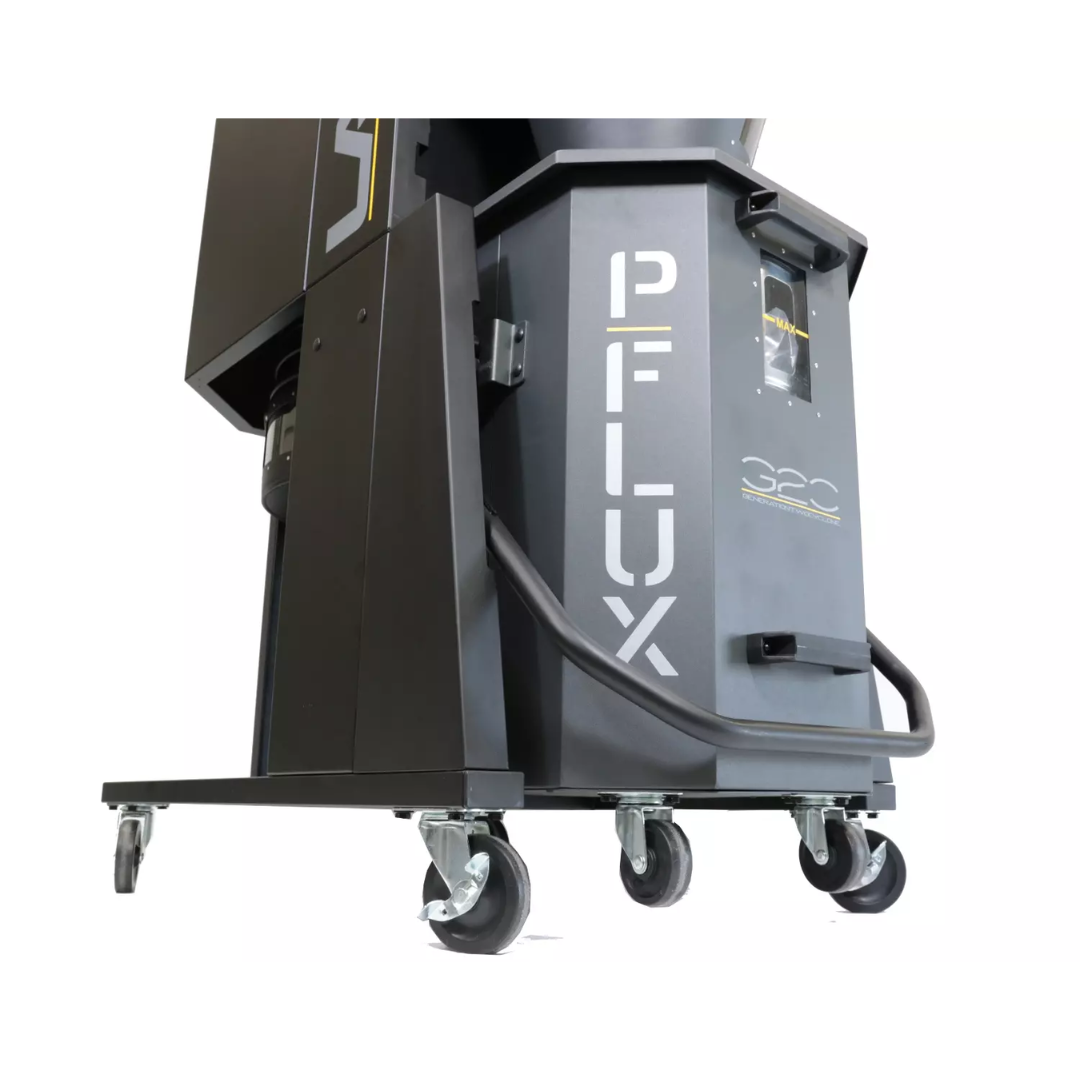

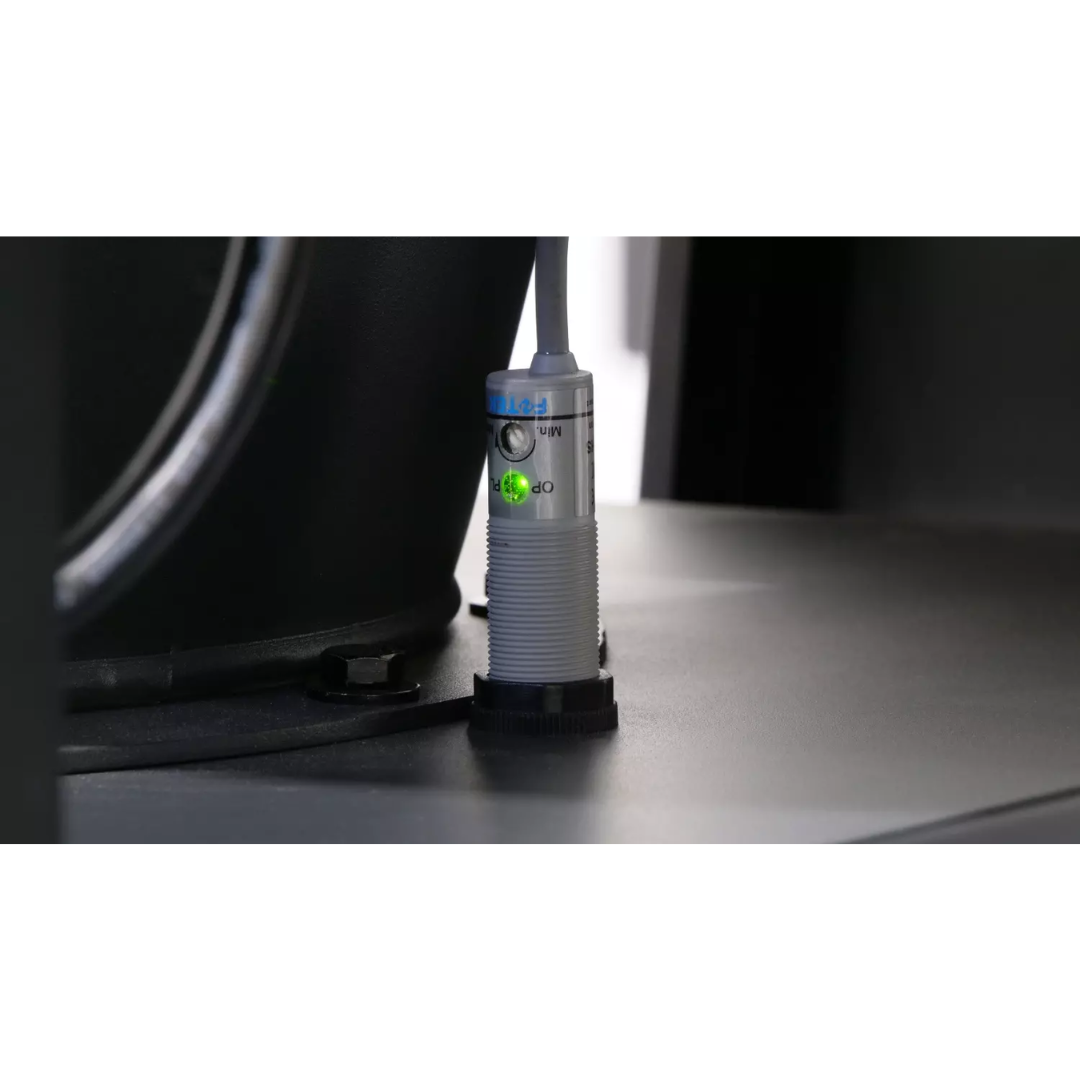

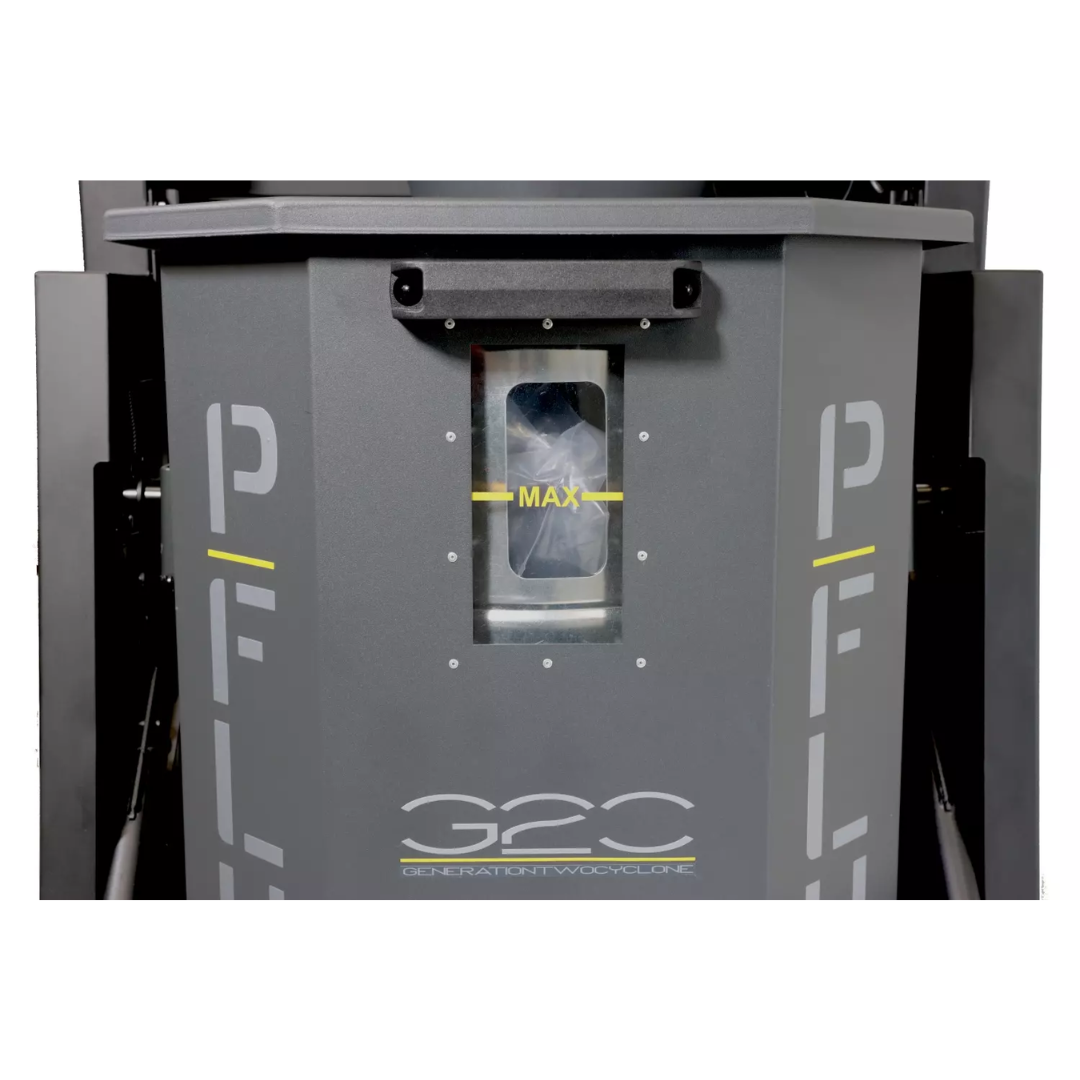

- Large 46-gallon smart drum with LED illumination and full-level alerts.
- High-frequency remote control enables convenient operation without line-of-sight.

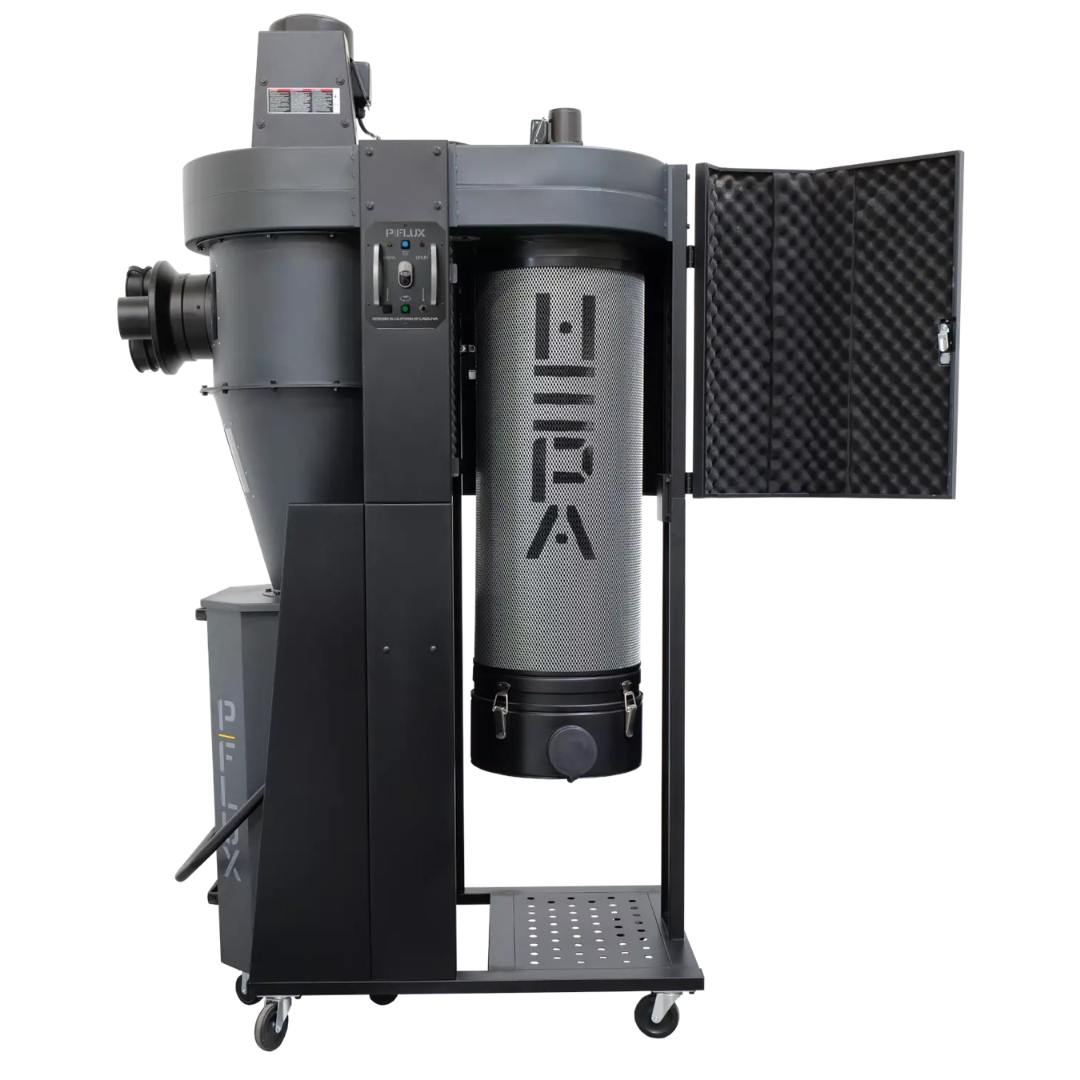

- Acoustic-lined cabinet doors reduce noise to a comfortable 76 dB.
- Cyclone separation technology improves efficiency and reduces filter wear.

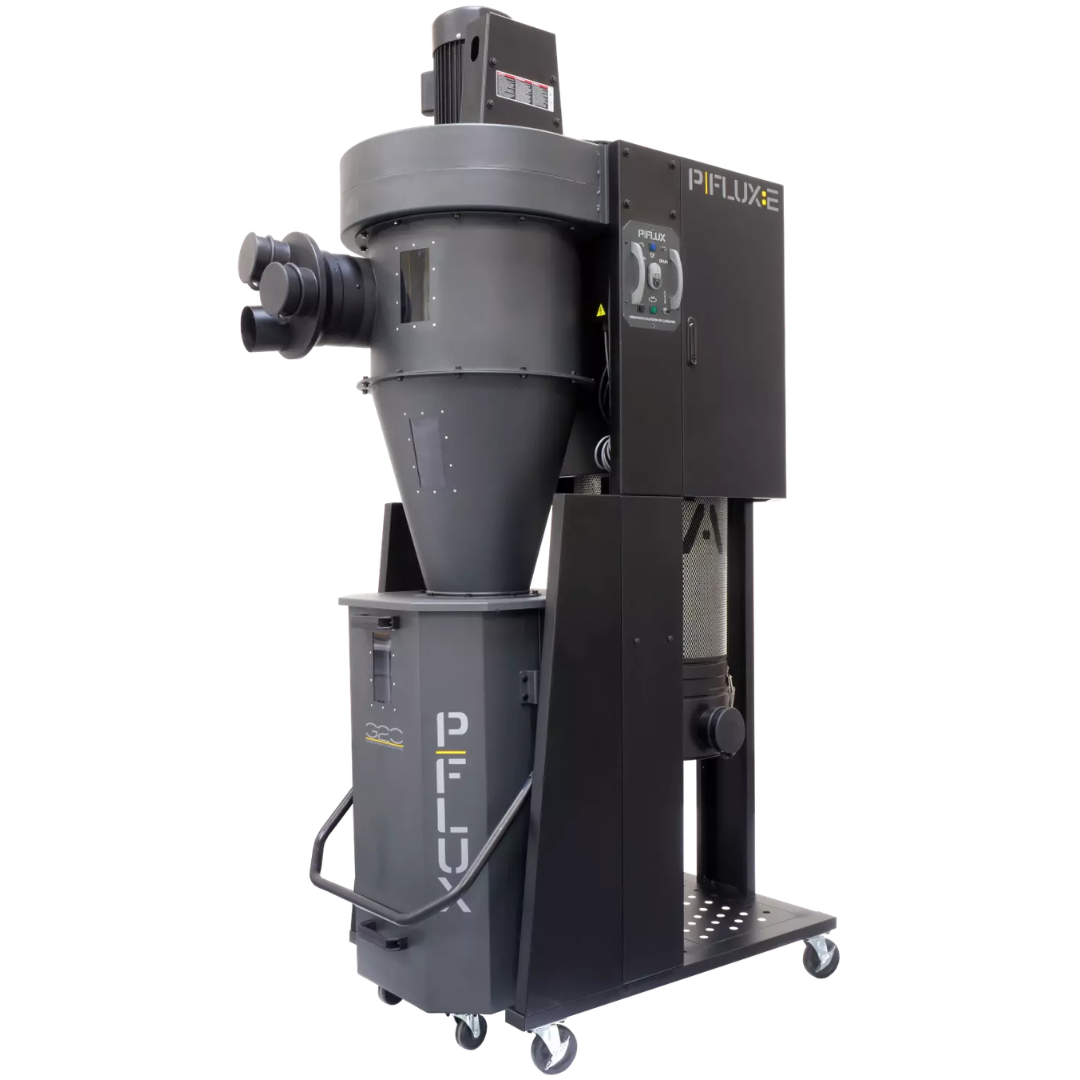

- Durable steel construction with mobile base for stability and flexibility.
Laguna P|Flux: 2 MDCPF22201 Cyclone Dust Collector Filtration System

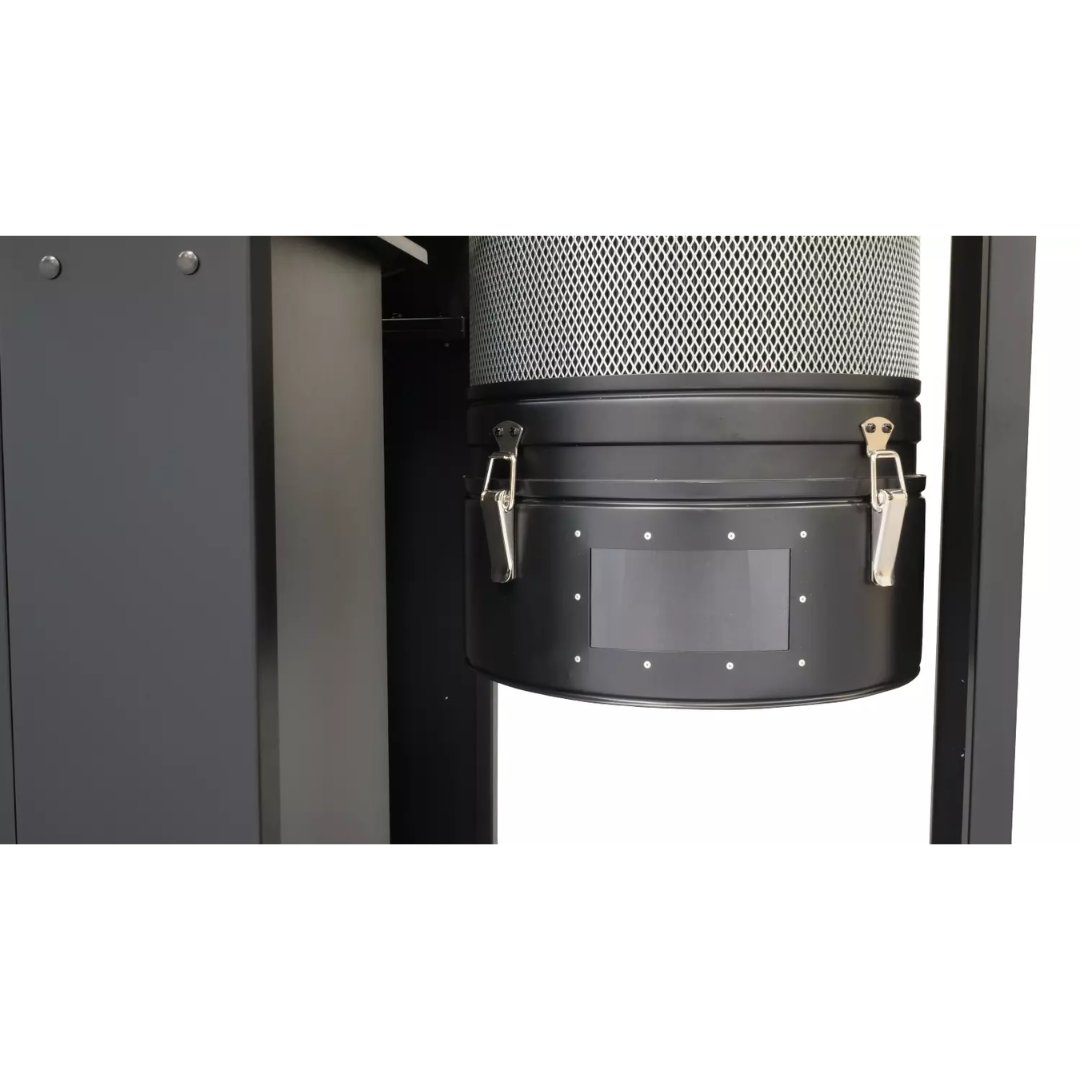

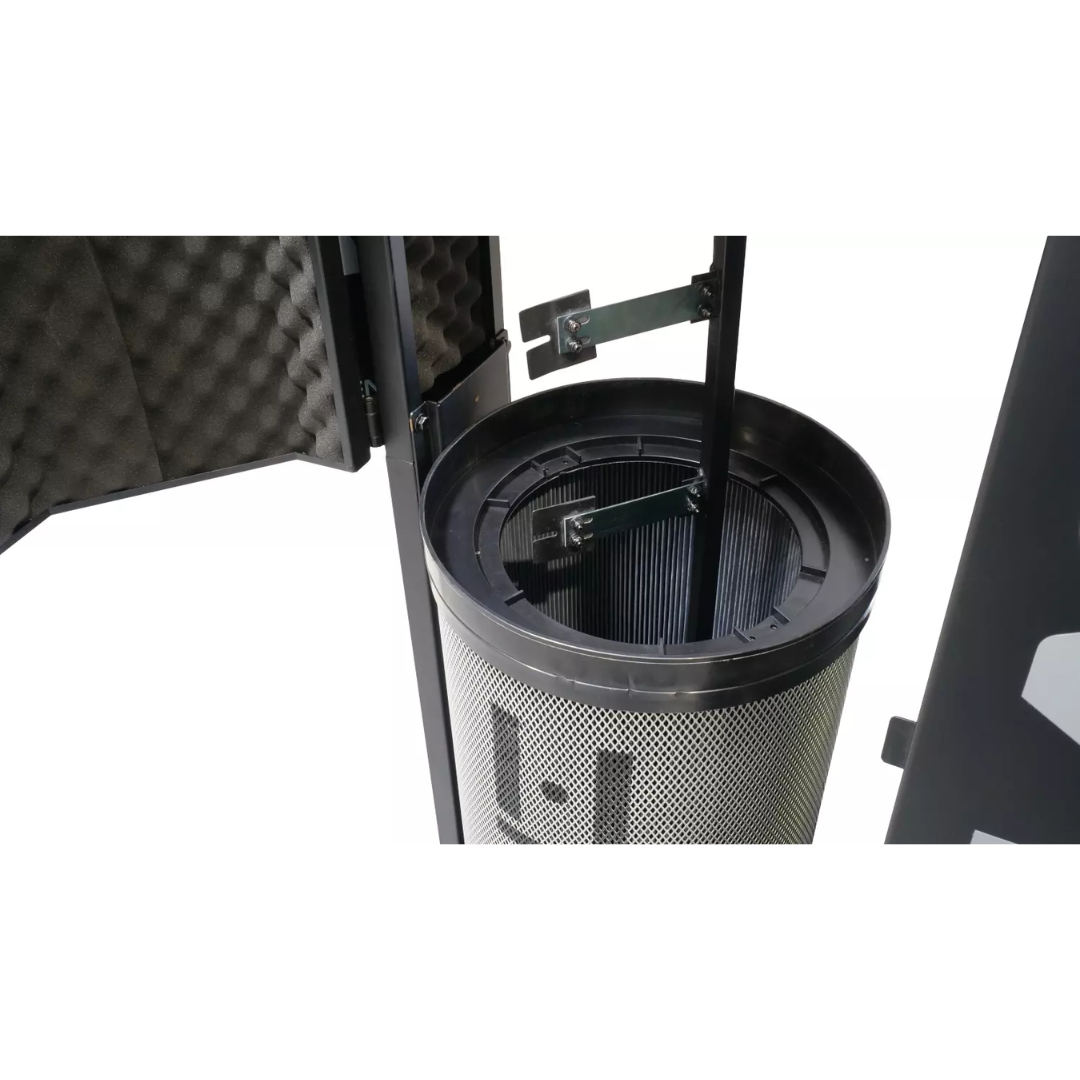

- Filter Type: HEPA cartridge filter
- Filtration Efficiency: 99.7% of particles ≥0.3 microns
- MERV Rating: 16+
- Filter Area: 102 sq/ft
- Filter Size: 15.74" × 35.43"
- Automatic cleaning cycle maintains peak airflow and reduces maintenance
Advanced HEPA filtration ensures cleaner, safer air for both operators and equipment in demanding environments.

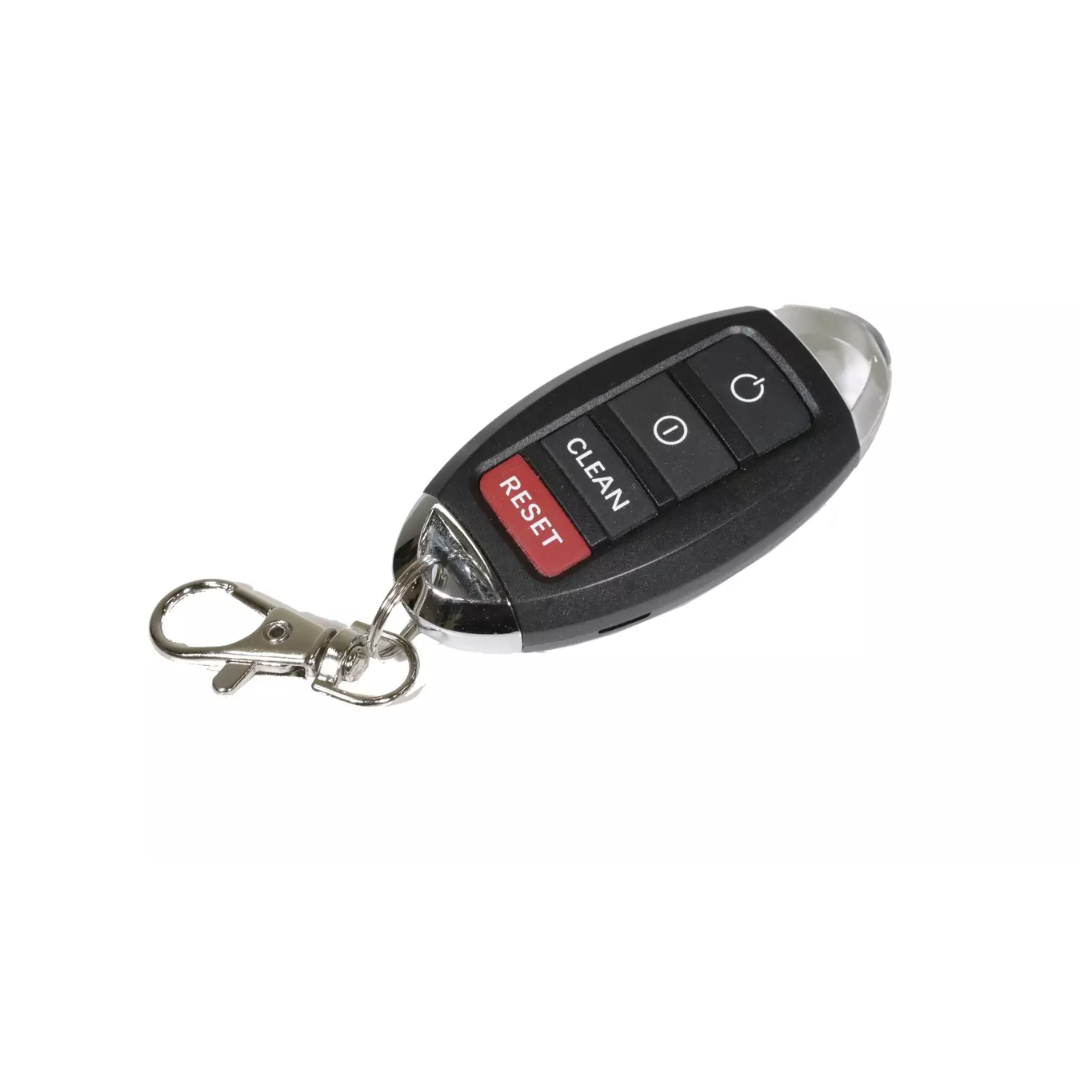

Laguna P|Flux: 2 MDCPF22201 Cyclone Dust Collector Remote Control System
- High-frequency remote operates without direct line-of-sight
- Reliable signal unaffected by shop lighting or obstructions
- Controls both power and automatic cleaning functions
- Improves workflow efficiency and ease of operation
Why Choose the Laguna P|Flux: 2 MDCPF22201 Cyclone Dust Collector
- High airflow performance with 1740 CFM capacity
- Large 46-gallon smart drum for extended operation
- HEPA filtration with automatic cleaning technology
- Quiet, enclosed design with sound reduction features
- Smart automation and remote control for modern workshops
The Laguna P|Flux: 2 MDCPF22201 Cyclone Dust Collector is the perfect balance of power, intelligence, and air quality control, making it an ideal solution for professionals who demand efficiency, convenience, and superior filtration.
