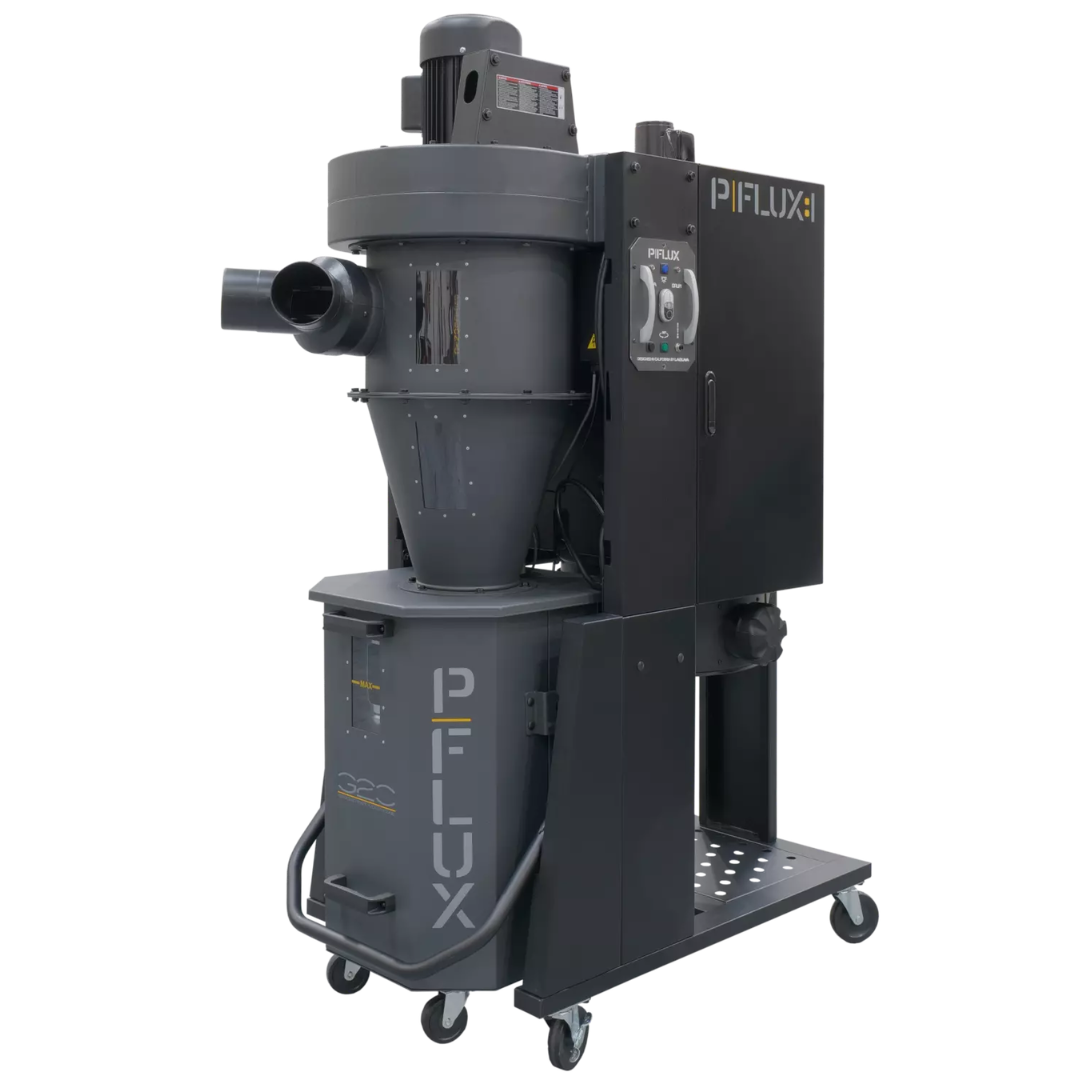

Laguna P|Flux: 1 MDCPF15110 Cyclone Dust Collector Applications
- Professional woodworking shops and hobbyist workshops
- Table saws, jointers, planers, and routing stations
- CNC routers and fine dust-producing equipment
- Sanding operations requiring HEPA-level filtration
- Workspaces prioritizing clean air and low noise levels
Perfect for users who need high-performance dust collection with advanced filtration and smart automation features.
Laguna P|Flux: 1 MDCPF15110 Cyclone Dust Collector Specifications
| Model | MDCPF15110 |
|---|---|
| Motor | 1.5 HP, 1 Phase |
| Voltage | 110V / 220V, 60Hz |
| RPM | 3450 |
| Amperage | 18.8A (110V) / 9.4A (220V) |
| Recommended Breaker | 25 Amps |
| Maximum Airflow | 1314 CFM |
| Shop Airflow | 900 CFM |
| Max Static Pressure | 10.1" |
| Impeller | 13.5" Steel Radial Fin |
| Inlet | 6" main or dual 4" ports |

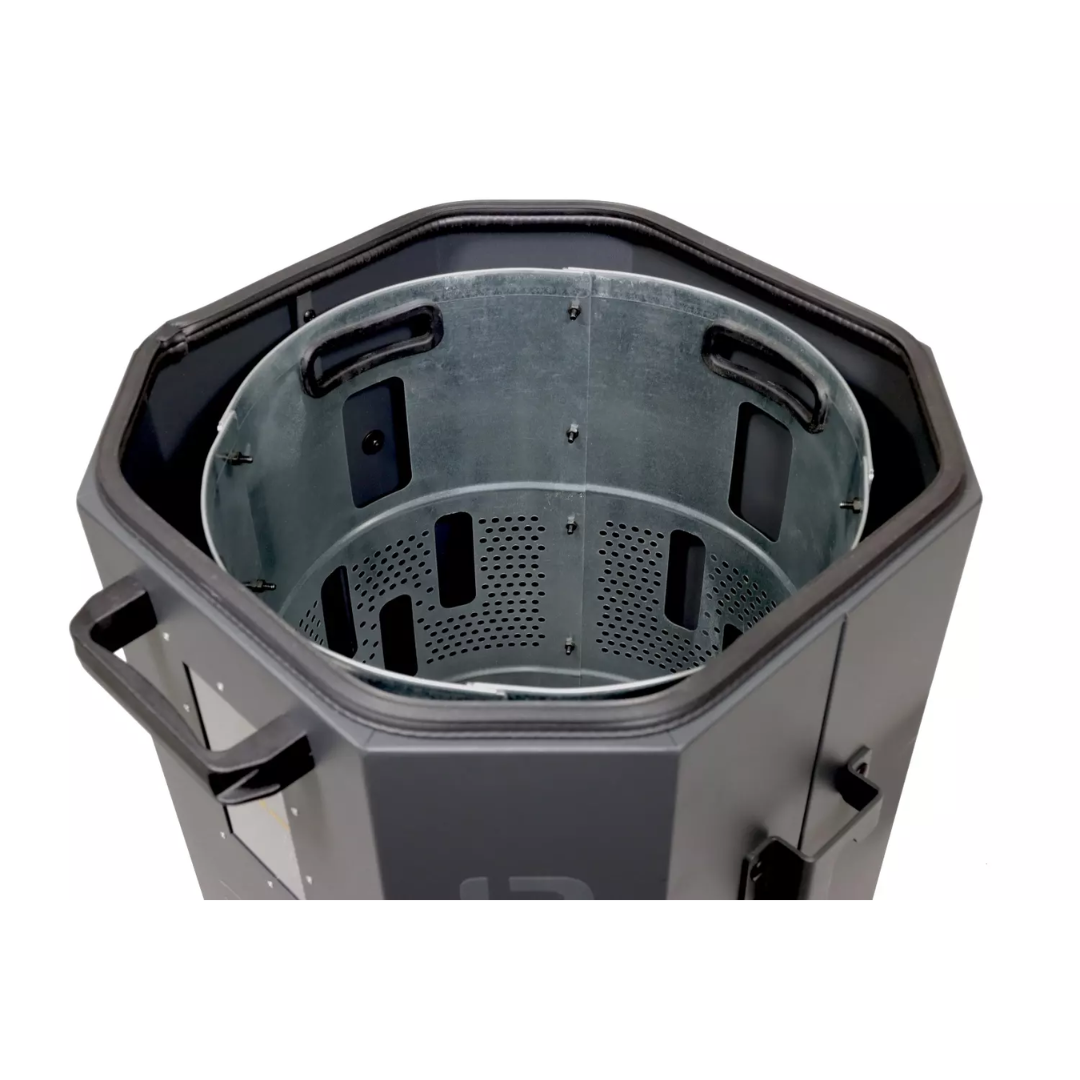

| Collection Capacity | 25 Gallon Octagon Drum |
| Noise Level | 70 dB @ 9.8 ft |
| Cord | Approx. 8 ft (no plug) |
| Dimensions | 42" × 25" × 68" |
| Machine Weight | 232 lbs |
| Shipping Weight | 287 lbs |
Laguna P|Flux: 1 MDCPF15110 Cyclone Dust Collector Features & Performance

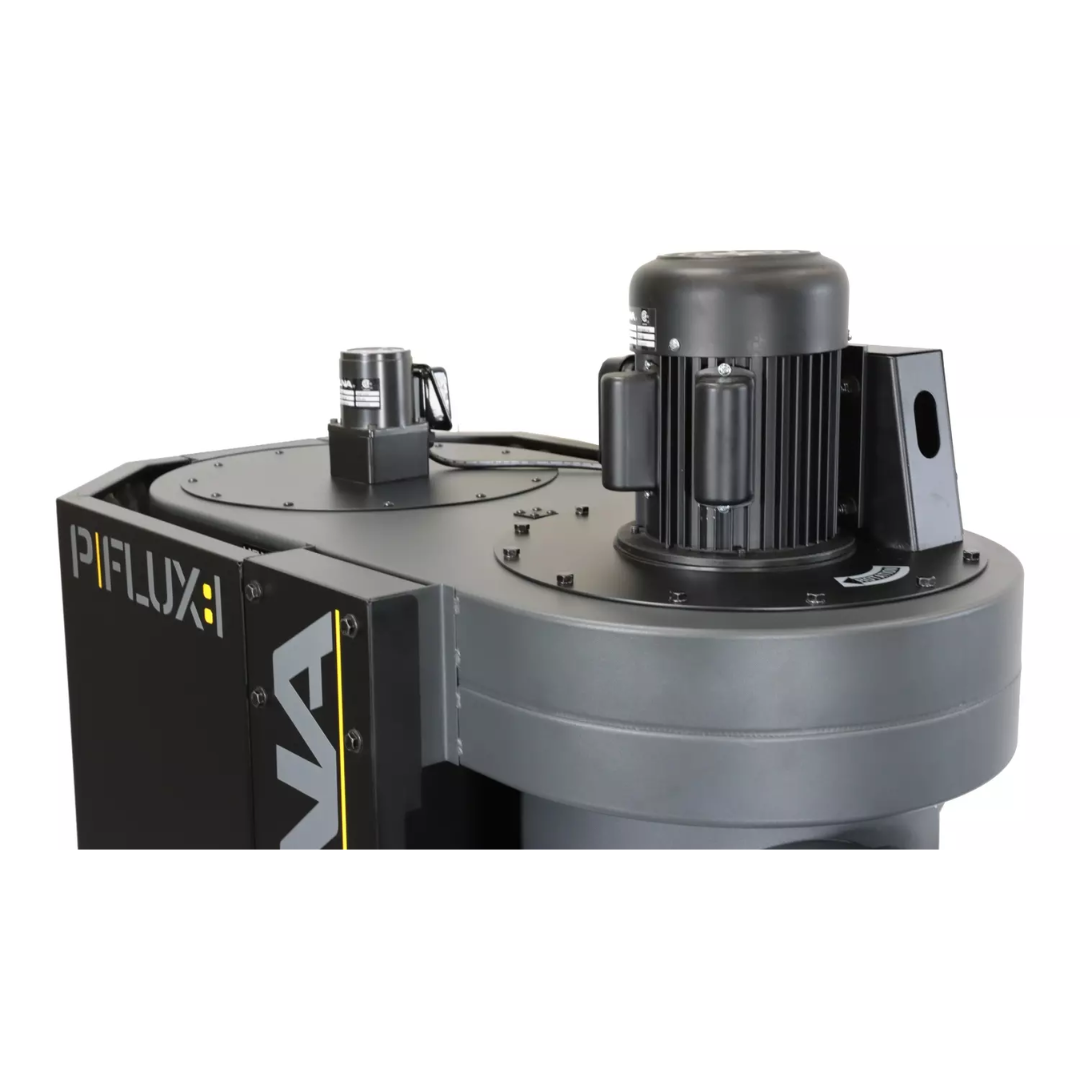

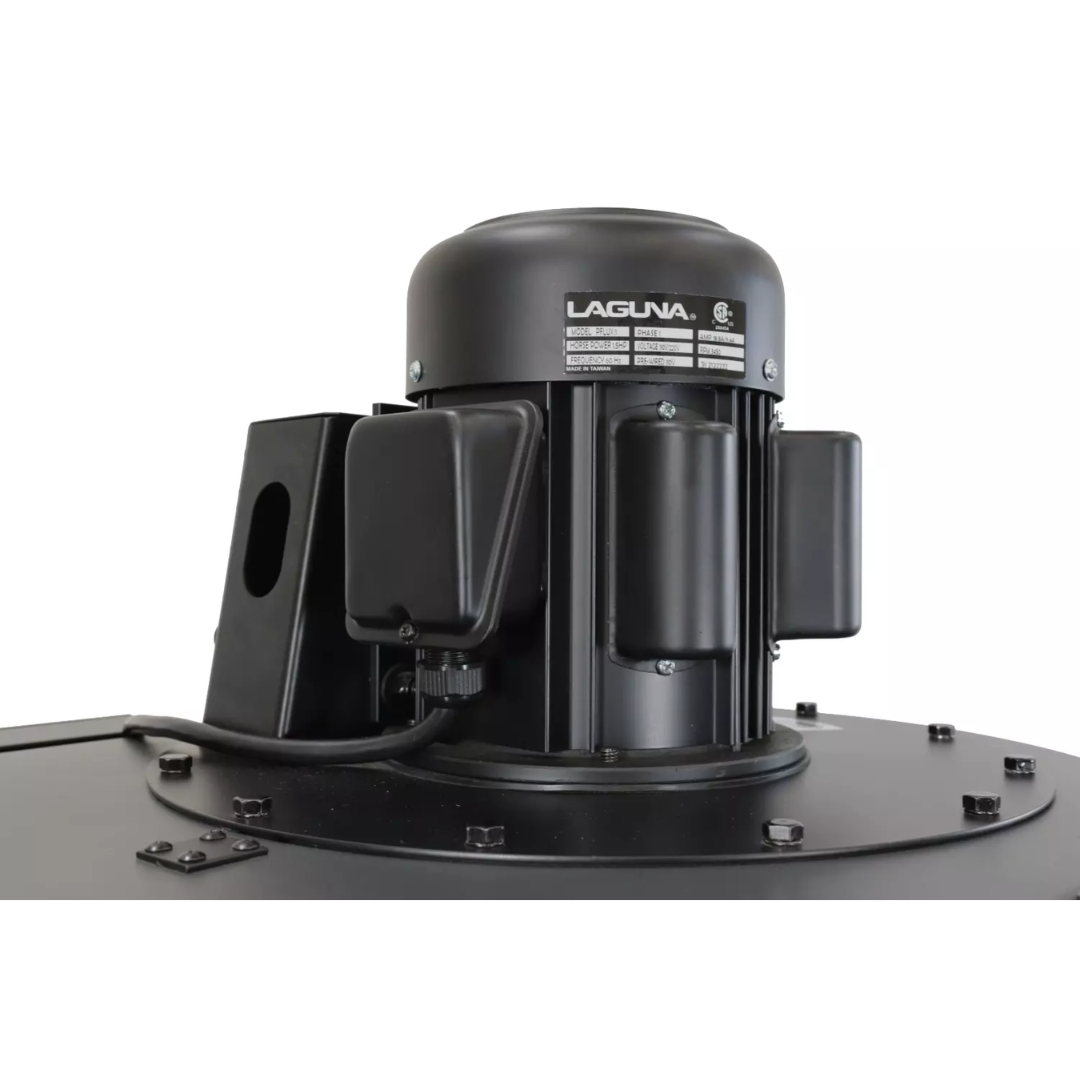

- 1.5 HP motor delivers reliable airflow for consistent dust extraction.
- 1314 CFM airflow capacity supports a wide range of woodworking machines.
- Automatic filter cleaning system activates every 10 minutes or via remote control.
- HEPA filtration system captures ultra-fine dust for superior air quality.
- Smart LED drum system with illumination and full-level warning alerts.
- High-frequency remote control operates without line-of-sight interference.
- Acoustic-lined swing-away doors reduce operational noise to just 70 dB.
- Compact cyclone design improves efficiency and reduces filter clogging.

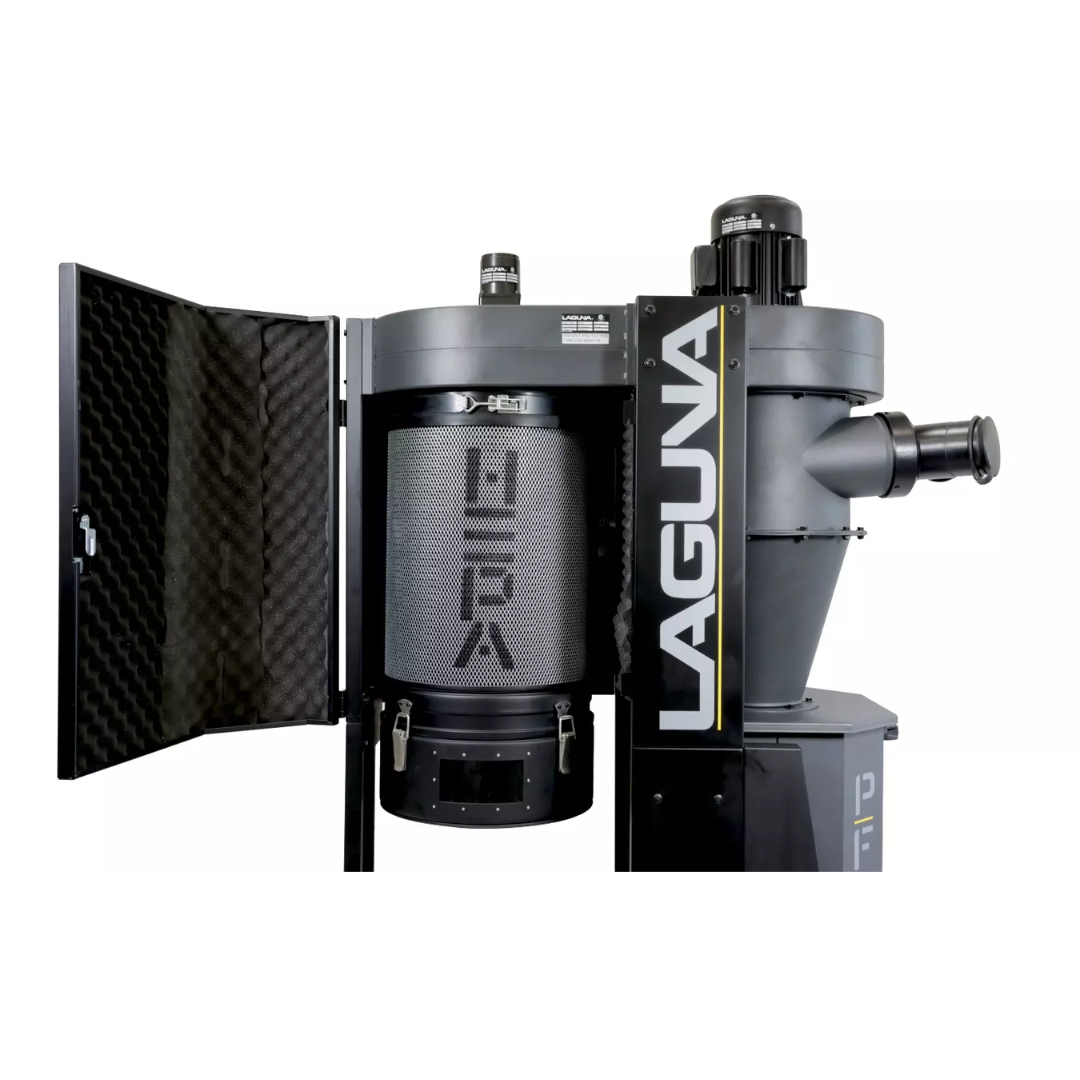

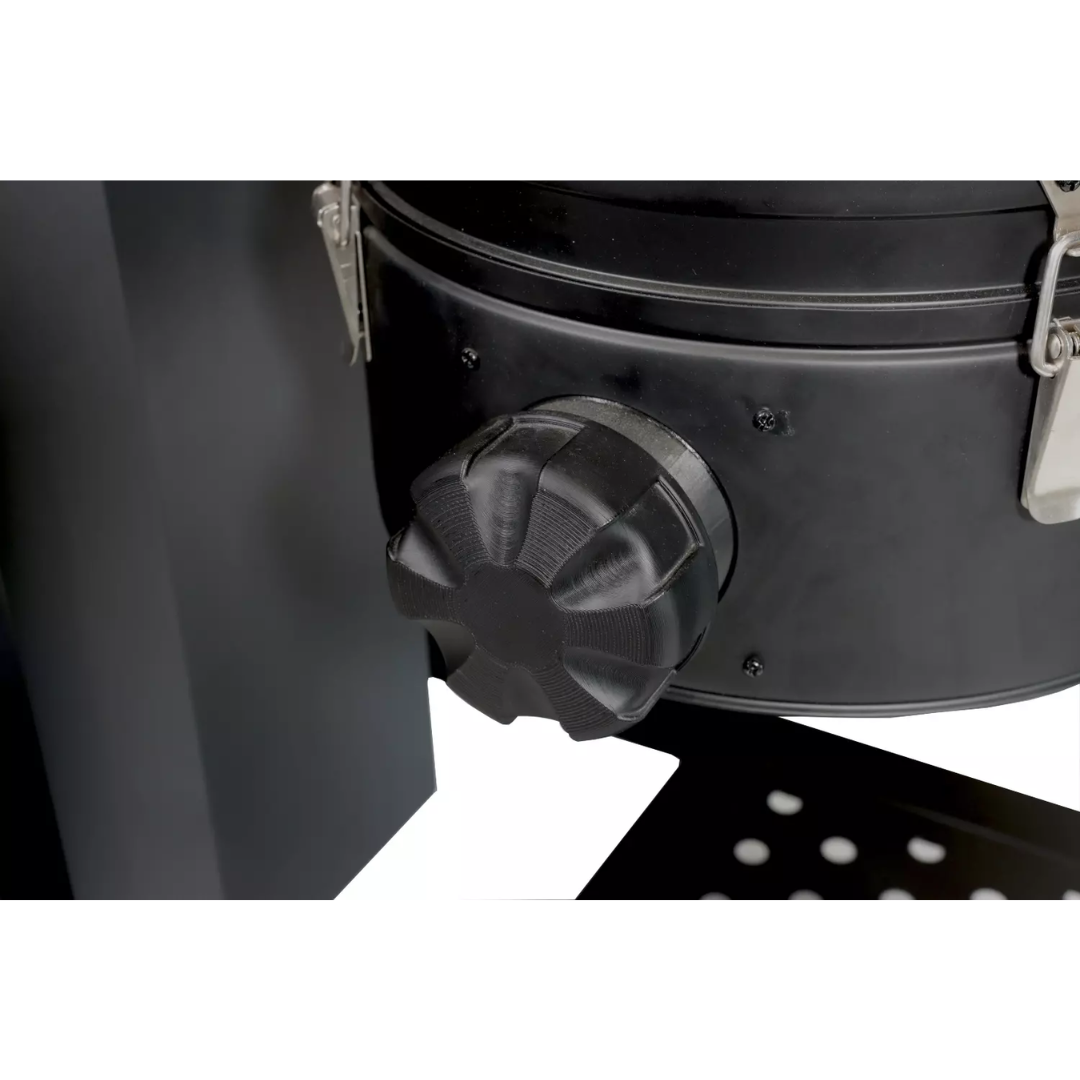

Laguna P|Flux: 1 MDCPF15110 Cyclone Dust Collector Filtration System
- Filter Type: HEPA cartridge filter
- Filtration Efficiency: 99.7% of particles ≥0.3 microns
- MERV Rating: 16+
- Filter Area: 48.4 sq/ft
- Filter Size: 15.74" × 19.68"
- Automatic cleaning cycle maintains peak airflow and reduces manual maintenance
Advanced HEPA filtration ensures cleaner air, making this system ideal for environments where dust control is critical.

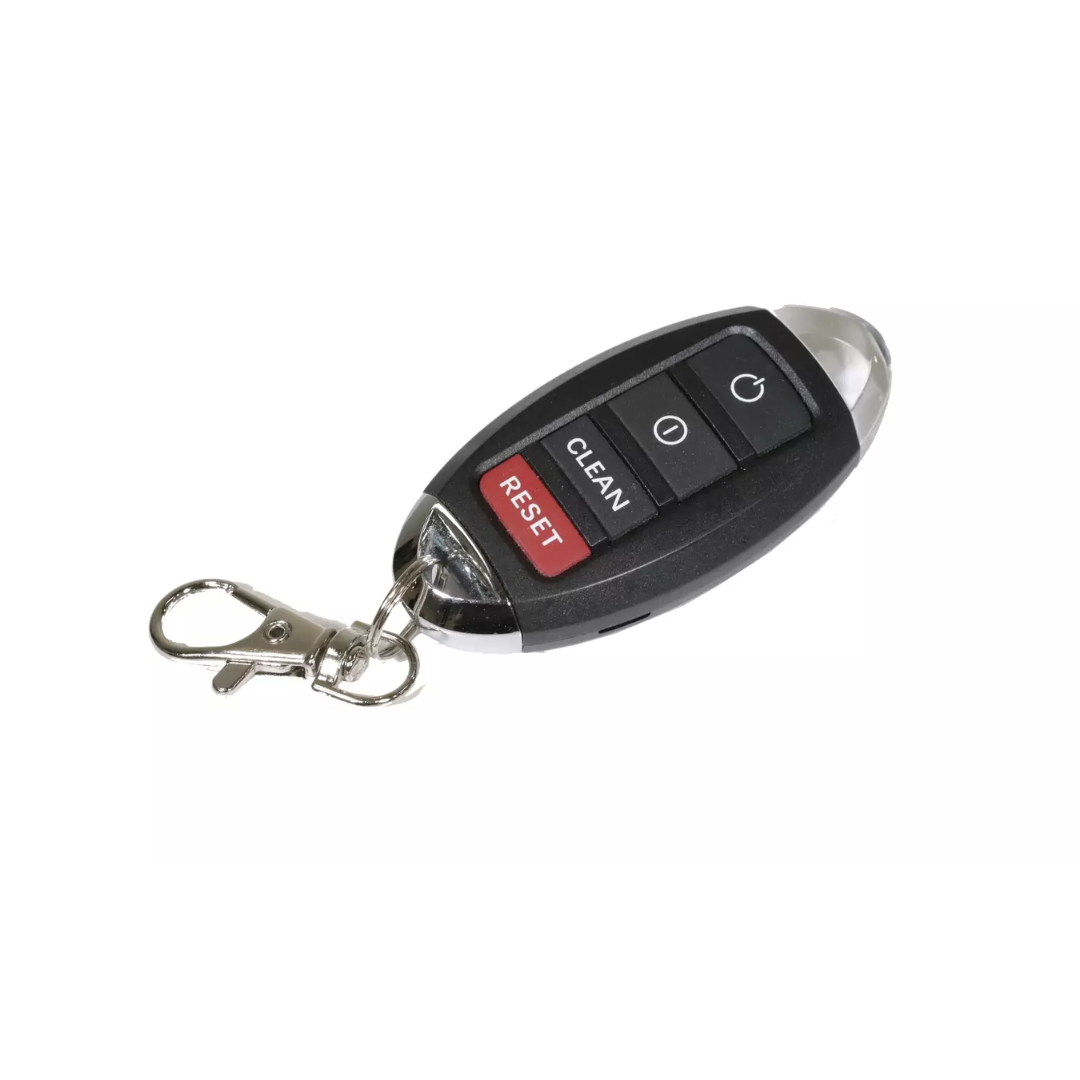

Laguna P|Flux: 1 MDCPF15110 Cyclone Dust Collector Remote Control System
- High-frequency remote works without direct line-of-sight
- Reliable signal unaffected by fluorescent lighting
- Controls power and cleaning cycles remotely
- Enhances workflow efficiency and user convenience
Why Choose the Laguna P|Flux: 1 MDCPF15110 Cyclone Dust Collector
- Advanced HEPA filtration for superior air quality
- Automatic filter cleaning for minimal maintenance
- Smart drum system with LED alerts and illumination
- Quiet operation at only 70 dB
- Compact, efficient, and feature-rich design
The Laguna P|Flux: 1 MDCPF15110 Cyclone Dust Collector is the ideal choice for woodworkers who demand clean air, quiet performance, and smart automation in a compact and powerful dust collection system.
