Laguna Mini Guides ABMG001 Applications
- Fine detail cutting and intricate curve work
- Tight radius cuts requiring maximum blade control
- Scroll-style woodworking and precision shaping
- Enhancing performance of small-width bandsaw blades
- Upgrading Laguna bandsaws for improved accuracy with narrow blades
Ideal for woodworkers using narrow blades who demand superior control, reduced vibration, and cleaner cuts.
Laguna Mini Guides ABMG001 Specifications

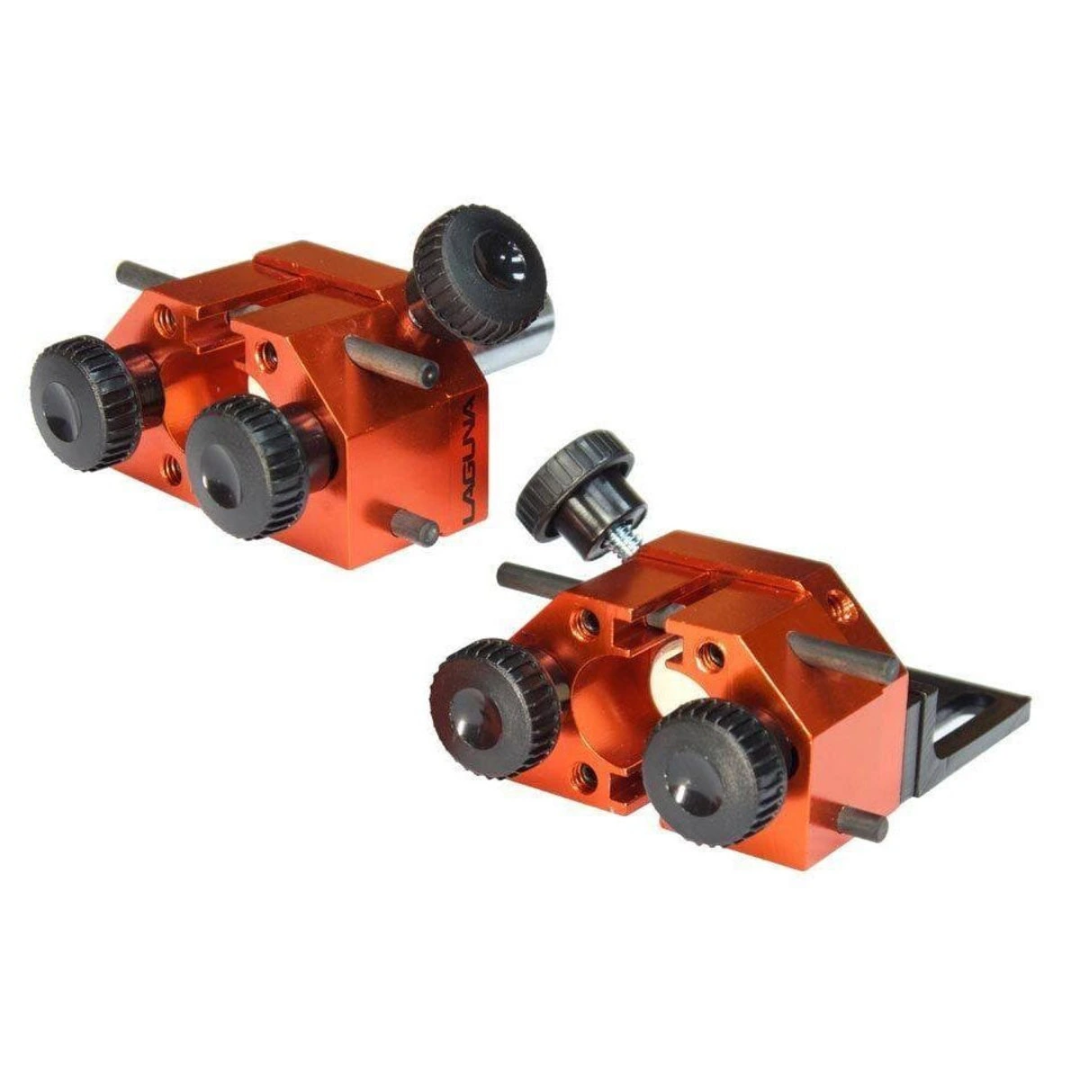

| Model | ABMG001 |
|---|---|
| Blade Compatibility | 1/16″ – 3/8″ Width Blades |
| Insert Material | 5 mm Phenolic with Graphite |
| Contact Points | 10 Total (Including Rear Thrust Bearing) |
| Compatibility | Laguna 14″ – 24″ Bandsaws |
| Replacement Inserts | 8 Standard + 1 Short Insert (for 45° table tilt) |
Laguna Mini Guides ABMG001 Performance & Features

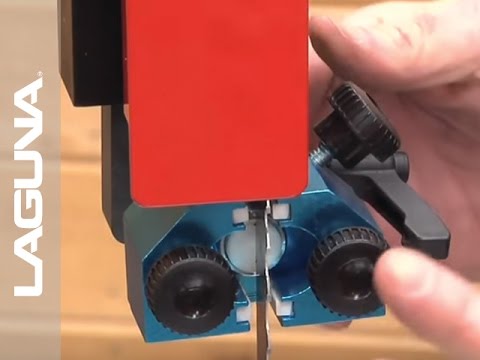

- Full Blade Support System surrounds the blade at multiple points, including the tooth edge, for unmatched stability.
- 10 Contact Point Design significantly exceeds traditional guide systems, reducing vibration and improving cut quality.
- Phenolic Graphite Inserts provide low-friction contact while maintaining durability and smooth blade movement.
- Rotatable Insert Design allows inserts to be repositioned as they wear, extending service life.
- Replaceable Insert System ensures long-term usability with easily swapped components.
- Rear Ceramic Thrust Bearing adds additional support for consistent blade tracking and reduced deflection.
- Optimized for Narrow Blades delivers superior performance where standard guides cannot effectively support small blade widths.
- Direct Replacement Design installs in place of ceramic side channels on compatible Laguna bandsaws.
Why Choose the Laguna Mini Guides ABMG001
- Provides unmatched control for small and delicate blades.
- Reduces vibration for cleaner, more precise cuts.
- Extends blade life through improved support and reduced stress.
- Enhances performance for intricate and tight-radius woodworking.
- Easy maintenance with replaceable and adjustable inserts.
The Laguna Mini Guides ABMG001 set a new standard for narrow blade performance, delivering precision, stability, and control for the most demanding detailed cutting applications.
