Laguna JX|8 QuadTec: II Jointer MJ8X72E-0130 Applications
- Edge jointing and flattening wider boards up to 8 inches
- Preparing lumber for panel glue-ups and fine joinery
- Processing hardwoods and difficult grain materials
- Professional woodworking shops and advanced hobbyists
Ideal for users needing extended bed support and superior finish quality on larger stock.
Laguna JX|8 QuadTec: II Jointer MJ8X72E-0130 Specifications
| Motor | 1.75 HP, 110V, 1 Phase, 60 Hz (15 Amp) |
|---|---|
| Bed Size | 72" × 8" |
| Table System | Parallelogram Adjustment |
| Max Depth of Cut | 1/8" |
| Rabbetting Capacity | 1/2" |
| Fence Size | 38" × 4-3/4" Cast Iron |
| Fence Tilt | ±45° / 90° |
| Cutterhead Type | QuadTec II Helical |
| Insert Knives | 20 × 4-Sided Carbide Inserts (4 Row) |
| Cutterhead RPM | 5500 |
| Cutterhead Diameter | 3-1/8" |
| Dust Port | 4" |
| Table Height | 31" |
| Dimensions (Set Up) | 75-1/2" × 26-1/2" |
| Base Footprint | 32-1/2" × 15-1/4" |
| Shipping Dimensions | 40" × 18" × 26" & 82" × 25" × 17" (2 Boxes) |
| Shipping Weight | 139 lbs + 319 lbs |
| Certification | CSA Approved |
| Plug Type | NEMA 5-15P |
Laguna JX|8 QuadTec: II Jointer MJ8X72E-0130 Performance & Features

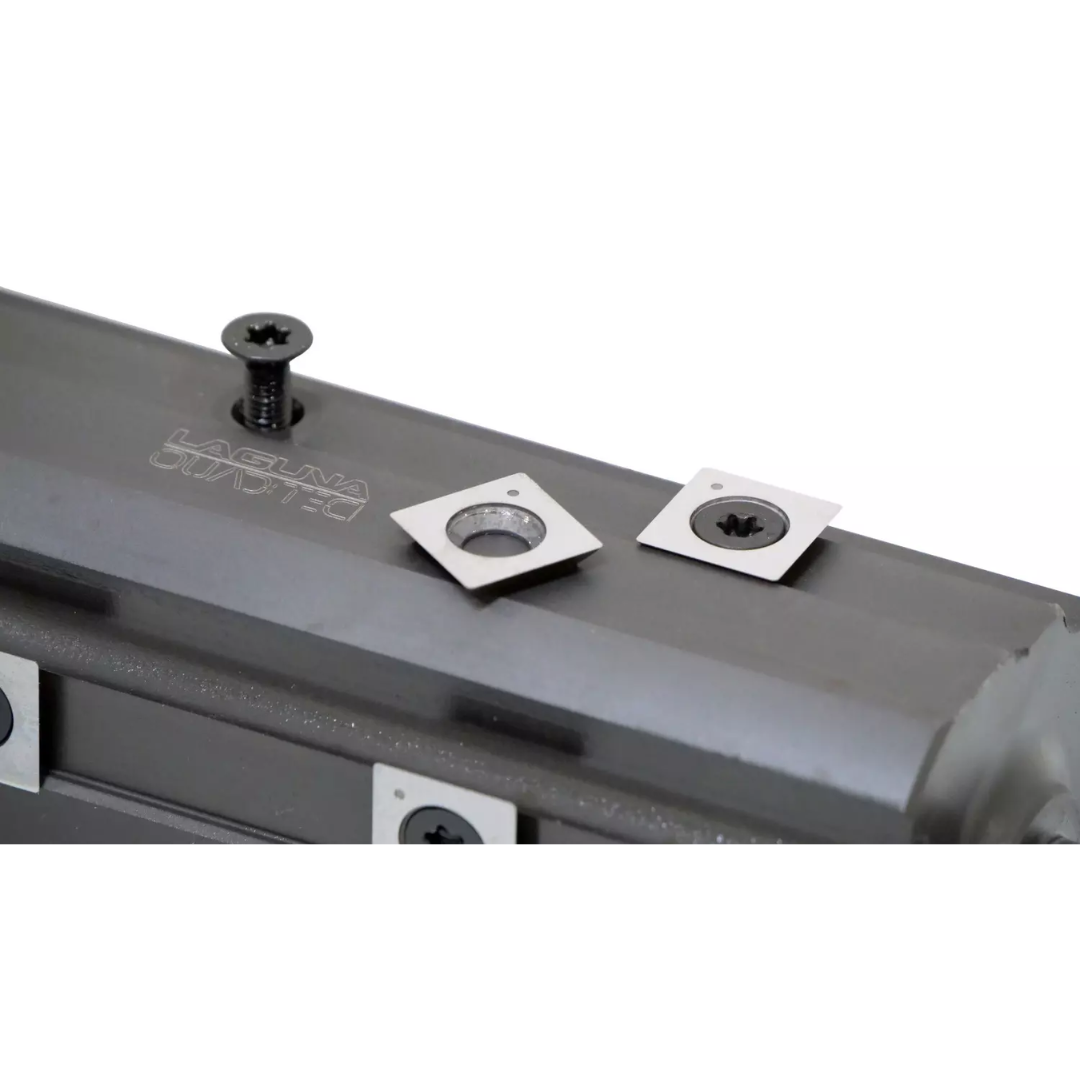

- QuadTec II Cutterhead features 4-sided solid carbide inserts that provide superior finishes, quieter operation, and extended tool life compared to traditional knives.
- Indexed Insert Design allows quick rotation of knives without the need for jigs, minimizing downtime and maintenance complexity.
- Parallelogram Table Adjustment maintains consistent cutterhead distance for precise and repeatable depth settings.
- Emergency Knee-Stop Safety Bar enables rapid machine shutdown from any position while maintaining safe control of the workpiece.

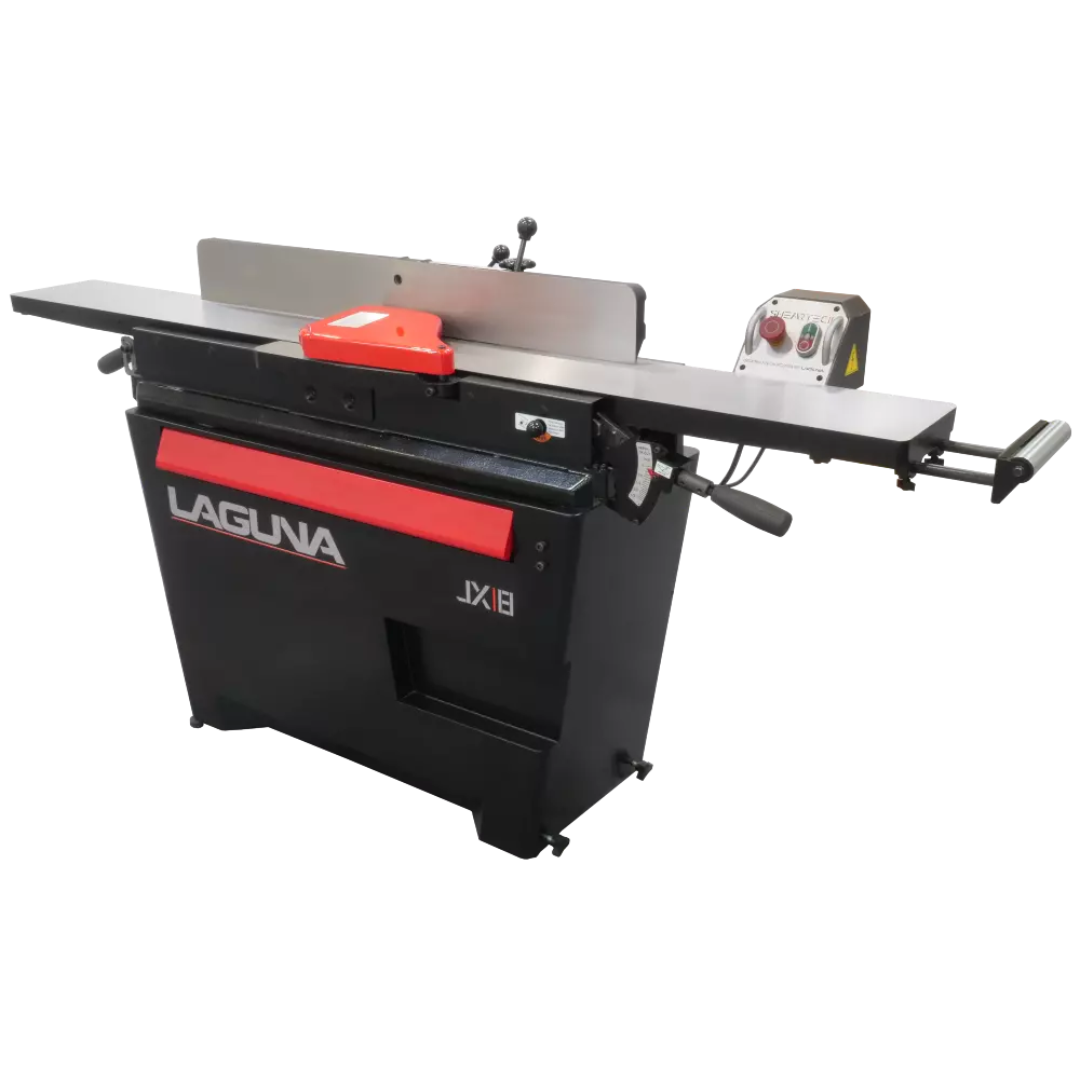

- Extended 72" Cast Iron Bed provides enhanced support for longer materials, improving accuracy and stability.

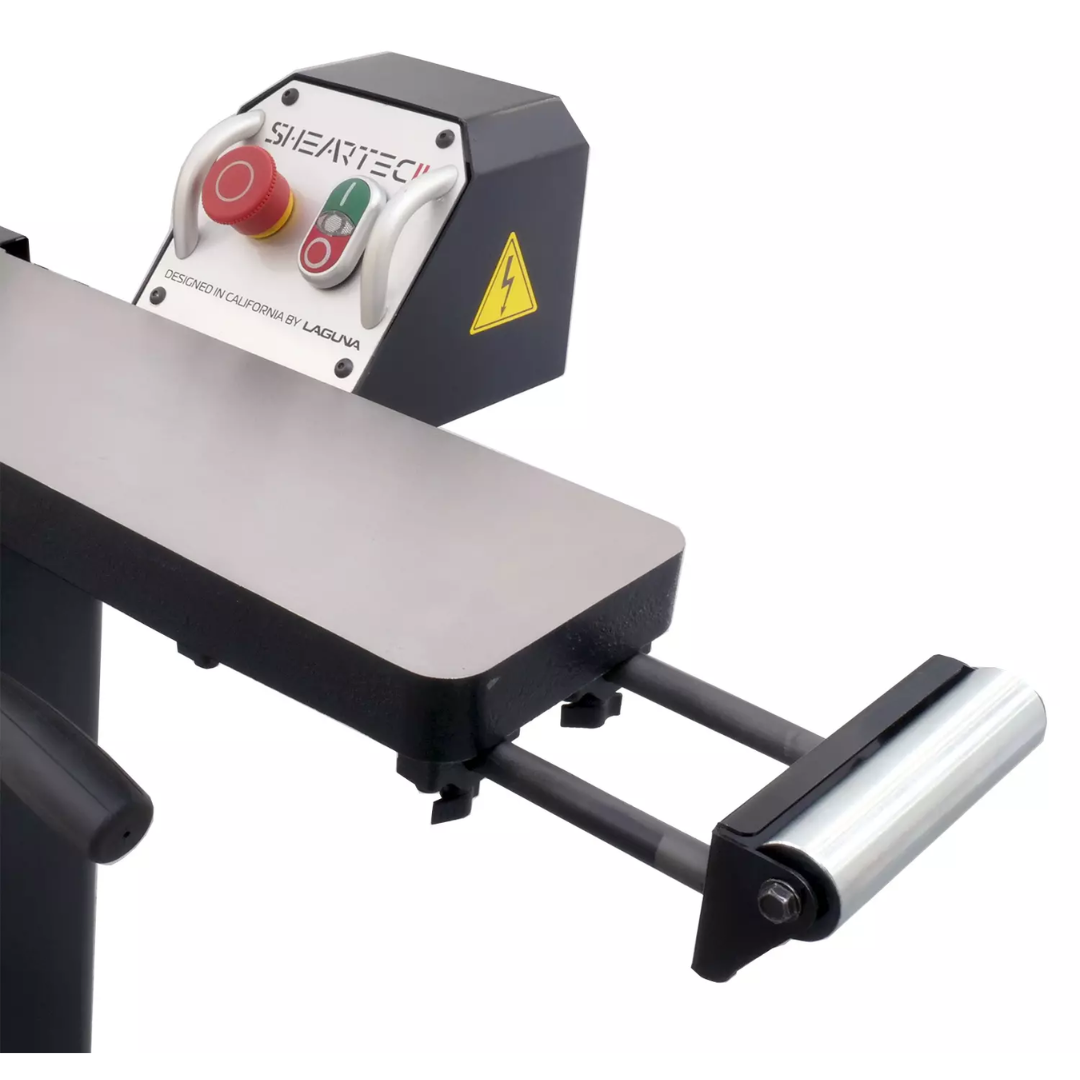

- Infeed Support Roller assists with handling longer boards, reducing operator fatigue and improving feed consistency.
- Ergonomic Toe-Kick Design allows operators to stand closer to the machine for better control and safer operation.
- Built-In Mobility Wheels provide convenient movement without the need for an additional mobile base.
- Heavy-Duty Cast Iron Fence and Tables ensure rigidity, vibration reduction, and long-term durability.
Why Choose the Laguna JX|8 QuadTec: II Jointer MJ8X72E-0130
- 8" capacity with extended bed for handling larger stock.
- Advanced QuadTec II cutterhead for premium surface finishes.
- Precision parallelogram system for accurate adjustments.
- Enhanced safety features including full-length knee-stop bar.
- Built for professional performance with durable cast iron construction.
The Laguna JX|8 QuadTec: II Jointer MJ8X72E-0130 delivers exceptional precision, safety, and cutting performance, making it a top choice for woodworkers who demand superior results and reliability.
