Laguna JX|6 Quadtec: II Jointer 506601 Applications
- Edge jointing for boards and panels in woodworking shops
- Flattening warped or uneven lumber surfaces
- Preparing stock for glue-ups and precision joinery
- Handling hardwoods and difficult grain materials with clean finishes
Perfect for woodworkers who demand smooth finishes, accuracy, and safety in everyday jointing operations.
Laguna JX|6 Quadtec: II Jointer 506601 Specifications
| Motor | 1.5 HP, 110V, 1 Phase, 60 Hz (13 Amp) |
|---|---|
| Bed Size | 60" × 6" |
| Table System | Parallelogram Adjustment |
| Max Depth of Cut | 1/8" |
| Rabbetting Capacity | 1/2" |
| Fence Size | 29" × 3-3/4" Cast Iron |
| Fence Tilt | ±45° / 90° |
| Cutterhead Type | QuadTec II Helical |
| Insert Knives | 12 × 4-Sided Carbide Inserts (4 Row) |
| Cutterhead RPM | 5500 |
| Cutterhead Diameter | 2-1/2" |
| Dust Port | 4" |
| Table Height | 31" |
| Dimensions (Set Up) | 63" × 22" |
| Base Footprint | 25-1/2" × 11-4/5" |
| Net / Shipping Weight | 161 / 174 lbs + 88 / 94 lbs (2 Boxes) |
| Certification | CSA Approved |
| Plug Type | NEMA 5-15P |
Laguna JX|6 Quadtec: II Jointer 506601 Performance & Features
- QuadTec II Cutterhead delivers superior surface finishes using 4-sided carbide inserts that are quieter, longer-lasting, and easily rotatable without jigs.

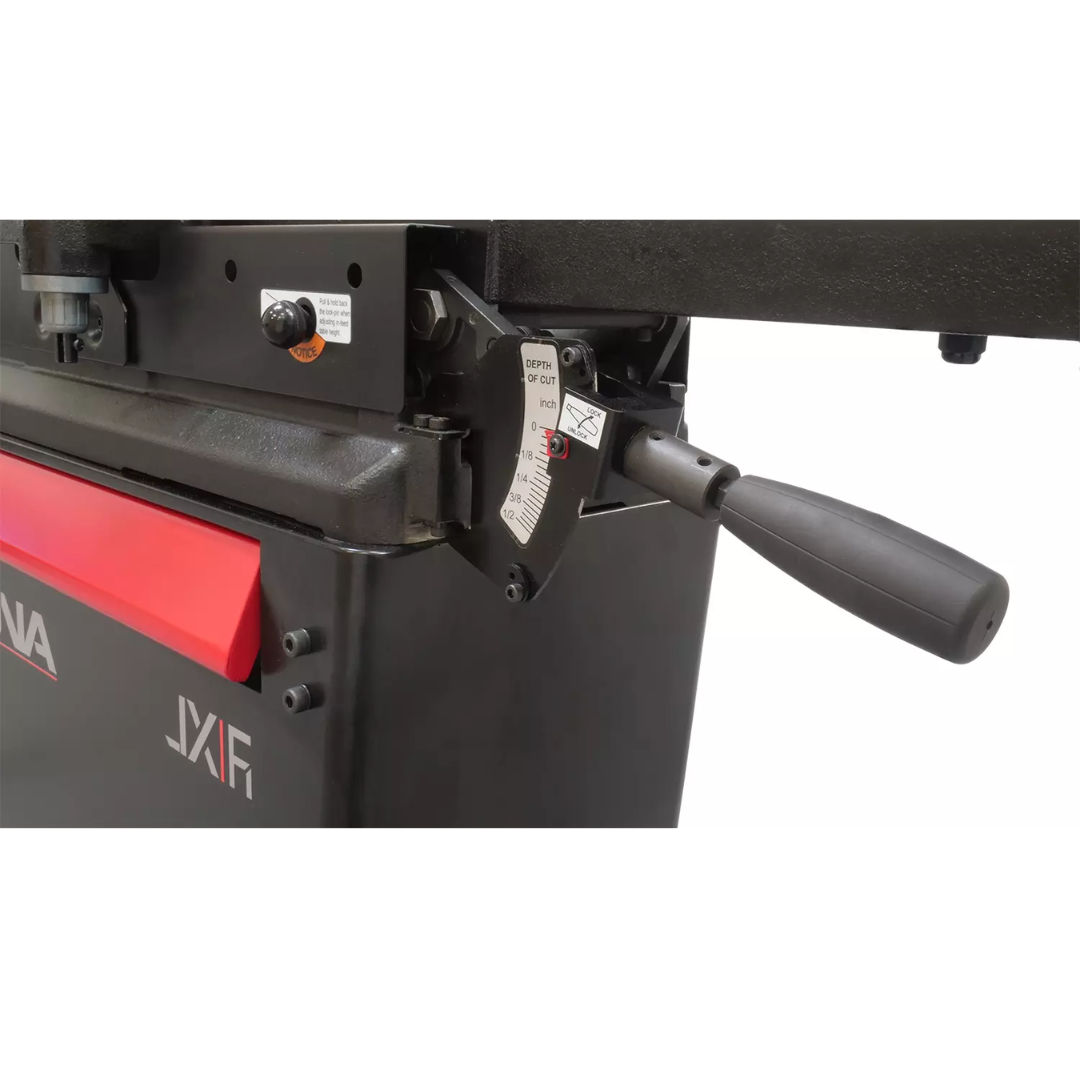

- Parallelogram Table Adjustment maintains consistent cutterhead distance for precise depth control across the full table travel.
- Emergency Knee-Stop Safety Bar allows fast machine shutdown from any position while keeping hands safely on the workpiece.
- Ergonomic Machine Design includes a toe-kick base allowing operators to stand closer for improved control and safety.

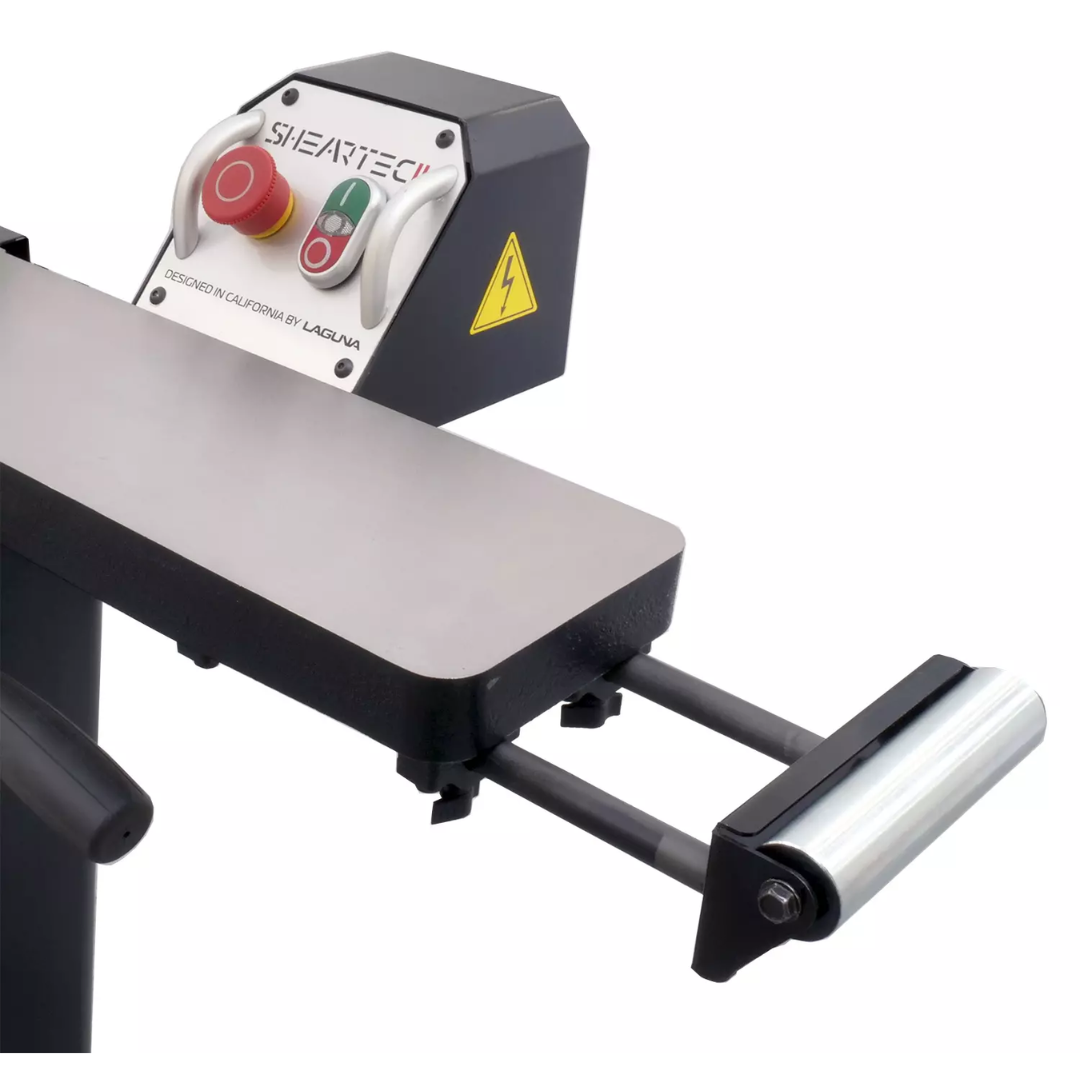

- Infeed Support Roller provides additional support for longer stock, improving stability during operation.

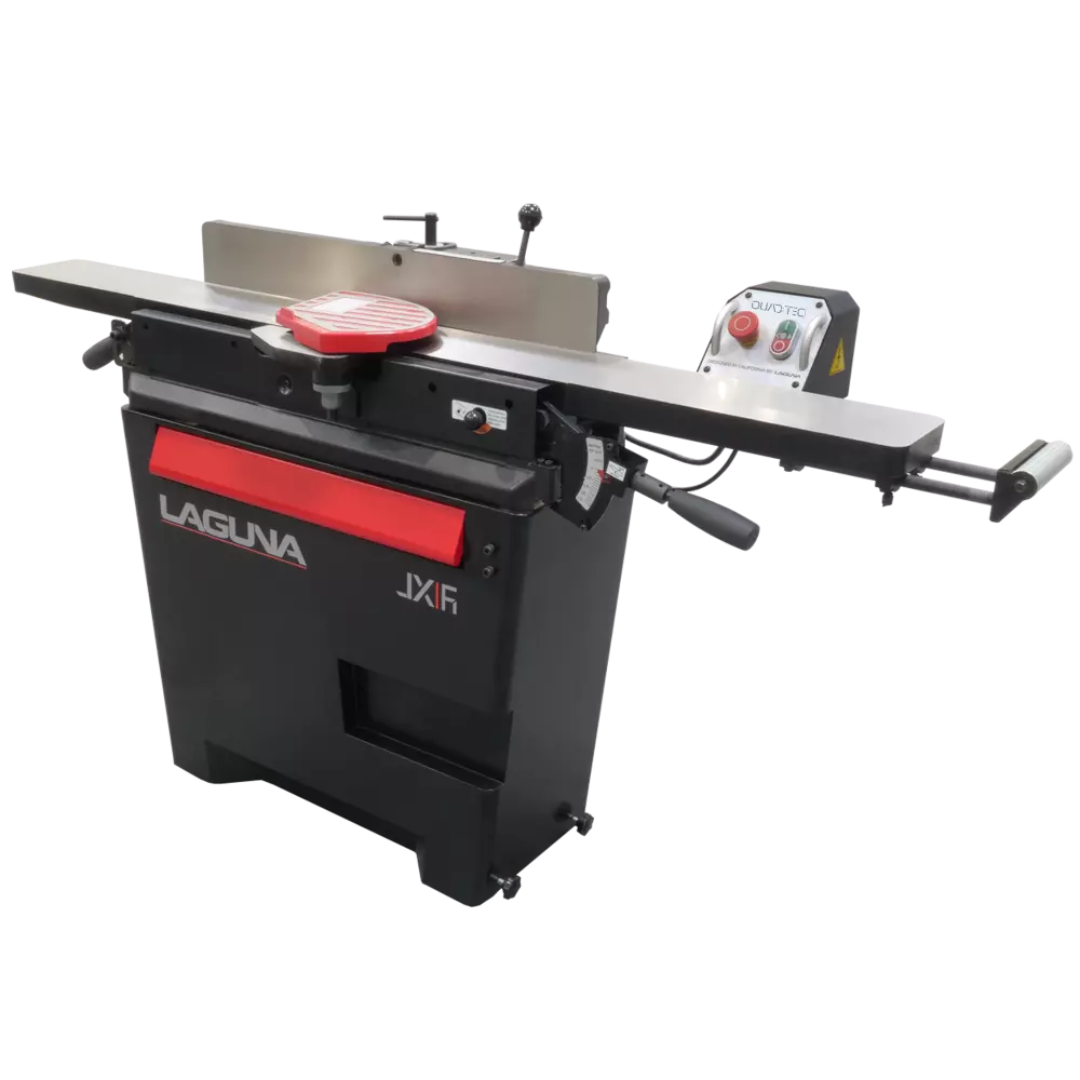

- Cast Iron Tables and Fence ensure maximum rigidity, reduced vibration, and long-term durability.
- Built-In Mobility Wheels allow easy repositioning without requiring an additional mobile base.
- High-Speed Cutterhead operating at 5500 RPM ensures smooth, consistent cutting performance.
Why Choose the Laguna JX|6 Quadtec: II Jointer 506601
- Advanced QuadTec II cutterhead for cleaner finishes and reduced noise.
- Precision parallelogram table system for accurate and repeatable results.
- Enhanced safety with full-length knee-stop emergency shutoff.
- Durable cast iron construction for stability and long service life.
- Designed for both professional shops and serious woodworking enthusiasts.
The Laguna JX|6 Quadtec: II Jointer 506601 combines cutting-edge cutterhead technology, precision engineering, and safety-focused design to deliver outstanding jointing performance in any woodworking environment.
