Laguna JX|12 ShearTec: II Jointer MJ12X88P-0130 Applications
- Jointing and flattening wide boards up to 12 inches
- High-production woodworking and industrial manufacturing
- Cabinetry, millwork, and furniture production
- Processing hardwoods and large dimensional stock
Engineered for industrial shops requiring maximum capacity, precision, and durability.
Laguna JX|12 ShearTec: II Jointer MJ12X88P-0130 Specifications
| Motor | 5 HP, 220V, 1 Phase, 60 Hz (23 Amp) |
|---|---|
| Bed Size | 88" × 12" |
| Table System | Parallelogram Adjustment |
| Max Depth of Cut | 1/8" |
| Rabbetting Capacity | 3/4" |
| Fence Size | 5-3/4" × 47" Cast Iron |
| Fence Tilt | ±45° / 90° |
| Cutterhead Type | ShearTec II Helical |
| Insert Knives | 66 × 4-Sided Carbide Inserts (6 Row) |
| Cutterhead RPM | 5500 |
| Cutterhead Diameter | 3-7/8" |
| Dust Port | 6" |
| Table Height | 32" |
| Dimensions (Set Up) | 92" × 40" |
| Base Footprint | 43" × 20-1/2" |
| Shipping Dimensions | 91" × 32" × 45" |
| Net / Shipping Weight | 876 / 1043 lbs |
| Certification | CSA Approved |
| Electrical | No Cord or Plug Supplied |
Laguna JX|12 ShearTec: II Jointer MJ12X88P-0130 Performance & Features

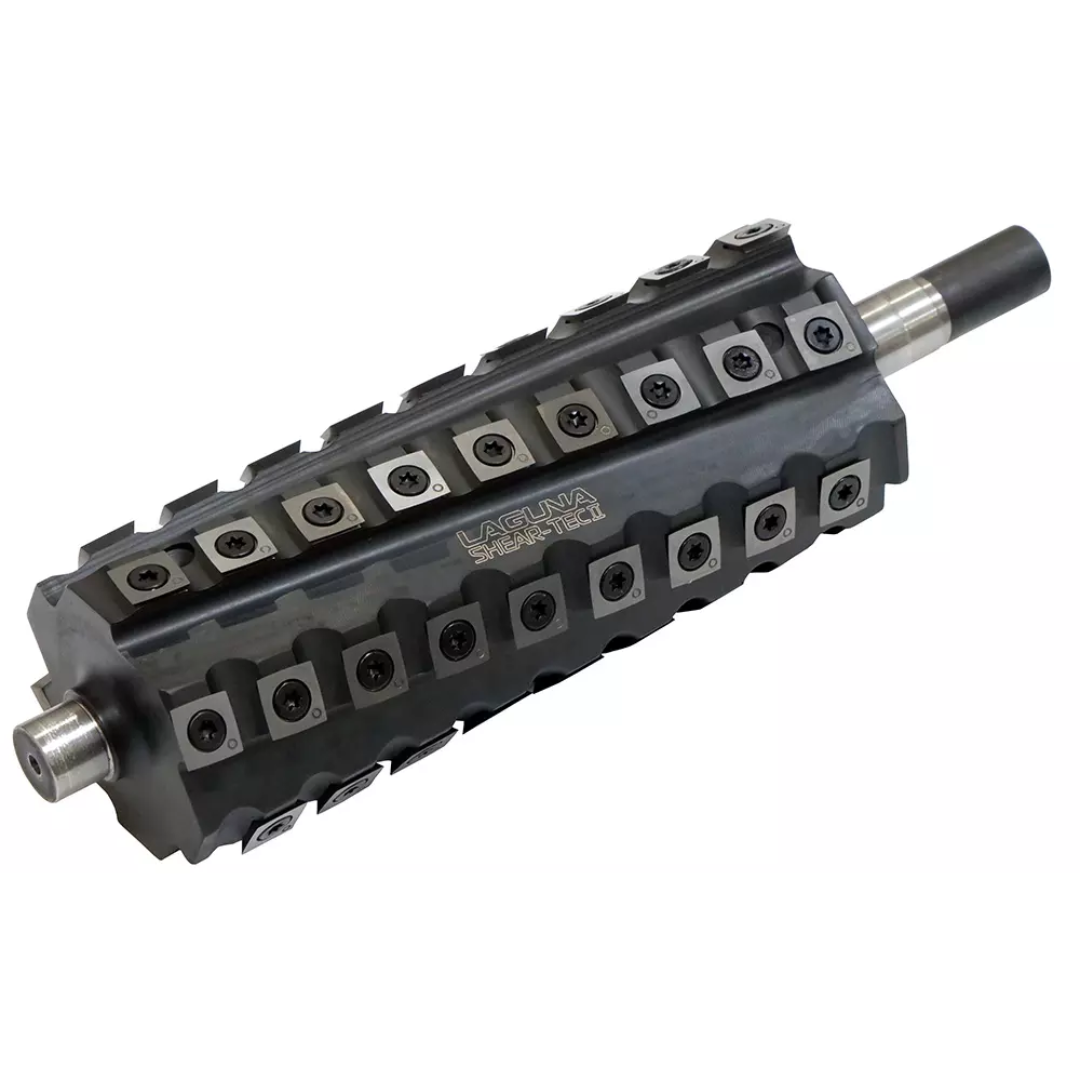

- ShearTec II Cutterhead features a 6-row design with 4-sided carbide inserts for superior finishes, reduced tear-out, and extended tool life.
- T-Shoulder Insert Design increases clamping force and prevents insert cracking and chatter during heavy-duty operation.
- Shear Cutting Action produces exceptionally smooth finishes on all wood types, including difficult hardwoods.
- Quiet Operation deep cutterhead grooves reduce noise while improving chip evacuation.
- Parallelogram Table Adjustment ensures precise, consistent cutterhead alignment throughout the full adjustment range.
- Emergency Knee-Stop Safety Bar allows immediate shutdown from any position for maximum operator safety.

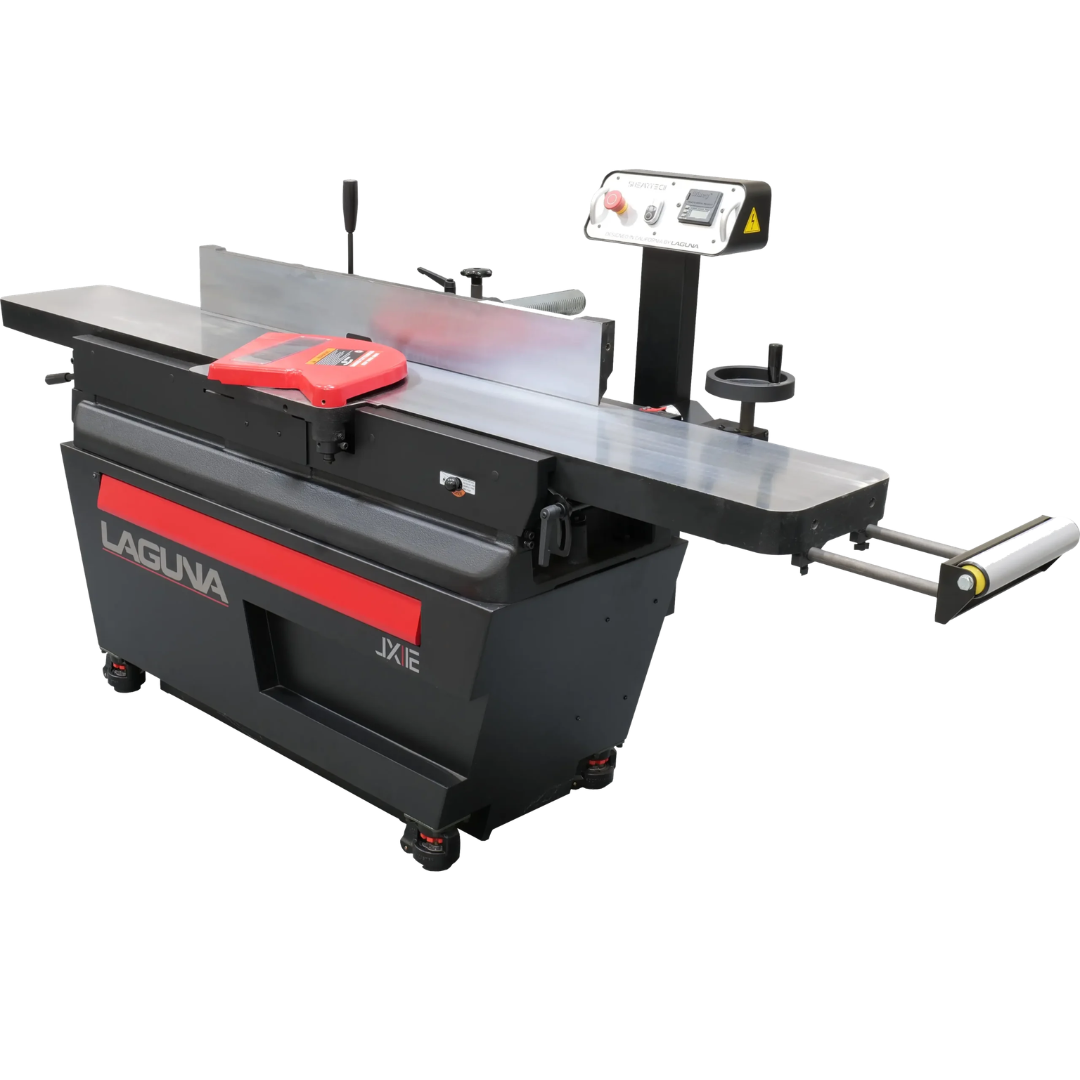

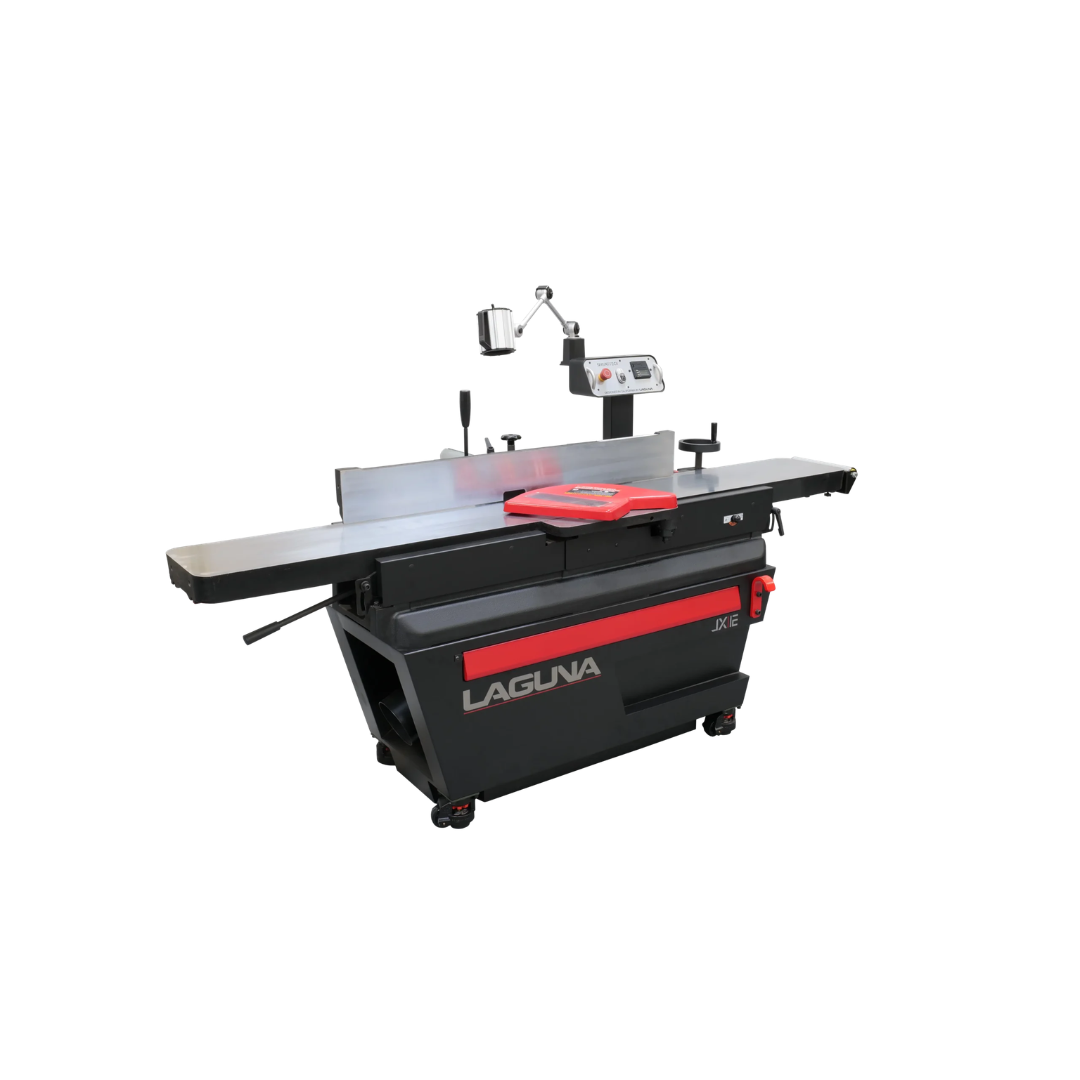

- Massive 88" Cast Iron Bed provides unmatched support for long and heavy workpieces.
- Infeed Support Roller assists with handling large stock, improving workflow efficiency.

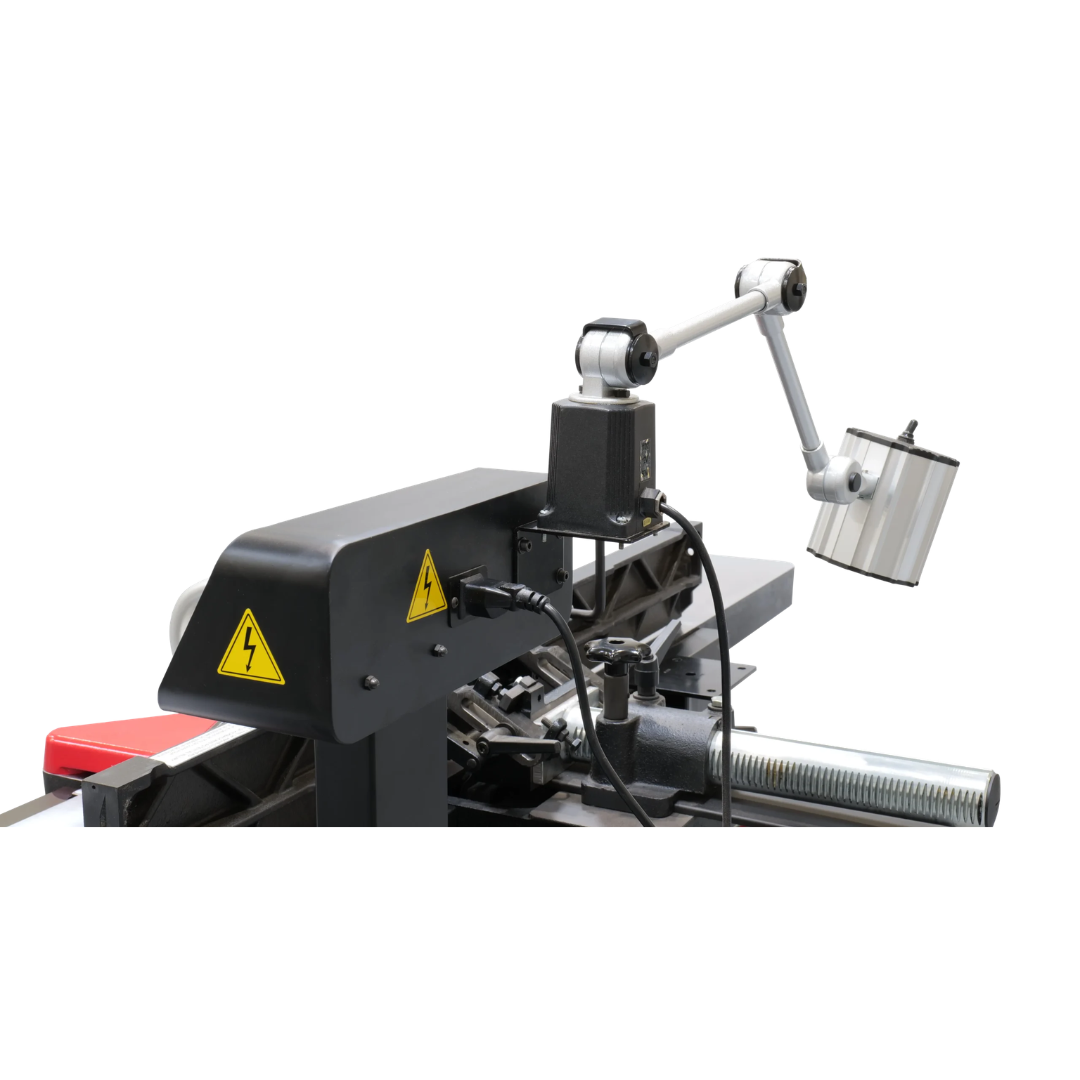

- Worklight & Power Feeder Ready includes built-in outlet and mounting brackets for added functionality.

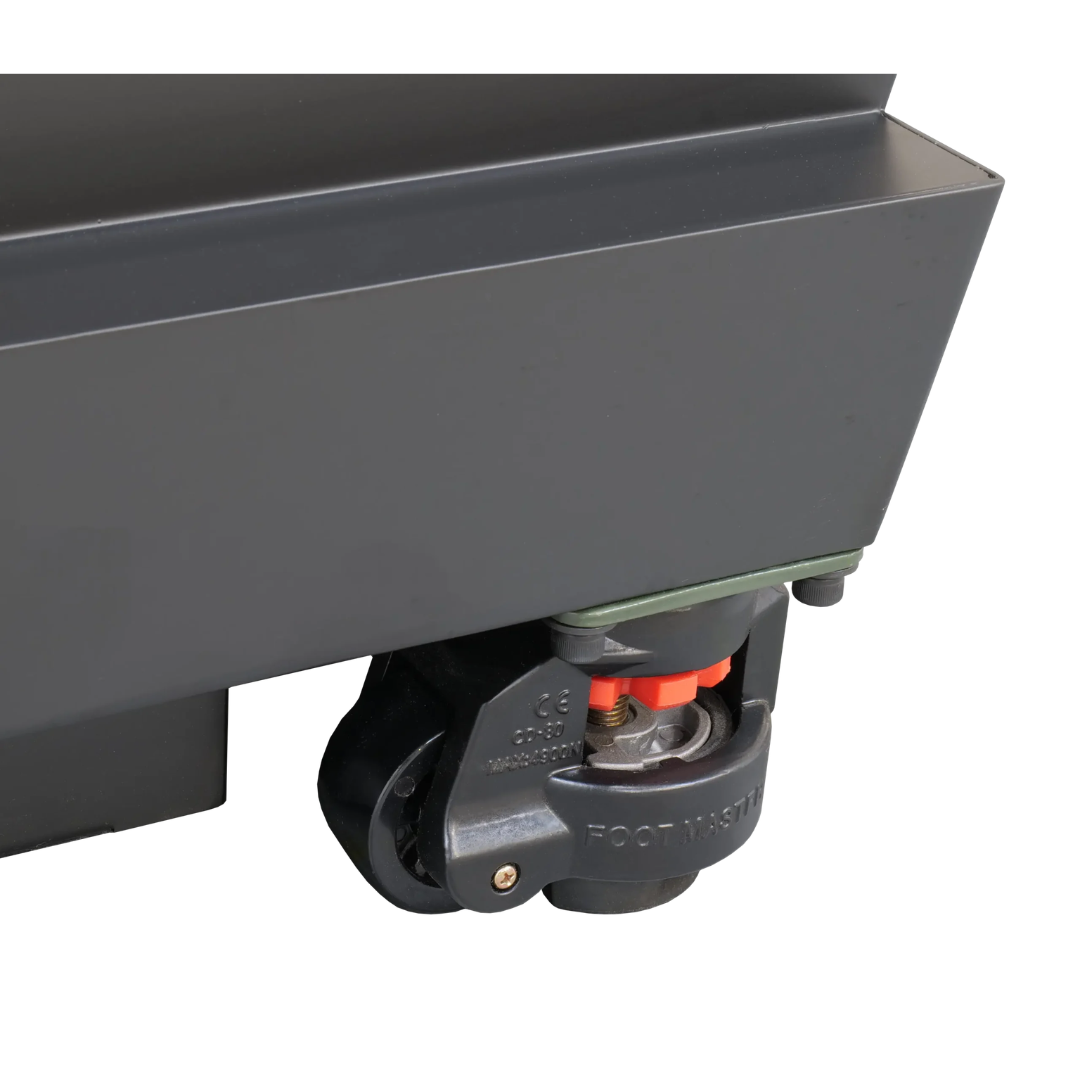

- Industrial Mobility System features heavy-duty casters with retractable leveling feet for stability and positioning.
- Ergonomic Toe-Kick Design allows operators to stand closer for better control and safer operation.
- Heavy-Duty Cast Iron Fence provides rigidity and precision with full tilt capability.
Why Choose the Laguna JX|12 ShearTec: II Jointer MJ12X88P-0130
- 12" capacity with extended bed for large-scale woodworking.
- Powerful 5 HP motor for demanding industrial applications.
- Advanced ShearTec II cutterhead for flawless surface finishes.
- Built-in safety, ergonomic, and productivity-enhancing features.
- Designed for professional shops requiring maximum performance and reliability.
The Laguna JX|12 ShearTec: II Jointer MJ12X88P-0130 is an industrial-grade solution delivering unmatched power, precision, and finish quality for the most demanding woodworking environments.
