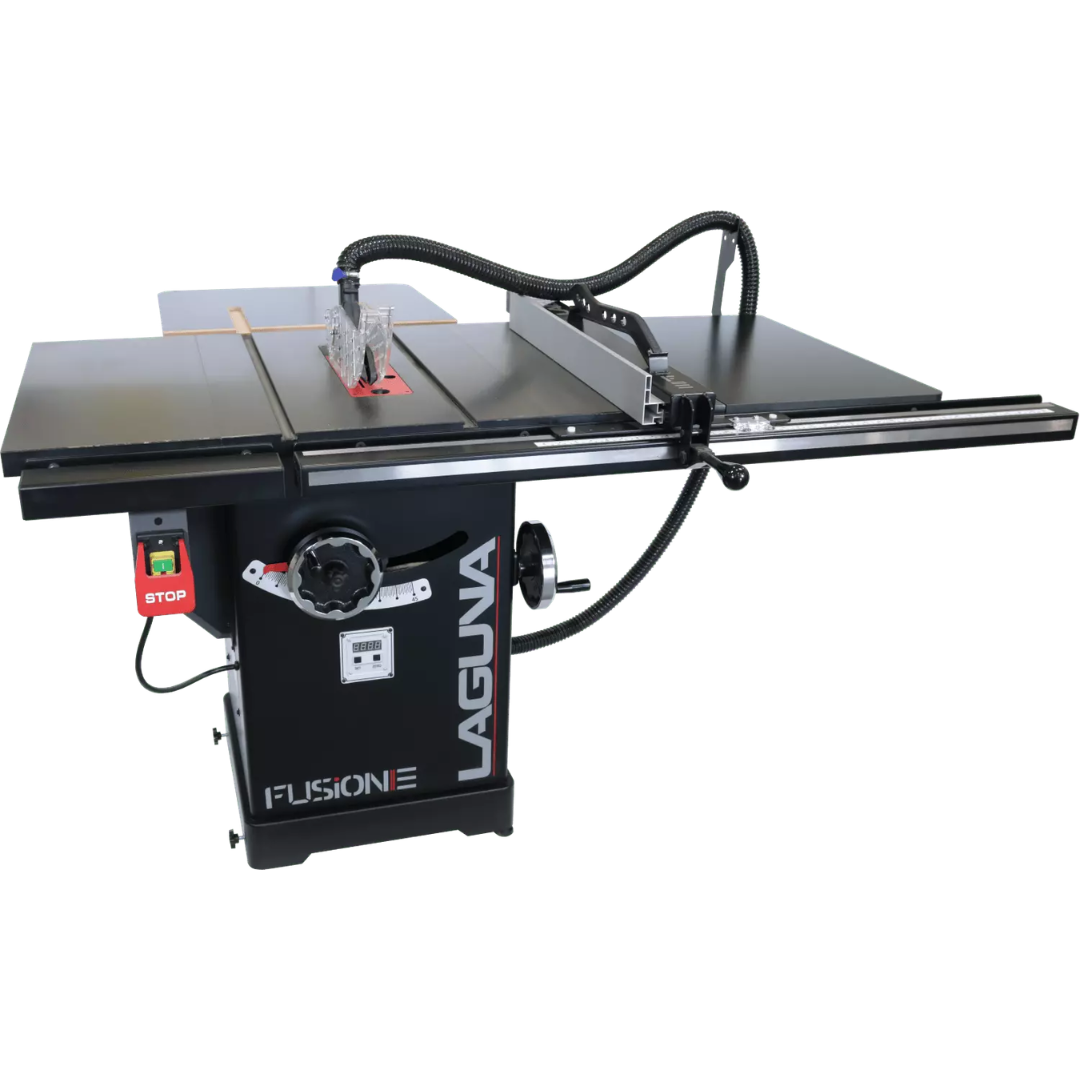

Laguna F3 Fusion Tablesaw MTSF3362203-0130 Applications
- Industrial woodworking and production cabinet shops
- Furniture manufacturing and custom millwork
- Precision ripping, crosscutting, and dado operations
- Processing hardwoods, sheet goods, and engineered materials
- High-volume production environments requiring accuracy and durability
Built for professionals who require industrial power, large capacity, and precision performance in a cabinet table saw.
Laguna F3 Fusion Tablesaw MTSF3362203-0130 Specifications
| Model | F3 Fusion |
|---|---|
| Part Number | MTSF3362203-0130 (36") |
| Motor | 3 HP, 220V, 1 Phase, 60Hz |
| Amp Draw | 14.8 FLA |
| Recommended Breaker | 30 Amp |
| Arbor Speed | 4500 RPM |
| Maximum Blade Diameter | 10" |
| Arbor Size | 5/8" |
| Blade Tilt | 0°–45° Left |
| Maximum Depth of Cut @ 90° | 3-1/8" |
| Maximum Depth of Cut @ 45° | 2-1/8" |
| Max Dado Width | 3/4" |
| Maximum Rip Capacity | 36" or 52" |

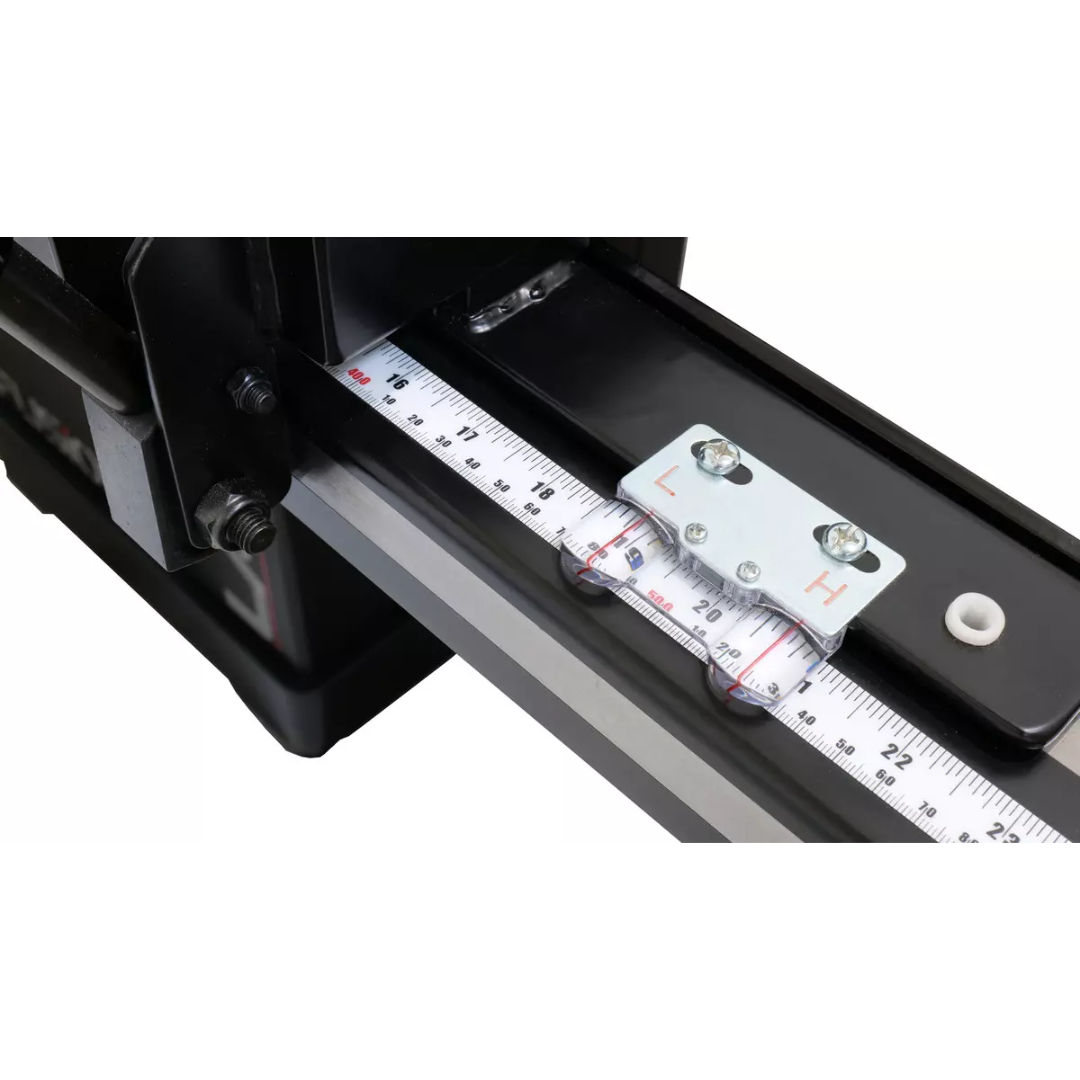

| Fence Type | Camlock T-Shape with European Hi-Lo Fence |
| Table Surface | Precision Ground Cast Iron with Cast Iron Wings |

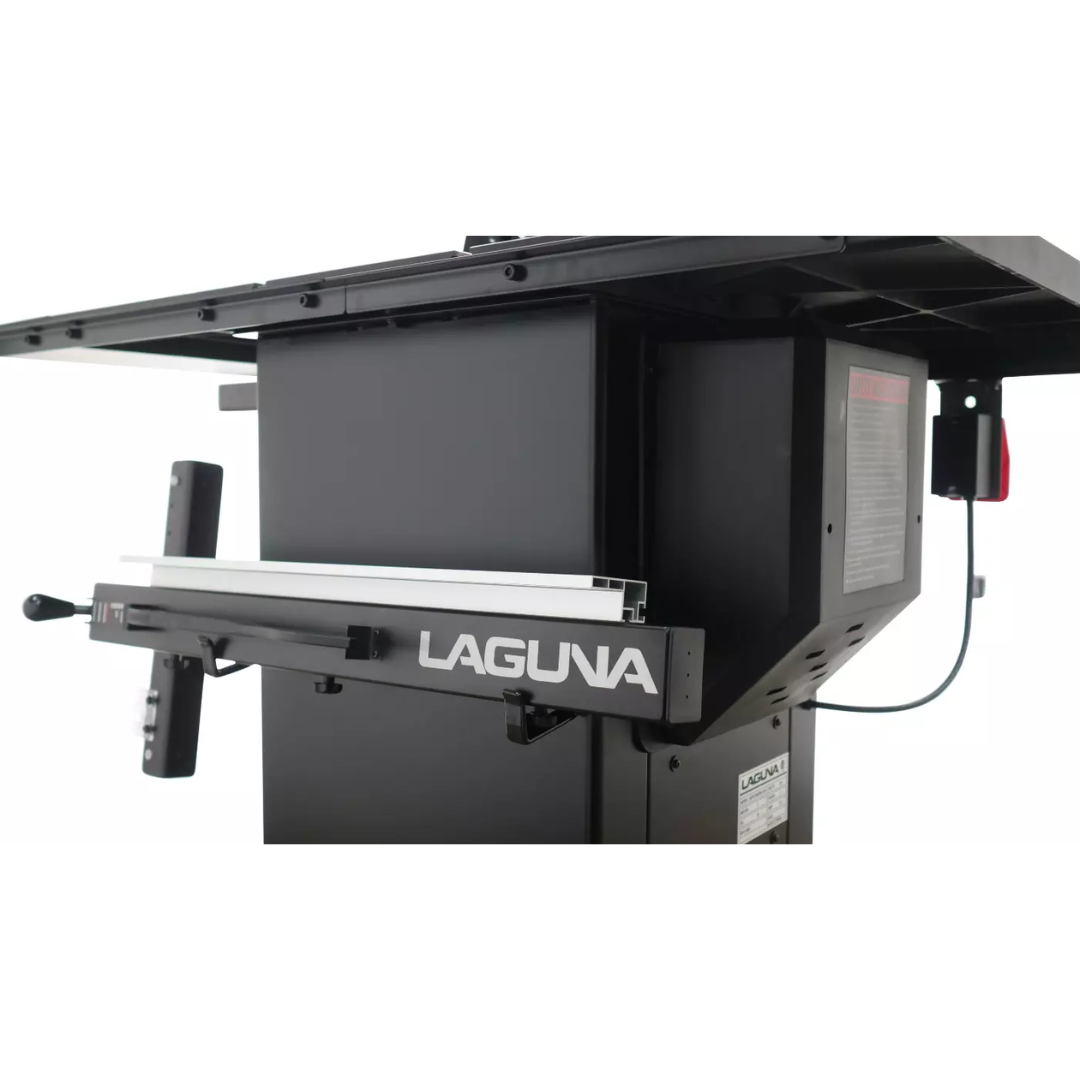

| Dust Collection | 4" Cabinet Port + 1-1/2" Overhead |
| Cabinet Type | 14 Gauge Steel Industrial Cabinet |
| Table Height | 35" |
| Table Size (with Wings) | 61" × 27" |
| Overall Dimensions | Approx. 69" W × 56" D × 43" H |
| Weight (Net / Shipping) | 397–422 / 496–523 lbs |
| Plug Type | NEMA 6-15P |
Laguna F3 Fusion Tablesaw MTSF3362203-0130 Performance & Construction
- Powerful 3 HP TEFC Motor delivers industrial-grade performance for demanding cutting applications.
- Heavy-Duty 14 Gauge Steel Cabinet provides maximum rigidity, vibration reduction, and long-term durability.

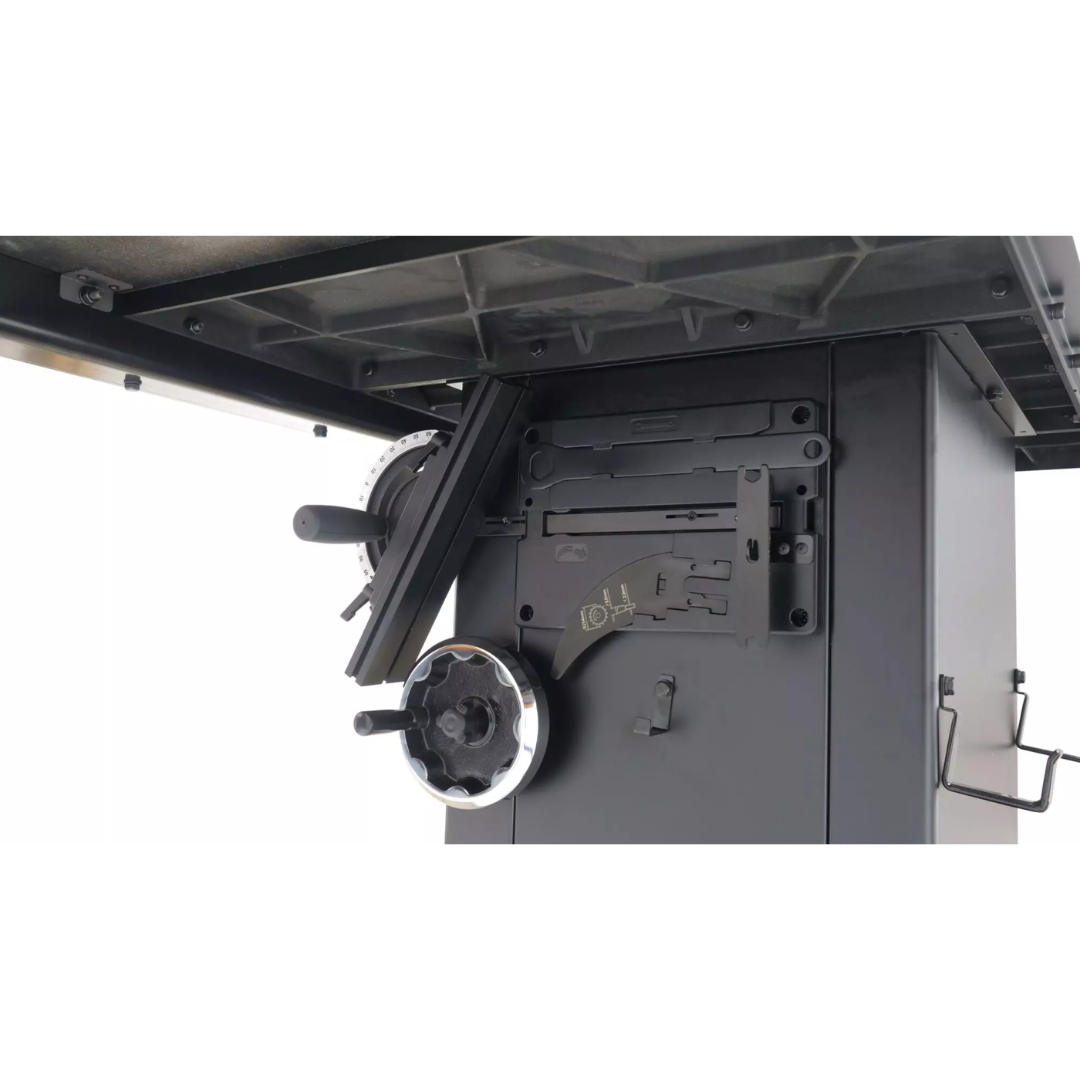

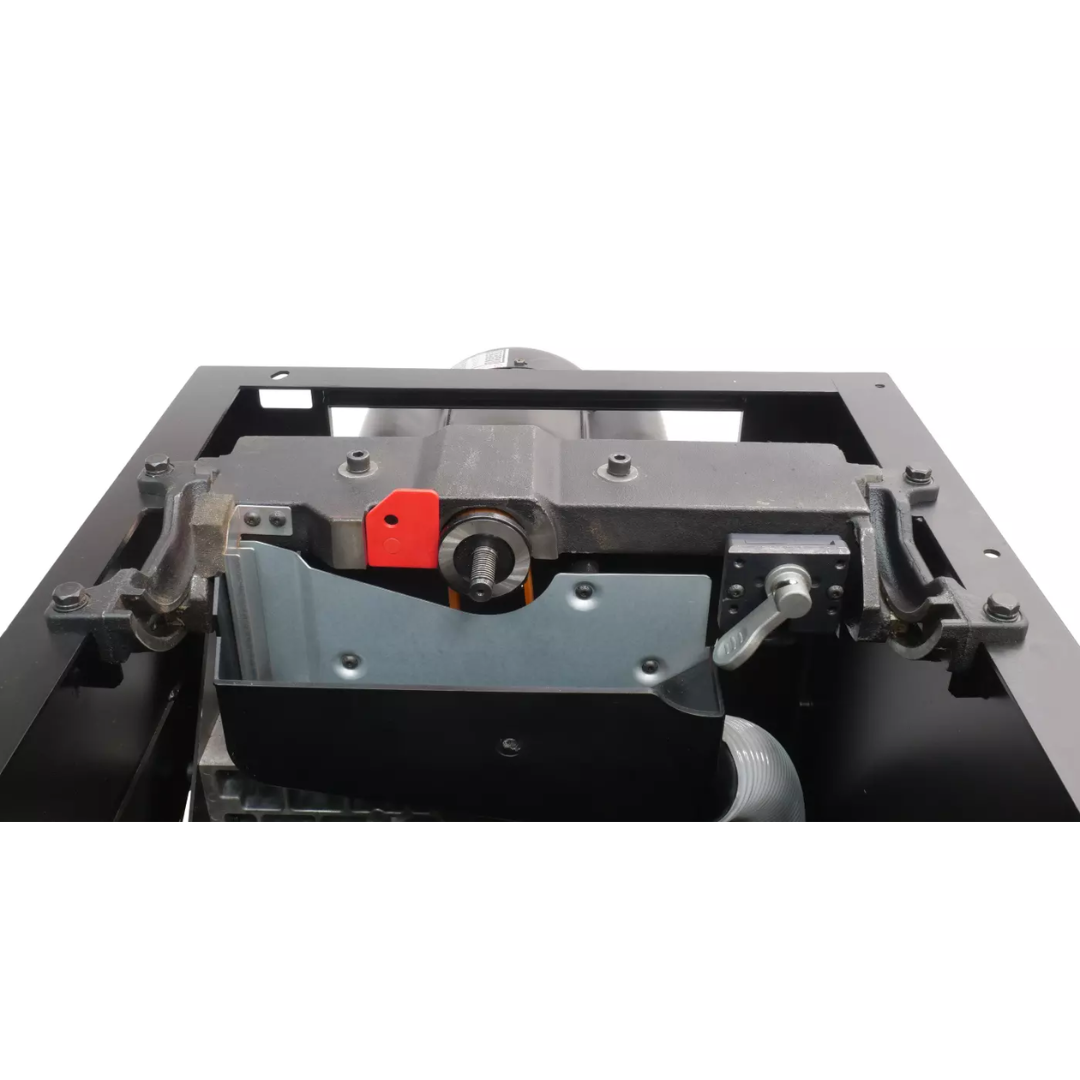

- Cast Iron Trunnions & Cabinet-Mounted Arbor ensure superior alignment, stability, and cutting accuracy.
- Fusion Hi-Lo Dust Collection System captures dust both above and below the blade for a cleaner workspace.
- European Hi-Lo Aluminum Fence offers exceptional versatility, precision, and smooth operation.
- Precision Ground Cast Iron Table & Wings deliver flatness and stability for accurate, repeatable cuts.

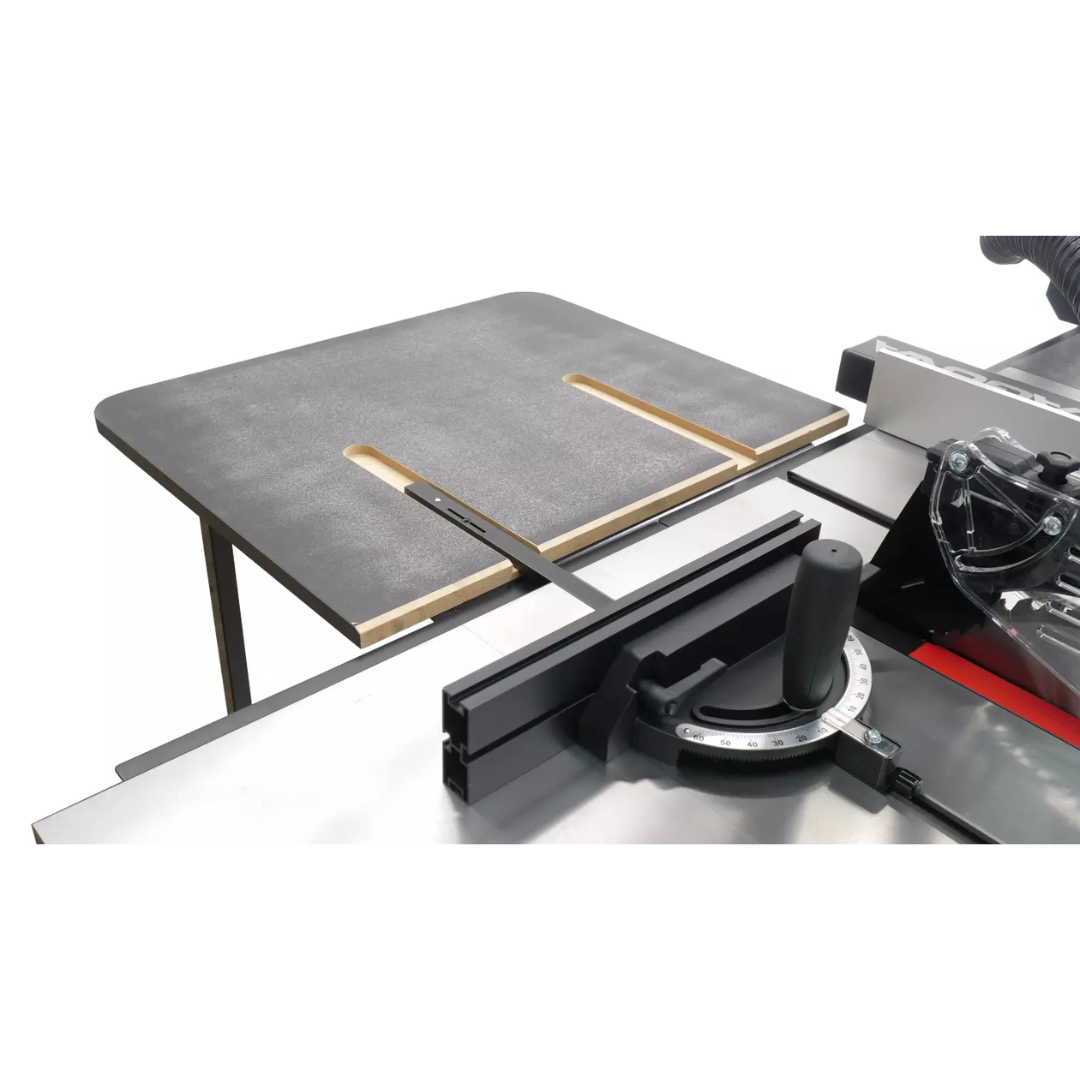

- Industrial Fence Rails & Accessory Tables support large workpieces and extended rip capacity.

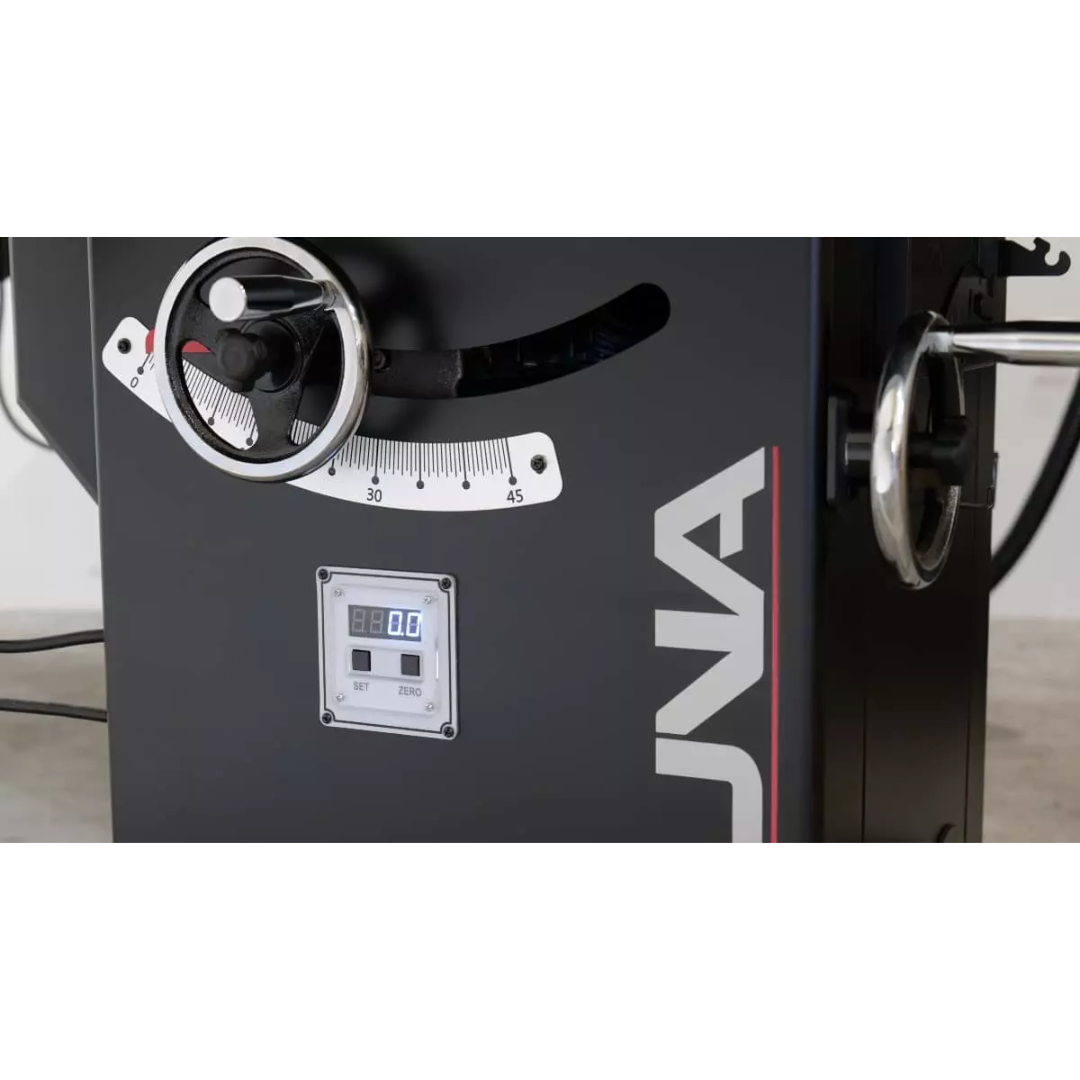

- Digital Readout for Tilt allows precise angle adjustments for repeatable setups.
- Premium Components including sealed bearings, Acme screws, and high-quality hardware for long service life.

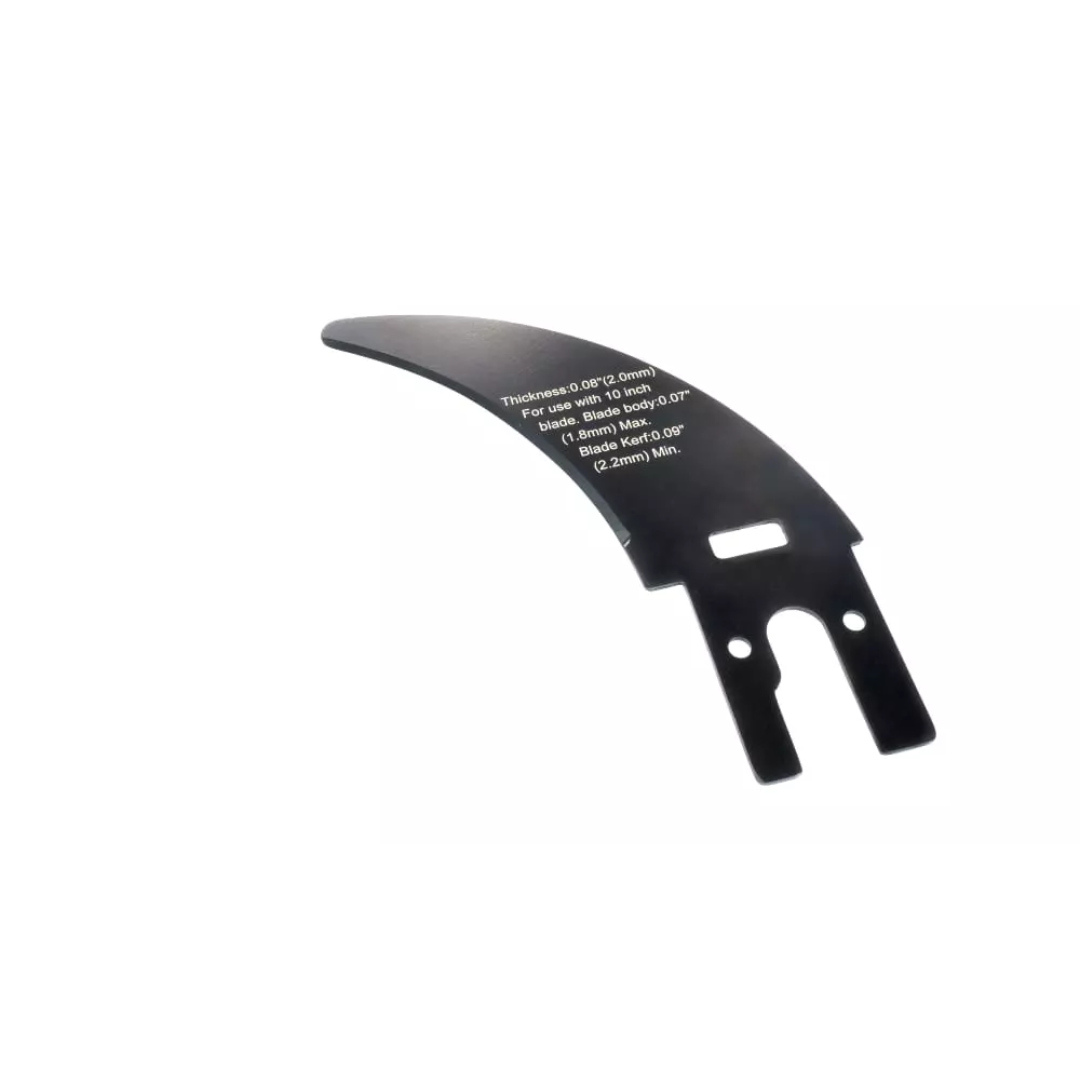

- Quick-Release Safety Systems with blade guard, riving knife, and spreader for safe operation.
- Integrated Mobility System allows repositioning within the shop without sacrificing stability.
Why Choose the Laguna F3 Fusion Tablesaw MTSF3362203-0130
- Industrial-grade cabinet saw built for high-demand environments.
- Powerful 3 HP motor handles heavy-duty cutting with ease.
- Advanced dust collection system improves shop cleanliness.
- Premium fence and table system ensure precision and repeatability.
- Heavy-duty construction designed for long-term professional use.
The Laguna F3 Fusion Tablesaw MTSF3362203-0130 is a top-tier industrial solution for woodworkers who need maximum power, precision, and durability in a high-performance cabinet table saw.
