Laguna F2 Fusion Tablesaw MTSF236110175-0130 Applications
- Professional woodworking and cabinet production
- Furniture manufacturing and fine woodworking
- Precision ripping, crosscutting, and dado operations
- Hardwood, plywood, and engineered material processing
- Workshops requiring cabinet saw performance and accuracy
Ideal for woodworkers who demand full cabinet saw performance with refined precision and superior dust control.
Laguna F2 Fusion Tablesaw MTSF236110175-0130 Specifications
| Model | F2 Fusion |
|---|---|
| Part Number | MTSF236110175-0130 |
| Motor | 1.75 HP, 110V, 1 Phase, 60Hz |
| Amp Draw | 14 FLA |
| Recommended Breaker | 20 Amp |
| Arbor Speed | 4500 RPM |
| Maximum Blade Diameter | 10" |
| Arbor Size | 5/8" |
| Blade Tilt | 0°–45° Left |
| Maximum Depth of Cut @ 90° | 3-1/8" |
| Maximum Depth of Cut @ 45° | 2-1/8" |
| Max Dado Width | 3/4" |
| Maximum Rip Capacity | 36"–37" |
| Fence Type | Camlock T-Shape with European Hi-Lo Fence |
| Table Surface | Precision Ground Cast Iron with Cast Iron Wings |
| Dust Collection | 4" Cabinet Port + 1-1/2" Overhead |
| Cabinet Type | Full Cabinet Design |
| Table Height | 35" |
| Table Size (with Wings) | 44" × 27" |
| Overall Dimensions | Approx. 66-13/16" W × 39-3/8" D × 42-7/8" H |
| Weight (Net / Shipping) | 276 / 435 lbs |
| Plug Type | NEMA 5-15P |
Laguna F2 Fusion Tablesaw MTSF236110175-0130 Performance & Construction
- 1.75 HP TEFC Motor delivers increased power and durability with quieter operation and longer service life.

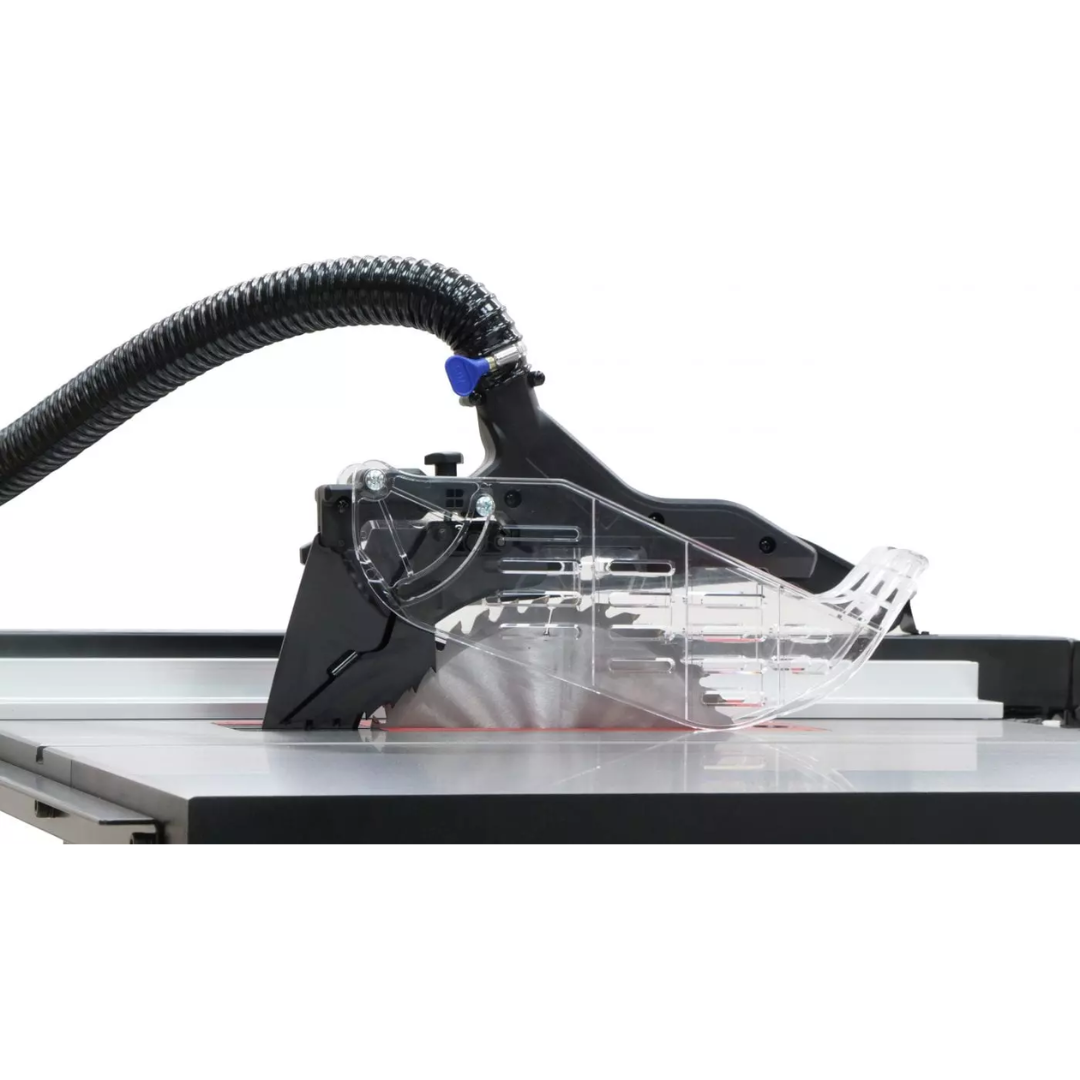

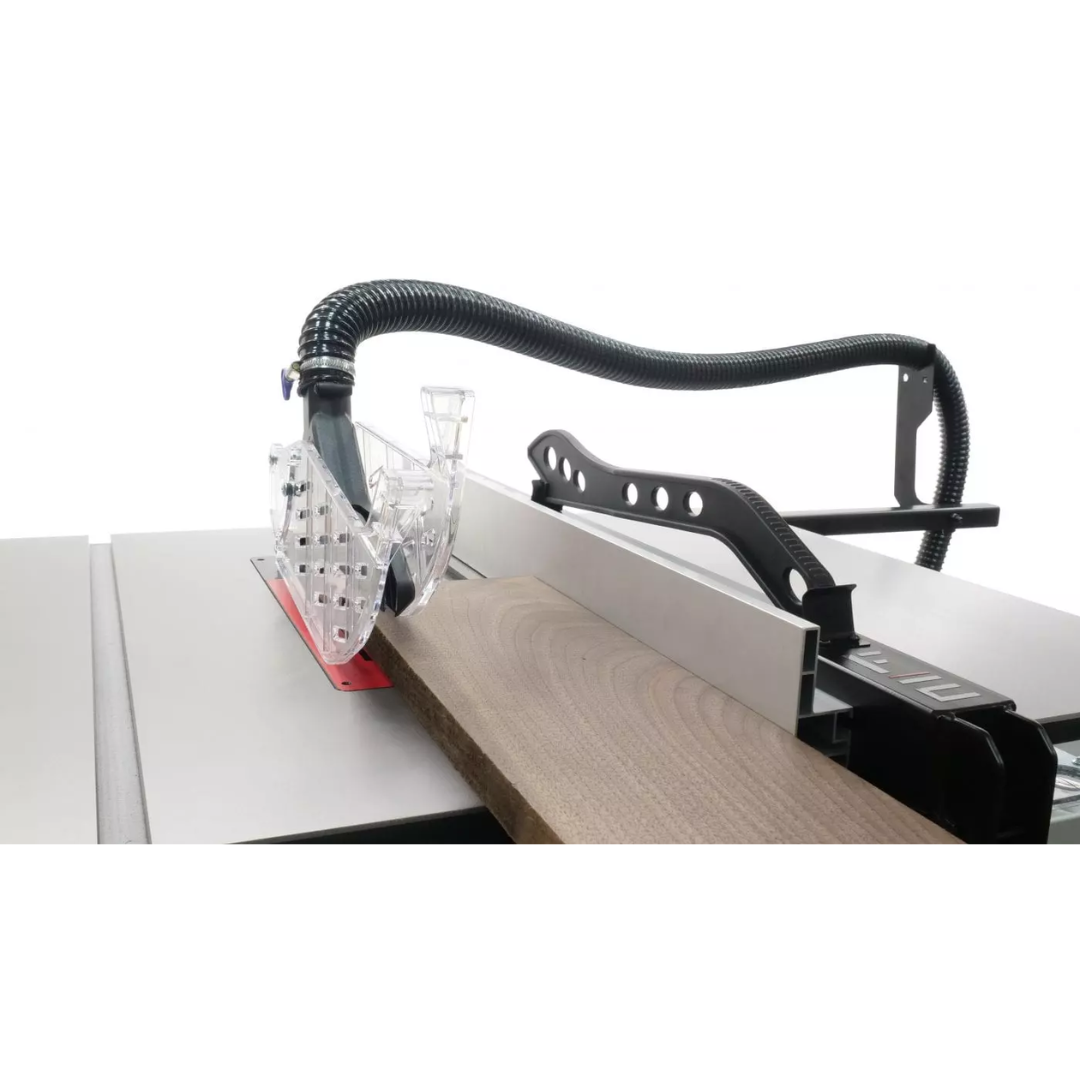

- Fusion Hi-Lo Dust Collection System captures dust both above and below the blade for a cleaner, safer workspace.

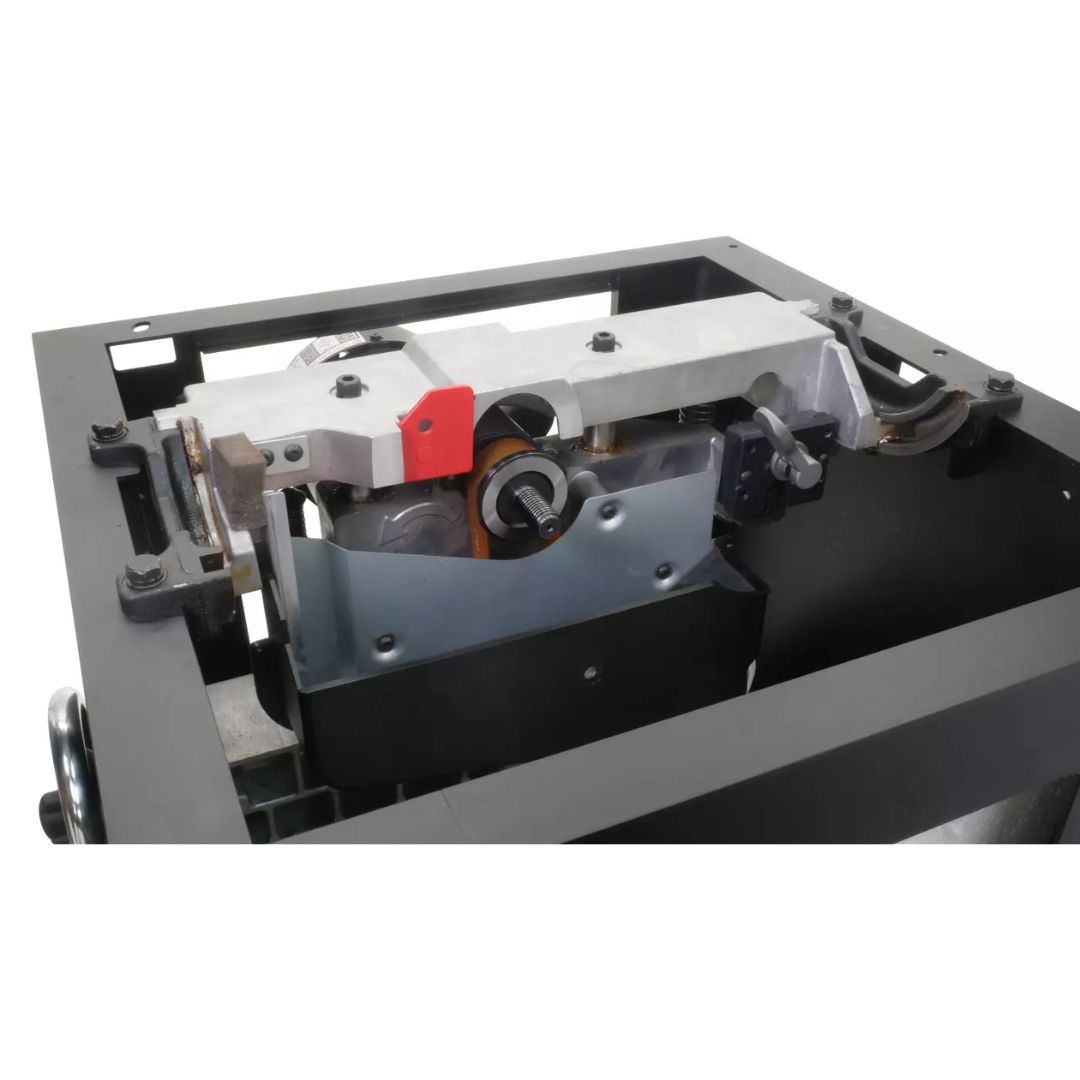

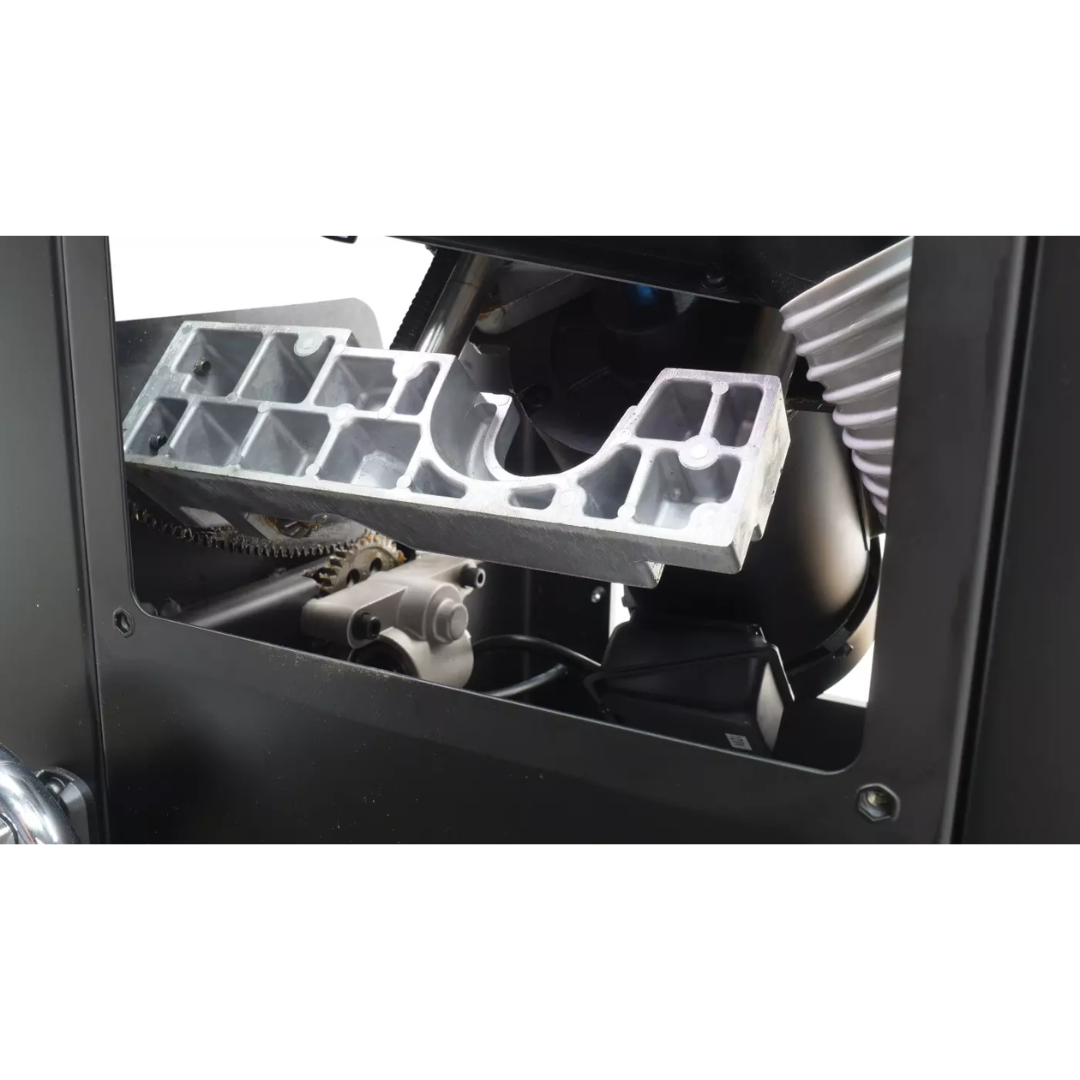

- Cabinet-Mounted Trunnion System enhances stability, alignment, and cutting accuracy for professional performance.

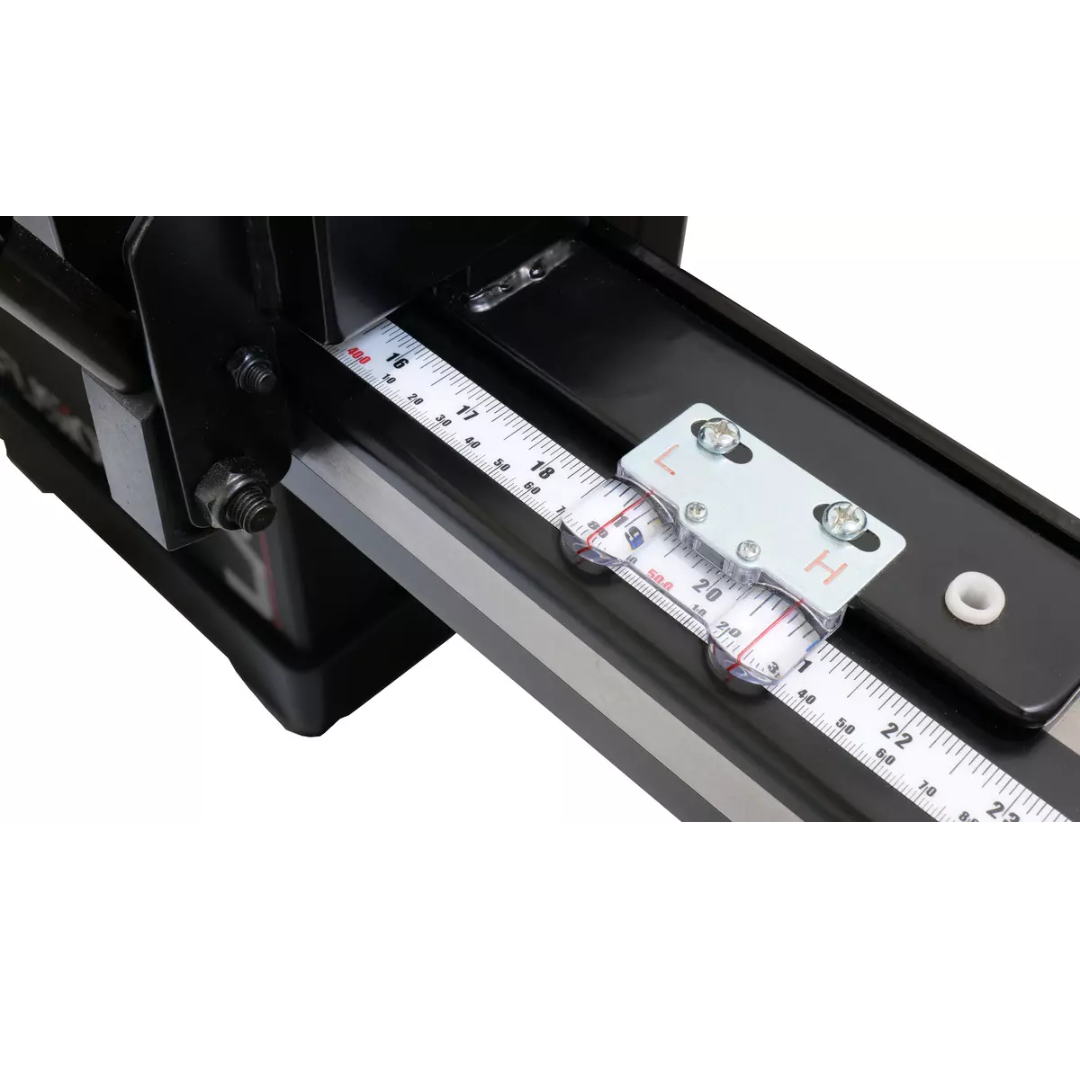

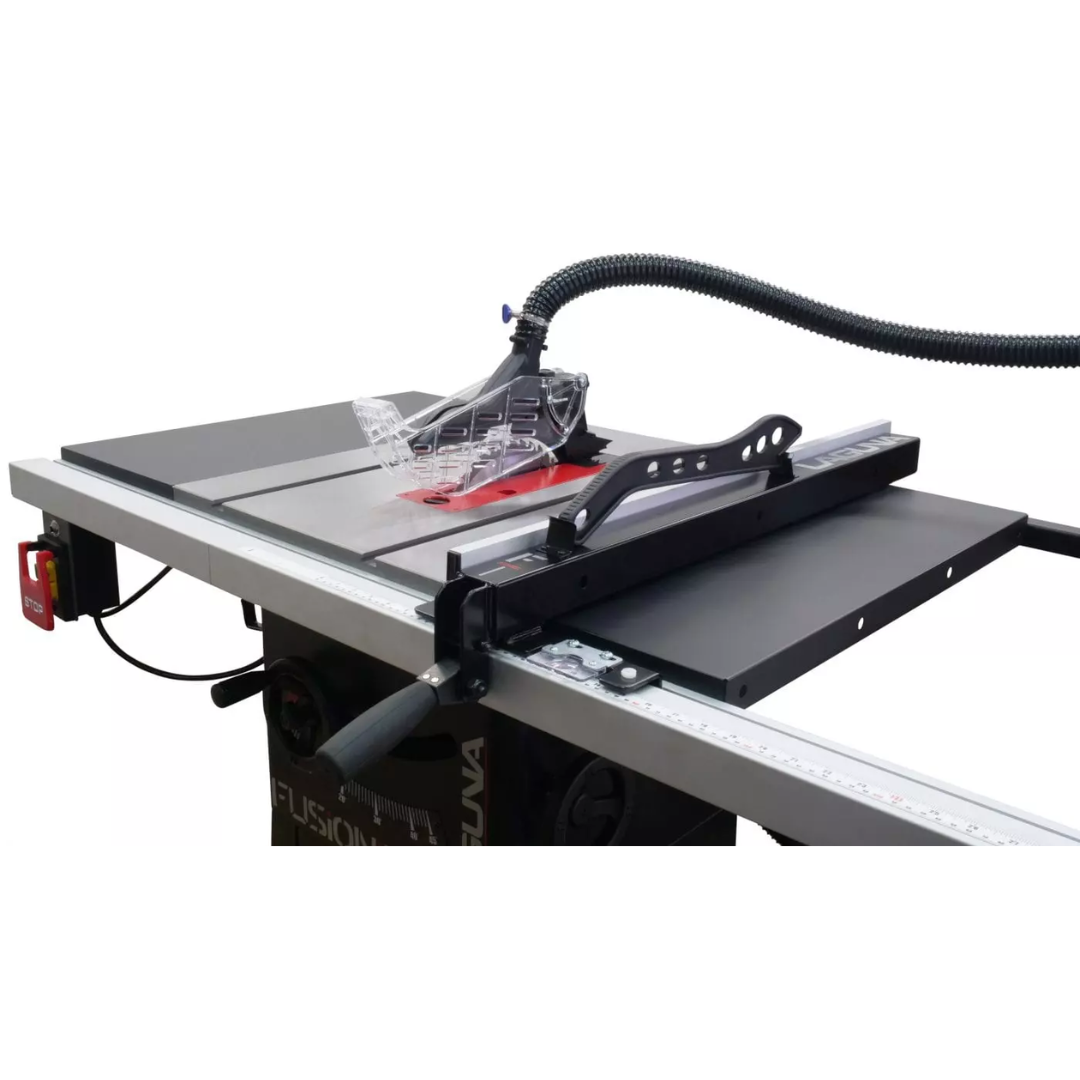

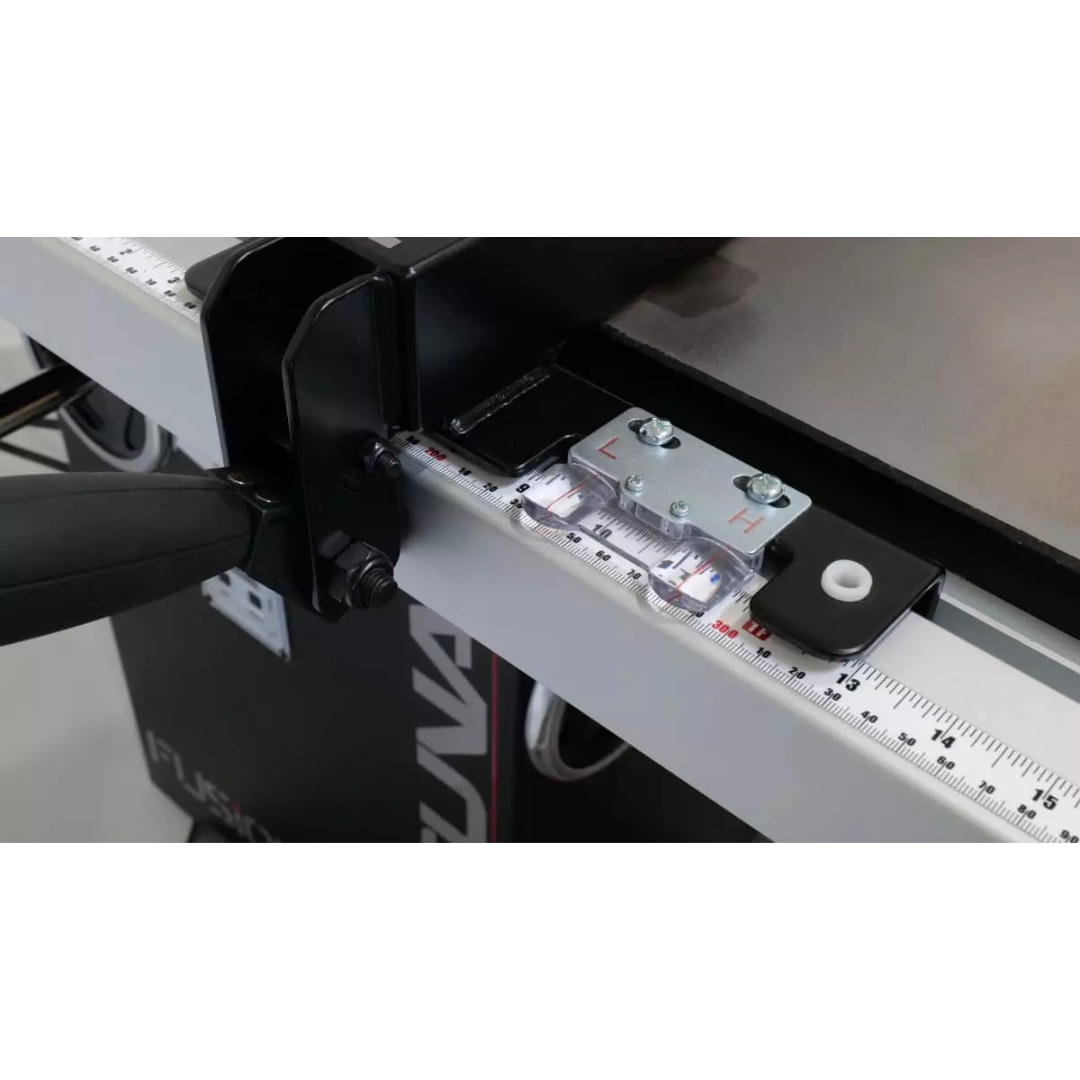

- European Hi-Lo Aluminum Fence provides superior versatility with precise, smooth adjustments and secure locking.
- Precision Ground Cast Iron Table & Wings offer maximum stability, flatness, and vibration reduction.

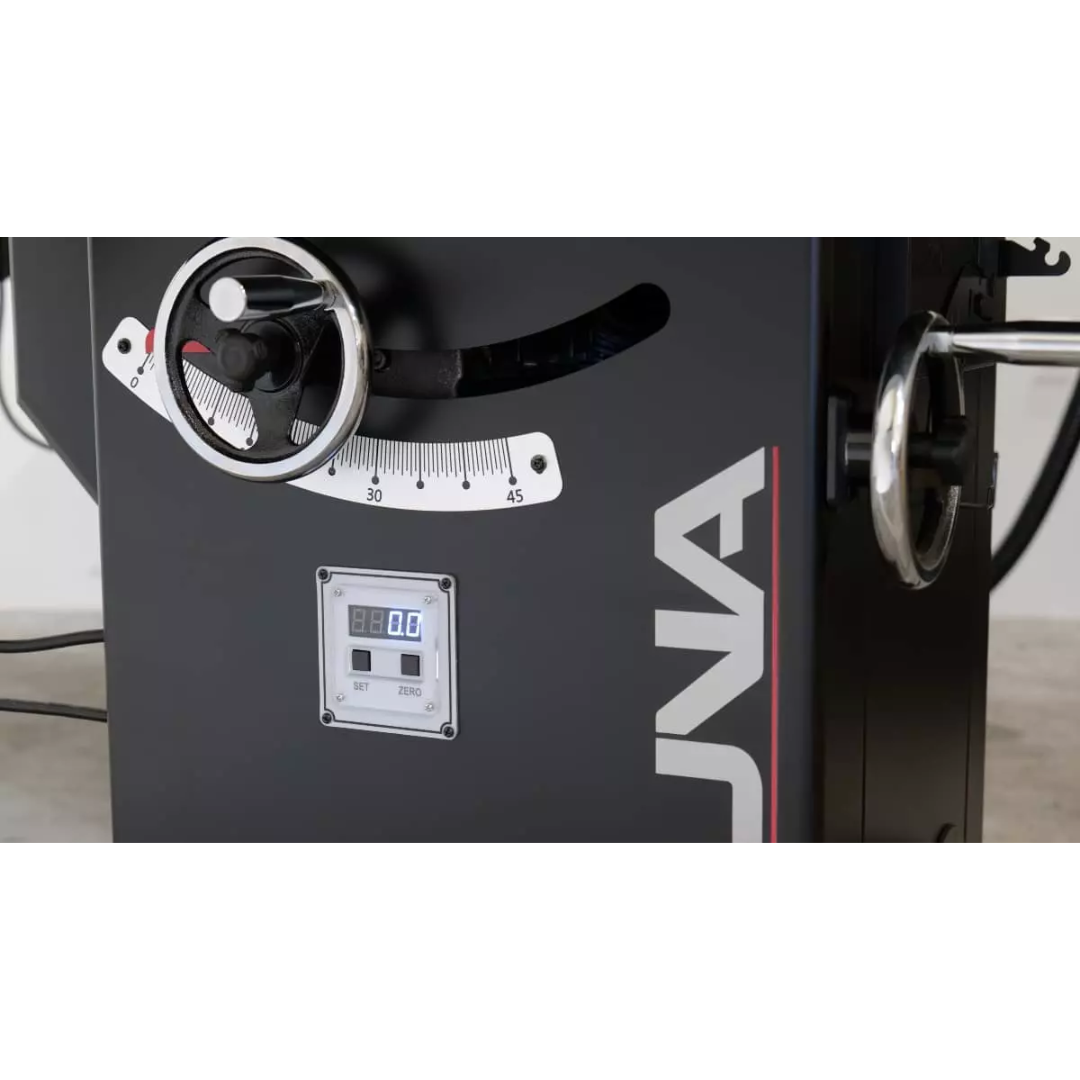

- Digital Readout for Blade Tilt ensures accurate angle adjustments and repeatable setups.
- Sealed Arbor Bearings & Acme Screws provide smooth operation and long-term reliability.
- Quick-Release Blade Guard & Riving Knife improve safety and ease of use during setup and operation.

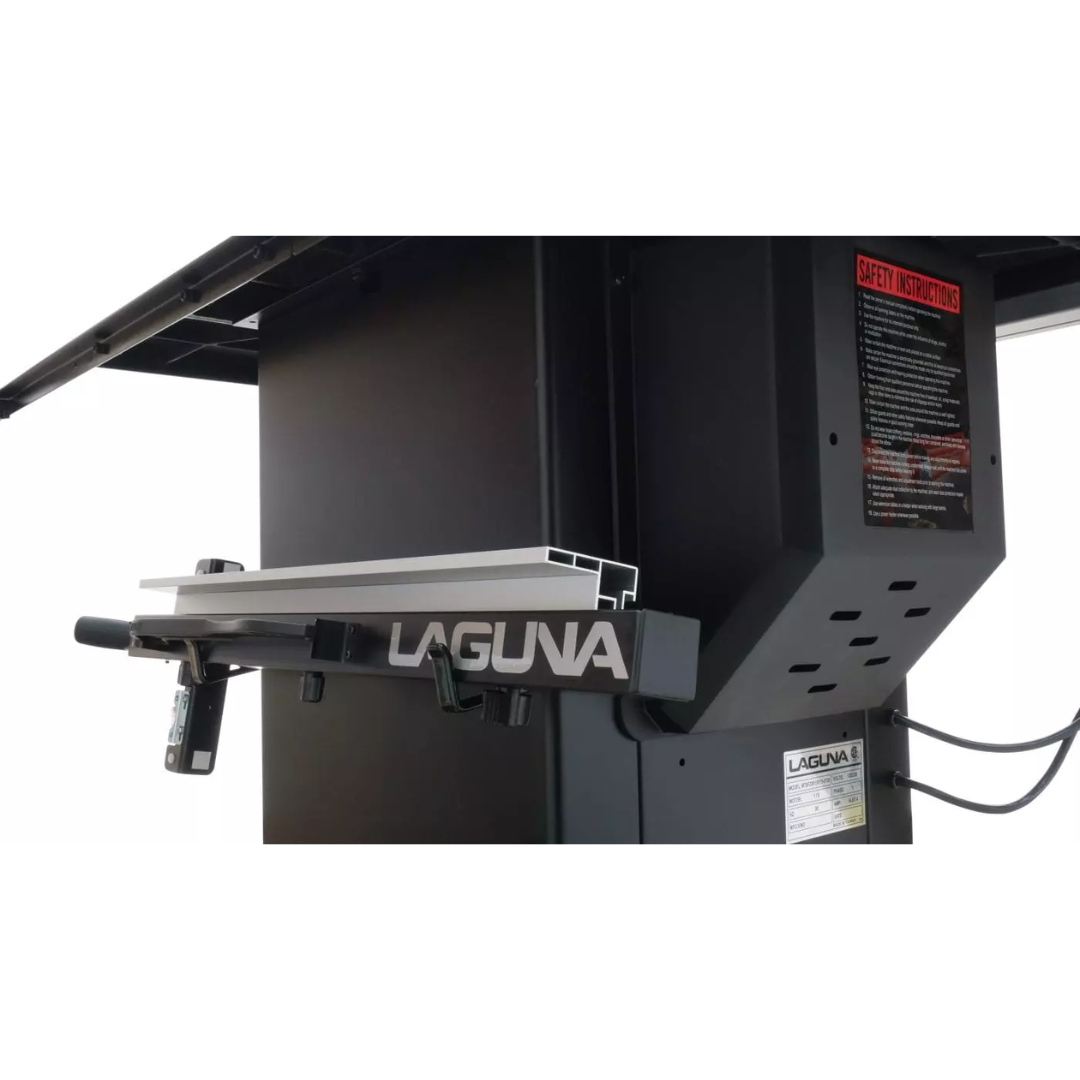

- Integrated Tool Storage keeps accessories organized and readily accessible.
- Premium Components Throughout including high-quality fence system, bearings, and internal mechanisms.
Why Choose the Laguna F2 Fusion Tablesaw MTSF236110175-0130
- True cabinet saw performance with enhanced precision and stability.
- Advanced dust collection system keeps your workspace cleaner.
- High-quality fence system for accurate, repeatable cuts.
- Durable construction designed for demanding professional use.
- Refined design improves smoothness, control, and longevity.
The Laguna F2 Fusion Tablesaw MTSF236110175-0130 is a refined, high-performance cabinet saw built for woodworkers who demand precision, power, and clean operation in a professional-grade machine.
