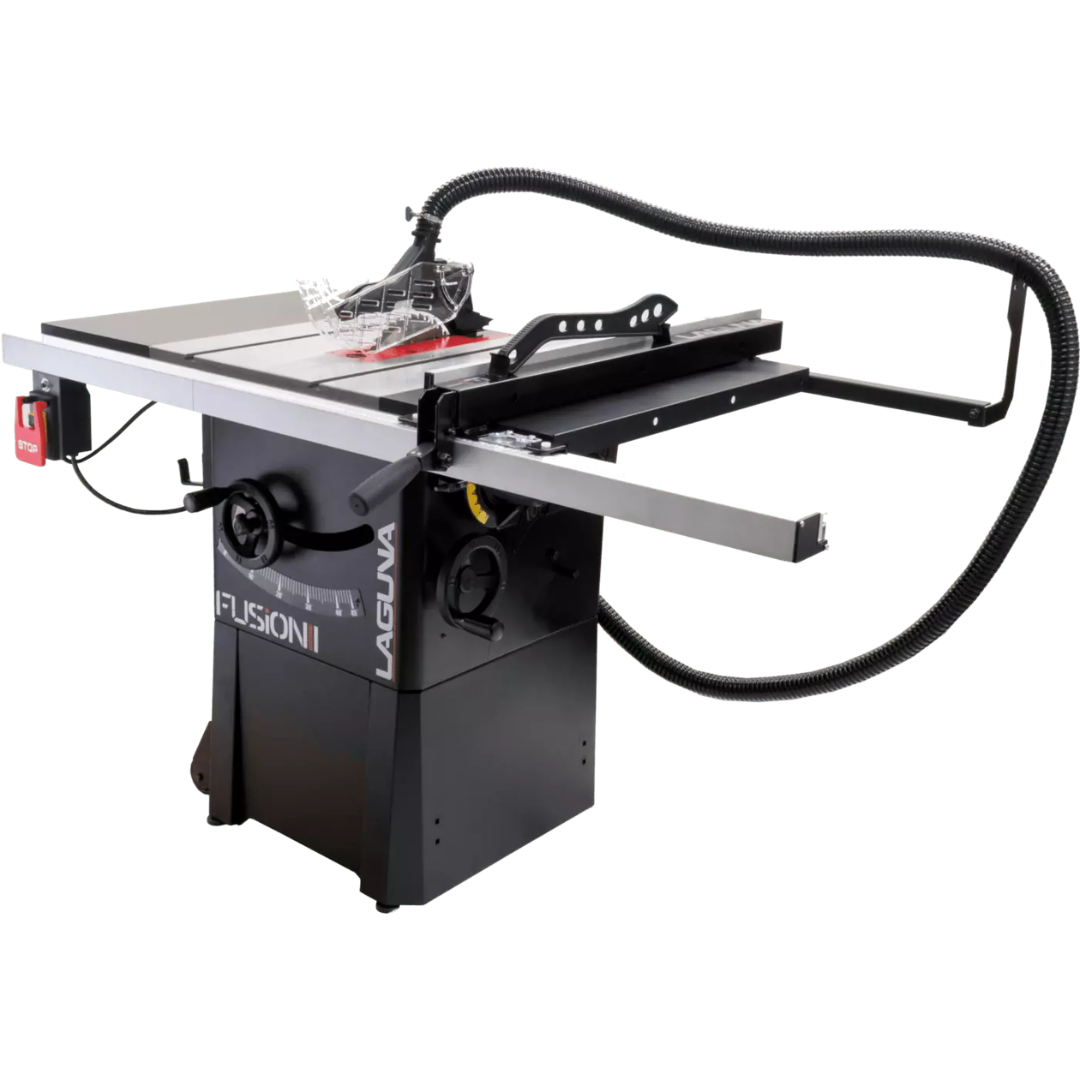

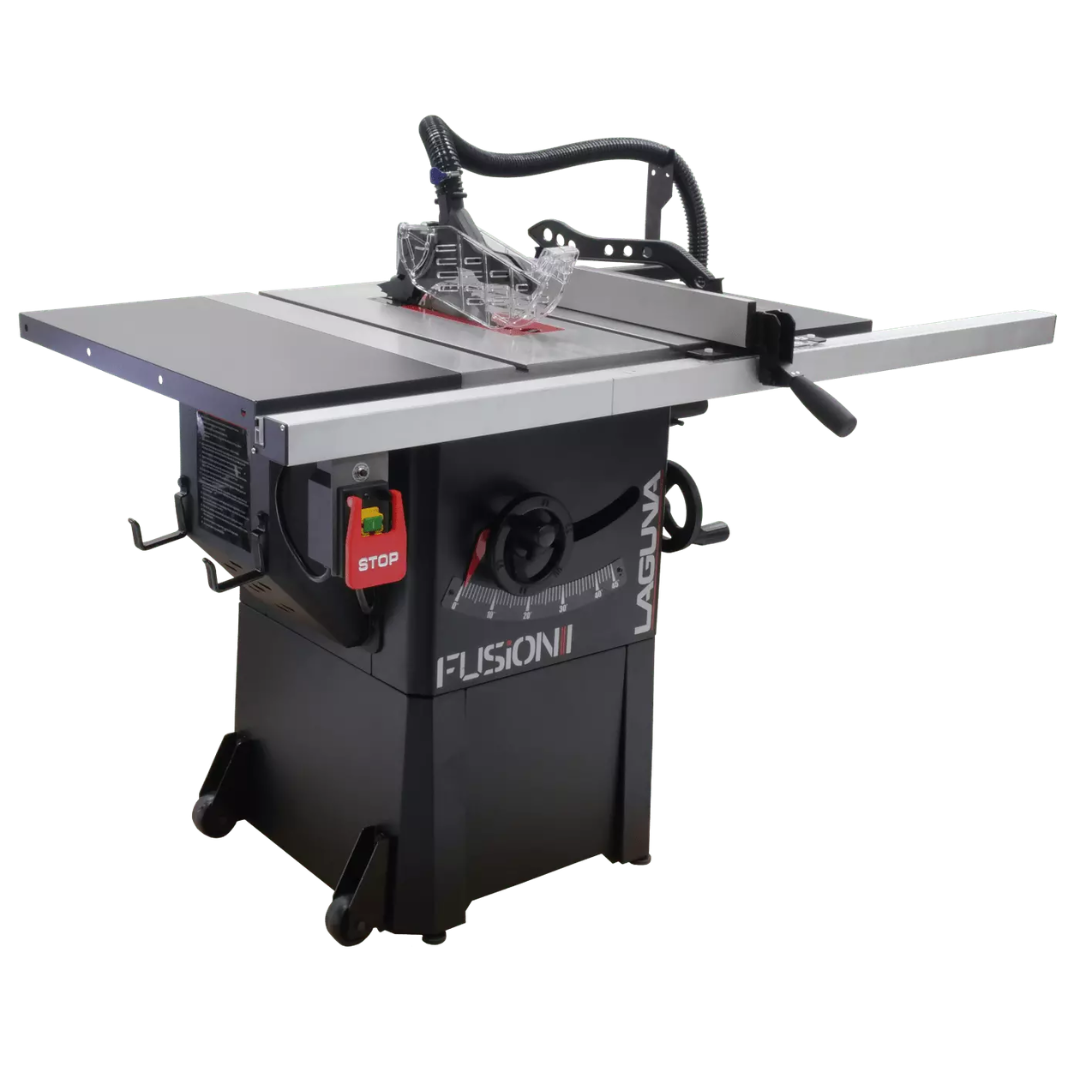

Laguna F1 Fusion Tablesaw MTSF132110150-0130 Applications
- Cabinet and furniture manufacturing
- General woodworking and shop use
- Precision ripping, crosscutting, and joinery
- DIY and professional workshop environments
- Processing hardwoods, plywood, and composite materials
Ideal for woodworkers seeking cabinet saw performance with a compact hybrid design and precision control.
Laguna F1 Fusion Tablesaw MTSF132110150-0130 Specifications
| Model | F1 Fusion |
|---|---|
| Part Number | MTSF132110150-0130 |
| Motor | 1.5 HP, 110V, 1 Phase, 60Hz |
| Amp Draw | 14 FLA |
| Recommended Breaker | 20 Amp |
| Arbor Speed | 4000 RPM |
| Maximum Blade Diameter | 10" |
| Arbor Size | 5/8" |
| Blade Tilt | 0°–45° Left |
| Maximum Depth of Cut @ 90° | 3-1/8" |
| Maximum Depth of Cut @ 45° | 2-1/8" |
| Max Dado Width | 3/4" |
| Maximum Rip Capacity | 30"–31" |
| Fence Type | Camlock T-Square Design |
| Table Surface | Precision Ground Cast Iron with Steel Wings |
| Dust Collection | 4" Cabinet Port + 1-1/2" Overhead |
| Cabinet Type | 2-Piece Hybrid Cabinet |
| Table Height | 34-3/8" |
| Table Size (with Wings) | 44" × 27" |
| Overall Dimensions | Approx. 58" W × 37" D × 20-1/2" H |
| Weight (Net / Shipping) | 195 / 214 lbs |
| Plug Type | NEMA 5-15P |
Laguna F1 Fusion Tablesaw MTSF132110150-0130 Performance & Construction
- 1.5 HP TEFC Motor delivers reliable power with quiet operation and long service life.
- Fusion Hi-Lo Dust Collection System captures debris both above and below the blade for a cleaner workspace.

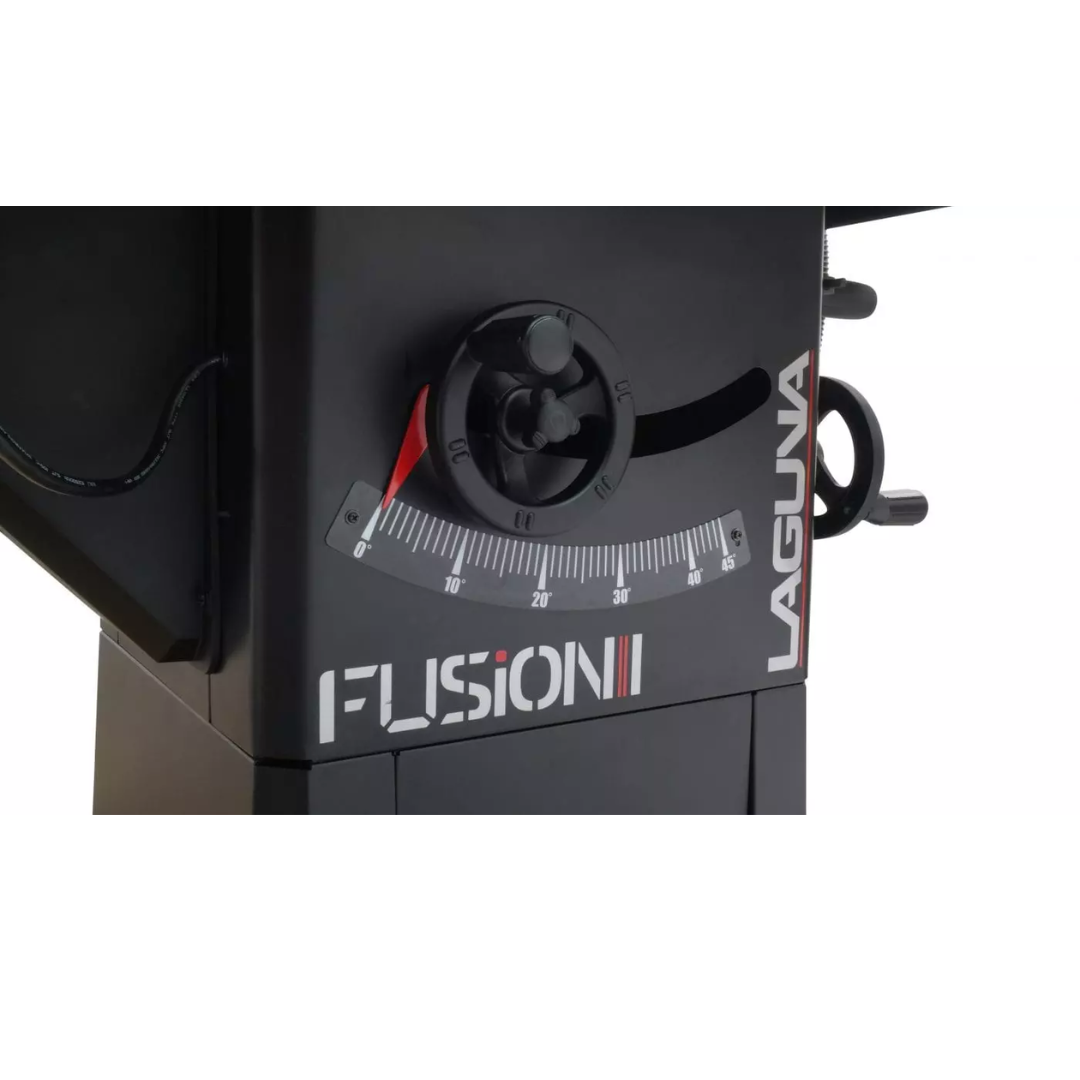

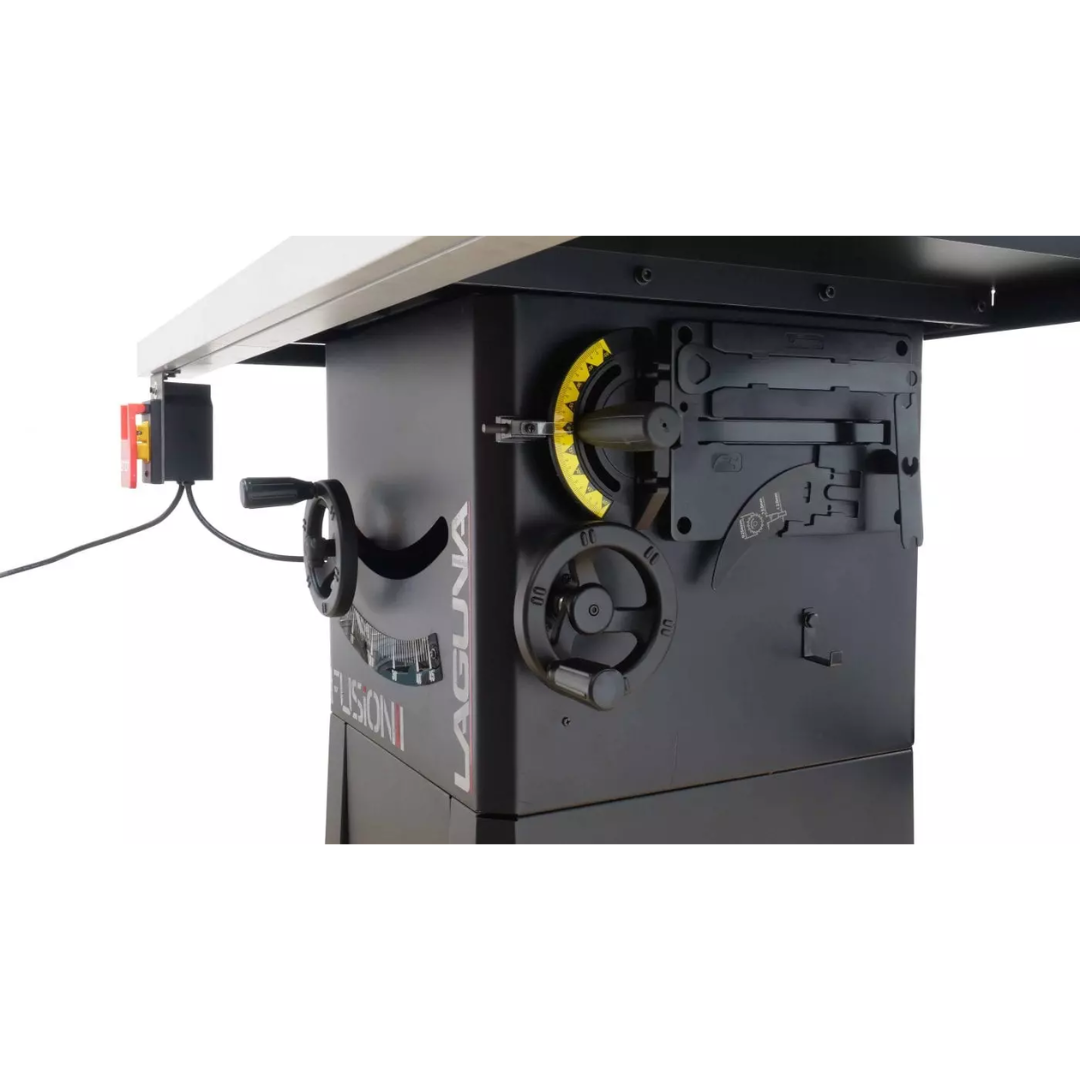

- Redesigned Trunnion System ensures smooth blade height and tilt adjustments with long-term durability.

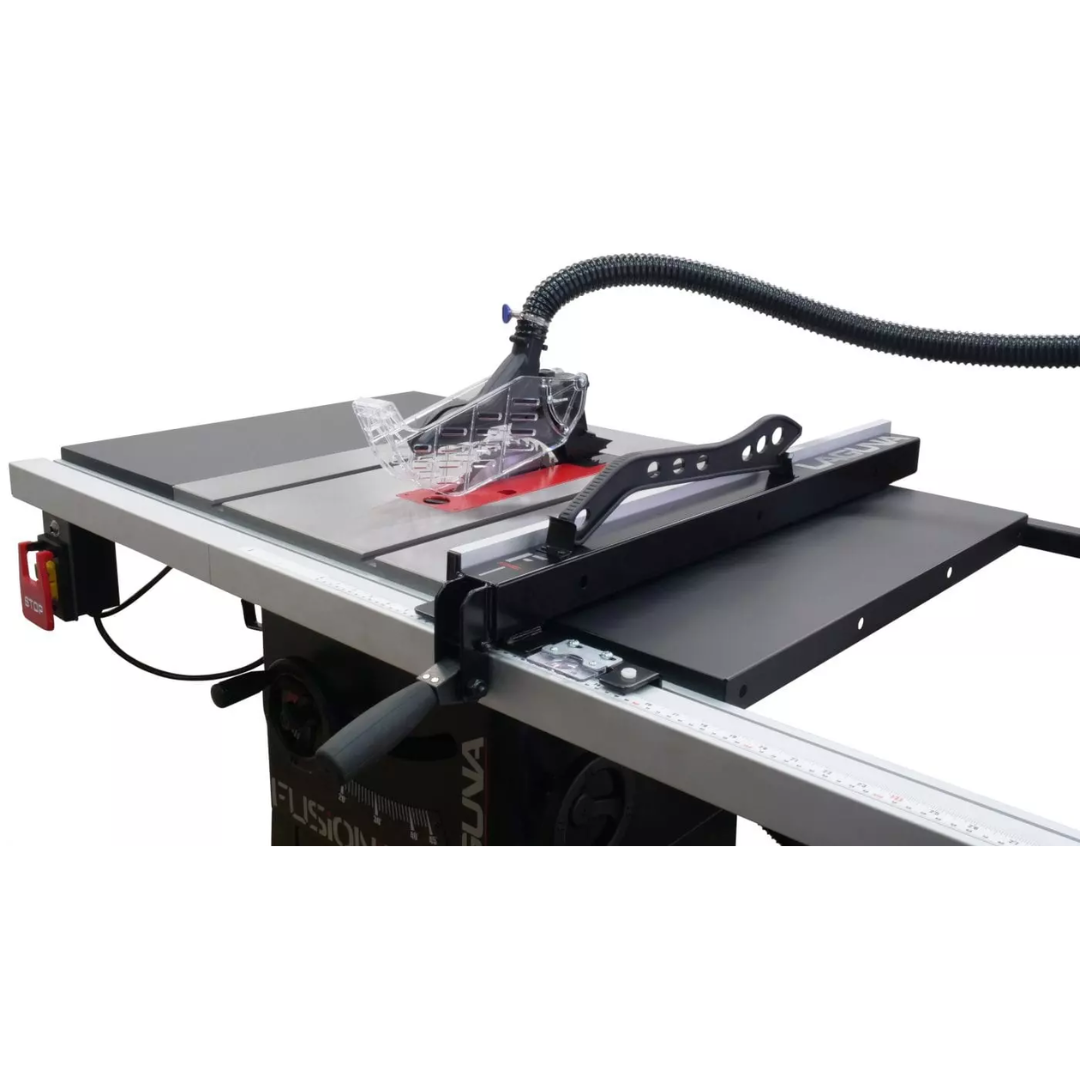

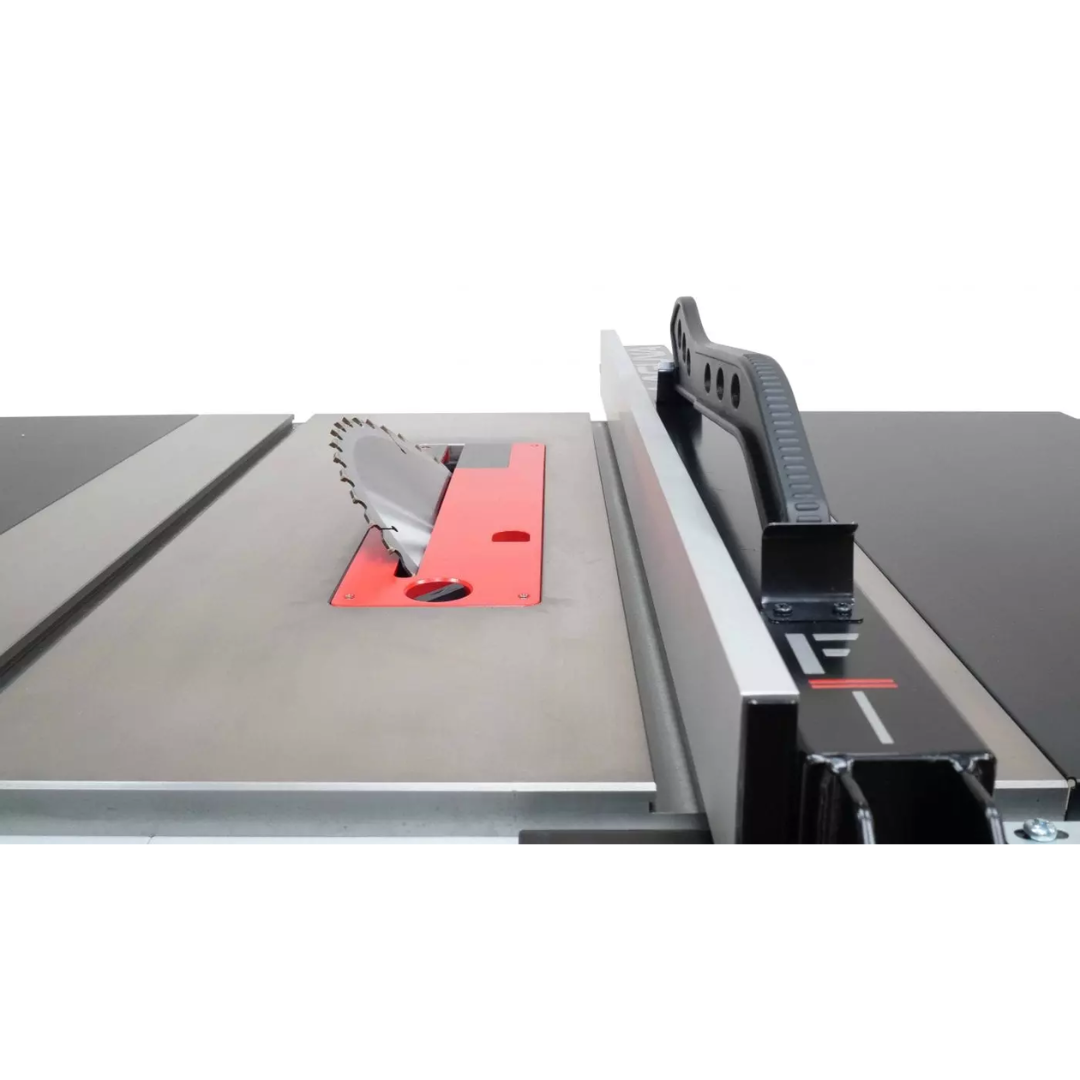

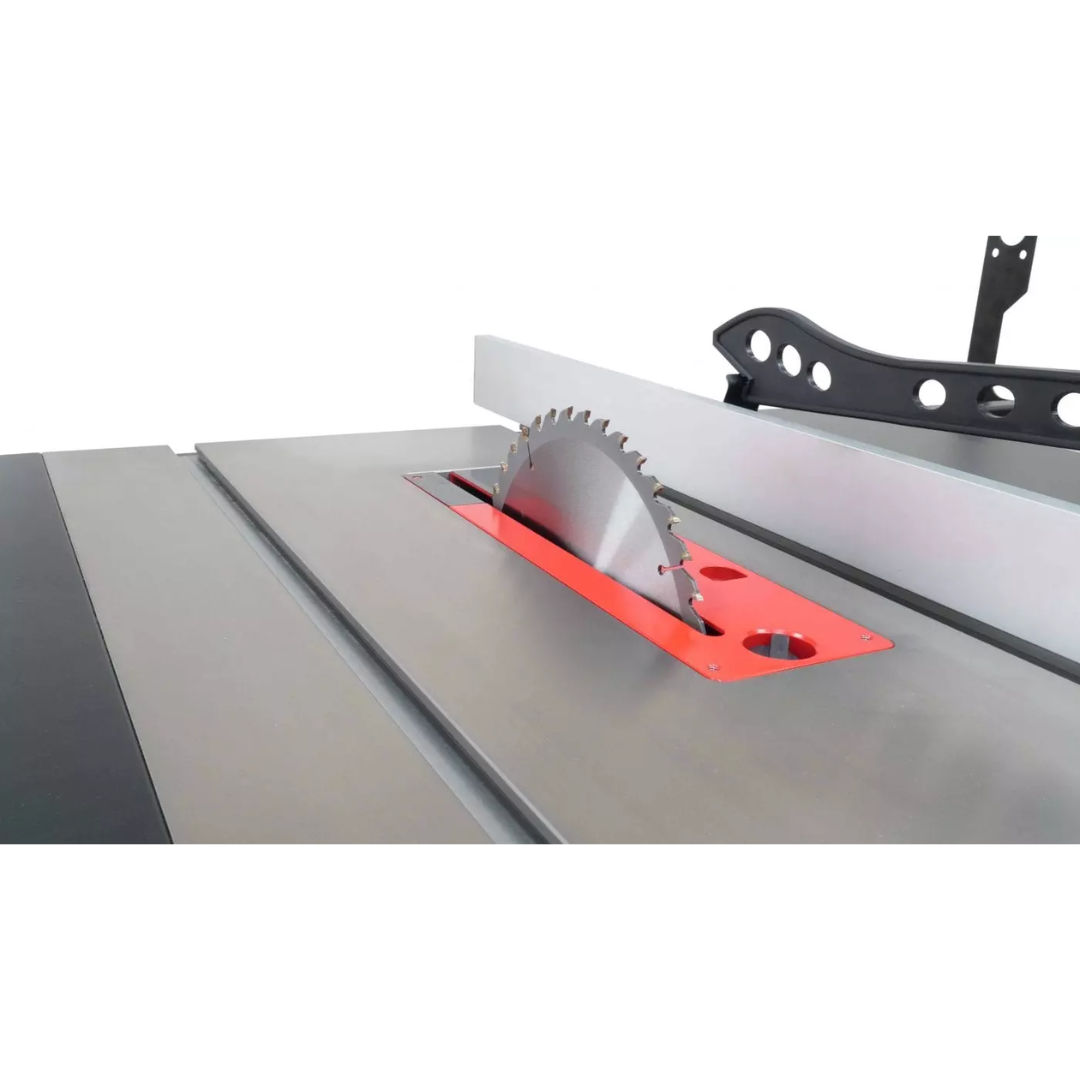

- Precision Ground Cast Iron Table provides stability, flatness, and vibration reduction for accurate cuts.

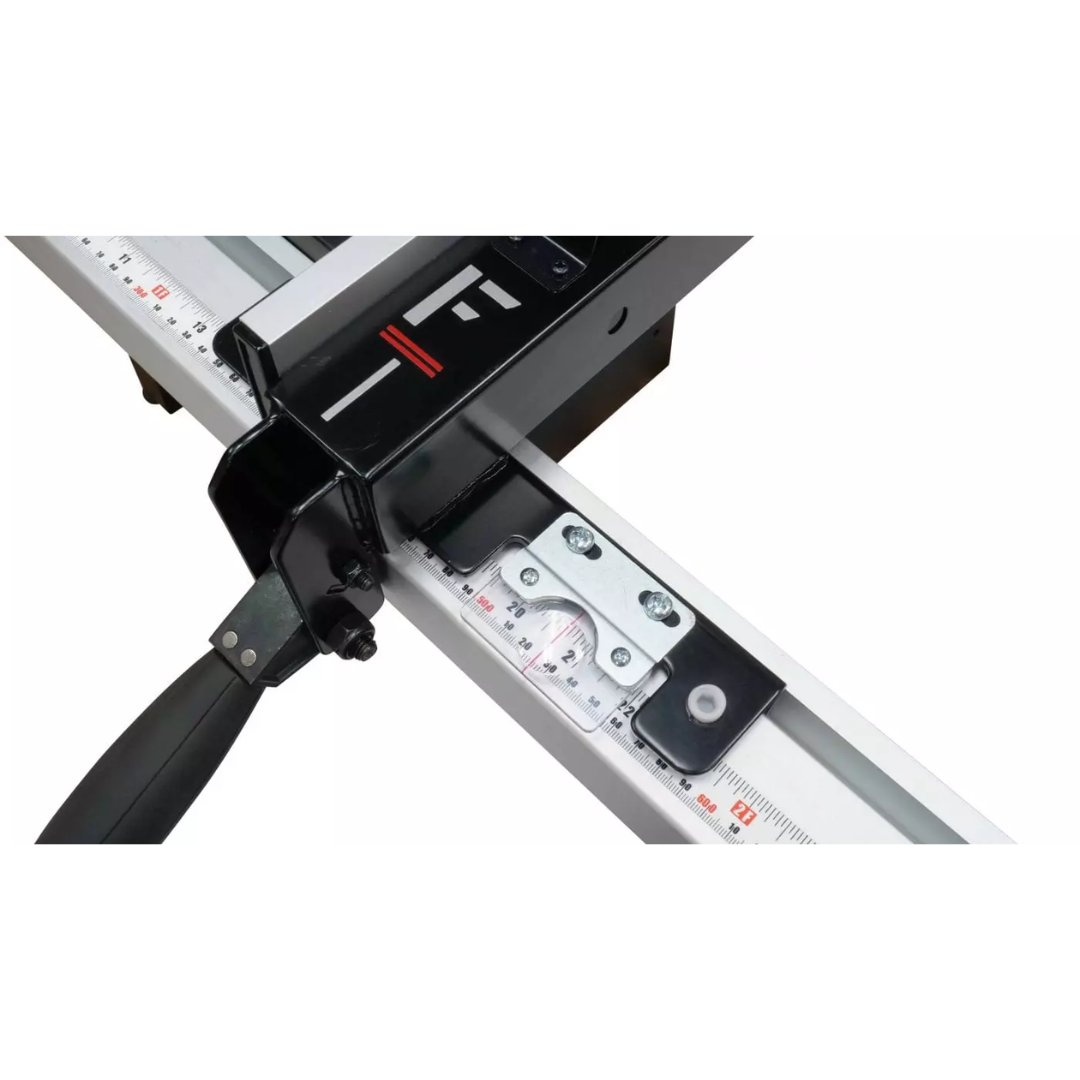

- Camlock T-Square Fence glides smoothly and locks securely for repeatable rip accuracy.
- Over-Under Trunnion Design enhances alignment and cutting precision.
- Quick-Release Blade Guard & Riving Knife improves safety and ease of setup.
- Premium Arbor Bearings ensure smooth blade rotation and reduced vibration.
- Integrated Tool Storage keeps essential accessories organized and accessible.
- Included Accessories include carbide-tipped blade, push stick, miter gauge, and blade changing tools.

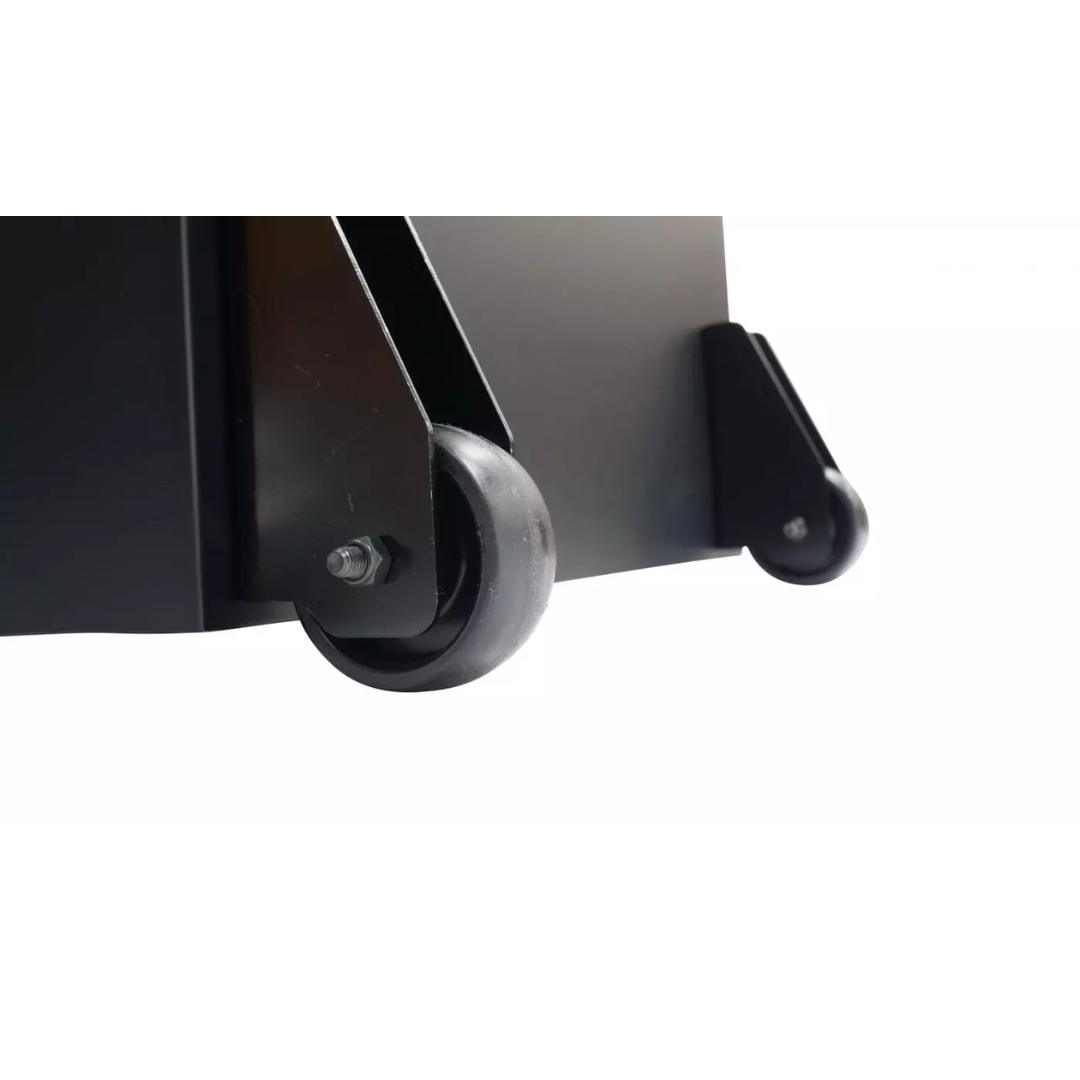

- Optional Mobility System allows easy repositioning within the shop.
Why Choose the Laguna F1 Fusion Tablesaw MTSF132110150-0130
- Hybrid cabinet design combines performance and compact footprint.
- Precision engineering delivers smooth, accurate cuts every time.
- Advanced dust collection improves shop cleanliness and safety.
- Premium components ensure durability and long-term reliability.
- Exceptional value with professional-grade features included.
The Laguna F1 Fusion Tablesaw MTSF132110150-0130 is a precision-built solution for woodworkers who demand accuracy, smooth operation, and reliability in a compact, professional-grade table saw.
