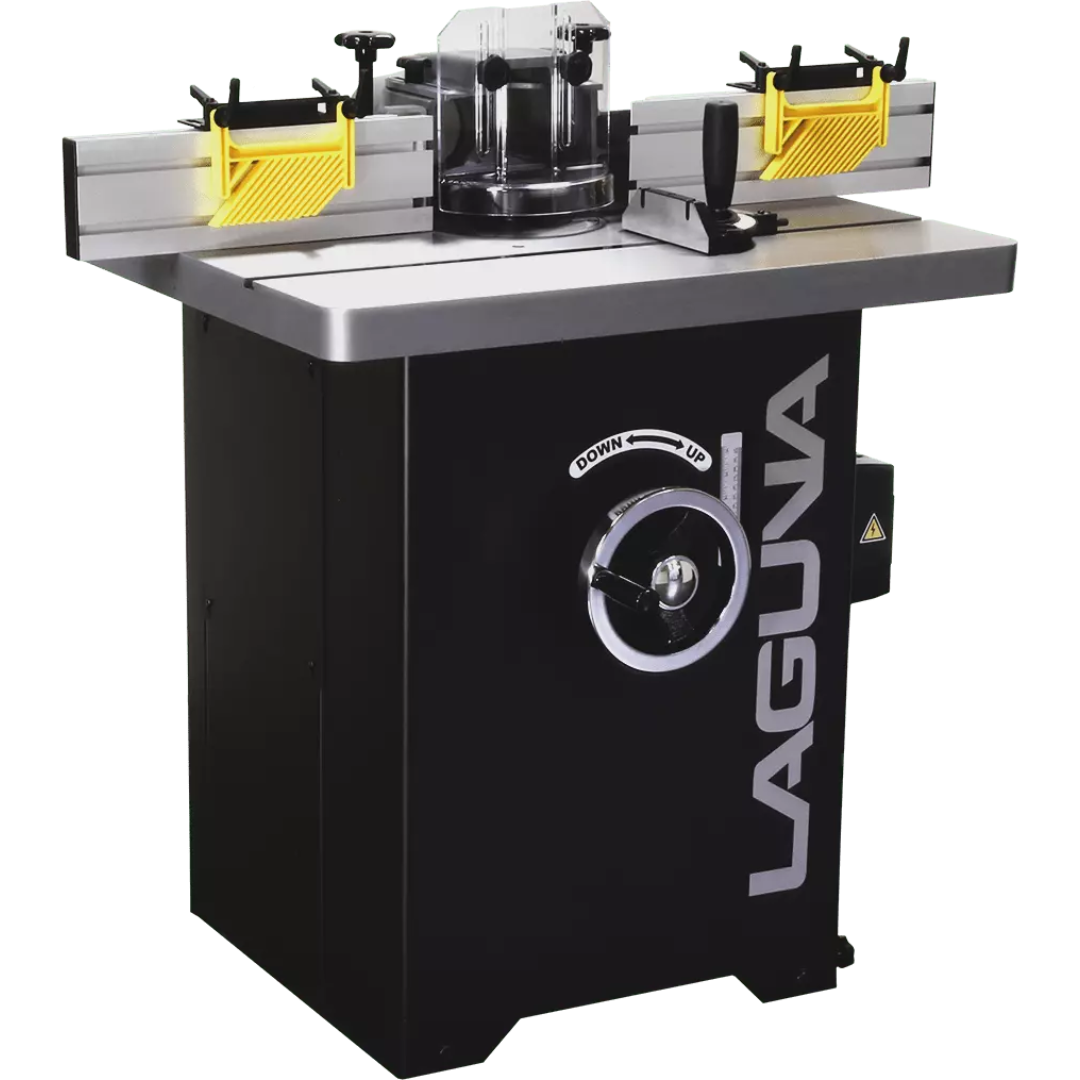

Laguna Compact Shaper 4 Speed MSHAP4SPD-3-0130 Applications
- Cabinet and furniture manufacturing
- Door, frame, and molding production
- Custom woodworking and architectural millwork
- Edge profiling, panel raising, and joinery operations
- Shaping hardwoods and softwoods with precision control
Ideal for professional shops seeking a compact, high-performance shaper with versatile speed control and premium accuracy.
Laguna Compact Shaper 4 Speed MSHAP4SPD-3-0130 Specifications
| Model | MSHAP4SPD-3-0130 |
|---|---|
| Motor | 3 HP, 1 Phase, 220V, 60 Hz |
| Spindle Speeds | 4000, 6000, 8000, 10000 RPM |
| Spindle Travel | 4" |
| Spindle Sizes | 3/4" & 1-1/4" (Included) |
| Router Collets | 1/4" & 1/2" (Included) |
| Capacity Under Nut | 4" (1-1/4" Spindle) |
| Table Size | 32" × 26-1/2" |
| Table Height | 34" |
| Table Opening Diameter | 6-1/4" |
| Table Insert Openings | 2-1/2", 4-5/16" |
| Fence Size | 4-13/16" × 16" |
| Fence Adjustment | Micro-Adjustable |
| Table T-Slot | Yes |
| Rotation | Forward / Reverse |
| Drive Belt | Flat Poly-Groove Belt |
| Dust Port | 4" |
| Mobility | Built-In Wheel System |
| Weight (Net / Shipping) | 450 / 500 lbs |
| Shipping Dimensions | 40" × 30" × 42" |
Laguna Compact Shaper 4 Speed MSHAP4SPD-3-0130 Performance & Construction
- Four-Speed Spindle System (4000–10000 RPM) allows optimal cutting speed selection for different materials and tooling.
- Powerful 3 HP Motor delivers consistent torque for demanding shaping applications.
- Precision Fence System provides accurate positioning with micro-adjustment capability for fine tuning cuts.
- Flat Poly-Groove Drive Belt transfers more power with reduced vibration compared to traditional belts.
- Quick Speed Change Mechanism allows easy adjustment via a simple handle system for efficient workflow.
- Forward and Reverse Spindle Rotation enhances versatility for different cutting operations.
- Large Cast Table Surface offers stability and support for larger workpieces.
- Built-In Mobility System allows easy repositioning within the shop without sacrificing stability.
- Easy Spindle Lock simplifies tool changes for improved productivity.
- Integrated Dust Collection with 4" port helps maintain a clean and safe workspace.
Why Choose the Laguna Compact Shaper 4 Speed MSHAP4SPD-3-0130
- Best-in-class compact shaper with professional-grade performance.
- Versatile speed range for a wide variety of shaping applications.
- Premium construction ensures durability and long-term reliability.
- Advanced fence system for precise, repeatable results.
- Built-in mobility and ergonomic design for improved shop efficiency.
The Laguna Compact Shaper 4 Speed MSHAP4SPD-3-0130 delivers unmatched value by combining precision engineering, versatile speed control, and robust construction in a compact, professional-grade shaping solution.
