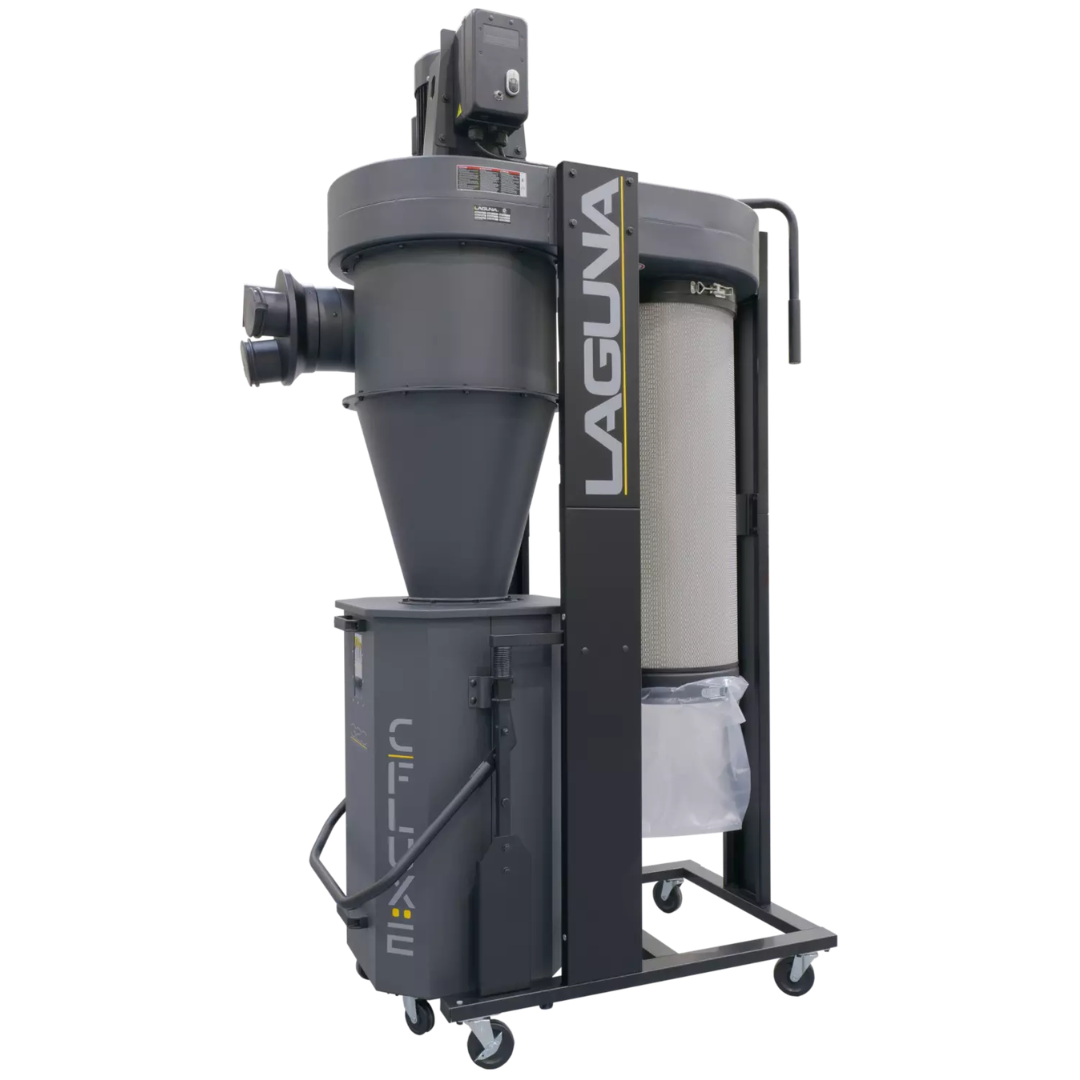

Laguna C|Flux: 3 MDCCF32201 Cyclone Dust Collector Applications
- Production woodworking shops with multiple machines
- Cabinet and furniture manufacturing operations
- High-demand CNC routing and machining systems
- Wide belt sanders and heavy material removal applications
- Centralized dust collection for larger workshop layouts
Designed for high-volume dust extraction where strong airflow and larger capacity are critical for continuous operation.
Laguna C|Flux: 3 MDCCF32201 Cyclone Dust Collector Specifications
| Model | MDCCF32201 |
|---|---|
| Motor | 3 HP, 1 Phase |
| Voltage | 220V, 60Hz |
| RPM | 3450 |
| Amperage | 22A |
| Recommended Breaker | 30 Amps |
| Maximum Airflow | 2718–2817 CFM |
| Shop Airflow | 1624 CFM |
| Max Static Pressure | 11.2" |
| Impeller | 15.5" Steel Radial Fin |
| Inlet | 8" main with splitter (3 × 4" ports) |
| Collection Capacity | 46 Gallon Octagon Drum |
| Noise Level | 88 dB @ 9.8 ft |
| Cord | Approx. 8 ft (no plug) |
| Dimensions | 48" × 28" × 88"–89" |
| Machine Weight | 373 lbs |
| Shipping Weight | 441 lbs |
Laguna C|Flux: 3 MDCCF32201 Cyclone Dust Collector Features & Performance

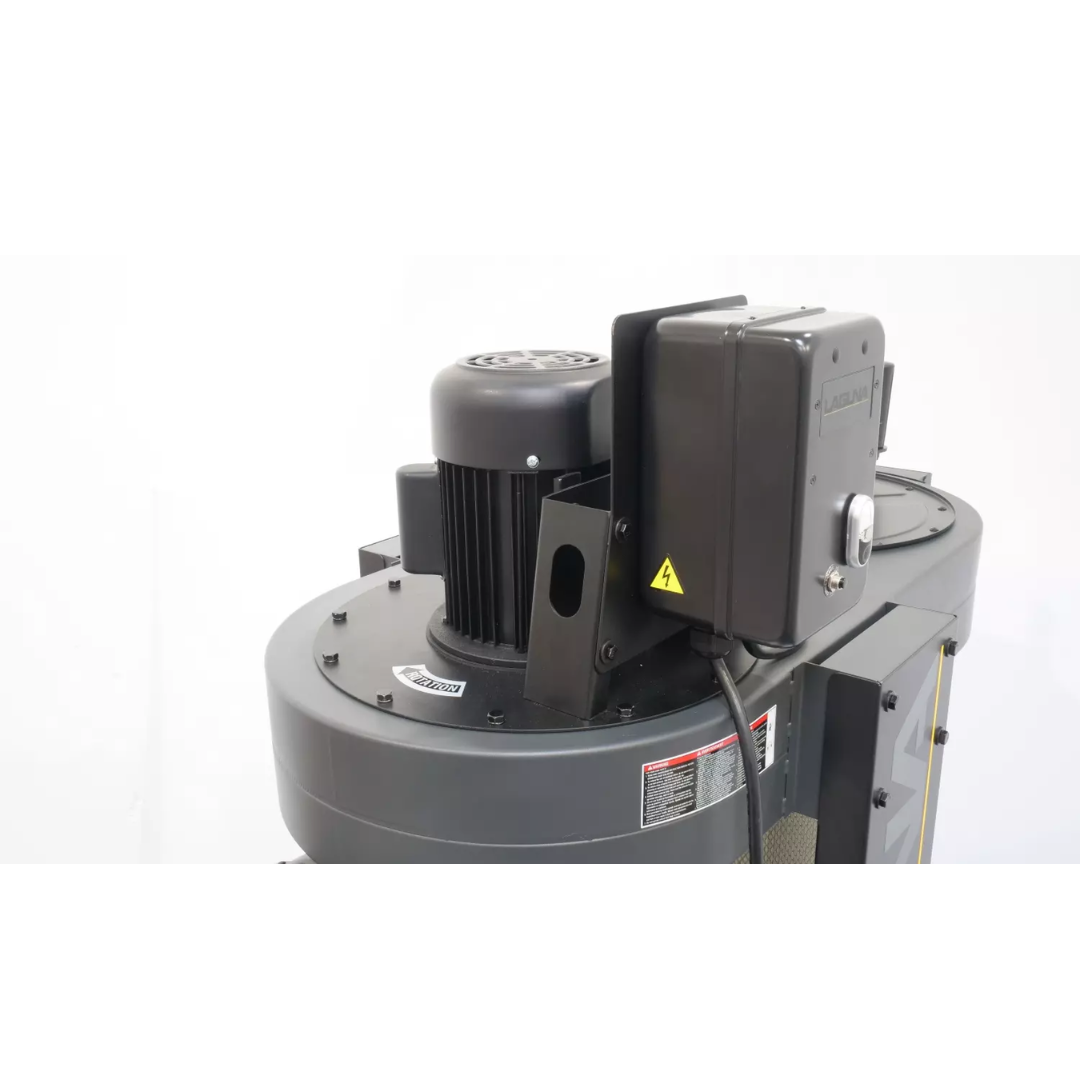

- High-performance 3 HP motor delivers powerful suction for large-scale operations.
- Up to 2718+ CFM airflow supports multi-machine and central dust collection systems.
- Advanced cyclone separation maximizes debris removal before filtration.
- Dual-paddle filter cleaning system improves filter longevity and airflow consistency.

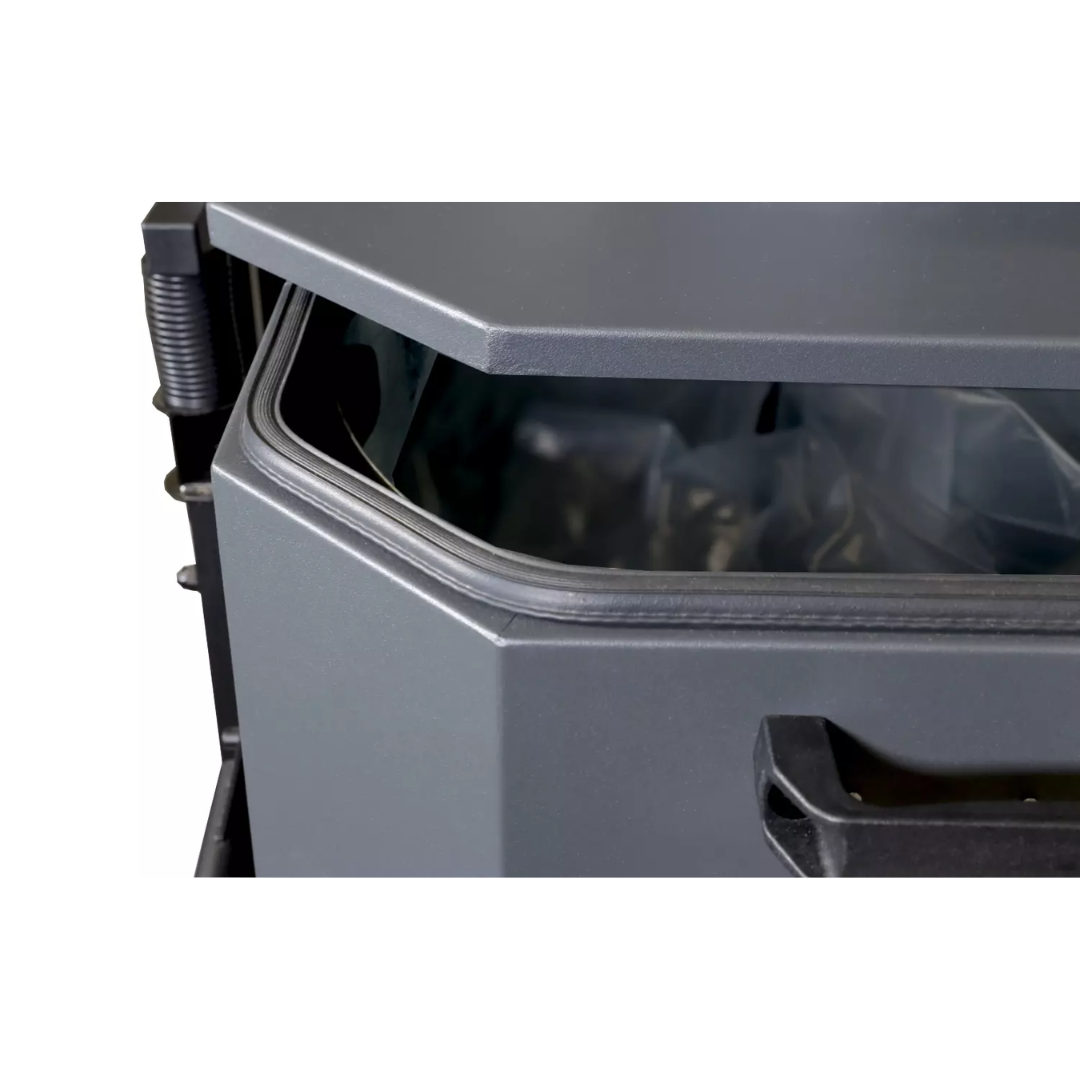

- Large 46-gallon octagon drum reduces downtime and increases productivity.
- 3-piece drum design simplifies assembly and enhances durability.
- High-frequency remote control provides convenient, interference-free operation.
- Magnetic on/off switch ensures safe startup and shutdown.
- Locking and swiveling casters offer mobility with enhanced stability.

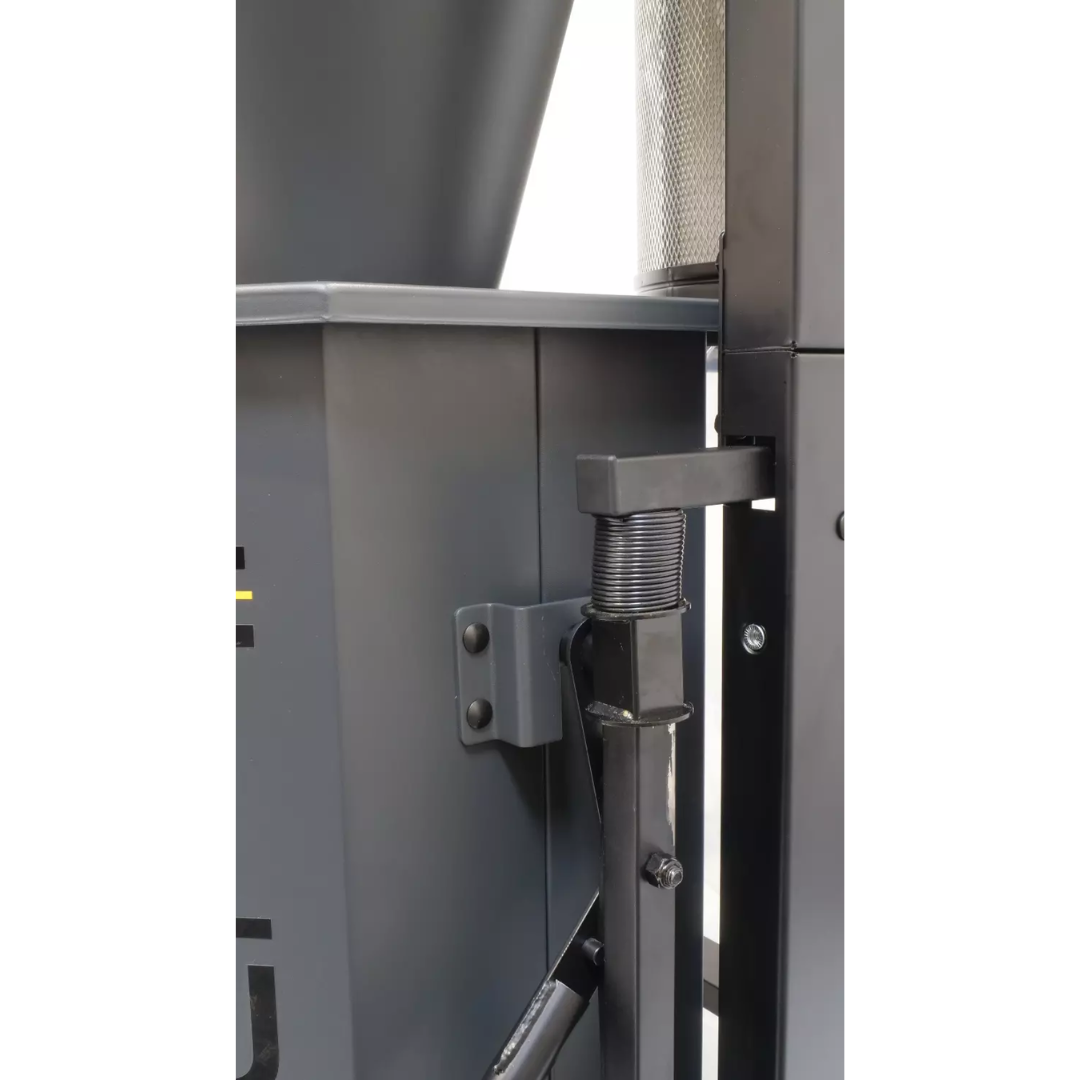

Laguna C|Flux: 3 MDCCF32201 Cyclone Dust Collector Filtration System
- Canister Filter: 1 Micron filtration rating
- Filtration Efficiency: 99.97% at 0.2–2 microns
- Filter Area: 102 sq/ft
- MERV Rating: 12
- Filter Size: 15.74" × 35.43"
- Manual crank cleaning (270°) maintains peak airflow and reduces maintenance
Captures fine airborne dust particles to significantly improve air quality and protect both operators and equipment.

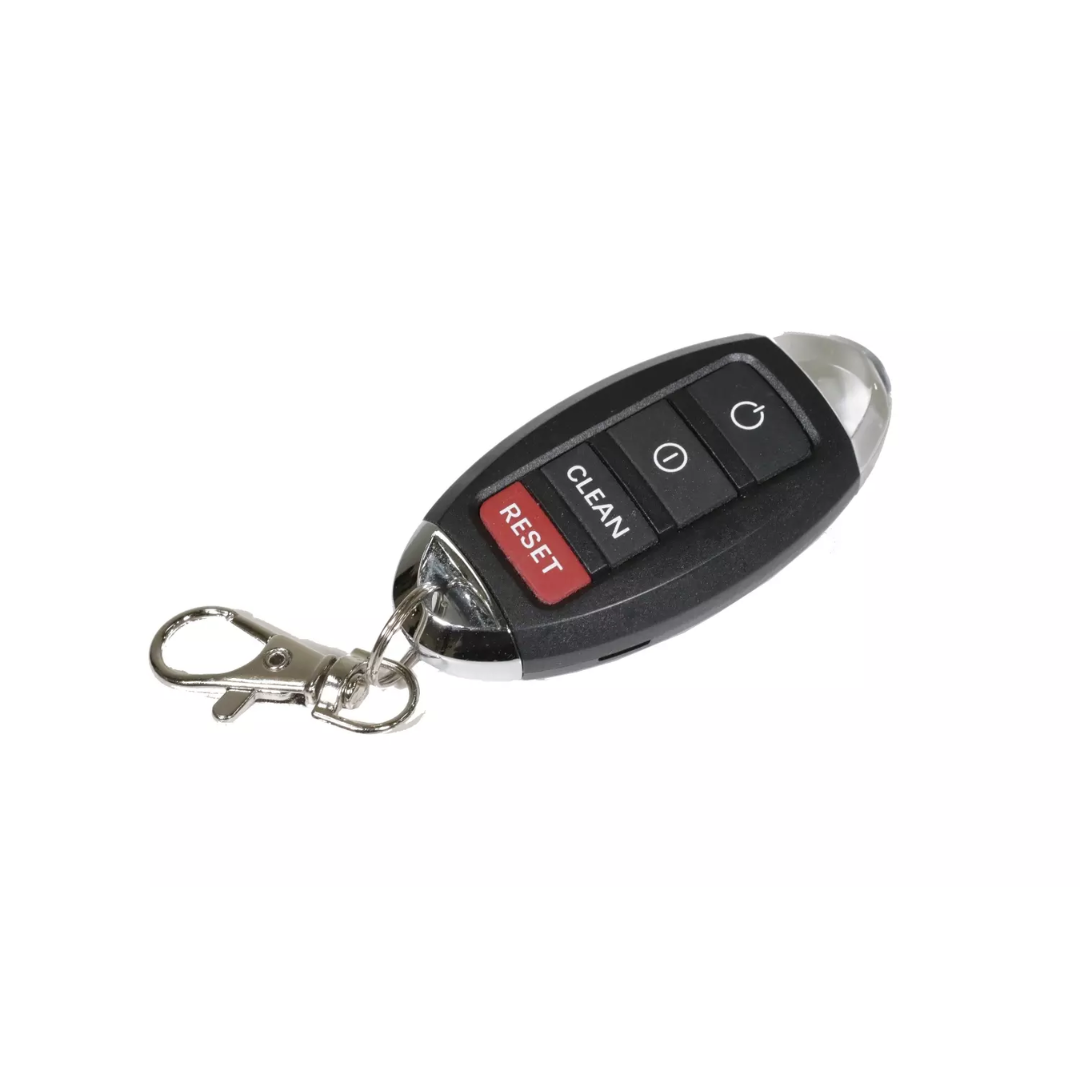

Laguna C|Flux: 3 MDCCF32201 Cyclone Dust Collector Remote Control System
- High-frequency remote operates without line-of-sight requirements
- Reliable signal unaffected by fluorescent lighting or obstacles
- Convenient control from anywhere in the workshop
- Improves workflow efficiency and operational ease
Why Choose the Laguna C|Flux: 3 MDCCF32201 Cyclone Dust Collector
- Maximum airflow capacity for high-demand applications
- Large-capacity drum for extended runtime
- Advanced cyclone and filtration technology
- Smart features including remote control and improved filter cleaning
- Built for durability, efficiency, and professional performance
The Laguna C|Flux: 3 MDCCF32201 Cyclone Dust Collector is the ultimate solution for professionals who need maximum power, high airflow, and reliable dust collection performance in demanding shop environments.
