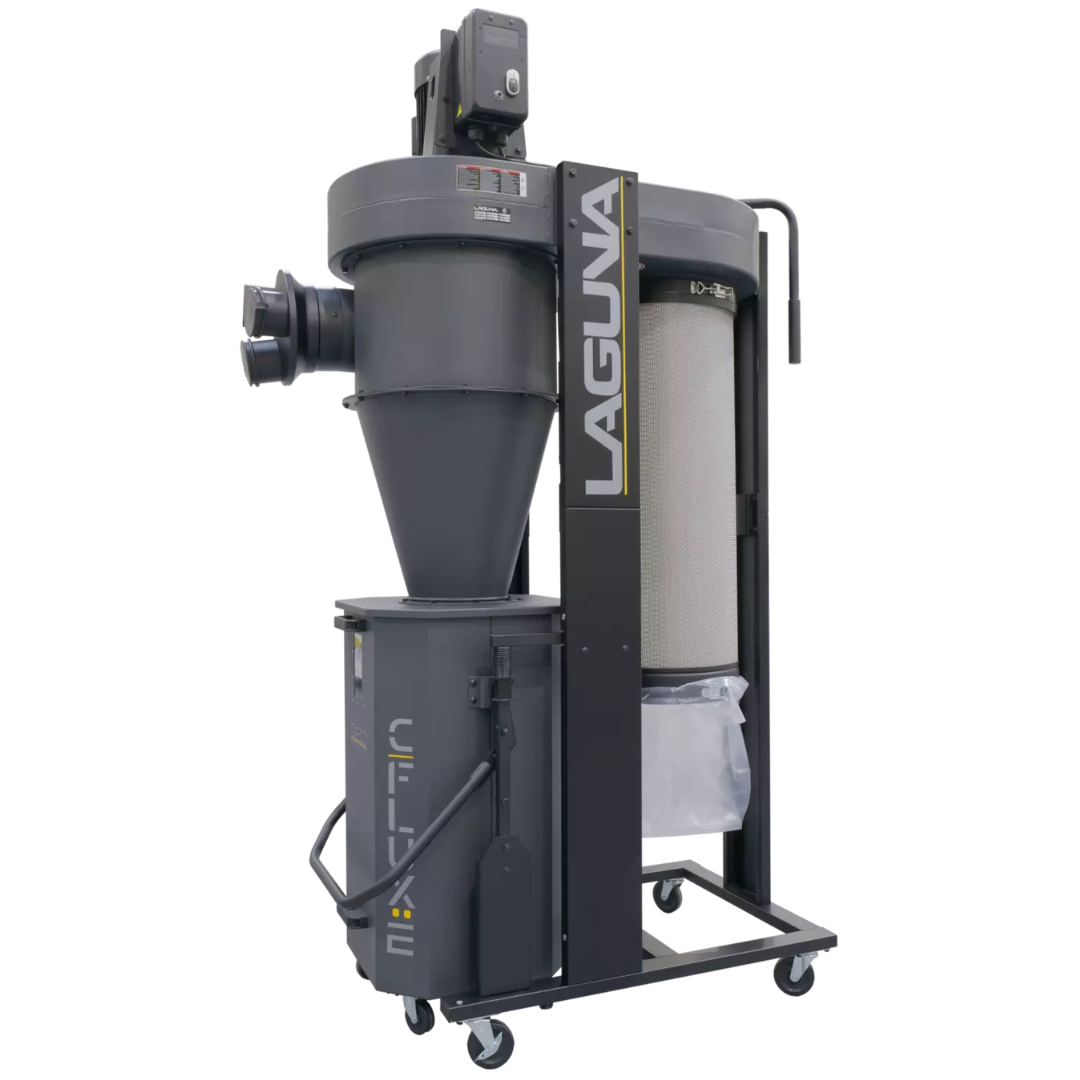

Laguna C|Flux: 2 MDCCF22201 Cyclone Dust Collector Applications
- Cabinet shops and professional woodworking environments
- Table saws, planers, jointers, and shapers
- CNC routers and automated machining systems
- Heavy sanding operations and fine dust control
- Workshops requiring higher airflow and larger debris capacity
Ideal for users needing higher airflow capacity and larger collection volume for extended operation without frequent emptying.
Laguna C|Flux: 2 MDCCF22201 Cyclone Dust Collector Specifications
| Model | MDCCF22201 |
|---|---|
| Motor | 2 HP, 1 Phase |
| Voltage | 220V, 60Hz |
| RPM | 3450 |
| Amperage | 14A |
| Recommended Breaker | 20 Amps |
| Maximum Airflow | 1740 CFM |
| Shop Airflow | 1166 CFM |
| Max Static Pressure | 9.3" |
| Impeller | 14.5" Steel Radial Fin |
| Inlet | 8" main with splitter (2 × 4" ports) |
| Collection Capacity | 46 Gallon Octagon Drum |
| Noise Level | 88 dB @ 9.8 ft |
| Cord | Approx. 8 ft (no plug) |
| Dimensions | 48" × 28" × 87"–89" |
| Machine Weight | 301 lbs |
| Shipping Weight | 377 lbs |
Laguna C|Flux: 2 MDCCF22201 Cyclone Dust Collector Features & Performance

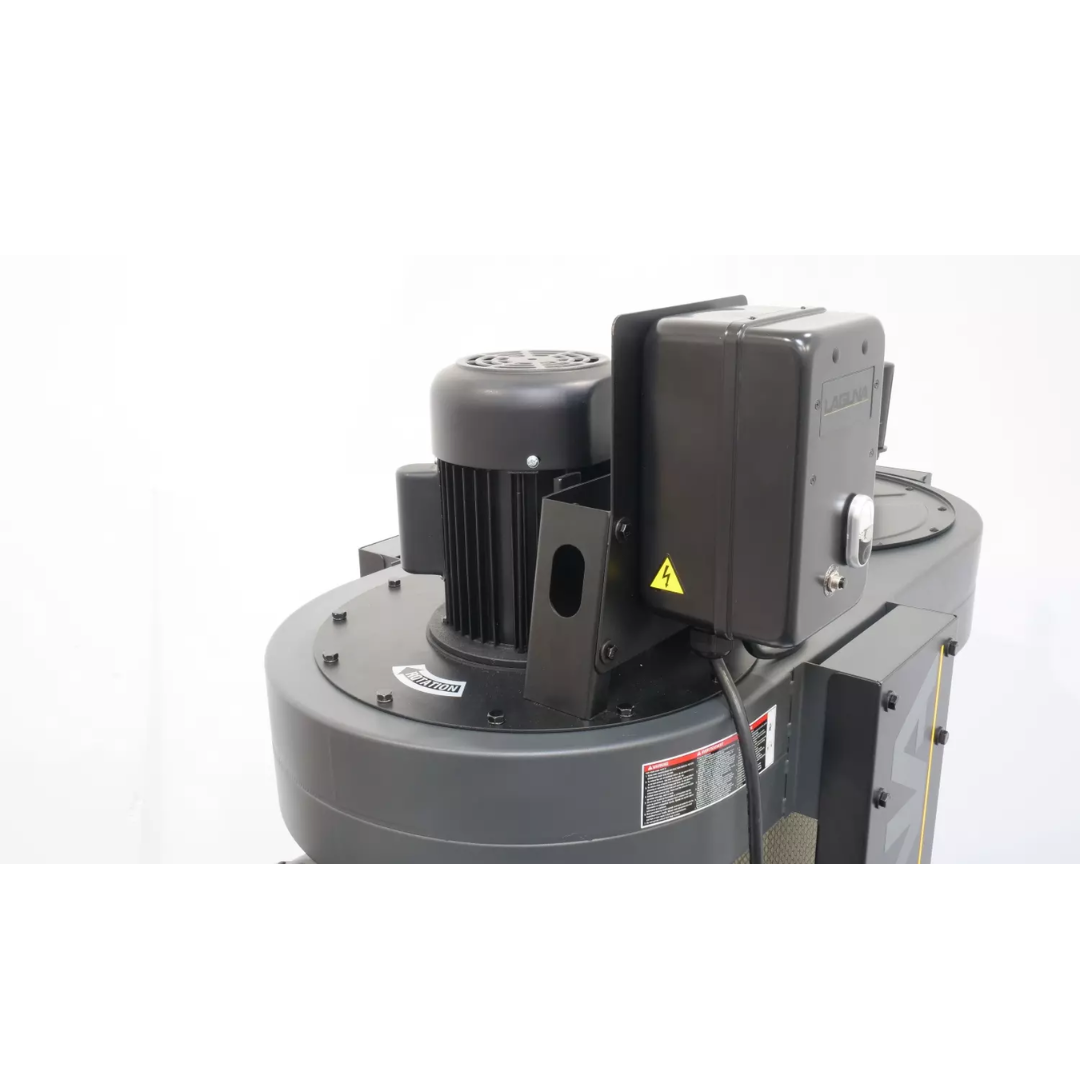

- Powerful 2 HP motor delivers high-volume airflow for demanding shop environments.
- 1740 CFM airflow capacity supports multiple machines and larger dust loads.
- Advanced cyclone separation improves efficiency and reduces filter clogging.
- Dual-paddle filter cleaning system enhances filter longevity and performance.
- High-frequency remote control allows operation without line-of-sight interference.

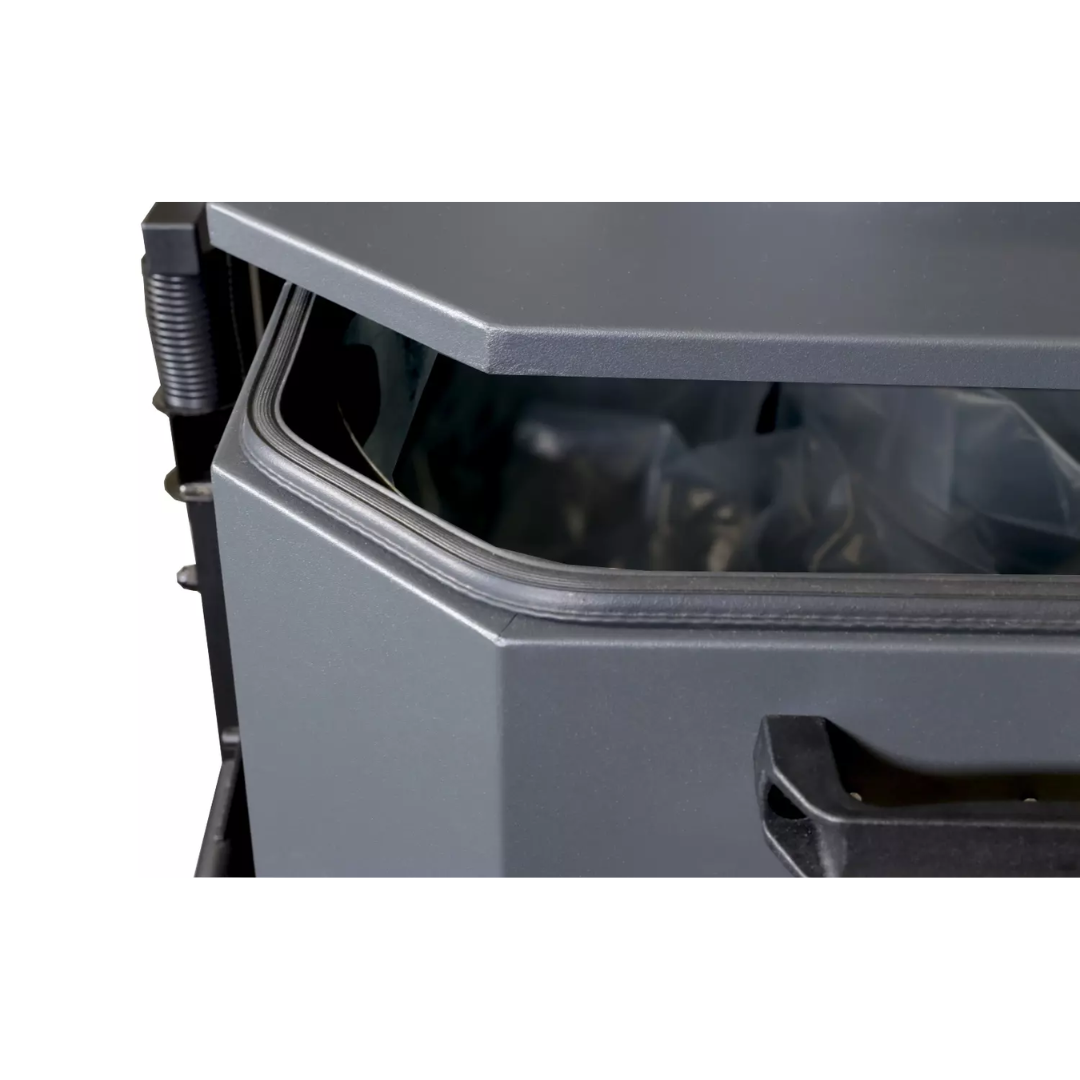

- Large 46-gallon octagon drum reduces downtime with increased debris capacity.
- 3-piece drum construction minimizes assembly time and improves durability.
- Locking and swiveling casters provide stability and mobility.
- Magnetic on/off switch ensures safe and reliable operation.
Laguna C|Flux: 2 MDCCF22201 Cyclone Dust Collector Filtration System
- Canister Filter: 1 Micron filtration rating
- Filtration Efficiency: 99.97% at 0.2–2 microns
- Filter Area: 102 sq/ft
- MERV Rating: 12
- Filter Size: 15.74" × 35.43"
- Manual crank cleaning (270°) maintains airflow and reduces maintenance
High-efficiency filtration captures fine airborne particles, helping maintain a cleaner and safer working environment.

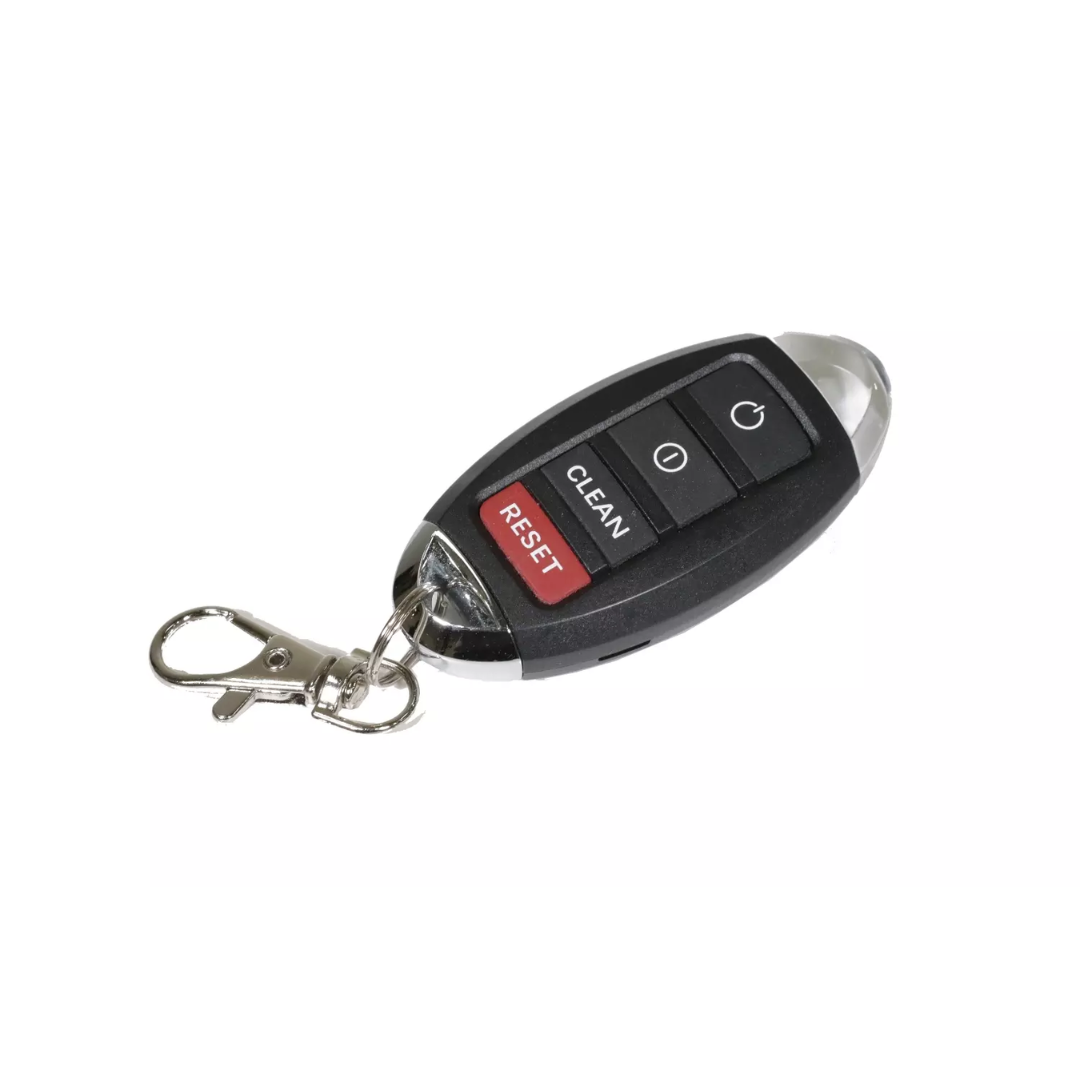

Laguna C|Flux: 2 MDCCF22201 Cyclone Dust Collector Remote Control System
- High-frequency remote eliminates need for direct line-of-sight
- Reliable performance without interference from shop lighting
- Convenient control from anywhere in the workspace
- Improves workflow efficiency and ease of operation
Why Choose the Laguna C|Flux: 2 MDCCF22201 Cyclone Dust Collector
- High 1740 CFM airflow for demanding applications
- Large 46-gallon capacity for extended operation
- Advanced cyclone and filtration technology
- Remote-controlled convenience and smart design upgrades
- Durable, stable, and mobile construction for professional shops
The Laguna C|Flux: 2 MDCCF22201 Cyclone Dust Collector is a powerful and efficient solution for woodworkers who require higher airflow, larger capacity, and advanced filtration in a reliable, professional-grade system.
