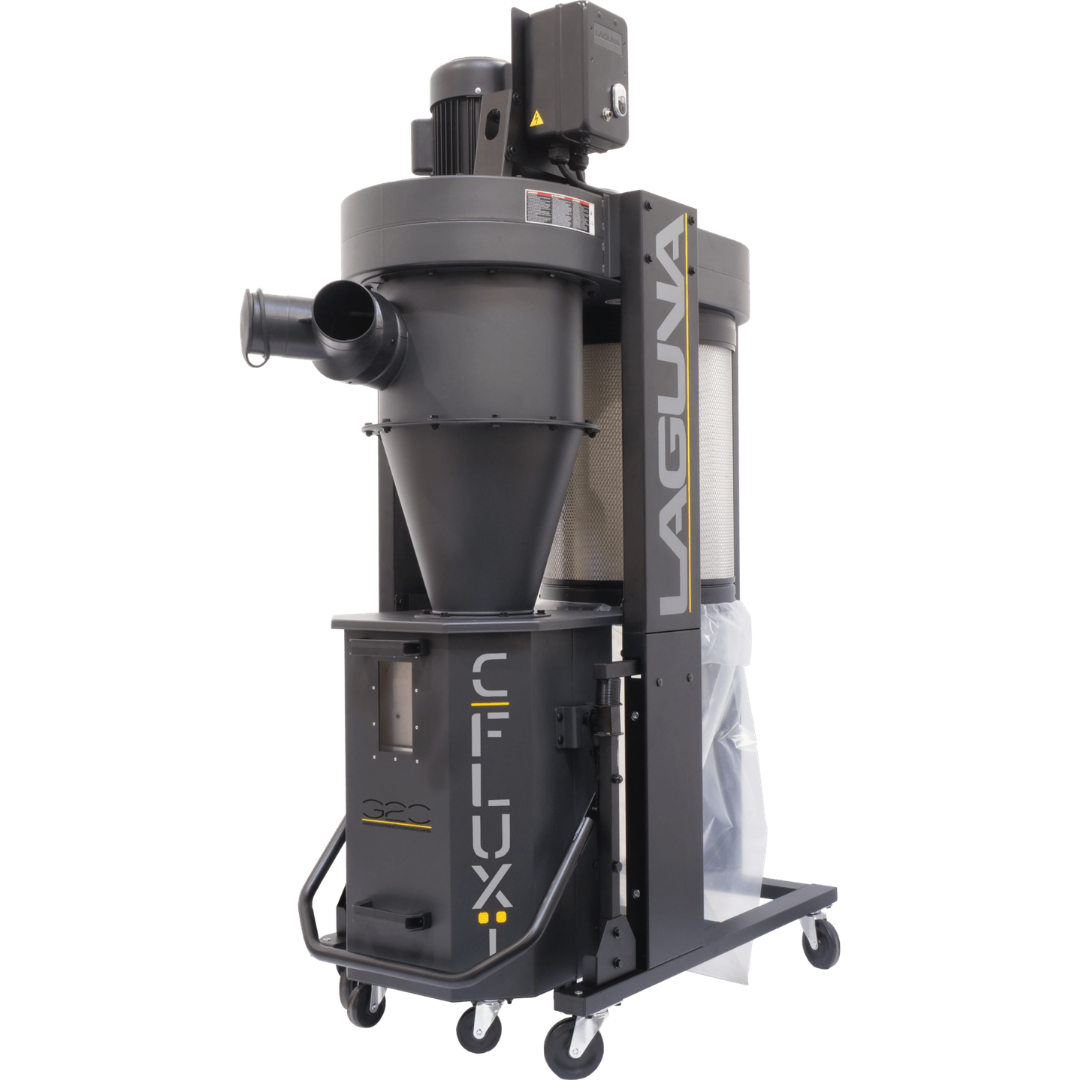

Laguna C|Flux: 1 MDCCF15110 Cyclone Dust Collector Applications
- Table saws, cabinet saws, and panel saw systems
- Planers, jointers, and shaping equipment
- CNC routers and machining centers
- Sanding stations and fine dust applications
- General workshop air quality control and dust management
Ideal for workshops requiring powerful single-machine or light multi-machine dust collection with superior fine dust filtration.
Laguna C|Flux: 1 MDCCF15110 Cyclone Dust Collector Specifications
| Model | MDCCF15110 |
|---|---|
| Motor | 1.5 HP, 1 Phase |
| Voltage | 110V / 220V, 60Hz |
| RPM | 3450 |
| Amperage | 18.8A (110V) / 9.4A (220V) |
| Maximum Airflow | 1314 CFM |
| Shop Airflow | 900 CFM |
| Max Static Pressure | 10.1" |
| Impeller | 13.5" Steel Radial Fin |
| Inlet | 1 × 6" or 2 × 4" Ports |
| Collection Capacity | 25 Gallon Octagon Drum |
| Noise Level | 82 dB @ 9.8 ft |
| Cord Length | Approx. 8 ft |
| Dimensions | 42" × 25" × 68" |
| Machine Weight | 232 lbs |
| Shipping Weight | 287 lbs |
Laguna C|Flux: 1 MDCCF15110 Cyclone Dust Collector Features & Performance

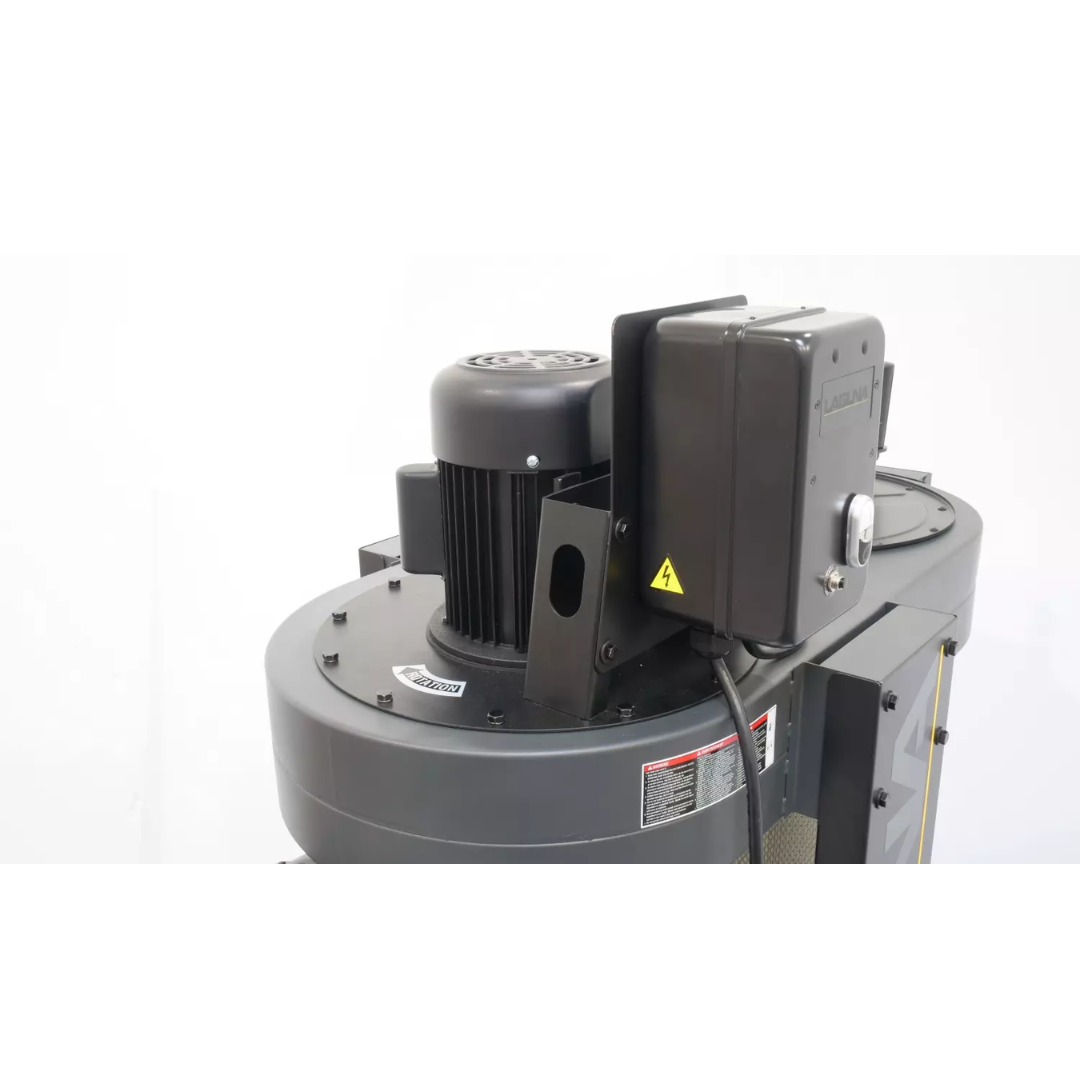

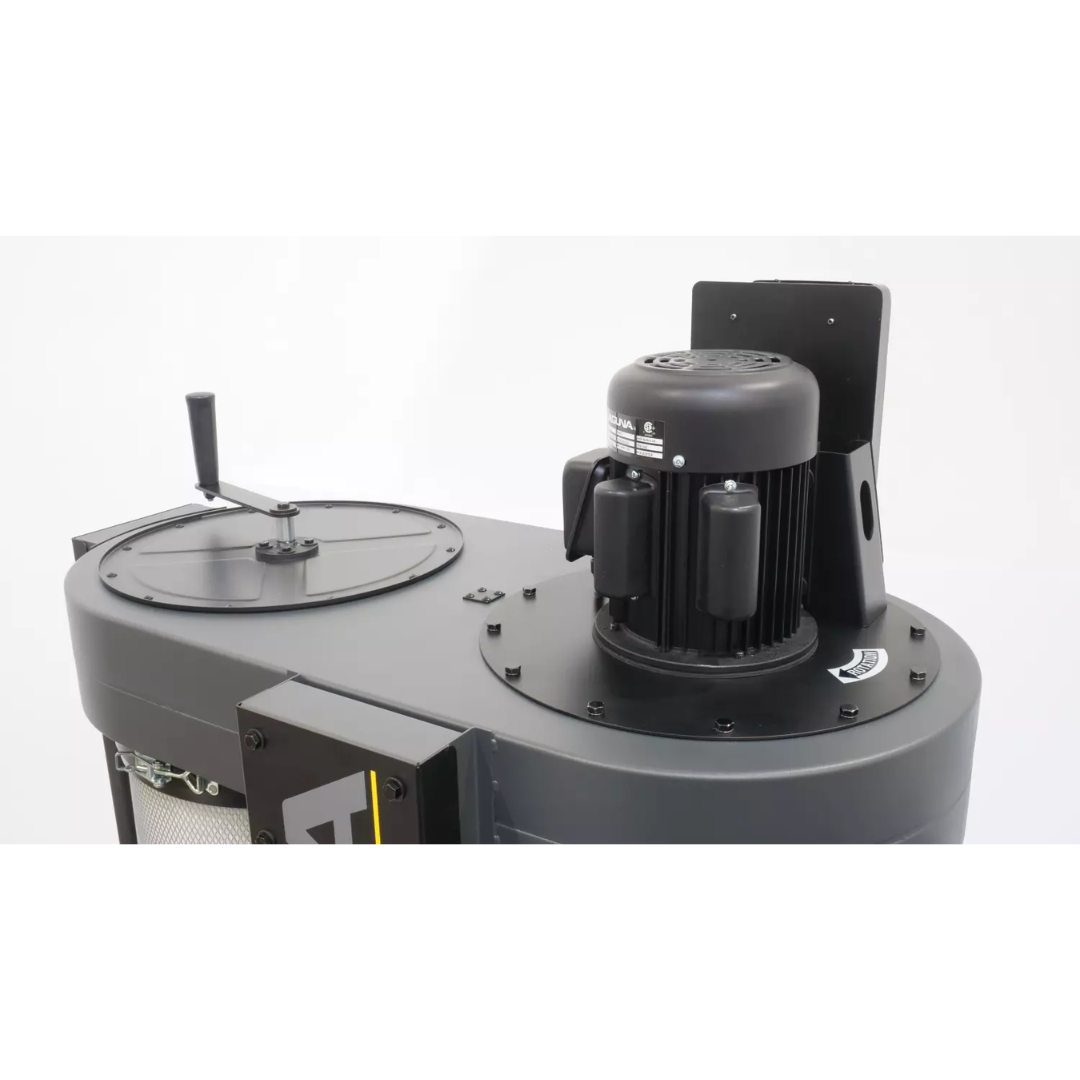

- 1.5 HP high-speed motor delivers strong, consistent suction for demanding woodworking applications.
- 1314 CFM airflow capacity ensures efficient dust extraction across a wide range of machines.
- Cyclone separation system reduces filter clogging and improves airflow efficiency.
- High-frequency remote control allows operation without line-of-sight and avoids signal interference.
- Manual crank filter cleaning system extends filter life and maintains peak performance.
- Compact mobile design with locking casters for stability and easy repositioning.

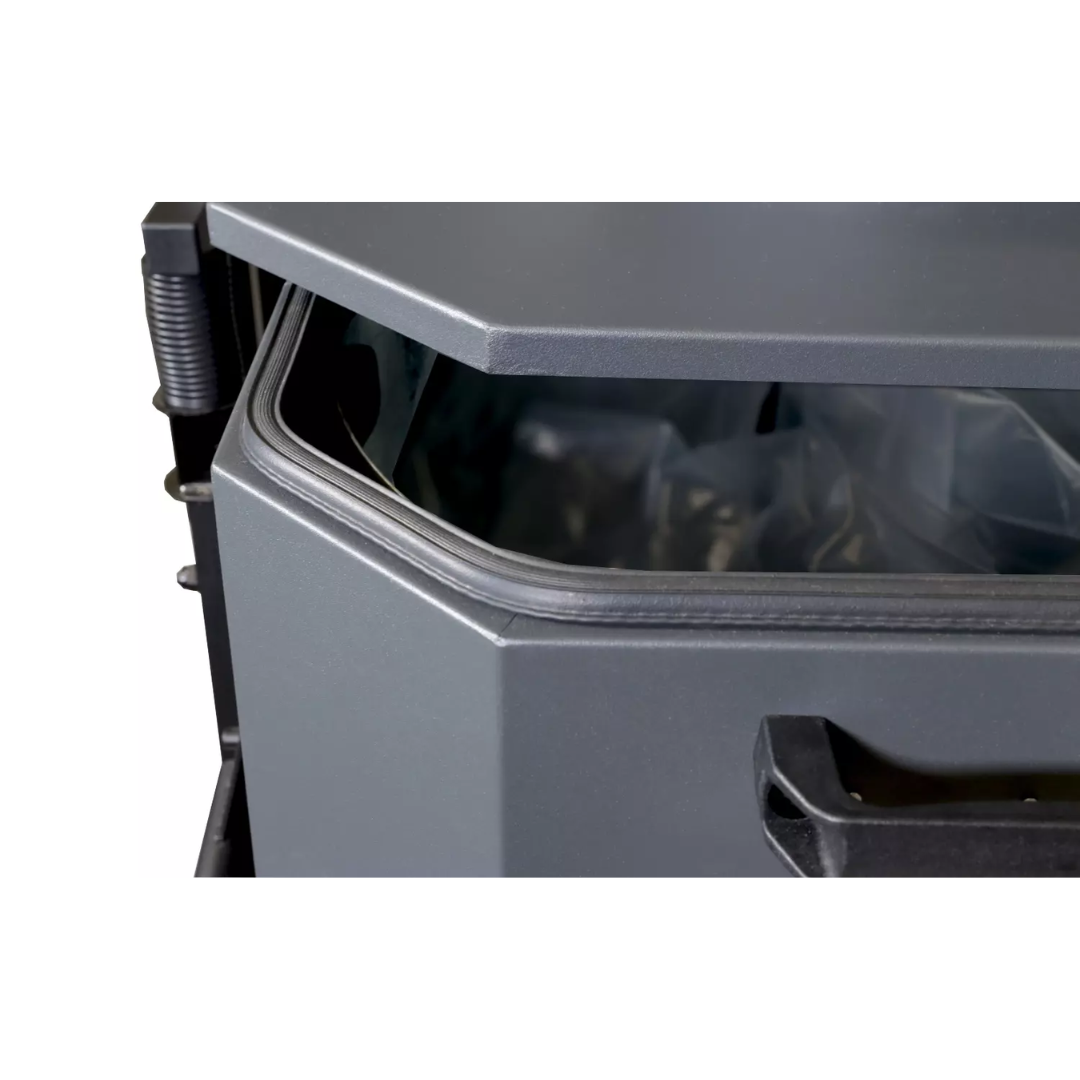

- Quick-release metal drum simplifies debris disposal and maintenance.
- Dual inlet flexibility supports multiple machine connections.
Laguna C|Flux: 1 MDCCF15110 Cyclone Dust Collector Filtration System
- Canister Filter: 1 Micron filtration rating
- Filtration Efficiency: 99.97% at 0.2–2 microns
- Filter Area: 48.4 sq/ft
- MERV Rating: 12
- Filter Dimensions: 15.74" × 19.68"

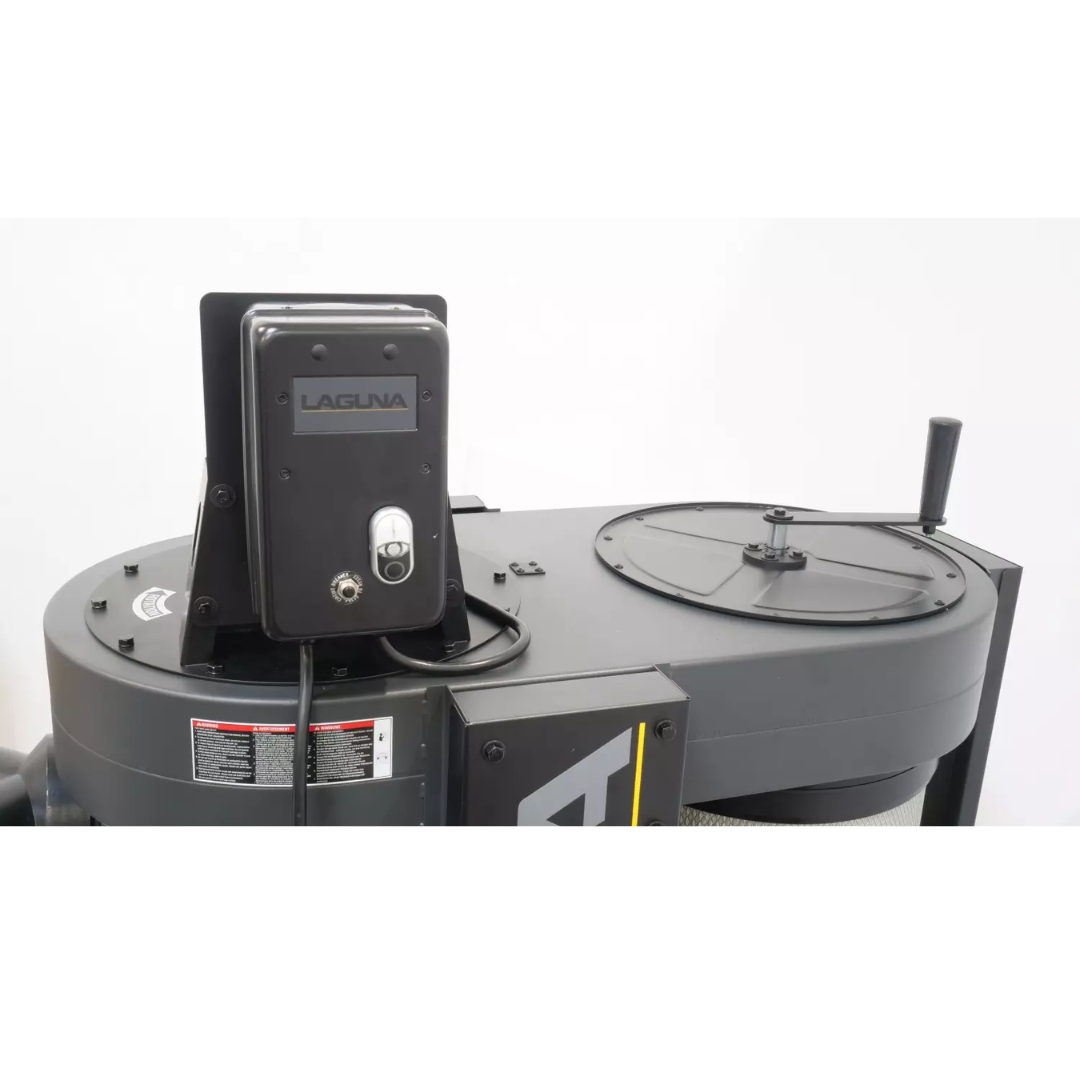

- Manual 360° crank cleaning ensures consistent airflow and reduced maintenance downtime
High-efficiency filtration captures fine airborne particles, improving shop air quality and protecting both equipment and operators.

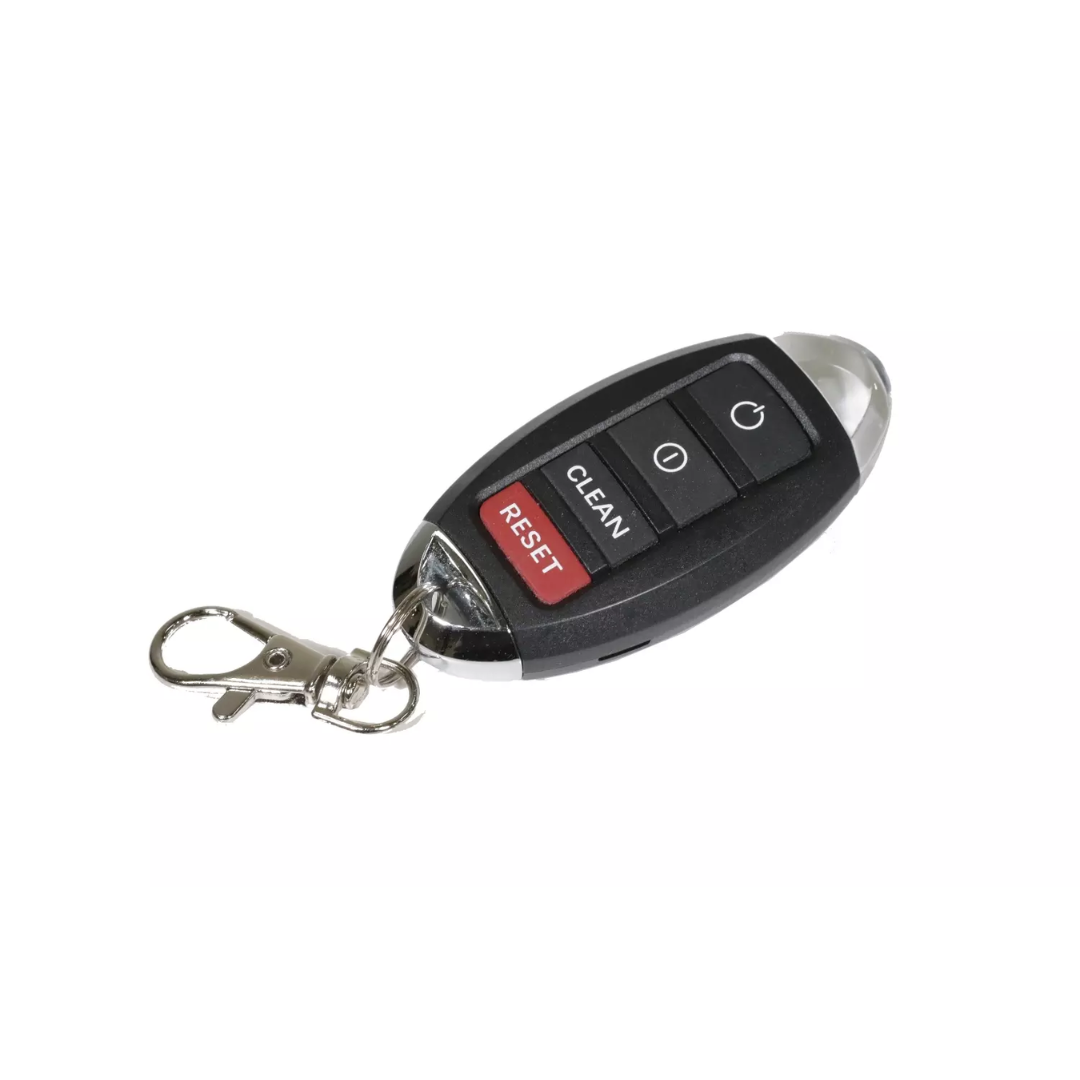

Laguna C|Flux: 1 MDCCF15110 Cyclone Dust Collector Remote Control System
- High-frequency remote eliminates need for direct line-of-sight
- Reliable operation even around obstacles and fluorescent lighting
- Magnetic on/off switching for safe and convenient control
- Improves workflow efficiency by allowing control from anywhere in the shop
Why Choose the Laguna C|Flux: 1 MDCCF15110 Cyclone Dust Collector
- Powerful 1.5 HP system with up to 1314 CFM airflow
- Advanced cyclone technology for superior dust separation
- High-efficiency 1-micron filtration with 99.97% performance
- Remote-controlled convenience with reliable high-frequency signal
- Compact, mobile, and durable design for professional workshops
The Laguna C|Flux: 1 MDCCF15110 Cyclone Dust Collector is the ideal solution for woodworkers seeking powerful performance, advanced filtration, and modern convenience in a compact and efficient dust collection system.
