Laguna 37×2 Double Drum Sander SUPMX-937003 Applications
- High-volume sanding for cabinet shops and furniture manufacturing
- Two-stage sanding (coarse and fine) in a single pass
- Wide panel sanding and large workpiece processing
- Thickness sanding and abrasive planing for hardwoods and composites
- Production environments requiring speed and consistent finish quality
Ideal for professional shops looking to increase throughput while maintaining superior surface finish and accuracy.
Laguna 37×2 Double Drum Sander SUPMX-937003 Specifications
| Maximum Sanding Width | 37" |
|---|---|
| Minimum Sanding Length | 3-1/2" |
| Maximum Sanding Thickness | 12" |
| Minimum Sanding Thickness | 1/32" |

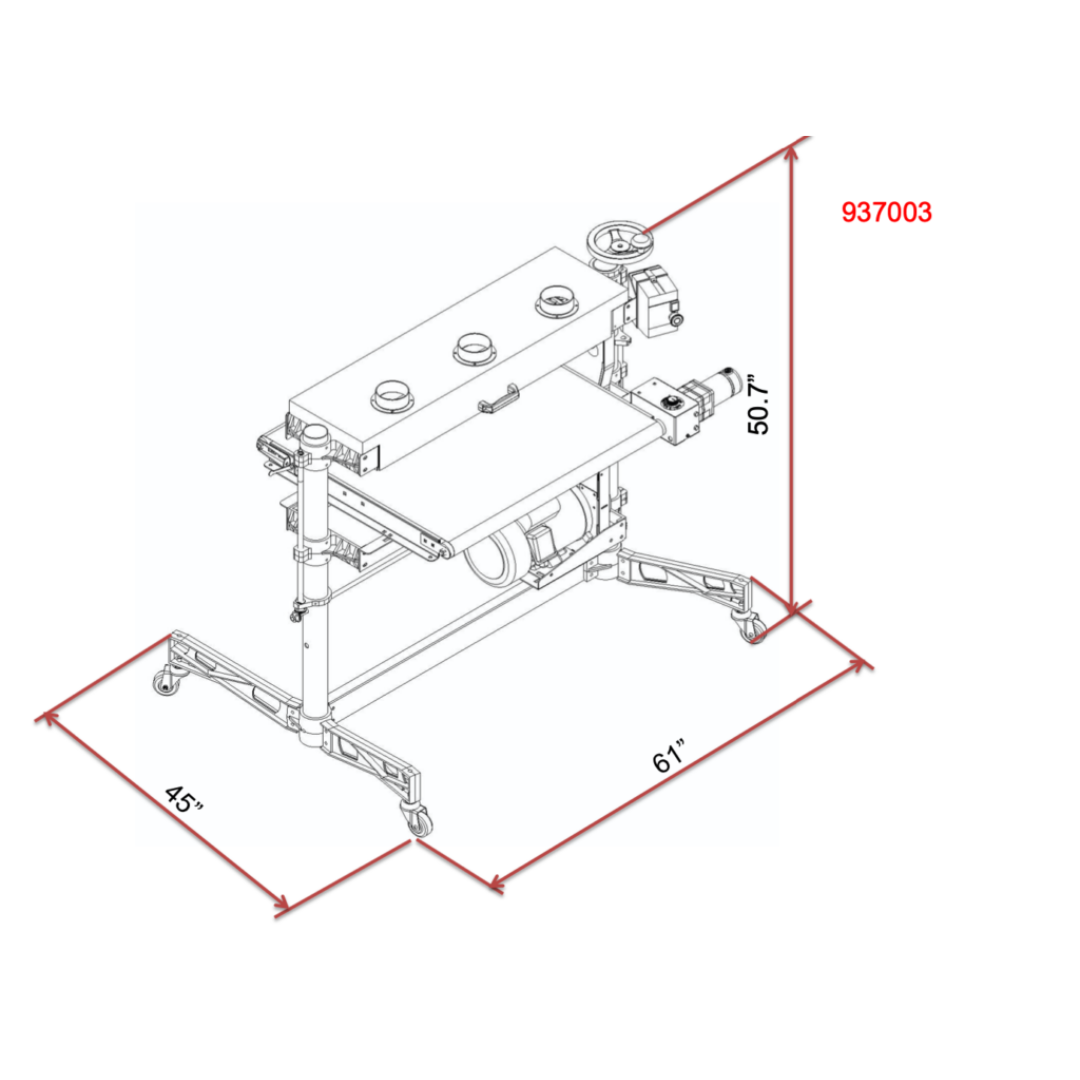

| Machine Dimensions (H × W × D) | 43" × 58" × 31" |
| Drum Size | (2) 5" × 37" Extruded Aluminum |
| Drum Speed | 1740 RPM |
| Dust Hood | Steel Hood, Hinged; (3) × 4" Ports |
| Dust Collection Requirement | 1200 CFM Minimum Recommended |
| Ball Bearings | 4 Sealed, Permanently Lubricated (1") |
| Conveyor Motor | 254 in-lb Torque, Direct Drive D.C., Variable 0–15 FPM |
| Drive Motor (TEFC) | 5 HP |
| Power Requirements | 208–230V, 60Hz, 1 Phase, 30 Amp |
| Shipping Dimensions | 62" × 52" × 45" |
| Casters Included | Yes |
| Cord & Plug Included | No |
Laguna 37×2 Double Drum Sander SUPMX-937003 Performance & Construction

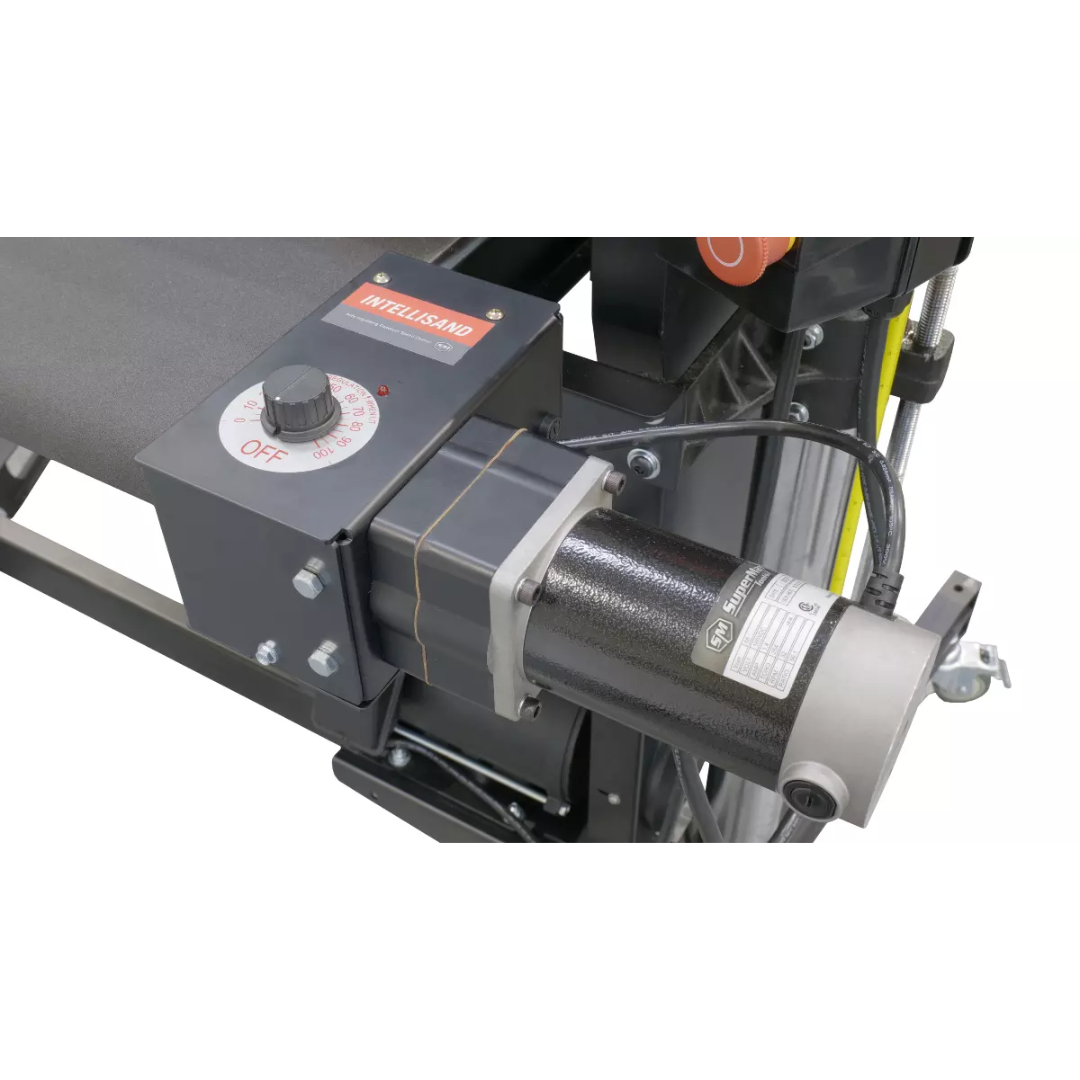

- INTELLISAND® Technology automatically adjusts conveyor speed based on load for optimal sanding performance.

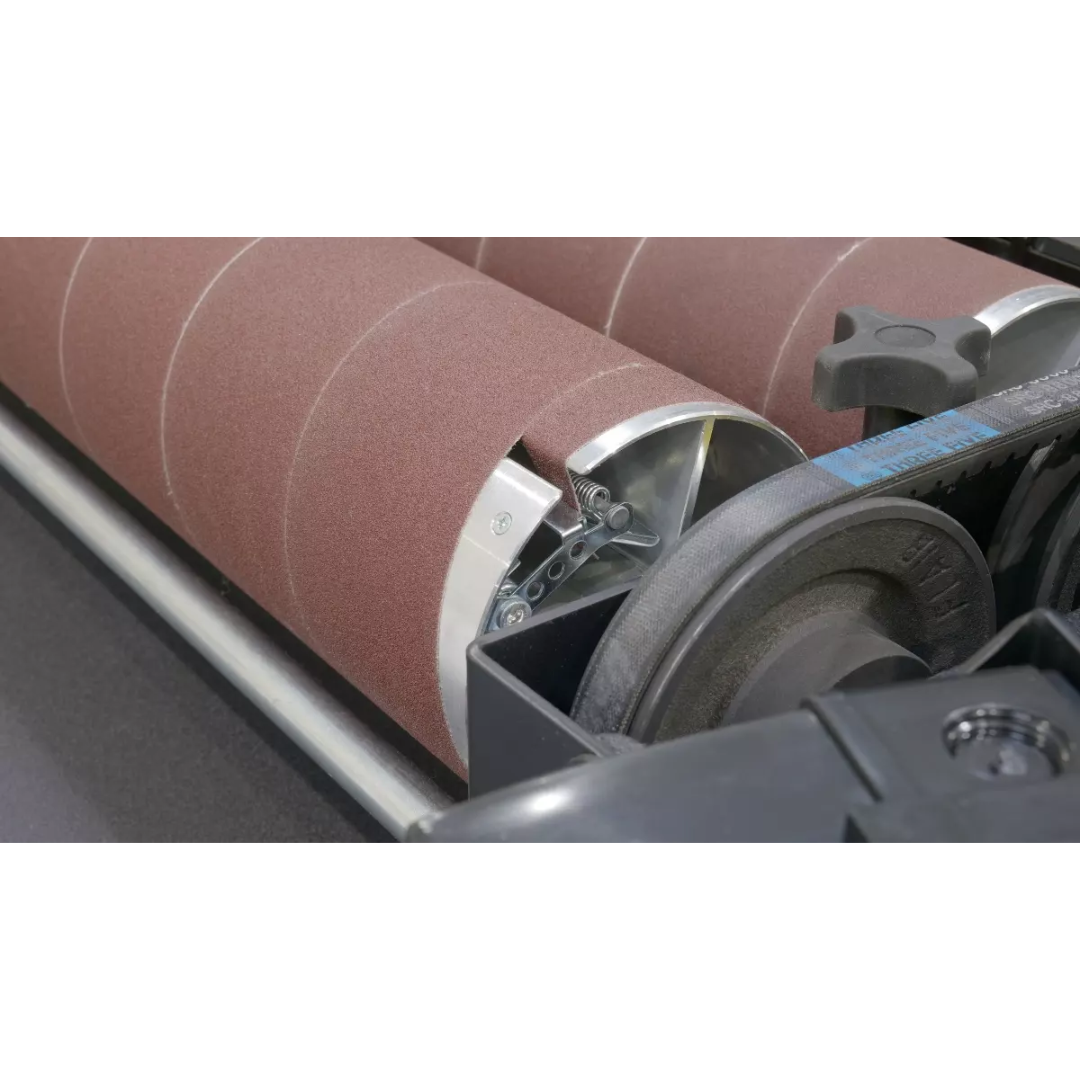

- Dual Drum Configuration enables two grit sequences in one pass for faster processing and superior finishes.
- Burn and Gouge Prevention protects both stock and machine while maintaining consistent results.
- Flatness Guarantee precision-flattened steel conveyor bed reinforced with four steel cross sections ensures less than .010" variance.

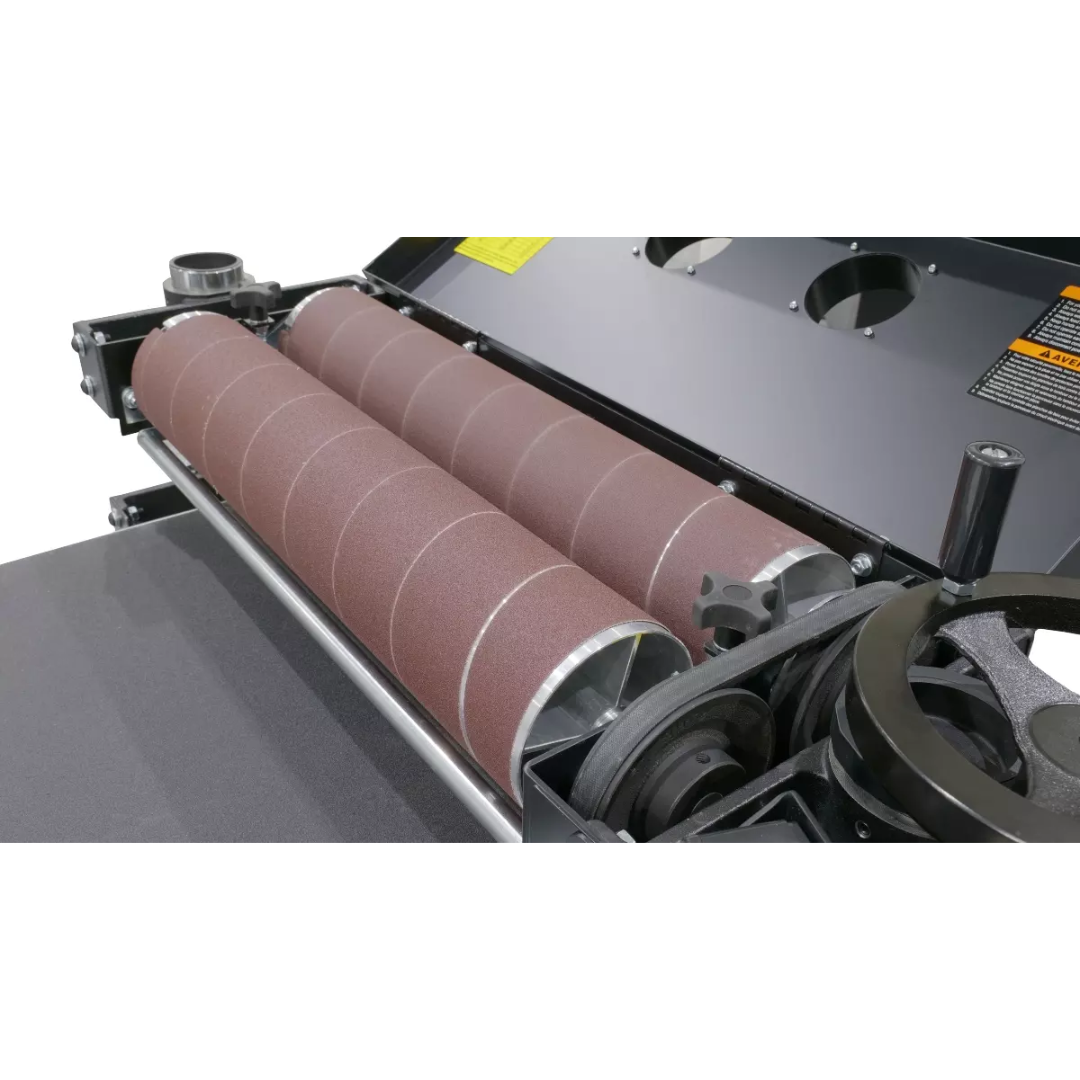

- Abrasive Conveyor Belt provides superior grip for handling thin and short materials with accuracy.
- Patented Abrasive Attachment System maintains proper tension and simplifies abrasive changes without special tools.
- Self-Cooling Drums reduce heat buildup, extending abrasive life and preventing distortion.
- Adjustable Tension Rollers minimize snipe and ensure consistent feeding of material.
- Optimized Dust Extraction metal dust hood design maximizes airflow for efficient dust removal.

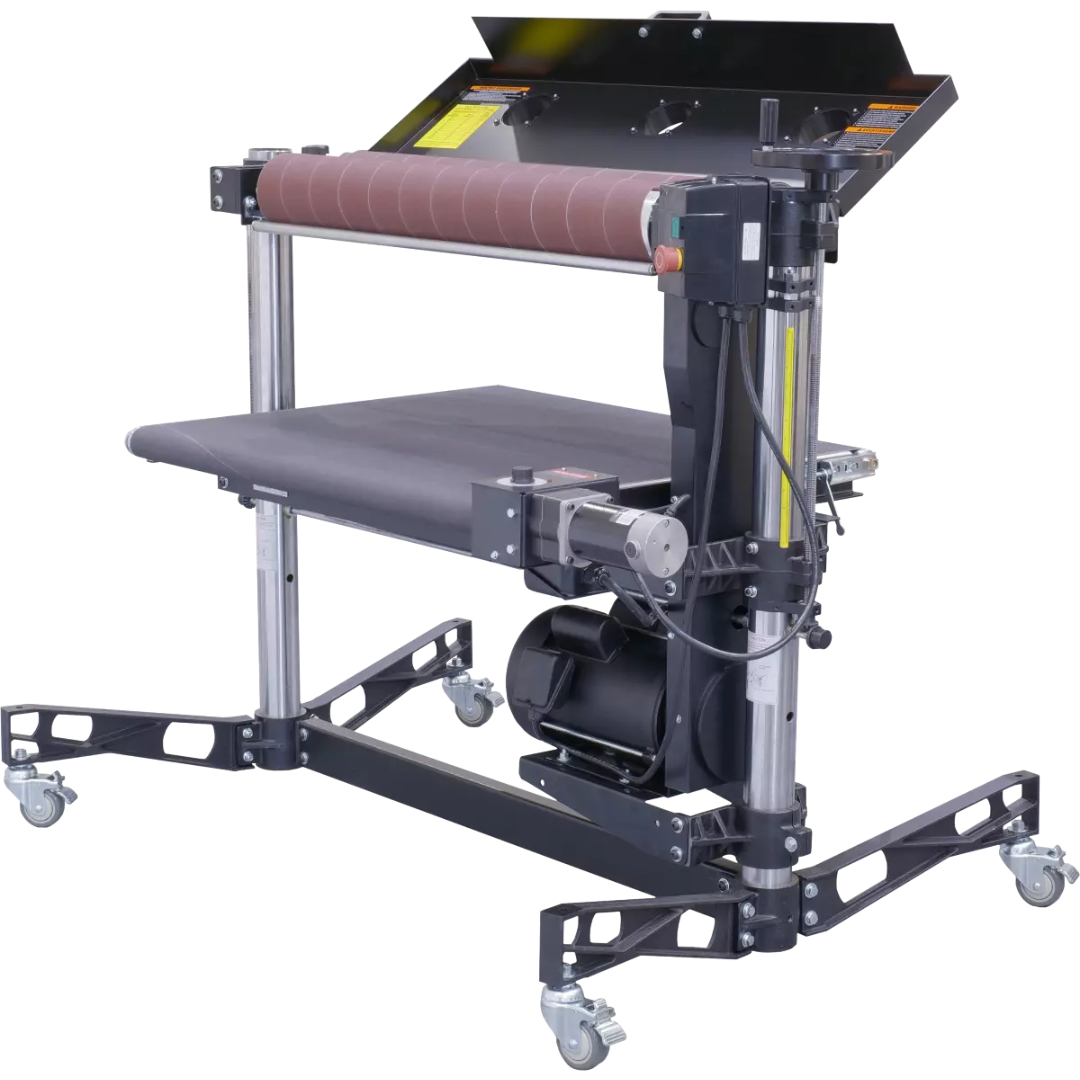

- Heavy-Duty Construction engineered for strength, rigidity, and reduced vibration in demanding environments.
- Mobile Base with Casters allows easy repositioning within the shop.
Why Choose the Laguna 37×2 Double Drum Sander SUPMX-937003
- Sand two grits in one pass to dramatically increase productivity.
- 37" capacity handles large panels and wide stock with ease.
- INTELLISAND® system ensures consistent, high-quality finishes.
- 5 HP motor delivers reliable power for demanding applications.
- Built for professional shops requiring speed, precision, and durability.
The Laguna 37×2 Double Drum Sander SUPMX-937003 is a production-grade sanding solution that combines power, precision, and efficiency—making it an essential machine for high-output woodworking operations.
