Laguna 25-50 Sander w/ Open Stand SUPMX-72550-OP Applications
- Wide panel sanding for cabinet and furniture components
- Thickness sanding and abrasive planing for hardwood and softwood stock
- Finish sanding for production and custom woodworking projects
- Processing short, thin, and oversized materials with stable feed control
- Professional shops requiring high-capacity sanding in a compact footprint
Ideal for woodworkers who need large-capacity sanding with repeatable precision and reduced manual finishing time.
Laguna 25-50 Sander w/ Open Stand SUPMX-72550-OP Specifications
| Maximum Sanding Width | 50" (Two Passes) / 25" (Single Pass) |
|---|---|
| Minimum Sanding Length | 2-1/4" |
| Maximum Sanding Thickness | 4" |
| Minimum Sanding Thickness | 1/32" |
| Drum Size | 5" x 25" Extruded Aluminum |
| Drum Speed | 1740 RPM |
| Dust Hood | 1 × 4" Vacuum Port (Min. 600 CFM Recommended) |
| Conveyor Motor | 43 in-lb Torque, Direct Drive D.C., Variable 0–10 FPM |

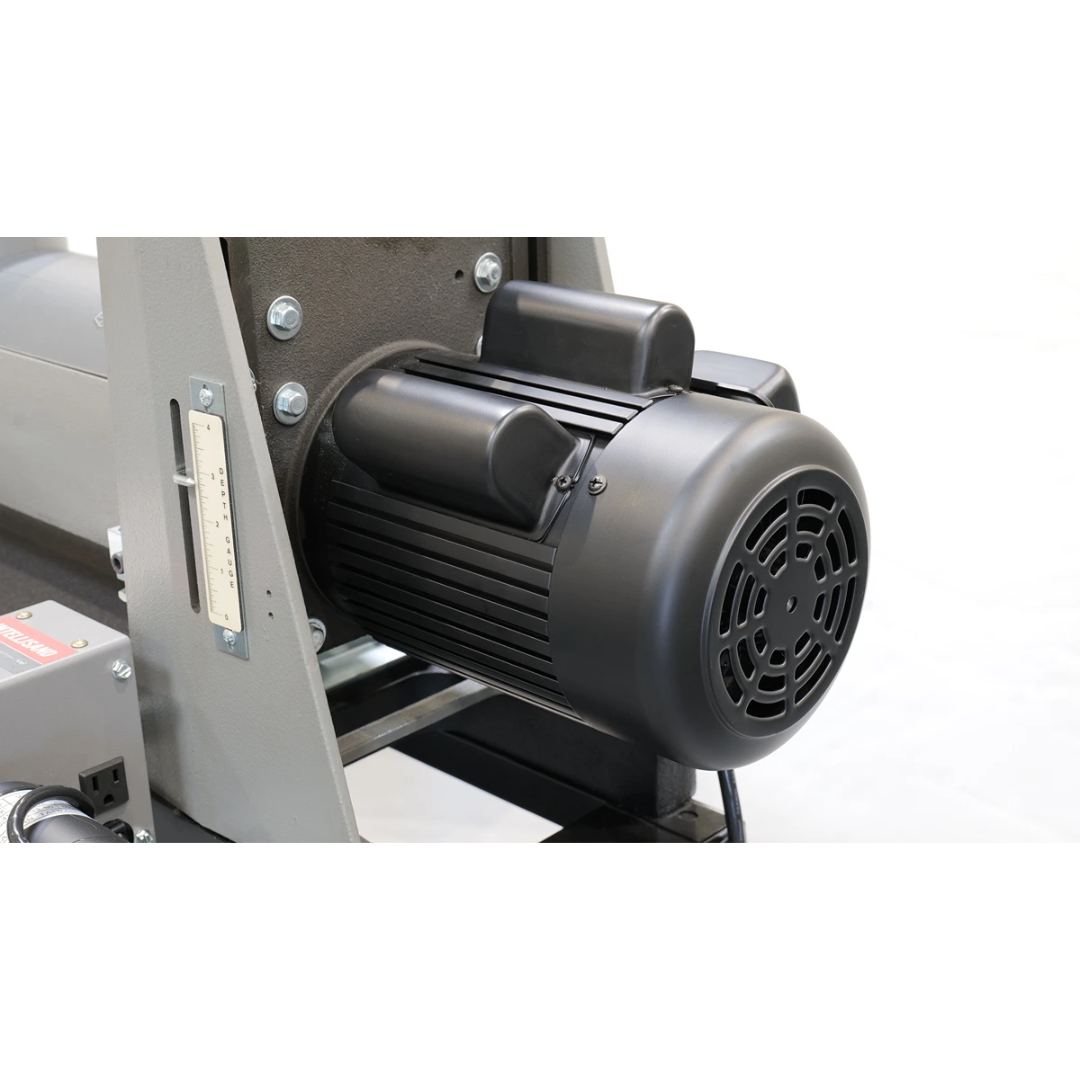

| Drive Motor (TEFC) | 1-3/4 HP |
| Power Requirements | 110V, 20 Amp |

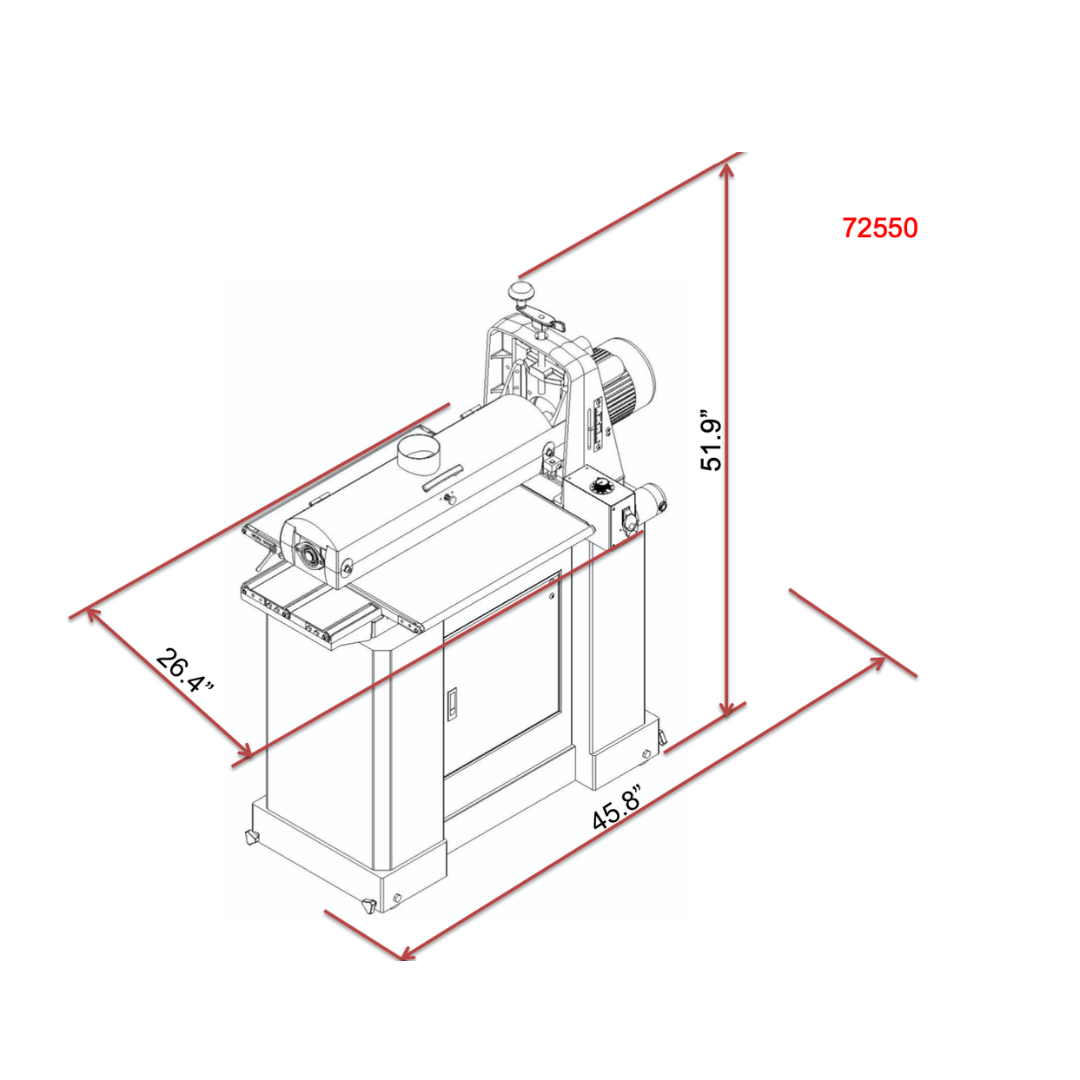

| Dimensions (D × W × H) | 27" × 46" × 53" (On Stand) |
| Table Height (Floor to Table) | 33" |
| Shipping Weight | 369 lbs (3 boxes including stand) |
| Shipping Dimensions (L × W × H) | 45" × 16" × 24" |
| NEMA Plug | 5-15P |
Laguna 25-50 Sander w/ Open Stand SUPMX-72550-OP Performance & Construction

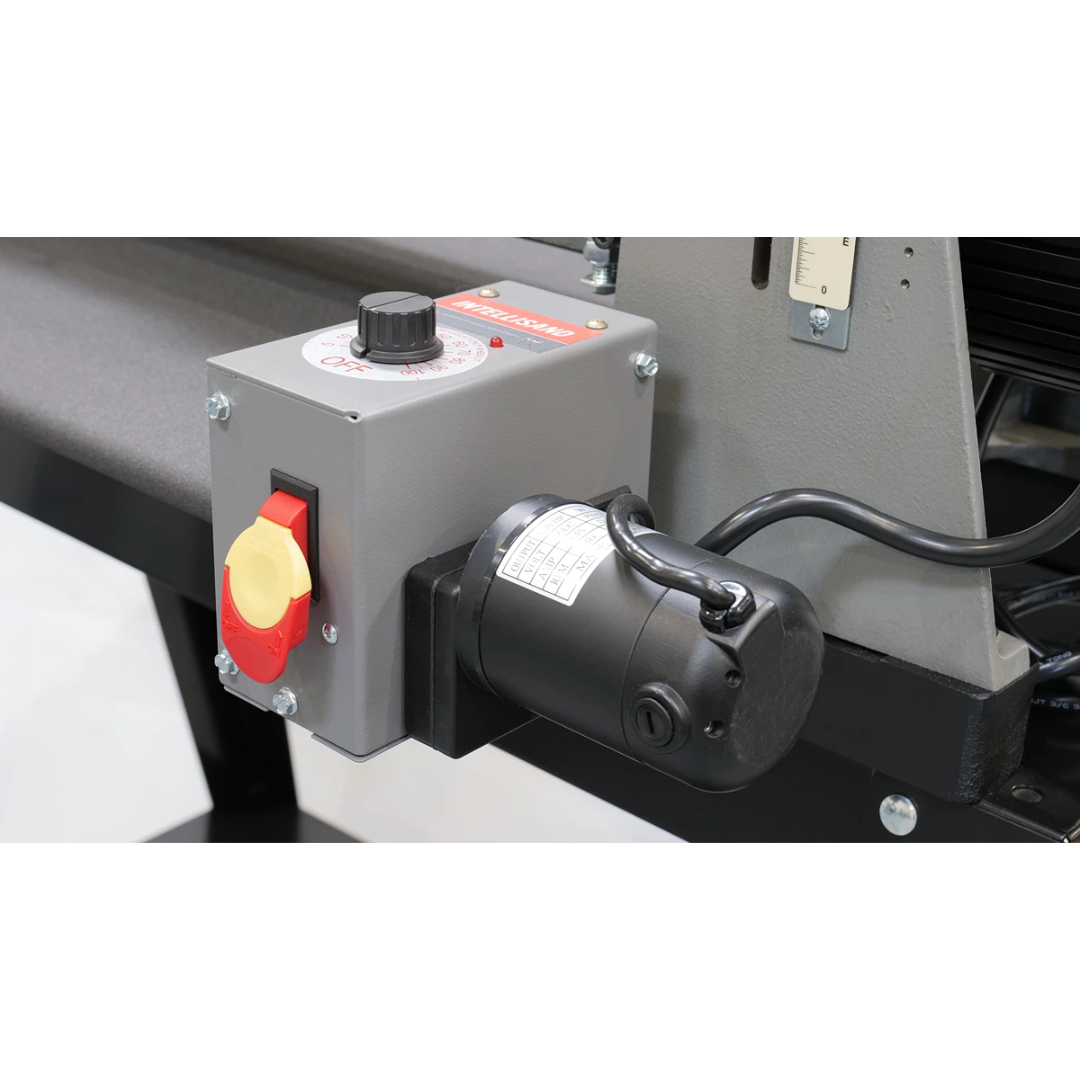

- INTELLISAND® Technology automatically adjusts conveyor speed based on load to prevent burning, gouging, and stock damage.

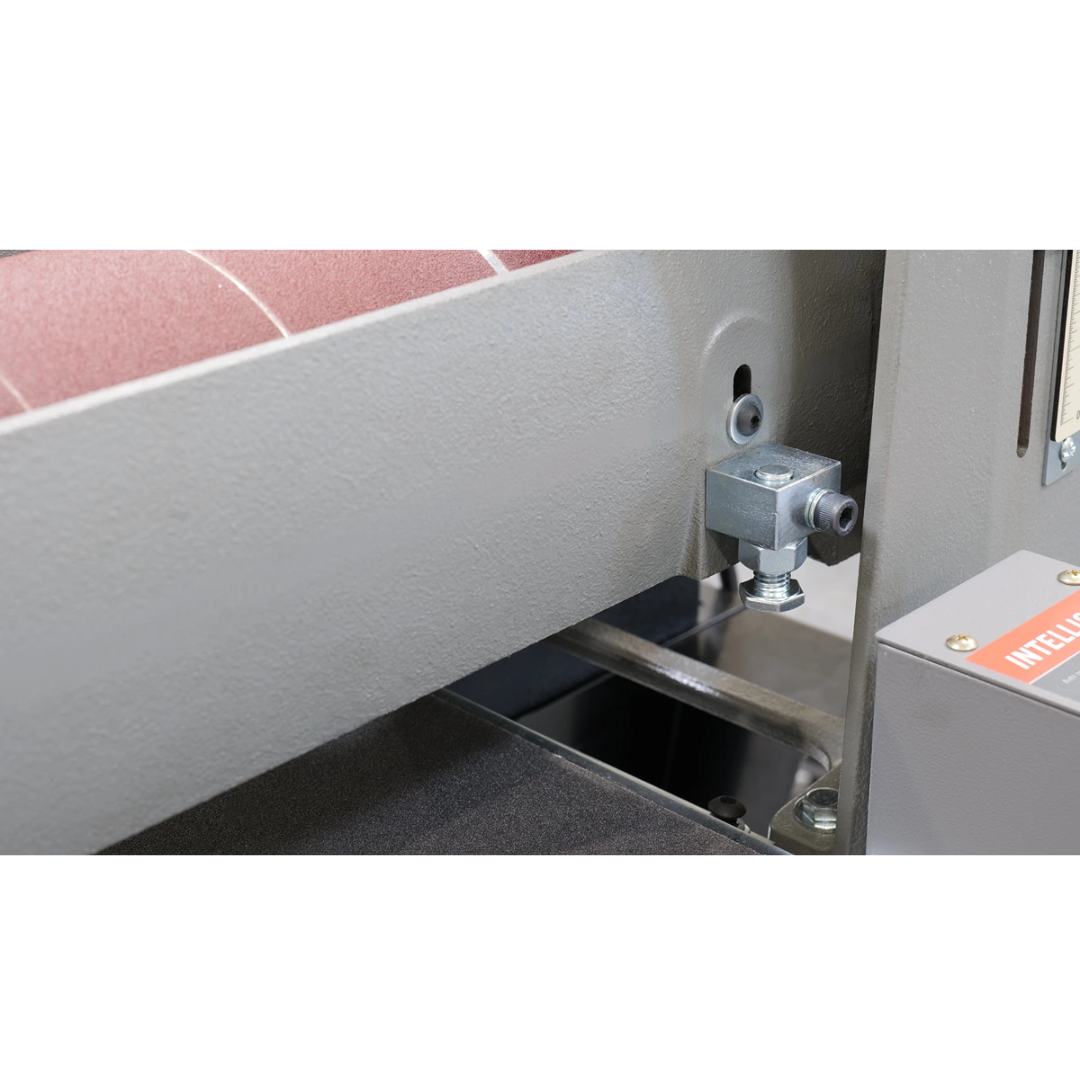

- Simple Alignment Feature uses a single nut adjustment to quickly align the conveyor parallel to the sanding head.
- Indexed Alignment Setting ensures proper conveyor position when sanding stock wider than 25" for flawless wide-panel results.

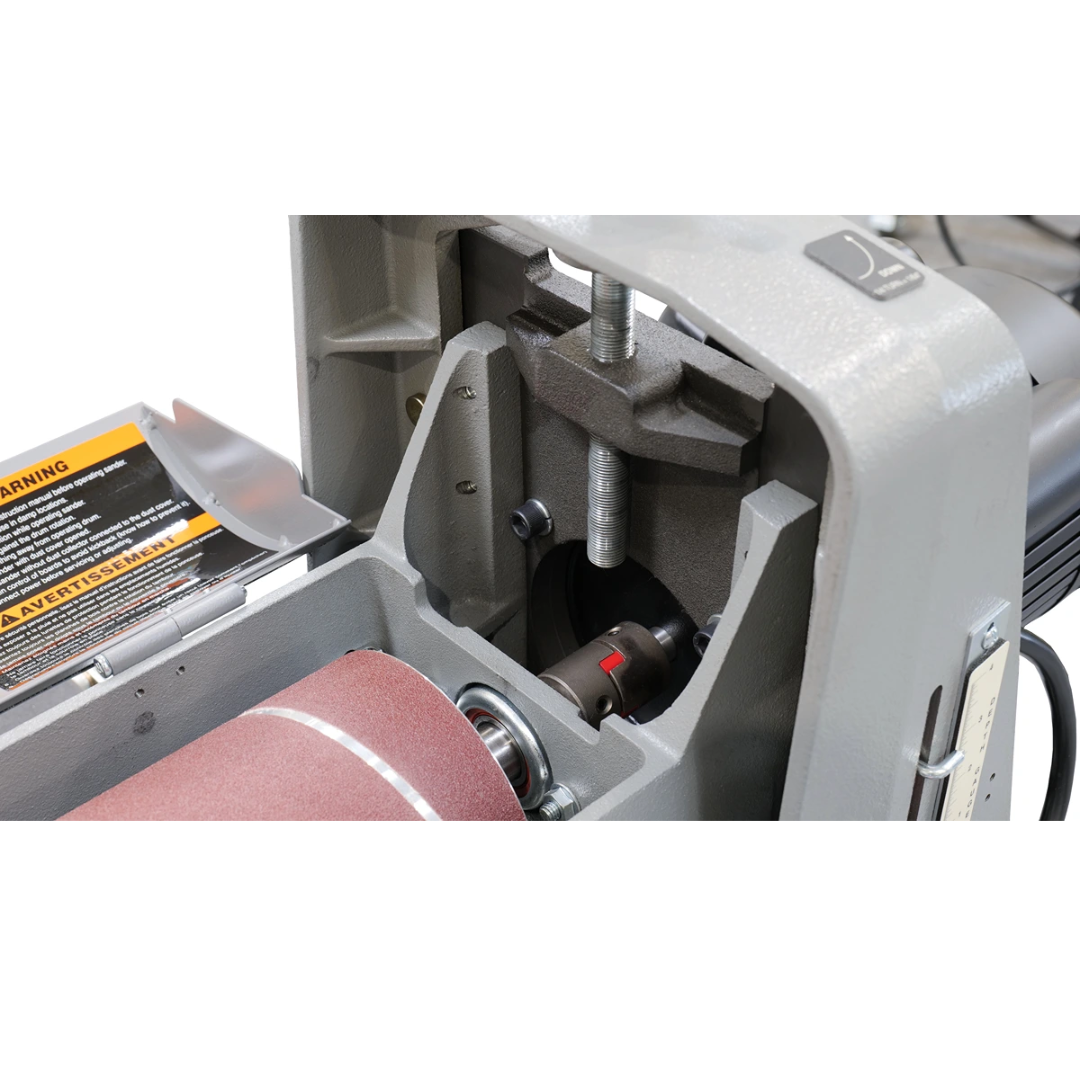

- Drum Will Never Go Out of Alignment because the drum carriage is bolted directly to the base to eliminate movement.
- Patented Abrasive Attachment System maintains abrasive tension to prevent overlap and loose wraps, with no special tools required.
- Extra Access to Abrasive Fastening gives users the easiest abrasive changes in the category with wide-open access points.

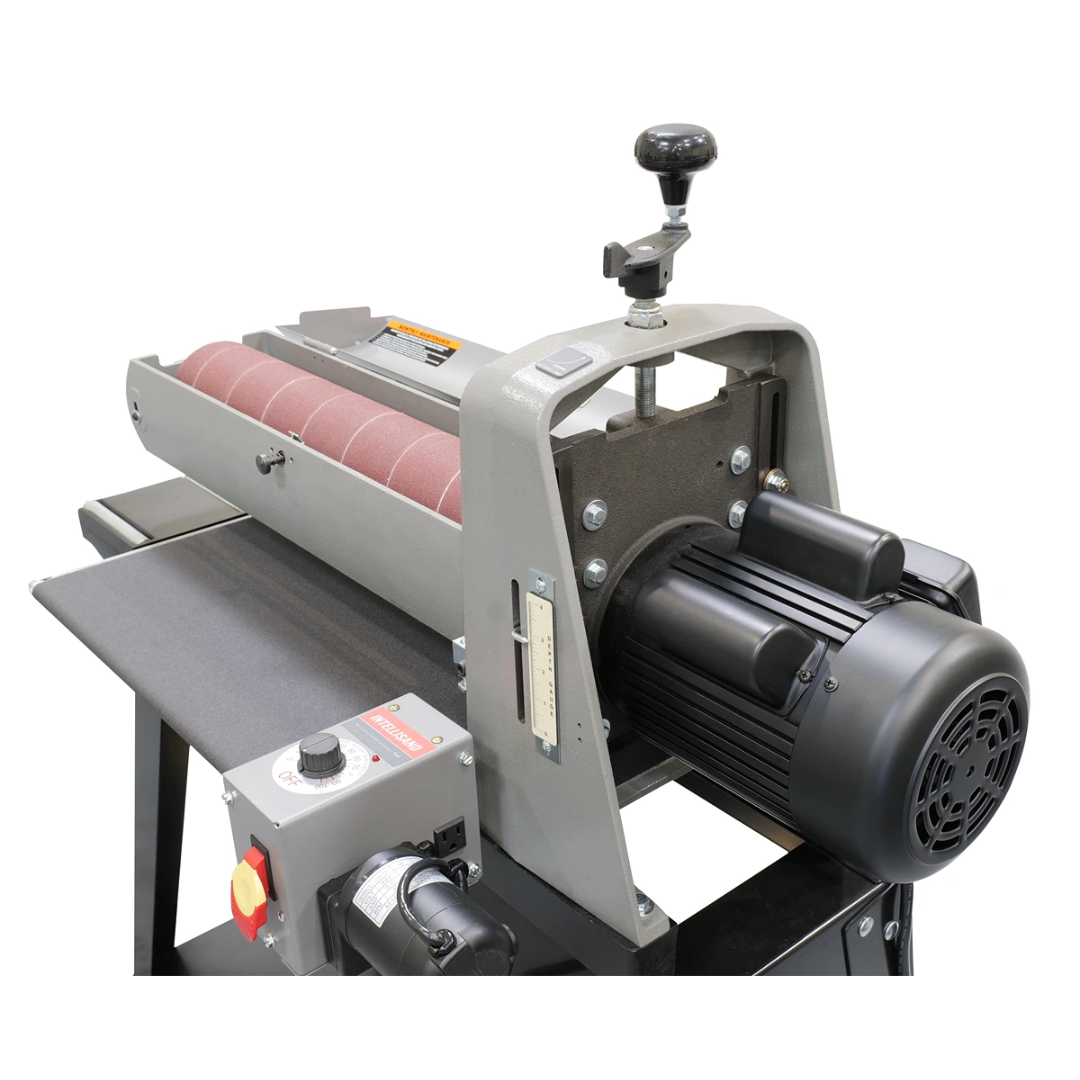

- Self-Cooling Drum dissipates heat to reduce burning and extend abrasive life while preventing drum distortion.
- Abrasive Conveyor Belt provides superior grip on raw wood and supports short and thin stock with higher precision.
- Adjustable Tension Rollers eliminate snipe by maintaining proper hold-down pressure and feed consistency.
- Excellent Dust Extraction is achieved with a formed metal dust hood designed to maximize airflow and dust removal.
- Heavy-Duty Cast Iron Construction increases rigidity, reduces vibration, and improves long-term durability.
- Flatness Guarantee precision-flattened steel conveyor bed with four steel cross sections ensures less than .010" variance across the width.
- Mobile Base Included allows the stand and machine to be moved easily around the shop for flexible workflow.
Why Choose the Laguna 25-50 Sander w/ Open Stand SUPMX-72550-OP
- Largest open-ended sanding capacity available for wide stock and panels.
- Advanced INTELLISAND® control protects stock and improves finish consistency.
- Fast, tool-free abrasive changes and simple alignment reduce setup time.
- Heavy-duty cast iron and steel design delivers smooth, low-vibration operation.

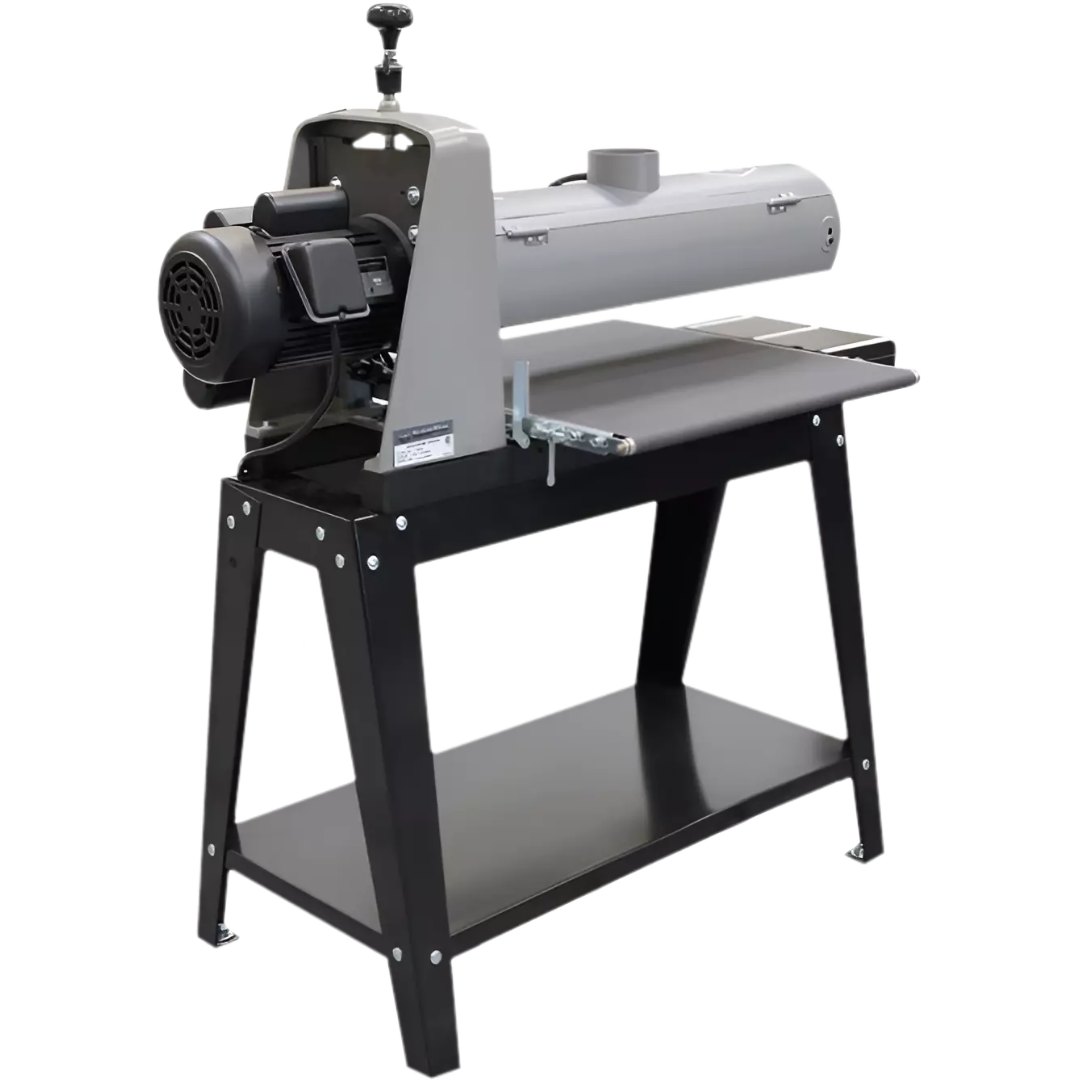

- Mobile open stand improves portability without sacrificing stability.

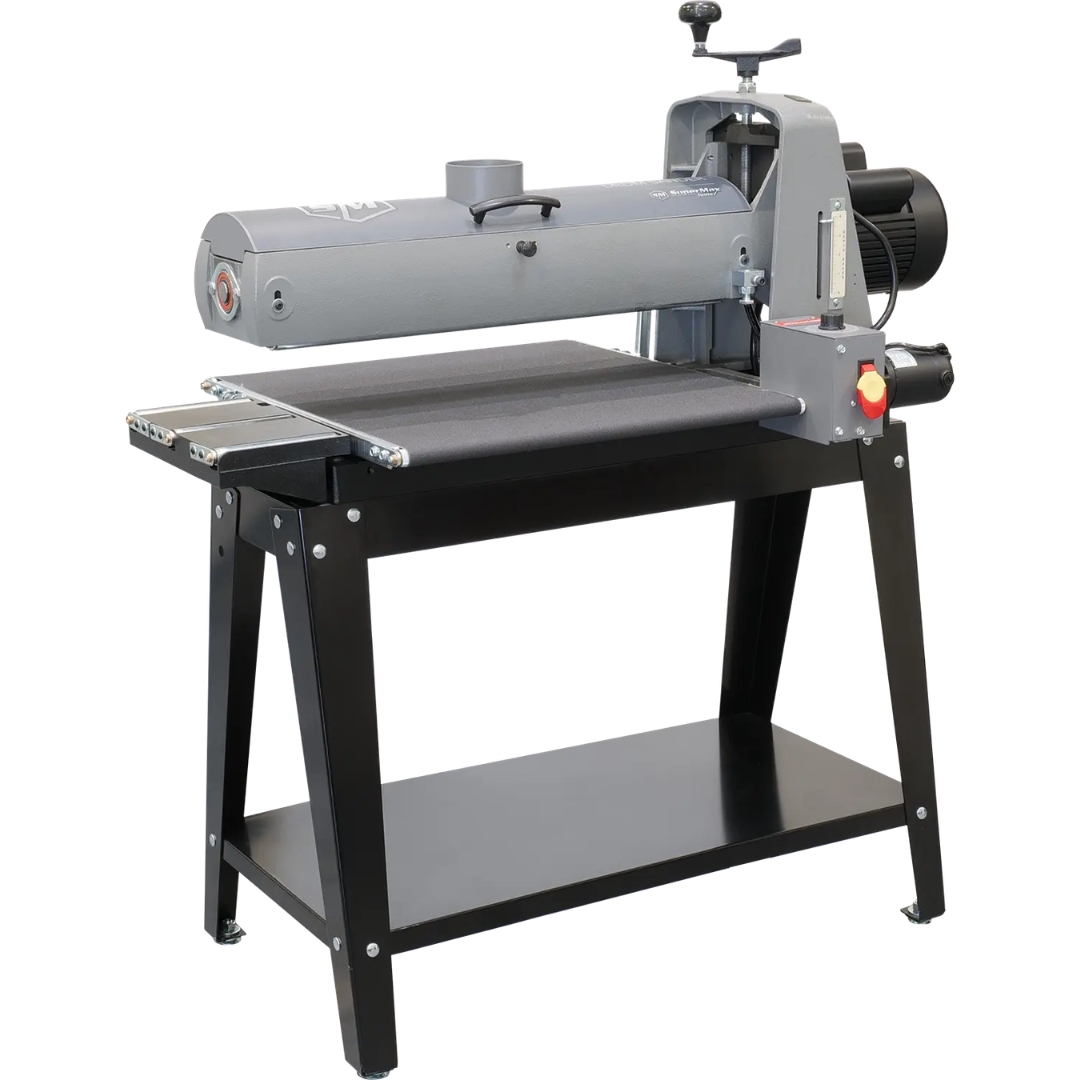

The Laguna 25-50 Sander w/ Open Stand SUPMX-72550-OP is a high-capacity, precision-engineered drum sander built to increase throughput, improve finish quality, and handle demanding sanding applications with confidence.
