Laguna 25×2 Double Drum Sander SUPMX-913002 Applications
- Two-stage sanding in a single pass using coarse and fine grits
- Dimensioning and finish sanding for hardwood, softwood, and composite panels
- Production sanding for cabinet shops, furniture builders, and millwork operations
- Processing short, thin, and wide stock with stable feed and reduced snipe
- High-throughput sanding where speed and finish consistency are critical
Ideal for shops that need faster throughput and better finish quality by combining stock removal and finish sanding in one pass.
Laguna 25×2 Double Drum Sander SUPMX-913002 Specifications
| Maximum Sanding Width | 25" |
|---|---|
| Minimum Sanding Length | 3-1/2" |
| Maximum Sanding Thickness | 6" |
| Minimum Sanding Thickness | 1/32" |

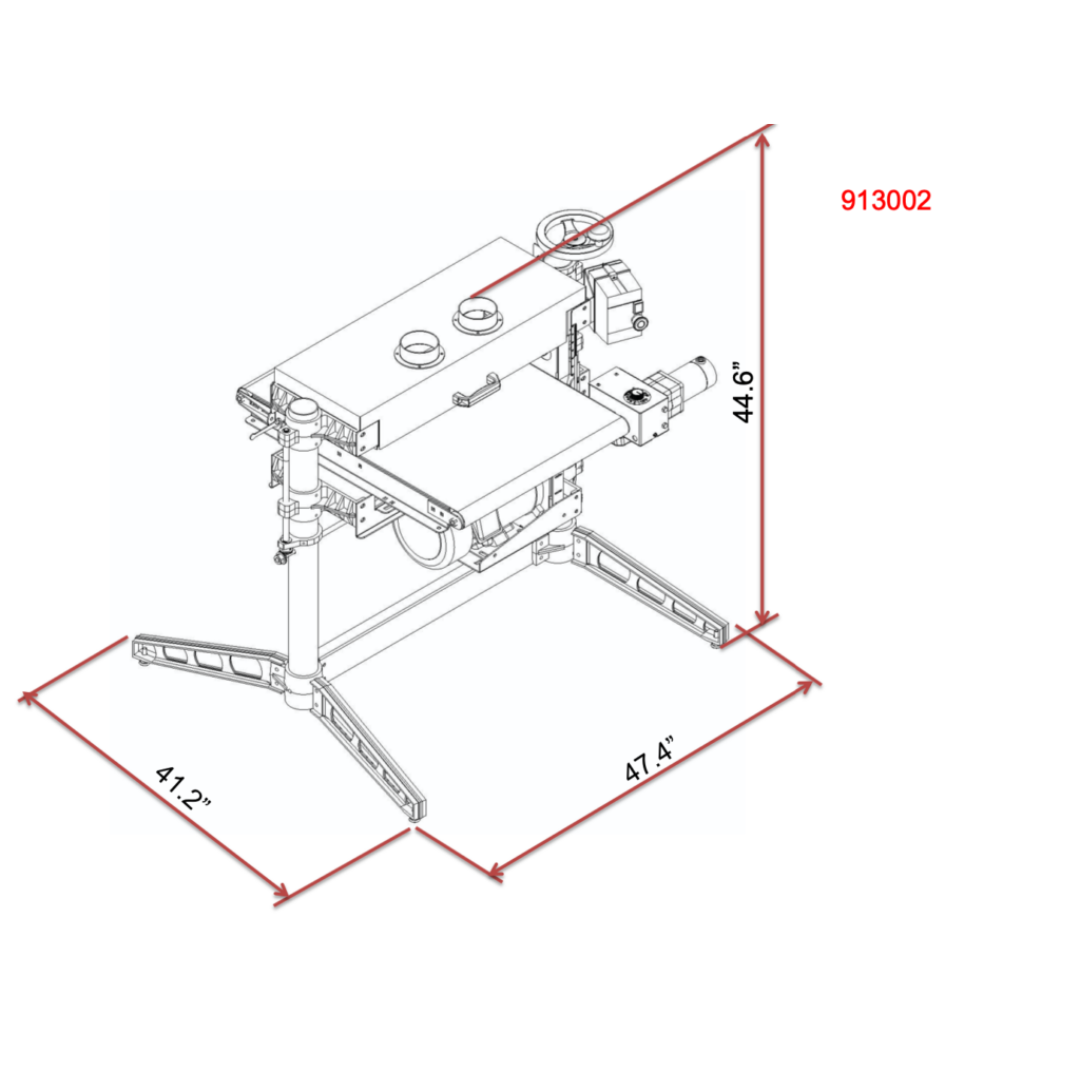

| Machine Dimensions (H × W × D) | 43" × 46" × 31" |
| Drum Size | (2) 5" × 25" Extruded Aluminum |
| Drum Speed | 1740 RPM |
| Dust Hood | Steel Hood, Hinged at Back; (2) 4" Vacuum Ports |
| Dust Collection Requirement | Minimum 1000 CFM Recommended |
| Ball Bearings | 4 Sealed, Permanently Lubricated (1") |
| Conveyor Motor | 100 in-lb Torque, Direct Drive D.C., Variable 0–15 FPM |
| Drive Motor (TEFC) | 5 HP, 1 Phase |
| Power Requirements | 208–230V, 60Hz; 1 Phase, 30 Amp Service / 3 Phase, 20 Amp Service |
| Shipping Weight | 475 lbs |
| Shipping Dimensions (L × W × H) | 50" × 44-1/2" × 44-1/2" |
| Casters Included | No |
| Cord & Plug Included | No |
Laguna 25×2 Double Drum Sander SUPMX-913002 Performance & Construction

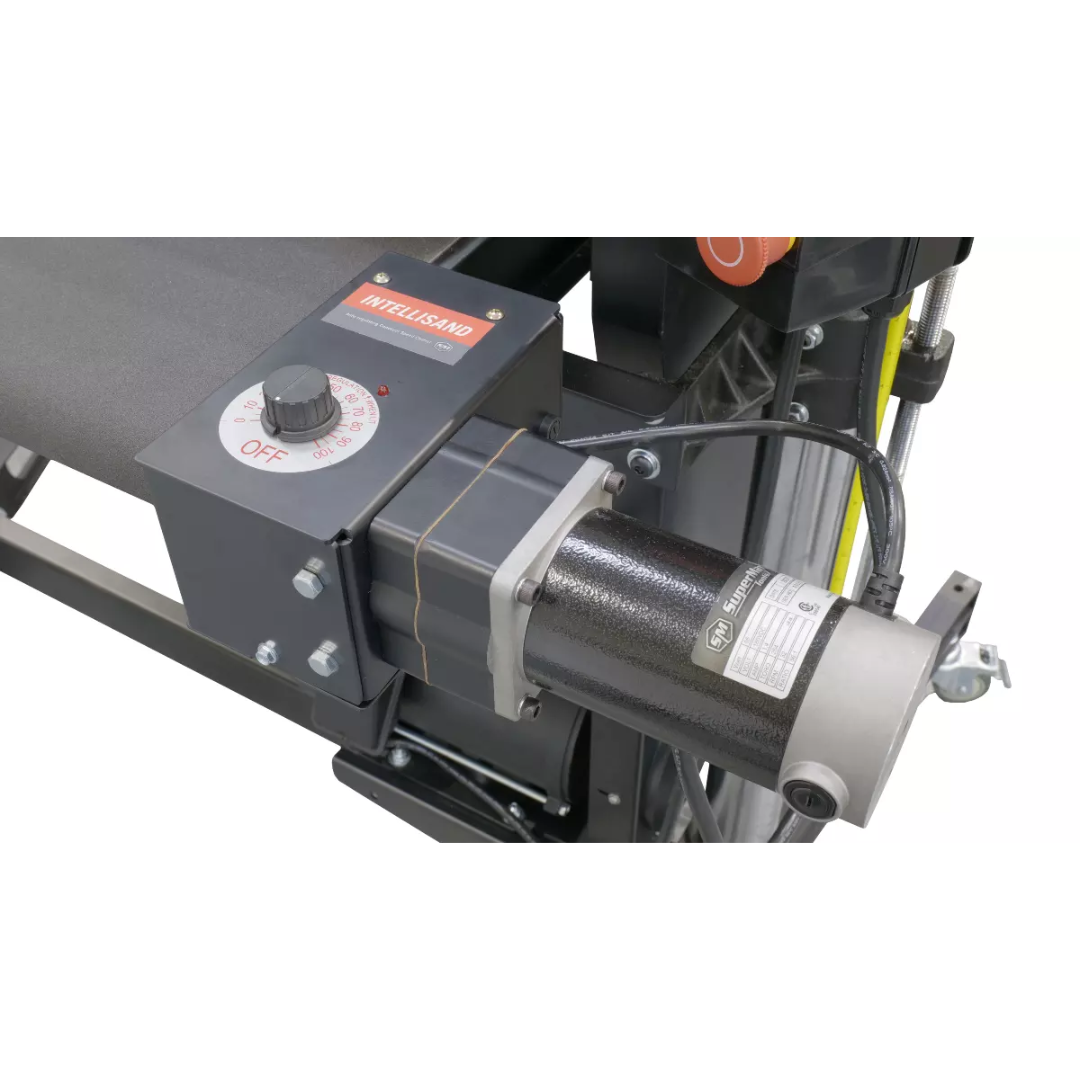

- INTELLISAND® Technology automatically adjusts conveyor speed based on load for safer, more consistent sanding.
- Burn and Gouge Prevention protects stock surfaces and reduces the risk of overloading the machine.

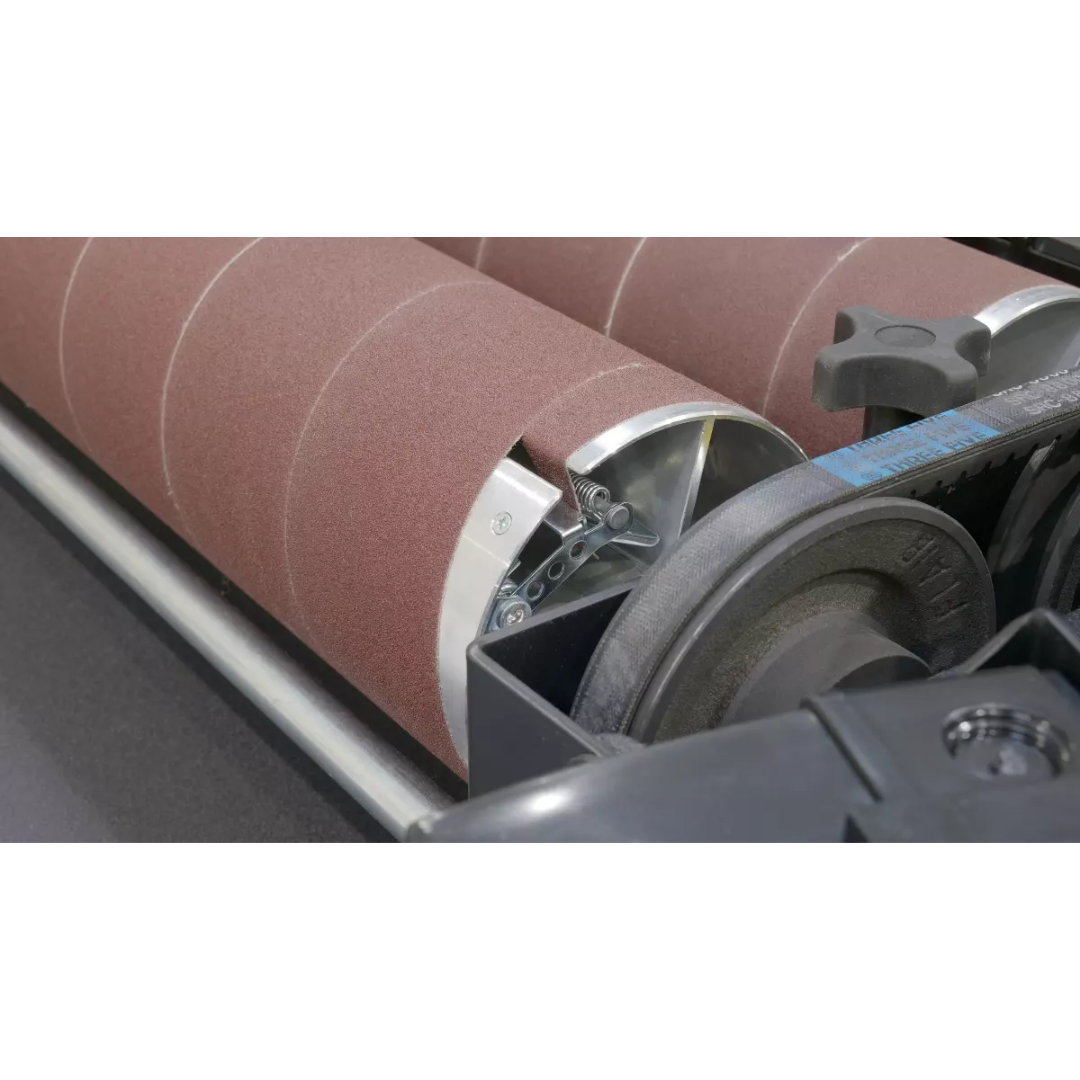

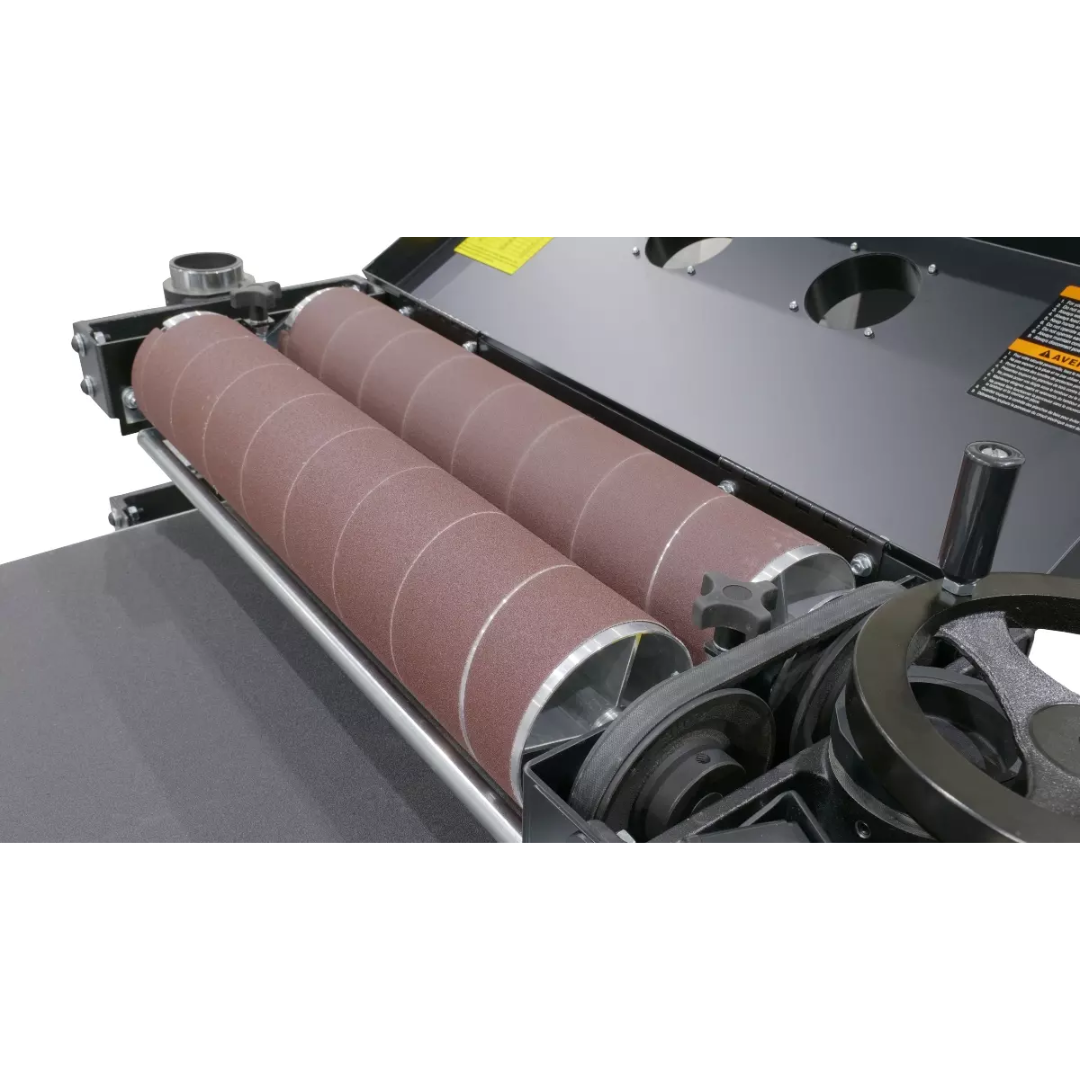

- Dual Drum Sanding allows two grits to run in sequence for faster abrasive planing and finishing.
- Flatness Guarantee precision-flattened steel conveyor bed reinforced with four steel cross sections ensures less than .010" variance across the sanding width.
- Abrasive Conveyor Belt provides superior grip on raw wood and supports shorter and thinner stock with improved control.
- Patented Abrasive Attachment System tensions wraps to prevent loosening and overlap while simplifying abrasive changes.
- Extra-Wide Abrasive Access provides easy access to fastening points without special tools.
- Self-Cooling Drums dissipate heat to extend abrasive life and prevent overheating.
- Adjustable Tension Rollers fine-tune pressure and contact to reduce snipe and maintain feed consistency.
- Excellent Dust Extraction formed metal dust hood design maximizes airflow and dust removal efficiency.
- Heavy-Duty Cast Iron Construction improves rigidity, reduces vibration, and supports long service life.

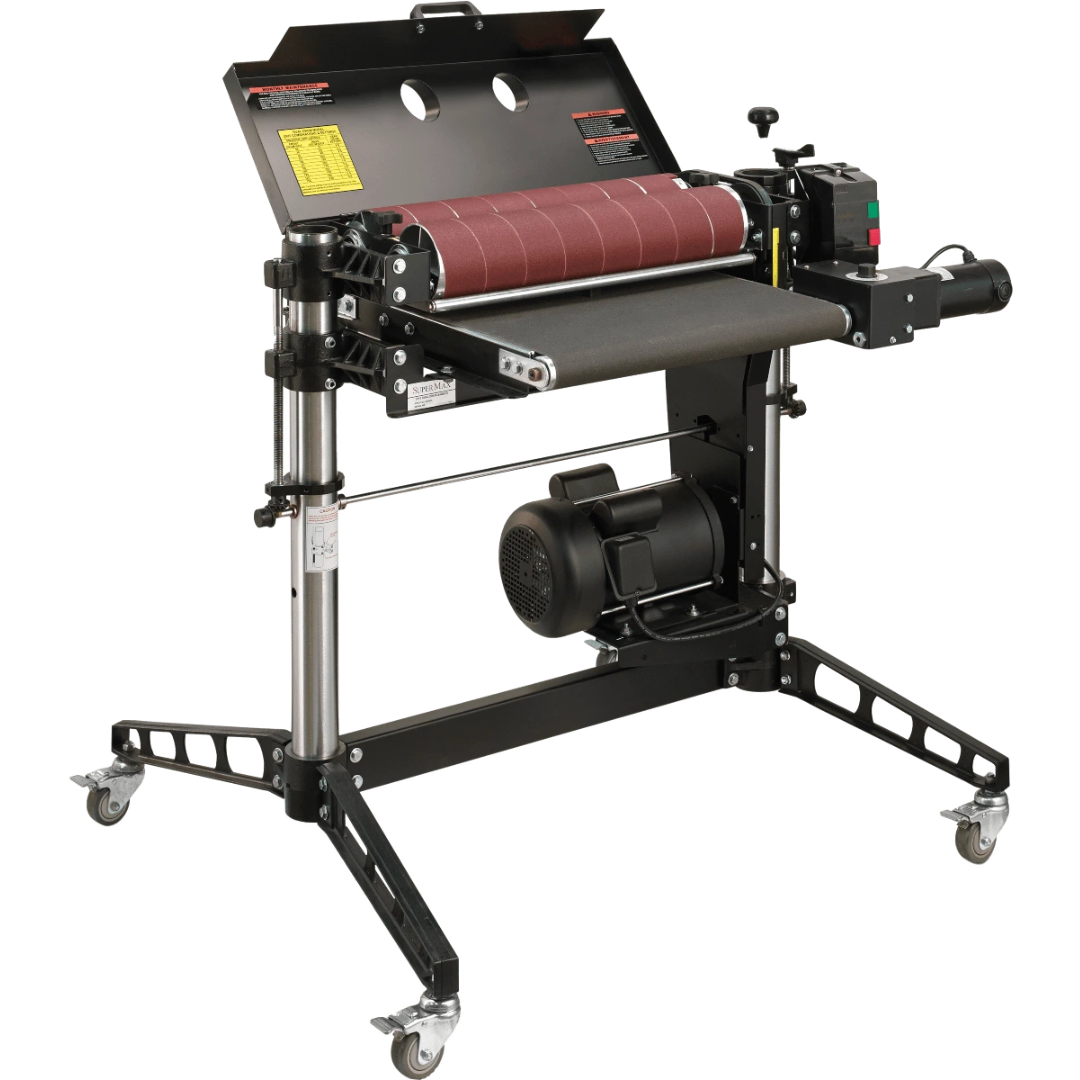

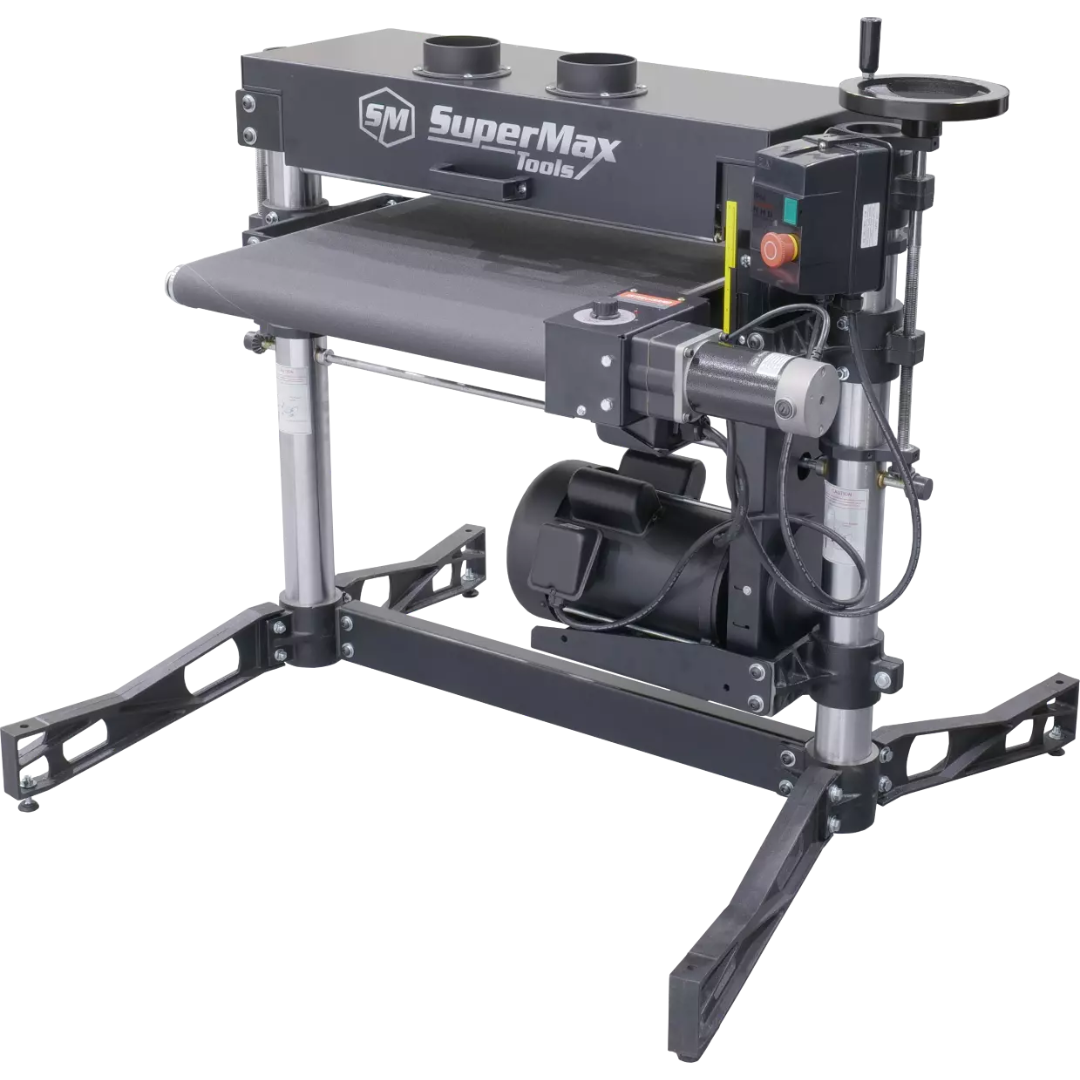

- Open-Column Base provides stable support and accessibility for maintenance and operation.
Why Choose the Laguna 25×2 Double Drum Sander SUPMX-913002
- Sand two grits in one pass to significantly reduce finishing time.
- INTELLISAND® control improves consistency and protects both stock and machine.
- Heavy-duty 5 HP motor delivers reliable power for demanding workloads.
- Precision conveyor flatness and dual-drum configuration produce superior surface quality.
- Built for long-term durability with cast iron construction and self-cooling drum technology.
The Laguna 25×2 Double Drum Sander SUPMX-913002 is a high-efficiency sanding solution for professional woodworkers who need faster throughput, precise control, and consistent finish quality across a wide range of materials.
