Laguna 18|CX Bandsaw MBAND18CX110175 Applications
- Heavy-duty resawing up to 16” for thick lumber and veneer production
- Professional cabinetry, furniture manufacturing, and millwork
- Precision curve cutting and intricate shaping operations
- Advanced woodworking shops requiring variable speed control
- Handling hardwoods, softwoods, and dense materials with ease
Ideal for professionals needing large capacity and variable speed performance on standard 110V power.
Laguna 18|CX Bandsaw MBAND18CX110175 Specifications
| Model | 18|CX Bandsaw MBAND18CX110175 |
|---|---|
| Motor | 1.75 HP, 110V, TEFC |
| Amperage | 14/7 Amp (Recommended 20 Amp Breaker) |
| Blade Length | 145” |
| Blade Width Range | 1/8” – 1-1/4” |
| Blade Speed Range | 100 – 290 FPM (Low) / 1200 – 3500 FPM (High) |
| Resaw Capacity | 16” |
| Throat Capacity | 18-7/32” |
| Table Size | 20” x 26” Cast Iron |
| Table Height | 38” |
| Table Tilt | -6° to 45° |
| Dust Ports | Dual 4” Ports |
| Overall Height | 77-3/4” |
| Base Dimensions | 27” x 20” |
| Overall Dimensions | 38” x 36” |
| Weight (Net / Shipping) | 480 lbs / 545 lbs |
| Shipping Dimensions | 82” x 34” x 36” |
Laguna 18|CX Bandsaw MBAND18CX110175 Performance & Construction

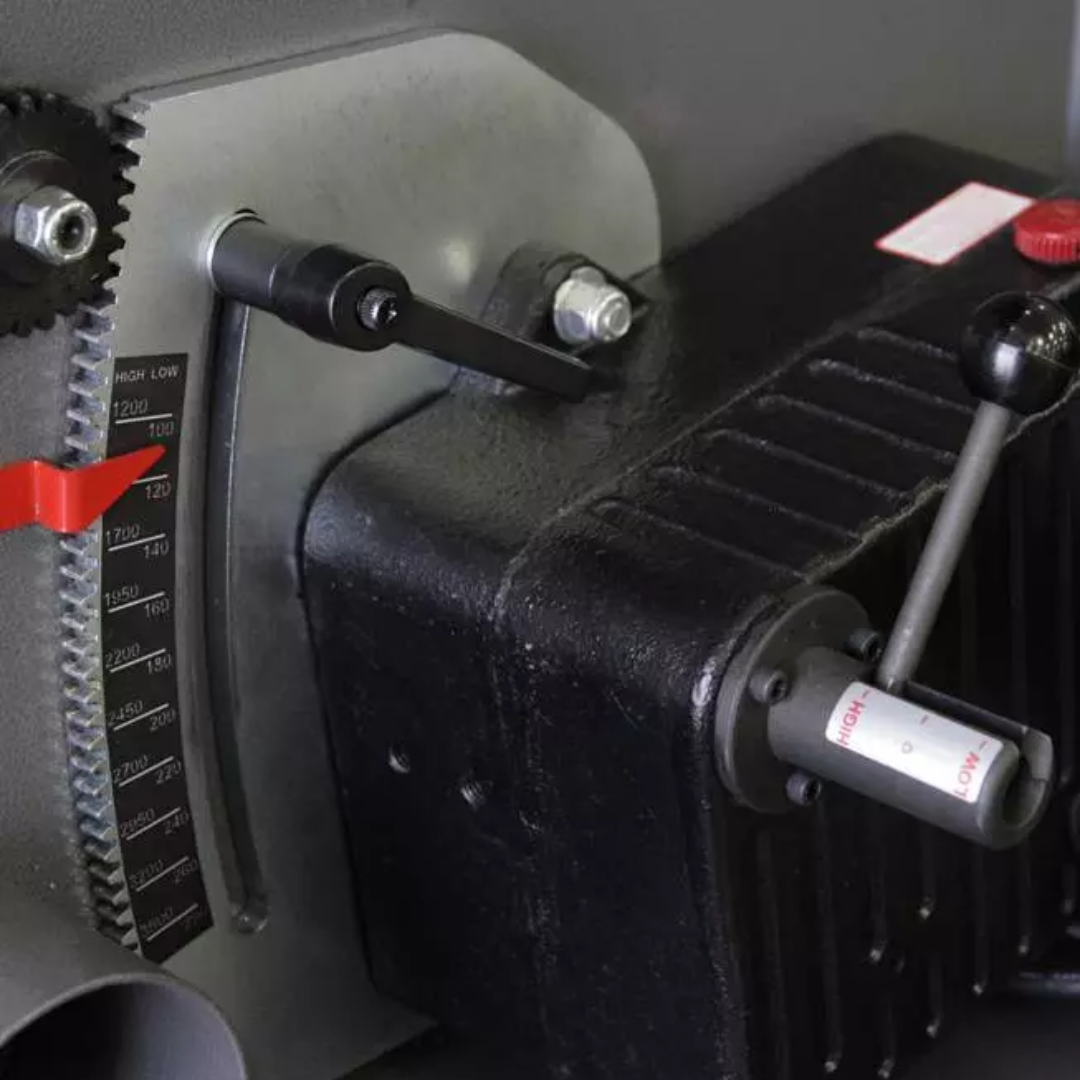

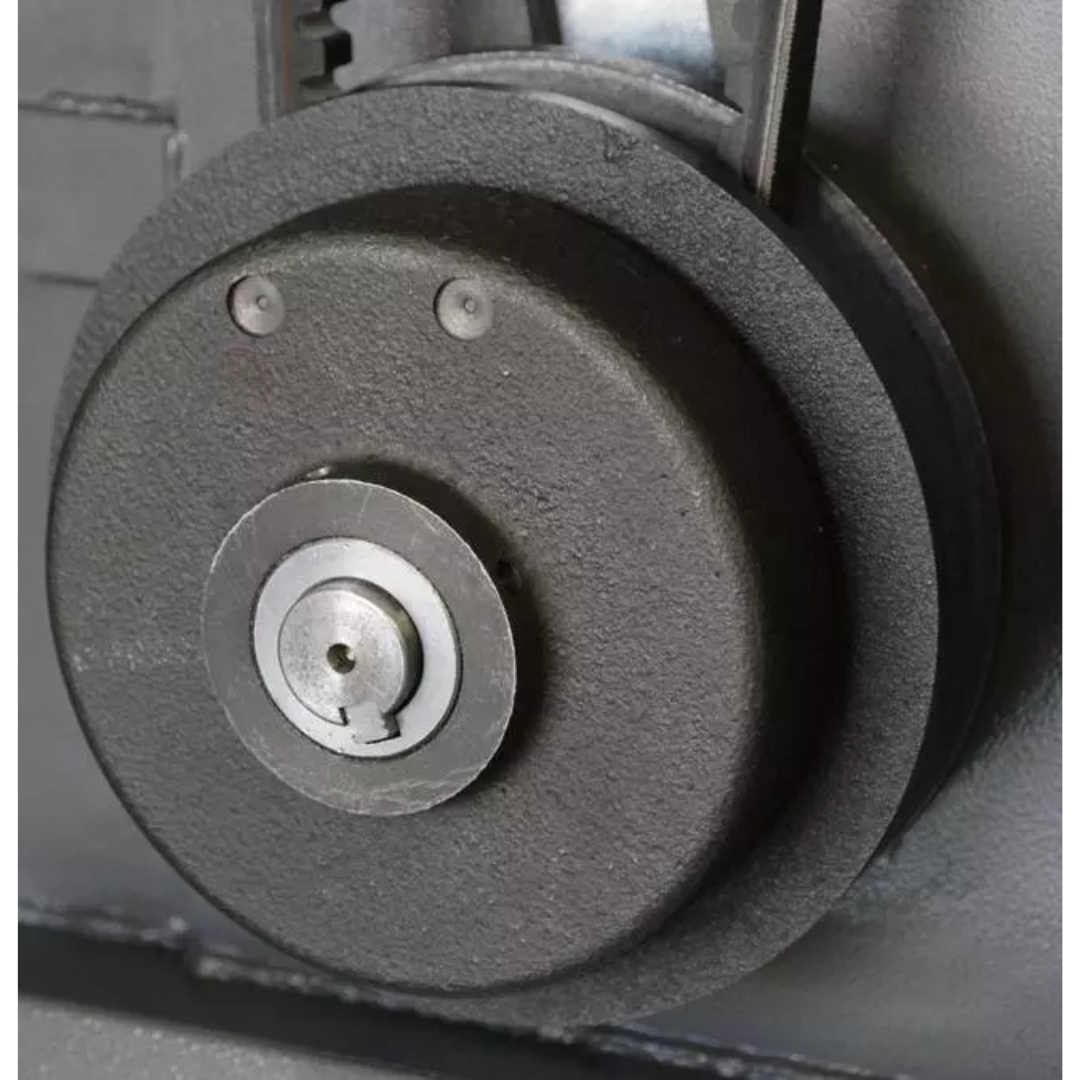

- Mechanical variable speed drive allows precise adjustment of blade speed for different materials and cutting requirements.
- Powerful 1.75 HP TEFC motor (110V) delivers consistent performance with standard shop power.
- Large 18” throat and 16” resaw capacity provide versatility for handling large workpieces.
- 10-point Laguna ceramic guide system ensures superior blade control and reduced heat buildup.
- Dynamically balanced cast iron wheels enhance stability and minimize vibration.
- Disc brake with micro-switch improves operator safety with fast blade stopping.
- Magnetic starter and safety features provide reliable and secure operation.
- Quick-release blade tension system simplifies blade changes and improves efficiency.
- Worm gear rack and pinion upper guide enables smooth, precise adjustments.
- Hi/Low anodized aluminum fence supports both resawing and detailed cutting applications.
- Premium anodized insert with micro adjustment enhances cutting precision and control.
- Dual dust ports improve dust extraction for a cleaner working environment.
Why Choose the Laguna 18|CX Bandsaw MBAND18CX110175
- Large capacity bandsaw with variable speed control on standard 110V power.
- Professional-grade construction with precision ceramic guides and cast components.
- Enhanced safety features including disc brake and magnetic controls.
- Versatile performance for both heavy resawing and detailed cutting.
- Built for durability, accuracy, and long-term workshop reliability.
The Laguna 18|CX Bandsaw MBAND18CX110175 delivers the perfect combination of power, precision, and versatility, making it an ideal choice for serious woodworkers who need high performance without requiring 220V power.
