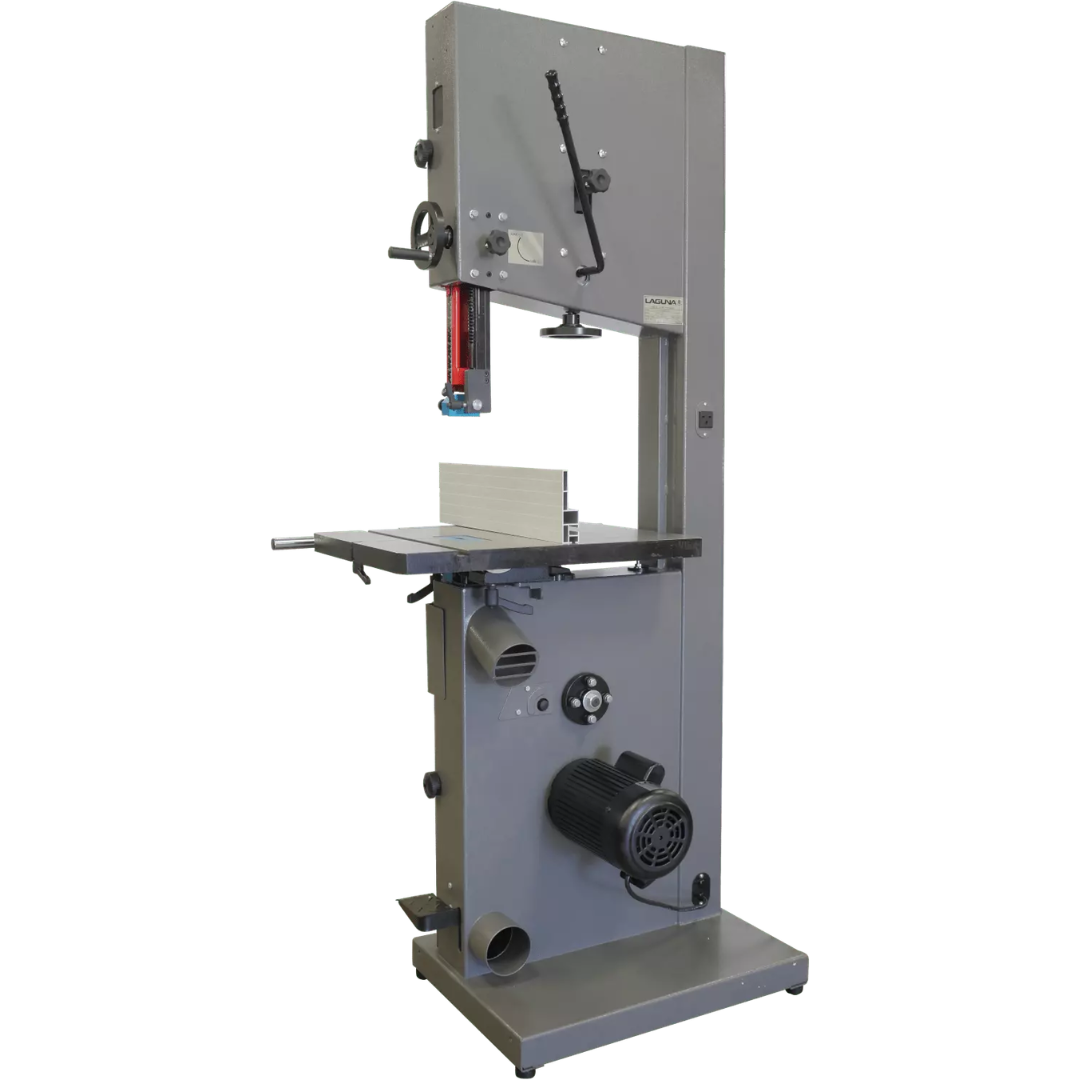

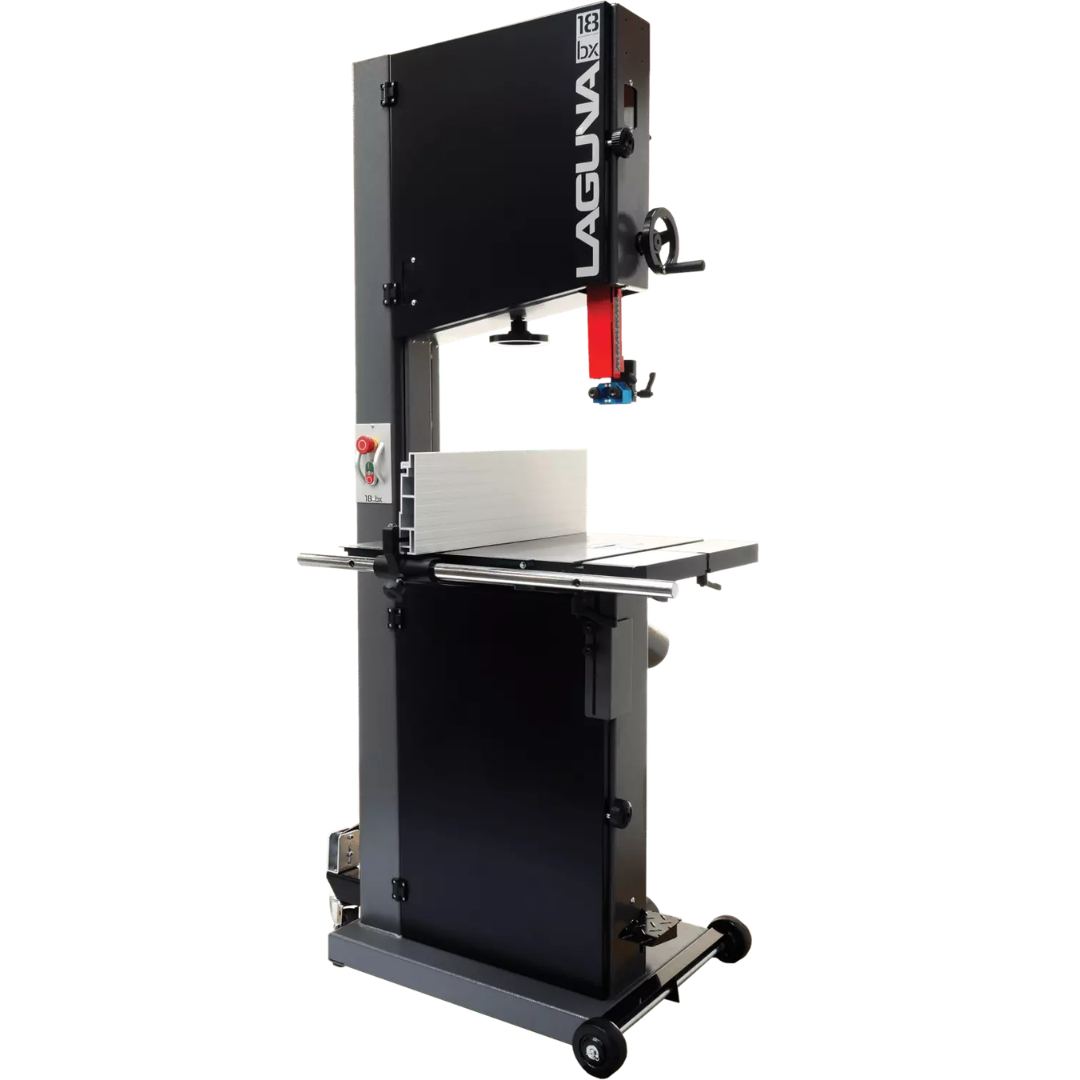

Laguna 18|BX Bandsaw MBAND18BX2203 Applications
- Heavy-duty resawing up to 16” for thick lumber and veneer production
- Professional cabinetry, furniture manufacturing, and millwork
- Precision curve cutting and complex shaping operations
- Production woodworking shops requiring consistent, repeatable results
- Handling hardwoods, softwoods, and dense exotic materials
Designed for high-demand environments where power, capacity, and accuracy are critical.
Laguna 18|BX Bandsaw MBAND18BX2203 Specifications
| Model | 18|BX Bandsaw MBAND18BX2203 |
|---|---|
| Motor | 3 HP, 220V, Single Phase (12 Amp) |
| Recommended Breaker | 20 Amp |
| Blade Length | 145” |
| Blade Width Range | 1/8” – 1-1/4” |
| Resaw Capacity | 16” |
| Throat Capacity | 18” |
| Table Size | 20” x 26” Cast Iron |
| Table Height | 38” |
| Table Tilt | -6° to 45° |

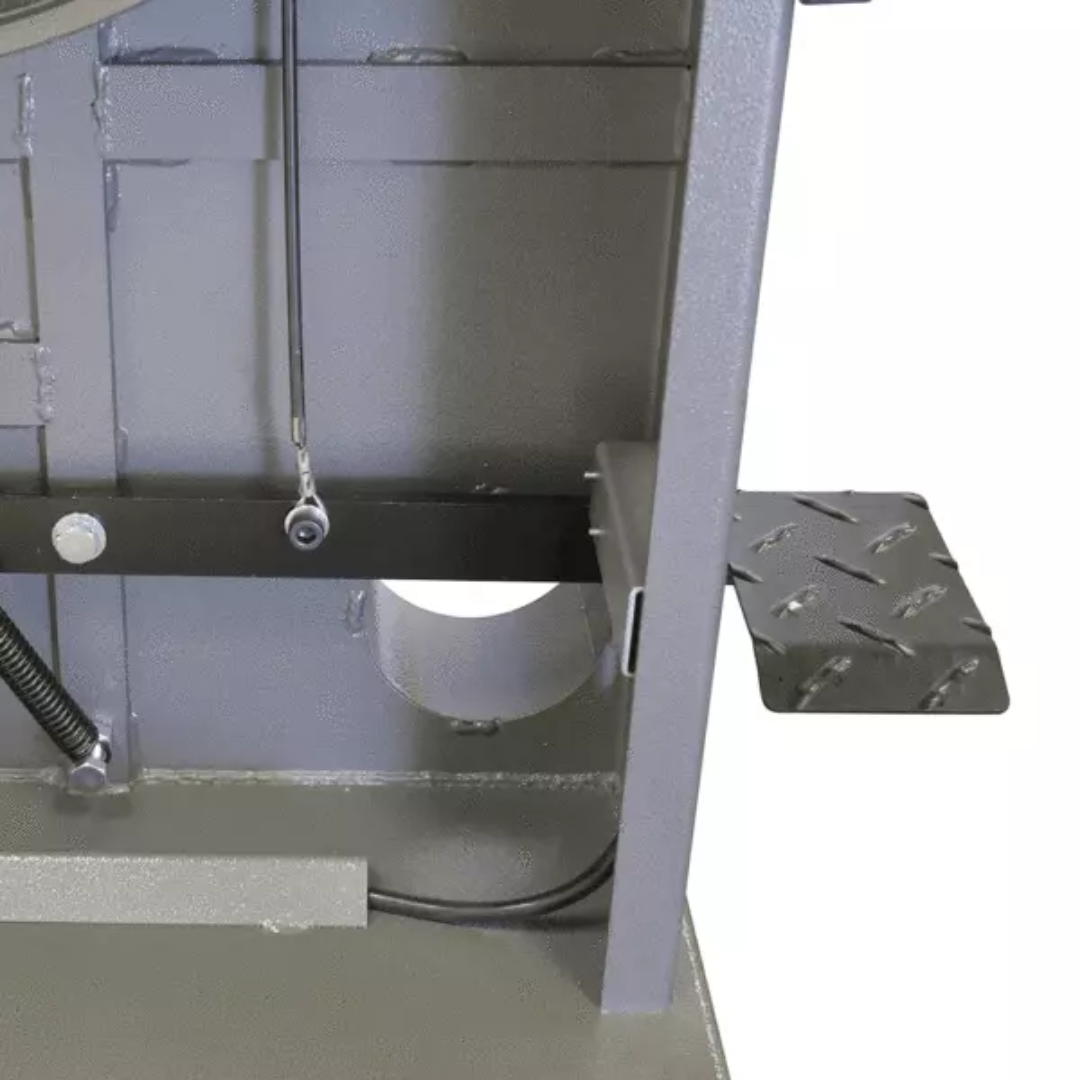

| Dust Ports | Dual 4” Ports |
| Overall Height | 77-3/4” |
| Base Dimensions | 27” x 20” |
| Overall Dimensions | 36” x 30” |
| Weight (Net / Shipping) | 410 lbs / 460 lbs |
| Shipping Dimensions | 36” x 84” x 30” |
Laguna 18|BX Bandsaw MBAND18BX2203 Performance & Construction

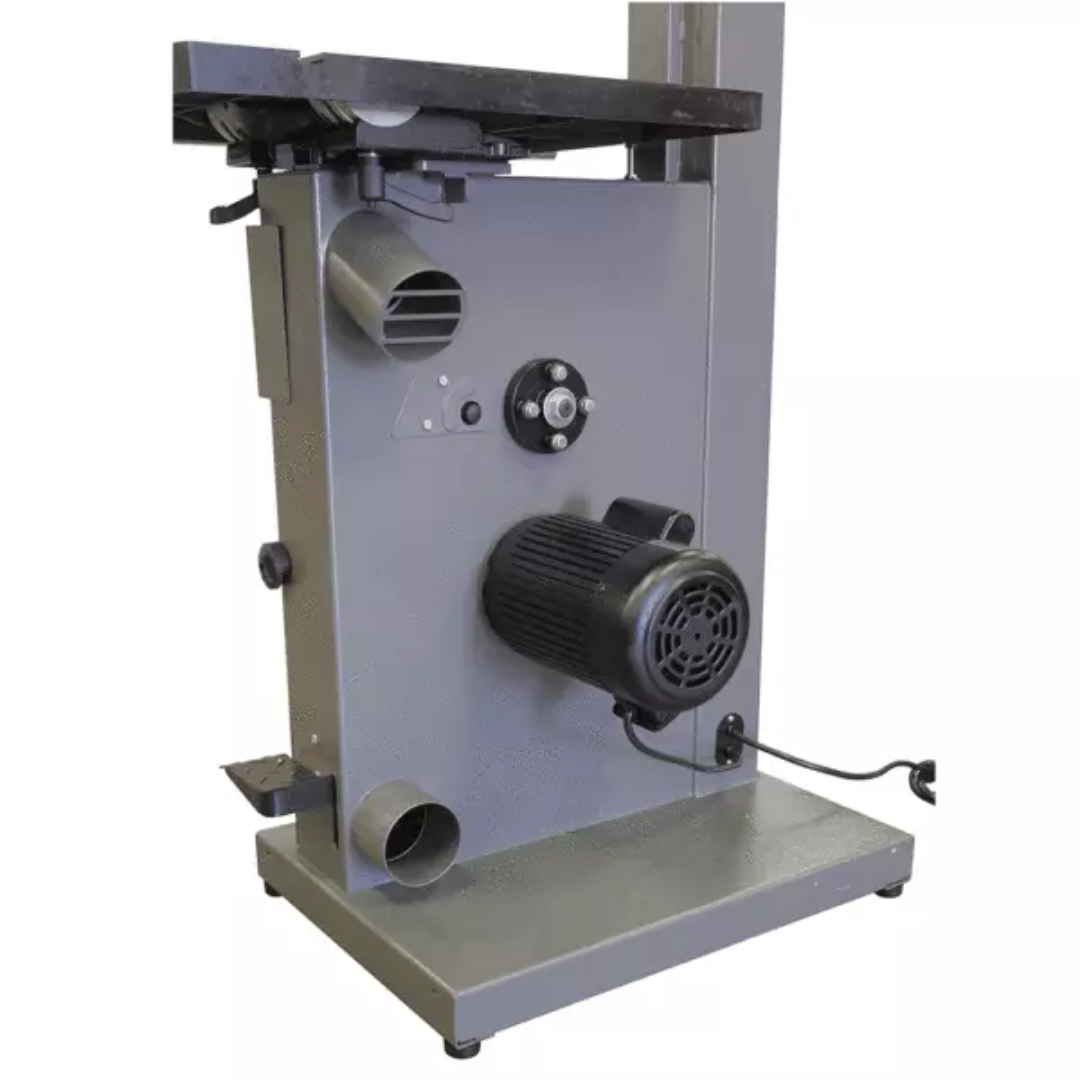

- Powerful 3 HP motor (220V) delivers consistent cutting performance for heavy-duty applications.
- Large 145” blade capacity supports deep resawing and precision cutting of thick materials.

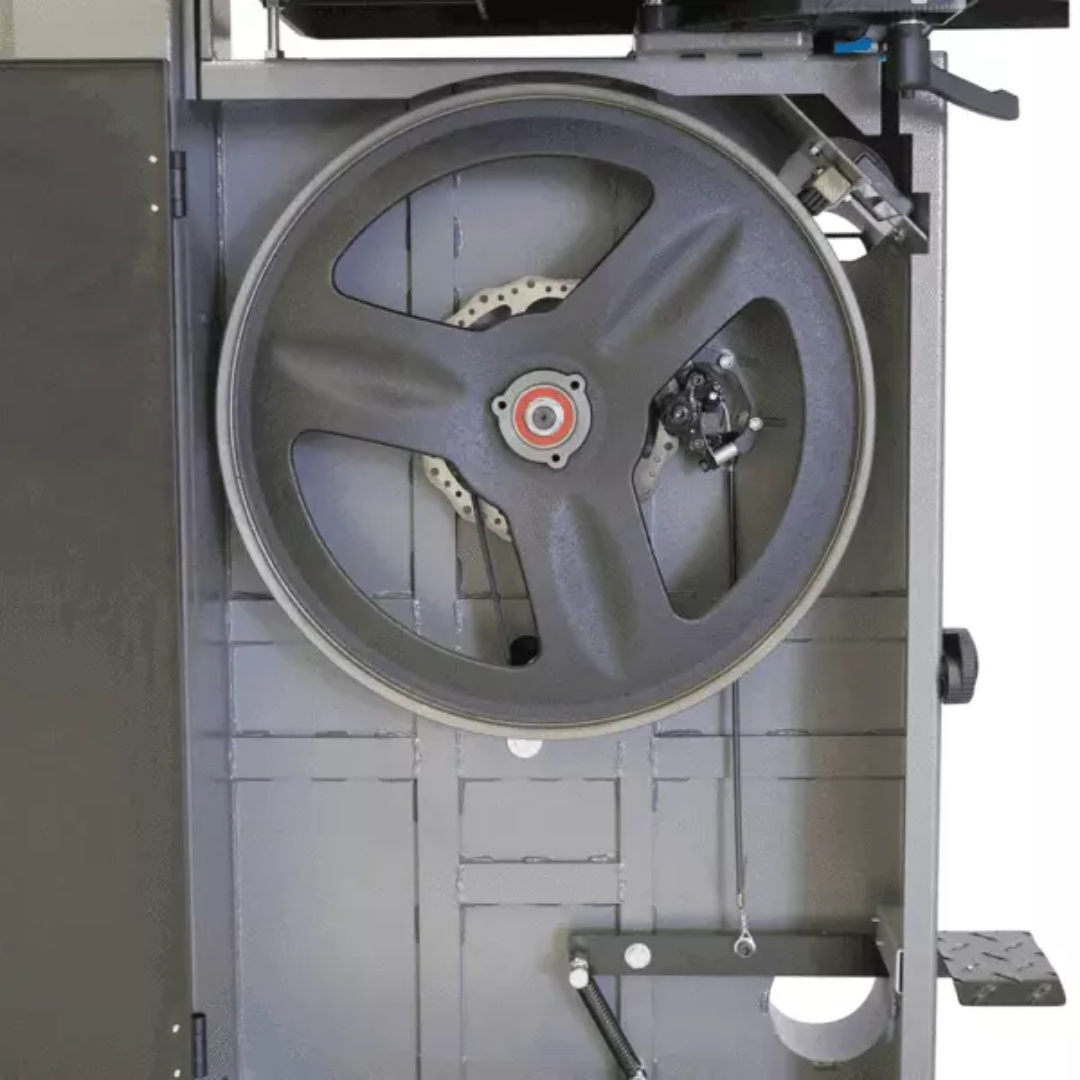

- Dynamically balanced cast iron wheels ensure smooth operation and reduced vibration.
- 10-point Laguna ceramic guide system provides superior blade stability and accuracy.
- Disc brake with micro-switch enhances operator safety with rapid stopping capability.

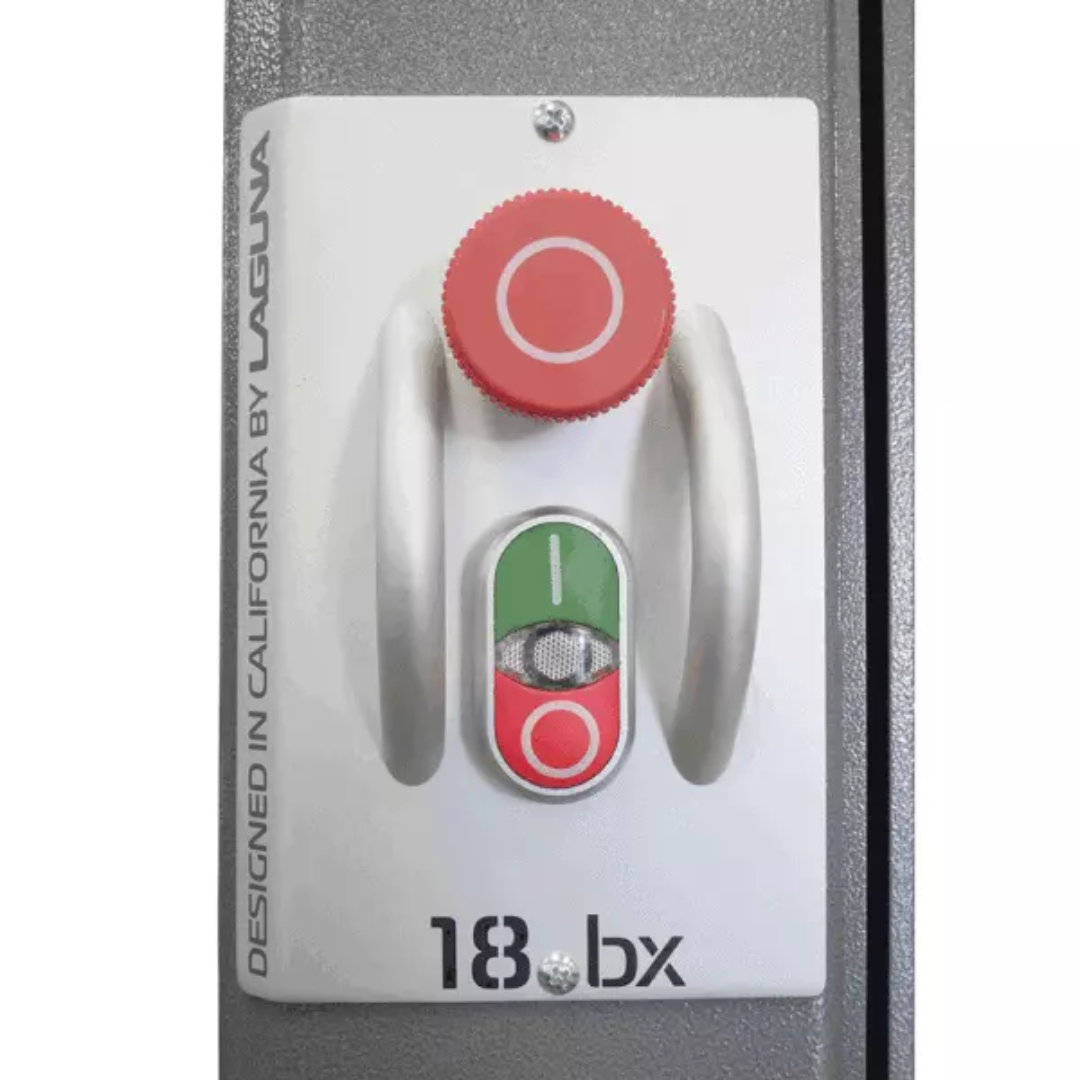

- Magnetic starter and safety systems improve control and operational reliability.
- Quick-release blade tension system simplifies adjustments and extends blade life.
- Worm gear rack and pinion upper guide allows precise and smooth height adjustments.
- Hi/Low anodized aluminum fence supports both resawing and fine detail work.
- Premium anodized insert with micro adjustment enhances cutting precision.
- Flat poly-groove drive belt ensures efficient power transmission and reduced vibration.
- Urethane one-piece snap-on tires run cooler and last longer than conventional tires.

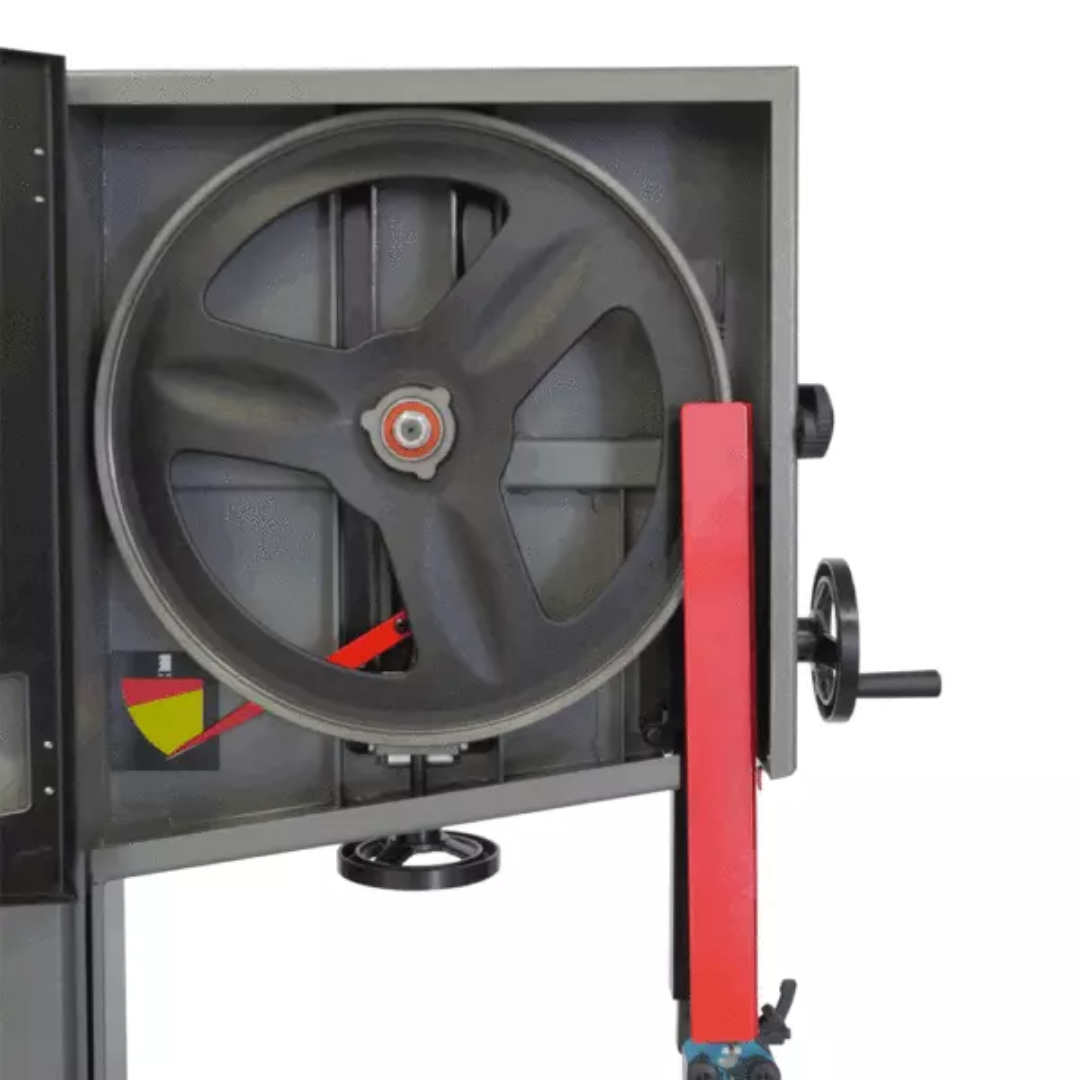

- Dual viewing windows for blade tension and tracking monitoring during operation.
Why Choose the Laguna 18|BX Bandsaw MBAND18BX2203
- Industrial-grade 3 HP power for demanding woodworking applications.
- Large 16” resaw capacity and 18” throat for maximum versatility.
- Advanced safety features including disc brake and magnetic controls.
- Precision engineering with ceramic guides and balanced components.
- Built for long-term durability in professional and production environments.
The Laguna 18|BX Bandsaw MBAND18BX2203 is a powerful, precision-built machine designed for professionals who require maximum cutting capacity, reliability, and performance in a heavy-duty bandsaw.
