Laguna 16-32 Drum Sander SUPMX-71632 Applications
- Furniture manufacturing and custom woodworking shops
- Luthiers, turners, and instrument makers requiring ultra-precise sanding
- Cabinetmakers and millwork professionals
- Sign makers, scroll saw users, and fine detail craftsmen
- Thickness sanding, finish sanding, and abrasive planing operations
Designed for professionals who require repeatable precision, smooth finishes, and the ability to process thin or delicate materials without damage.
Laguna 16-32 Drum Sander SUPMX-71632 Specifications
| Model | SUPMX-71632 |
|---|---|
| Drum Speed | 1740 RPM |
| Maximum Sanding Width | 32" (in two passes) |
| Minimum Sanding Length | 2-1/4" |
| Maximum Sanding Thickness | 3" |
| Minimum Sanding Thickness | 1/32" |
| Drum Size | 5" x 16" Extruded Aluminum |
| Conveyor Speed | 0–10 FPM (variable) |
| Drive Motor | 1-1/2 HP |
| Power Requirements | 110V, 15 Amp (20 Amp Service Recommended) |
| Dust Port | 4" Turbo Vented (600 CFM recommended) |

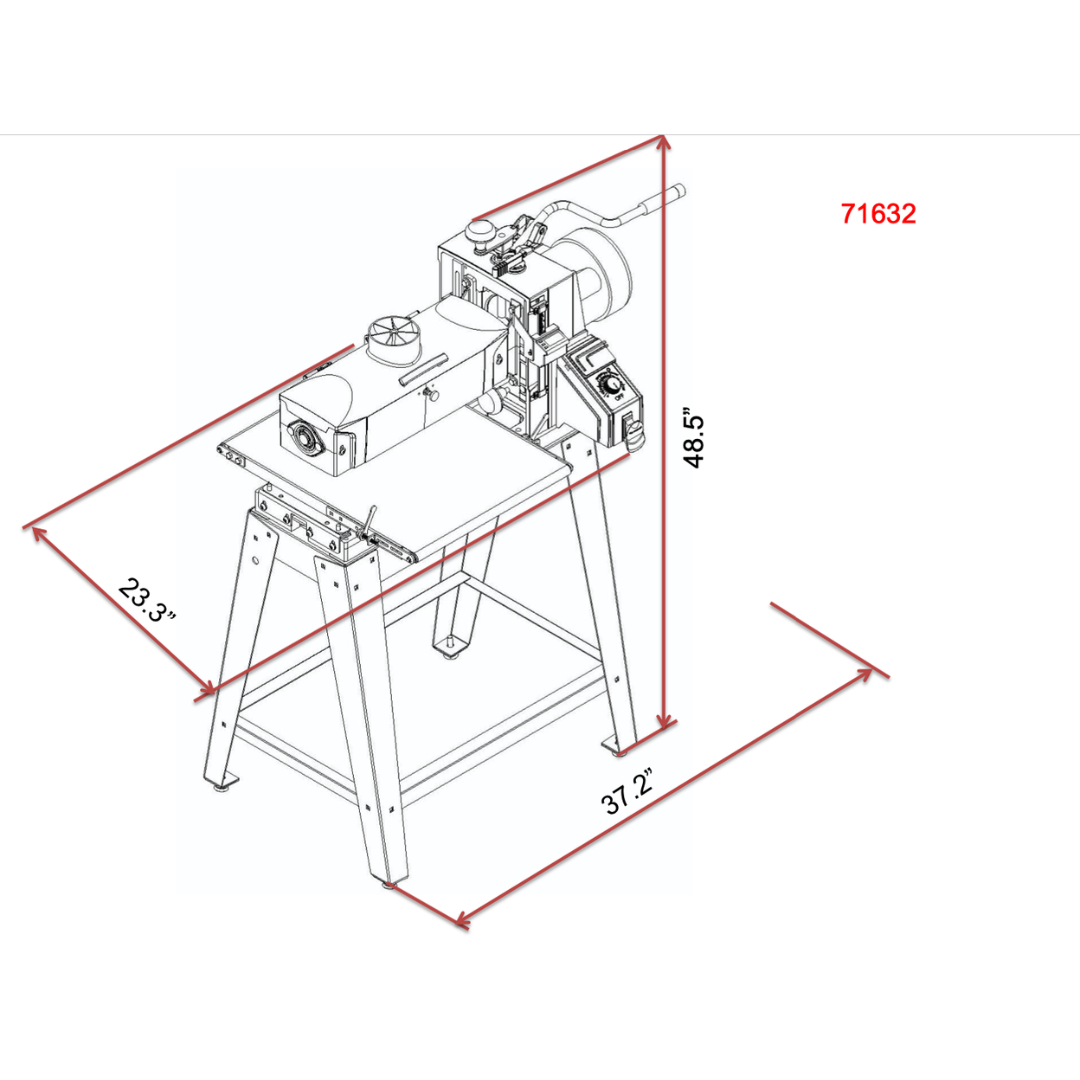

| Assembled Dimensions | 34" W × 22" D × 48" H |
| Stand Footprint | 20" × 27" |
| Shipping Weight | 158 lbs |
| Shipping Dimensions | 36" × 26" × 22" |
| Plug Type | NEMA 5-15P |
| Certification | CSA Certified |
Laguna 16-32 Drum Sander SUPMX-71632 Performance & Construction
- INTELLISAND® Technology automatically adjusts conveyor speed to prevent gouging and burning.
- Quick Adjustment Lever (Patented) allows rapid height changes with a single motion instead of multiple handle rotations.

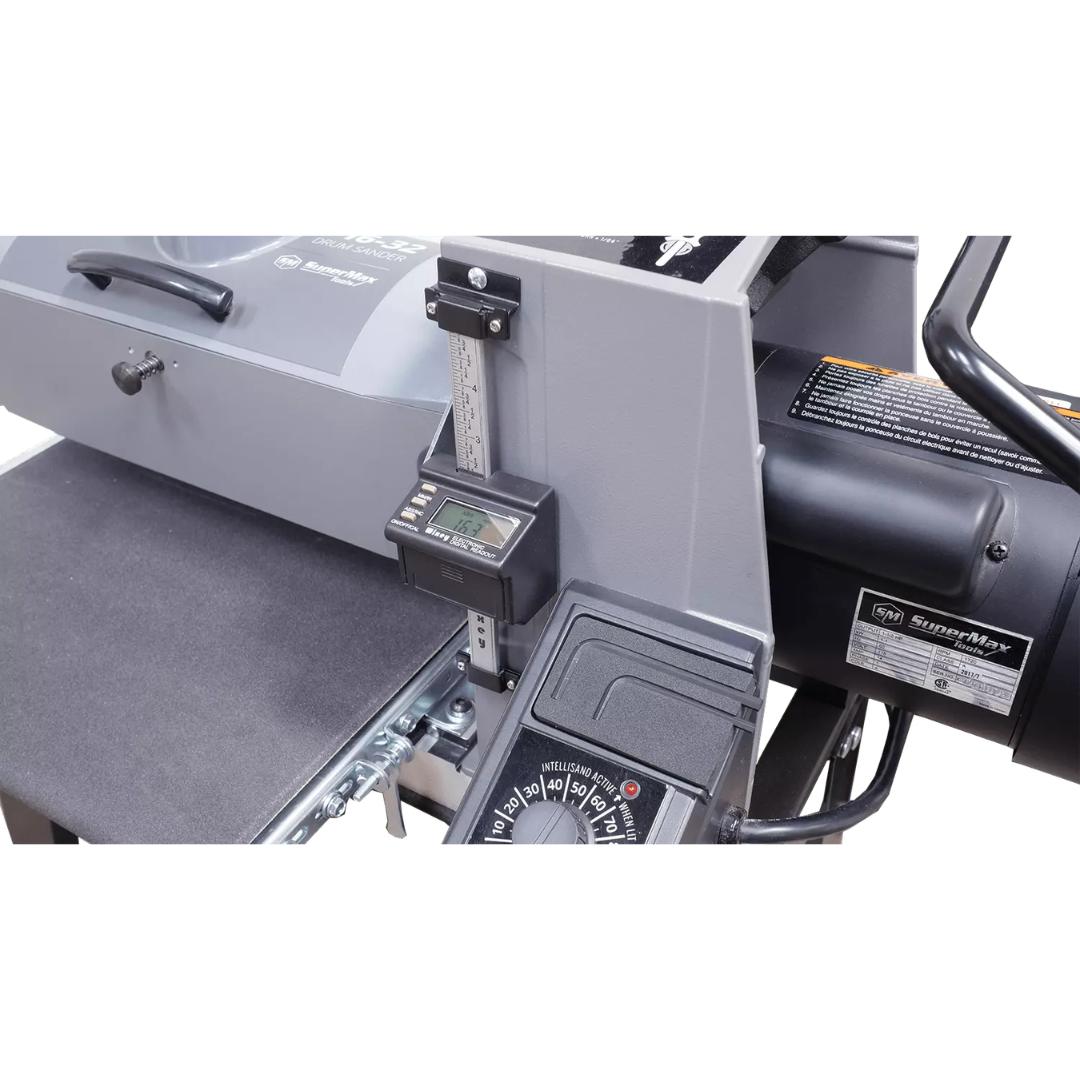

- Digital Readout (DRO) provides precise thickness control and exact repeatability.
- Indexed Alignment Handle ensures fast and accurate alignment for both narrow and wide stock.
- Variable Speed Conveyor (0–10 FPM) delivers optimal feed rate control for different materials.
- Turbo Vented Dust Port increases airflow efficiency by 15% for improved dust extraction.

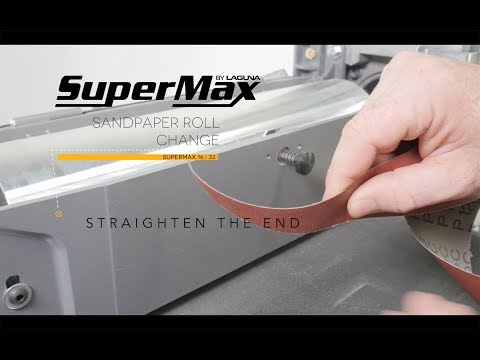

- Automatic Abrasive Tension (Patented) maintains proper tension and simplifies abrasive changes.
- Self-Cooling Aluminum Drum prevents overheating, reduces distortion, and extends abrasive life.
- Abrasive Conveyor Belt provides superior grip for handling thin and short stock with precision.
- Adjustable Tension Rollers minimize snipe and ensure consistent material feed.
- Smooth Height Adjustment System with bearing-supported movement eliminates backlash.
Why Choose the Laguna 16-32 Drum Sander SUPMX-71632
- Exceptional sanding precision for thin, short, and wide materials.
- Advanced patented features designed for efficiency and ease of use.
- INTELLISAND® system protects both material and machine.

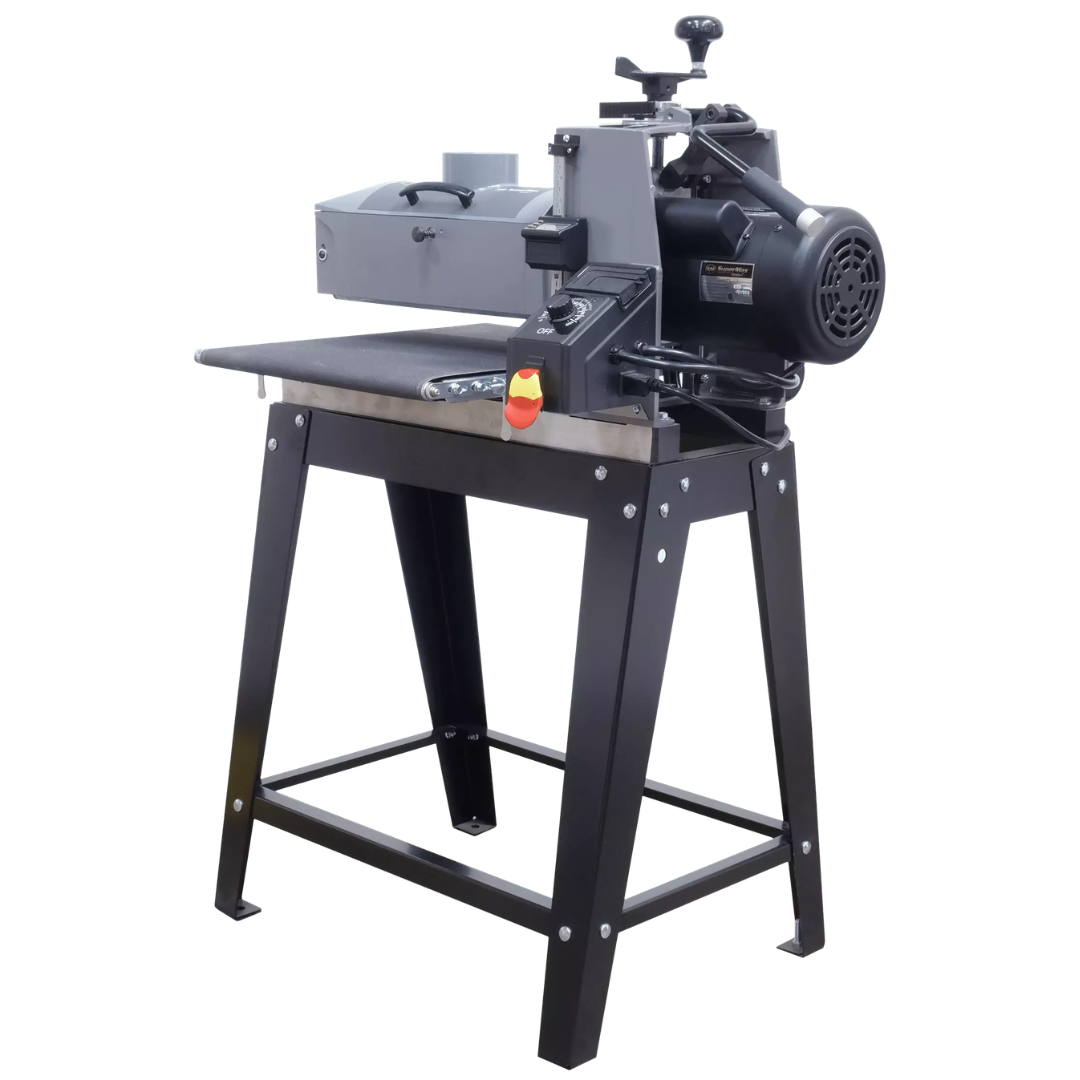

- Compact footprint with large capacity for professional workshops.
- Versatile sanding capabilities from aggressive stock removal to fine finishing.
The Laguna 16-32 Drum Sander SUPMX-71632 delivers professional-grade accuracy, innovative technology, and unmatched control—making it an essential machine for any serious woodworking operation.
