Laguna 14|CX Bandsaw MB14CX Applications
- Woodworking including cabinetry, furniture making, and custom fabrication
- Metalworking applications including cutting steel, iron, and stainless steel
- Resawing material up to 13” thickness
- Precision curve cutting and detailed shaping operations
- Hybrid shops requiring both wood and metal cutting capabilities
Ideal for professionals who need one machine capable of handling both woodworking and metalworking tasks with precision.
Laguna 14|CX Bandsaw MB14CX Specifications
| Model | 14|CX Bandsaw MB14CX |
|---|---|
| Motor | 1-3/4 HP TEFC |
| Voltage | 110V Single Phase |
| Amperage | 14 Amp (Recommended 20 Amp Breaker) |
| Blade Length | 114-3/4” – 116” (Nominal 115”) |
| Blade Width Range | 1/8” – 3/4” |
| Blade Speed Range | Low: 60 – 1600 ft/min | High: 160 – 4400 ft/min |
| Resaw Capacity | 13” (330.2 mm) |
| Throat Capacity | 13-5/8” (346 mm) |
| Table Size | 16” x 21-1/2” Cast Iron |
| Table Tilt | -7° to 45° |
| Table Height | 38” |
| Dust Ports | Dual 4” Ports |
| Overall Height | 70-1/2” |
| Footprint | 22-11/16” x 17-9/16” |
| Machine Dimensions | 29-3/4” x 28” |
| Weight (Net / Gross) | 264 lbs / 286 lbs |
| Shipping Dimensions | 73-1/8” x 26-1/2” x 24-5/16” |
Laguna 14|CX Bandsaw MB14CX Performance & Construction

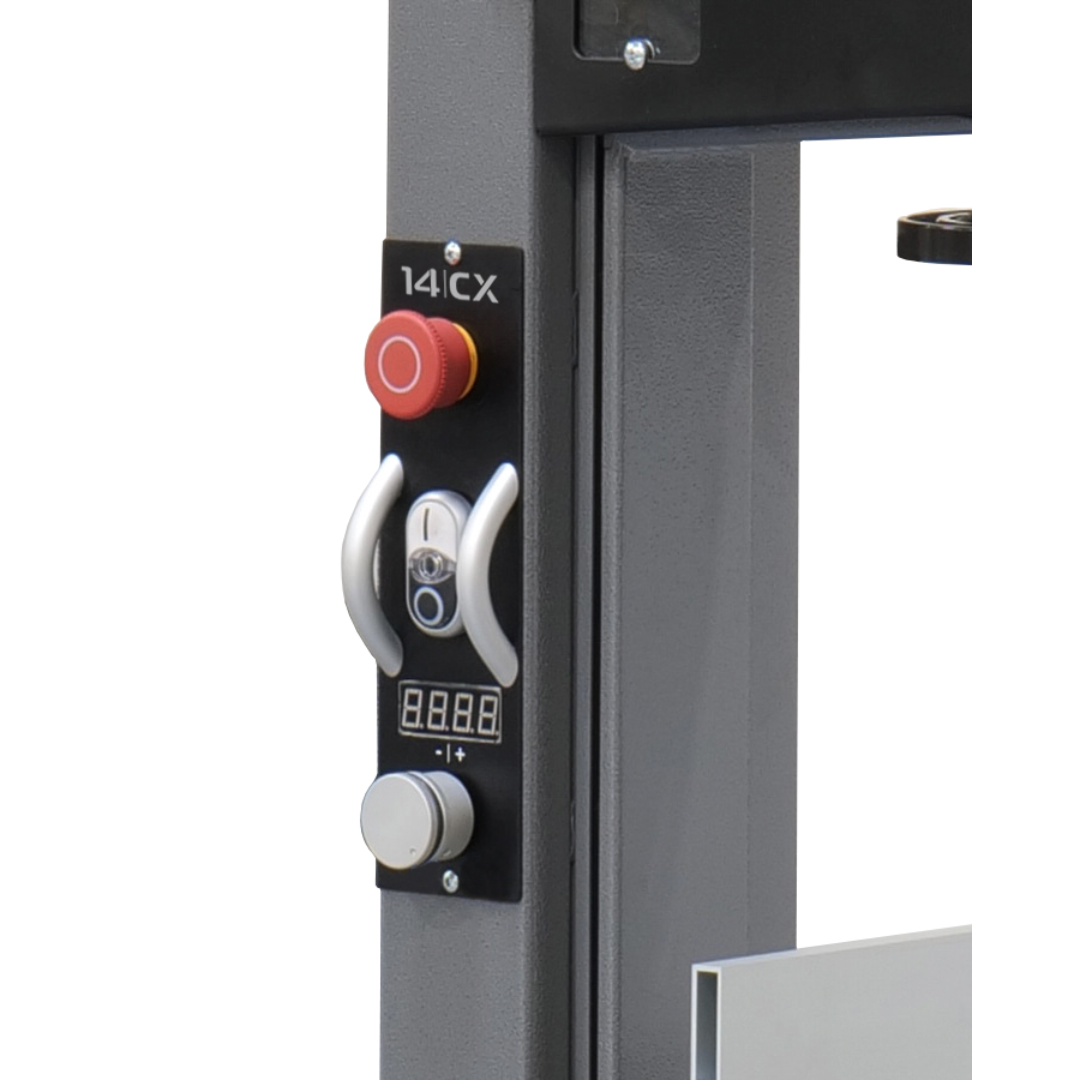

- Electronic variable speed control with digital readout allows precise blade speed adjustments for different materials.

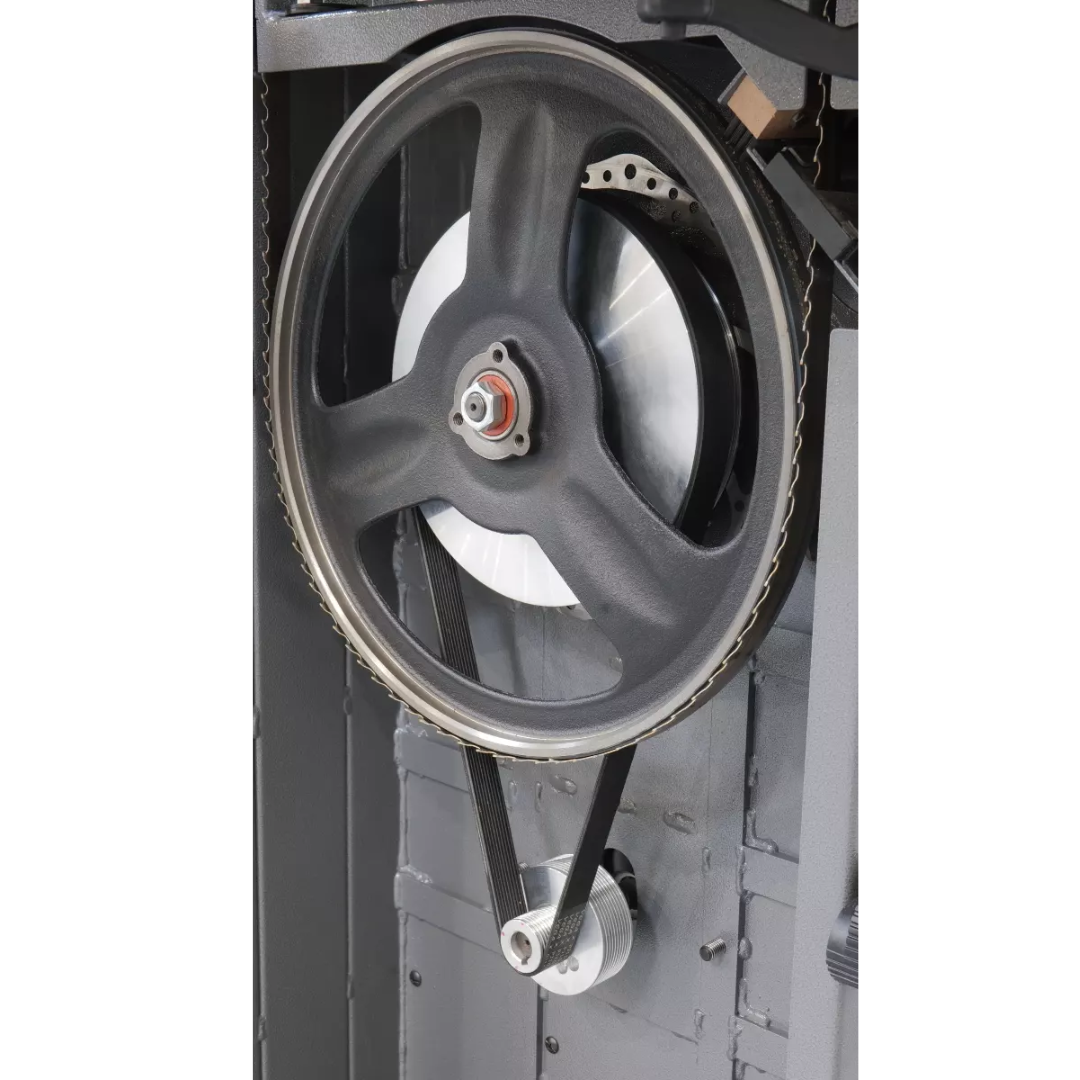

- Dual speed pulley system provides flexibility for both woodworking and metal cutting applications.
- Enhanced foot brake system with larger disc delivers improved stopping power and safety.
- 1-3/4 HP TEFC motor ensures consistent, reliable performance across demanding tasks.

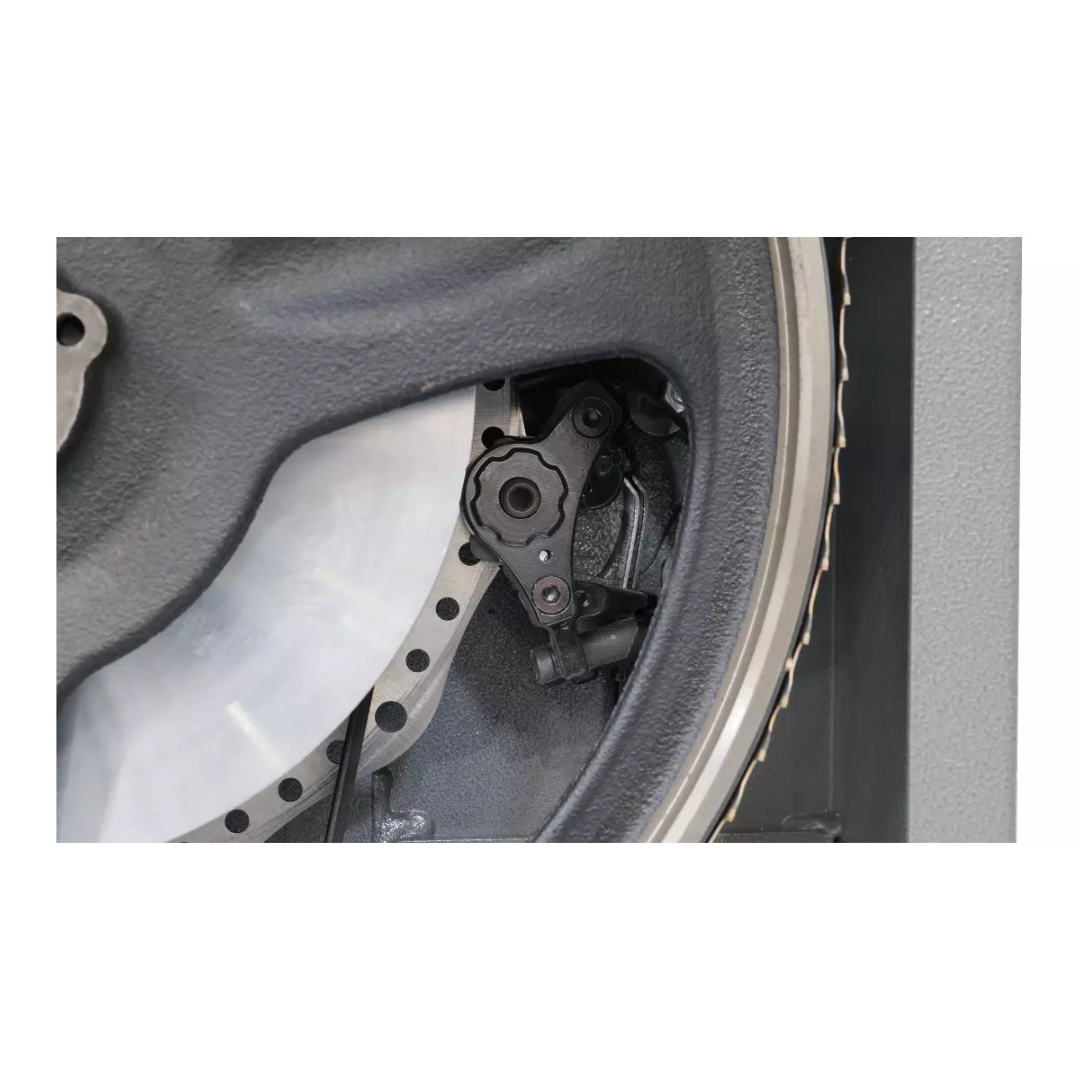

- Laguna ceramic guide system offers superior blade control, reduced heat, and extended blade life.
- Quick-release blade tension system simplifies setup and maintenance.
- Rack and pinion upper guide adjustment enables smooth and accurate positioning.

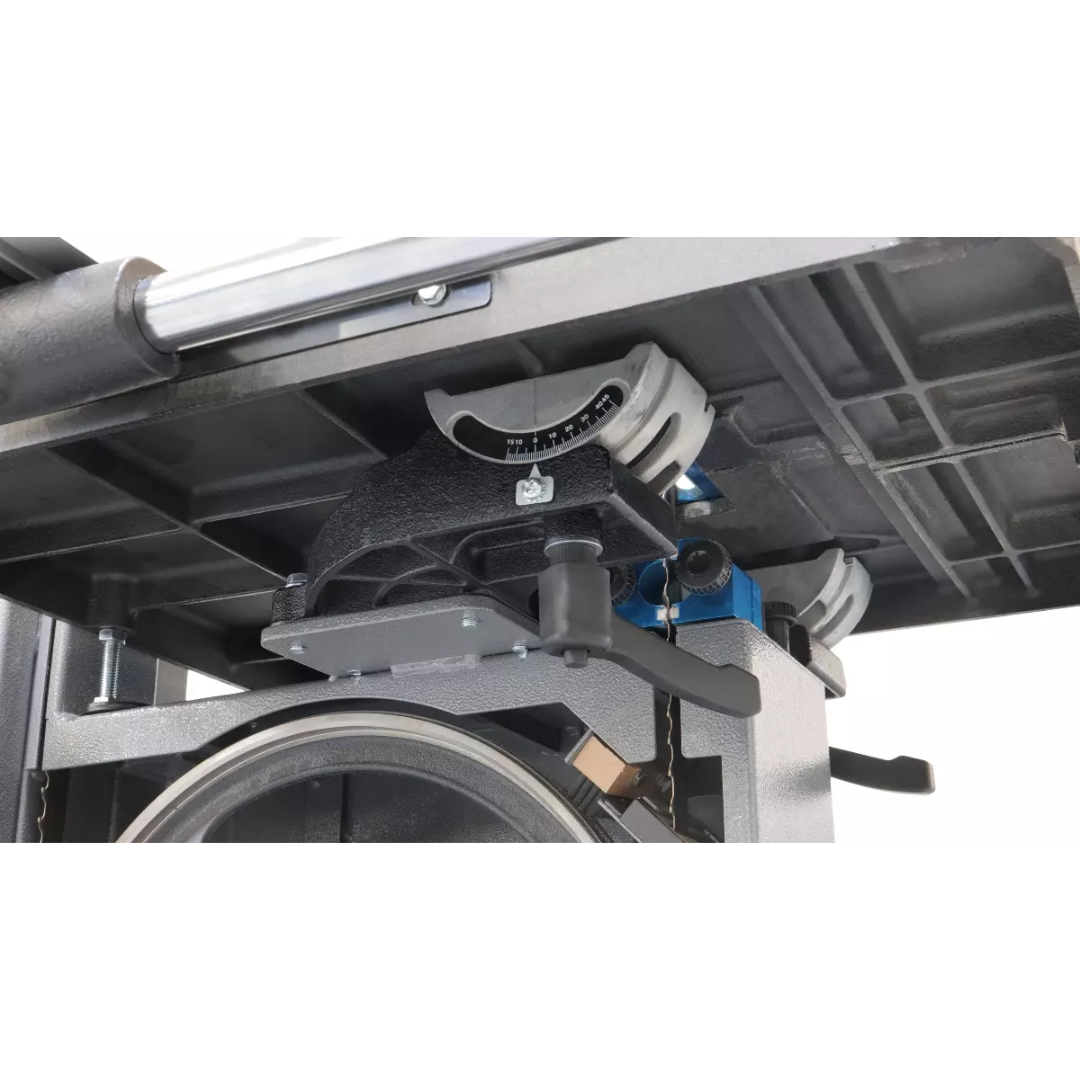

- Heavy-duty cast trunnion (8” x 13”) ensures table stability and precision adjustments.
- Hi/Low aluminum fence supports both resawing and detailed cutting work.
- Premium anodized aluminum throat plate with micro-adjustment enhances accuracy.
- Magnetic blade guard and safety key improve operational safety.
- Bi-metal variable TPI blade included for immediate multi-material cutting capability.
Why Choose the Laguna 14|CX Bandsaw MB14CX
- Hybrid capability for both woodworking and metalworking applications.
- Precise speed control with digital readout for optimal cutting performance.
- Enhanced safety with upgraded braking system and magnetic controls.
- Professional-grade construction with ceramic guides and cast components.
- Versatile, space-efficient solution for modern workshops.
The Laguna 14|CX Bandsaw MB14CX is a unique, high-performance machine that delivers unmatched versatility, allowing professionals to cut wood and metal with precision, efficiency, and confidence.
