Laguna 14|BX Bandsaw Applications
- Resawing hardwood and softwood up to 13” thickness
- Furniture manufacturing, cabinetry, and custom woodworking
- Precision curve cutting and detailed shaping operations
- Production shops requiring consistent and repeatable accuracy
- Advanced hobbyists and professional woodworking environments
Built for users who need a heavier, more rigid bandsaw with enhanced safety and industrial-grade performance.
Laguna 14|BX Bandsaw Specifications
| Model Options | 14|BX 110V (MBAND14BX110-175) / 14|BX 220V (MBAND14BX220-250) |
|---|---|
| Motor | 1.75 HP (110V) / 2.5 HP (220V) TEFC |
| Voltage | 110V or 220V Single Phase |
| Amperage | 14 Amp (110V) / 9.8 Amp (220V) |
| Blade Length | 115” |
| Blade Width Range | 1/8” – 3/4” |
| Resaw Capacity | 13” |
| Table Size | 21-1/2” x 16” Cast Iron |
| Table Height | 38” |
| Table Tilt | -7° to 45° |
| Dust Ports | Dual 4” Ports |
| Overall Height | 70-1/4” |
| Footprint | 17-1/2” x 22-1/2” |
| Weight (Net) | 260 lbs (110V) / 270 lbs (220V) |
| Shipping Weight | Up to 350 lbs |
| Shipping Dimensions | 73” x 27” x 29” |
Laguna 14|BX Bandsaw Performance & Construction

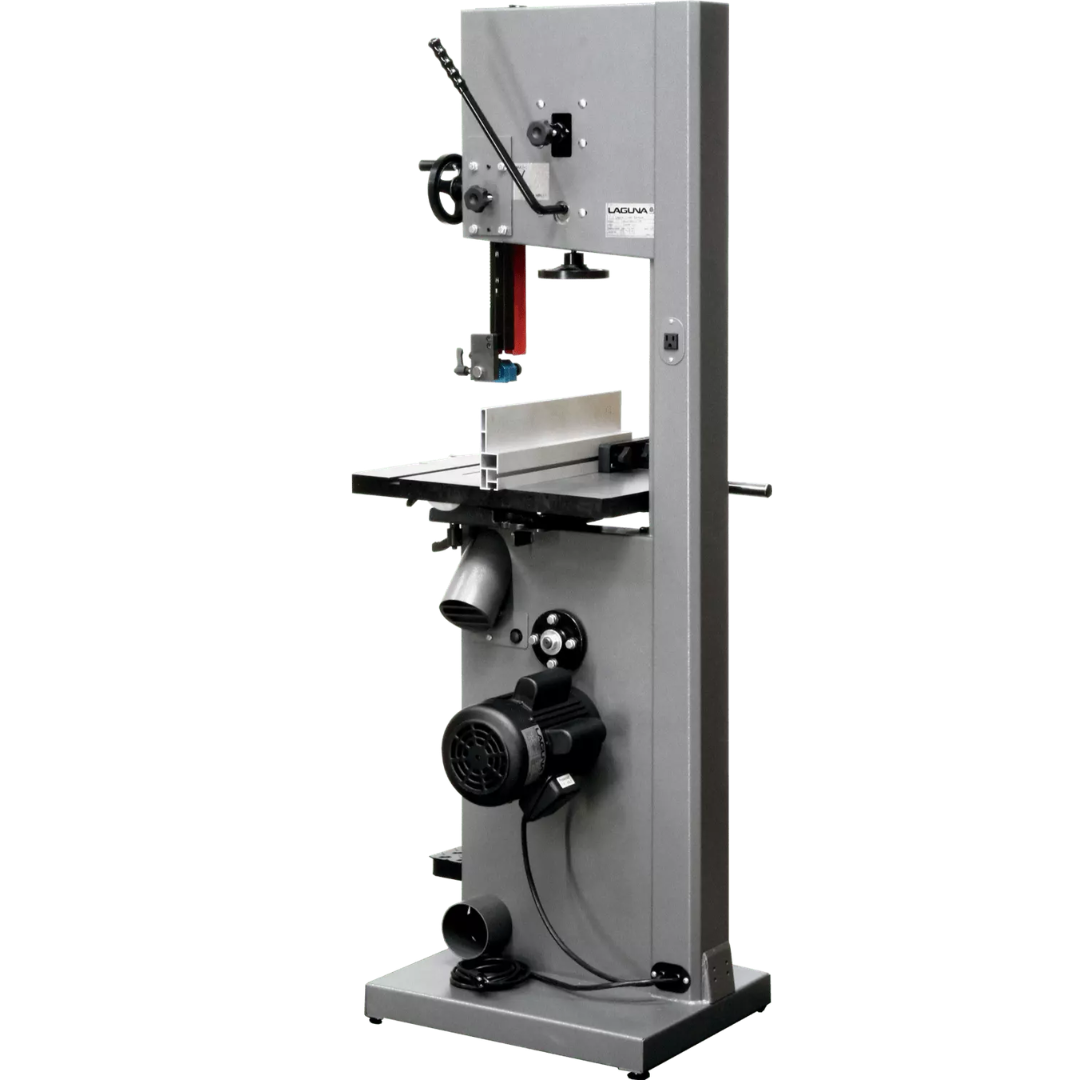

- Solid one-piece heavy-gauge frame provides maximum rigidity and minimizes vibration.
- Pyramid-shaped spine design increases structural strength and cutting stability.

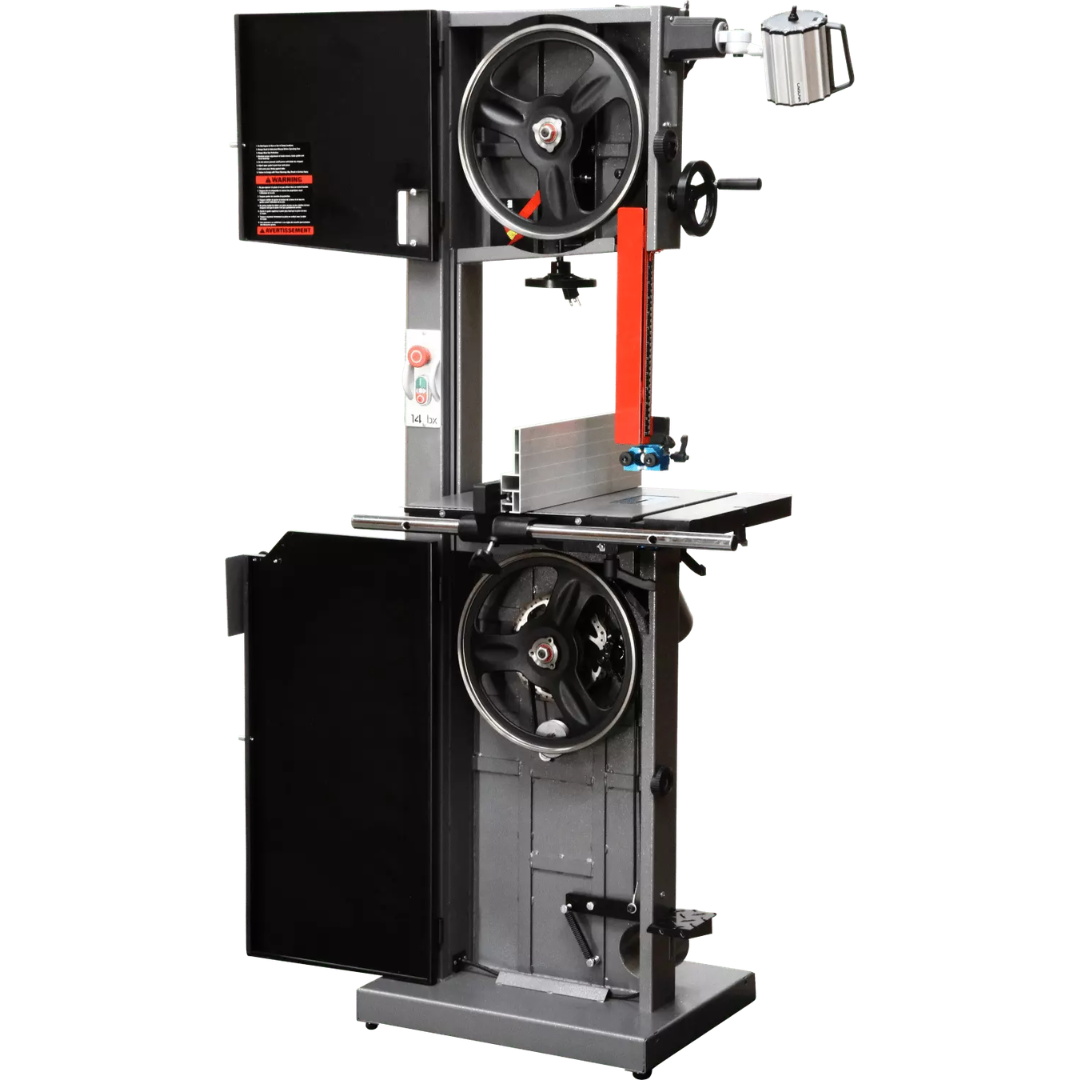

- TEFC motor options (110V or 220V) deliver reliable power for demanding applications.
- Disc brake with micro-switch enhances safety and allows rapid blade stopping.
- Magnetic on/off switch and starter improves operational safety and convenience.
- Laguna ceramic guide system ensures superior blade control and reduced friction.

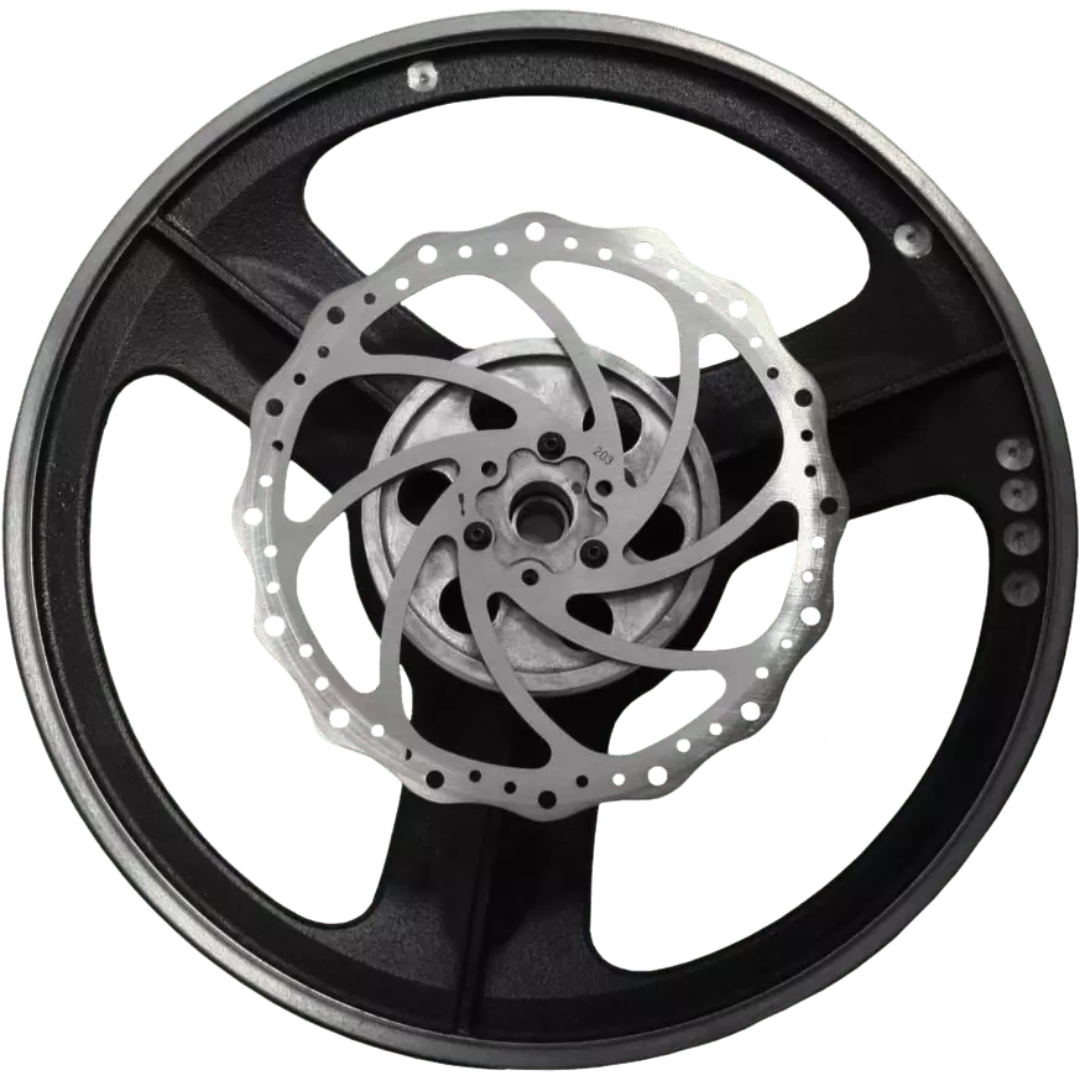

- Cast iron wheels provide smooth operation and consistent blade tracking.
- Quick-release blade tension system allows fast adjustments and extended blade life.
- Dual light mounting positions improve visibility for precision cutting.
- Hi/Low aluminum fence supports both resawing and detailed cutting tasks.
- Worm gear rack and pinion system enables smooth and accurate guide adjustments.
- Massive cast trunnion (8” x 13”) ensures stable table positioning and accuracy.
- Magnetic blade guard and tension guide enhance usability and safety.
Why Choose the Laguna 14|BX Bandsaw
- Heavier, more rigid frame than the 14|12 for improved performance.
- Available in both 110V and 220V configurations for flexibility.
- Enhanced safety features including disc brake and magnetic switch.
- Professional-grade ceramic guides and precision components.
- Designed for serious woodworkers and production-level reliability.
The Laguna 14|BX Bandsaw delivers unmatched stability, power, and precision in a 14” class machine, making it a top-tier choice for professionals seeking superior performance and durability.
