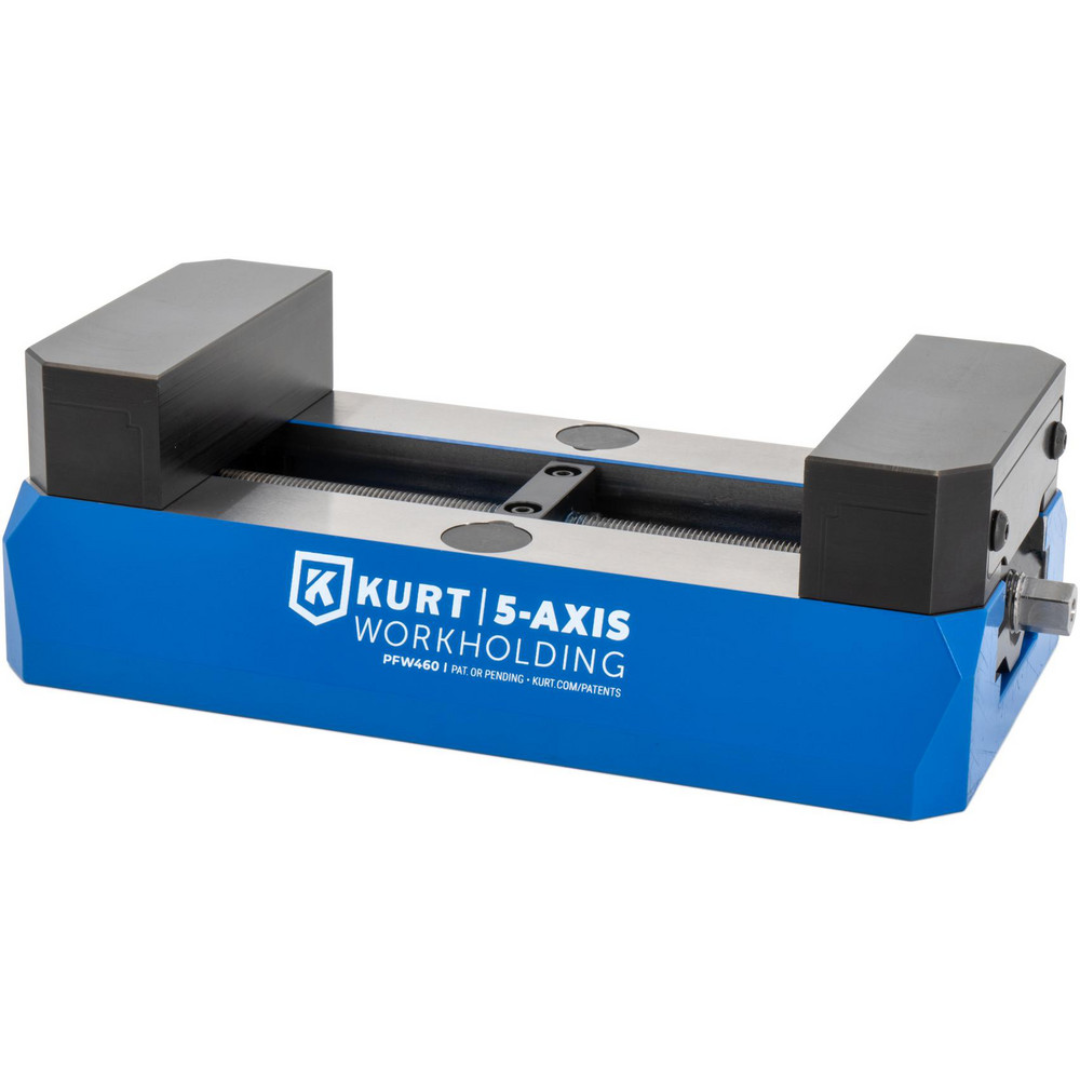

Kurt Self-Centering Vise: PFW, 6.5010" Max Jaw Opening 55542120 Applications
- Precision CNC milling and machining operations.
- Production machining requiring repeatable part positioning.
- Multi-axis machining centers and high-tolerance manufacturing environments.
- Fixture-based and palletized manufacturing systems.
- Automated machining cells utilizing robotic loading systems.
- Prototype development and production manufacturing.
- Machining steel, stainless steel, aluminum, brass, plastics, and engineered materials.
- Applications requiring secure workholding and precise centerline positioning.
Ideal for manufacturers seeking larger workpiece capacity, exceptional centering accuracy, and dependable workholding performance in advanced CNC machining operations.
Kurt Self-Centering Vise: PFW, 6.5010" Max Jaw Opening 55542120 Specifications
| Series | PFW |
|---|---|
| Operation Type | Manual |
| Material | Steel |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 6.5010" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 3,375 lbf |
| Overall Length | 9.5000" |
| Overall Width | 4.9210" |
| Overall Height | 2.9220" |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PFW, 6.5010" Max Jaw Opening 55542120 Performance & Construction
- Heavy-duty steel construction provides exceptional durability and long-term reliability in demanding manufacturing environments.
- Precision self-centering mechanism automatically aligns workpieces to the machine centerline for improved consistency and repeatability.
- High clamping force of 3,375 lbf securely holds workpieces during aggressive machining operations.
- Extended 6.5010-inch jaw opening accommodates larger components and expands machining versatility.
- Compact profile design maximizes machine table utilization while maintaining substantial workholding capability.
- Manual operation provides precise operator control and dependable clamping performance.
- 1.2800-inch throat depth offers excellent accessibility for a wide range of workpiece geometries.
Why Choose the Kurt Self-Centering Vise: PFW, 6.5010" Max Jaw Opening 55542120
- Large jaw opening accommodates oversized workpieces and expanded machining applications.
- Self-centering functionality reduces setup time and improves part-to-part consistency.
- Powerful clamping force enhances machining stability and workpiece security.
- Durable steel construction ensures long service life in industrial environments.
- Compact overall dimensions allow efficient use of valuable machine table space.
- Designed for precision manufacturing, production machining, and high-tolerance applications.
- Made in the USA for dependable quality and performance.
The Kurt Self-Centering Vise: PFW, 6.5010" Max Jaw Opening 55542120 delivers precision centering, extended workpiece capacity, and reliable clamping performance, making it an excellent solution for CNC machining operations that demand accuracy, repeatability, and productivity.
