Kurt Self-Centering Vise: PFW, 4.6250" Max Jaw Opening 62128152 Applications
- Precision CNC milling and machining operations requiring accurate workpiece centering.
- Production machining of larger components utilizing increased jaw opening capacity.
- Multi-axis machining centers performing close-tolerance manufacturing.
- Automated machining cells equipped with robotic loading and unloading systems.
- Fixture-based and palletized manufacturing environments using zero-point workholding systems.
- Prototype development, production machining, and toolroom applications.
- Machining steel, stainless steel, aluminum, brass, plastics, and composite materials.
- Applications requiring repeatable setups and consistent part alignment.
Perfect for manufacturers seeking increased workpiece capacity, precision self-centering operation, and dependable clamping performance in advanced machining environments.
Kurt Self-Centering Vise: PFW, 4.6250" Max Jaw Opening 62128152 Specifications
| Series | PFW |
|---|---|
| Operation Type | Manual |
| Material | Steel |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 4.6250" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 3,375 lbf |

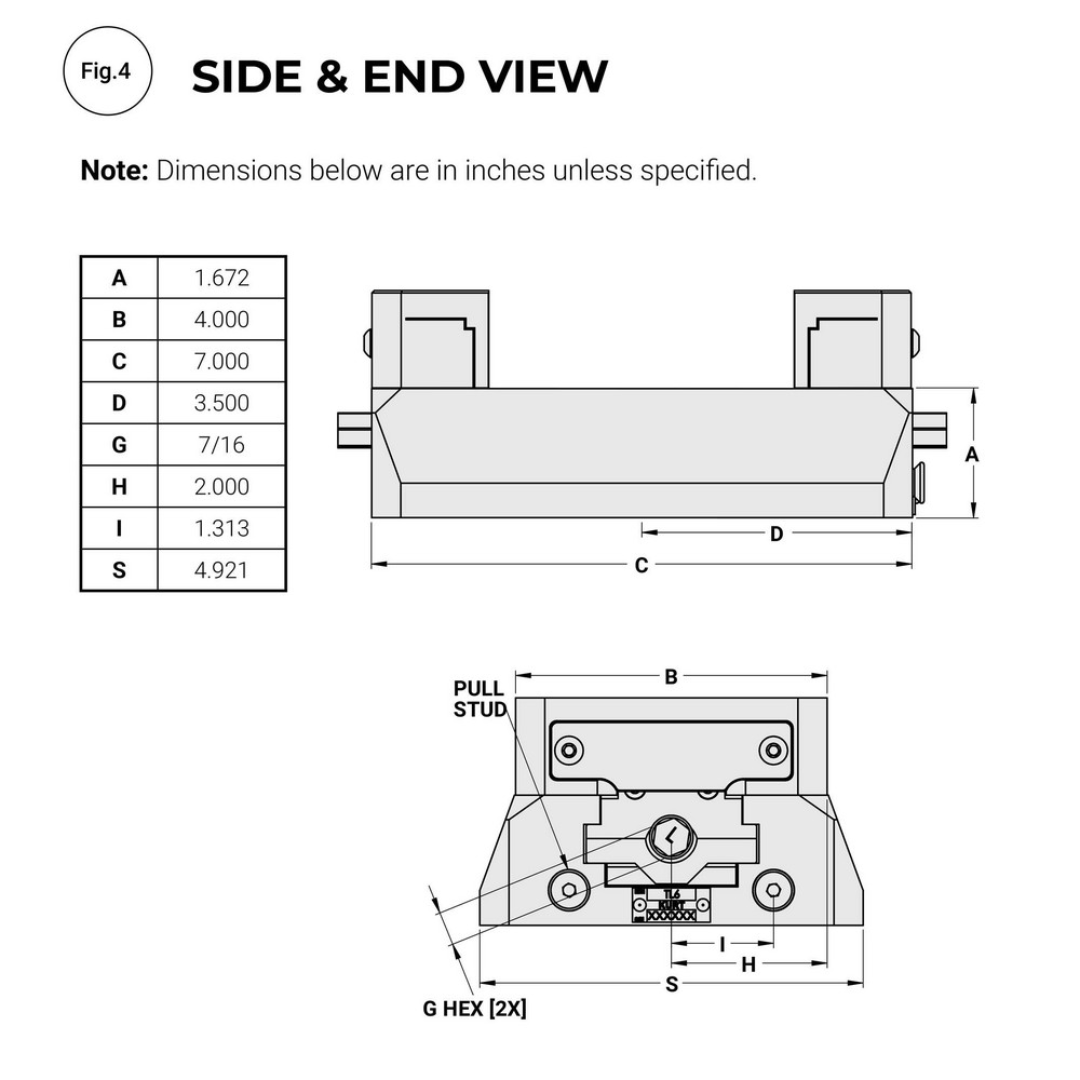

| Overall Length | 7.5000" |
| Overall Width | 4.9210" |
| Overall Height | 2.9220" |
| Maximum Torque | 45 ft-lb |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PFW, 4.6250" Max Jaw Opening 62128152 Features & Benefits

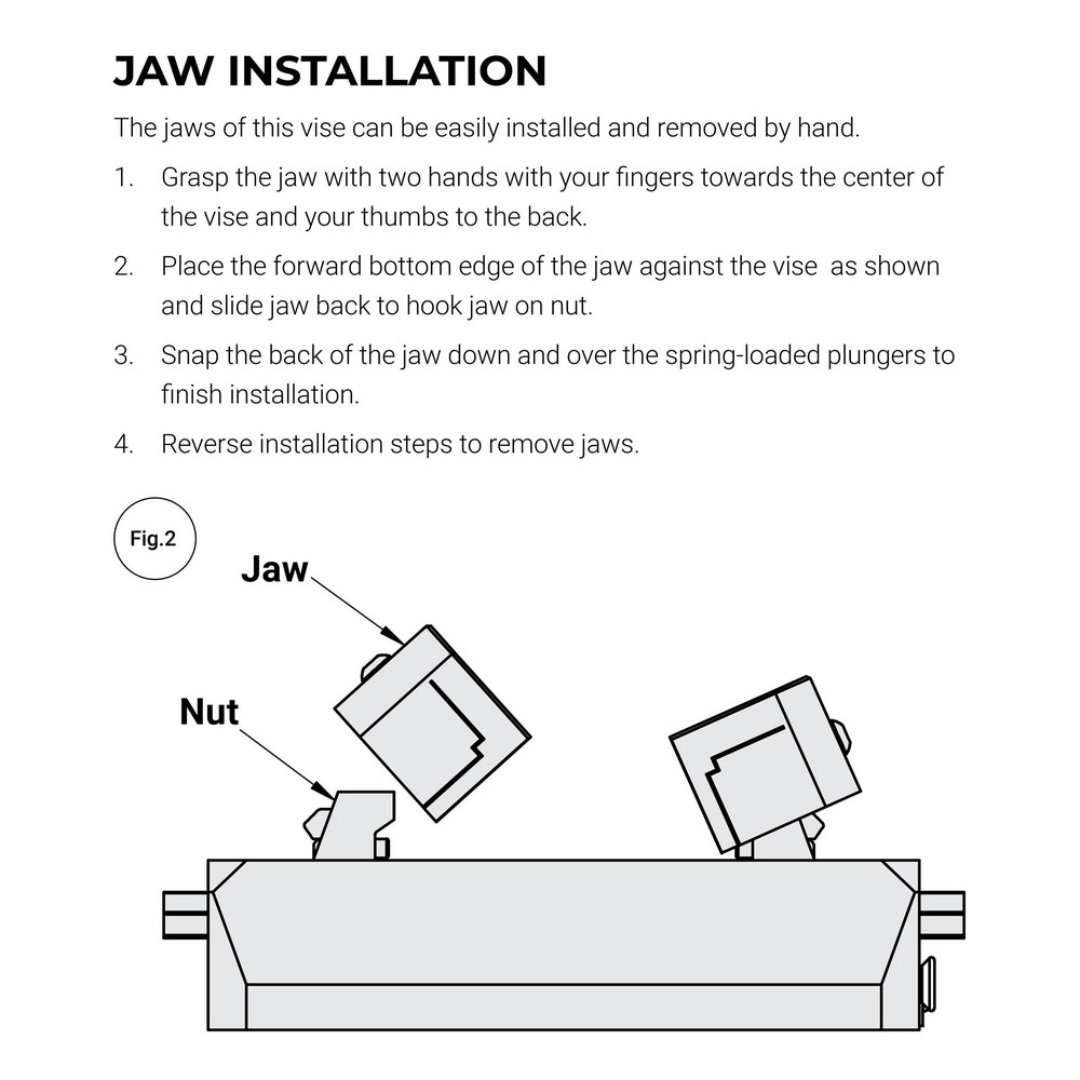

- Quick-Change Jaw System enables jaws to snap on and off quickly, reducing setup time and increasing productivity.
- AngLock® Design minimizes jaw lift during clamping, helping maintain part accuracy and machining consistency.
- High Clamping Force delivers up to 3,375 lbf of secure workpiece holding power.
- Spring-Loaded Gibs maintain jaw squareness and alignment for improved precision.
- Easy Center-Line Adjustment simplifies setup and allows operators to quickly achieve accurate positioning.
- Quick Lash Adjustment supports smoother operation and easier maintenance.

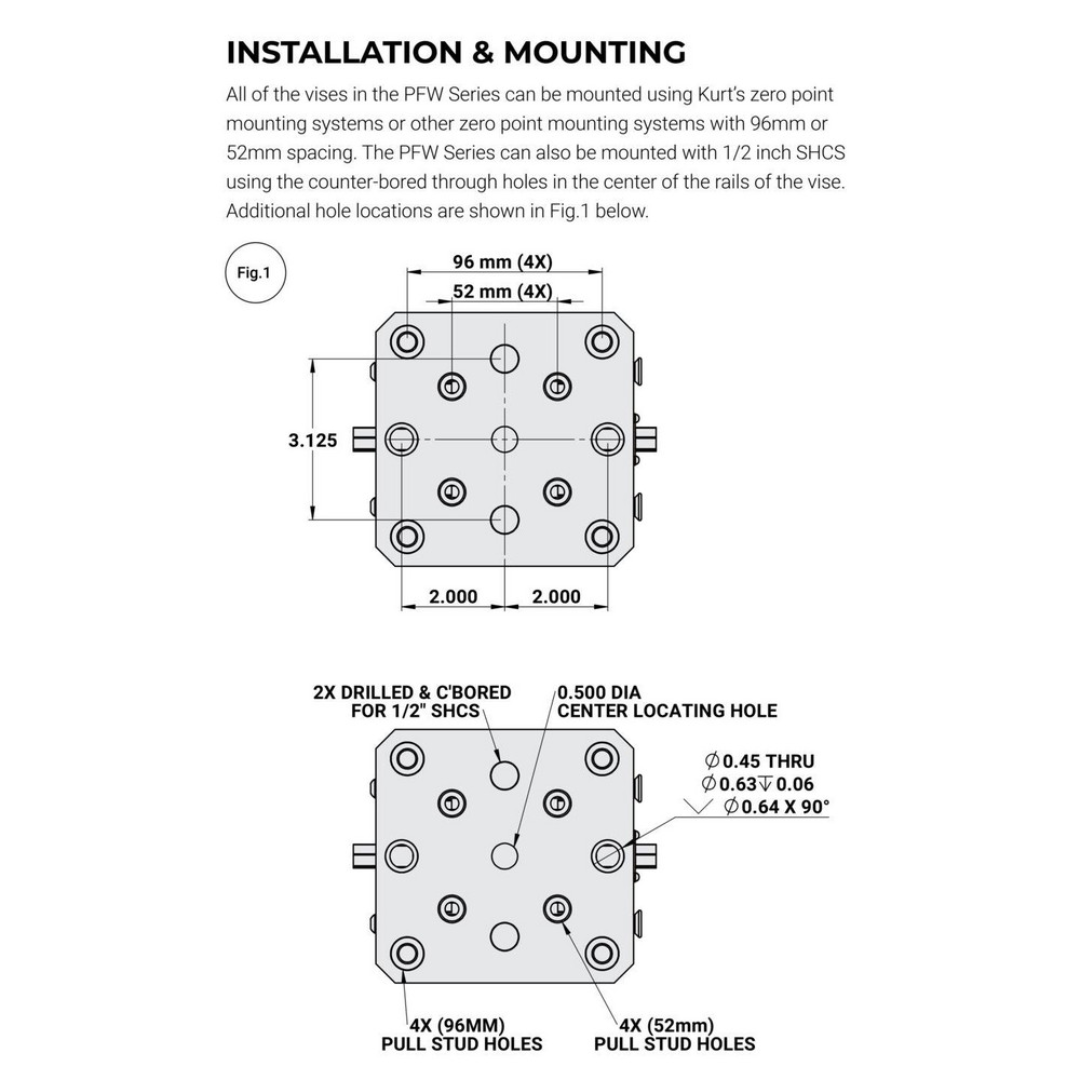

- 96 mm Pull-Stud Mounting Pattern provides compatibility with zero-point pallet systems for rapid fixture changes.
- Automation-Ready Configuration designed for end-effector integration in robotic manufacturing environments.

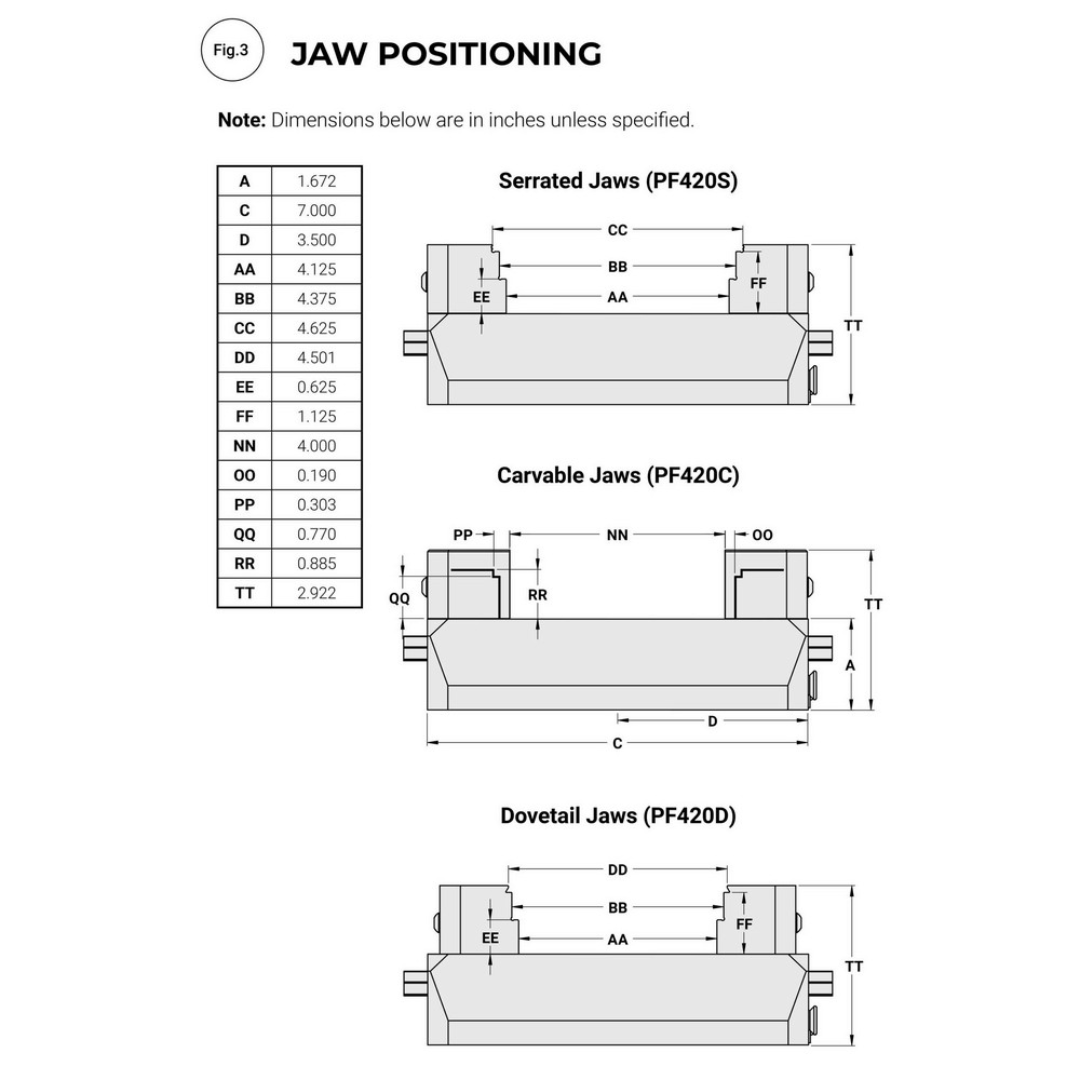

- Three Jaw Options Available including machinable, dovetail, and serrated styles for application flexibility.
- 45 ft-lb Maximum Torque Rating delivers dependable and repeatable clamping performance.
- Extended Jaw Capacity accommodates larger workpieces while maintaining precise self-centering functionality.
- Heavy-Duty Steel Construction ensures long-term durability and reliability in demanding industrial applications.
Kurt Self-Centering Vise: PFW, 4.6250" Max Jaw Opening 62128152 Performance & Construction
- Precision self-centering mechanism positions workpieces consistently on centerline for enhanced machining accuracy.
- Robust steel construction withstands continuous production use and repeated clamping cycles.
- Compact overall footprint maximizes machine table utilization while providing increased workholding capacity.
- Designed to improve setup efficiency and reduce changeover times in production environments.
- Supports advanced manufacturing processes through compatibility with automation and palletized workholding systems.
- Provides reliable workpiece retention during aggressive machining operations.
- Optimized for repeatable accuracy, production efficiency, and long-term durability.
Why Choose the Kurt Self-Centering Vise: PFW, 4.6250" Max Jaw Opening 62128152
- Large 4.6250-inch jaw opening accommodates a wider range of workpiece sizes.
- Precision self-centering operation improves machining consistency and repeatability.
- 3,375 lbf clamping force provides secure workholding for demanding applications.
- Quick-change jaws help reduce downtime and improve productivity.
- AngLock® technology minimizes jaw lift for superior workpiece stability.
- Automation-ready design supports modern CNC manufacturing workflows.
- Compatible with zero-point pallet systems for faster setup and fixture changes.
- Manufactured in the USA using durable steel construction for long-term reliability.
The Kurt Self-Centering Vise: PFW, 4.6250" Max Jaw Opening 62128152 combines increased workpiece capacity, precision self-centering technology, powerful clamping force, and automation-ready versatility to deliver exceptional workholding performance for advanced CNC machining and production manufacturing operations.
