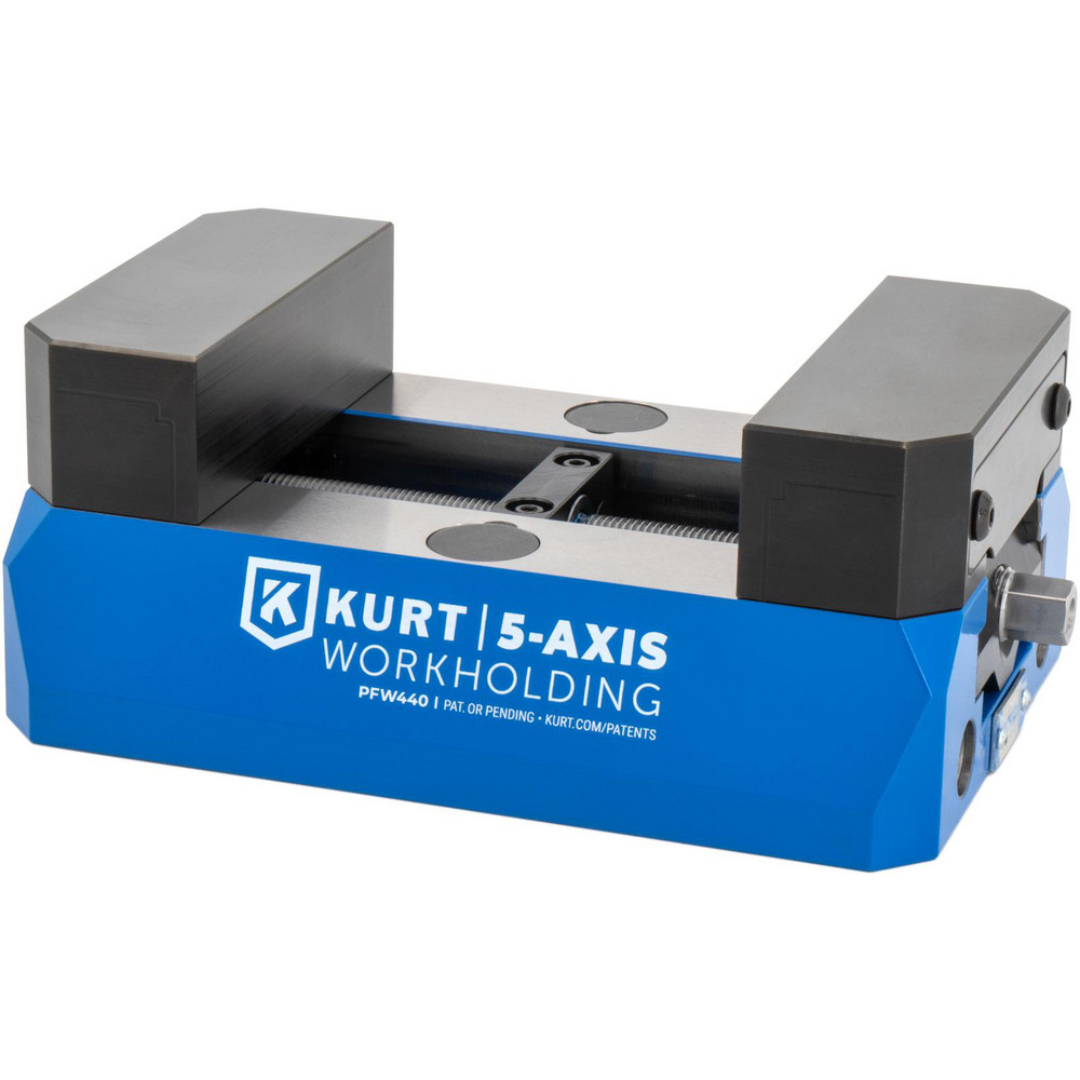

Kurt Self-Centering Vise: PFW, 4.6060" Max Jaw Opening 68624501 Applications
- 5-axis CNC machining centers requiring maximum tool access.
- Precision aerospace, medical, automotive, and defense component manufacturing.
- Automation cells utilizing robotic loading and unloading systems.
- Zero-point pallet systems and modular fixturing platforms.
- High-accuracy milling, drilling, contouring, and finishing operations.
- Production environments demanding repeatable part positioning and fast changeovers.
Ideal for manufacturers seeking precision self-centering workholding with automation integration capabilities and exceptional repeatability.
Kurt Self-Centering Vise: PFW, 4.6060" Max Jaw Opening 68624501 Specifications
| Series | PFW |
|---|---|
| Operation Type | Manual |
| Material | Steel |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 4.6060" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 3,375 lbf |

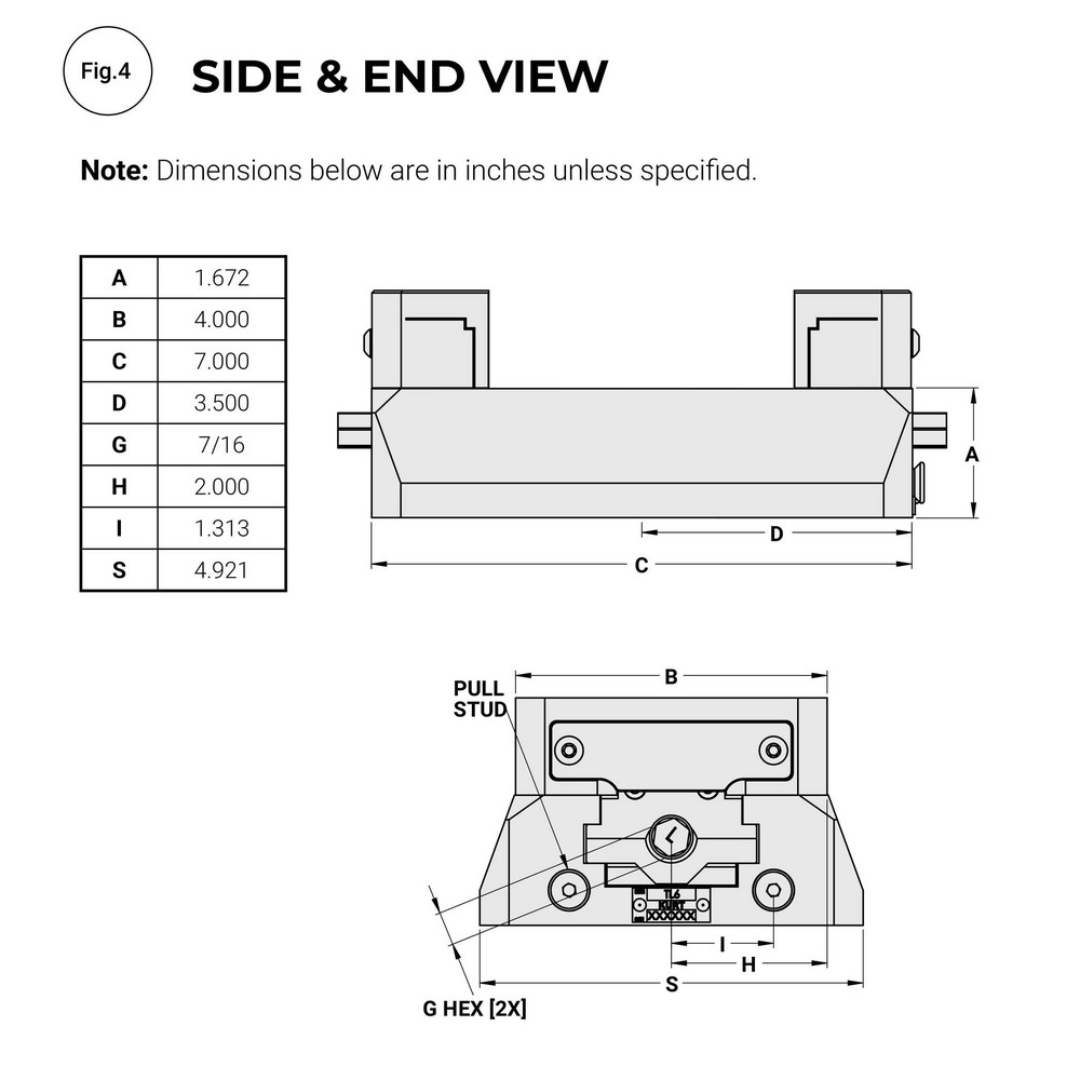

| Overall Length | 7.5000" |
| Overall Width | 4.9210" |
| Overall Height | 2.9220" |
| Maximum Torque | 45 ft-lb |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PFW, 4.6060" Max Jaw Opening 68624501 Features & Benefits

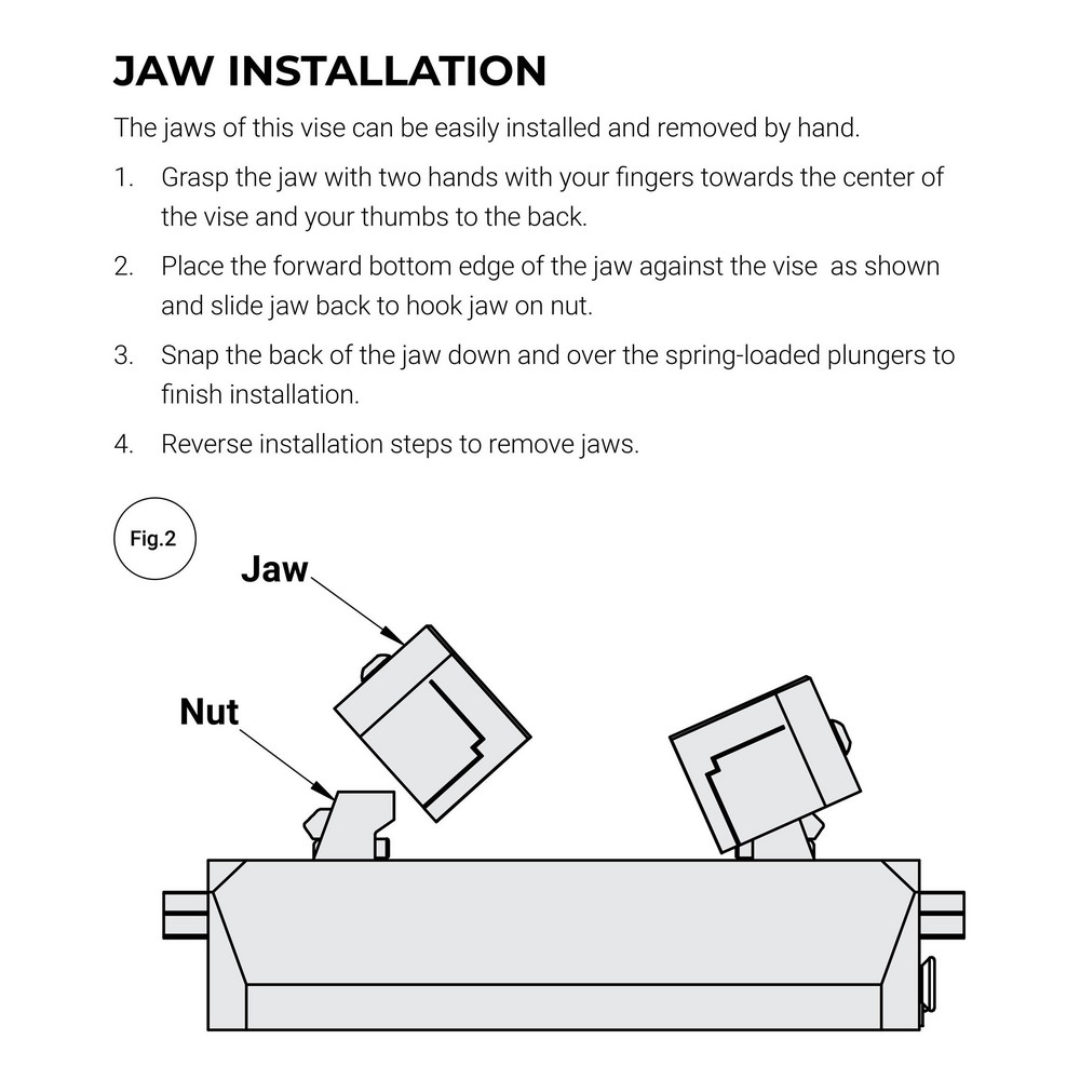

- Quick-change jaws snap on and off for rapid setup changes and reduced downtime.
- Self-centering design automatically centers workpieces for improved accuracy and repeatability.
- AngLock®-style design minimizes jaw lift during clamping to improve part stability.
- High clamping force delivers up to 3,375 lbf of secure workholding performance.
- Spring-loaded gibs help maintain jaw squareness and consistent clamping alignment.
- Easy center-line adjustment simplifies setup and positioning procedures.
- Quick lash adjustment allows fast compensation for wear and operational tuning.

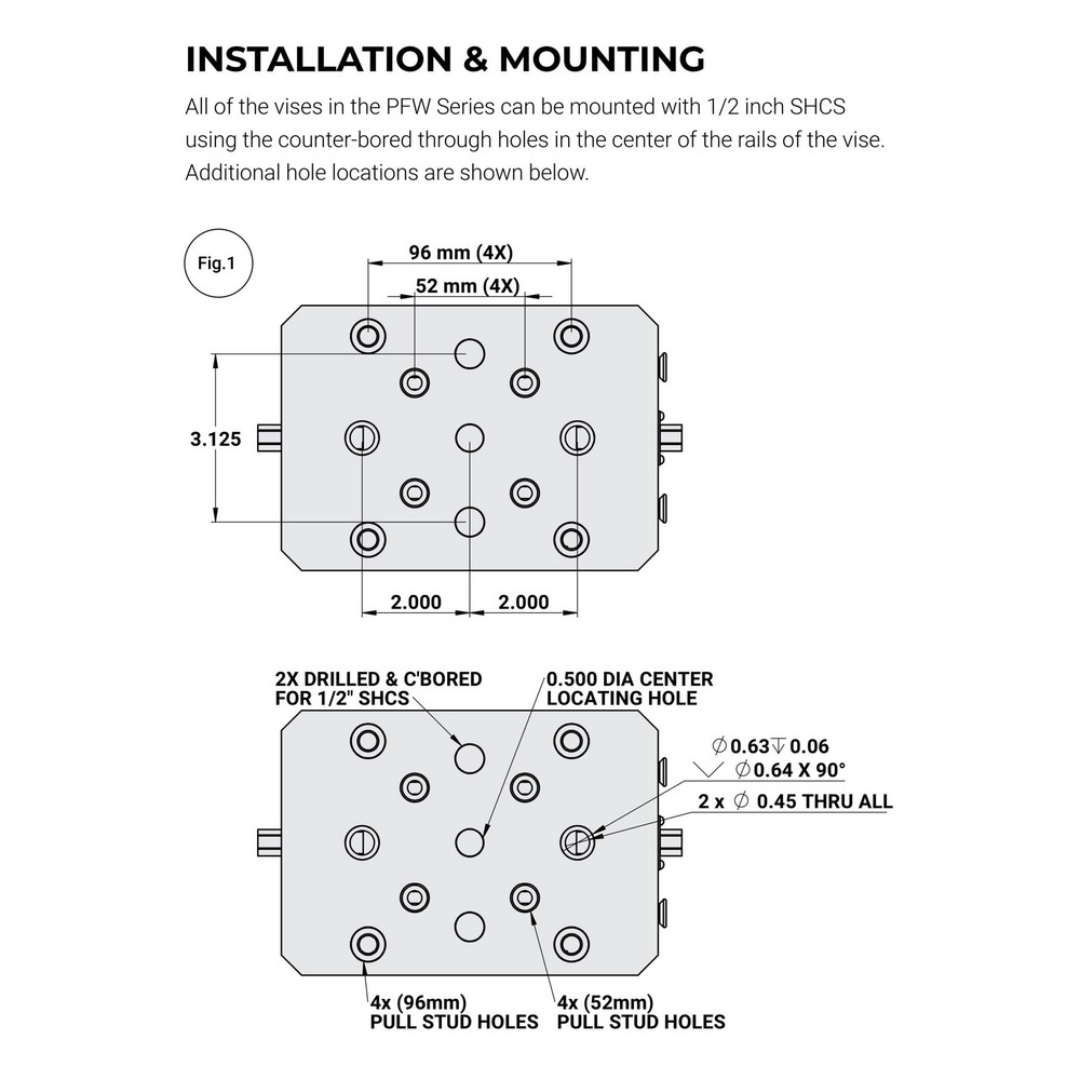

- 96 mm pull-stud mounting pattern supports zero-point pallet systems for rapid fixture changes.
- End effector ready for seamless automation and robotic integration.

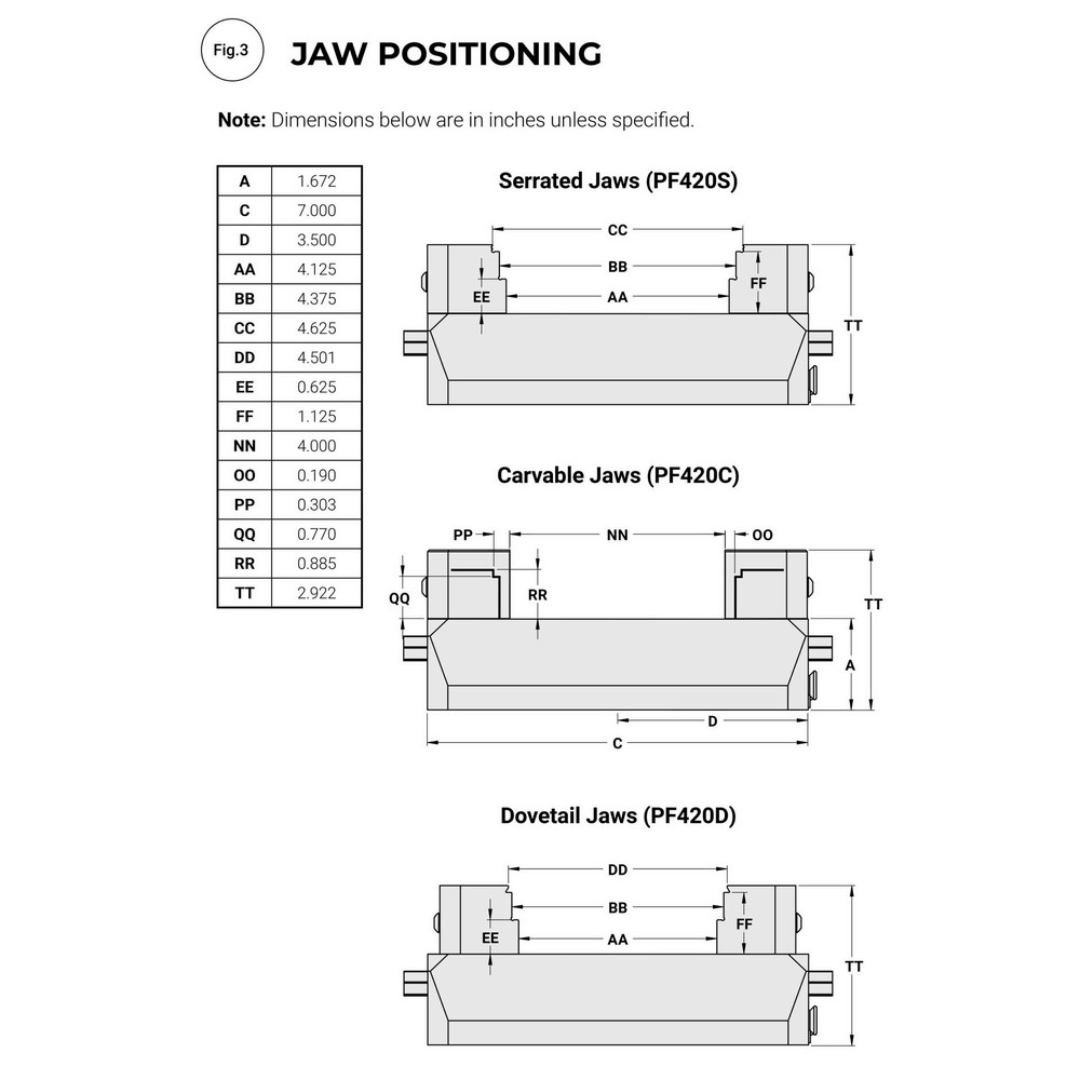

- Multiple jaw options available including machinable, dovetail, and serrated configurations.
Kurt Self-Centering Vise: PFW, 4.6060" Max Jaw Opening 68624501 Performance & Construction
- Compact footprint maximizes machining access during multi-axis operations.
- Steel construction provides durability and long-term dimensional stability.
- Manual operation offers precise operator control and setup flexibility.
- Supports highly repeatable part location for production manufacturing.
- Designed to reduce setup time while increasing machining efficiency.
- Maintains secure clamping under aggressive cutting conditions.
- Optimized for modern CNC environments utilizing palletized workholding systems.
Why Choose the Kurt Self-Centering Vise: PFW, 4.6060" Max Jaw Opening 68624501
- Self-centering design improves accuracy and repeatability.
- 3,375 lbf clamping force provides secure workpiece retention.
- Quick-change jaws reduce setup and changeover times.
- Compatible with zero-point pallet systems and automation cells.
- Compact 5-axis-friendly design maximizes machining accessibility.
- Manufactured in the USA for dependable industrial performance.
The Kurt Self-Centering Vise: PFW, 4.6060" Max Jaw Opening 68624501 combines precision self-centering technology, high clamping force, quick-change jaw capability, and automation-ready features into a compact workholding platform designed for advanced CNC machining and production manufacturing environments.
