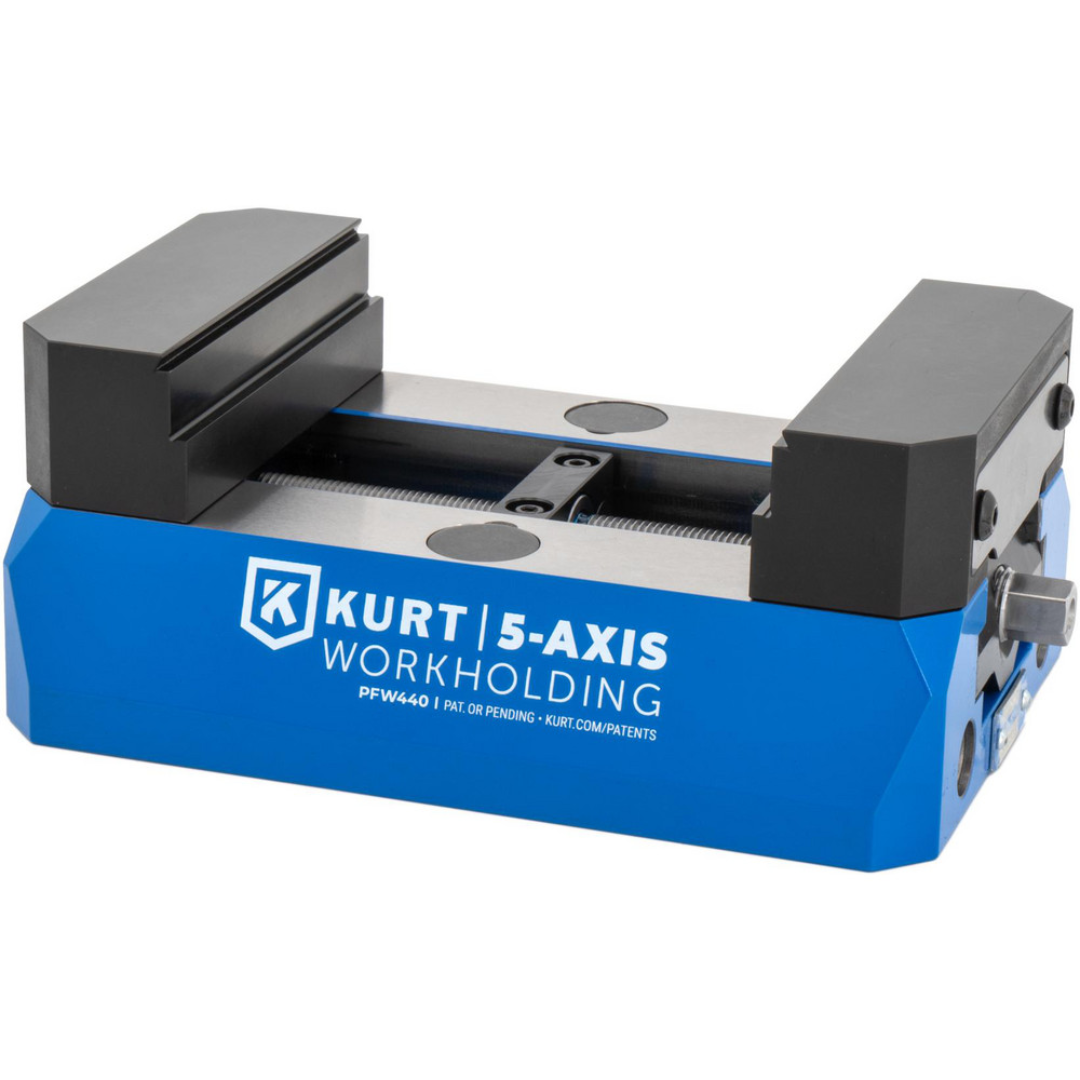

Kurt Self-Centering Vise: PFW, 4.5010" Max Jaw Opening 55542096 Applications
- Precision CNC milling and machining operations requiring accurate workpiece centering.
- Production machining of larger components requiring increased jaw opening capacity.
- Multi-axis machining centers performing tight-tolerance manufacturing.
- Automated machining cells utilizing robotic loading and unloading systems.
- Fixture and palletized manufacturing systems using zero-point workholding technology.
- Prototype development, toolroom machining, and production manufacturing.
- Machining steel, aluminum, stainless steel, brass, plastics, and engineered materials.
- Applications requiring repeatable setups and consistent part positioning.
Ideal for machining operations that require larger workpiece capacity, precise self-centering functionality, and dependable clamping performance.

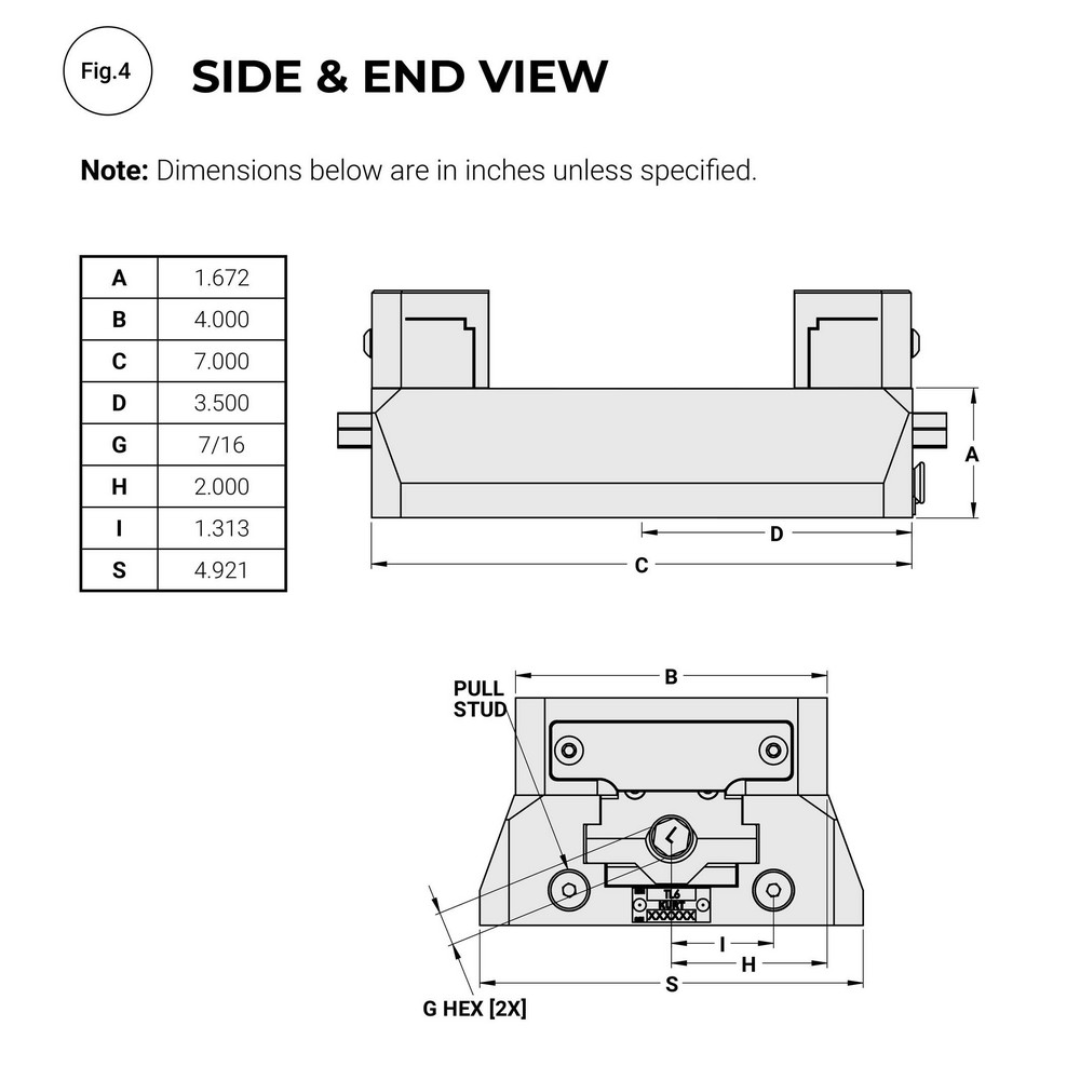

Kurt Self-Centering Vise: PFW, 4.5010" Max Jaw Opening 55542096 Specifications
| Series | PFW |
|---|---|
| Operation Type | Manual |
| Material | Steel |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 4.5010" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 3,375 lbf |
| Overall Length | 7.5000" |
| Overall Width | 4.9210" |
| Overall Height | 2.9220" |
| Maximum Torque | 45 ft-lb |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PFW, 4.5010" Max Jaw Opening 55542096 Features & Benefits

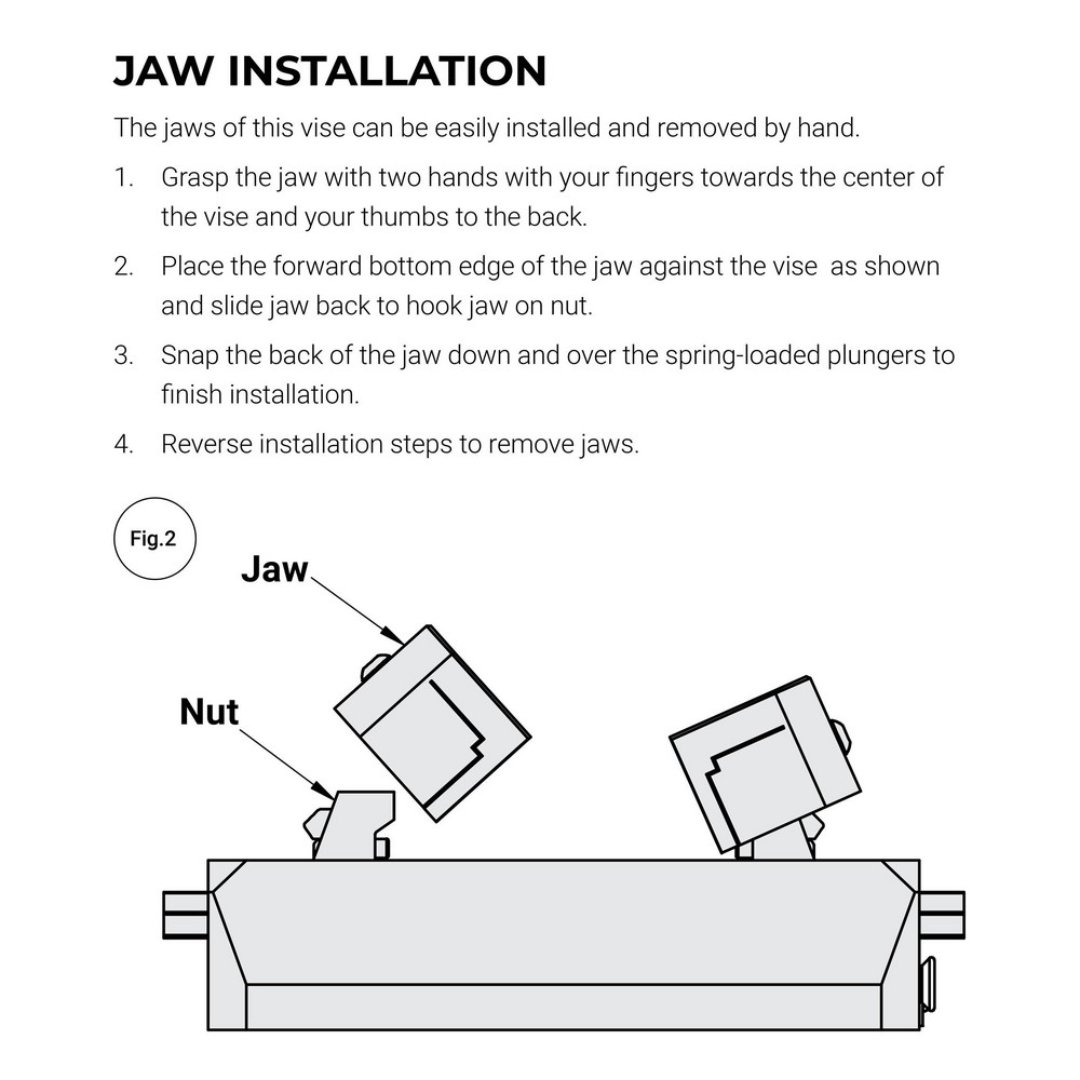

- Quick-Change Jaw System allows jaws to snap on and off rapidly, minimizing setup and changeover time.
- AngLock® Design significantly reduces jaw lift during clamping to improve workpiece stability and machining accuracy.
- High Clamping Force delivers up to 3,375 lbf of secure holding power for demanding machining operations.
- Spring-Loaded Gibs help maintain jaw alignment and squareness for enhanced precision and repeatability.
- Easy Center-Line Adjustment simplifies setup procedures and improves operational efficiency.
- Quick Lash Adjustment enables fast compensation for wear and helps maintain consistent performance.

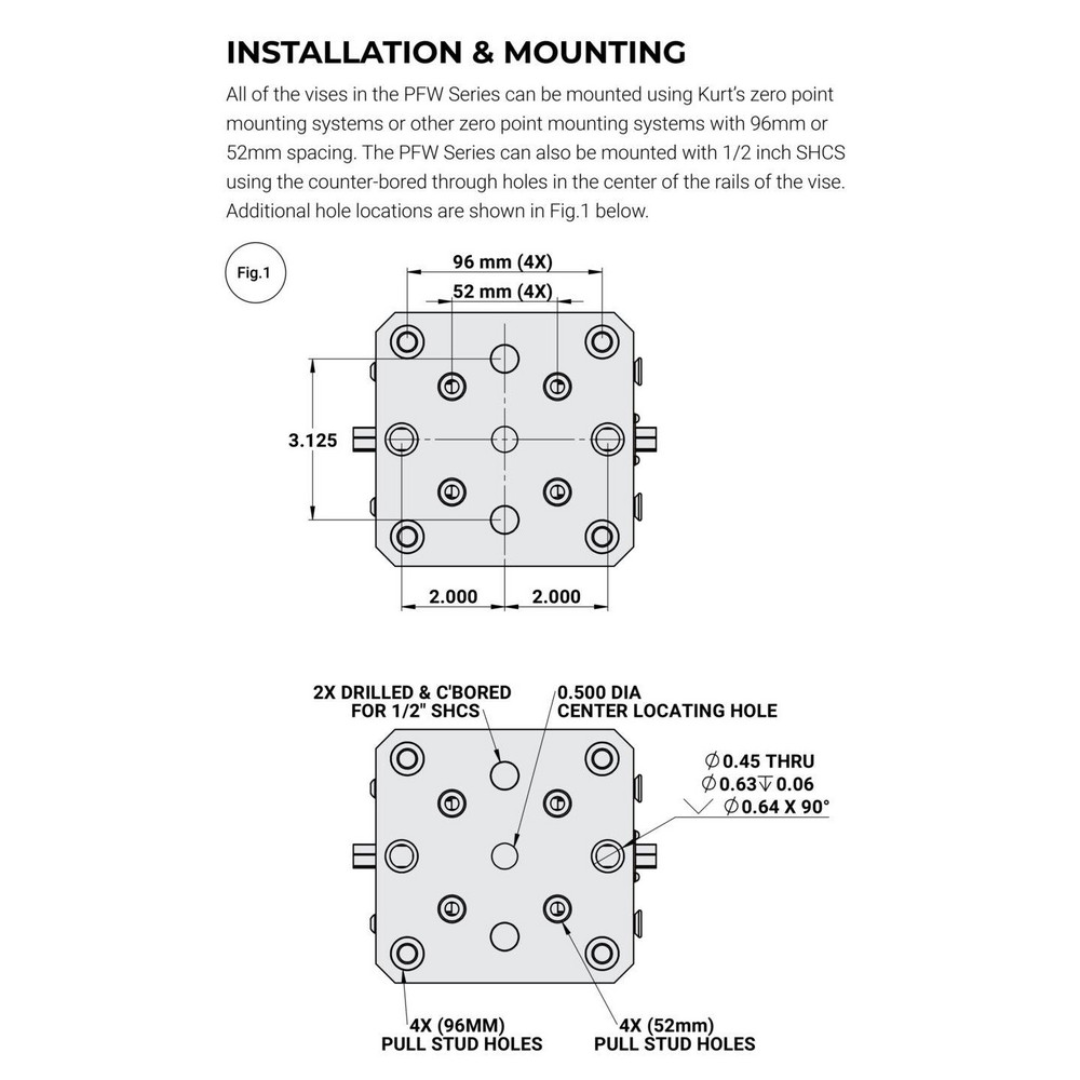

- 96 mm Pull-Stud Mounting Compatibility supports integration with zero-point pallet systems for rapid fixture changes.
- Automation-Ready Configuration designed for end-effector compatibility and robotic manufacturing systems.

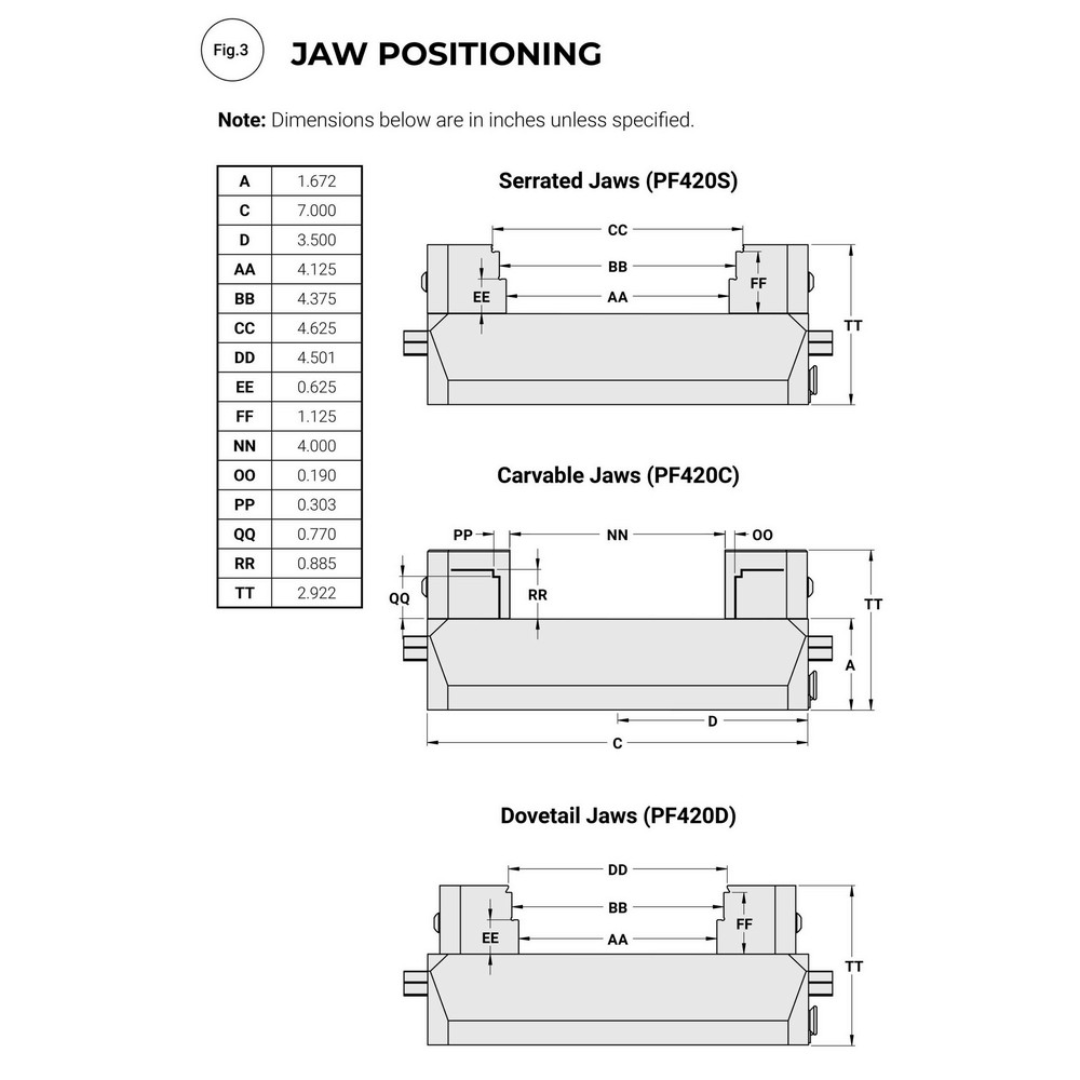

- Three Jaw Options Available including machinable, dovetail, and serrated jaws to suit a wide variety of workholding requirements.
- 45 ft-lb Maximum Torque Rating provides reliable and repeatable clamping performance.
- Extended Jaw Opening Capacity accommodates larger workpieces while maintaining precise centering functionality.
- Heavy-Duty Steel Construction ensures durability and long-term reliability in demanding industrial environments.
Kurt Self-Centering Vise: PFW, 4.5010" Max Jaw Opening 55542096 Performance & Construction
- Precision self-centering mechanism automatically positions workpieces on centerline for improved machining consistency.
- Robust steel construction withstands continuous production use and repeated clamping cycles.
- Compact overall dimensions maximize machine table utilization while providing increased jaw capacity.
- Designed to reduce setup time and improve throughput in production machining environments.
- Supports advanced manufacturing workflows through compatibility with automation systems and palletized workholding solutions.
- Provides excellent workpiece retention while minimizing movement during aggressive machining operations.
- Optimized for manufacturers seeking repeatable accuracy, productivity improvements, and long-term durability.
Why Choose the Kurt Self-Centering Vise: PFW, 4.5010" Max Jaw Opening 55542096
- Large 4.5010-inch jaw opening accommodates a broader range of workpiece sizes.
- Precision self-centering operation improves repeatability and machining accuracy.
- 3,375 lbf clamping force ensures secure workholding performance.
- Quick-change jaws reduce downtime and improve production efficiency.
- AngLock® technology minimizes jaw lift for superior stability.
- Automation-ready design supports modern manufacturing environments.
- Compatible with zero-point pallet systems for faster setup and fixture changes.
- Manufactured in the USA using durable steel construction for long service life.
The Kurt Self-Centering Vise: PFW, 4.5010" Max Jaw Opening 55542096 combines extended workpiece capacity, precision self-centering technology, powerful clamping force, and automation-ready versatility to deliver exceptional workholding performance for advanced CNC machining applications.
