Kurt Self-Centering Vise: PFW, 2.6250" Max Jaw Opening 55542021 Applications
- Precision CNC milling and machining centers.
- High-volume production environments requiring repeatable workholding.
- Multi-axis machining applications requiring accurate part centering.
- Fixture and palletized manufacturing systems.
- Automated machining cells utilizing robotic loading and unloading systems.
- Prototype machining and short-run production work.
- Machining steel, aluminum, stainless steel, brass, plastics, and engineered materials.
Ideal for manufacturers seeking accurate self-centering performance, reduced setup time, and reliable clamping force in modern machining environments.
Kurt Self-Centering Vise: PFW, 2.6250" Max Jaw Opening 55542021 Specifications
| Series | PFW |
|---|---|
| Operation Type | Manual |
| Material | Steel |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 2.6250" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 3,375 lbf |
| Overall Length | 6.0000" |
| Overall Width | 4.9210" |
| Overall Height | 2.9220" |
| Maximum Torque | 45 ft-lb |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PFW, 2.6250" Max Jaw Opening 55542021 Features & Benefits

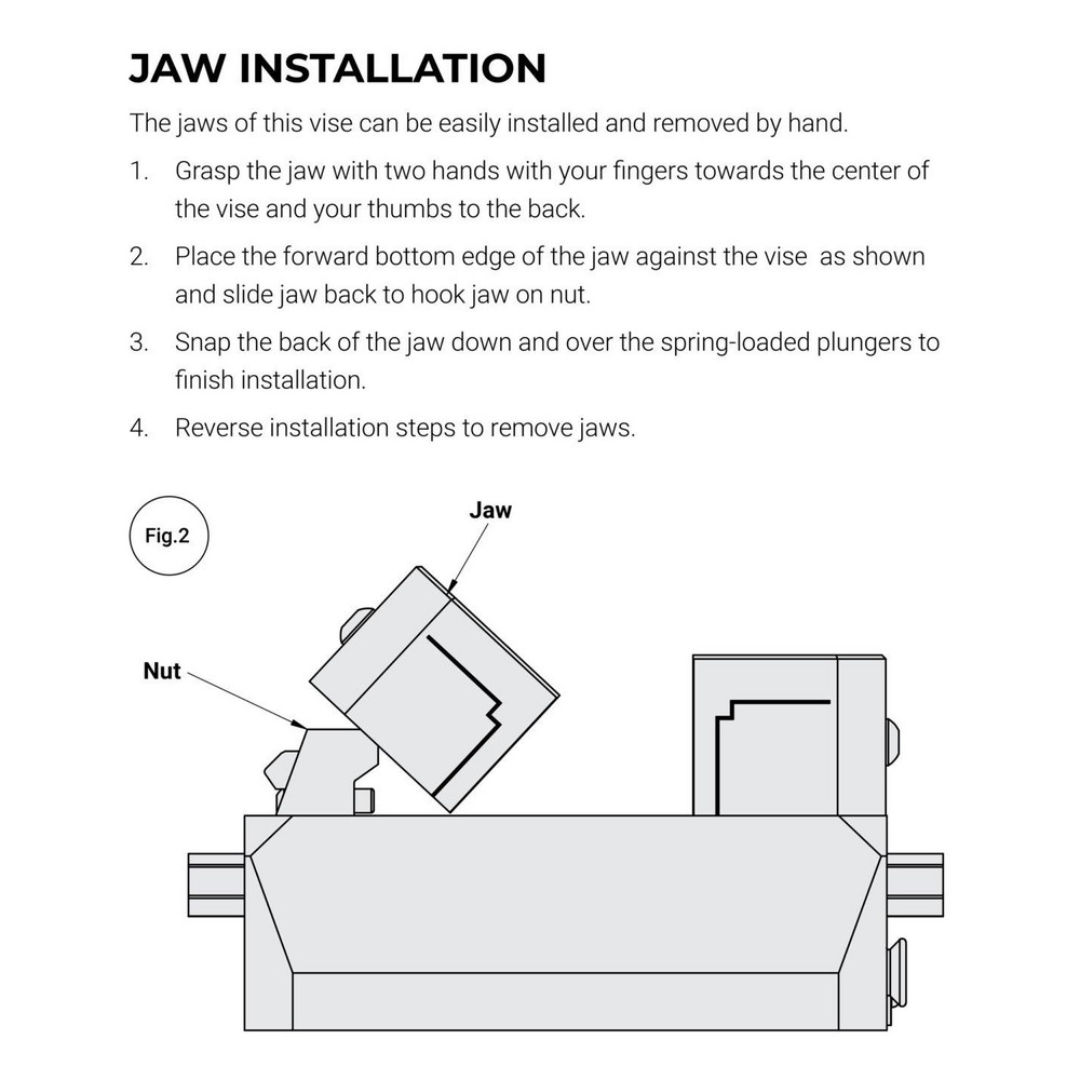

- Quick-Change Jaw System allows jaws to snap on and off quickly for faster setup changes and improved productivity.
- AngLock® Design minimizes jaw lift to improve workpiece stability and machining accuracy.
- High Clamping Force delivers up to 3,375 lbf of secure holding power.
- Spring-Loaded Gibs help maintain jaw squareness and alignment throughout operation.
- Easy Center-Line Adjustment simplifies setup procedures and improves repeatability.
- Quick Lash Adjustment supports smooth operation and reduced maintenance time.

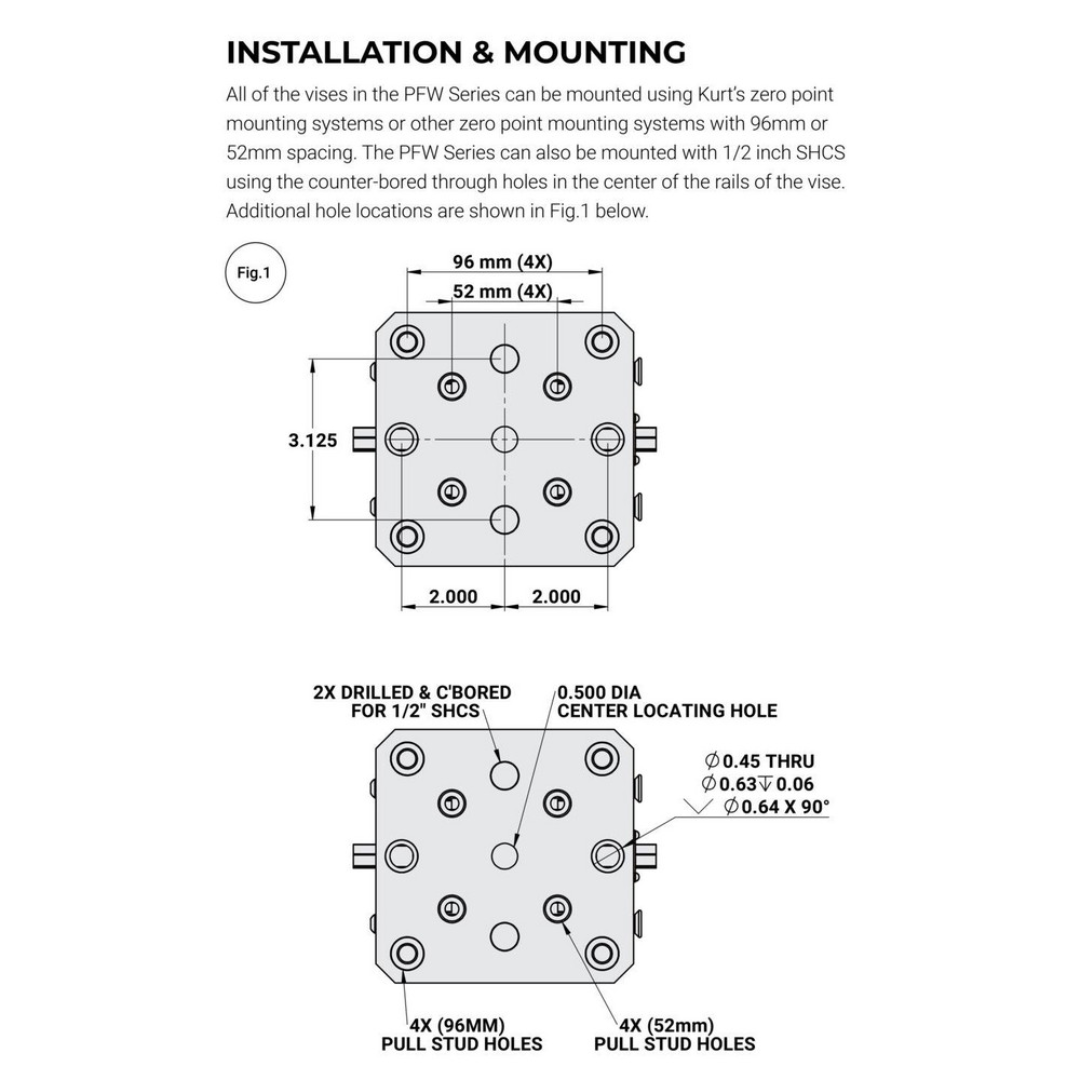

- 96 mm Pull-Stud Mounting Pattern enables integration with zero-point pallet systems.
- Automation Ready Design supports end-effector compatibility for robotic manufacturing environments.

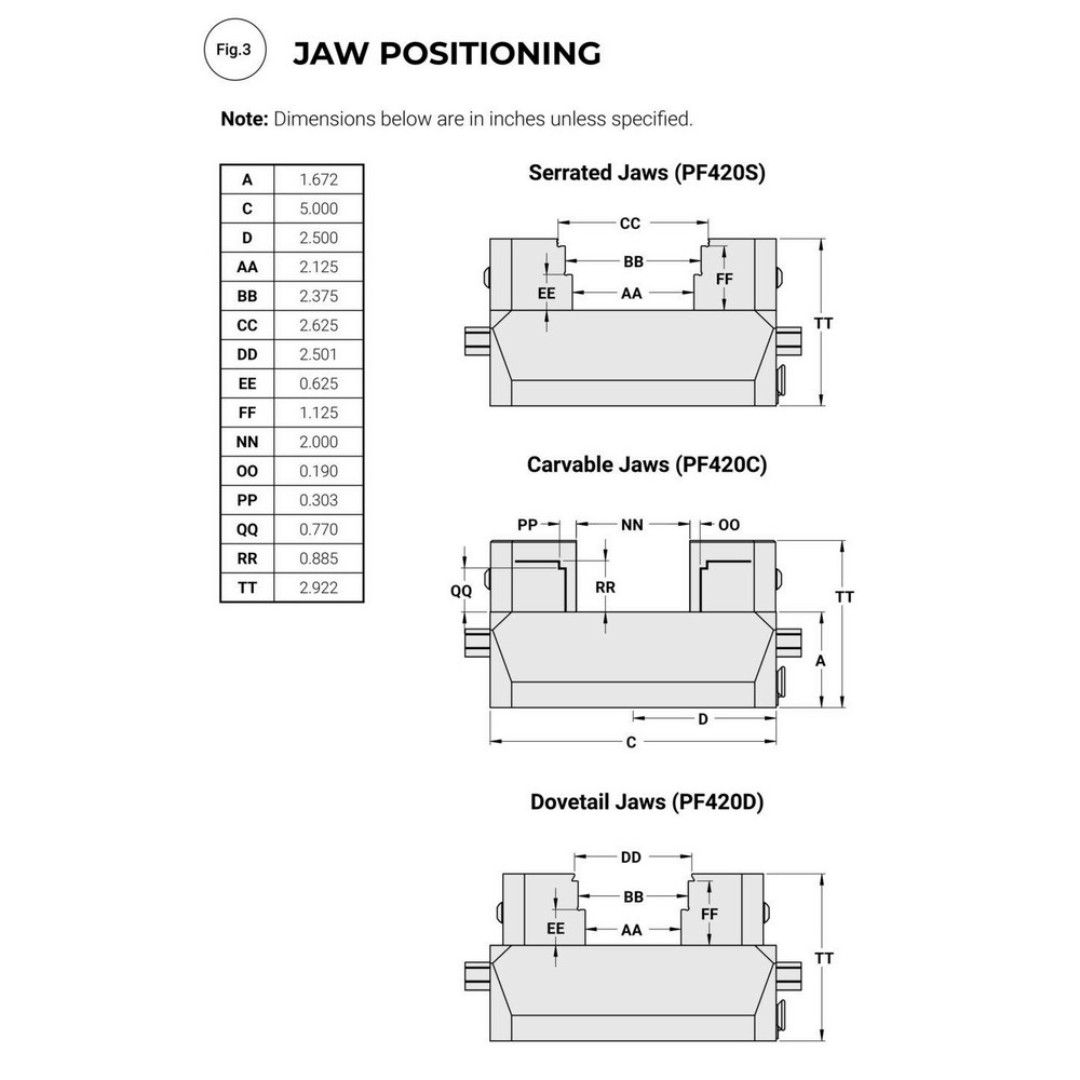

- Three Jaw Options Available including machinable, dovetail, and serrated configurations for application flexibility.
- Maximum Torque Rating of 45 ft-lb provides dependable clamping performance during demanding machining operations.
- Precision Self-Centering Mechanism positions workpieces consistently on centerline for improved machining accuracy.
- Durable Steel Construction delivers long service life in industrial manufacturing environments.
Kurt Self-Centering Vise: PFW, 2.6250" Max Jaw Opening 55542021 Performance & Construction
- Engineered to provide highly repeatable workpiece positioning for precision machining applications.
- Compact footprint maximizes machine table utilization while maintaining excellent clamping performance.
- Robust steel body construction withstands demanding production environments and repeated clamping cycles.
- Self-centering functionality reduces setup variability and improves part-to-part consistency.
- Supports lean manufacturing initiatives through faster changeovers and reduced setup times.
- Designed for seamless integration into automated manufacturing cells and palletized workholding systems.
- Optimized for high-precision machining operations requiring dependable holding power and repeatability.
Why Choose the Kurt Self-Centering Vise: PFW, 2.6250" Max Jaw Opening 55542021
- Precision self-centering design improves machining accuracy and consistency.
- 3,375 lbf clamping force securely holds workpieces during machining.
- Quick-change jaws reduce downtime and increase productivity.
- AngLock® technology minimizes jaw lift for superior workpiece stability.
- Compatible with zero-point pallet systems for advanced manufacturing workflows.
- Automation-ready configuration supports robotic integration.
- Manufactured in the USA using durable steel construction for long-term reliability.
The Kurt Self-Centering Vise: PFW, 2.6250" Max Jaw Opening 55542021 combines precision centering, powerful clamping force, automation-ready functionality, and proven AngLock® technology to deliver reliable, repeatable workholding performance for modern CNC machining operations.
