Kurt Self-Centering Vise: PFW, 2.6090" Max Jaw Opening 68624097 Applications
- Precision CNC milling and machining operations.
- High-tolerance production machining requiring repeatable workpiece positioning.
- Multi-axis machining centers and advanced manufacturing systems.
- Automated machining cells utilizing robotic loading and unloading.
- Fixture and palletized manufacturing environments.
- Prototype development, production manufacturing, and toolroom applications.
- Machining steel, stainless steel, aluminum, brass, plastics, and engineered materials.
- Applications requiring precise centering and secure workholding performance.
Ideal for manufacturers seeking precision centering, reduced setup times, and dependable clamping performance in modern machining operations.
Kurt Self-Centering Vise: PFW, 2.6090" Max Jaw Opening 68624097 Specifications
| Series | PFW |
|---|---|
| Operation Type | Manual |
| Material | Steel |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 2.6090" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 3,375 lbf |

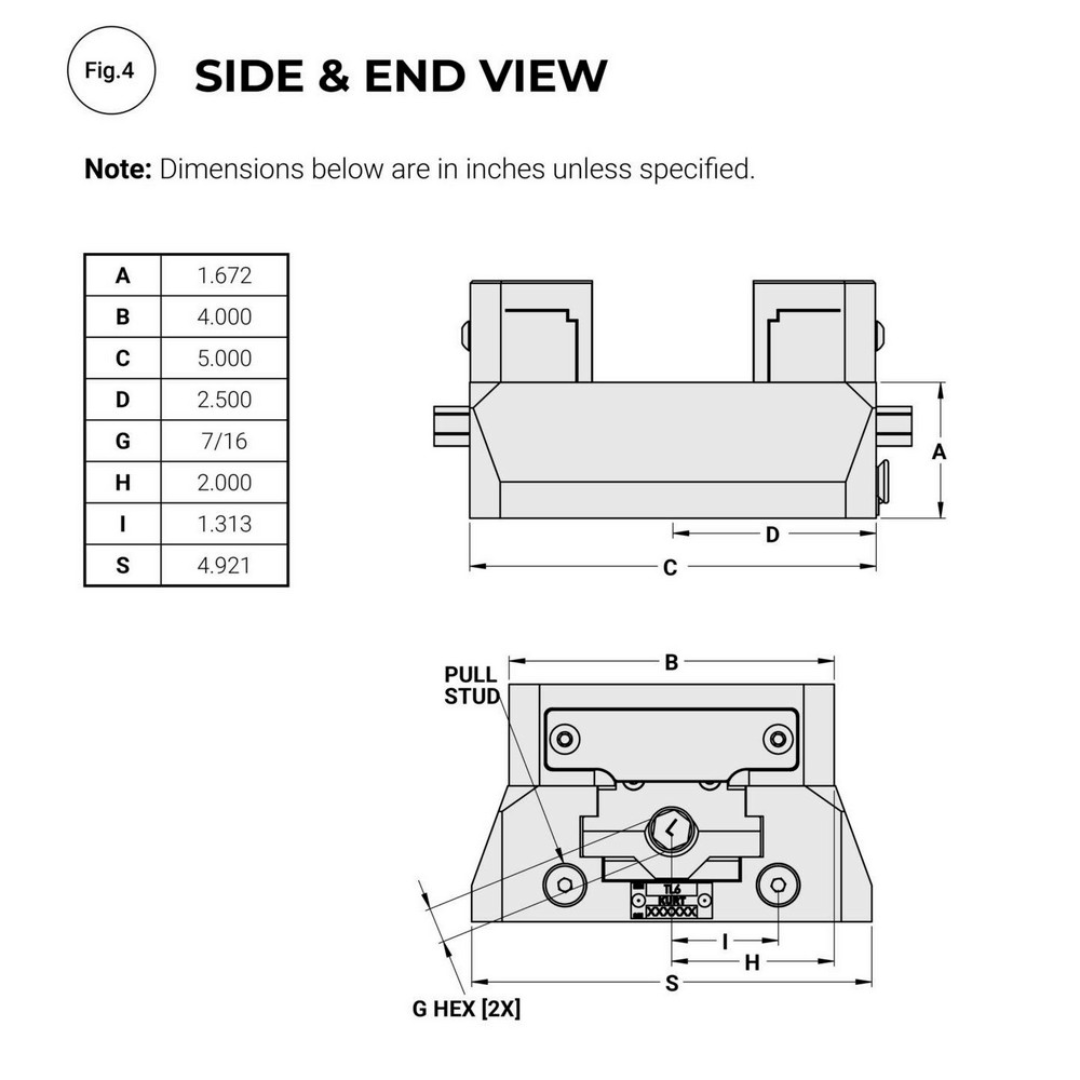

| Overall Length | 6.0000" |
| Overall Width | 4.9210" |
| Overall Height | 2.9220" |
| Maximum Torque | 45 ft-lb |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PFW, 2.6090" Max Jaw Opening 68624097 Features & Benefits

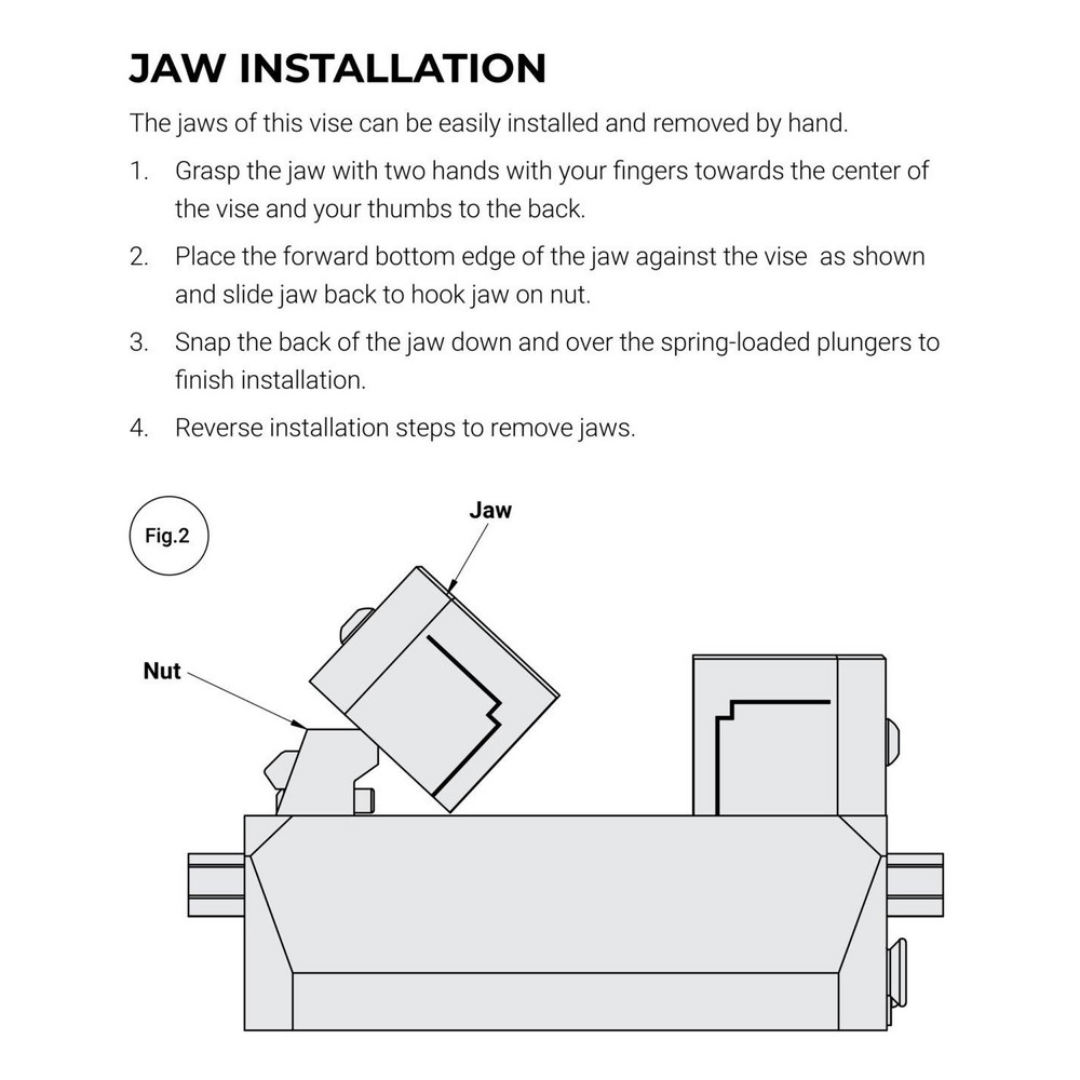

- Quick-Change Jaw System allows jaws to snap on and off quickly, reducing setup time and improving productivity.
- AngLock® Design minimizes jaw lift during clamping, helping maintain machining accuracy and part stability.
- High Clamping Force delivers up to 3,375 lbf of secure holding power for demanding machining operations.
- Spring-Loaded Gibs help maintain jaw squareness and alignment for improved repeatability.
- Easy Center-Line Adjustment simplifies setup procedures and promotes accurate workpiece positioning.
- Quick Lash Adjustment enables fast maintenance and consistent performance.

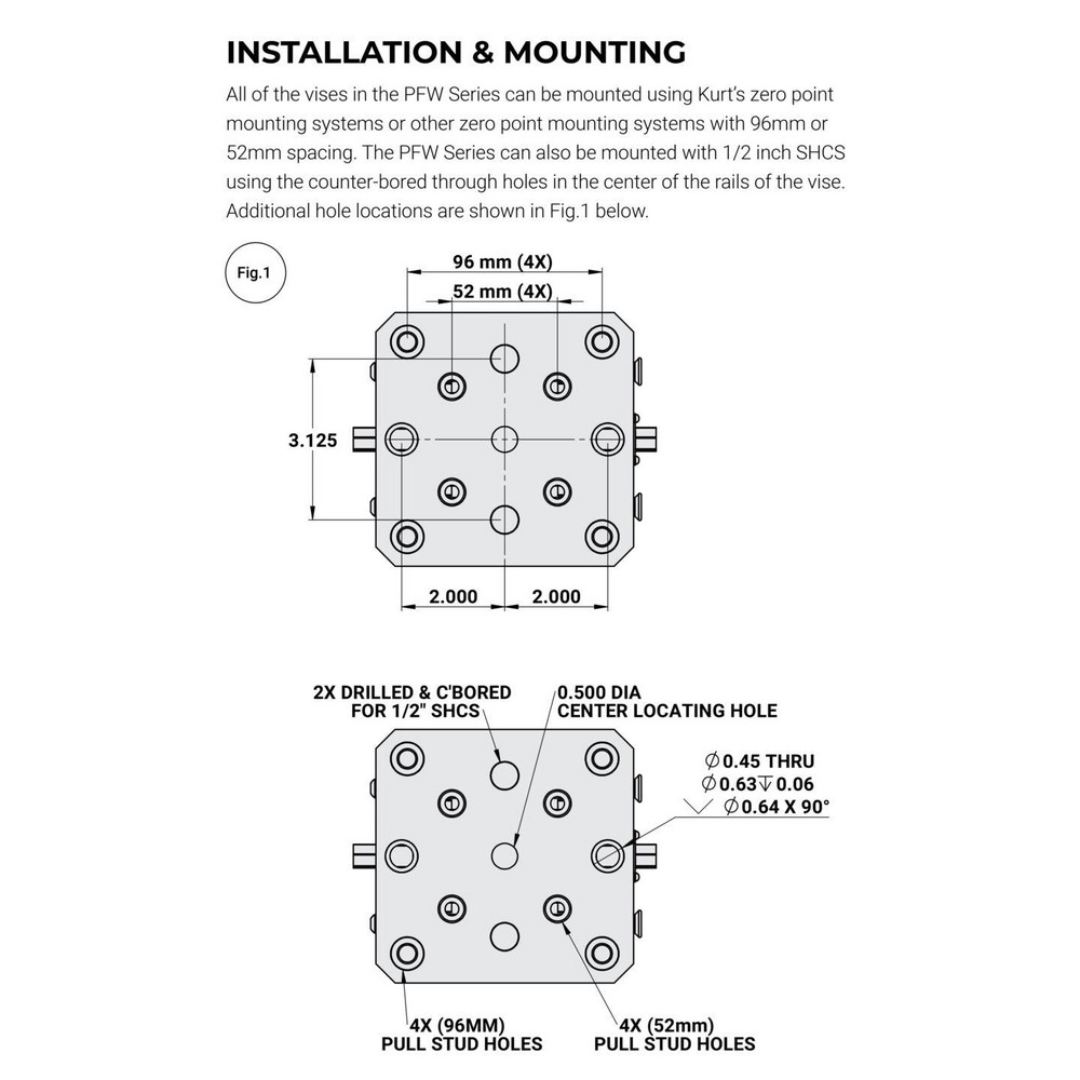

- 96 mm Pull-Stud Mounting Compatibility supports integration with zero-point pallet systems.
- Automation-Ready Design accommodates end-effector integration for robotic manufacturing environments.

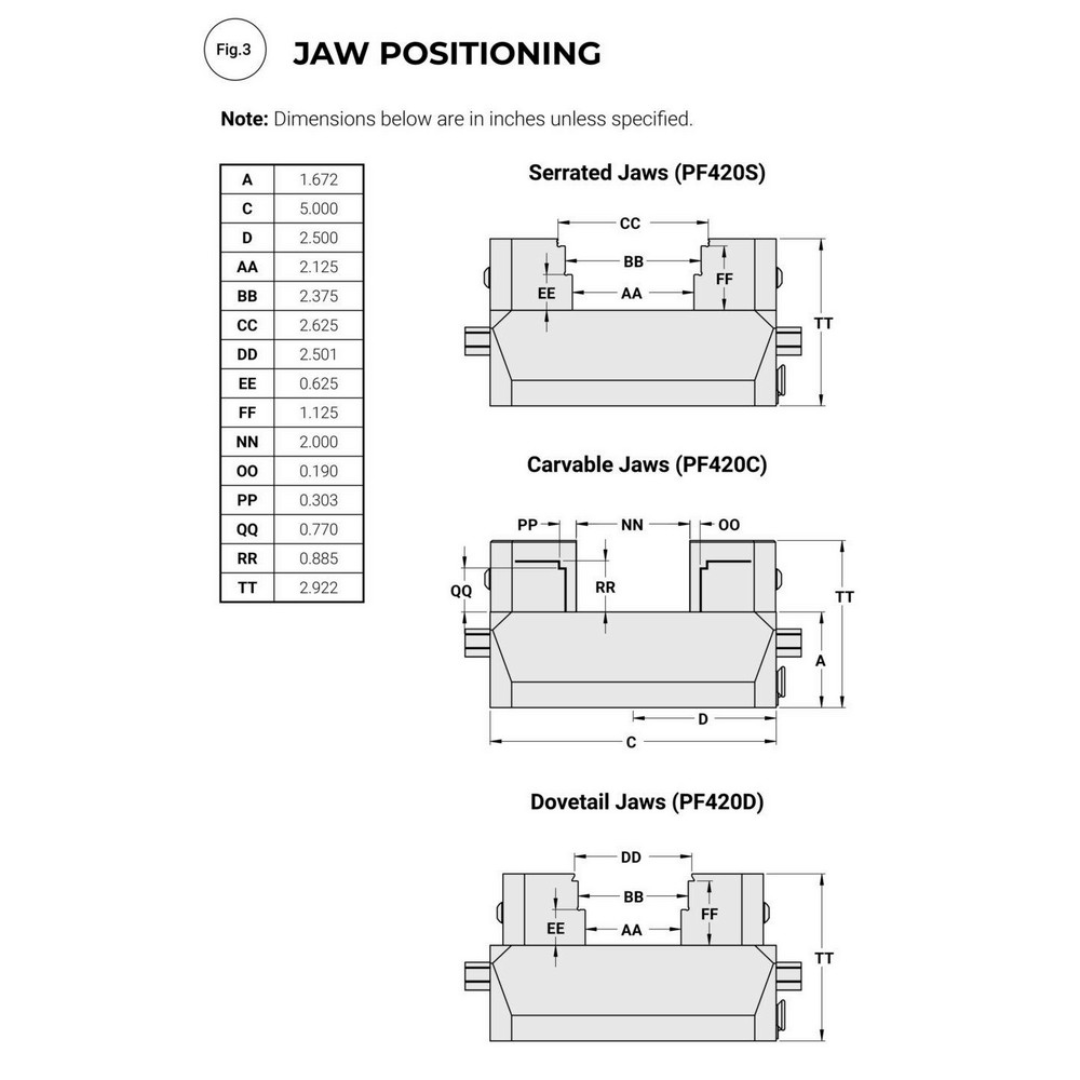

- Three Jaw Options Available including machinable, dovetail, and serrated configurations for application flexibility.
- 45 ft-lb Maximum Torque Rating provides dependable and repeatable clamping performance.
- Precision Self-Centering Mechanism ensures consistent workpiece alignment on the machine centerline.
- Durable Steel Construction provides long service life in demanding industrial environments.
Kurt Self-Centering Vise: PFW, 2.6090" Max Jaw Opening 68624097 Performance & Construction
- Designed to provide highly accurate and repeatable workpiece positioning for precision machining applications.
- Compact footprint maximizes machine table space while maintaining excellent workholding performance.
- Robust steel construction withstands continuous production use and repeated clamping cycles.
- Self-centering functionality reduces setup variability and improves part-to-part consistency.
- Supports advanced manufacturing processes through automation compatibility and zero-point workholding integration.
- Provides secure workpiece retention during aggressive cutting and machining operations.
- Optimized for productivity, repeatability, and long-term reliability in CNC manufacturing environments.
Why Choose the Kurt Self-Centering Vise: PFW, 2.6090" Max Jaw Opening 68624097
- Precision self-centering design improves machining accuracy and consistency.
- 3,375 lbf clamping force securely holds workpieces during machining operations.
- Quick-change jaws minimize downtime and increase production efficiency.
- AngLock® technology reduces jaw lift for superior part stability.
- Automation-ready configuration supports modern manufacturing workflows.
- Compatible with zero-point pallet systems for rapid setup and fixture changes.
- Manufactured in the USA using durable steel construction for long-term reliability.
The Kurt Self-Centering Vise: PFW, 2.6090" Max Jaw Opening 68624097 combines precision centering, powerful clamping force, quick-change versatility, and automation-ready functionality to deliver exceptional workholding performance for advanced CNC machining applications.
