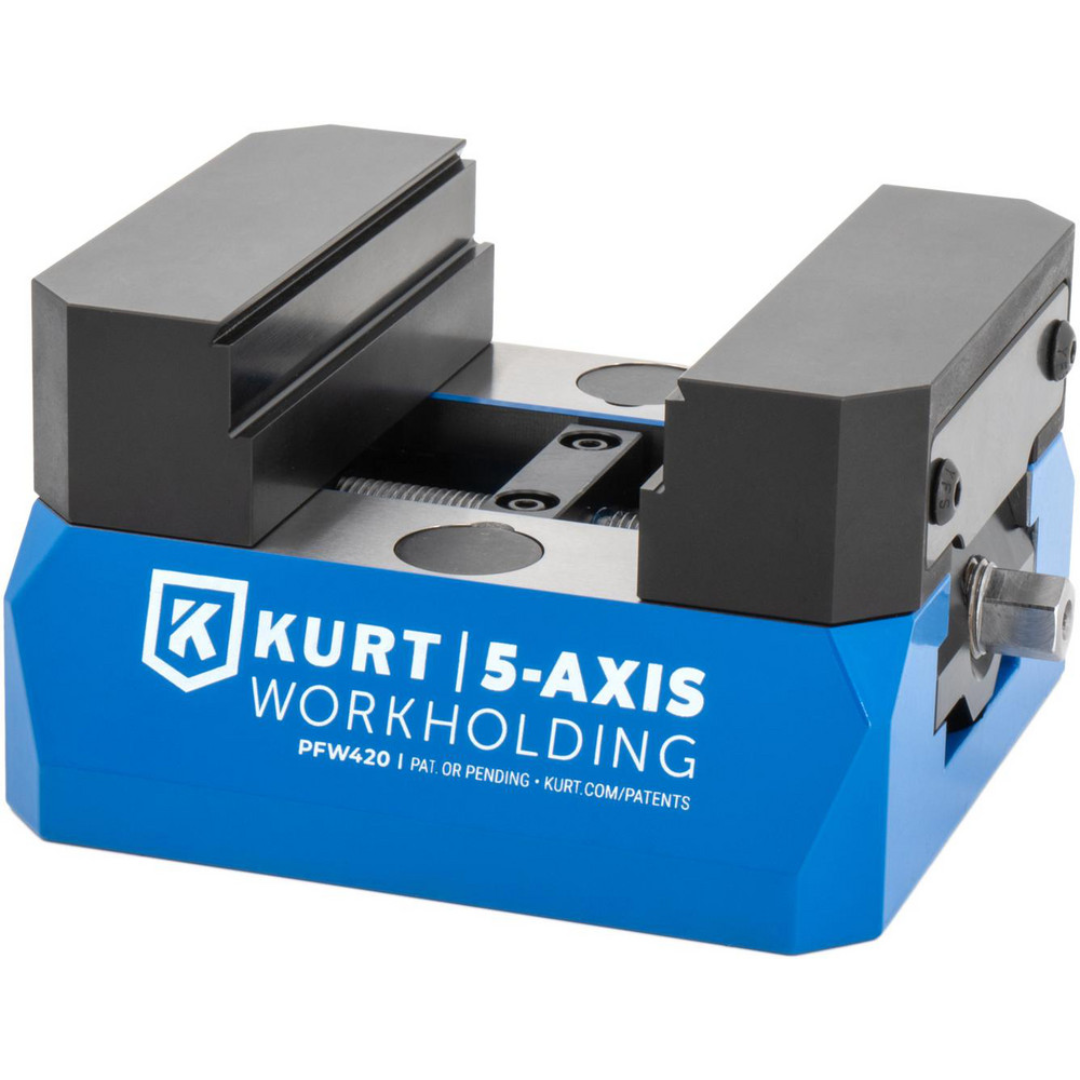

Kurt Self-Centering Vise: PFW, 2.5010" Max Jaw Opening 67380915 Applications
- Precision CNC milling and machining operations requiring accurate part centering.
- Multi-axis machining centers performing high-tolerance production work.
- Fixture and palletized manufacturing systems utilizing zero-point workholding.
- Automated machining cells requiring end-effector compatible workholding solutions.
- Prototype development, short-run production, and high-volume manufacturing environments.
- Machining of steel, stainless steel, aluminum, brass, plastics, and engineered materials.
- Production applications requiring consistent workpiece positioning and repeatable setups.
Designed for manufacturers seeking precision self-centering performance, reduced setup times, and reliable clamping force in demanding CNC machining applications.

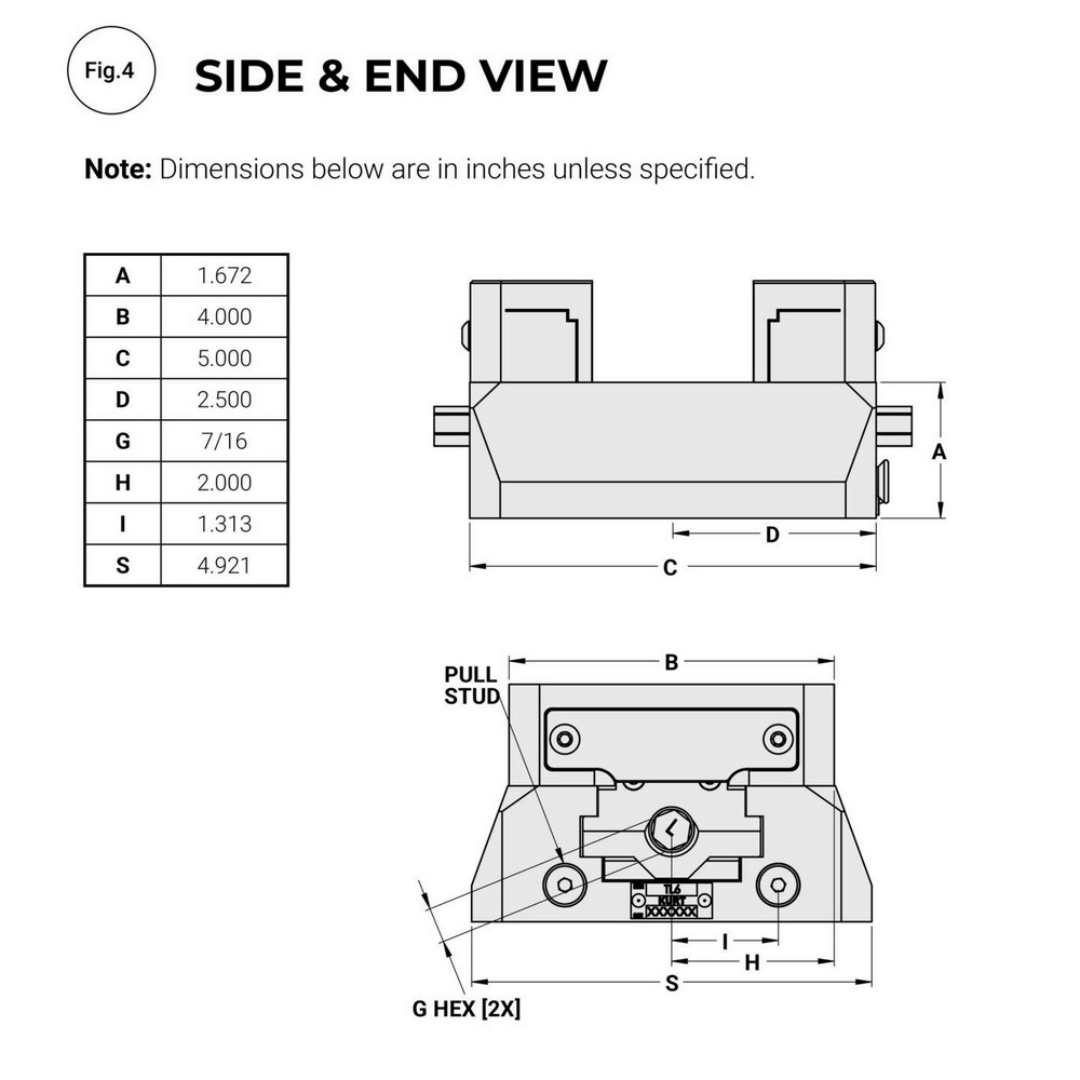

Kurt Self-Centering Vise: PFW, 2.5010" Max Jaw Opening 67380915 Specifications
| Series | PFW |
|---|---|
| Operation Type | Manual |
| Material | Steel |
| Jaw Width | 4.00" |
| Maximum Jaw Opening Capacity | 2.5010" |
| Throat Depth | 1.2800" |
| Maximum Clamping Force | 3,375 lbf |
| Overall Length | 6.0000" |
| Overall Width | 4.9210" |
| Overall Height | 2.9220" |
| Maximum Torque | 45 ft-lb |
| Country of Origin | United States |
| UNSPSC Code | 23271713 |
Kurt Self-Centering Vise: PFW, 2.5010" Max Jaw Opening 67380915 Features & Benefits
- Self-Centering Design automatically positions workpieces on the machine centerline for improved accuracy and repeatability.

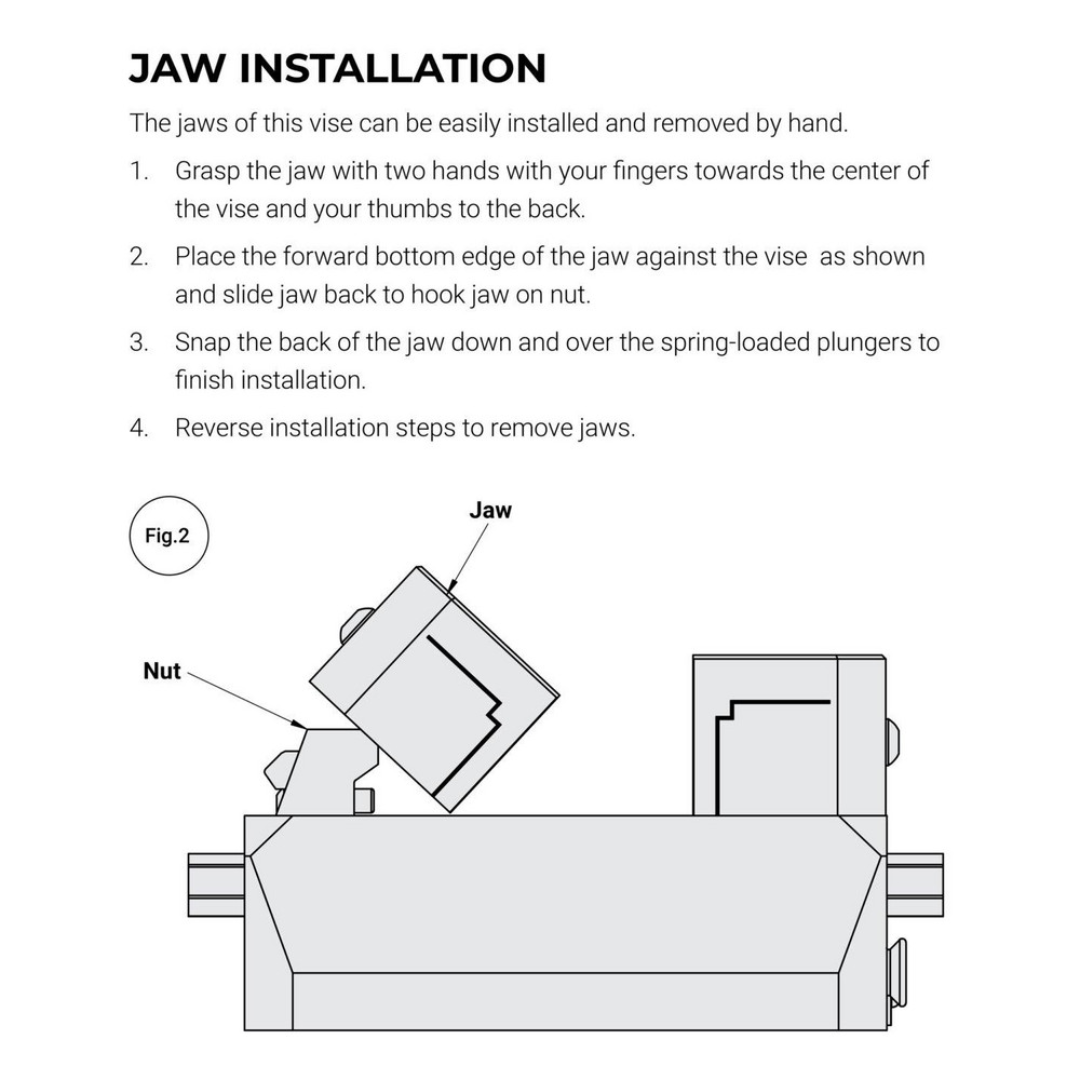

- Quick-Change Jaw System allows jaws to snap on and off quickly, reducing downtime during setup and changeovers.
- AngLock® Technology minimizes jaw lift during clamping to improve part stability and machining accuracy.
- High Clamping Force provides up to 3,375 pounds of holding power for secure workpiece retention.
- Spring-Loaded Gibs help maintain jaw squareness and alignment throughout operation.
- Easy Center-Line Adjustment simplifies setup and enables rapid positioning for production environments.
- Quick Lash Adjustment supports consistent performance and easier maintenance.

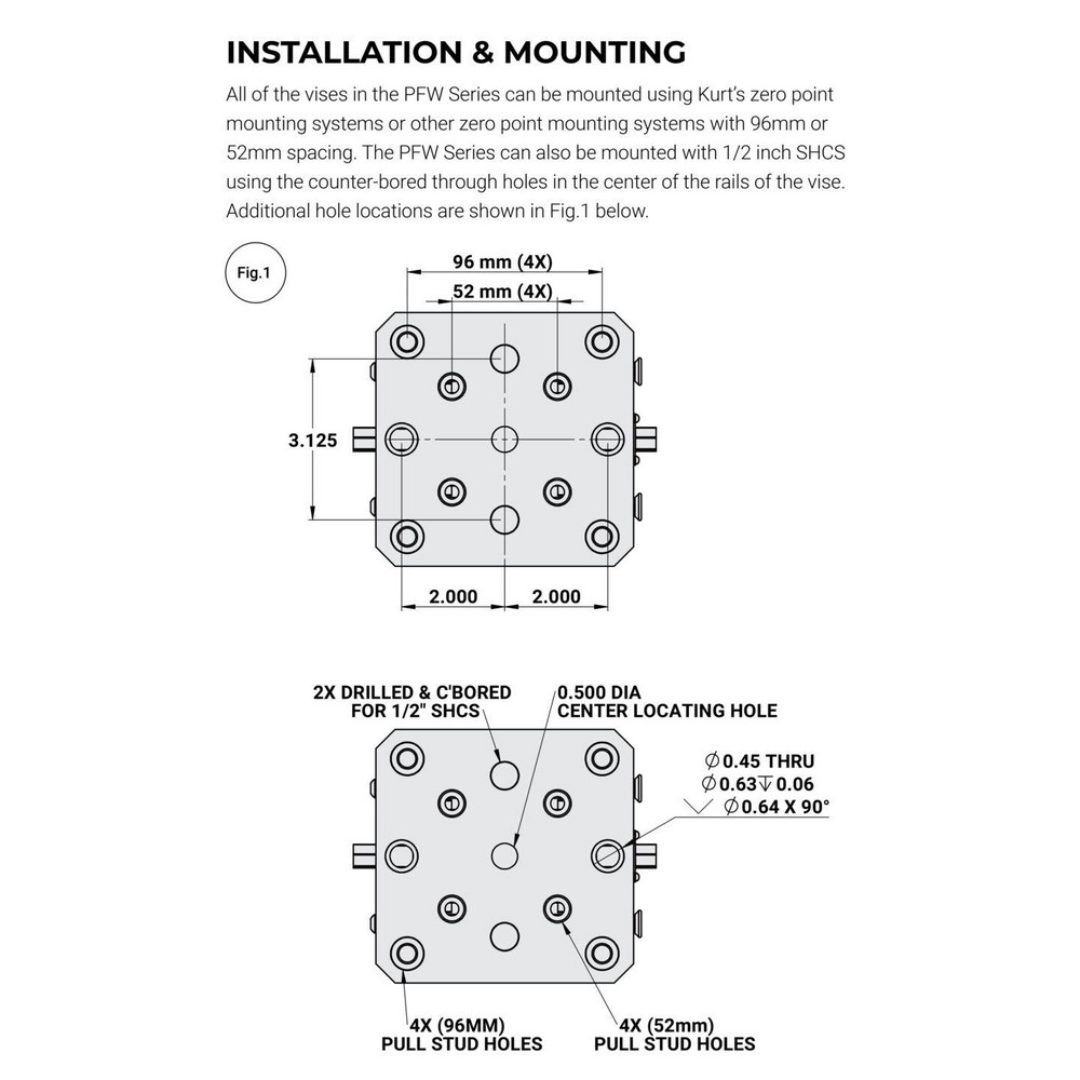

- 96 mm Pull-Stud Mounting Pattern integrates with zero-point pallet systems for fast fixture changes.
- Automation Ready configured for end-effector compatibility and automated manufacturing systems.

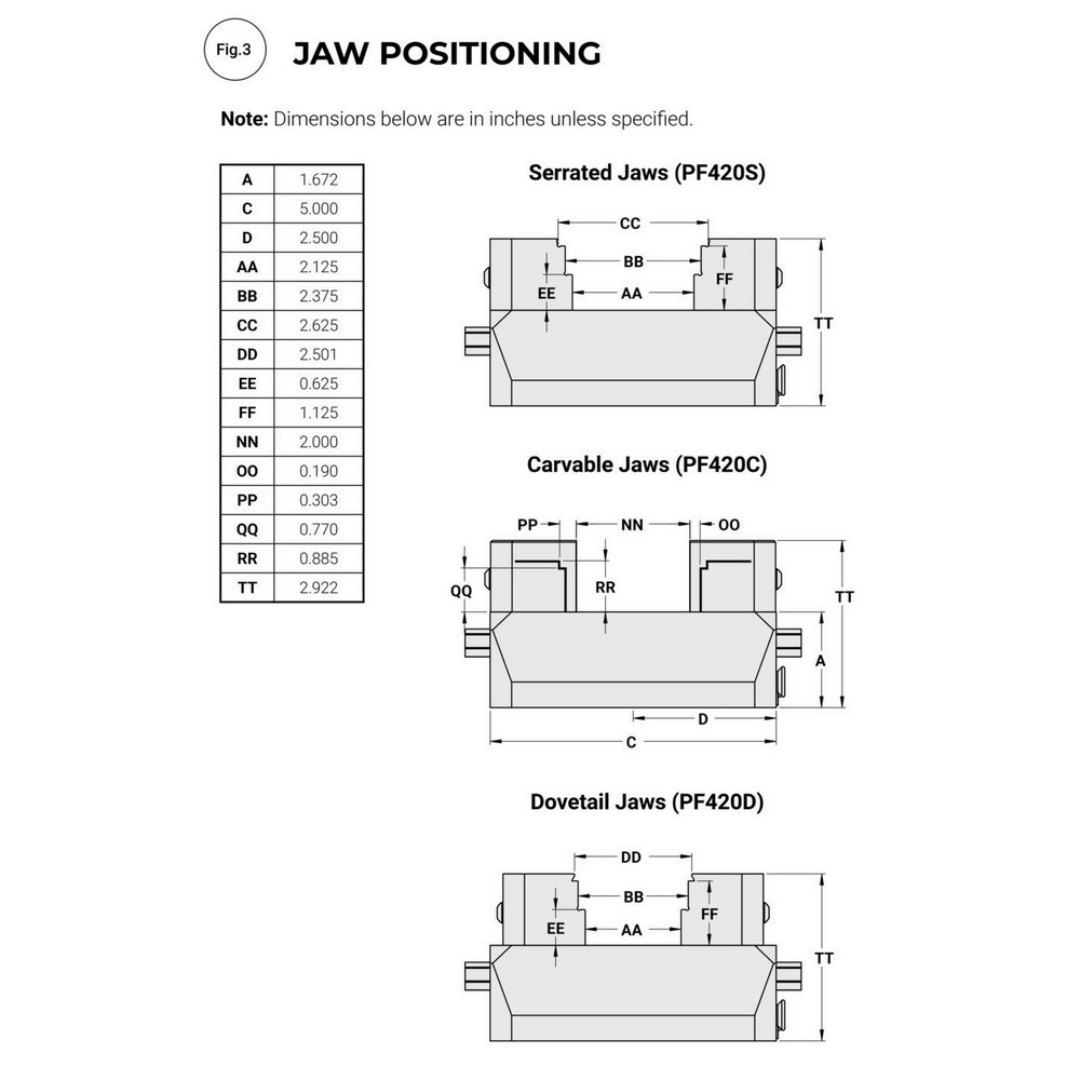

- Multiple Jaw Options Available including machinable, dovetail, and serrated jaws to accommodate various workholding requirements.
- Durable Steel Construction provides long-term reliability and resistance to demanding shop environments.
- Compact Footprint maximizes machine table space while maintaining excellent workholding capability.
Kurt Self-Centering Vise: PFW, 2.5010" Max Jaw Opening 67380915 Performance & Construction
- Engineered for precision machining applications where consistent workpiece centering is critical.
- High-strength steel construction withstands repeated clamping cycles and demanding production environments.
- Compact dimensions allow installation on machining centers with limited workspace while maintaining excellent holding power.
- Designed to improve setup efficiency, reduce operator intervention, and enhance overall machining productivity.
- Supports advanced manufacturing workflows through compatibility with automation and zero-point workholding systems.
- Precision-guided jaw movement helps maintain repeatable positioning and reliable machining results.
- Manual operation provides dependable clamping control with a maximum recommended torque of 45 ft-lb.
Why Choose the Kurt Self-Centering Vise: PFW, 2.5010" Max Jaw Opening 67380915
- Precision self-centering operation improves machining accuracy and repeatability.
- 3,375 lbf clamping force provides secure workholding for demanding applications.
- Quick-change jaws reduce setup times and increase production efficiency.
- AngLock® technology minimizes jaw lift for superior part stability.
- Automation-ready design supports modern manufacturing environments.
- Compatible with zero-point pallet systems for faster fixture changes.
- Manufactured in the USA with durable steel construction for long service life.
The Kurt Self-Centering Vise: PFW, 2.5010" Max Jaw Opening 67380915 combines precision self-centering technology, powerful clamping force, quick-change versatility, and automation-ready functionality to deliver exceptional workholding performance for CNC machining and advanced manufacturing operations.
