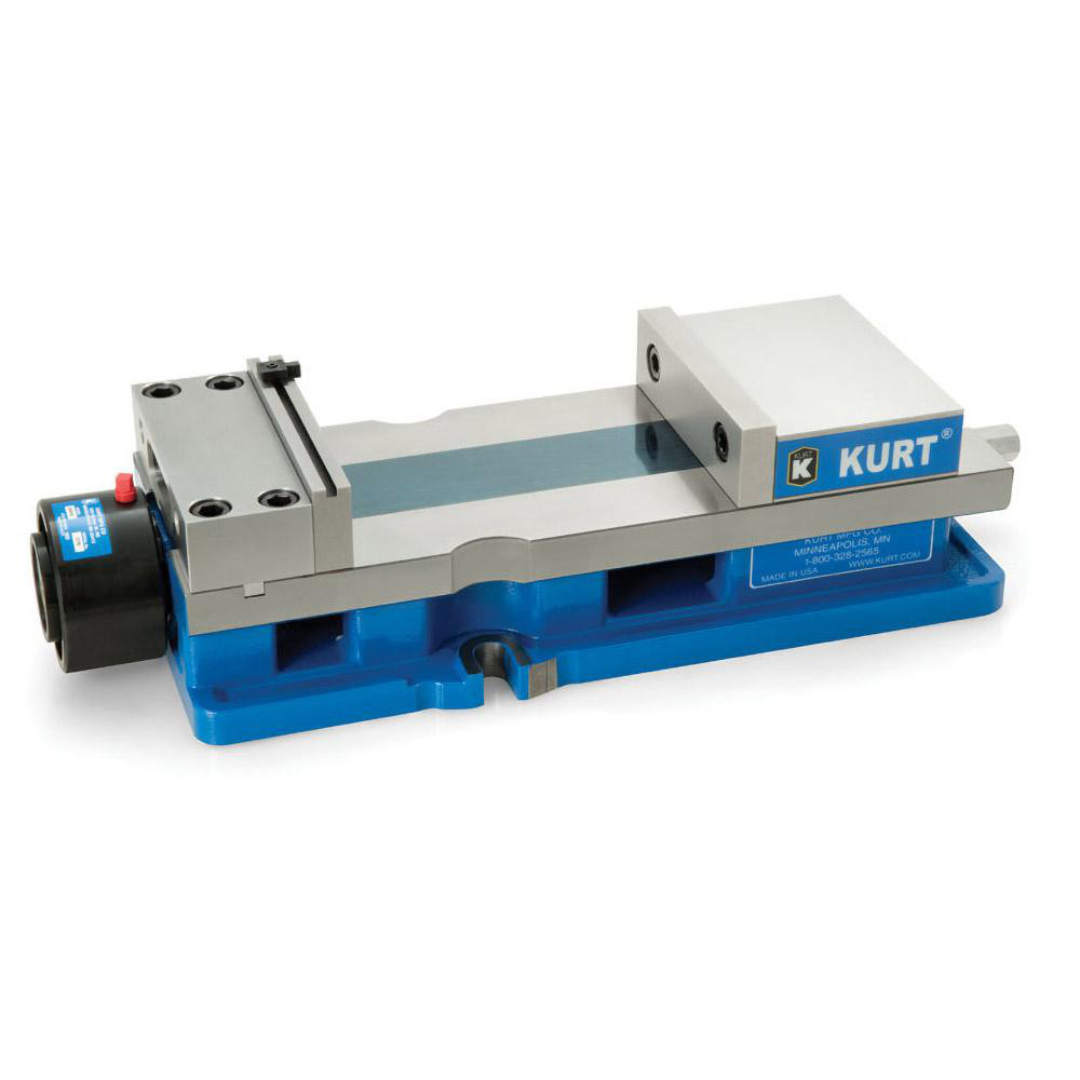

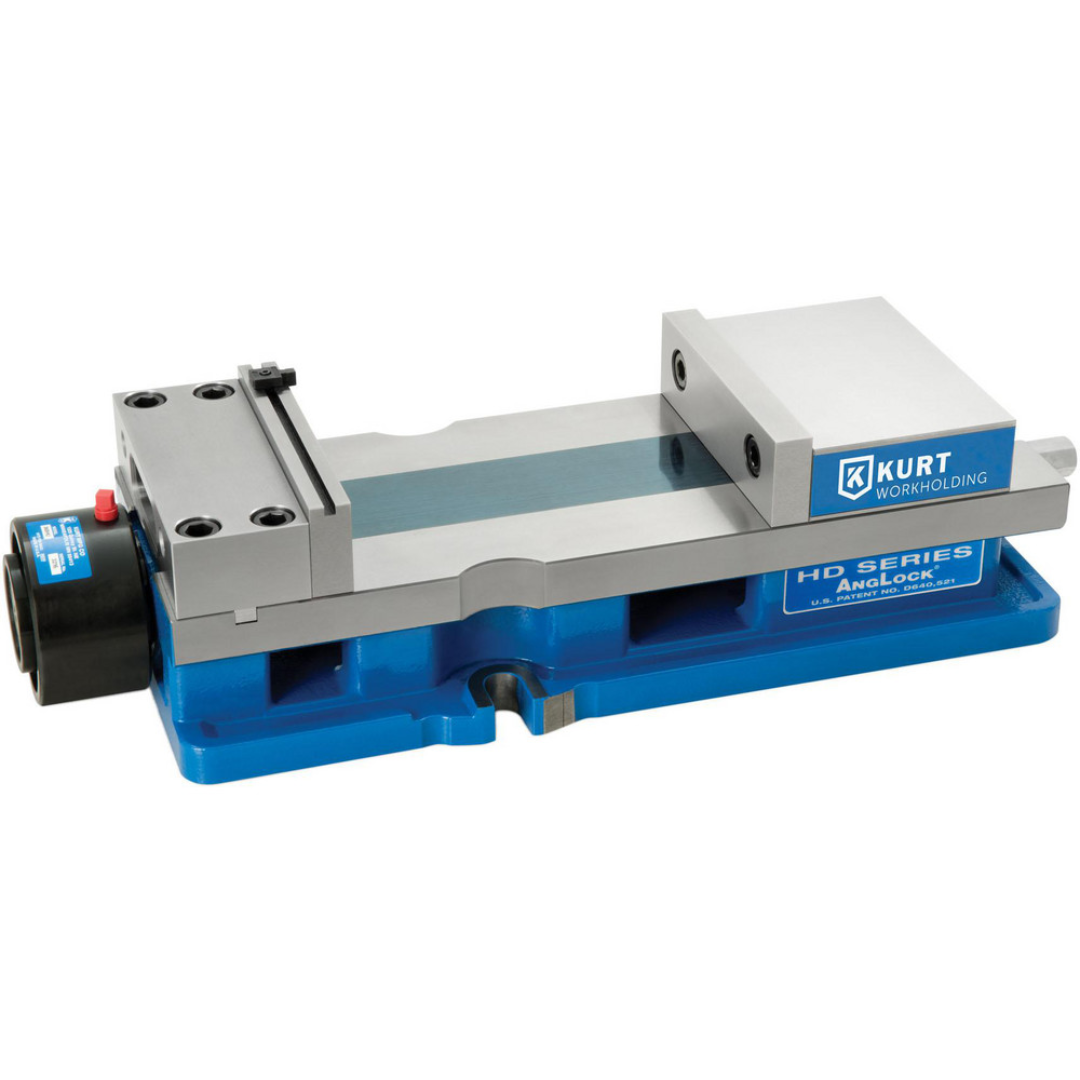

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 77671808 Applications
- CNC machining centers requiring precision hydraulic workholding.
- Production machining operations demanding high clamping force and repeatability.
- Milling, drilling, boring, and precision metalworking applications.
- Toolrooms, machine shops, and industrial manufacturing facilities.
- Fixture-based machining setups utilizing sine key alignment systems.
- High-volume production environments requiring quick setup changes.
- Precision component manufacturing where workpiece stability is essential.
Engineered for precision machining environments, this hydraulic vise combines exceptional clamping power, reduced deflection, and stable workholding performance for superior machining results.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 77671808 Specifications
| Product Type | Machine Vise |
|---|---|
| Operation Type | Hydraulic |
| Number of Stations | 1 |
| Orientation | Horizontal |
| Base Motion Type | Stationary |
| Jaw Width | 6.00" |
| Maximum Jaw Opening Capacity | 9" |
| Jaw Height | 1.7350" |
| Throat Depth | 1-47/64" |
| Overall Length | 20.5680" |
| Base Width | 6.00" |
| Overall Height | 4.8600" |
| Maximum Clamping Force | 12,600 lb |
| Vise Material | Ductile Iron |
| Included Components | Groove Lock Workstop |
| Features | Less Deflection, Stable Stationary Jaw, Taller Body, Quick Change Movable Jaw, Narrower Body, Sine Key |
| Precision Ground | Yes |
| For Use With | Machine Applications |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 77671808 Features & Benefits
- Hydraulic operation delivers consistent clamping force and repeatable workholding performance.
- 12,600-pound clamping force provides exceptional holding power for demanding machining operations.
- Stable stationary jaw design improves rigidity and helps maintain machining accuracy.
- Reduced deflection construction minimizes movement under heavy cutting loads.
- Quick-change movable jaw system simplifies setup changes and improves productivity.
- Taller body design enhances structural strength and workholding stability.
- Narrower body profile improves machine access and fixture flexibility.
- Sine key compatibility allows precise alignment and positioning on machine tables.
- Included Groove Lock Workstop supports repeatable part positioning and setup consistency.
- Ductile iron construction provides excellent durability, vibration absorption, and long-term performance.
- Horizontal vises provide secure and accurate positioning of the workpiece during machining operations, helping improve repeatability and part quality.
- Stationary vises are used for machining straight surfaces and can be mounted either parallel or at a right angle to accommodate a variety of machining setups.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 77671808 Performance & Construction
- Built from durable ductile iron for superior strength and vibration resistance.
- Hydraulic clamping system provides consistent force throughout production cycles.
- Stable stationary jaw improves workpiece retention and machining accuracy.
- Reduced deflection design helps maintain dimensional consistency under heavy cutting loads.
- Precision-ground surfaces support accurate setup alignment and repeatable results.
- Large jaw opening capacity accommodates a broad range of workpiece sizes.
- Designed for demanding CNC machining and industrial manufacturing environments.
Why Choose the Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 77671808
- Powerful 12,600-pound hydraulic clamping force for secure workholding.
- Stable stationary jaw and reduced deflection design improve machining accuracy.
- Quick-change jaw capability reduces downtime and setup time.
- Ductile iron construction provides exceptional durability and reliability.
- Precision-ground construction supports repeatable machining performance.
- Ideal for CNC machining, production manufacturing, and precision metalworking applications.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 77671808 combines hydraulic clamping power, advanced structural stability, and precision-engineered workholding performance to help maximize productivity and machining accuracy in demanding industrial environments.
