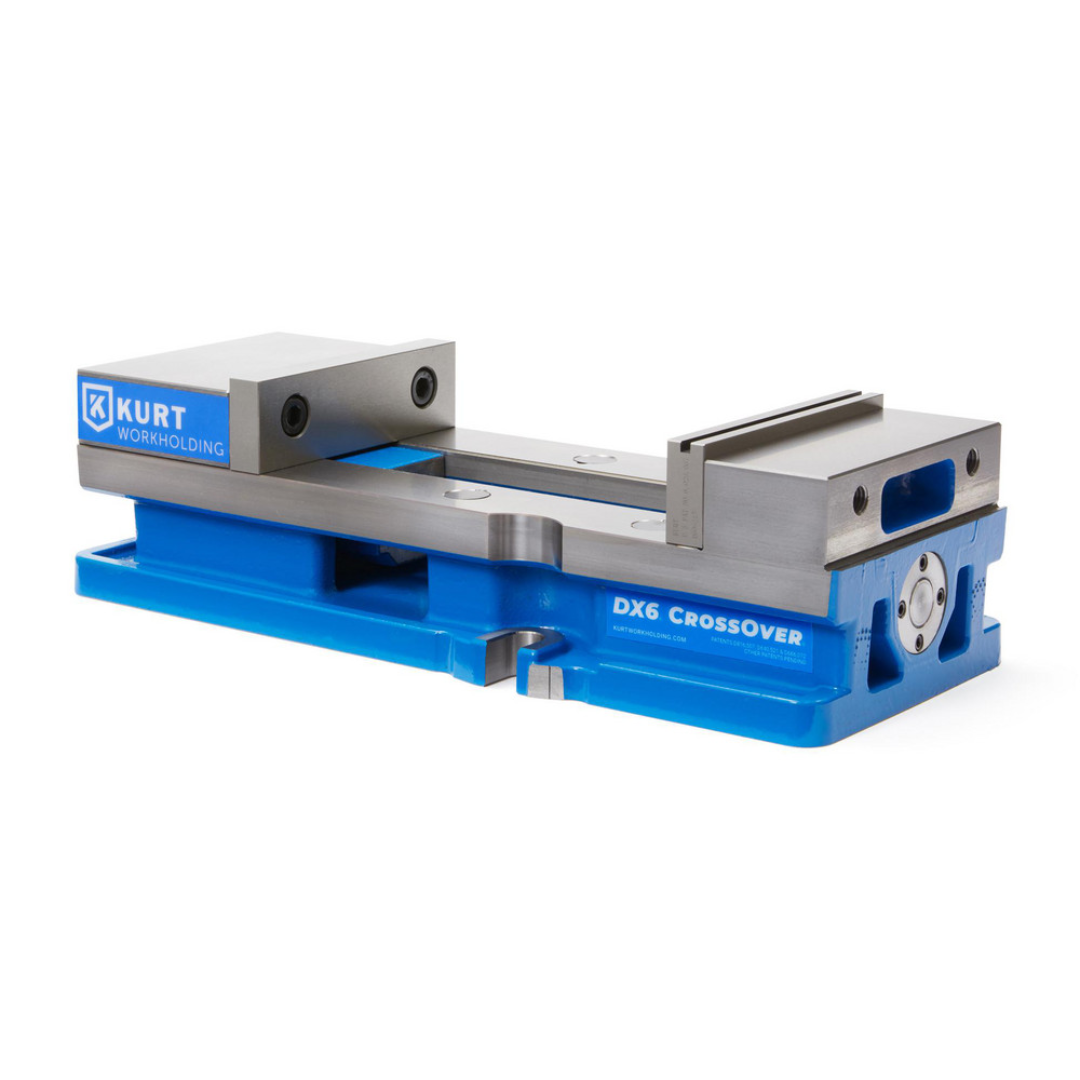

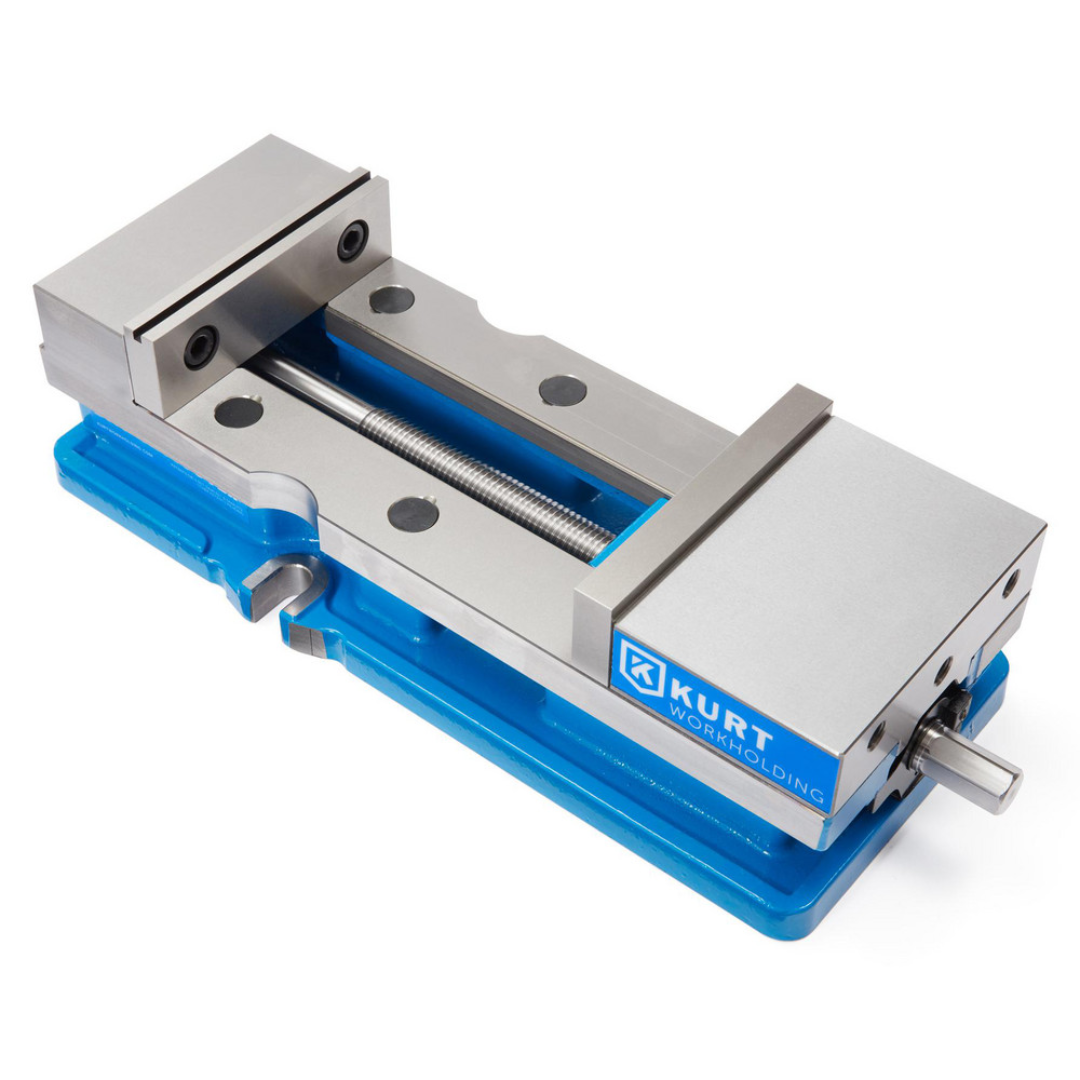

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 37609880 Applications
- Vertical and horizontal milling machine operations.
- Precision machining of metal, alloy, and engineered material components.
- Toolrooms, production facilities, and manufacturing environments.
- Prototype development and custom machining applications.
- Drilling, boring, facing, and finishing operations requiring secure workholding.
- General machine shop applications requiring repeatable setup accuracy.
Designed for horizontal workholding applications where maximum rigidity, repeatability, and precision are critical to machining performance.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 37609880 Specifications
| Product Type | Precision Machine Vise |
|---|---|
| Number of Stations | 1 |
| Jaw Width | 6.00 in |
| Jaw Height | 1.7350 in |
| Maximum Jaw Opening | 9.00 in |
| Throat Depth | 1.00 in |
| Orientation | Horizontal |
| Operation Type | Manual |
| Base Motion Type | Stationary |
| Base Length | 18.2580 in |
| Base Width | 7.00 in |
| Base Height | 2.8750 in (2-7/8 in) |
| Overall Length | 18.2580 in |
| Overall Width | 7.00 in |
| Overall Height | 4.6100 in |
| Jaw Material | Steel |
| Vise Material | Ductile Iron |
| Maximum Clamping Force | 7,342 ft-lb / 80 psi |
| Included Accessories | Alignment Rail and Handle |
| Precision Ground | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 37609880 Features & Performance

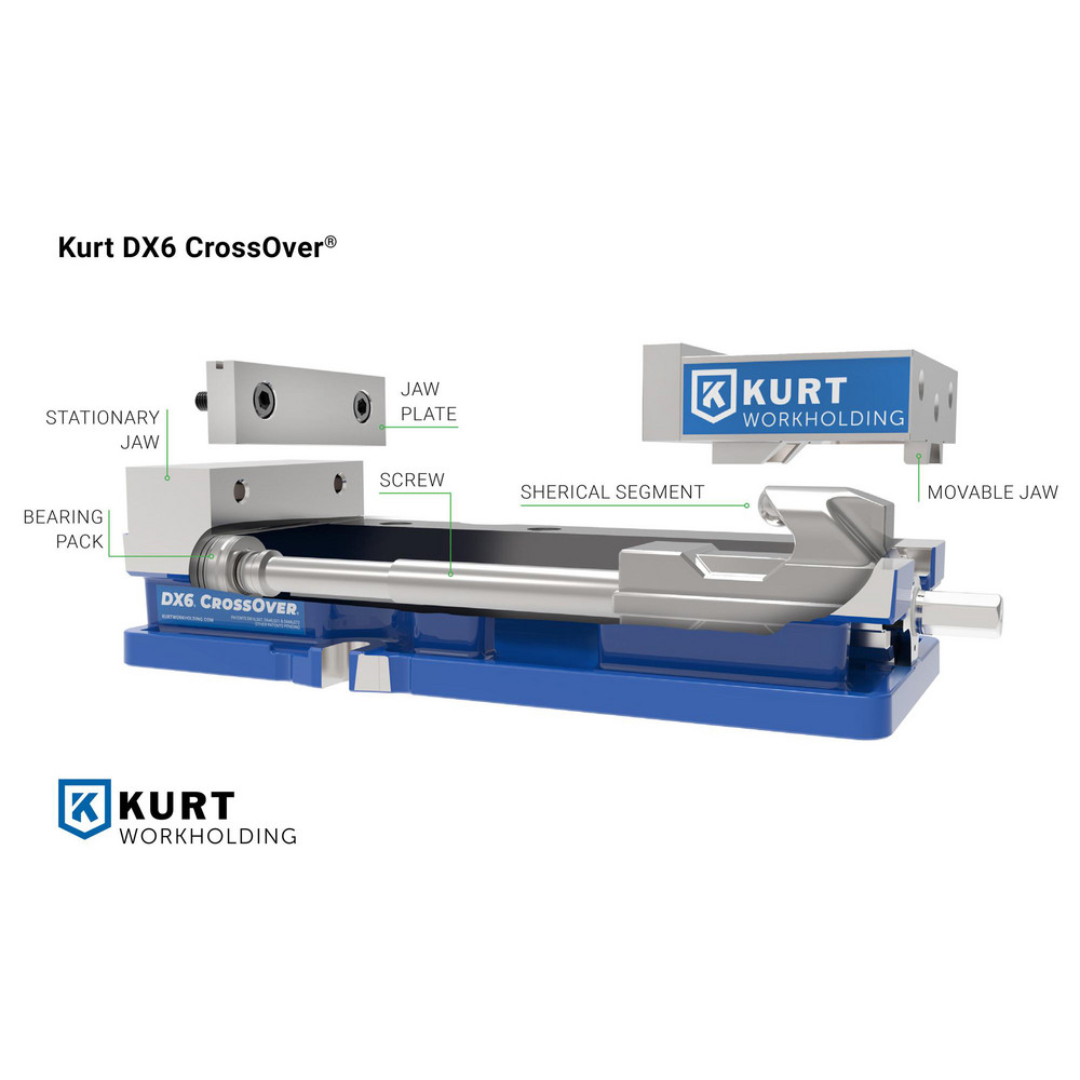

- Anglock® spherical segment technology helps reduce jaw lift and improves workpiece retention during machining.
- 6-inch precision jaws provide excellent gripping capability for a wide range of part sizes.
- 9-inch jaw opening capacity accommodates larger workpieces while maintaining secure clamping.
- 1.7350-inch jaw height offers increased support and contact area for improved holding performance.
- Rigid stationary base design maximizes stability and minimizes vibration during machining operations.
- Ductile iron construction provides excellent strength, durability, and resistance to deformation.
- Less deflection design helps maintain machining accuracy under heavy cutting loads.
- Crossover® vise configuration combines lightweight handling with robust workholding performance.
- Sine keys included for accurate alignment and rapid machine table positioning.
- 7,342 ft-lb clamping force delivers dependable holding power for demanding machining applications.
Why Choose the Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 37609880
- Precision-engineered for machining accuracy and repeatability.
- Large 9-inch opening accommodates a broad range of workpieces.
- Anglock® technology minimizes jaw lift and part movement.
- Heavy-duty ductile iron body provides long-term durability.
- Stationary base design maximizes rigidity for precision machining.
- Includes alignment rail and handle for convenient installation and operation.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 9" Jaw Opening, Stationary Base, Precision 37609880 delivers the proven workholding accuracy, clamping strength, and durability that professional machinists rely on for high-precision manufacturing and production machining operations.
