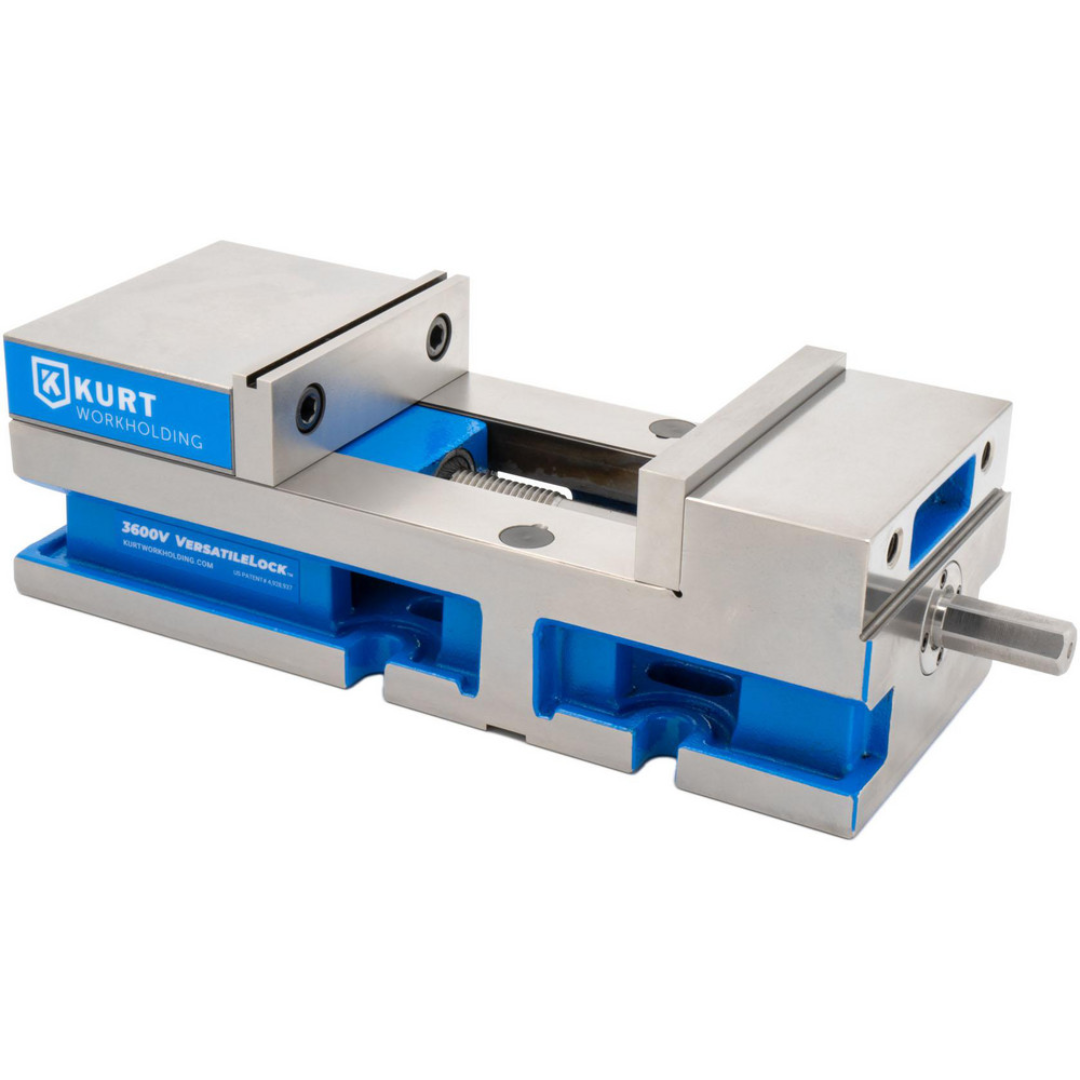

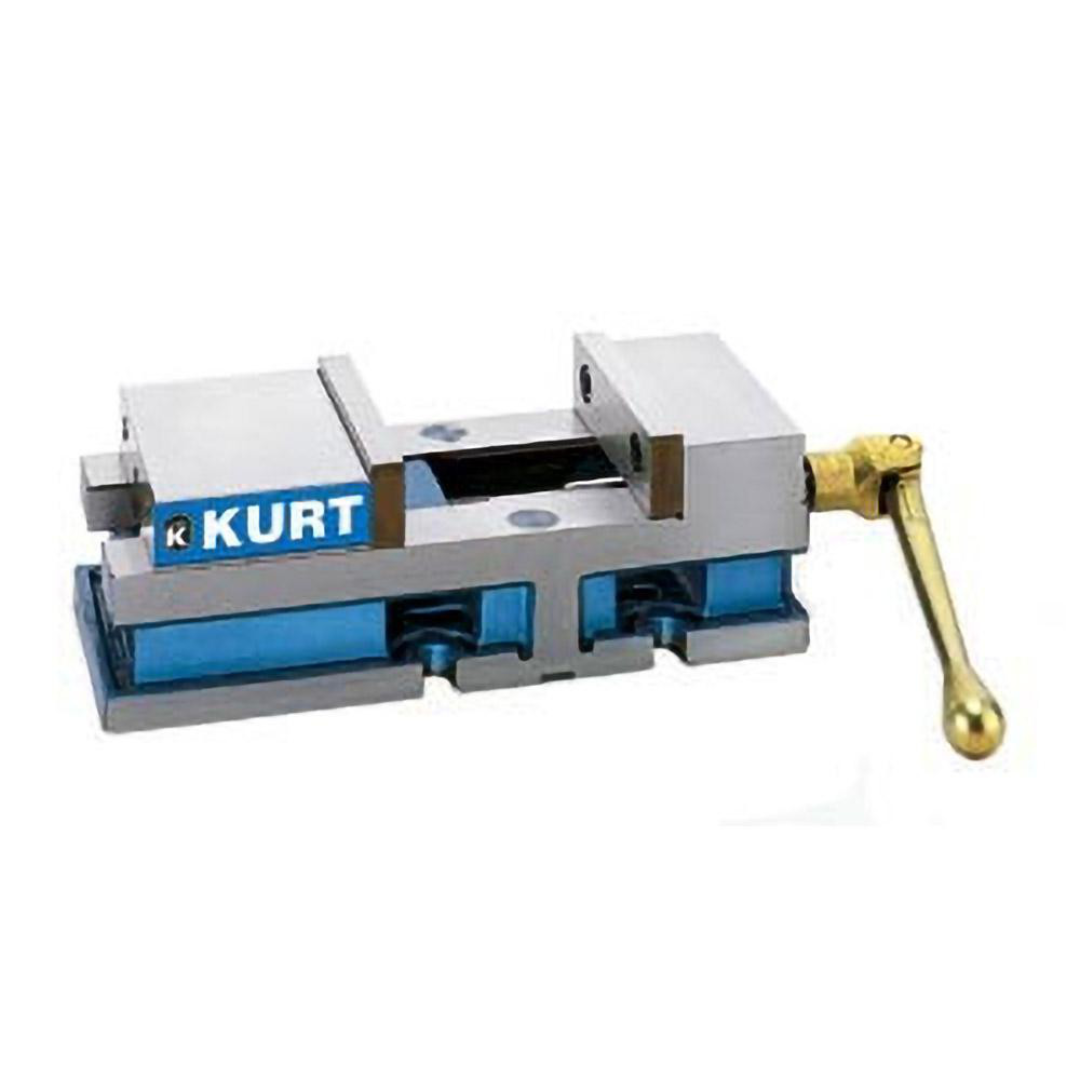

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219064 Applications
- Vertical and horizontal milling machine operations.
- Precision machining of metal, alloy, and engineered materials.
- Tool rooms, production facilities, and machine shops.
- Fixture setup and secondary machining operations.
- Drilling, boring, tapping, grinding, and inspection tasks.
- Workholding applications requiring repeatable positioning accuracy.
- Machining straight surfaces where stable, fixed workholding is required.
Horizontal vises provide secure and accurate positioning of workpieces during machining operations, helping improve consistency, productivity, and finished-part quality.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219064 Specifications
| Model Number | 3630V |
|---|---|
| Vise Type | Single-Station Precision Machine Vise |
| Orientation | Horizontal |
| Number of Stations | 1 |
| Jaw Width | 6.00 in. |
| Jaw Height | 1.7350 in. |
| Maximum Jaw Opening | 4.00 in. |
| Throat Depth | 1-31/64 in. |
| Base Motion Type | Stationary |
| Base Length | 12.9400 in. |
| Base Height | 3.1870 in. (3-3/16 in.) |
| Overall Length | 14.8800 in. |
| Overall Width | 6.00 in. |
| Overall Height | 4.9220 in. |
| Operation Type | Reverse Manual |
| Maximum Clamping Force | 6,356 lb |
| Load Capacity | 6,356 lb |
| Precision Rated | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219064 Features & Benefits
- Precision Horizontal Vise Design provides accurate and repeatable workpiece positioning during machining operations.
- Stationary Base Construction offers exceptional rigidity for machining straight surfaces and precision components.
- 6,356 lb Maximum Clamping Force delivers strong holding power for demanding machining applications.
- 6-Inch Jaw Width provides a broad gripping surface for secure workpiece retention.
- 4-Inch Jaw Opening Capacity accommodates a wide range of workpiece sizes.
- AngLock® Design helps reduce jaw lift and improves workpiece stability during clamping.
- Fixture Key Compatible allows accurate machine table positioning and setup repeatability.
- Matched Stationary Jaw Configuration contributes to consistent clamping alignment and precision performance.
- Reverse Manual Operation provides dependable mechanical clamping control.
- Heavy-Duty Construction supports long service life in industrial machining environments.
- Flexible Mounting Options allow the vise to be fastened parallel or at a right angle to the machine table.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219064 Performance & Construction
- Engineered for high-precision machining applications requiring stable workholding.
- Rigid stationary base minimizes movement during cutting operations.
- Precision-ground surfaces help maintain alignment and machining accuracy.
- Compact footprint balances machine table utilization with workholding capacity.
- Designed to withstand repetitive production use while maintaining performance.
- Single-station configuration simplifies setup and supports efficient workflow.
Stationary vises are commonly used for machining straight surfaces and can be mounted parallel or perpendicular to machine tables, providing flexibility for a wide range of machining operations.
Why Choose the Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219064
- Precision-rated workholding for machining accuracy.
- Powerful 6,356 lb clamping force.
- Rigid stationary base design for stability.
- Proven AngLock® technology for reduced jaw lift.
- 6-inch jaw width with 4-inch opening capacity.
- Built for professional machine shop and production environments.
- Reliable single-station configuration for versatile machining tasks.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219064 combines industry-proven workholding performance, exceptional clamping strength, and precision machining accuracy to meet the demands of modern manufacturing and metalworking operations.
