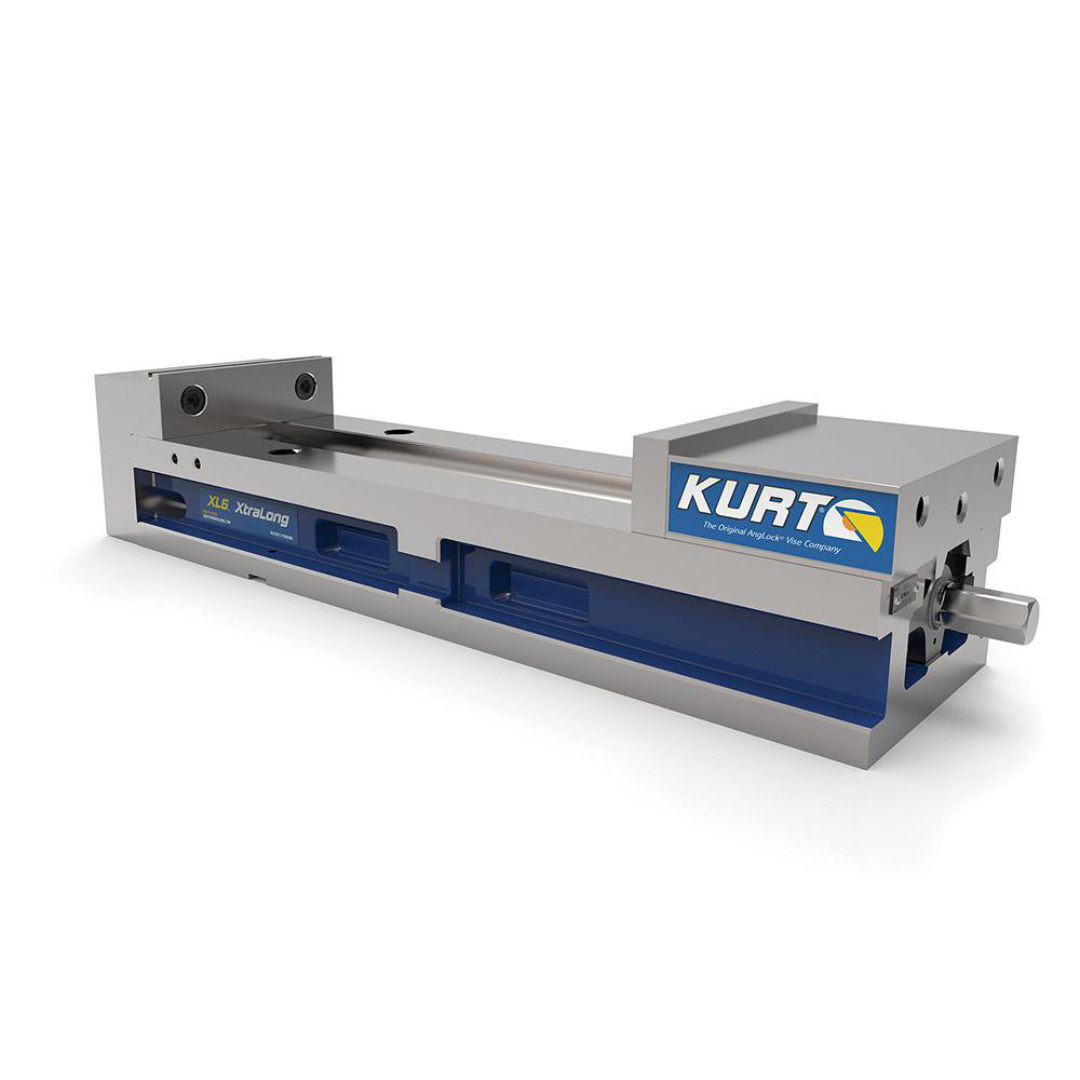

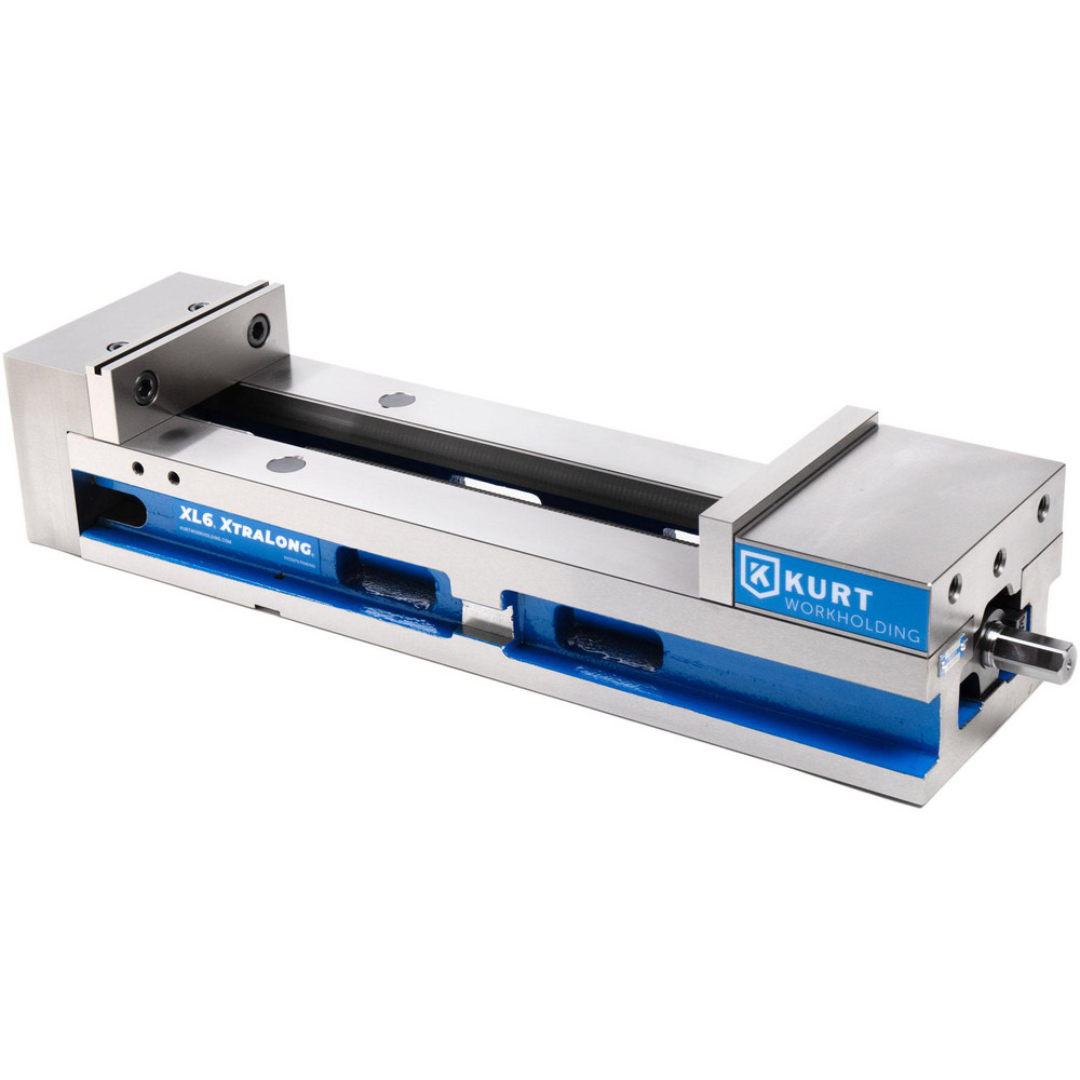

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 14" Jaw Opening, Stationary Base, Precision 48750004 Applications
- Precision CNC milling and machining operations.
- General-purpose metalworking and fabrication applications.
- Production environments requiring repeatable workpiece positioning.
- Fixture and tooling setups utilizing fixture key compatibility.
- High-horsepower roughing and "hogging out" machining applications.
- Toolrooms, maintenance shops, and manufacturing facilities.
- Machining straight surfaces where stationary workholding is required.
- Horizontal machining setups requiring secure and accurate clamping.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are ideal for machining straight surfaces and can be mounted parallel or at a right angle to the machine table depending on setup requirements.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 14" Jaw Opening, Stationary Base, Precision 48750004 Specifications
| Model Number | 640XLS |
|---|---|
| Jaw Width | 6.00" |
| Jaw Height | 1.7350" |
| Maximum Jaw Opening | 14" |
| Throat Depth | 1-31/64" |
| Operation Type | Manual |
| Orientation | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Base Length | 20.5000" |
| Base Height | 3.2500" |
| Overall Length | 24.5100" |
| Overall Width | 5.00" |
| Overall Height | 4.8600" |
| Vise Material | Ductile Iron |
| Load Capacity | 6,877 lb |
| Maximum Clamping Force | 80,000 PSI |
| Precision Rated | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 14" Jaw Opening, Stationary Base, Precision 48750004 Performance & Construction
- AngLock® Design reduces jaw lift during clamping, improving machining accuracy and workpiece stability.
- Ductile Iron Construction provides exceptional durability, rigidity, and vibration resistance in demanding machining environments.
- 80,000 PSI Maximum Clamping Force delivers powerful holding capability for aggressive cutting operations.
- 14" Jaw Opening Capacity accommodates a wide range of workpiece sizes for increased versatility.
- Precision Ground Components support high repeatability and consistent machining results.
- Versatile Jaw System includes 1/4-turn stroke functionality for efficient setup and adjustment.
- Fixture Key Compatible design allows accurate positioning and repeatable mounting on machine tables.
- Internal Hex Screw Mechanism provides dependable operation and long-term reliability.
- Single-Station Configuration maximizes clamping strength while simplifying workholding setups.
- Stationary Base Design offers rigid support for precision machining and straight-surface operations.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 14" Jaw Opening, Stationary Base, Precision 48750004 Benefits
- High-precision workholding for CNC and manual machining applications.
- Exceptional repeatability for production and inspection environments.
- Heavy-duty construction designed for long service life.
- Large jaw opening increases versatility across multiple workpiece sizes.
- Reduced jaw lift enhances machining accuracy and surface finish quality.
- Capable of handling demanding roughing and heavy-cutting operations.
- Reliable clamping performance for both prototype and production work.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 14" Jaw Opening, Stationary Base, Precision 48750004 combines industry-leading precision, exceptional clamping force, and rugged durability, making it an excellent workholding solution for machine shops, manufacturing facilities, and precision machining operations that require dependable performance and repeatable results.
