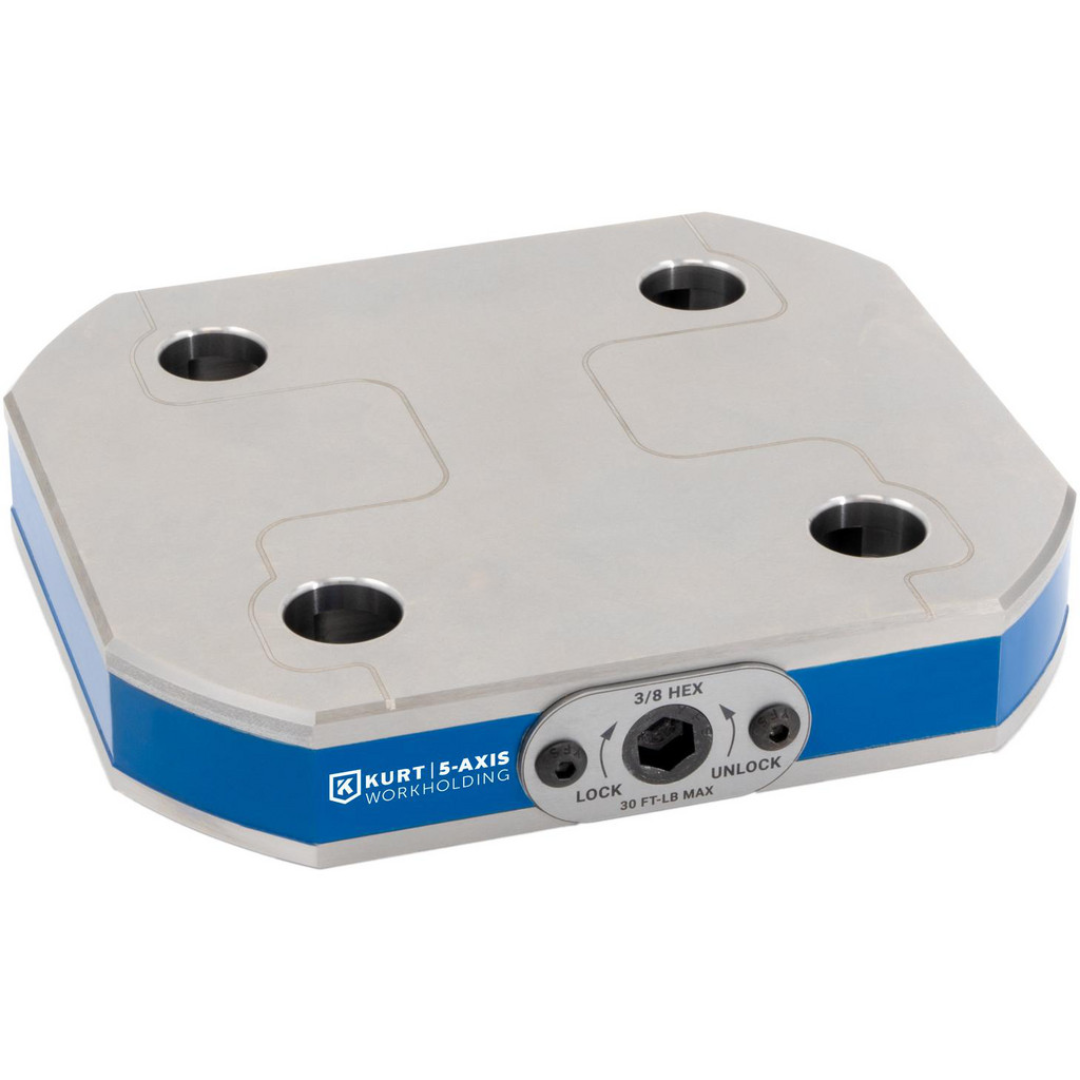

Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 69738011 Applications
- 5-axis CNC machining centers requiring rapid fixture changeovers.
- Precision milling operations demanding repeatable workholding locations.
- Palletized manufacturing and flexible machining systems.
- Production environments focused on reducing setup times and increasing spindle uptime.
- Fixture standardization programs across multiple machines.
- Prototype, short-run, and high-volume manufacturing operations.
- Applications requiring unrestricted access to multiple sides of a workpiece.
Ideal for manufacturers seeking faster setups, improved repeatability, and greater machining access for complex 5-axis workholding applications.
Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 69738011 Specifications
| Actuation Type | Manual |
|---|---|
| Number of Module Centers | 1 |
| System Compatibility | 5 Axis Workholding Systems |
| Repeatability | 0.000300" |
| Unlocking Pressure | 85 lbf/sq in |
| Indexing | No |
| Material | Steel |
| Overall Length | 178 mm |
| Overall Width | 158 mm |
| Included Components | 4 Pull Studs and 3/8" Hex Wrench |
| Country of Origin | United States |
| UNSPSC Code | 23152201 |
Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 69738011 Features & Benefits

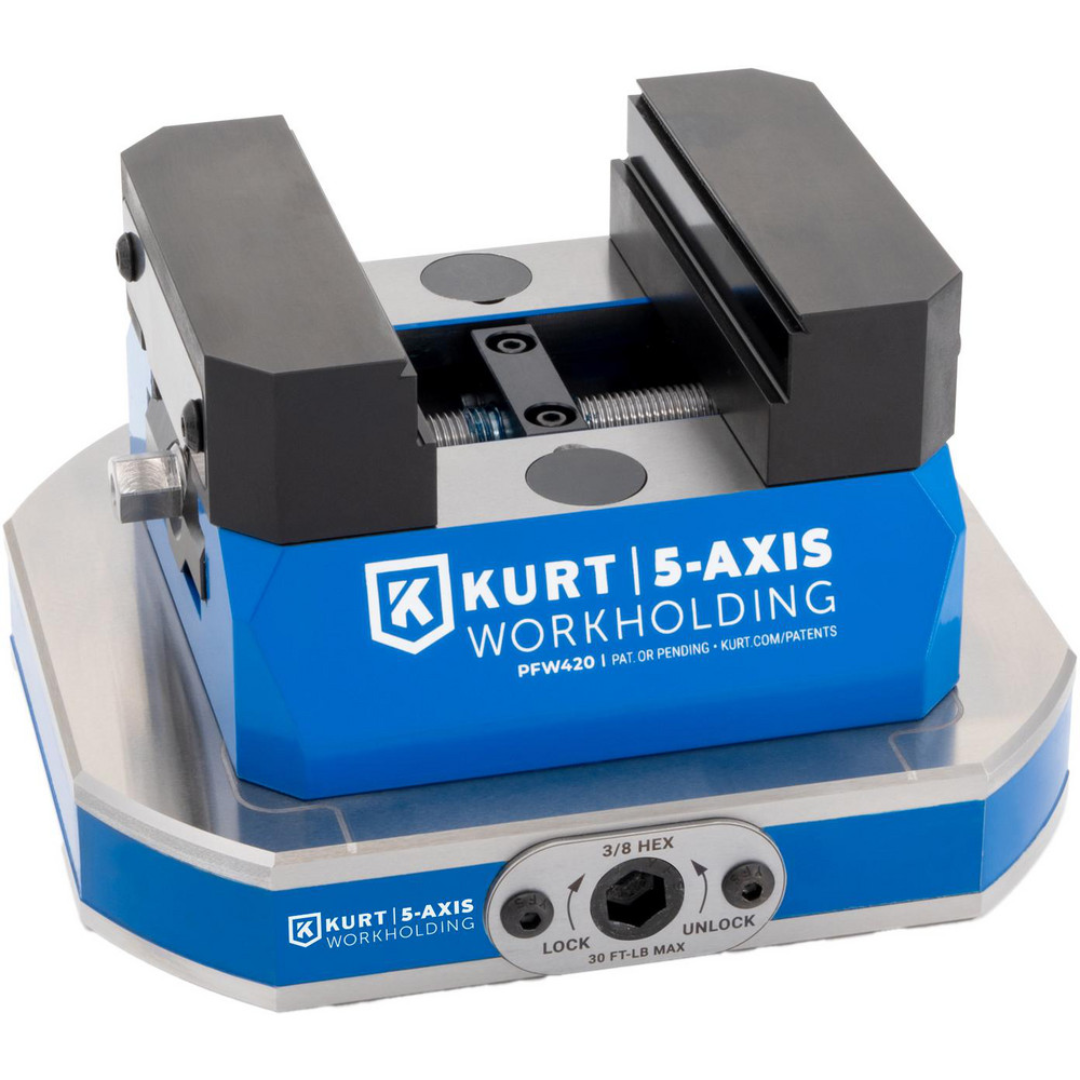

- Fast Hex-Wrench Vise Mounting enables rapid installation and removal of vises and fixtures, reducing machine downtime.
- 96 mm Pull-Stud Mounting Interface provides secure and repeatable workholding system integration.
- Five-Sided Machining Access minimizes obstructions and allows greater access to complex workpieces.
- Reduced Setup Times and Costs helps improve machine utilization and increase production efficiency.
- Cross-Brand Compatibility designed to work with Kurt 5-axis vises and many other compatible workholding systems.
- Exceptional Repeatability delivers positioning accuracy within 0.000300 inches for consistent manufacturing results.
- Manual Actuation System provides dependable operation without requiring external power sources.
- Heavy-Duty Steel Construction ensures long-term durability and stability in demanding production environments.
- Includes Four Pull Studs for immediate installation and setup.
- Includes 3/8-Inch Hex Wrench for convenient mounting and maintenance.
Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 69738011 Performance & Construction
- Precision-machined steel construction delivers stability and long service life.
- Quick-change functionality minimizes setup interruptions and supports lean manufacturing initiatives.
- Designed to maximize spindle utilization through faster fixture and vise exchanges.
- Provides a secure mounting platform for advanced 5-axis machining operations.
- Supports highly repeatable positioning for reduced setup verification requirements.
- Compact design enhances machine accessibility while maintaining excellent rigidity.
- Optimized for production environments requiring frequent workholding changeovers.
Why Choose the Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 69738011
- Rapid quick-change mounting reduces setup time and increases productivity.
- Five-sided workpiece access improves machining flexibility and efficiency.
- Exceptional 0.000300-inch repeatability supports precision manufacturing.
- Compatible with Kurt 5-axis vises and other supported workholding systems.
- Includes pull studs and installation tool for immediate implementation.
- Durable steel construction ensures reliable long-term performance.
- Ideal for palletized machining, automation-ready workflows, and high-efficiency production environments.
The Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 69738011 provides a fast, repeatable, and highly efficient workholding platform that helps manufacturers reduce setup times, improve machining access, and maximize productivity in demanding CNC machining applications.
