Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 64931157 Applications
- 5-axis CNC machining centers requiring rapid fixture changeovers.
- Precision milling operations demanding highly repeatable workholding setups.
- Production environments focused on reducing setup and downtime costs.
- Automated and semi-automated machining cells utilizing modular workholding systems.
- Prototype, aerospace, medical, automotive, and precision manufacturing applications.
- Multi-operation machining processes requiring access to multiple sides of the workpiece.
Designed to improve machine uptime and productivity by enabling fast, repeatable vise installation and removal without sacrificing positioning accuracy.
Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 64931157 Specifications
| Product Type | CNC Quick-Change Clamping Module |
|---|---|
| Part Number | 64931157 |
| Actuation Type | Manual |
| Number of Module Centers | 1 |
| System Compatibility | 5 Axis Workholding Systems |
| Indexing | No |
| Repeatability | 0.000300 in. |
| Unlocking Pressure | 85 lbf/sq in |
| Material | Steel |

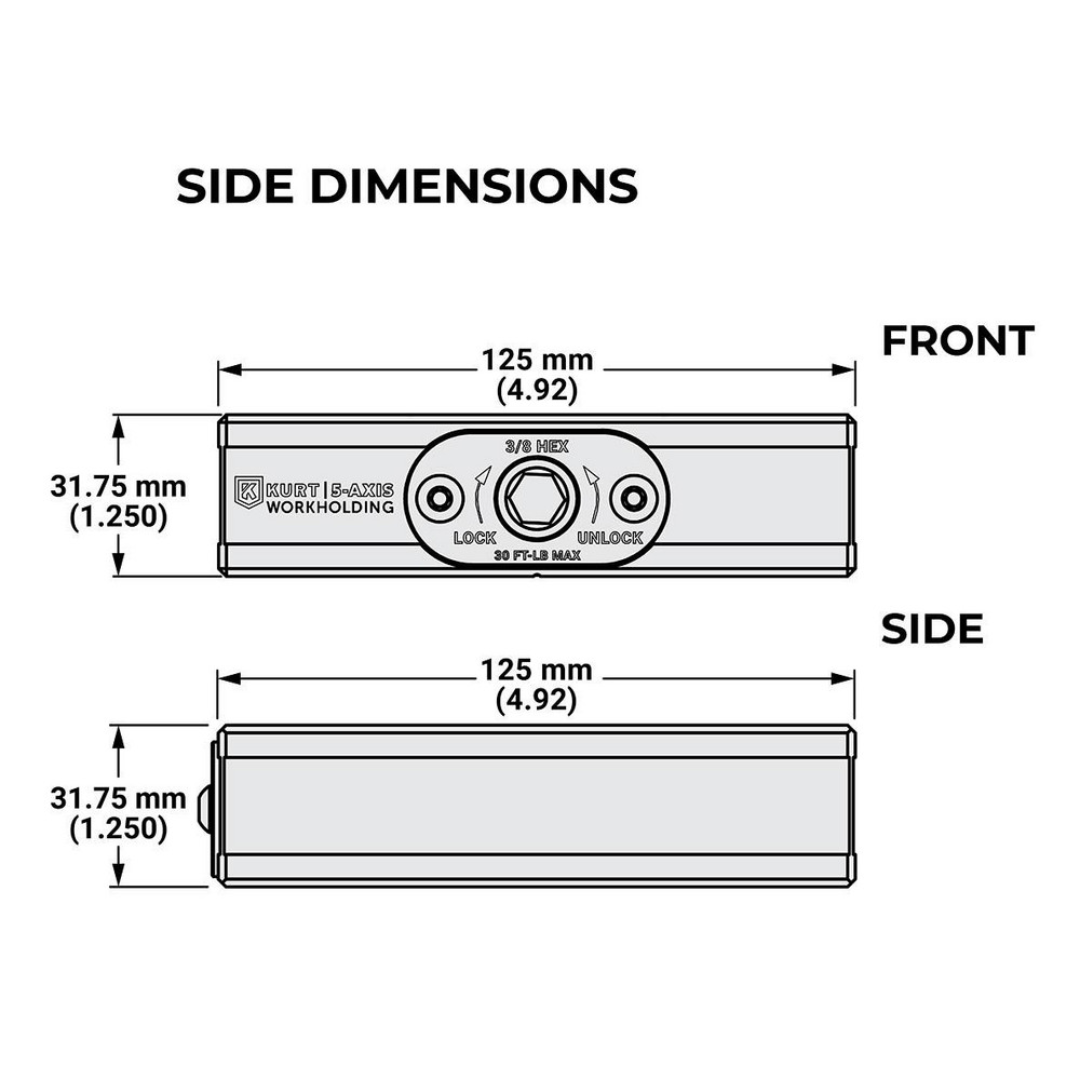

| Overall Length | 125 mm |
| Overall Width | 125 mm |
| Country of Origin | United States |
| UNSPSC Code | 23152201 |
| Included Components | 4 Pull Studs and 3/8" Hex Wrench |
Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 64931157 Performance & Construction
- Fast Hex-Wrench Vise Mounting: Enables quick installation and removal of vises and fixtures using a simple 3/8-inch hex wrench.
- Exceptional Repeatability: Delivers positioning accuracy with repeatability rated at 0.000300 inch for highly consistent machining setups.
- 52 mm Pull-Stud Mounting System: Designed around an industry-recognized pull-stud interface for secure and repeatable clamping.
- Five-Sided Machining Access: Provides unobstructed access to five sides of the workpiece, allowing more complete machining in a single setup.
- Reduced Setup Times: Minimizes fixture changeover time to improve machine utilization and operational efficiency.
- Cost-Effective Production: Helps reduce labor costs and setup-related downtime in both production and prototype environments.

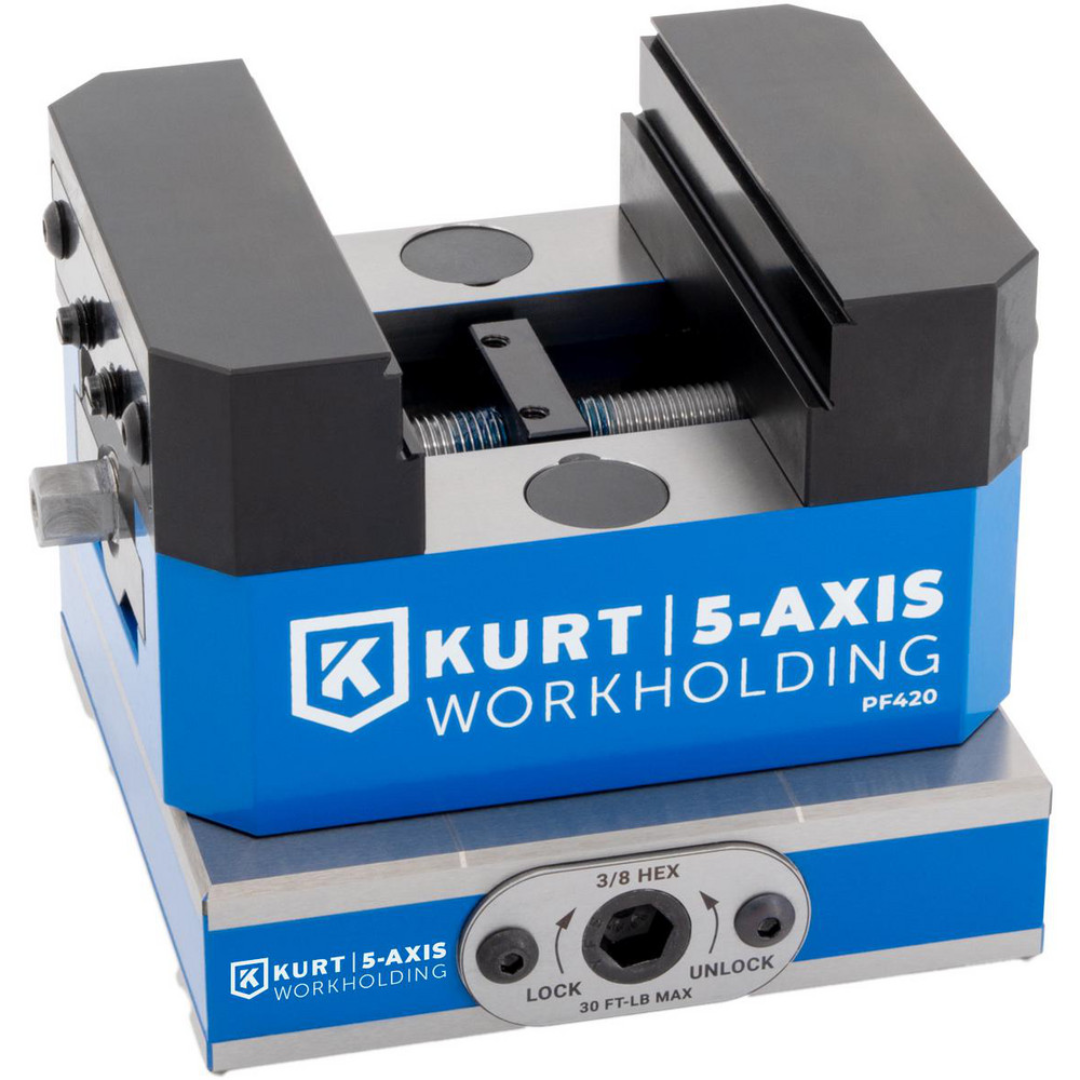

- Broad Compatibility: Designed to work with Kurt 5-Axis vises as well as compatible workholding systems from other manufacturers.
- Heavy-Duty Steel Construction: Built to withstand demanding machining conditions while maintaining dimensional stability and long-term durability.

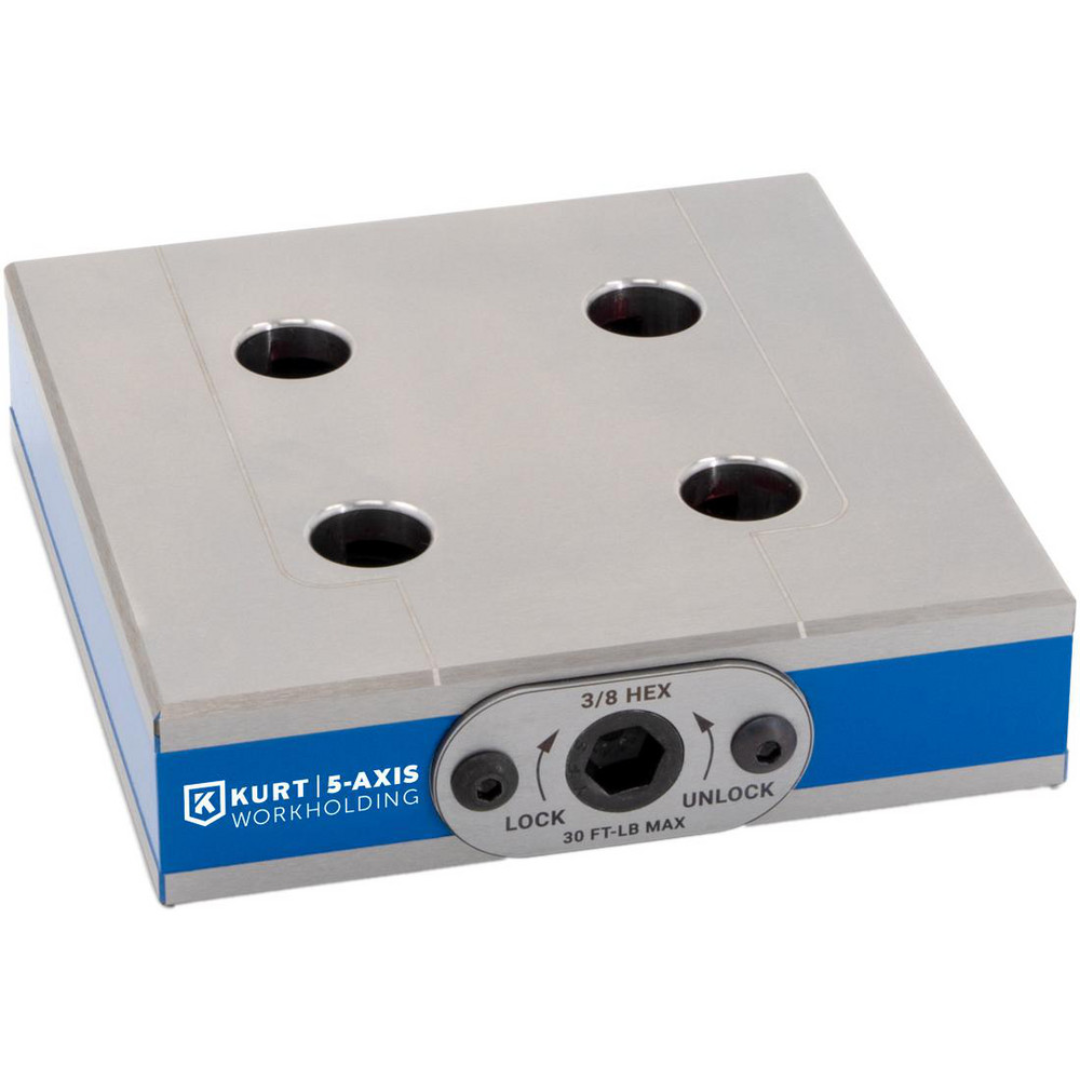

- Single-Center Module Design: Compact footprint provides a versatile mounting platform for precision vise applications.
- Complete Installation Package: Includes four pull studs and a 3/8-inch hex wrench for straightforward setup and deployment.
Why Choose the Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 64931157
- Rapid vise changes increase machine productivity and throughput.
- 0.000300-inch repeatability supports precision machining operations.
- Provides access to five sides of the workpiece for fewer setups.
- Compatible with Kurt 5-Axis vises and other supported systems.

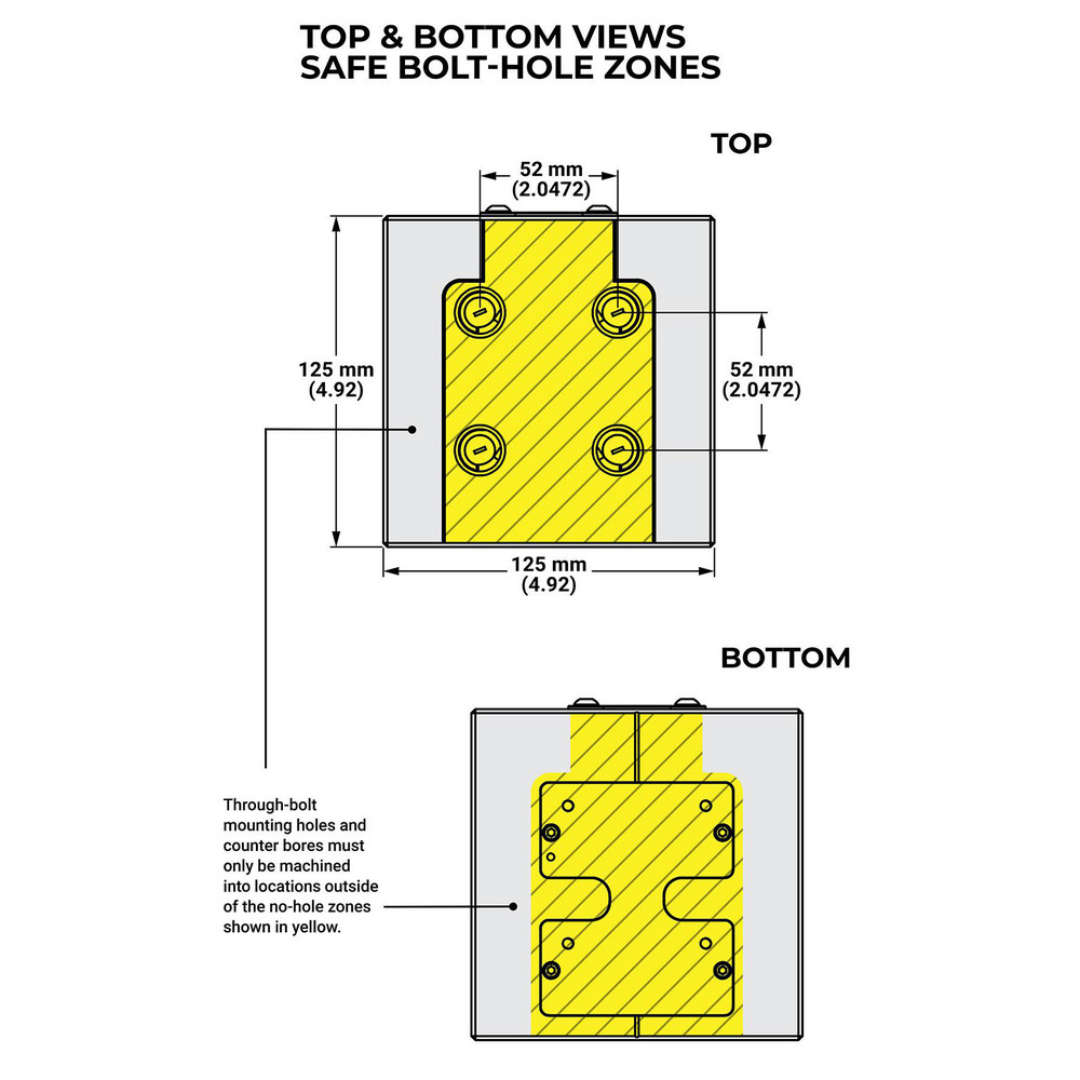

- Compact 125 mm × 125 mm footprint conserves valuable machine table space.
- Durable steel construction ensures long-term reliability in production environments.
- Includes mounting hardware and tools for immediate implementation.
- Made in the USA for trusted quality and performance.
The Kurt CNC Quick-Change Clamping Modules: Actuation Type: Manual; Number of Module Centers: 1 64931157 provides a highly efficient, repeatable, and flexible workholding solution for manufacturers seeking faster setup changes, improved machining access, and enhanced productivity in modern CNC machining operations.
