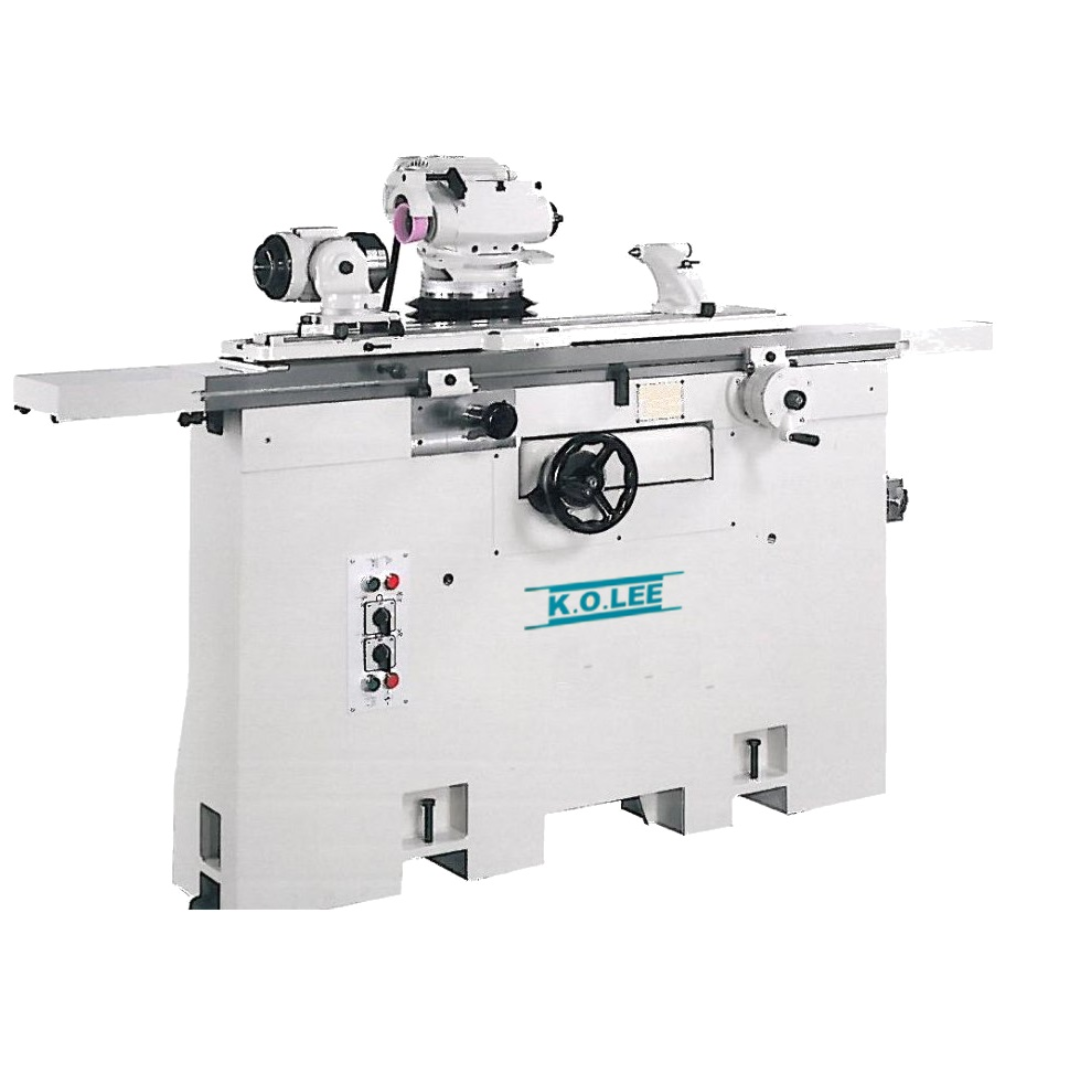

K.O. Lee Universal Tool & Cutter Grinder KOL-60M Applications
- Tool and cutter grinding for drills, end mills, and form tools
- Precision sharpening and reconditioning of cutting tools
- Grinding of complex angles, profiles, and contours
- Custom tool fabrication and prototype development
- Maintenance operations in machine shops and toolrooms
Ideal for toolmakers and machinists requiring high flexibility, precision, and multi-angle grinding capability.
K.O. Lee Universal Tool & Cutter Grinder KOL-60M Specifications
| Model | KOL-60M |
|---|---|
| Swing Over Table | 10″ |
| Distance Between Centers | 35.4″ |
| Spindle Center to Table | Max 11.8″ / Min 2.0″ |
| Spindle Center to T-Slot | Max 16.3″ / Min 6.5″ |
| Table Work Surface | 5-5/16″ × 44″ |
| Table Longitudinal Movement | 23.62″ |
| Saddle Cross Movement | 10″ |
| Workhead Vertical Movement | 10″ |
| Workhead Spindle Taper | NT#50 / MT5 |
| Spindle Speeds | 2600 / 3700 / 6200 RPM |
| Spindle Motor | 1.5 HP |
| Wheelhead Tilt | ±15° |
| Wheelhead Swivel | 360° Horizontal |
| Floor Space | 61″ × 108″ |
| Machine Weight | 2780 lbs |
| Power Supply | 230V / 3 Phase / 60Hz |
K.O. Lee Universal Tool & Cutter Grinder KOL-60M Performance & Construction
- Adjustable wheelhead tilts ±15° and swivels 360° for precise rake and relief angle grinding.
- High-precision spindle assembly supported by dual angular contact bearing pairs ensures accuracy and long service life.
- Maintenance-free spindle lubrication with grease-packed bearings eliminates routine servicing.
- Universal workhead swivels in multiple axes and accommodates NT#50 / MT5 tooling for maximum versatility.
- Extended table with fine-to-rapid feed control allows precise finishing and efficient stock removal.
- Hardened and ground slideways with anti-friction bearings provide smooth and stable movement.
- Spring-cushioned table dogs reduce shock during reversal and improve accuracy.
- Adjustable tailstocks enable flexible workpiece positioning and easy mounting.
- Centralized lubrication system ensures consistent performance and extended machine life.
- 120° swiveling table supports complex multi-angle grinding operations.
K.O. Lee Universal Tool & Cutter Grinder KOL-60M Standard Equipment
- Diamond dresser holder
- Wheel guard holders (long & short)
- Center gauge and reducing collets (3 sizes)
- Plain and universal tooth rest holders with blades
- Grinding wheels (7 sizes) and sleeves (5 sets)
- Wheel wrenches, pin wrench, and nut wrenches
- Workhead spindle center and draw-in bolt
- Spindle drive belt and balancing accessories
- Right and left hand tailstocks and universal workhead
- Wheel guards (4 units)
- Tool cabinet with tools and touch-up paint
- Leveling pads and mounting hardware
- Micrometer adjustable tooth rest
- Operation manual and parts list
- Lockable main disconnect switch
Why Choose the K.O. Lee Universal Tool & Cutter Grinder KOL-60M
- Extended table capacity for larger tooling applications
- Multi-angle grinding capability for complex geometries
- Precision spindle system for accurate and repeatable results
- Versatile workholding with universal workhead and tailstocks
- Complete tooling package for immediate operation
The K.O. Lee Universal Tool & Cutter Grinder KOL-60M is a powerful and versatile solution for toolmakers seeking precision, flexibility, and reliability in demanding grinding applications.
