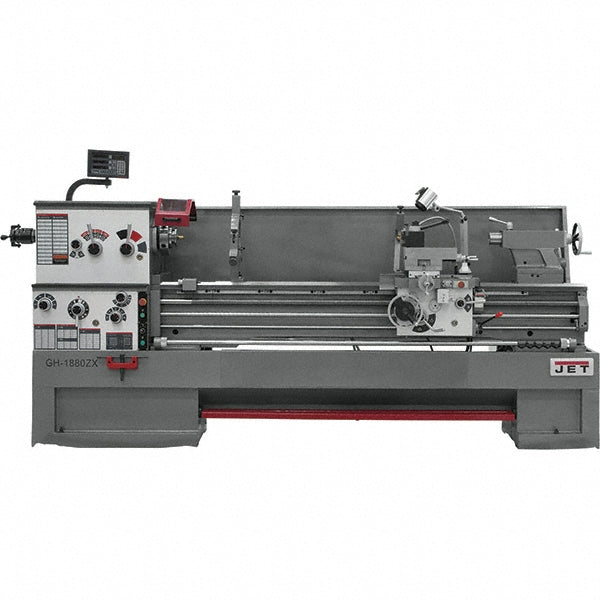

JET GH-1880ZX Lathe Applications
- Heavy industrial machining, large-diameter shaft turning, and precision bored finishing.
- Professional-grade taper machining and complex multi-pass threading workflows.
- Repeatable, high-speed collet operations tailored for efficient batch production.
- Continuous-duty operation in heavy manufacturing, oil/gas fabrication, and maintenance repair environments.
Ideal for professional machine shops requiring a fully equipped, ready-to-run geared-head lathe that combines high-torque capacity with premium digital and mechanical precision accessories.
Technical Specifications
| Stock Number | JT9-321578 |
|---|---|
| Machine Type | Toolroom Lathe |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Swing Capacities | 18" Over Bed • 11" Over Cross Slide • 12" Over Gap |
| Distance Between Centers | 80" |
| Spindle Bore / Nose | 3-1/8" Bore / D1-8 Mount (7MT Spindle Taper) |
| Speed Range | 12 Speeds: 25 – 1,800 RPM (Geared Head) |
| Threading Range | 61 Inch Threads (Up to 72 TPI) / 24 Metric Threads |
| Travels | Cross Slide: 9" • Compound: 5-1/8" • Tailstock: 6" (5MT Taper) |
| Included Accessories | Newall DP700 DRO, Taper Attachment, Collet Closer |
| Overall Dimensions (L x D x H) | 136" x 44" x 66" |
Performance & Engineering Controls
- Integrated Newall DP700 DRO: Provides high-resolution digital position feedback, streamlining setup times and ensuring repeatable accuracy on every complex project.
- Industrial Taper Attachment: Enables the production of consistent, high-fidelity tapers without repetitive, time-consuming manual offset adjustments.
- Integrated Collet Closer: Facilitates rapid work-holding changes and precise gripping on smaller diameter stock, essential for high-throughput batch production.
- Heavy-Duty Geared Headstock: Delivers positive, slip-free power transfer, essential for maintaining constant RPM under heavy roughing cuts.
- Oversized 3-1/8" Spindle Bore: Allows large-diameter bar stock and industrial piping to pass directly through the D1-8 headstock for highly efficient machining.
Why Choose This Ironline Tools Featured Lathe
- The ultimate turnkey assembly—arrives fully equipped with a premium DRO, taper attachment, and collet closer, saving hours of aftermarket installation time.
- 80 inches of center distance easily accommodates the longest drive shafts and oversized industrial components.
- 3-Phase industrial architecture integrates flawlessly into professional manufacturing power grids for relentless, continuous-duty cycles.
- Built with rigid, industrial-grade components designed to maintain strict tolerances through years of aggressive metal removal.
As a top-tier offering at Ironline Tools, the JET JT9-321578 Engine Lathe delivers the absolute pinnacle of geared-head torque, massive workpiece capacity, and all-in-one professional precision.
