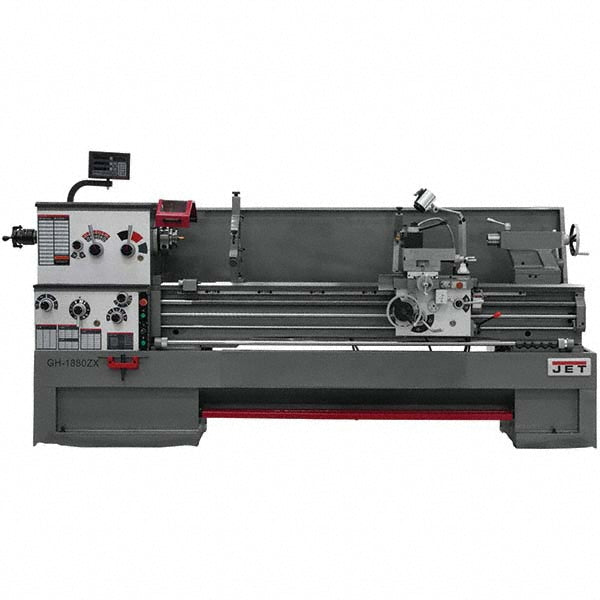

JET GH-1880ZX Lathe Applications
- Heavy industrial machining, large-diameter shaft turning, and precision bored finishing.
- Rapid, highly repeatable collet-based batch production of precision components.
- Complex multi-pass threading utilizing an expansive range of 61 Inch and 24 Metric thread pitches.
- Machining extreme-diameter components using the removable gap section (27-1/2" swing capacity).
Optimized for commercial manufacturing environments that demand massive structural rigidity, high-torque power, and rapid workflow changeovers.
Technical Specifications
| Stock Number | JT9-321583 |
|---|---|
| Machine Type | Engine Lathe - Large Spindle Bore |
| Motor Power | 7-1/2 HP |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Swing Capacities | 18" Over Bed • 11" Over Cross Slide • 27-1/2" Through Gap |
| Distance Between Centers | 80" |
| Spindle Bore / Nose | 3-1/8" Bore / D1-8 Mount (MT-7 Spindle Taper with MT-5 Sleeve) |
| Speed Range | 12 Speeds: 25 – 1,800 RPM (Geared Head) |
| Threading Options | 61 Inch Threads (1-5/8 to 72 TPI) / 24 Metric Threads (0.05 to 20 mm) |
| Travels | Carriage: 74-5/16" • Cross Slide: 9" • Compound: 5-1/8" • Tailstock: 5" |
| Machine Mass | Net / Gross Weight: 6,790 lbs |
| Included Upgrades | Newall DP700 DRO, Integrated Collet Closer System |
Performance & Engineering Controls
- Universal Gearbox: Allows operators to seamlessly transition between threading and feed rates without the downtime of manually swapping gears.
- One-Piece Cast Iron Base: Delivers superior dampening of structural harmonics over standard multi-piece beds, translating to flawless surface finishes under heavy feed rates.
- Five-Position Automatic Carriage Stop: Maximizes productivity and exact repeatability during long manufacturing runs.
- Operator Safety Features: Outfitted with an e-stop on the carriage, a large easy-to-use foot brake, and an electronic chuck key holder that disables power unless the key is safely docked.
- Oversized 3-1/8" Spindle Bore: Maximizes machining versatility by allowing massive bar stock and specialized tooling setups to pass completely through the D1-8 headstock.
Why Invest in This ZX-Series Lathe Package
- The ultimate turnkey heavy-duty assembly—arrives fully equipped with a Newall DP700 DRO and a collet closer system for immediate shop floor integration.
- Nearly 6,800 pounds of raw cast iron mass paired with a 7.5 HP motor provides the unyielding power necessary for aggressive material removal.
- Included 10" three-jaw scroll chuck with top reversing jaws and large capacity steady rest (with ball bearing tips) ensure secure work holding right out of the crate.
- Backed by the reliable JET Red Assurance 2-Year Warranty for complete professional peace of mind.
This JET GH-1880ZX package delivers the pinnacle of industrial size, massive torque, and precision toolroom accessories for the Ironline Tools professional.
